Cervis SmaRT Link Booster User manual

©2020 Cervis, Inc.
Link Booster™
User Manual
U090.0.0
™

SmaRT Link Booster
This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express
prior written consent of Cervis, Inc.
Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.
FCC Statements
15.19 –Two Part Warning
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.
15.21 –Unauthorized Modification
NOTICE: The manufacturer is not responsible for any unauthorized modifications to this equipment made by the user. Such modifications could
void the user’s authority to operate the equipment.
15.105(b) –Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Industry Canada Statement
This device complies with RSS-210 of Industry Canada.
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits
for the general population; consult Safety Code 6, obtainable from Health Canada’s website https://www.canada.ca/en/health-
canada/services/environmental-workplace-health/reports-publications/radiation/safety-code-6-health-canada-radiofrequency-exposure-guidelines-
environmental-workplace-health-health-canada.html.
Le présent appareil est conforme à la norme CNR-210 d'Industrie Canada.
Le programme d’installation de cet équipement radio doit s’assurer que l’antenne est située ou fait telle qu’elle n’émet pas de champ RF dépassant les
limites de Santé Canada pour la population générale ; consulter le Code de sécurité 6, disponible auprès de Santé Canada site Web
https://www.canada.ca/en/health-canada/services/environmental-workplace-health/reports-publications/radiation/safety-code-6-health-canada-
radiofrequency-exposure-guidelines-environmental-workplace-health-health-canada.html.
Industry Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
IC Unlicensed Devices EIRP Statements for Removable Antennas
Part 1: Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Partie 1 : Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal
(ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
Part 2: This radio transmitter (LOBSRF-305) has been approved by Industry Canada to operate with the antenna type listed below with the
maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a
gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Partie 2 : Cet émetteur radio (LOBSRF-310) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant
un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est
supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
RoHS Compliance Statement
Cervis, Inc. complies with the requirements of Restriction of Hazardous Substances (RoHS/WEEE) Specification based on in-house practice and
declaration of compliance from our vendors. For additional information concerning RoHS compliance, please contact Cervis, Inc. at:
CERVIS, Inc.
170 Thorn Hill Road Warrendale, PA 15086
Phone: [phone] Fax: [phone]
This product may contain material that may be hazardous to human health and the environment. In
compliance with EU Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE):
✓Do not dispose of the product as unsorted municipal waste.
✓This product should be recycled in accordance with local regulations. Contact local
authorities for detailed information.
✓
This product may be returnable to the distributor for recycling. Contact your distributor
for details.

User Manual
. ©2020 Cervis, Inc.
i
Table of Contents
Table of Contents.......................................................................................................................... i
List of Figures ............................................................................................................................... i
Cervis, Inc. Safety Precautions .................................................................................................. ii
1.0 SmaRT Link Booster (SLB) Introduction........................................................................... 1
1.1 SmaRT Link Booster Features ........................................................................................ 1
2.0 Installing “C” Cell Batteries ................................................................................................ 3
3.0 Choosing the Battery........................................................................................................... 4
4.0 SLB Indicators...................................................................................................................... 5
4.1 Battery Strength................................................................................................................ 5
4.2 Handheld and Base Unit Signal Strength Indications .................................................. 6
4.3 Handheld and Base Unit Serial Number Indications..................................................... 6
5.0 Using the SLB....................................................................................................................... 8
5.1 SLB Power On................................................................................................................... 8
5.2 SLB Power Off................................................................................................................... 8
5.3 Establish SLB Communications Using Scan................................................................. 8
6.0 SmaRT Link Booster Specifications................................................................................ 11
List of Figures
Figure 1. SmaRT Communications Link Booster .......................................................................1
Figure 2. SmaRT Link Booster Tripod Bracket ...........................................................................2
Figure 3. Installing the SLB Batteries ..........................................................................................3
Figure 4. Choosing a Battery ........................................................................................................4
Figure 5. SLB LED Indicators........................................................................................................5
Figure 6. Battery Status.................................................................................................................5
Figure 7. Signal Strength Indication ............................................................................................6
Figure 8. SLB Handheld Serial Number.......................................................................................7
Figure 9. SLB Power On ................................................................................................................8
Figure 10. SLB Power Off..............................................................................................................8
Figure 11. Using Scan to Establish the Link .............................................................................10

SmaRT Link Booster
U090.0.0
ii
Cervis, Inc. Safety Precautions
✓Read and follow all instructions.
✓Failure to abide by Safety Precautions may cause equipment failure, loss of authority
to operate the equipment, and personal injury.
✓Use and maintain proper wiring. Follow equipment manufacturer instructions.
Improper, loose, and frayed wiring can cause system failure, equipment damage, and
intermittent operation.
✓Changes or modifications made to equipment not expressly approved by the
manufacturer will void the warranty.
✓Equipment owner/operators must abide by all applicable Federal, State, and Local
laws concerning equipment installation and operation. Failure to comply could result
in penalties and could void user authority to operate the equipment.
✓Make sure that the machinery and surrounding area is clear before operating. Do not
activate the remote control system until you are certain that it is safe to do so.
✓Turn off the handheld remote and remove power from the base unit before attempting
any maintenance. This will prevent accidental operation of the controlled machinery.
✓Remove power from the Base Unit either by detaching the 12-pin cables from the
base unit connectors P1 and P2, or by removing the source power from the circuit.
✓Use a damp cloth to keep units clean. Remove mud, concrete, dirt, etc., after use to
prevent obstructing or clogging the buttons, levers, wiring, and switches.
✓Do not allow liquid to enter the handheld or base unit enclosures. Do not use high-
pressure equipment to clean the handheld remote or base unit.
✓Disconnect the radio base unit before welding on the machine. Failure to disconnect
the base unit may cause destruction of or damage to the base unit.
✓Operate and store units only within the specified operation and storage temperatures
defined in this document’s specifications.
✓Do not key two-way radios while using the handheld remote.

User Manual
1.0 SmaRT Link Booster (SLB) Introduction
The SmaRT Link Booster (SLB) is a 900 MHz@10 mW or 2.4 GHz @ 100 mW line-of-sight
communications booster designed to extend the communication range between a 900 MHz
SmaRT remote control unit and a 900 MHz SmaRT base unit or a 2.4 GHz SmaRT remote
control unit and a 2.4 GHz SmaRT base unit. The SmaRT Link Booster is particularly useful
when the handheld remote and the base unit are not in line-of-sight of each other, in which case
the SLB is positioned so that it is in line-of-sight of each unit—at the corner of a structure, for
instance—where the structure would typically block communications between the handheld and
the base unit.

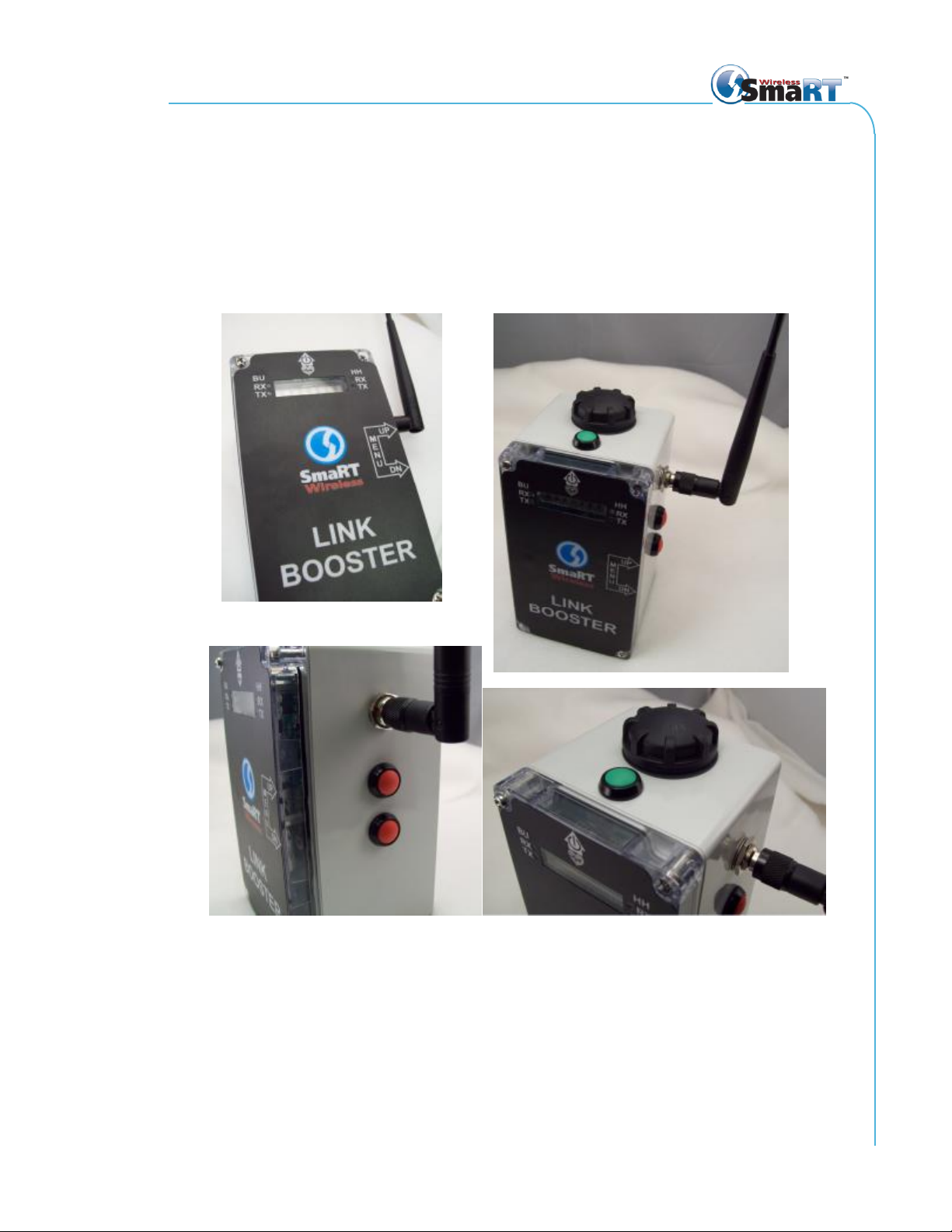

Figure 1. SmaRT Communications Link Booster
The SLB comes with four magnets installed inside the back of the case that can be used to
attach the unit to any ferrous surface. Two single-use or rechargeable “C”cell batteries power
the SLB. The SLB allows users to select the type of battery preferred. The removable swivel
antenna can be oriented as vertical, at a 45° angle, or at 90° allowing optimal signal strength.
1.1 SmaRT Link Booster Features
•Powered by two single-use or rechargeable “C” cell batteries

SmaRT Link Booster
U090.0.0
2
•Significantly extends the communications link between the handheld remote and the target
base unit
•Able to communicate line-of-sight around obstacles with proper line-of-sight to devices’
positioning
•Magnetic back allows the unit to be easily attached and removed from flat ferrous surfaces
•Optional steel back-plate adapter fits a standard camera style tripod/support device
•Light-emitting diode (LED) indicators for handheld and base unit TX (transmit) and RX
(receive) indicate message transmit and receive activity
•Active channel menu page
•Handheld and base unit radio frequency (RF) signal strength menu pages
•Handheld and base unit serial number menu page
•Operates at 2 Vmin to 4.5 Vmax
•Eight-character LED display
•900 MHz @ 10mW broadcast
•2.4 GHz @ 100 mW broadcast
•Health LED
•Battery life (%) menu page
Figure 2. SmaRT Link Booster Tripod Bracket

User Manual
. ©2020 Cervis, Inc.
3
2.0 Installing “C” Cell Batteries
Typically, two single-use or rechargeable “C”cell batteries power the SLB. Follow these steps to
install the power source in the SLB.
1. Remove the battery cradle cover.
2. Insert two single-use or rechargeable “C”cell batteries into the cradle, negative
end first.
3. Install the battery cradle cover by pushing against the positive end of the
exposed battery with the cover while turning the cover clockwise until it is fully
seated.
Figure 3. Installing the SLB Batteries
Caution!
Observe proper polarity when placing batteries into the
cradle. Improper battery placement can cause excessive
heat, battery explosion, operator injury, and damage to
the unit.
Two “C” Cell Cradle
or Li-ion Battery Pack
Alkaline C Cell
Alkaline C Cell
Insert

SmaRT Link Booster
U090.0.0
4
3.0 Choosing the Battery
You must select an initial battery, due to the voltage differences between standard single-use
and rechargeable batteries. Make this selection whenever you change to a different stylebattery
–alkaline to Lithium Ion, or Lithium Ion to alkaline. Follow these steps to choose which battery is
used.
1. Power down the SLB by holding Power button for three seconds. The display will
be unlit.
2. Simultaneously press and hold the UP and DOWN buttons. Then, press and
release the green power button. The display will read BAT MENU.
3. Simultaneously release Buttons 1 and 2. The display will read =A =LI.
4. Select to choose single-use (alkaline) batteries. Select to choose
rechargeable (Lithium Ion) batteries.
The SLB immediately changes to the selected battery and will remain in service until shut down.

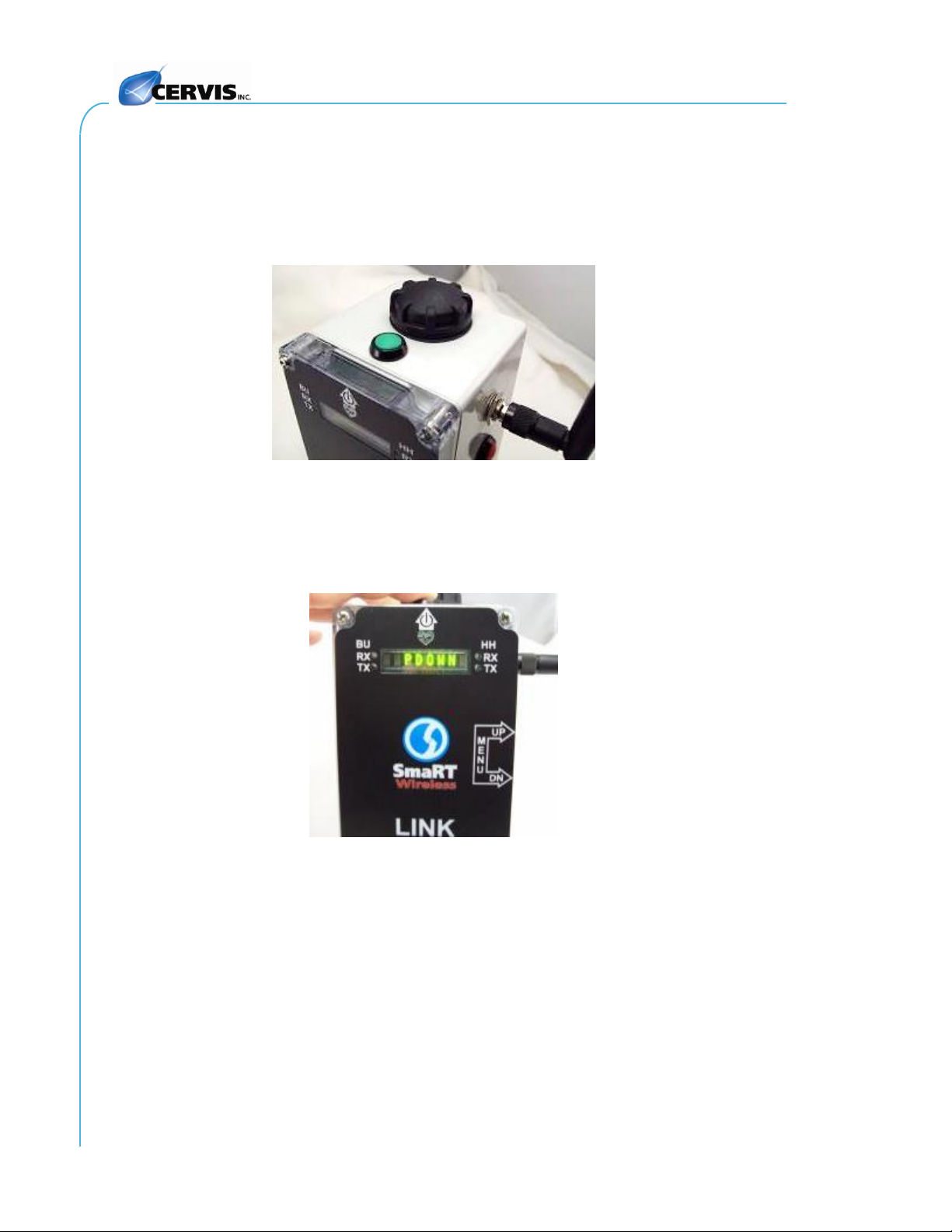

Figure 4. Choosing a Battery
Successful Battery Type
Selection
Step 2
Step 4
UP
DOWN
POWER

User Manual
. ©2020 Cervis, Inc.
5
4.0 SLB Indicators
Figure 5. SLB LED Indicators
4.1 Battery Strength
While under normal operation, you can see the battery strength (power left) in the Menu system
as a percentage of 100, where “100%”indicates full charge.
To see the battery strength:
1. Enter the menu system by holding the UP and DOWN buttons for approximately
three seconds, until “MENU”displays.
2. Cycle through the menu pages using the UP or DOWNbuttons until the battery
status page displays, as illustrated in Figure 6.
3. Exit the menu system by simultaneously pressing the UP and DOWNbuttons
when satisfied.
Figure 6. Battery Status
SLB
Handheld Messages
“RX” flashes when
receiving.
“TX” flashes when
transmitting.
Health LED blinks ON and OFF when
operating under normal conditions.
SLB
Base Unit Messages
“RX” flashes when
receiving.
“TX” flashes when
transmitting.

SmaRT Link Booster
U090.0.0
6
 Note: Observe all state, federal, and local disposal laws when disposing of used batteries.
4.2 Handheld and Base Unit Signal Strength Indications
While under normal operation, you can see handheld and base unit received signal strength
indication (RSSI) values using the Menu system.
To view the values:
1. Hold the UP and DOWN buttons for approximately three seconds, until “MENU”
displays.
2. Use the UP and DOWN buttons to cycle through the pages until HH SS ## or BU
SS ## displays, as shown in Figure 7. Larger numbers indicate higher signal
strength.
3. Exit the Menu system by simultaneously pressing the UP and DOWN buttons
when satisfied.
Figure 7. Signal Strength Indication
4.3 Handheld and Base Unit Serial Number Indications
While in normal operation, you can display the handheld remote and base unit serial numbers
using the SLB Menu system.
To view the serial number:
1. Hold the UP and DOWN buttons for approximately three seconds, until “MENU”
displays.
2. Use the UP or DOWN button to cycle to the pages displaying a six-digit
hexadecimal number, as shown in Figure 8.
a. Base unit serial number: Displayed number with leading 00####.
b. Handheld remote serial number: Displayed number with leading 80####.
3. Press both the UP and DOWNbuttons to exit MENU.

User Manual
. ©2020 Cervis, Inc.
7
Figure 8. SLB Handheld Serial Number

SmaRT Link Booster
U090.0.0
8
5.0 Using the SLB
5.1 SLB Power On
Turn on the SLB by pressing the green power button located on top of the unit, next to the
battery tube cover. To conserve power, the unit shuts off the display when it is not in either scan
mode or menu mode. A blinking health indicator indicates that the unit is, in fact, powered on.
The TX and RX LEDs flash if the unit is paired with a HH and BU system.
Figure 9. SLB Power On
5.2 SLB Power Off
Turn off the SLB by pressing and holding the power button for three seconds. “PDOWN”
displays, goes out, and displays again. When the user releases the power button, the unit
powers down.
Figure 10. SLB Power Off
5.3 Establish SLB Communications Using Scan
The SLB must initially be set to scan for an associated handheld and base unit before it
communicates with them. The SLB establishes the communication links once it scans and finds
the system.
•If a handheld/base unit system is already associated (see your system manuals for details),
immediately use the scan feature to establish communications with the system.
•If the handheld/base unit that are going to be used as a system are not associated, then
use the Associate procedure detailed in the handheld remote manual or system manual
before using SLB scan.

User Manual
. ©2020 Cervis, Inc.
9
Scan to Establish Communications
The SLB must initially scan for the system before it can be used. For the following steps,
assume that the handheld remote and base unit comprising the system are already associated.
Use the following instructions to scan for the system:
1. Turn on (power up) the handheld, base unit, and SLB with all devices in line of
sight of and near the SLB.
2. Press and hold the SLB UP button for three seconds.
3. When the SLB display reads “SCAN,”release the UP button, and wait while the
unit scans each channel. It will scan until if finds a valid message.
4. When the unit finds a valid message, it displays the Base Unit ID. (The Base Unit
ID is on the base unit’s front label.)
a. If the ID is the one you want, press the UP button to use this unit pair. The SLB exits
scan mode.
b. If the displayed ID isn’t the unit you desire, press the DOWN button. The SLB
continues to scan.
✓ Note: With multiple SmaRT Systems running, it is possible that a scan will list more than one
unit.
5. When the Link Booster is finished scanning each channel, it displays “DONE”.
Press the DOWNbutton to exit scan mode.
If the SLB found an acceptable base unit ID, the SLB Handheld TX/RX and Base Unit TX/RX
LEDs flash, indicating communications.
If the SLB did not find an acceptable base unit ID, the SLB Handheld and Base Unit LEDs
remain unlit–unless a previously established existing pair is on.

SmaRT Link Booster
U090.0.0
10
Figure 11. Using Scan to Establish the Link
Step 2
Step 3
Step 4

User Manual
. ©2020 Cervis, Inc.
11
6.0 SmaRT Link Booster Specifications
Table 1. SmaRT Link Booster Specifications
Item
Description
Power
Vin
Batteries
+2 V to +4.5 VDC
Two “C”Cells –Single-use (2 V–3.3 V) or Rechargeable (3.3–4.5
V)
Environment
Operating Temp
Storage Temp
Humidity
–40° C to 70° C (–40° F to 158° F)
–40° C to 70° C (–40° F to 158° F)
0 to 100%
Radio
RF
License
Modulation
Antenna
906–924 MHz @10 mW
2.405–2.480 GHz @100 mW
None required
Direct Sequence Spread Spectrum (DSSS)
External
Enclosure
(Designed to IP67
Standards)
Dimensions
Weight
Durability
Magnets
inch: 6 x 3 x 3¼ Antenna (inch): 85/16
mm: 152.4 x 76.2 x 82.55 (mm): 211.14
SLB with antenna 1.6 lbs. (0.723 kg)
Tripod mounting plate 0.70 lbs. (0.32 kg)
High-Impact Polymer case
Four
Indicators
LEDs
Five green total:
Two Handheld TX, RX
Two Base Unit TX, RX
One Health Indication
Control Switches
Buttons
Three pushbuttons
Display
LED
Eight characters

SmaRT Link Booster
U090.0.0
12
Visit our Web site at:
www.cervisinc.com
©
2020 Cervis, Inc. All rights reserved. Content is subject to change without notice.
