Gefen CAT5-9500HD User manual

CAT5 • 9500HD
USER MANUAL
www.gefen.com

Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
[email protected]
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
CAT5•9500HD is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE

TABLE OF CONTENTS
INTRODUCTION
CONNECTING AND OPERATING THE CAT5•9500HD
CAT5•9500HD FRONT PANEL DESCRIPTIONS
CAT5•9500HDS BACK PANEL LAYOUT
CAT5•9500HDS BACK PANEL DESCRIPTIONS
CAT5•9500HDR BACK PANEL LAYOUT
CAT5•9500HDR BACK PANEL DESCRIPTIONS
CAT5 WIRING DIAGRAM
SERVICE SWITCH USAGE GUIDE
WIRING DIAGRAM
TROUBLESHOOTING
TERMINOLOGY
SPECIFICATIONS
WARRANTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Thank you for purchasing the new CAT5•9500HD series by Gefen, Inc.
The CAT5•9500HD by Gefen allows users the benefits of extending DVI, USB 1.1, PS/2,
RS232, and audio signals beyond the desktop. In a growing number of applications,
broadcast stations and production facilities there is a need to locate a computer remotely
from the keyboard, mouse, and video monitor. A CPU may need to be shared between
several users, for example, or moved to another room because of annoying fan noise.
The CAT5•9500HD series can be used to extend computers with noisy fans, printers, and
harddrives.Withthe potentialto coverthe distanceof 200feet, industrystandard Category
5e(CAT-5e)cables areusedfor theextensionofallthe devices.Onecan connectadditional
CAT5•9500HD series to the same computer, allowing access to the same computer from
other locations up to 200 feet apart.
Lengths and Distances Supported:
Up to 200 Feet....................................................................................1280x1024 @ 60Hz
Up to 150 Feet....................................................................................1920x1200 @ 60Hz
CONTENTS
The CAT5•9500HD system consists of:
(1) CAT5•9500HDS sender unit
(1) CAT5•9500HDR receiver unit
(2) 5VDC power supply
(1) DVI cable (6FT)
(2) PS/2 cable (6FT)
(1) Audio cables (6FT)
(1) USB cable (6FT)
(1) Rack ears
(1) User Manual
HOW IT WORKS
Inits most basicapplication, theCAT5•9500HDS senderunitresides nextto thecomputer.
Supplied with the system, DVI, USB 1.1, PS/2, and audio cables connect the computer to
the CAT5•9500HDS sender unit.
The CAT5•9500HDR receiver unit are placed next to the monitors and keyboard, mouse,
speakers, and RS232 devices, at the remote location. The monitor, keyboard, mouse, and
other devices are connected to the CAT5•9500HDR similar to the way they are connected
to the back of the computer (PC or Macintosh).
INTRODUCTION
1

READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE CAT5•9500HD SYSTEM
• Use industry standard Category 5e (CAT-5e) cable to operate the CAT5•9500HD
system.
• Please connect all the cables between the computer and the CAT5•9500HDS before
power up the CAT5•9500HDS unit.
• The CAT5•9500HD units are housed in a metal box for better RF shielding.
CONNECTING AND OPERATING THE CAT5•9500HD
2
How to Connect the CAT5•9500HD Extender to your devices
1 Connect the supplied cables from the computer outputs into the CAT5•9500HD Sender
unit inputs. Only the peripherals being extended need to be connected.
2Connect the cable from your display (monitor or projector) into the DVI out of the
CAT5•9500HD Receiver unit.
3 Connect the cables from your peripherals into their respective outputs on the
CAT5•9500HD Receiver unit.
4 Connect two CAT-5e cables for video and USB extension on the CAT-5 Video and
CAT-5 DDC channel. Two CAT-5e cables are required for video extension.
5 Connect one CAT-5e cable for audio extension and another CAT-5e for PS/2 and
RS-232 extension.
6 Plug the 5VDC power supplies into the CAT5•9500HD Sender and Receiver unit.

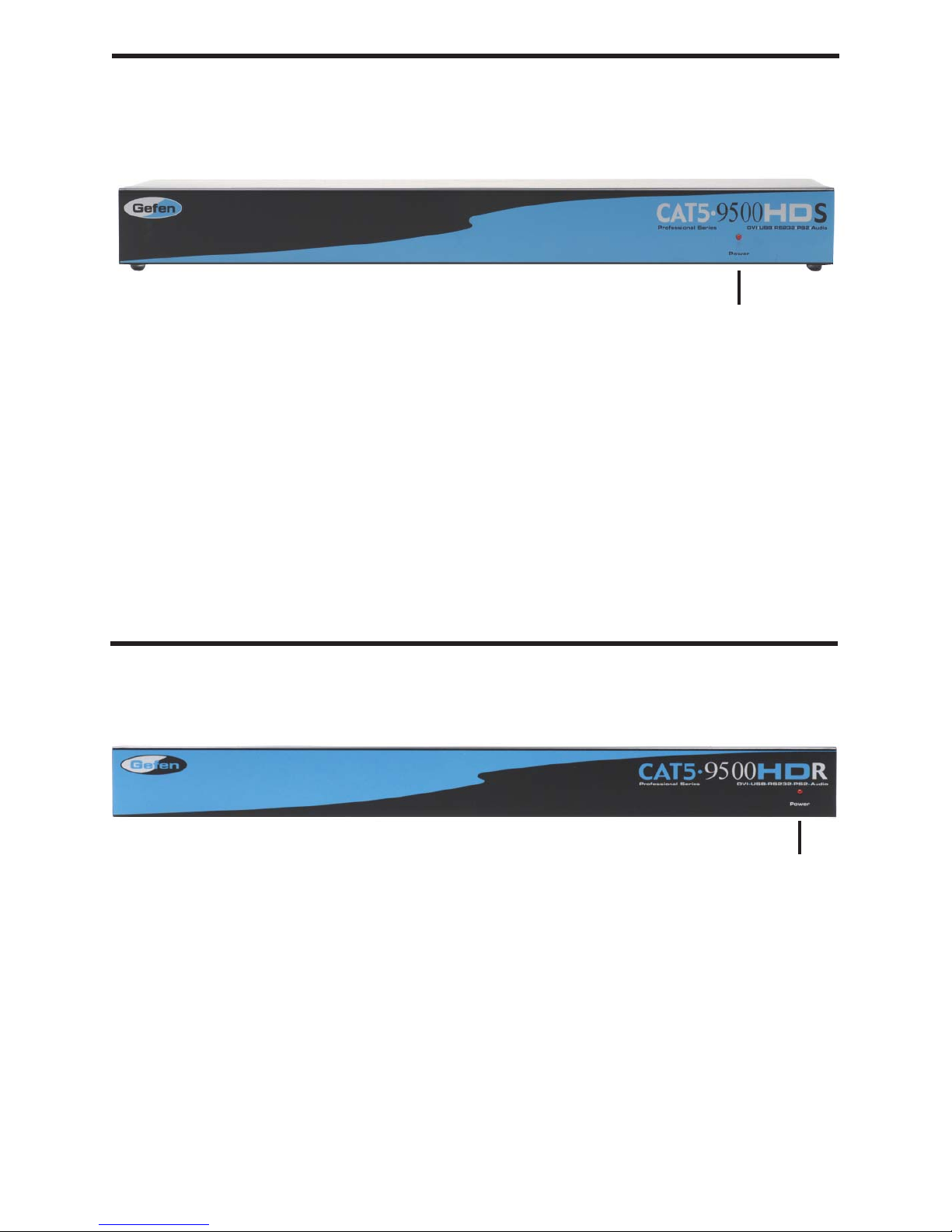

Front Panel Function Description
1
POWER ON INDICATOR - Indicates that the unit is plugged in and powered on
1
CAT5•9500HDS FRONT PANEL DESCRIPTIONS
3
Front Panel Function Description
POWER ON INDICATOR - Indicates that the unit is plugged in and powered on
1
CAT5•9500HDR FRONT PANEL DESCRIPTIONS
1

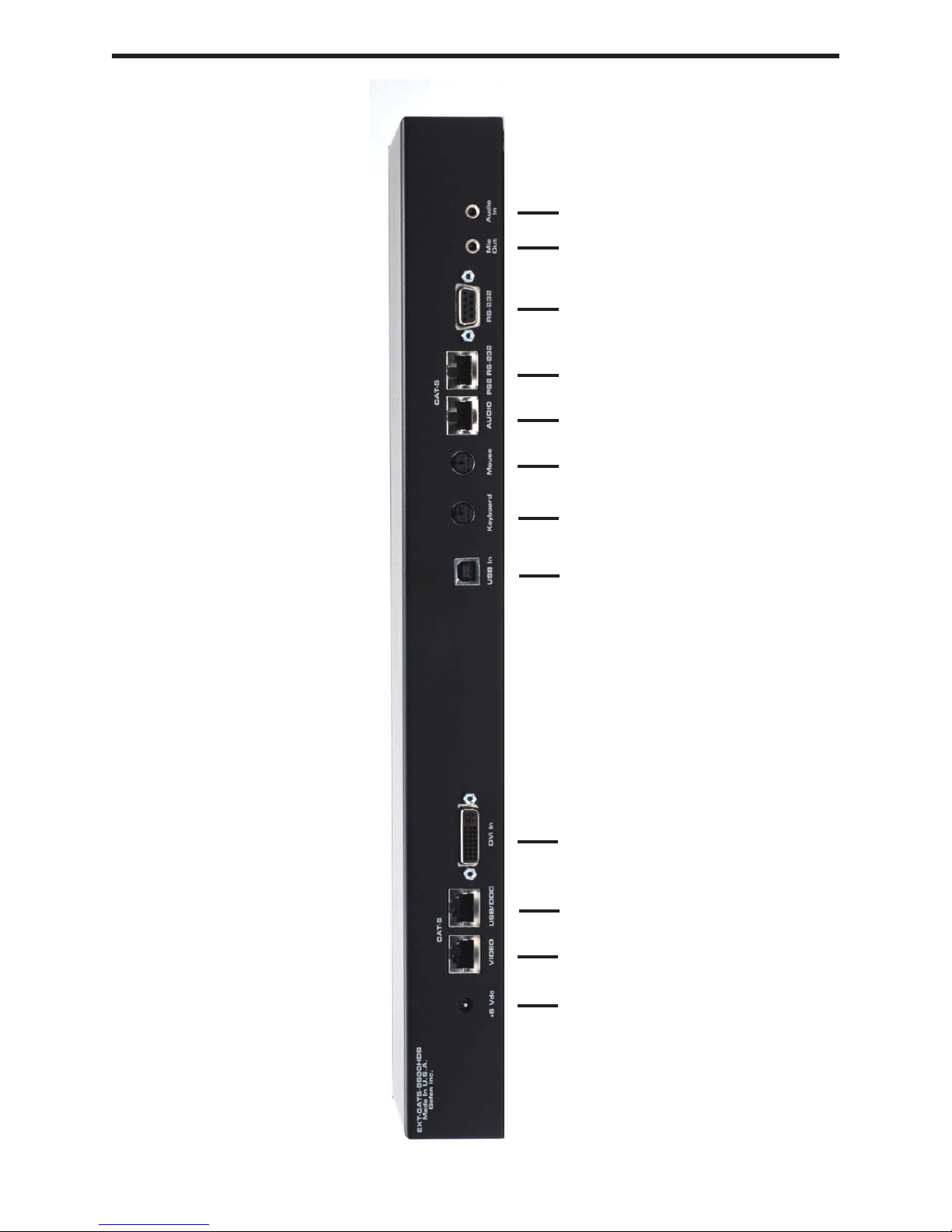

CAT5•9500HDS BACK PANEL LAYOUT
4
1 2 345678 9 10 11 12

CAT5•9500HDS BACK PANEL DESCRIPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
5
POWER - 5 VDC external power supply
CAT5 Video - RJ-45 input extends DVI input with CAT-5 cable
CAT5 USB/DDC - RJ-45 input extends USB and DDC signals with CAT-5 cable
DVI IN - DVI Input connects to your computer with the supplied DVI cable
USB IN - USB input from computer
KEYBOARD - Mini din PS/2 connector connects to PC for keyboard controls
MOUSE - Mini din PS/2 connector connects to PC for mouse controls
CAT-5 AUDIO - RJ-45 input extends audio out and audio in with CAT-5 cable
CAT-5 SERIAL PS/2- RJ-45 input extends RS232, and PS/2 keyboard and mouse
with CAT-5 cable
RS232 - DB-9 input from computer
AUDIO OUT - Audio Mini Jack input from computer
AUDIO IN - Audio Mini Jack input from computer

CAT5•9500HDR BACK PANEL LAYOUT
6
1 2 34 5 6 78 9 10 11 12

1
2
3
4
5
6
7
8
9
10
11
12
CAT5•9500HDR BACK PANEL DESCRIPTIONS
7
POWER - 5 VDC external power supply
CAT5 USB/DDC - RJ-45 input extends USB and DDC signals with CAT-5 cable
CAT5 Video - RJ-45 input extends video input with CAT-5 cable
DVI OUT - DVI output connects to the monitor for local video
USB Out - USB Output to devices
KEYBOARD - PS/2 output connects to the keyboard
MOUSE - PS/2 output connects to the mouse
CAT-5 AUDIO - RJ-45 input connects CAT-5 cable to receive extended audio in and
audio 2 signals
CAT-5 SERIAL PS/2 - RJ-45 input connects CAT-5 cable to receive extended
RS-232 and PS/2 signals
RS232 - DB-9 connector connects to RS-232 devices
AUDIO IN - Audio mini jack connects to microphone
AUDIO OUT - Audio mini jack connects to speakers

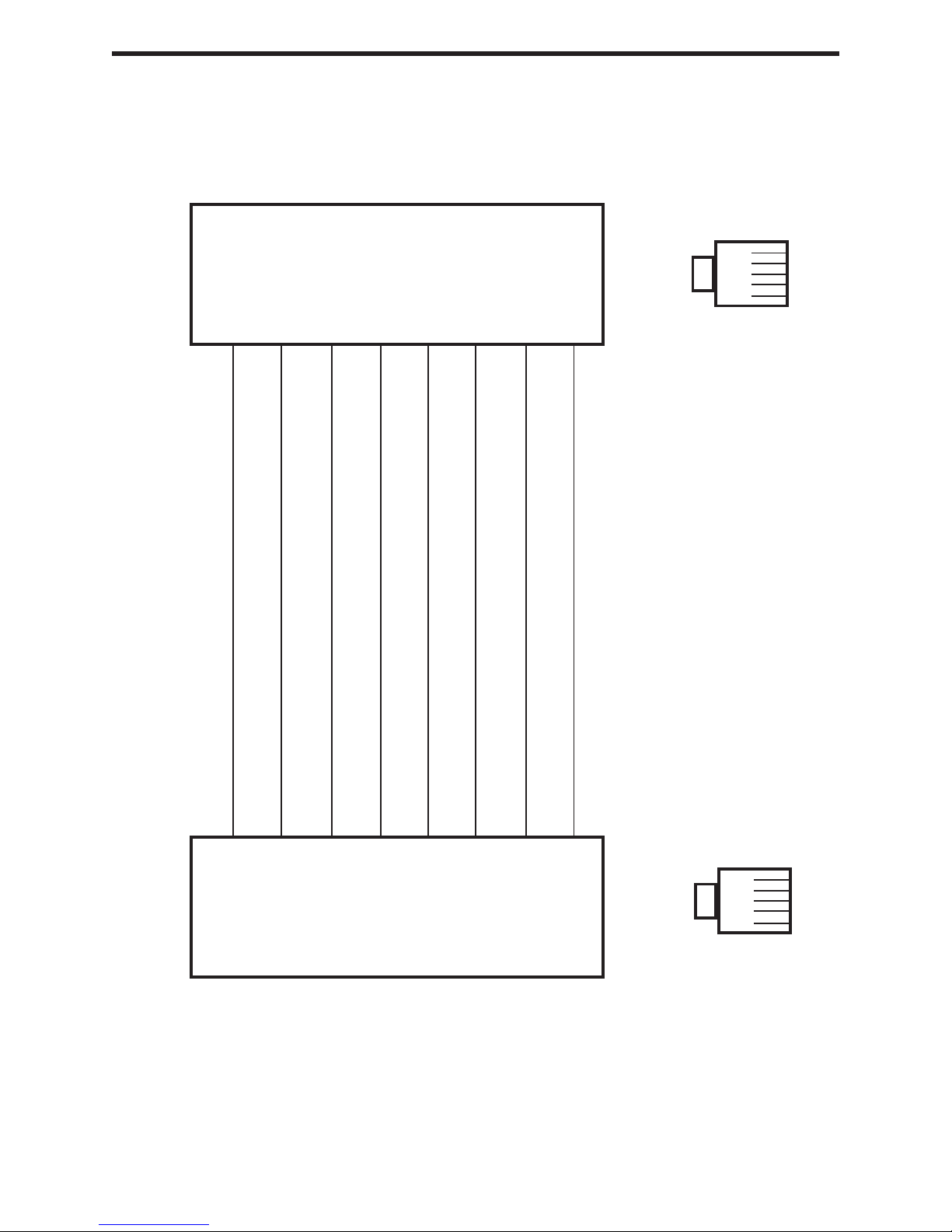

White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
RJ-45 Jack RJ-45 Jack
2 3 4 5
6
7 8 1
2 3 4 5
6
7 8 1
1818
CAT5 WIRING DIAGRAM
8

SERVICE SWITCH USAGE GUIDE
9
Gefen CAT5 HD products (sender and receiver) both contain a pair of service switches
(also called dip switches) located underneath the unit. These service switches are
used to select from sets of configurations that will equalize the signal to best match
the conditions in your setup. For the CAT5•9500HD, there is 1 set of switches for the
monitor under both the sender and receiver units. The switches are hidden beneath
black stickers. Each bank of dip switches have 4 switches. Switches 3 and 4 are not
used. (*Note: Adjustments should be done with sources and display on.)
Sender Dip Switch Settings
Setting Switch 1 Switch 2
No Boost OFF ON
Normal Boost (Default) OFF OFF
Strong Boost ON OFF
Undefined ON ON
Receiver Dip Switch Settings
Setting Switch 1 Switch 2
No EQ (Default) OFF OFF
EQ Setting 2 ON OFF
EQ Setting 3 OFF ON
Maximum EQ ON ON
Adjustment Guidelines:
1) Strong boost should not be used on stranded cables. Strong boosting will cause
pixels or no picture on these cables.
2) Using the wrong settings will not damage the units; it will either produce no
image or a noisy image.
3) To eliminate the possibility of cross talk and interference, cables must be
terminated with 568B scheduling. (See page 8 for details)

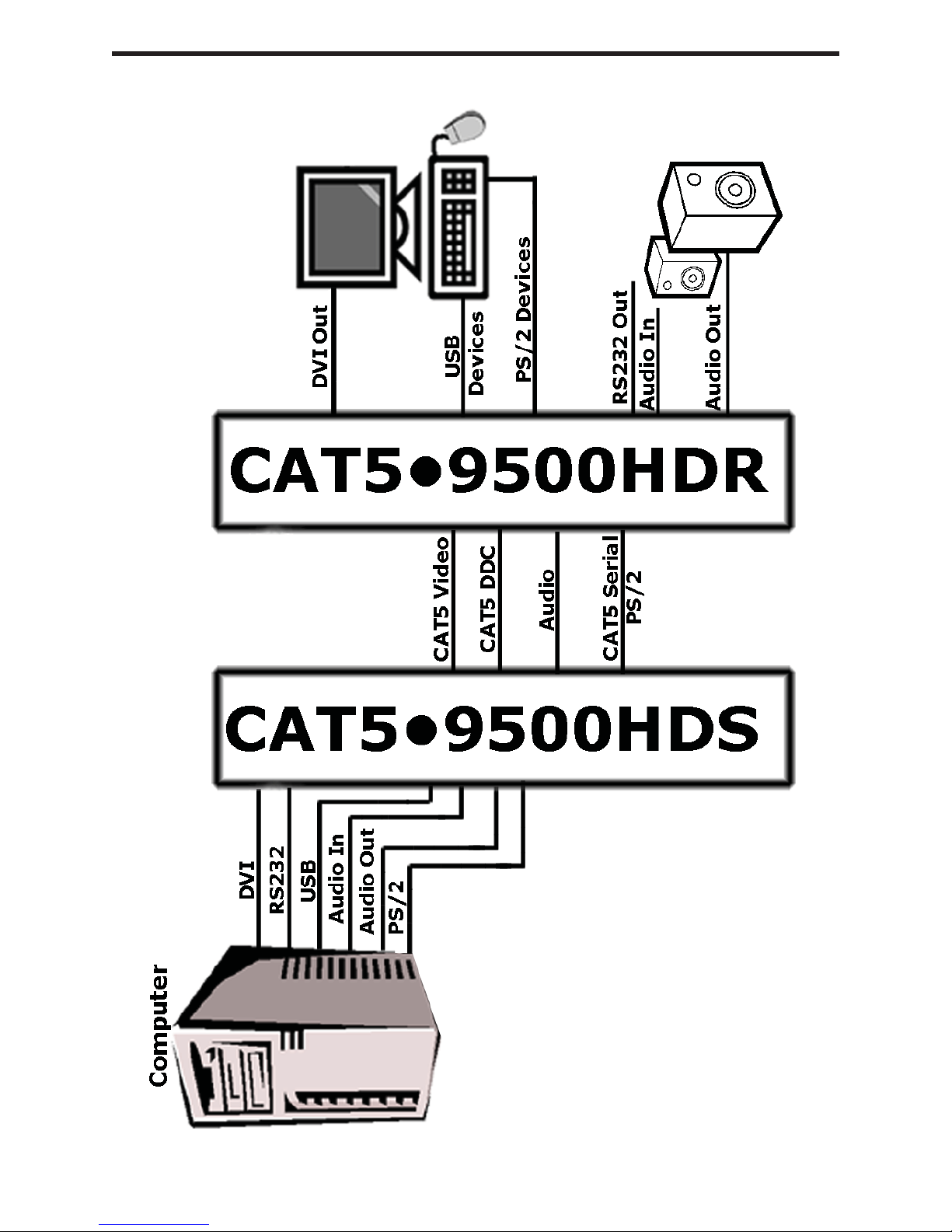

WIRING DIAGRAM
10

Frequently Asked Questions
What kind of CAT-5e cable should I be using?
Solid core CAT-5e cable rated at 350 Mhz and terminated in 568a or 568b is the
minimum requirement. For resolutions greater than 1280x1024 or 1080i, Gefen
recommends solid CAT-6 cables.
I’m getting no video on the screens, what can I check?
First thing to check is make sure that the video CAT5 is linked to the other video CAT5 port
andthe samewiththe DDCports.Test tomake suretheunits areworking withshort CAT-5e
cables 15-20 feet. You can also make sure you have the correct boost setting configured
(refer to page 9).
I’m getting no video on the screens using ADC to DVI adapters, what is wrong?
ADC to DVI adapters remove the necessary 5V line that the extenders require on the input
to operate. To enable the 5V you will need to open up the sender unit. Next to each DVI/
HDMI input connector will be a jumper that needs to be shorted to enable 5V to the input.
This should only be enabled when using aADC to DVIAdapter otherwise damage to your
video card may result.
How can I fix an occasionally flickering or flashing picture?
Flickering or a blinking image is the result of a loss of sync between the display and the
source. Try lowering the resolution to see if that helps, if it does, the CAT-5 cables you
are using are unable to handle the bandwidth of the higher resolution and thus you are
losing sync. Try a shielded CAT-6 cable on the video line to reduce interference. You
can also try adjusting the service switches. Usually this is caused by EMI and a shielded
CAT-6 with metal RJ-45 connectors with the drain wire soldered to the connectors will
resolve the issue. Please refer to the service switch guide on page 9 for the different
combinations.
Why is there a green or pink tint to my picture?
A tint of green or pink in the picture is a result of incorrect colorspace being transmitted.
This can be resolved by recycling power on your devices including the extender. If this
does not help, the DDC data containing the colorspace is not being transmitted correctly
due to loss in the CAT5 cable, try replacing the DDC cable.
Why is the USB dropping out every so often?
The USB bus is inherently not a very reliable system. Drop outs occur on occasion but if
it is happening quite often, then interference along the DDC line that is also transmitting
USB is causing the problem. Try using a shielded CAT-5e cable on this line instead.
I can’t seem to get my RS-232 devices to detect and connect, what’s wrong?
The CAT5-9500HD system only extends the Tx and Rx lines of RS232. If you need full
RS232 extension of every line, you will need the standalone RS232 Extender units.
Can I run the CAT-5 cable through a patch bay?
No, the signal will not transmit reliably
TROUBLESHOOTING
11

CAT-5
Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair type cable
designed for high signal integrity. The actual standard defines specific electrical properties
of the wire, but it is most commonly known as being rated for its Ethernet capability of 100
Mbit/s. Its specific standard designation is EIA/TIA-568. Cat 5 cable typically has three
twists per inch of each twisted pair of 24 gauge copper wires within the cable.
CAT-5e
Similar to Cat 5 cable, but is enhanced to support speeds of up to 1000 megabits per
second
DDC
Short form for Display Data Channel. It is a VESA standard for communication between
a monitor and a video adapter. Using DDC, a monitor can inform the video card about its
properties, such as maximum resolution and color depth. The video card can then use
this information to ensure that the user is presented with valid options for configuring the
display
DDWG
Digital Display Working Group DDWG are the creators of the DVI specification.
DVI
Digital Visual Interface. Connection standard developed by Intel for connecting computers
to digital monitors such as flat panels and DLP projectors.Aconsumer electronics version,
notnecessarily compatiblewith thePC version,is usedas aconnection standardfor HDTV
tuners and displays. Transmits an uncompressed digital signal to the display. The latter
version uses HDCP copy protection to prevent unauthorized copying
USB
UniversalSerial Bus.Anexternalperipheralinterfacestandardfor communicationbetween
a computer and external peripherals over a cable using bi-serial transmission.
VESA
VideoElectronicStandardsAssociation, aconsortium ofmanufacturers formedto establish
andmaintain industrywide standardsforvideocardsand monitors.VESAwas instrumental
in the introduction of the Super VGA and Extended VGA video graphics standards with
a refresh rate of 70 Hz, minimizing flicker and helping to reduce user eyestrain and
fatigue.
PS/2
Aport type developed by IBM for the purpose of connecting a keyboard or mouse to a PC.
The PS/2 port has a mini DIN plug containing 6 pins. PS/2 ports are used so that the serial
port can be used by another device. The PS/2 port is often called the mouse port.
RS-232
RecommendedStandard 232.This isthe defacto standardfor communicationthroughPC
serial ports. It can refer to cables and ports that support the RS232 standard.
TERMINOLOGY
12

SPECIFICATIONS
13
Video Amplifier Bandwidth ................................................................................ 1.65 Gbps
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Single Link Range .............................................................................1080p / 1920 x 1200
Video Connector Type ................................................... DVI-I 29 pin female (digital only)
Link Connector ......................................................................................... RJ-45 Shielded
USB Input .................................................................................... USB type "B" connector
USB Output ............................................................................... USB type "A" connectors
PS/2 Keyboard Connector ........................................................................... 6 Pin MiniDin
PS/2 Mouse Connector ................................................................................ 6 Pin MiniDin
RS232 Connector ..................................................................................................... DB-9
Power Consumption .................................................................................. 20 watts (max)
Power Supply ......................................................................................................... 5V DC
Dimensions ............................................................................ 17” W x 1.75” H x 4.375” D
Shipping Weight ..................................................................................................... 10 lbs.

Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notified within two (2) year
from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment,
provided that the equipment has not been subjected to mechanical, electrical, or other
abuse or modifications.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the time of repair. Such repairs are warranted
for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose, all
of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cable must be free from any
scratches, markings, and neatly coiled.
Theinformation inthis manualhasbeen carefullychecked andis believedtobe accurate.
However, GefenInc. assumesno responsibilityfor anyinaccuracies thatmay becontained
in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,
or consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding CAT5•9500HD features and specifications is subject to change without notice.
WARRANTY
14
