Westermo DDW-120 User manual

Industrial Ethernet
SHDSL Extender
www.westermo.com
©Westermo Teleindustri AB
User Guide
6621-2214
DDW-120

26621-2214
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.
Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
http://www.westermo.com
Software tools
Related software tools are available in the folder software tools under
technical support on the Westermo website.

3
6621-2214
Safety
WARNING:
To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.
For more information see General safety, art. no.100-5001.
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.

46621-2214
General
This unit is intended for use in Zone 2 hazardous location only.
Marking
II 3 G
Ex nA IIC T4 Gc
SPECIAL CONDITION
WARNING – DO NOT SEPARATE WHEN ENERGIZED
ATEX Information (Applicable for DDW-120 EX only)
Indicate that this unit complies with relevant European standards that are
harmonised with the 94/9/EC Directive (ATEX).
II
Equipment group II.
This unit can be installed in all places with an explosive gas atmosphere other
than mines susceptible to firedamp
3
Equipment category 3.
A category is the classification according to the required level of protection.
This unit ensures the requisite level of protection during normal operation and
is intended for use in areas in which explosive atmosphere caused by gases,
vapours, mists, or dust mixtures are unlikely to occure or, if they do occure, are
likely to do so only infrequently and for a short periode only.
GIndicates protection concerning explosive atmospheres caused by gases,
vapours or mists (G).
Ex Indicates that this unit is in conformity with relevant European Ex standard(s).
nA
Type of protection used.
This unit is a non-sparking device "nA" which is constructed to minimize the
risk of occurence of arcs or sparks capable of creating an ignition hazard during
conditions of normal operation.
IIC Gas group, a typical gas i hydrogen.
T4
Temperature class T4 (T4 = 135°C).
This unit is classified in accordance with its maximum surface temperature
(external and internal).
Gc
Equipment protection level Gc (EPL Gc).
Equipment for explosive gas atmospheres, having a "enhanced" level of protec-
tion, which is not a source of ignition in normal operation and which may have
some additional protection to ensure that it remains inactive as an ignition
source in the case of regular expected occurences. EPL Gc are analogous to the
ATEX Categories (Category 3 G = EPL Gc).
SPECIAL
CONDITION
This unit has a special condition of use.
The special condition for safe use contains safety related information that is
necesarry for the correct installation and safe use.

5
6621-2214
Safety Control Drawing and ratings
Power (12 – 48) VDC; 240 mA
Ambient temperature –40ºC to +70ºC
Maximum surface temperatur 135ºC (temperature class T4)
Degree of protection IP 21
Installation spacing Minimum 25 mm above / below
Minimum 10 mm left / right
Direction relative this unit!
Position Direction*/
descripton Input/Output values
1 In/Out / TD+
U = ± 1 V (4μV/s)
I = ± 20 mA
Data rate:
10/100 Mbit/s
2 In/Out / TD–
3 In/Out / RD+
4 Not connected
5 Not connected
6 In/Out / RD–
7 Not connected
8 Not connected
Galvanically isolated via signal transformers and
capacitively isolated to signal ground through a
250 V 3300 pF capacitor.
See user manual for proven transient protection.
Position Direction*/
descripton Input/Output values
1 In/Out / SHDSL U = peak to peak: 15 V
I = ± 25 mA
Data rate up to
15,3 Mbit/s
2 In/Out / SHDSL
Galvanically isolated via signal transformer and capacitively
isolated to signal ground through a 1,5kV 220pF capacitor.
See user manual for proven transient protection.
Position Direction*/
descripton Input values
1 In / Common Uin = (10 – 60) VDC
Iin = 295 mA @ 10 VDC
PIn = Max 3 W
1
2
3
4
2 In / +Voltage A
3 In / +Voltage B
4 In / Common
See section Type tests and environmental conditions in this
user manual for proven transient protection.
1234 12

66621-2214
SPECIAL CONDITION FOR SAFE USE
Ambient temperature:
This unit is designed for use in extreme ambient temperature conditions as follows:
–40 ºC ≤ Ta ≤ +70 ºC
Installation in an apparatus cabinet:
This unit requires installation in an Ex certified apparatus cabinet suitable for the area of use and
providing a degree of protection of at least IP54.
Resistance to impact:
This unit requires installation in an apparatus cabinet where adequate resistance to impact is
provided by the apparatus cabinet. See "Installation in an apparatus cabinet" above for requirements
on the external apparatus cabinet.
Resistance to light:
This unit requires installation in an apparatus cabinet where it is protected from light
(for example daylight or light from luminaires).
See "Installation in an apparatus cabinet" above for requirements on the external apparatus cabinet.
Secureness of plugs:
When this unit is installed in an explosive atmospheres, all connectors must be mechanically secured
to prevent loosening.
Conductor temperature:
When this unit is installed in locations with high ambient temperature, special precautions shall be
taken upon the choice of external conductors and the temperature rating of the conductor(s).
Directive 94/9/EC alongside with other directives:
Directive 2004/108/EC (EMC) applies and to assure a safe performance of this unit under the scope
of Directive 94/9/EC, refer to the electromagnetic immunity level specified under "Type tests and
environmental conditions" in this manual.
Standards and date of compliance
EN 60079-0 and EN 60079-15
2010-11-05
Class 1, Division 2 Information (DDW-120 EX only)
Special Conditions of Use:
This unit shall be installed in compliance with the enclosure, mounting, spacing and segregation
requirements of the ultimate application, including a tool removable cover.
• Installations shall comply with the relevant requirements of the National Electrical Code®
(ANSI/NFPA 70) and the Canadian Electrical Code® (CEC, CAN/CSA-C22.1).
• Installations shall comply with the latest edition of the manufacturer’s instruction manual.
• Tampering and replacement with non-factory components may adversely affect the safe use
of the system.
• Insertion or withdrawal of removable electrical connectors or modules is to be accomplished
only when the area is known to be free of flammable vapors.
WARNING:
• SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR DIVISION 2
• DO NOT OPEN WHEN ENERGIZED
• DO NOT DISCONNECT EQUIPMENT UNLESS AREA IS KNOWN TO BE NONHAZARDOUS
AVERTISSEMENT
• RISQUE D'EXPLOSION. NE PAS DÉBRANCHER TANT QUE LE CIRCUIT EST SOUS TENSION,
À MOINS QU'IL NE S'AGISSE D'UN EMPLACEMENT NON DANGEREUX

7
6621-2214
Agency approvals and standards compliance
FCC Part 15.105 Notice: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation.
This equip ment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
… Reorient or relocate the receiving antenna
… Increase the separation between the equipment and receiver
… Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
… Consult the dealer or an experienced radio/TV technician
for help.
Type Approved
Agency/ W-mo Approval / Compliance
EMC W-mo EN 61000-6-1, Immunity residential environments
W-mo EN 61000-6-2, Immunity industrial environments
W-mo EN 55024, Immunity IT equipment
W-mo EN 61000-6-3, Emission residential environments
W-mo FCC part 15 Class B
W-mo EN 50121-4, Railway signalling and telecommunications apparatus
Safety W-mo UL/CSA/IEC/EN 60950-1, IT equipment*
EN 60950-1, IT equipment**
SHDSL NEMKO ITU-T G.991.2, G.SHDSL and G.SHDSL.bis standard
Ex**
FM Approvals Class I, Division 2
W-mo EN 60079-0 and EN 60079-15
Environmental Tektronix* NEMA TS 2-2003 version 02.06
Traffic Controller Assemblies with NTCIP Requirements
* Applicable for DDW-120 only
** Applicable for DDW-120 Ex only

86621-2214
Westermo Teleindustri AB
Declaration of conformity
Org.nr/
Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
Herewith declares that the product(s)
Type of product Model Art no From serial no.
DIN-rail Wolverine DDW-120 3621-0110 1000
is in conformity with the following EC directive(s).
No Short name
2004/108/EC Electromagnetic Compatibility (EMC)
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 61000-6-1 Immunity for residential, commercial and light-
industrial environments
2007
EN 61000-6-2 Immunity for industrial environments 2005
EN 61000-6-3 Emission standard for residential, commercial and
light-industrial environments
2007
EN 61000-6-4 Emission standard for industrial environments 2007
EN 55022
EN 55022 A1
Information technology equipment. Radio disturbance
characteristics. Limits and methods of measurement.
2006
2007
EN 50121-4 Railway applications – Electromagnetic compatibility
– Emission and Immunity of the signalling and
telecommunications apparatus
2006
EN 55024
EN 55024 A1
EN 55024 A2
Information technology equipment – Immunity 1998
2001
2003
The last two digits of the year in which the CE marking was affixed: 10
Pierre Öberg
R&D Manager
11th January 2010
Declaration of Conformity, DDW-120

9
6621-2214
Declaration of Conformity, DDW-120 EX
Westermo Teleindustri AB
Declaration of conformity
Org.nr/
Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
Herewith declares that the product(s)
Type of product Model Art no
Industrial Ethernet SHDSL Extender DDW-120 EX 3621-5110
is in conformity with the following EC directive(s).
No Short name
2004/108/EC Electromagnetic Compatibility (EMC)
94/9/EC Equipment Explosive Atmospheres (ATEX)
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 61000-6-1 Electromagnetic compatibility – Immunity for residential environments 2007
EN 61000-6-2 Electromagnetic compatibility – Immunity for industrial environments 2005
EN 61000-6-3 Electromagnetic compatibility – Emission for residential environments 2007
EN 61000-6-4 Electromagnetic compatibility – Emission for industrial environments 2007
EN 55022 Information technology equipment – Radio disturbance characteristics –
Limits and methods of measurement
2006
+A1:2007
EN 50121-4 Railway applications – Electromagnetic compatibility – Emission and
immunity of the signalling and telecommunications apparatus
2006
EN 55024 Information technology equipment – Immunity characteristics
Limits and methods of measurement
1998
+A1:2001
+A2:2003
EN 60079-0 Explosive atmospheres
Equipment – General requirements
2009
EN 60079-15 Electrical apparatus for explosive gas atmospheres –
Construction, test and marking of type of protection “n” electrical
apparatus
2005
The last two digits of the year in which the CE marking was affixed: 10
Pierre Öberg
Technical Manager
15
th
November 2010

10 6621-2214
Type tests and environmental conditions
Phenomena Test Description Test levels
ESD EN 61000-4-2 Enclosure contact ± 6 kV
Enclosure air ± 8 kV
RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 1 000 MHz
20 V/m 80% AM (1 kHz), 80 – 2 000 MHz
RF field 900 MHz ENV 50204 Enclosure 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz
Fast transient EN 61000-4-4 Signal ports ± 2 kV
Power ports ± 2 kV
Surge EN 61000-4-5 Signal ports unbalanced ± 2 kV line to earth, ± 2 kV line to line
Signal ports balanced ± 2 kV line to earth, ± 1 kV line to line
Power ports ± 2 kV line to earth, ± 2 kV line to line
RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power frequency
magnetic field
EN 61000-4-8 Enclosure 100 A/m, 50 Hz, 16.7 Hz & 0 Hz
Pulse magnetic field EN 61000-4-9 Enclosure 300 A/m, 6.4 / 16 μs pulse
Voltage dips and
interruption
EN 61000-4-11 AC power ports 10 & 5 000 ms, interruption
10 & 500 ms, 30% reduction
100 & 1 000 ms, 60% reduction
Mains freq. 50 Hz EN 61000-4-16 Signal ports 100 V 50 Hz line to earth
Mains freq. 50 Hz SS 436 15 03 Signal ports 250 V 50 Hz line to earth
Voltage dips and inter-
ruption
EN 61000-4-29 DC power ports 10 & 100 ms, interruption
10 ms, 30% reduction
10 ms, 60% reduction
+20% above & –20% below rated voltage
Radiated emission EN 55022 Enclosure Class B
FCC part 15 Class B
Conducted emission EN 55022 AC power ports Class B
FCC part 15 AC power ports Class B
EN 55022 DC power ports Class B
Dielectric strength EN 60950 Signal port to other
isolated ports
2 kVrms 50 Hz 1 min
Power port to other
isolated ports
3 kVrms 50 Hz 1 min
2 kVrms 50 Hz 1 min (@ rated power <60 V)
Temperature Operating –40 to +70ºC
Maximum surface
temperature
135°C (temperature class T4)
Storage & Transport –40 to +70ºC
Humidity Operating 5 to 95% relative humidity
Storage & Transport 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Reliability prediction
(MTBF)
MIL-HDBK- 217F Operating 1 180 000 hours
Service life Operating 10 year
Vibration IEC 60068-2-6 Operating 7.5 mm, 5 – 8 Hz
2 g, 8 – 500 Hz
Shock IEC 60068-2-27 Operating 15 g, 11 ms
Enclosure, DDW-120 UL 94 PC / ABS Flammability class V-1
Enclosure, DDW-120 Ex Cabelec 6141
Dimension W x H x D 35 x 121 x 119 mm
Weight 0.2 kg
Degree of protection IEC 529 Enclosure IP 21
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail

11
6621-2214
Description
Functional description
The DDW-120 Ethernet Extender is the ideal solution for extending your Ethernet
network over copper cables where in the past the only option would have been fibre.
At shorter range the transfer rate will be as fast as 15.3 Mbit/s in both directions.
Depending on the quality of the cables distances up to 15 km are possible.
DDW-120 is transparent for multicast addressing, VLAN packets, VPN pass-through for
IPSec and for protocols like MODBUS/tcp and Profinet. The Link Fault Forward (LFF)
functionality in DDW-120 forwards information about the Ethernet link status, this is
sent over the SHDSL link between two DDW-120 units. In many applications it is a
requirement to disconnect the link on the other side of the SHDSL link if the primary
Ethernet link goes down.
The units will auto negotiate the transmission speed but can also be forced to choose a
slower (more reliable) or faster (less reliable) data rate.
Communication speed and distance depends on the cable characteristics, communication
reach with different cables can be calculated with DDW-tool
DDW-120 can be used in point-to-point applications or as start and termination unit
together with DDW-22x in a daisy-chain application.
Description of used nomenclature:
Noise margin:
The margin between signal and noise (dB)
CO/CPE:
CO (Central Office) answering central unit, the CO configures the CPE when establish-
ing a connection. CPE (Customer Premises Equipment) is the unit that initiates the con-
nection.

12 6621-2214
Getting started
The DDW-120 is easy to use and install, the units work in pairs, one as has to be config-
ured as CO (Central Office) and one as CPE (Customer Premises Equipment). This con-
figuration is made with DIP-switches situated under the lid of the DDW-120.
 Connect the SHDSL Line
1) Connect the twisted pair to DSL screw terminal 1 and 2 (polarity independent)
situated at the base of the DDW-120.
 Connect the Ethernet Line
Connect Ethernet to the TX port on the front of the DDW-120.
The factory settings for the DDW-120 is plug and play mode where TX port
is enabled for:
… Ethernet Auto-negotiation enabled.
… Auto MDI/MDI-X.
… Auto-polarity enabled.
The DDW-120 will automatically sense the data rate of the connected unit and cable
type.
 Settings in the units
The units operate in pairs, one as CO (Central Office) and one as CPE
(Customer Premises Equipment). Factory setting in the DDW-120 is as CPE.
Depending on the quality of the line and the distance there is possibility to select auto-
baud function.
This is done via DIP switches in the unit configured as CO.
Factory default is autobaud, reliable mode.
Note! Before connection and installation one of the connecting units have to be
reconfigured as a CO, see DIP-switch S1:4.
Note!
If the DSL link is not established, the speed might be set to high for the distance.

13
6621-2214
Diagnostic information
The DDW-120 can display diagnostic information on two way:
1) Using the Westermo diagnostic tool DDWtool.exe.
2) Using a terminal program.
Using DDW-tool

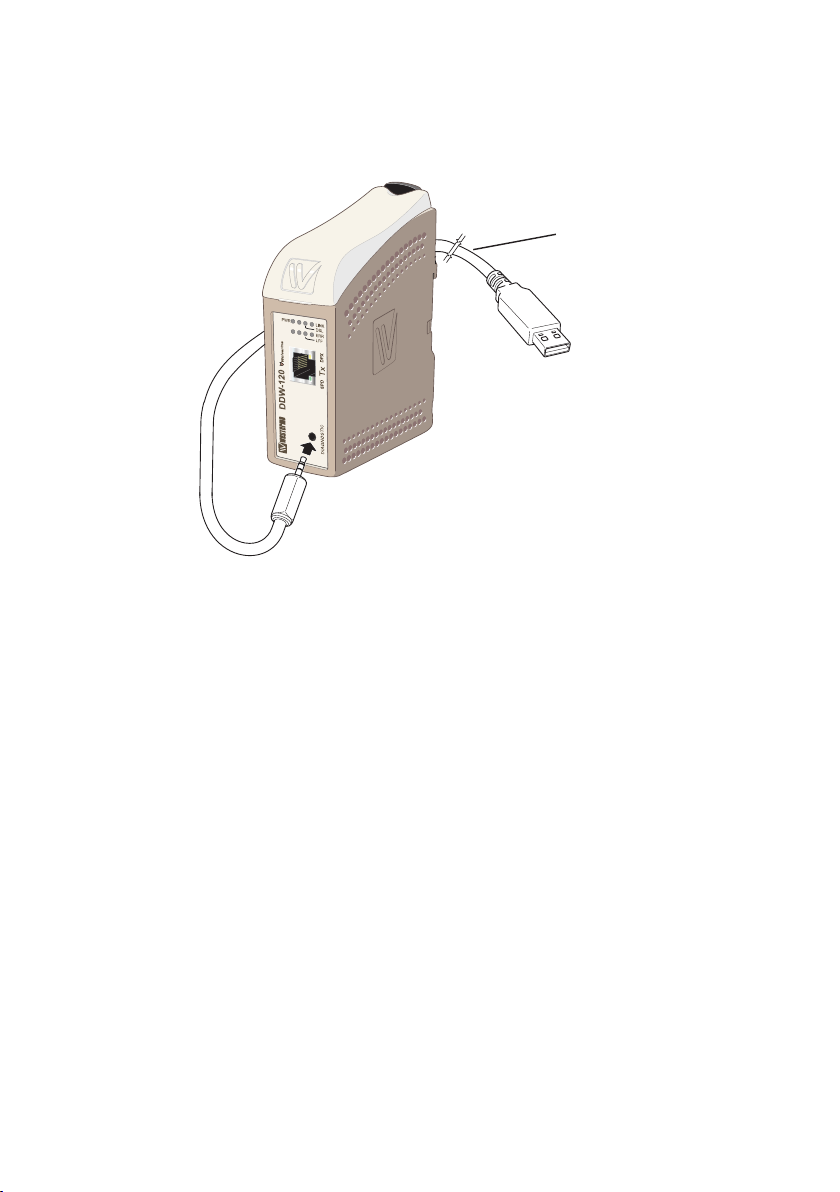

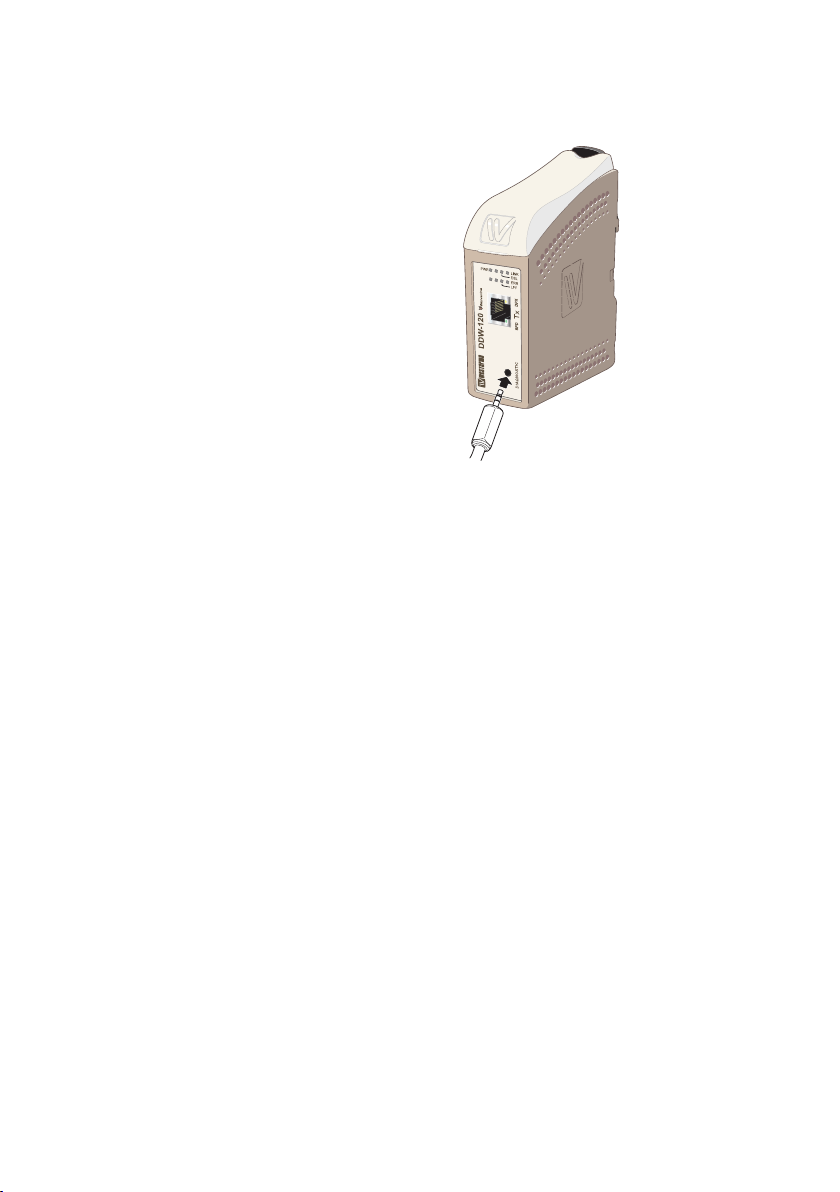

1) Connect the standard cable 1211-2027 to the diagnostic port, located under the lid of
DDW-120.
2) Choose the corresponding Com port in the drop list of the tool. The tool will try to
find the port used by the debug cable.
3) Click the button connect, if the correct com port is selected DDW-tool will be
updated with actual status online information.
Information from diagnostic tool
• Software release
• Serial number
• DIP switch settings
• If the unit is configured as CO or CPE
• Ethernet link status
• Ethernet data rate
• Ethernet duplex
• System uptime
• DSL uptime
• DSL negotiations
• LFF status
• DSL link state
• DSL data rate
• DSL noise margin (information is sampled and continually displayed)
1211-2027

14 6621-2214
Using a terminal program
If a customer supervision system is used the DDW-120 can provide with diagnostic
status.
The DDW-120 support
Data rate: 115.2 kbit/s
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None
The unit is responing to two commandon
1) DIAG
2) RUNDIAG
Information from DIAG command
• Software release
• DIP switch settings
• If the unit is configured as CO or CPE
• If the unit is configured for Annex A or Annex B
• DSL link state
• DSL data rate (bit/s)
• DSL noise margin (dB)
• Ethetnet data rate
• Ethernet duplex
Information from RUNDIAG command
• DSL link state
• DSL Data rate (bit/s)
• DSL Noise margin (dB)
The DDW-120 is ready for commando then prompt “DDW” is transmitted to
supervisor system.
The commando RUNDIAG will continuously send the information. Approx update with
1s base. Commando is aborted by sending “any key to abort”.

15
6621-2214
Interface specifications
Power
Rated voltage 12 to 48 VDC
Operating voltage 10 to 60 VDC
Rated current 240 mA @ 12 VDC
110 mA @ 24 VDC
60 mA @ 48 VDC
Rated frequency DC
Inrush current, I2t 0.23 A2s
Startup current* 0.65 Apeak
Polarity Reverse polarity protected
Redundant power input Yes
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Shielded cable Not required
* If external power supply is used it must meet specified start up current
Service port
Electrical specification TTL-level
Data rate 115.2 kbit/s
Data format 8 data bits, none parity, 1 stop bits, no flow control
Circuit type SELV
Transmission range 15 m
Isolation to All other
Galvanic connection to None
Connection 2.5 mm jack, use Westermo cable 1211-2027

16 6621-2214
* To minimise the risk of interference, a shielded cable is recommended when the cable is located
inside 3 m boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this
port. This earthing point should have a low impedance connection to the conductive enclosure
of the apparatus cabinet, or similar, where the unit is built-in. This conductive enclosure should
be connected to the earthing system of an installation and may be directly connected to the
protective earth.
Ethernet TX
Electrical specification IEEE std 802.3. 2000 Edition
Data rate 10 Mbit/s, 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Circuit type SELV
Transmission range 100 m
Isolation to All other
Connection RJ-45 MDI or auto MDI/MDI-X
Shielded cable Not required, except when installed in Railway applications as
signalling and telecommunications apparatus and located close
to rails*
Conductive housing Isolated to all other circuits
Miscellaneous If Auto-Neg. is disabled then this interface will be set MDI
Number of ports 1
DSL
Electrical specification IEEE G.991.2 Annex B
Data rate 192 kbit/s to 15304 kbit/s
Protocol EFM according to IEEE 802.3-2004
Transmission range According to ITU-T G.991.2 depending on the line quality
Protection Overcurrent / overvoltage protection circuit and varistor
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 - 12)
Shielded cable Not required

17
6621-2214
Connections
* Direction relative this unit
** To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m
boundary to the rails and connected to this port. The cable shield should be properly connected (360°) to an
earthing point within 1 m from this port. This earthing point should have a low impedance connection to the con-
ductive enclosure of the apparatus cabinet, or similar, where the unit is built-in. This conductive enclosure should
be connected to the earthing system of an installation and may be directly connected to the protective earth.
DSL screw connector 1 & 2
Position Direction Description
1 In/Out 2-wire Receive/ Transmit SHDSL
2 In/Out 2-wire Receive/ Transmit SHDSL
Ethernet TX connection
(RJ-45 connector) 1 – 4**
Position Direction* Description
1 In/Out TD+
2 In/Out TD–
3 In/Out RD+
4 – Not Connected
5 – Not Connected
6 In/Out RD–
7 – Not Connected
8 – Not Connected
CAT 5 cable is recommended.
Unshielded (UTP) or shielded (STP) connectors
can be used.
Power connection
Position Direction* Description
1 In Common
2 In + Voltage A
3 In + Voltage B
4 In Common
1234 12

18 6621-2214
LED indicators
LED Status Description
PWR
(green)
OFF No internal power
ON Internal power ok / boot ok
LFF
(green)
OFF LFF disabled
ON LFF enabled
ERR
(red)
OFF LFF not active
ON LFF active, link fault on this unit
Flash LFF active, link fault on opposite unit
DSL OFF No DSL link
ON DSL link established
Flash DSL link negotiating
LINK OFF No Ethernet link
ON Ethernet link established
Flash Ethernet traffic indication
SPD OFF Ethernet speed, 10 Mbit/s
ON Ethernet speed, 100 Mbit/s
DPX OFF Ethernet duplex, half
ON Ethernet duplex, full

19
6621-2214
DIP-switch settings
Before DIP-switch settings:
Prevent damage to internal electronics from electrostatic discharges (ESD)
by discharging your body to a grounding point (e.g. use of wrist strap).
NOTE DIP-switch alterations are only effective after a power on.
!
S2S1
S1 DIP-switch
S1: 6, 7 and 8 not used
* Autobaud is recommended. When using manual locked speed user must make sure a correct noise margin
is achieved. Westermo recommends at least 3 dB noise margin for reliable operation.
** Negotiation of speed may take up to 3 minutes to complete.
ON
1 2 3 4 5 6 7 8
Autobaud, normal mode**
(Standard speed 192 kbit/s – 5.7 Mbit/s)
(Turbo speed 192 kbit/s – 15.3 Mbit/s)
ON
1 2 3 4 5 6 7 8
Turbo speed
ON
1 2 3 4 5 6 7 8
Standard speed
ON
1 2 3 4 5 6 7 8
Autobaud, high speed mode**
(Standard speed 192 kbit/s – 5.7 Mbit/s)
(Turbo speed 192 kbit/s – 15.3 Mbit/s)
ON
1 2 3 4 5 6 7 8
Autobaud, reliable mode**
(Standard speed 192 kbit/s – 5.7 Mbit/s)
(Turbo speed 192 kbit/s – 15.3 Mbit/s)
ON
1 2 3 4 5 6 7 8
Manual speed locked
according to S2:4-8*
ON
1 2 3 4 5 6 7 8
CPE,
Customer Premises Equipment
ON
1 2 3 4 5 6 7 8
CO,
Central Office
ON
1 2 3 4 5 6 7 8
LFF disabled
ON
1 2 3 4 5 6 7 8
LFF enabled

20 6621-2214
S2 DIP-switch
ON
1 2 3 4 5 6 7 8
Ethernet auto-negotiation disabled
ON
1 2 3 4 5 6 7 8
Ethernet auto-negotiation enabled
ON
1 2 3 4 5 6 7 8
Ethernet speed 10 Mbit/s
(if auto-neg. disabled)
ON
1 2 3 4 5 6 7 8
Ethernet speed 100 Mbit/s
(if auto-neg. disabled)
ON
1 2 3 4 5 6 7 8
Ethernet half duplex
(if auto-neg. disabled)
ON
1 2 3 4 5 6 7 8
Ethernet full duplex
(if auto-neg. disabled)
ON
1 2 3 4 5 6 7 8
DSL-speed 192 kbit/s*
DSL-speed 6200 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 384 kbit/s*
DSL-speed 6712 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 512 kbit/s*
DSL-speed 7224 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 768 kbit/s*
DSL-speed 7736 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 1024 kbit/s*
DSL-speed 8248 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 1280 kbit/s*
DSL-speed 8760 kbit/s**
Factory settings
ON
1 2 3 4 5 6 7 8
S1
ON
1 2 3 4 5 6 7 8
S2
ON
1 2 3 4 5 6 7 8
DSL-speed 2688kbit/s*
DSL-speed 10296kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 3072 kbit/s*
DSL-speed 10808kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 3456 kbit/s*
DSL-speed 11320kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 2048kbit/s*
DSL-speed 9272kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 3840 kbit/s*
DSL-speed 11832kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 2304kbit/s*
DSL-speed 9784kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 4224 kbit/s*
DSL-speed 12344kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 4608 kbit/s*
DSL-speed 13112kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 4992 kbit/s*
DSL-speed 13880kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 5376 kbit/s*
DSL-speed 14648kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 5696kbit/s*
DSL-speed 15304kbit/s**
* Standard speed S1:1 OFF
** Turbo speed S1:1 ON
