JOYOR A3/A5

User manual

Congratulations on your new e-scooter!
Before using your Joyor scooter for the rst time, please read this user manual to
guarantee safe assembly and function. It will help you stay safe and keep your scooter
in good working order.
Joyor scooters can be used by adults and children of 14 years or more. Please read the
Warnings section of this manual to see if any limitations or restrictions apply to you.
Before using the scooter for the rst time, make sure to also check the instructions for
its safe use, maintenance, charging, storage and disposal.

The Joyor scooter is a means of transportation which you may want to use on your way
to work, school, nearby grocery store, or any other destination. By leaving your car at
home, you help to make our cities better places to live.
Before entering in the trafc, please practice in a safe area. Please check the local
regulations for scooters and helmets’ use and follow the law restrictions.
Happy riding!

Electric Scooter Main Parts:
In the box:
• Electric Scooter
• Charger
• User Manual

Safety Instructions:
• This scooter is not only an entertaining vehicle. You need to improve your driving skills
through practice. Joyor Scooter is not responsible for any accidents or damages caused
by insufcient driving experience or improper use of the product according to this user
manual.
• Joyor electric scooter is a personal transport vehicle and is designed for only one
person. Please do not transport a second passenger on this electric scooter.
• This product is an electric scooter for adults according to the regulations established
in each population. Minors should not use the product according to the standards.
• Please wear a safety helmet and other protective equipment when riding the scooter.
• Do not circulate with this product in unsafe or illegal areas, such as highways, roads
or any other unauthorized areas.

Safety Instructions:
• Practice in a trafc-free area at level 1 speed before riding the scooter in authorized
areas.
• Always keep both hands on the handlebars and both feet on the footboard while
riding. Please do not jump on the foot board.
• Do not turn off the motor while riding the electric scooter.
• Check if the screws are loose and if the spare parts are damaged before each
operation. If the scooter emits an abnormal sound or alarm, stop riding immediately.
• Do not attempt to pass with the scooter on a step of more than 3 cm. This may cause
injuries to the rider and / or may damage the vehicle.
• When traveling on bumpy roads or any other bumpy surfaces, please reduce the speed

Safety Instructions:
of the electric scooter or stop riding the vehicle.
• Do not use Joyor electric scooter on slippery surfaces, such as oil or ice.
• Do not use Joyor electric scooter in weather conditions with temperatures below -5Cº.
• Do not immerse the product in a depth of more than 3 cm to avoid damage to the
electrical part of the vehicle.
• Avoid using Joyor electric scooter in adverse weather conditions, such as rain, snow
or windstorms to avoid accidents. If you travel in these conditions, never exceed the
speed of 10 km/h.
• If the electric scooter is not used for more than one month, charge it regularly at least
every 30 days.

Safety Instructions:
• Only parts and accessories approved by Joyor can be used. Please do not modify your
scooter. The modication of the scooter may affect the functionality of the scooter,
resulting in serious injury or damage, and will lead to warranty failure.

Display:

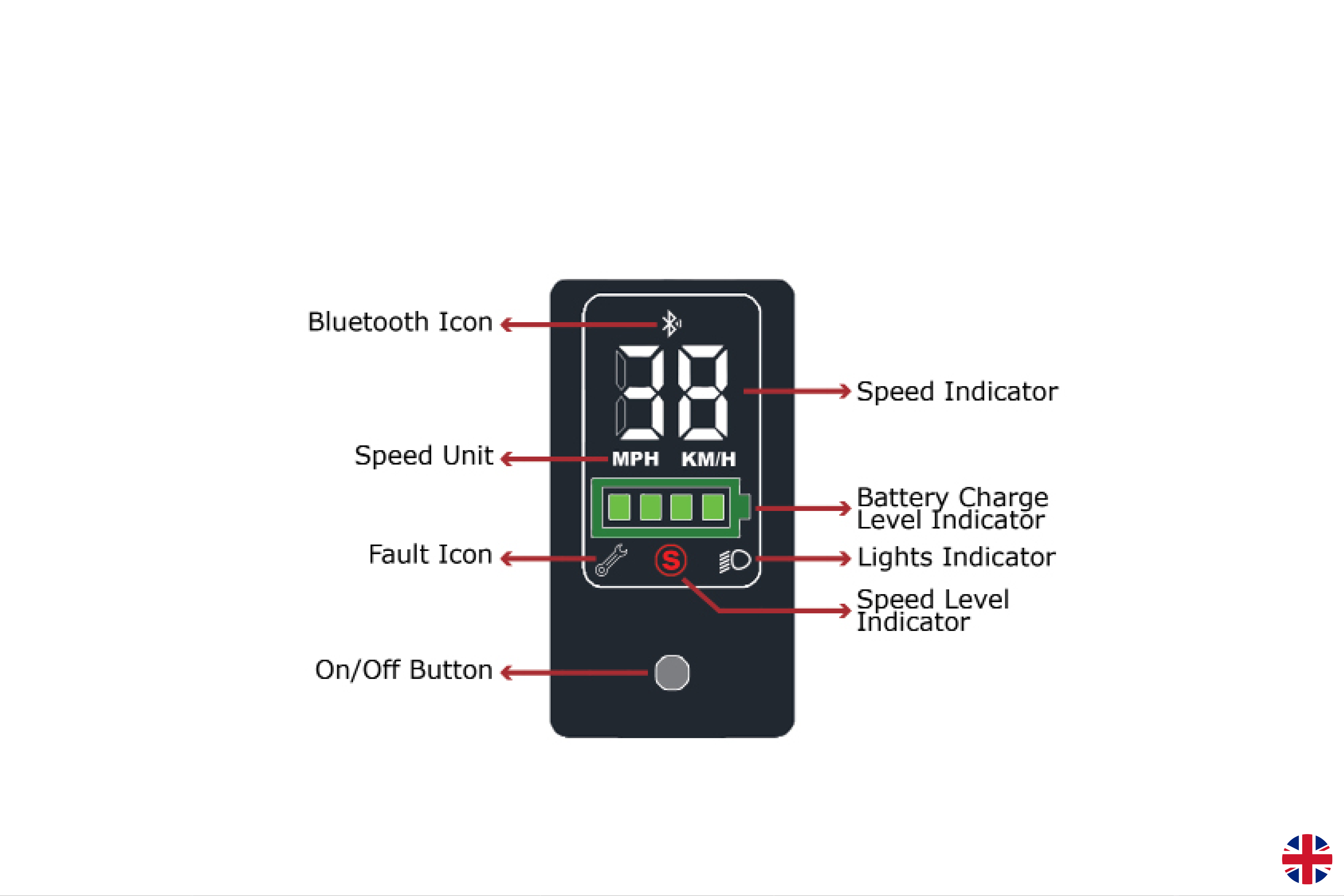

Display Indicators:

Display:
Display Cables:
Brake cable:
(red connector): red +5V, white Vout, black GND
Accelerator cable:
(white connector): red +5V, green Vout, black GND
Lights cable:
(black connector): red led+(12V), black – front light led
LCD Display connecting cable:
yellow SW, red +12V, black GND, blue TX, green RX

Function Description:
Turn on and Turn off:
When the vehicle is turned off, press and hold the On/Off button for 2 seconds to turn
it on.
When the vehicle is turned off and not in movement, press and hold the On/Off button
for 2 seconds to turn it off.
Automatic shutdown:
If the vehicle is not in movement without any operation for 5 minutes, it shuts down
automatically.
Lights switch:
Double-click the On/Off button to turn the lights on or off. When the lights are turned
on, the light indicator lights up.
Speed Level Shifting:
Quickly press the On/Off button to change between different speed levels.

Function Description:
• When the S icon is not turned on, the scooter is on speed level 1.
• When the S icon light is white, the scooter is on speed level 2.
• When the S icon light is red, the scooter is on speed level 3.
If you use the App, when you lock the scooter, the S icon light turns red and white.
Remarks: The set speed level is saved when the scooter is turned off.
Battery Charge Level Indicator:
Each grid represents approximately 25% of the full battery charge.
The estimated distance range varies depending on the road conditions, type of the
terrain, weight of the rider.
Bluetooth icon:
The icon lights up when the device is connected to the scooter successfully.

Function Description:
Fault icon:
The icon lights up when there is an error in the display or the controller of the electric
scooter.
Speed unit:
Mph means miles per hour, km/h means kilometers per hour.
Electronic brake:
Press the brake lever (lever) to apply the brake force. The stronger the brake lever is
pressed, the stronger is the braking force. The rear light ashes when the brake lever
is pressed.
Accelerator Throttle:
Press the accelerator throttle to apply the acceleration. The stronger the accelerator
throttle is pressed the stronger the acceleration is.

Parameters Description:
Accelerator Throttle:
Supply voltage: 5V ± 0.5, throttle signal voltage range: 0.8-4.2V
Brake:
Supply voltage: 5V ± 0.5, brake signal voltage range: 0.8-4.2V
Connecting Cables:
Power supply voltage: 12.0V ± 1.0
Light cables:
Output voltage: 12.0V±1.0, constant current drive: 125mA±5
Speed Level Limits:
• 1st level: 10 km/h
• 2nd level: 15 km/h
• 3rd level: 25 km/h

Error Codes:
E0: Brake fault. The brake is not well connected.
E1: Accelerator throttle fault. The accelerator is not well connected.
E2: Controller fault.
E3: Serial port data is not received from the controller for 2 sec or more.

Product Specications:
* It depends on the temperature, the wind, the terrain,user weight and driving style
A3
A5

How to Connect the App:
What you can do with the APP?
• Remaining battery checking
• Display riding mode and current speed
• Riding time
• Cruise function setting
• TRIP
• Side lights color
• ODO
For Android and IOS system, you can search for LENZOD in PLAY STORE/APP STORE.
1. After installing the app, please use the email to register
and login.
2. Turn on the scooter.

How to Connect the App:
3. Click on “Search device” and connect the device via Bluetooth, device name
“scooter”. Wait a few seconds until the control interface is displayed on the phone or the
Bluetooth icon appears on the scooter’s screen, indicating that the Bluetooth connection
was successful. For more details, see the conguration of the application interface.

How to Fold and Unfold the Scooter:
Fold
Step 1: Press the locking safety pin and unfold the folding handlebar lever.
Step 2: Pull the handlebar down and press on the fender until the hook snaps into it.
Try to lift the scooter with the handlebar to conrm that the hook and lock are hooked
and locked.
Unfold
Step 1: Press the handlebar on the fender to release the hook lock and lift the vertical
tube holding the fender pressed down.
Step 2: Lift the folding handlebar to place it vertically. Push up the black buckle, the
yellow pin will recover automatically, make sure it is well xed before driving.
