When you see these Safety Symbols and Signal Words on the
following pages, they will alert you to the possibility of serious
injury or death if you do not comply with the warnings that
accompany them. The hazard may come from something
mechanical or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following pages, it will
alert you to the possibility of damage to your door and/or the
door operator if you do not comply with the cautionary
statements that accompany it. Read them carefully.
Mechanical
Electrical
TABLE OF CONTENTS
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNINGWARNING
CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNINGWARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTIONCAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
2
SPECIFICATIONS
Carton Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operator Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operator Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PREPARATION
Hand Chain Handing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INSTALLATION
Mount the Operator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Manual Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Entrapment Protection Accessories . . . . . . . . . . . . . . . . . . . . . . 8
ADJUSTMENT
Limit Switch Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Brake Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Clutch Adjustment and Auxiliary Reversal System . . . . . . . . . . . 9
POWER WIRING CONNECTIONS
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Ground Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CONTROL WIRING
Determine Wiring Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Special Control Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DIAGRAMS

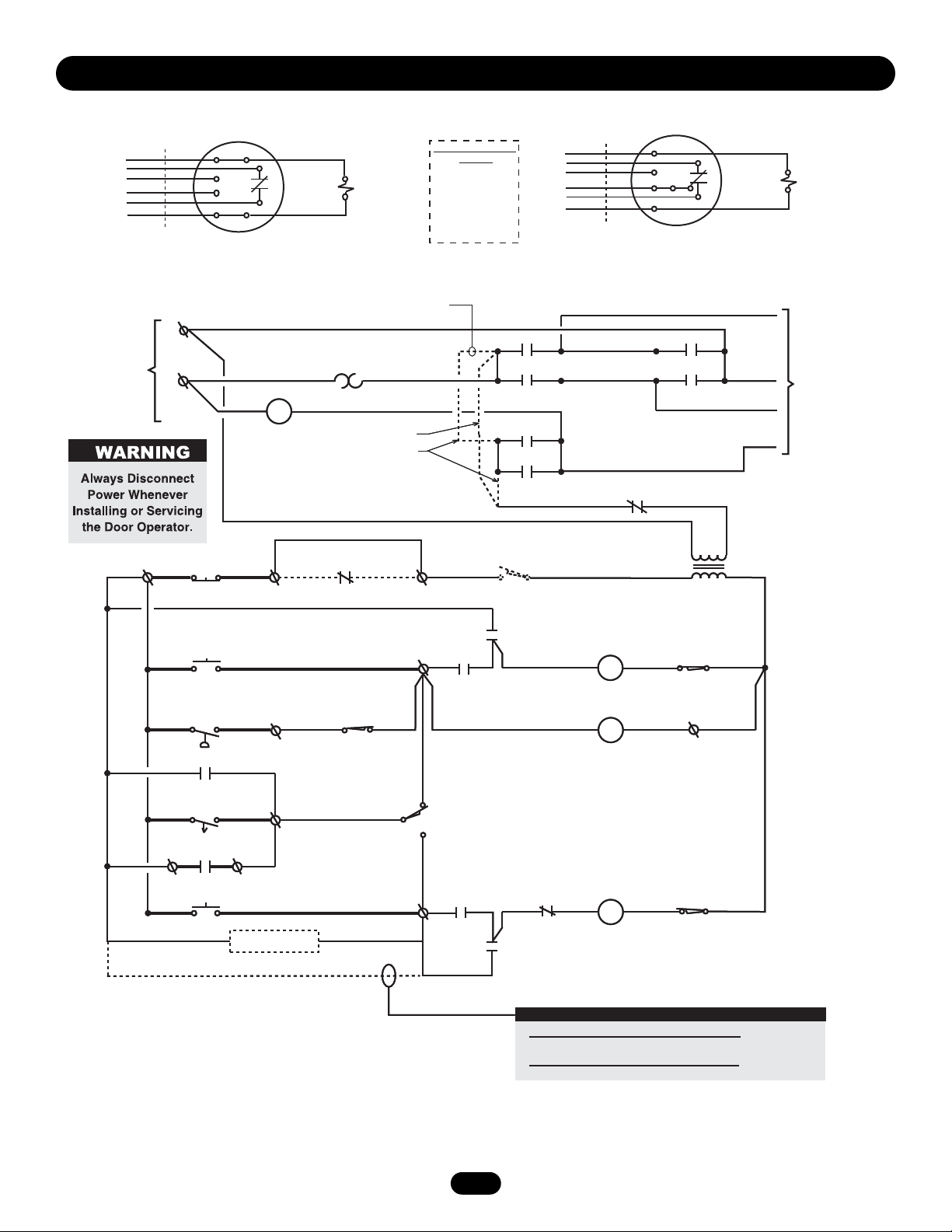

Single Phase Wiring Diagram – 10118-1 . . . . . . . . . . . . . . . . . 12
Single Phase Schematic Diagram – 10118-1 . . . . . . . . . . . . . . 13

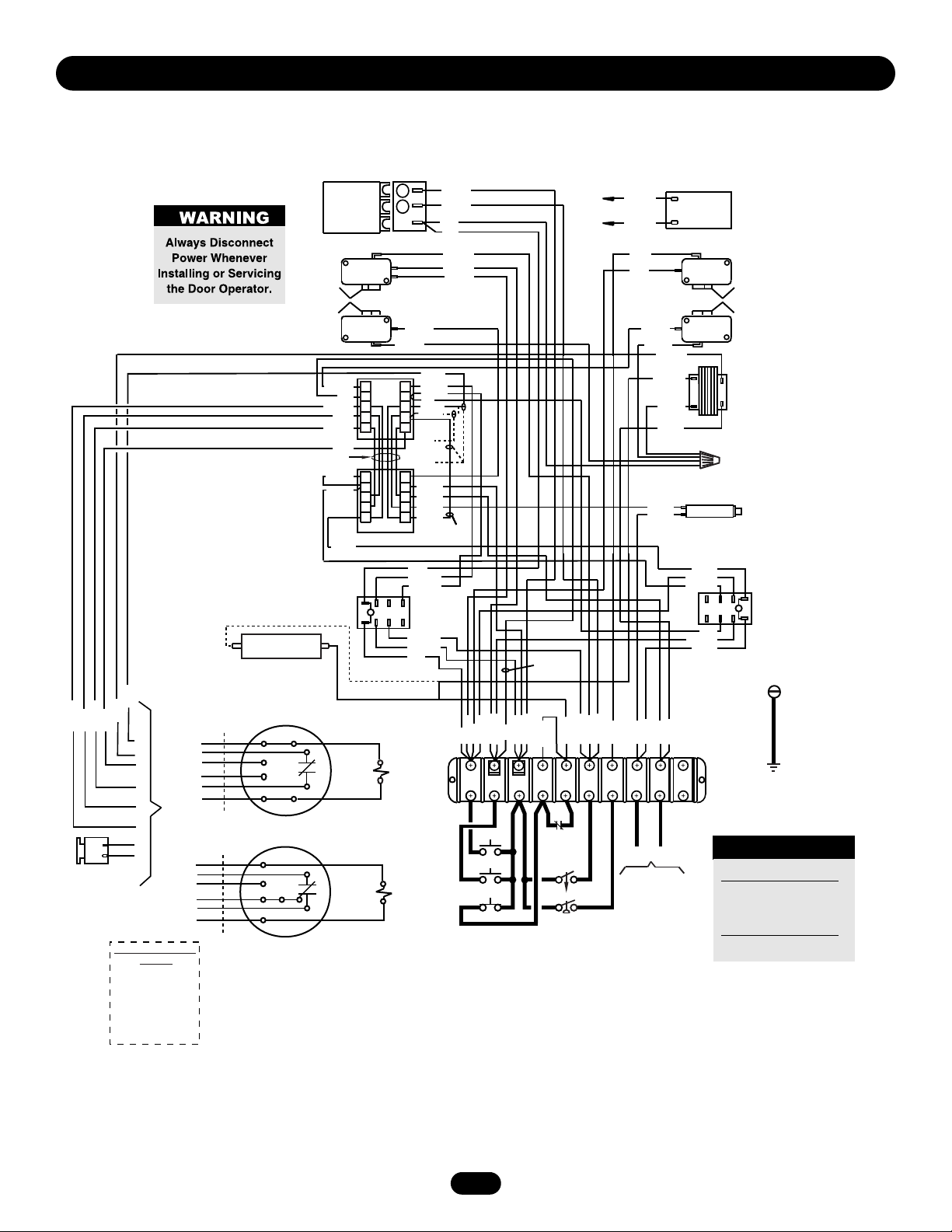

Three Phase Wiring Diagram – 10118-1. . . . . . . . . . . . . . . . . . 14
Three Phase Schematic Diagram – 10118-1. . . . . . . . . . . . . . . 15
TEST THE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . 16
Operator Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
REPLACEMENT PARTS
Electrical Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Replacement Parts Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . 19 – 20
Operator Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Repair Parts Kits - Model J. . . . . . . . . . . . . . . . . . . . . . . . 22 – 23
Repair Parts Kits - Model H . . . . . . . . . . . . . . . . . . . . . . . 24 – 25
Repair Parts Kits - Model HJ . . . . . . . . . . . . . . . . . . . . . . 26 – 27
Control Connection Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . 28
IMPORTANT NOTES:
• BEFORE attempting to install, operate or maintain the operator,
you must read and fully understand this manual and follow all
safety instructions.
• DO NOT attempt repair or service of your commercial door and
gate operator unless you are an Authorized Service Technician.

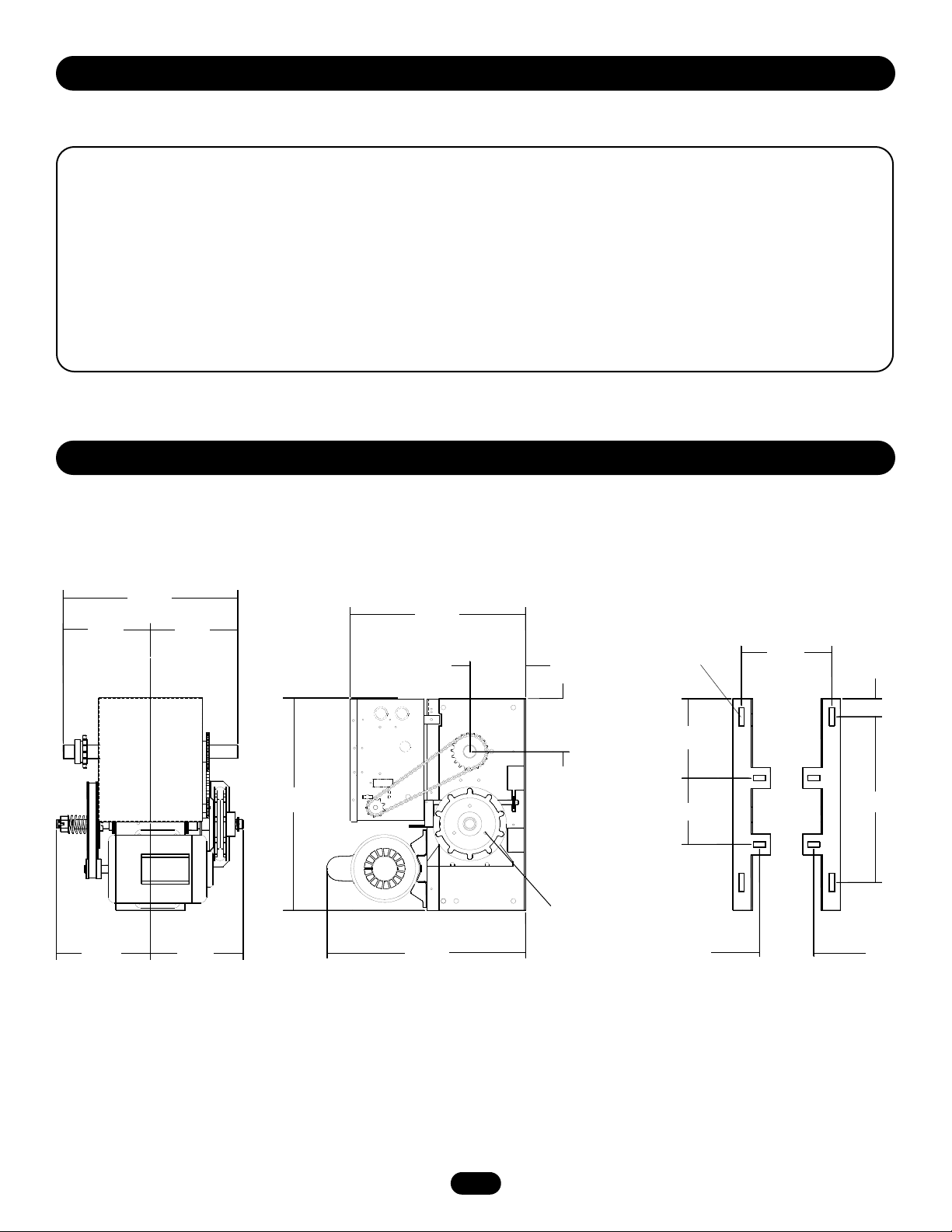

OPERATOR DIMENSIONS
3
A
A
B
B
A
B
B
A
MOUNTING DIMENSIONS
A - Wall Mounting
B - Bracket Mounting (rolling door)
WEIGHTS AND DIMENSIONS
HANGING WEIGHT: 80-110 LBS. (36.3-49.9 kg)
14.44"
7.27" 7.17"
8.83" 7.31"
14.60"
4.63"
4.41"
17.63"
16.50"
Hand Chain Wheel
present with Models
H and HJ only.
7.56"
3/8" Bolt
6.59"
5.50"
1.50"
13.75"
4.56"
Before beginning your installation check that all components were provided.
CARTON INVENTORY
DESCRIPTION
Powerhead Assembly
Owner’s Manual and Caution Labels
Hardware Box (Includes Fasteners, Disconnect and Chain Hoist Wall Bracket)
3-Button Control Station
Hoist Hand Chain (Models H & HJ Only)
Door Sprocket
Door/Operator Drive Chain

4
OPERATOR SPECIFICATIONS
SAFETY
DISCONNECT:
Model J . . . . . . . . . . . . .Floor level disconnect for emergency
manual door operation.
Model H . . . . . . . . . . . . .Floor level chain hoist with electrical
interlock for manual door operation.
Model HJ . . . . . . . . . . . .Includes both floor level disconnect
systems stated above.
Reversing Edge: . . . . . . .(Optional) Electric or pneumatic sensing
device attached to the bottom edge of door.
MOTOR
TYPE:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous Duty
HORSEPOWER: . . . . . . . . . . . . . . . . . . . 1/3, 1/2, 3/4 and 1 HP
Single or Three Phase
SPEED: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1725 RPM
VOLTAGE: . . . . . . . . . . . . . . . . . . . . 115, 220, 230 Single Phase
208, 230, 460, 575 Three Phase
CURRENT: . . . . . . . . . . . . . . . . . . . . . . . . See Motor Nameplate
ELECTRICAL
TRANSFORMER: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24Vac
CONTROL STATION: . . . . . . . . . . . .NEMA Three-Button Station
Open/Close/Stop
WIRING TYPE: . . . . . . . . . . . . . . . . . . . . . . . . . . .C2 (Standard)
Momentary contact to OPEN & STOP, constant pressure to
CLOSE, open override plus wiring for sensing device to
reverse. (Other types available. See chart, Pg. 11)
LIMIT ADJUST: . . . . .Linear driven, fully adjustable screw type
cams. Adjustable to 30 feet.
MECHANICAL
DRIVE REDUCTION: . . . . . . . .Primary: Heavy duty (5L) V-Belt
Secondary: #48 chain/sprocket; Output: #50 chain
OUTPUT SHAFT SPEED: . . . . . . . . . . . . . . . . . . . . . . . .36 RPM
DOOR SPEED: . . . . . . . . . . .6-7" (15.24-17.78 cm) per second
depending on door
BRAKE (Optional): . . . . . . . . . . . .Solenoid actuated disc brake
BEARINGS: . . . . . . . . . . . . .Output Shaft Shielded ball bearing;
Clutch Shaft: Iron Copper sintered and oil impregnated
HAND CHAIN WHEEL: . . . . . . . . . . . . . . . .Left or right handing
Models H and HJ ONLY

5
PREPARATION
It is imperative that the wall or mounting surface provide
adequate support for the operator.
This surface must:
a. Be rigid to prevent play between operator and door shaft.
b. Provide a level base.
c. Permit the operator to be fastened securely and with the
drive shaft parallel to the door shaft.
The safety and wear of the operator will be adversely affected if
any of the above requirements are not met. For metal buildings,
fasten 2" x 2" x 3/16" (or larger) angle iron frames to the building
purlins. Retain 5-1/2" (13.97 cm) between frames.
Both J and H series operators have dual output shafts and may
be mounted on either the right (standard) or left side of door, and
in either a vertical (standard) or horizontal mounting position. If
you need to move the drive sprocket, loosen BOTH set screws,
remove the sprocket and key, and place on the opposite side of
the drive shaft. Be sure to tighten BOTH set screws securely.
HAND CHAIN HANDING
For models H and HJ with manual hoist hand chain systems, the
handing of the operator must be determined at the time of order.
The handing is indicated by last letter of the model name
(R or L). The hand chain wheel can not be switched on site. If
your installation causes the hand chain to hang in the door
opening, hook the chain off to the side near the top of the door
jamb.
To prevent possible SERIOUS INJURY or DEATH:
• DO NOT connect electric power until instructed to do so.
• If the door lock needs to remain functional, install an
interlock switch.
• ALWAYS call a trained professional door serviceman if door
binds, sticks or is out of balance. An unbalanced door may
not reverse when required.
• NEVER try to loosen, move or adjust doors, door springs,
cables, pulleys, brackets or their hardware, ALL of which are
under EXTREME tension and can cause SERIOUS PERSONAL
INJURY.
• Disable ALL locks and remove ALL ropes connected to door
BEFORE installing and operating door operator to avoid
entanglement.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNINGWARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA

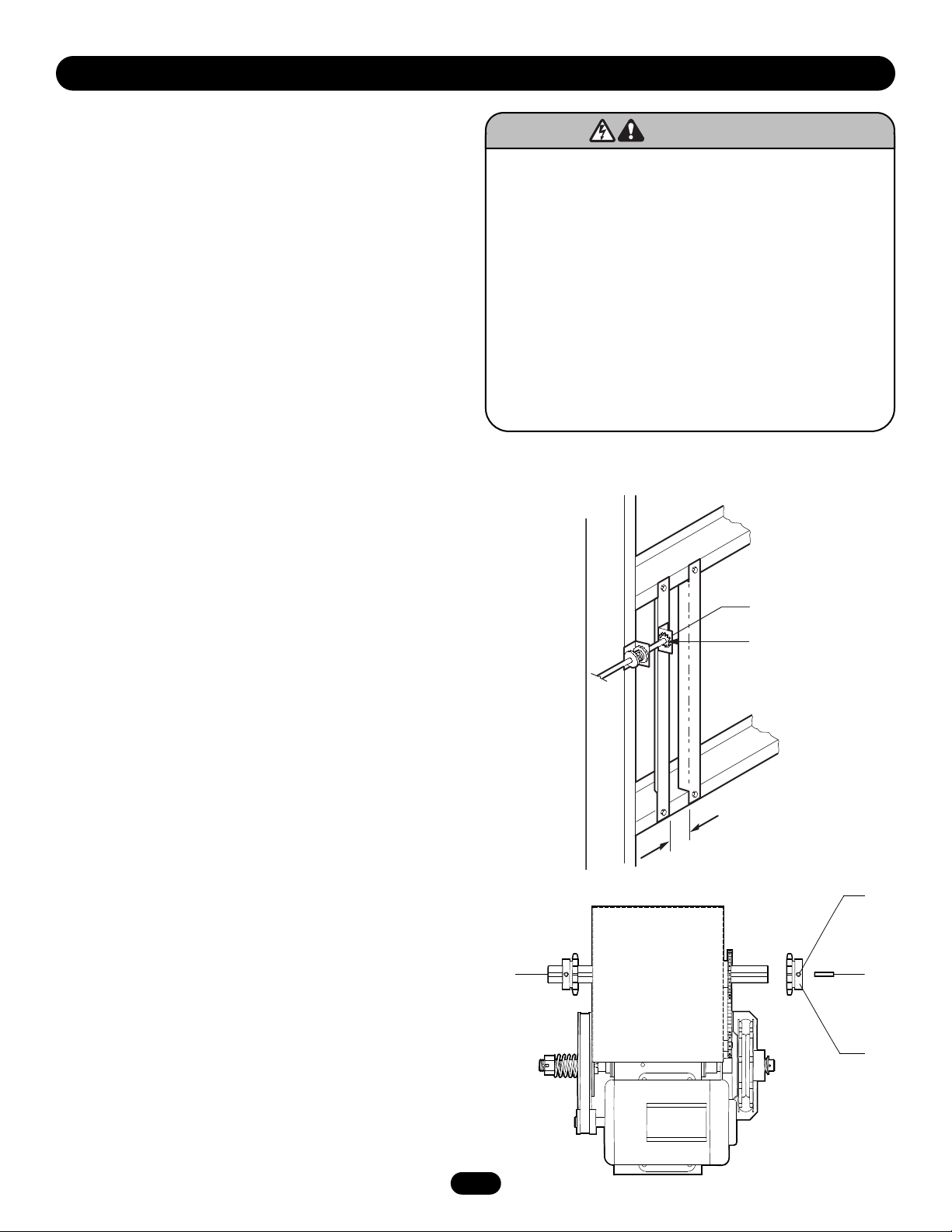

Door Sprocket
Shaft Support Bracket with
Bearing (Not Provided)
5 1/2" (13.97 cm)
(2) Set
Screws
Drive
Sprocket
Output Shaft Key

6
INSTALLATION
IMPORTANT NOTE: Before your operator is installed, be sure the door has been properly aligned and is working smoothly. The operator
may be wall mounted or mounted on a bracket or shelf. If necessary, refer to the preparation on page 5. Refer to the illustrations and
instructions below that suit your application.
MOUNT THE OPERATOR
1. Wall Mounting: The operator should generally be installed
below the door shaft, and as close to the door as possible
(Figure 1).
Bracket Shelf Mounting: The operator may be mounted either
above or below the door shaft (Figure 2).
IMPORTANT: The shelf or bracket must provide adequate support,
prevent play between operator and door shaft, and permit
operator to be fastened securely and with the drive shaft parallel
to the door shaft.
NOTE: The optimum distance between the door shaft and
operator drive shaft is between 12-15" (30.5-38.1 cm).
2. Place door sprocket on the door shaft. Do not insert the key
at this time.
3. Place drive sprocket on the appropriate side of the operator.
Do not insert the key at this time.
4. Wrap drive chain around door sprocket and join roller chain
ends together with master link.
5. Raise operator to approximate mounting position and position
chain over operator sprocket.
6. Raise or lower operator until the chain is taut (not tight).
Make sure the operator output shaft is parallel to door shaft
and sprockets are aligned. When in position, secure the
operator to wall or mounting bracket.
7. Align sprockets and secure (Figure 3).
8. Install Hand Chain (Models H and HJ only)
Place hand chain around hand chain wheel. Be sure to pass it
through both openings in the chain guide. Remove enough
links so chain hangs approximately 2' (.61 m) above the floor.
9. Mount Chain Keeper / Keyhole Bracket
Using suitable hardware mount the chain keeper
approximately 4' (1.22 m) above the floor, near the free
hanging chain. Remove disconnect sash chain from bag and
place the end through the keyhole in the the chain keeper.
Remove excess links if necessary.

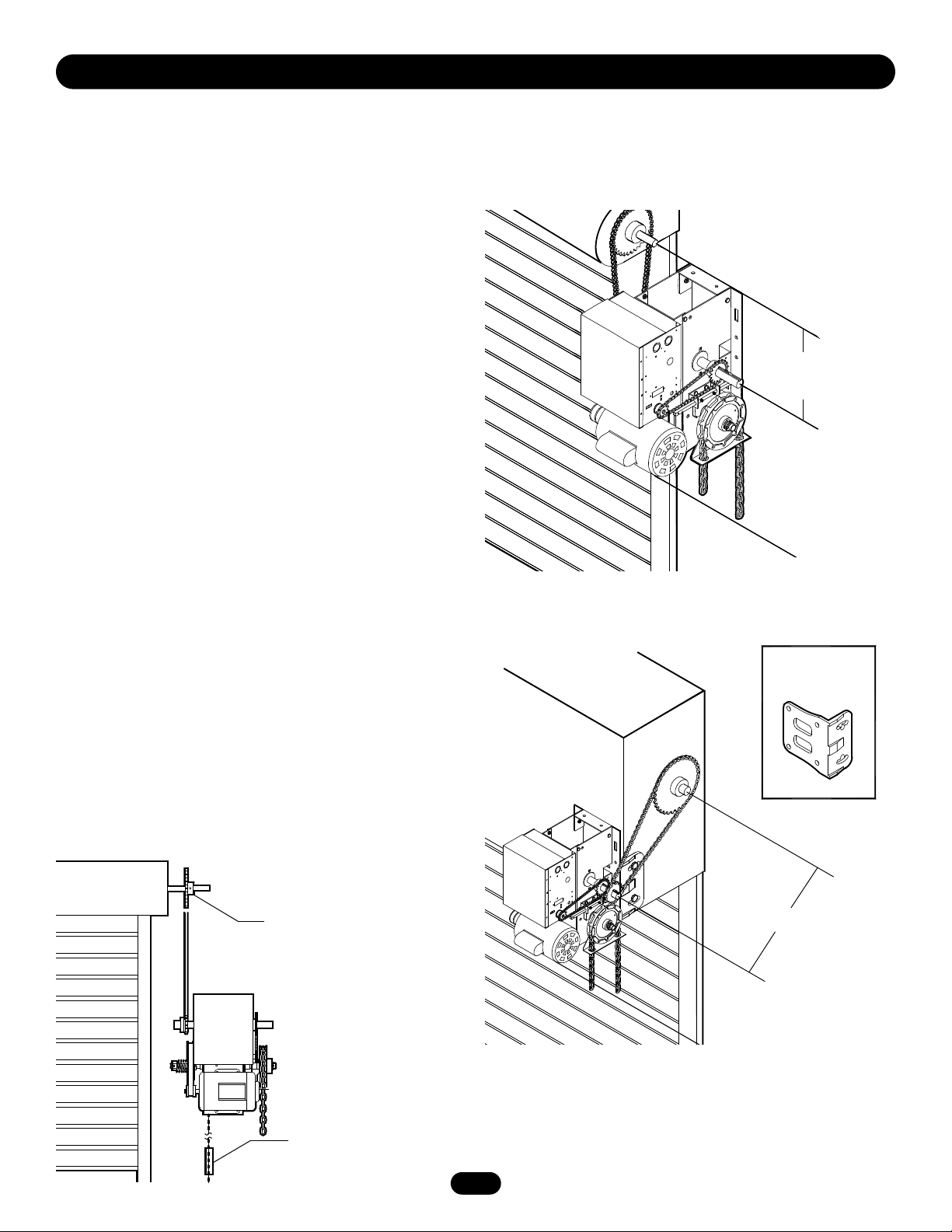

Figure 1
Figure 2
Figure 3
Optimum Distance
12-15" (30.5-38.1 cm)
Optimum Distance 12-15" (30.5-38.1 cm)
Typical Right Hand Wall
Mounted Operator
OPTIONAL
Mounting Bracket
P/N 08-9098
Chain Keeper
4' (1.22 m) above floor
Be sure door sprocket is properly
aligned with drive before securing
to the shaft.

7
MANUAL OPERATION
This operator has provisions for manually operating the door in
case of emergency or power failure. Refer to the appropriate
instructions below for your model operator. To prevent possible SERIOUS INJURY from a moving chain,
ENGAGE interlock BEFORE manually operating your door.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNINGWARNING
CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
MODEL H
These operators are equipped with a manual hoist. An electrical
interlock will disable the electrical controls when the hoist is used.
To operate the hoist:
1. Pull the disconnect chain (small chain) to engage the hoist
mechanism. The disconnect chain may be locked in position by
slipping the end through the keyhole of the chain keeper
mounted on the wall.
2. Operate the door in the desired direction by pulling on one side
or the other of the continuous loop hoist chain (large chain).
3. The disconnect chain must be released from the chain keeper
before the door will operate again electrically.
MODEL J
This operator has a floor level disconnect chain to disconnect the
door from the door operator.
1. To disengage, pull the chain and secure in the disengaged
position by slipping the end through the keyhole bracket
mounted on the wall. Or if emergency egress device is used,
pull handle to disengage operator from door.
2. The door may now be pushed up or pulled down manually.
Release the disconnect chain to operate the door again
electrically.
MODEL HJ
This operator includes both a floor level disconnect chain to
disconnect the door from the door operator and a disconnect
chain with manual hoist to electrically disable the operator
controls.
1. Refer to Model H instructions for hoist operation.
2. Refer to Model J instructions for manual operation.
INSTALLATION
Chain Keeper
(with pad locking provisions)
Keyhole Bracket
Electrical Interlock with Hoist for Models H and HJ
Manual Disconnect for Models J and HJ

8
ENTRAPMENT PROTECTION ACCESSORIES
(OPTIONAL)
SENSING EDGES & PHOTO EYES
Sensing devices provided for door industry type operators with an
isolated normally open (N.O.) output are compatible with your
operator. This includes pneumatic and electric edges, and through
beam and retro reflective photo eyes. If your door does not have a
bottom sensing edge or safety photo eyes and you wish to add a
safety device to your application, please contact your local
LiftMaster Authorized Dealer.

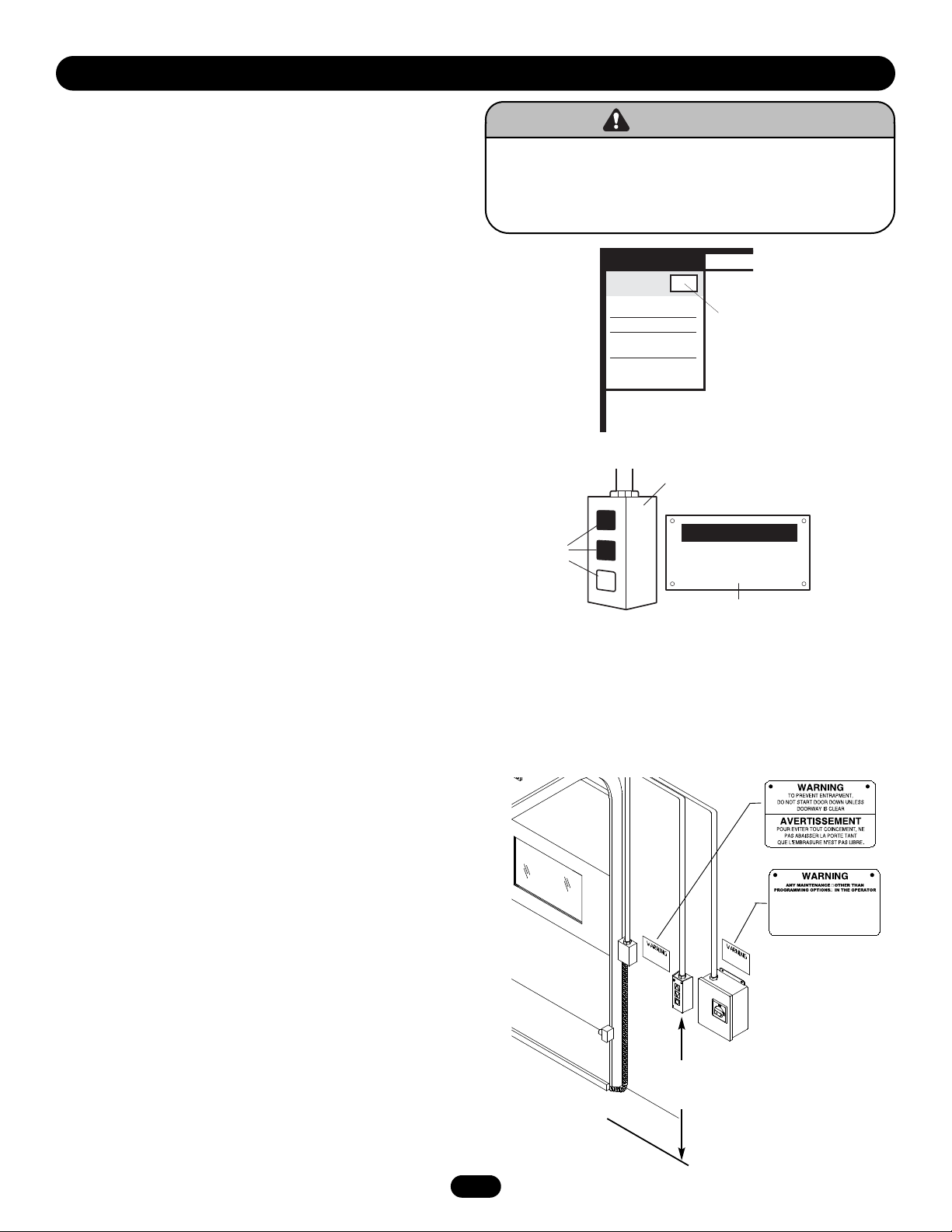

If not pre-installed by the door manufacturer, mount the sensing
edge on the door according to the instructions provided with the
edge. The sensing edge may be electrically connected by either
coiled cord or take-up reel. Refer to the steps below.
Important Notes:
a. Proceed with Limit Switch Adjustments described below before
making any sensing edge wiring connections to operator as
described below.
b. Electrician must hardwire the junction box to the operator
electrical box in accordance with local codes.
WIRING
For wiring of your sensing device to the operator, refer to the
wiring diagrams provided with your operator. See field connection
terminals identified as a Sensing Device or Safety Edge.
TAKE-UP REEL
Take-up reel should be installed 12" (30.48 cm) above the top of
the door.
COIL CORD
Connect operator end of coil cord to junction box (not provided)
fastened to the wall approximately halfway up the door opening.
ADJUSTMENT
To avoid SERIOUS PERSONAL INJURY or DEATH from
electrocution, disconnect electric power BEFORE manually
moving limit nuts.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNINGWARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
INSTALLATION
To reduce the risk of SEVERE INJURY or DEATH, ALWAYS install
reversing sensors when the 3-button control station is out of
sight of door or ANY other control (automatic or manual) is
used. Reversing devices are recommended for ALL installations.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNINGWARNING
CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
Open Limit Switch
Retaining Plate
Auxiliary Open Limit Switch
Close Limit Switch
Actuator
Safety (Aux. Close) Limit Switch

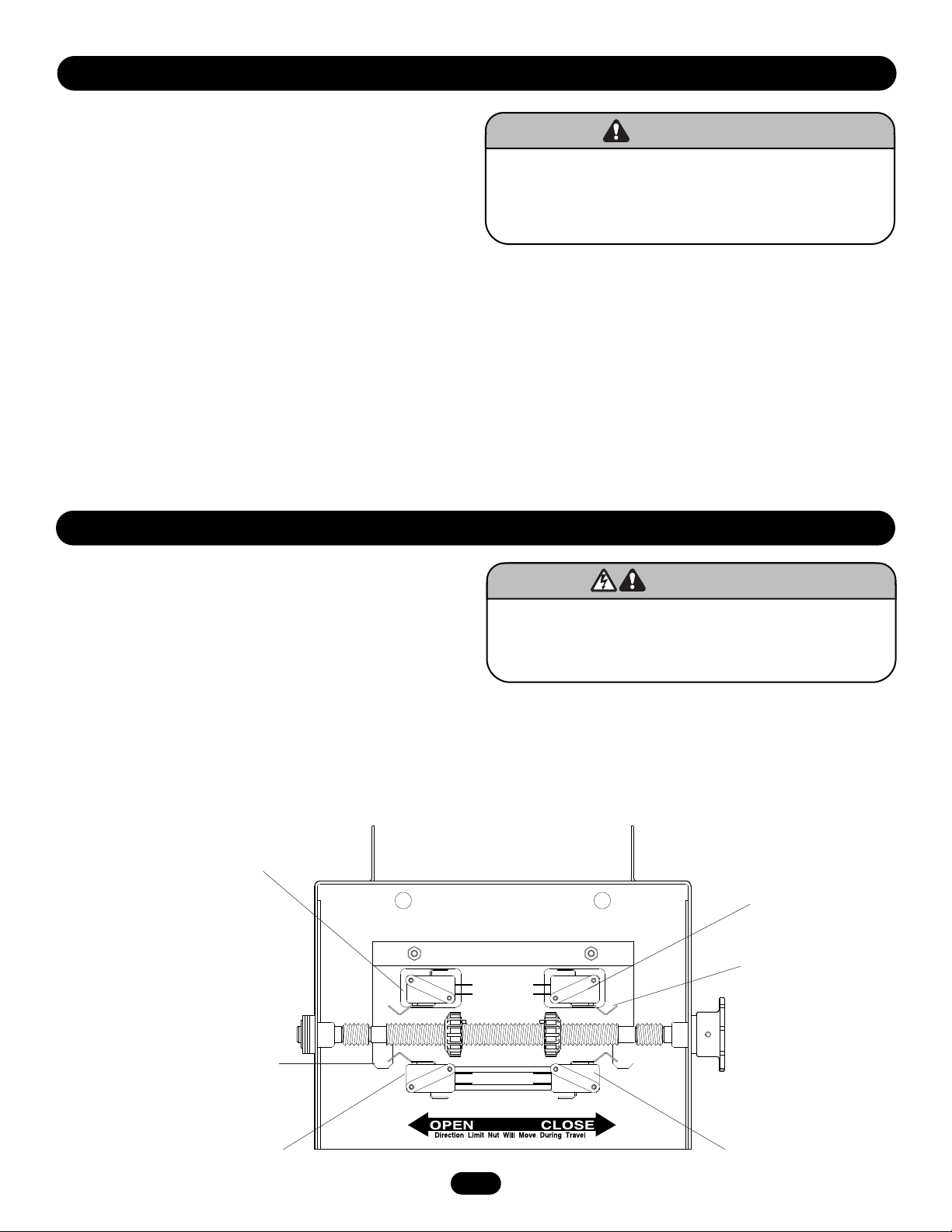

LIMIT SWITCH ADJUSTMENT
NOTE: Make sure the limit nuts are positioned between the limit
switches before proceeding with adjustments.
1. Depress retaining plate to allow nut to spin freely. After
adjustment, release plate and move nut back and forth to
ensure it is fully seated in slot.
2. To increase door travel, spin nut away from limit switch. To
decrease door travel, spin limit nut toward limit switch.
3. Adjust open limit nut so that door will stop in open position
with the bottom of the door even with top of door opening.
4. Repeat steps 1 and 2 for close cycle. Adjust close limit nut so
that the limit switch is engaged as door fully seats at the floor.

9
ADJUSTMENT
To prevent possible SERIOUS INJURY or DEATH, install
reversing sensors when the 3-button control station is out of
sight of the door or ANY other control (automatic or manual) is
used. Reversing devices are recommended for ALL installations.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNINGWARNING
CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
Solenoid
Release Lever
Cotterpin
Friction Pads
Plate
Assembly
Adjusting Nut
Spring
Clutch Pad
Clutch Plate
Cotterpin Washer
Clutch Pulley

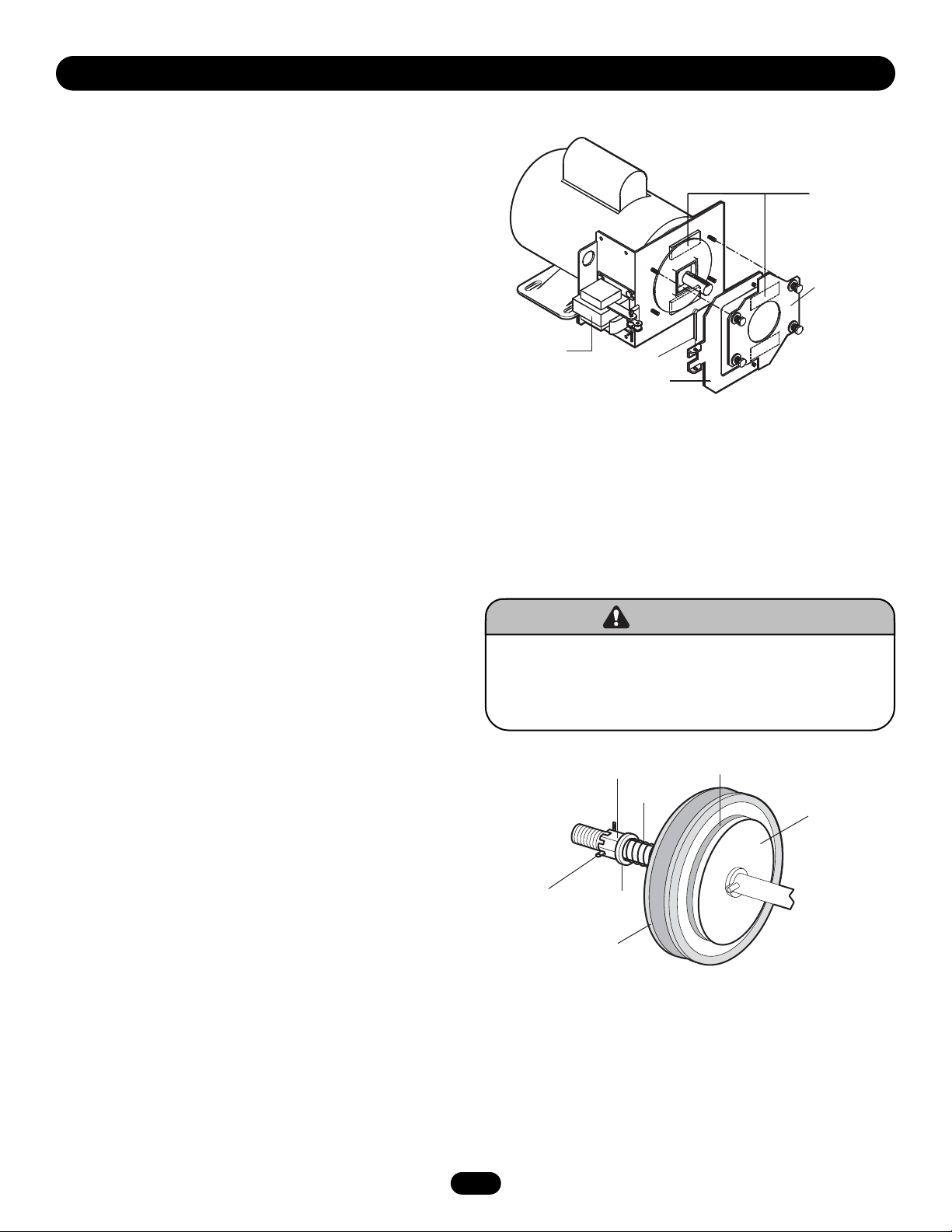

BRAKE ADJUSTMENT
A solenoid brake is available as an option (not included as a
standard feature). The brake is adjusted at the factory and should
not need additional adjustment for the the life of the brake
assembly.
Replace brake assembly when necessary. Refer to the illustration
for identification of components for the solenoid type brake
system.
CLUTCH ADJUSTMENT AND
AUXILIARY REVERSAL SYSTEM
The Auxiliary Reversal System is designed to protect the door
and motorized operator. It is NOT a substitute for a safety sensing
device. The Auxiliary Reversal System works in tandem with the
adjustable clutch to detect if a closing door runs into or comes
across an obstruction. If an obstruction is met and causes the
clutch to slip, the Auxiliary Reversal System will return the door
to the full open position when closing or stops the door when
opening.
1. Remove cotterpin from nut on the clutch shaft.
2. Back off clutch nut until there is very little tension on the
clutch spring.
3. Tighten clutch nut gradually until there is just enough tension
to permit the operator to move the door smoothly but to allow
the clutch to slip if the door is obstructed. When the clutch is
properly adjusted, it should generally be possible to stop the
door by hand during travel.
4. Reinstall cotterpin.

10
POWER WIRING CONNECTIONS
To reduce the risk of SEVERE INJURY or DEATH:
• ANY maintenance to the operator or in the area near the
operator MUST NOT be performed until disconnecting the
electrical power and locking-out the power via the operator
power switch. Upon completion of maintenance the area MUST
be cleared and secured, at that time the unit may be returned
to service.
• Disconnect power at the fuse box BEFORE proceeding.
Operator MUST be properly grounded and connected in
accordance with local electrical codes. The operator should be
on a separate fused line of adequate capacity.
• ALL electrical connections MUST be made by a qualified
individual.
• DO NOT install ANY wiring or attempt to run the operator
without consulting the wiring diagram. We recommend that
you install an optional reversing edge BEFORE proceeding with
the control station installation.
• ALL power wiring should be on a dedicated circuit and well
protected. The location of the power disconnect should be
visible and clearly labeled.
• ALL power and control wiring MUST be run in separate
conduit.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNINGWARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
GROUND WIRING CONNECTIONS
1. Connect earth ground to the chassis ground screw in the
electrical box enclosure.
2. Use same conduit entry into the electrical box as the power
wiring.
IMPORTANT NOTE: This unit must be properly grounded. Failure
to properly ground this unit could result in electric shock and
serious injury.
POWER WIRING CONNECTIONS
1. Connect power wires coming from the main to the captive
terminal block in the electrical box enclosure marked with the
label. All power and control wiring must be run in separate
conduit in accordance with local electrical codes.
2. Be sure to run all power wires through the conduit hole in the
electrical box enclosure marked with the label shown below.
NOTE: Must use #14 AWG or thicker wire for power wiring.
ON THREE PHASE MACHINES ONLY: Incorrect phasing of the
power supply will cause the motor to rotate in the wrong
direction. To change motor rotation, exchange incoming power
leads L1 and L2.
Single Phase Power Wiring
Line Power
115/230 Vac
Single Phase
Three Phase Power Wiring
Line Power
208/230/380/460/575 Vac
Three Phase
Hot
Neutral
Ground
Phase 1
Phase 2
Phase 3

11
CONTROL WIRING
DETERMINE WIRING TYPE
Refer to the wiring diagram located on the inside cover the
electrical box to determine the type of control wiring.
STANDARD C2 OR B2 WIRING
Standard operators are shipped from the factory with jumper set
for C2 wiring, which requires constant pressure on button to
close the door. If momentary contact on close direction is desired
(B2 wiring) you must include an entrapment protection device.
See close control jumper setting below.
CONSTANT PRESSURE ON CLOSE (C2 WIRING)
Red jumper wire was placed on terminal #2 in electrical
enclosure. The operator will require constant pressure on close
control in order to keep door moving in the close direction.
MOMENTARY CONTACT ON CLOSE (B2 WIRING)
Move red jumper wire from terminal #2 to terminal #3. The
operator will require only momentary contact to close the door.
SPECIAL CONTROL WIRING
If your operator was shipped from the factory with non-standard
control wiring or with optional accessories that require addition
instructions, refer to the wiring diagram(s) indicated in the
special control wiring data box. When a replacement wiring
diagram is present, wiring diagrams in this manual will not apply.
Refer only to the replacement wiring diagram for all connections.
RADIO CONTROLS
On all models with type B2 control wiring, a terminal bracket
marked R1 R2 R3 is located on the outside of the electrical
enclosure. All standard radio control receivers (single channel
residential type) may be mounted to this bracket. The operator
will then open a fully closed door, close a fully open door, and
reverse a closing door from the radio transmitter. However,
for complete door control from a transmitter, a commercial
three-channel radio set (with connections for Open/Close/Stop)
is recommended.
ADDITIONAL ACCESS CONTROL EQUIPMENT
Locate any additional access control equipment as desired (but
so that the door will be in clear sight of the person operating the
equipment), and connect to the terminal block in the electrical
enclosure as shown on the Field Wiring Connections diagram.
Any control with a normally (N.O.) isolated output contact may be
connected in parallel with the OPEN button. More than one device
may be connected in this manner. Use 16 gauge wire or larger for
all controls. Do not use the Control Circuit Transformer (24Vac) in
the Operator to power any access control equipment other than a
standard residential type radio receiver.
EXTERNAL INTERLOCK SWITCH
The operator has a terminal connection for an external interlock
switch. This switch must be a normally closed (N.C.) two-wire
device with a contact rating of at least 3 amps at 24Vac. When
such a switch is connected as shown on the Field Wiring
Connections diagram, the control circuit will be disabled when the
switch is actuated, thereby preventing electrical operation of the
door from the control devices.
To prevent possible SERIOUS INJURY or DEATH, install
reversing sensors when the 3-button control station is out of
sight of the door or ANY other control (automatic or manual) is
used. Reversing devices are recommended for ALL installations.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNINGWARNING
CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
WI
This Operator has
Control Wiring.
SPECIAL CONTROL
WIRING DIAGRAM
Wiring Diagram label on inside cover
of electrical box
Note: Supplemental Wiring Diagrams are
to be used in addition to 1742-1.
Replacement Wiring Diagram is to be used
in place of 1742-1
REPLACEMENT WIRING DIAGRAM
SUPPLEMENTAL WIRING DIAGRAM(S)
Wiring Diagram Label on Inside
Cover of Electrical Box
WARNINGW A R N I N G
TO PREVENT ENTRAPMENT
DO NOT START DOOR DOWNWARD
UNLESS DOORWAY IS CLEAR
OPENOPEN
CLOSE CLOSE
STOP
WARNING
Control Station
Warning Notice
Push
Buttons
Wiring
Type
MOUNTING INSTRUCTIONS
1. Mount WARNING NOTICE beside or below the control station.
2. Mount MAINTENANCE ALERT label to either side of control
station.
3. Mount control station(s) within line of sight of door(s).
OR IN THE AREA NEAR THE OPERATOR MUST
NOT BE PERFORMED UNTIL DISCONNECTING
THE ELECTRICAL POWER AND LOCKING-OUT
THE POWER VIA, THE MAIN DISCONNECT
SWITCH. UPON COMPLETION OF
MAINTENANCE THE AREA MUST BE CLEARED
AND SECURED, AT THAT TIME THE UNIT MAY
BE RETURNED TO SERVICE.
4'
Approximate
Control
Station Optional
Controls

12
SINGLE PHASE WIRING DIAGRAMS – 10118-1
- Shipped from Factory
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE GREY BLUE
STOP
ORANGE
1
GREY
ORANGE RED
OPEN
CLOSE
32
PURPLE PURPLE ORANGE
RED
4
ORANGE YELLOW
BROWN
CLOSE
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
CNO R1
RELAY
NC
RED
BLACK
ORANGE
YELLOW
3
1OPEN
A1
5
13
WHITE
PURPLE
BLUE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
WHITE
SEE NOTE 2
BLACK
WHITE
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
SUPPLY
SUPPLY
BLACK
BLACK
2
ONLY
115V.
ONLY
230V.
A2
14
4
6RED
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S NC
AUX.OPEN
C
L/S NC
NO
RECEIVER
RADIO
ORANGE
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
GROUND
1 PHASE
POWER IN
(SEE NOTE 3)
L1
L1
YELLOW
5 7
ORANGE
BROWN
YELLOW
10
GREY BLACK
L2
L3L2
WHITE BLACK WHITE
OVERLOAD
SEE NOTE 4
WIRE NUT
NO
BLACK
PURPLE
RED
YELLOW
IR RELAY
SEE NOTE 3
NC
ORANGE
BLACK
BLACK
BLACK
LOAD
24VAC
YELLOW
WHITE
T1
C
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BLACK
BROWN
PURPLE
PURPLE C
NC L/S
CLOSE
C
NC L/S
PURPLEPURPLE
TO TERMINAL #2
TIMER
CONTACTOR
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
SEE NOTE
BELOW
EDGE
*
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
BLACK
BLACK
BLACK
NOTES:
1) TO REVERSE MOTOR DIRECTION: INTERCHANGE PURPLE &
GRAY MOTOR LEADS AT CONTACTOR 1 & 3.
2) WIRE MUST BE REMOVED FOR 230V 1PH OPERATION.
3) TRANSFORMER PRIMARY & RELAY VOLTAGE SAME AS LINE VOLTAGE.
4) SINGLE PHASE UNITS ARE EQUIPPED WITH AN EXTERNAL LINE
BREAK DEVICE, AND MAY BE EQUIPPED WITH AN ADDITIONAL
INTERNAL PILOT DUTY THERMAL O/L DEVICE.
TRANSFORMER
SEE NOTE 3
BL-BK
BL-BK
BL-BK
BL-BK
P
BL
BK
BK
Y
P
GY
Y
GY
BL
115V. CONNECTION
2
5
4
8
1
3
1
8
5
4
3
OL
2
( WHEN REQUIRED )
115V. BRAKE
( WHEN REQUIRED )
230V. BRAKE
SOLENOID SOLENOID
230V. CONNECTION
BK
BK
OL
O/L SEE
NOTE 4
O/L SEE
NOTE 4
INTERNAL MOTOR
WIRING
1 - BLUE
2 - WHITE
3 - ORANGE
4 - YELLOW
5 - BLACK
8 - RED
O/L- BROWN

13
SINGLE PHASE SCHEMATIC DIAGRAM – 10118-1
4356
12
43
21
65
L2
(YE)
(PUR)
(BL)
EXTERNAL
STOP
345 T1
24VAC
SEC.
PRI.
AUX. CLOSE
LIMIT SWITCH
NC C
1
7
10
OPEN
SAFETY EDGE
OPEN & CLOSE
LIMIT SWITCH
AUX. OPEN
C
NO
NC
LIMIT SWITCH
NC C
TO MOTOR
POWER IN L1
1 PHASE
INTERLOCK
OP
R1
OP
OP
CL
CL OP
CL
OP
14
13
OVERLOAD
SEE NOTE 4
R1
OPEN & CLOSE
R2
R1
OPEN
CLOSE 2
14
13
CL
CL
LIMIT SWITCH
NC
CLOSE
C
R1
(BK)
(BK)
(BRN)
(BR)
(YEL)
(OR) (OR) (OR) (OR)
(RED) (RED)
(OR)
(YEL)
(YEL)
(PUR)
(OR)
(PUR) (PUR) (PUR) (PUR)
(P)
R3 (RED)
(YEL)
(OR)
(OR)
(SEE NOTE 3)
(PUR)
TIMER TO CLOSE
(PUR)
(OPTIONAL)
(GY)
(GY)
RADIO TO
A1 A2
A2 A1
(YEL)
NUT
WIRE
IR
CNO
(R)
IR
CNO
(Y)
115V MODELS
IR (BK)
230V MODELS
(GY)
(SEE NOTE 3)
(BRN)
NC C
HAND CHAIN
INTL'K SWITCH
(WHEN PRESENT)
(RED)
C2 WIRING - Constant Presssure to Close
RED WIRE ON TERMINAL #2 (Shipped from Factory)
B2 WIRING - Momentary Contact to Close
MOVE RED WIRE FROM TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL WIRING OPTIONS
- Shipped from Factory
*
4356
12
43
21
65
L2
(YE)
(PUR)
(BL)
EXTERNAL
STOP
345 T1
24VAC
SEC.
PRI.
AUX. CLOSE
LIMIT SWITCH
NC C
1
7
10
OPEN
SAFETY EDGE
OPEN & CLOSE
LIMIT SWITCH
AUX. OPEN
C
NO
NC
LIMIT SWITCH
NC C
TO MOTOR
POWER IN L1
1 PHASE
INTERLOCK
OP
R1
OP
OP
CL
CL OP
CL
OP
14
13
OVERLOAD
SEE NOTE 4
R1
OPEN & CLOSE
R2
R1
OPEN
CLOSE 2
14
13
CL
CL
LIMIT SWITCH
NC
CLOSE
C
R1
(WH)
(WH)
(BRN)
(BR)
(YEL)
(OR) (OR) (OR) (OR)
(RED) (RED)
(OR)
(YEL)
(YEL)
(PUR)
(OR)
(PUR) (PUR) (PUR) (PUR)
(P)
R3 (RED)
(YEL)
(OR)
(OR)
(SEE NOTE 3)
(PUR)
TIMER TO CLOSE
(PUR)
(OPTIONAL)
(GY)
(GY)
RADIO TO
A1 A2
A2 A1
(YEL)
NUT
WIRE
IR
CNO
(R)
IR
CNO
(Y)
115V MODELS
IR
230V MODELS
(GY)
(SEE NOTE 3)
(BRN)
NC C
HAND CHAIN
INTL'K SWITCH
(WHEN PRESENT)
(RED)(RED)
C2 WIRING - Constant Presssure to Close
RED WIRE ON TERMINAL #2 (Shipped from Factory)
B2 WIRING - Momentary Contact to Close
MOVE RED WIRE FROM TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL WIRING OPTIONS
- Shipped from Factory
*
BL-BK
BL-BK
BL-BK
BL-BK
P
BL
BK
BK
Y
P
GY
Y
GY
BL
115V. CONNECTION
2
5
4
8
1
3
1
8
5
4
3
OL
2
( WHEN REQUIRED )
115V. BRAKE
( WHEN REQUIRED )
230V. BRAKE
SOLENOID
SOLENOID
230V. CONNECTION
NOTES:
1) TO REVERSE MOTOR DIRECTION: INTERCHANGE PURPLE &
GRAY MOTOR LEADS AT CONTACTOR 1 & 3.
2) WIRE MUST BE REMOVED FOR 230V 1PH OPERATION.
3) TRANSFORMER PRIMARY & RELAY VOLTAGE SAME AS LINE VOLTAGE.
4) SINGLE PHASE UNITS ARE EQUIPPED WITH AN EXTERNAL LINE
BREAK DEVICE, AND MAY BE EQUIPPED WITH AN ADDITIONAL
INTERNAL PILOT DUTY THERMAL O/L DEVICE.
BK
BK
OL
O/L SEE
NOTE 4
O/L SEE
NOTE 4
MOTOR OVERLOAD
SEE NOTE 4
(BK) (BK)
(SEE NOTE 2)
INTERNAL MOTOR
WIRING
1 - BLUE
2 - WHITE
3 - ORANGE
4 - YELLOW
5 - BLACK
8- RED
O/L- BROWN
(BK)

14
THREE PHASE WIRING DIAGRAM – 10118-3
CNONC
R1
RELAY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE
GREY
ORANGE GREY ORANGE RED
PURPLE PURPLE ORANGE
RED
ORANGE YELLOW BROWN
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
RED
ORANGE
ORANGE
3
1OPEN
A1
5
13
WHITE
PURPLE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
BLACK
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
2
A2
14
4
6
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S
NC
AUX.OPEN
C
L/S
NC
NO
RECEIVER
RADIO
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
YELLOW ORANGE BROWN YELLOW
GREY
BLACK
WIRE NUT
LOAD
24VAC
YELLOW
BLACK XFMR
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BROWN
PURPLE
PURPLE
C
NC L/S
CLOSE
C
NC L/S
PURPLE
TO TERMINAL #2
TIMER
PURPLE
BLACK
BLACK
BLACK BLACK
T1 L1
L2
T2
T3 L3
95
96
OVERLOAD
ORANGE
BLACK
BROWN
SEE NOTE:
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
STOP
1
OPEN
CLOSE
32 4
GROUND
3 PHASE
L1
L1
5710
L2
L3L2
EDGE
*
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
L3
CLOSE
PURPLE
ORANGE
- Shipped from Factory
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
CNONC
R1
RELAY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE
GREY
ORANGE GREY ORANGE RED
PURPLE PURPLE ORANGE
RED
ORANGE YELLOW BROWN
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
RED
ORANGE
ORANGE
3
1OPEN
A1
5
13
WHITE
PURPLE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
BLACK
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
2
A2
14
4
6
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S
NC
AUX.OPEN
C
L/S
NC
NO
RECEIVER
RADIO
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
YELLOW ORANGE BROWN YELLOW
GREY
BLACK
WIRE NUT
LOAD
24VAC
YELLOW
BLACK XFMR
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BROWN
PURPLE
PURPLE
C
NC L/S
CLOSE
C
NC L/S
PURPLE
TO TERMINAL #2
TIMER
PURPLE
BLACK
BLACK
BLACK BLACK
T1 L1
L2
T2
T3 L3
95
96
OVERLOAD
ORANGE
BLACK
BROWN
SEE NOTE:
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
STOP
1
OPEN
CLOSE
32 4
GROUND
3 PHASE
L1
L1
5710
L2
L3L2
EDGE
*
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
L3
CLOSE
PURPLE
ORANGE
- Shipped from Factory
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
CNONC
R1
RELAY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE
GREY
ORANGE GREY ORANGE RED
PURPLE PURPLE ORANGE
RED
ORANGE YELLOW BROWN
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
RED
ORANGE
ORANGE
3
1OPEN
A1
5
13
WHITE
PURPLE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
BLACK
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
2
A2
14
4
6
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S
NC
AUX.OPEN
C
L/S
NC
NO
RECEIVER
RADIO
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
YELLOW ORANGE BROWN YELLOW
GREY
BLACK
WIRE NUT
LOAD
24VAC
YELLOW
BLACK XFMR
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BROWN
PURPLE
PURPLE
C
NC L/S
CLOSE
C
NC L/S
PURPLE
TO TERMINAL #2
TIMER
PURPLE
BLACK
BLACK
BLACK BLACK
T1 L1
L2
T2
T3 L3
95
96
OVERLOAD
ORANGE
BLACK
BROWN
SEE NOTE:
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
STOP
1
OPEN
CLOSE
32 4
GROUND
3 PHASE
L1
L1
5710
L2
L3L2
EDGE
*
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
L3
CLOSE
PURPLE
ORANGE
- Shipped from Factory
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
CNONC
R1
RELAY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE
GREY
ORANGE GREY ORANGE RED
PURPLE PURPLE ORANGE
RED
ORANGE YELLOW BROWN
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
RED
ORANGE
ORANGE
3
1OPEN
A1
5
13
WHITE
PURPLE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
BLACK
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
2
A2
14
4
6
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S
NC
AUX.OPEN
C
L/S
NC
NO
RECEIVER
RADIO
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
YELLOW ORANGE BROWN YELLOW
GREY
BLACK
WIRE NUT
LOAD
24VAC
YELLOW
BLACK XFMR
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BROWN
PURPLE
PURPLE
C
NC L/S
CLOSE
C
NC L/S
PURPLE
TO TERMINAL #2
TIMER
PURPLE
BLACK
BLACK
BLACK BLACK
T1 L1
L2
T2
T3 L3
95
96
OVERLOAD
ORANGE
BLACK
BROWN
SEE NOTE:
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
STOP
1
OPEN
CLOSE
32 4
GROUND
3 PHASE
L1
L1
5710
L2
L3L2
EDGE
*
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
L3
CLOSE
PURPLE
ORANGE
- Shipped from Factory
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
CNONC
R1
RELAY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE
GREY
ORANGE GREY ORANGE RED
PURPLE PURPLE ORANGE
RED
ORANGE YELLOW BROWN
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
RED
ORANGE
ORANGE
3
1OPEN
A1
5
13
WHITE
PURPLE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
BLACK
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
2
A2
14
4
6
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S
NC
AUX.OPEN
C
L/S
NC
NO
RECEIVER
RADIO
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
YELLOW ORANGE BROWN YELLOW
GREY
BLACK
WIRE NUT
LOAD
24VAC
YELLOW
BLACK XFMR
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BROWN
PURPLE
PURPLE
C
NC L/S
CLOSE
C
NC L/S
PURPLE
TO TERMINAL #2
TIMER
PURPLE
BLACK
BLACK
BLACK BLACK
T1 L1
L2
T2
T3 L3
95
96
OVERLOAD
ORANGE
BLACK
BROWN
SEE NOTE:
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
STOP
1
OPEN
CLOSE
32 4
GROUND
3 PHASE
L1
L1
5710
L2
L3L2
EDGE
*
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
L3
CLOSE
PURPLE
ORANGE
- Shipped from Factory
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
CNONC
R1
RELAY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE
GREY
ORANGE GREY ORANGE RED
PURPLE PURPLE ORANGE
RED
ORANGE YELLOW BROWN
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
RED
ORANGE
ORANGE
3
1OPEN
A1
5
13
WHITE
PURPLE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
BLACK
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
2
A2
14
4
6
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S
NC
AUX.OPEN
C
L/S
NC
NO
RECEIVER
RADIO
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
YELLOW ORANGE BROWN YELLOW
GREY
BLACK
WIRE NUT
LOAD
24VAC
YELLOW
BLACK XFMR
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BROWN
PURPLE
PURPLE
C
NC L/S
CLOSE
C
NC L/S
PURPLE
TO TERMINAL #2
TIMER
PURPLE
BLACK
BLACK
BLACK BLACK
T1 L1
L2
T2
T3 L3
95
96
OVERLOAD
ORANGE
BLACK
BROWN
SEE NOTE:
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
STOP
1
OPEN
CLOSE
32 4
GROUND
3 PHASE
L1
L1
5710
L2
L3L2
EDGE
*
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
L3
CLOSE
PURPLE
ORANGE
- Shipped from Factory
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
CNONC
R1
RELAY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE
GREY
ORANGE GREY ORANGE RED
PURPLE PURPLE ORANGE
RED
ORANGE YELLOW BROWN
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
RED
ORANGE
ORANGE
3
1OPEN
A1
5
13
WHITE
PURPLE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
BLACK
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
2
A2
14
4
6
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S
NC
AUX.OPEN
C
L/S
NC
NO
RECEIVER
RADIO
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
YELLOW ORANGE BROWN YELLOW
GREY
BLACK
WIRE NUT
LOAD
24VAC
YELLOW
BLACK XFMR
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BROWN
PURPLE
PURPLE
C
NC L/S
CLOSE
C
NC L/S
PURPLE
TO TERMINAL #2
TIMER
PURPLE
BLACK
BLACK
BLACK BLACK
T1 L1
L2
T2
T3 L3
95
96
OVERLOAD
ORANGE
BLACK
BROWN
SEE NOTE:
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
STOP
1
OPEN
CLOSE
32 4
GROUND
3 PHASE
L1
L1
5710
L2
L3L2
EDGE
*
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
L3
CLOSE
PURPLE
ORANGE
- Shipped from Factory
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
CNONC
R1
RELAY
BRAKE
( WHEN REQ'D )
YELLOW
( OPTIONAL )
BL-BK
BL-BK
TO MOTOR
PURPLE
GREY
ORANGE GREY ORANGE RED
PURPLE PURPLE ORANGE
RED
ORANGE YELLOW BROWN
PURPLE
PURPLE
INTERLOCK
RED
ORANGE
ORANGE
RED
ORANGE
ORANGE
3
1OPEN
A1
5
13
WHITE
PURPLE
PURPLE
YELLOW
RED
GREY
1
A1
13
3
5
BLACK
YELLOW
4
2
A2
6
14
PURPLE
PURPLE
2
A2
14
4
6
AUX.TERMINAL
BLOCK FOR RADIO
OPEN
C
L/S
NC
AUX.OPEN
C
L/S
NC
NO
RECEIVER
RADIO
ORANGE
R3
PURPLE
ORANGE
YELLOW
RED
RED
R2
R1
YELLOW
ORANGE
YELLOW ORANGE BROWN YELLOW
GREY
BLACK
WIRE NUT
LOAD
24VAC
YELLOW
BLACK XFMR
LINE
(SEE NOTE 2)
( OPTIONAL )
SAFETY
PURPLE
TO TERMINAL #3
GREY
GREY
BROWN
PURPLE
PURPLE
C
NC L/S
CLOSE
C
NC L/S
PURPLE
TO TERMINAL #2
TIMER
BLACK
BLACK
BLACK BLACK
T1 L1
L2
T2
T3 L3
95
96
OVERLOAD
(SEE NOTE 3)
ORANGE
BLACK
BROWN
SEE NOTE:
EXT.
INTLK.
AND CLOSE
TO OPEN
SAFETY
STOP
1
OPEN
CLOSE
32 4
GROUND
3 PHASE
POWER IN
(SEE NOTE 2)
L1
L1
5710
L2
L3L2
EDGE
*
CLOSE
LIMIT SWITCHES
OPEN
LIMIT SWITCHES
L3
CLOSE
PURPLE
ORANGE
- Shipped from Factory
C2 WIRING:
Constant Presssure to Close
RED WIRE ON TERMINAL
#2 (Shipped from Factory)
B2 WIRING:
Momentary Contact to Close
MOVE RED WIRE FROM
TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL
WIRING OPTIONS
*
NOTES:
1) TO REVERSE MOTOR DIRECTION: INTERCHANGE PURPLE &
GRAY MOTOR LEADS AT CONTACTOR 1 & 3.
2) TRANSFORMER PRIMARY & RELAY VOLTAGE SAME AS LINE VOLTAGE.
3) THREE PHASE UNITS MAY BE EQUIPPED WITH AN INTERNAL PILOT DUTY
THERMAL OVERLOAD DEVICE, OR AN EXTERNAL LINE MONITORING DEVICE.
(SEE NOTE 3)
BLACKBLACKBLACKBLACKBLACKBLACKBLACKBLACK
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
85
208/230 VOLT - 3 PHASE
MOTOR CONNECTION
460 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
575V BRAKE
3
BL/BK
BL/BK
1
2
YEL
PUR
GY
575 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
85
MOTOR CONNECTION
460 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
575V BRAKE
3
BL/BK
BL/BK
1
2
YEL
PUR
GY
575 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
85
MOTOR CONNECTION
460 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
575V BRAKE
3
BL/BK
BL/BK
1
2
YEL
PUR
GY
575 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
85
MOTOR CONNECTION
460 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
575V BRAKE
3
BL/BK
BL/BK
1
2
YEL
PUR
GY
575 VOLT - 3 PHASE
MOTOR CONNECTION
OVERLOAD
(SEE NOTE 3)
OVERLOAD
(SEE NOTE 3)
OVERLOAD
(SEE NOTE 3)
BK
BK
85858585
BK
BK
BK
BK
BLACKBLACKBLACKBLACKBLACKBLACKBLACKBLACK
BLACKBLACKBLACKBLACKBLACKBLACKBLACKBLACK
BLACKBLACKBLACKBLACKBLACKBLACKBLACKBLACK

15

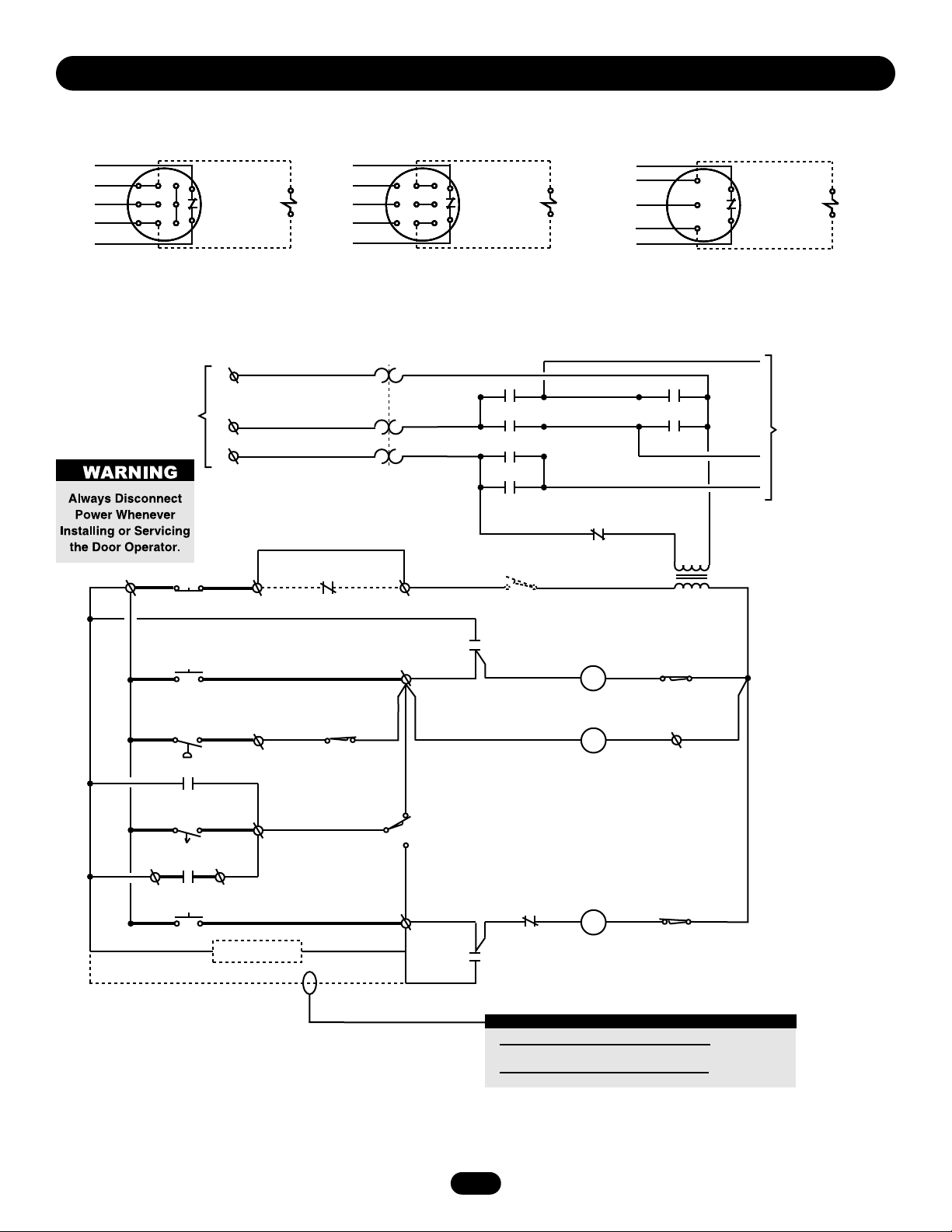

THREE PHASE SCHEMATIC DIAGRAM – 10118-3
4356
12
43
21
65
L3
L2
(GY)
(PUR)
(YEL)
EXTERNAL
STOP
345 T1
24VAC
SEC.
PRI.
AUX. CLOSE
LIMIT SWITCH
NC C
1
7
10
OPEN
SAFETY EDGE
OPEN & CLOSE
LIMIT SWITCH
AUX. OPEN
C
NO
NC
LIMIT SWITCH
NC C
TO MOTOR
POWER IN
L1
3 PHASE
INTERLOCK
OP
R1
OP
OP
CL
CL OP
CL
OP
14
13
R1
OPEN & CLOSE
R2
R1
OPEN
CLOSE 2
14
13
CL
CL
LIMIT SWITCH
NC
CLOSE
C
R1
(BK)
(BK)
(BK)
(BRN)
(BR)
(YEL)
(OR) (OR) (OR) (OR)
(RED) (RED)
(OR)
(YEL)
(YEL)
(PUR)
(OR)
(PUR) (PUR) (PUR) (PUR)
(PUR)
R3 (RED)
(YEL)
(OR)
(OR)
(SEE NOTE 2)
(PUR)
TIMER TO CLOSE
(PUR)
(OPTIONAL)
(GY)
(GY)
RADIO TO
A1 A2
A2 A1
(YEL)
NUT
WIRE
MOTOR OVERLOAD
(SEE NOTE 3) (BK)
OVERLOAD
(SEE NOTE 3)
NC C
HAND CHAIN
INTL'K SWITCH
(WHEN PRESENT)
(BRN)
(RED) (RED)
C2 WIRING - Constant Presssure to Close
RED WIRE ON TERMINAL #2 (Shipped from Factory)
B2 WIRING - Momentary Contact to Close
MOVE RED WIRE FROM TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL WIRING OPTIONS
- Shipped from Factory
*
NOTES:
1) TO REVERSE MOTOR DIRECTION: INTERCHANGE PURPLE &
GRAY MOTOR LEADS AT CONTACTOR 1 & 3.
2) TRANSFORMER PRIMARY & RELAY VOLTAGE SAME AS LINE VOLTAGE.
3) THREE PHASE UNITS MAY BE EQUIPPED WITH AN INTERNAL PILOT DUTY
THERMAL OVERLOAD DEVICE, OR AN EXTERNAL LINE MONITORING DEVICE.
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(BK)
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
85
208/230 VOLT - 3 PHASE
MOTOR CONNECTION
460 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
575V BRAKE
3
BL/BK
BL/BK
1
2
YEL
PUR
GY
575 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
85
MOTOR CONNECTION
460 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
575V BRAKE
3
BL/BK
BL/BK
1
2
YEL
PUR
GY
575 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
85
MOTOR CONNECTION
460 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
575V BRAKE
3
BL/BK
BL/BK
1
2
YEL
PUR
GY
575 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
(WHEN PRESENT)
230V BRAKE
2
3
YEL
PUR
GY 1
6
9
BL/BK
BL/BK
4
7
85
MOTOR CONNECTION
460 VOLT - 3 PHASE
MOTOR CONNECTION
(WHEN PRESENT)
575V BRAKE
3
BL/BK
BL/BK
1
2
YEL
PUR
GY
575 VOLT - 3 PHASE
MOTOR CONNECTION
OVERLOAD
(SEE NOTE 3)
*OVERLOAD
(SEE NOTE 3)
*OVERLOAD
(SEE NOTE 3)
*
MOTOR O/L LEAD COLOR BROWN
*
BK
BK
85858585
BK
BK
BK
BK

16
TEST THE SYSTEM
TEST THE SYSTEM
Turn on power. Test all controls and safety devices to make sure
they are working properly. It will be necessary to refer back to
page 8 for fine adjustment of the limit switches.
IMPORTANT NOTES:
• Do not leave operator power on unless all safety and
entrapment protection devices have been tested and are
working properly.
• Be sure you have read and understand all Safety Instructions
included in this manual.
• Be sure the owner or person(s) responsible for operation of the
door have read and understand the Safety Instructions, know
how to electrically operate the door in a safe manner, and know
how to use the manual disconnect operation of the door
operating system.
Do not place hands or tools in or near the operator when the
power is on or when testing control or safety devices. Always
disconnect power before servicing or adjusting the operator.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNINGWARNING
CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
MAINTENANCE SCHEDULE
Check at the intervals listed in the following chart:
Use SAE 30 Oil (Never use grease or silicone spray).
• Do not lubricate motor. Motor bearings are rated for
continuous operation.
• Do not lubricate clutch or V-belt.
Repeat ALL procedures.
Inspect and service whenever a malfunction is observed or
suspected.
To avoid SERIOUS PERSONAL INJURY or DEATH from
electrocution, disconnect ALL electric power BEFORE
performing ANY maintenance.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNINGWARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
ITEM
Drive Chain
Sprockets
Clutch
Belt
Fasteners
Manual Disconnect
Bearings and Shafts
PROCEDURE
Check for excessive slack.
Check and adjust as required.
Lubricate.
Check set screw tightness.
Check and adjust as required.
Check condition and tension.
Check and tighten as required.
Check and operate.
Check for wear and lubricate.
EVERY 3 MONTHS
OR
5,000 CYCLES



EVERY 6 MONTHS
OR
10,000 CYCLES




EVERY 12 MONTHS
OR
20,000 CYCLES





HOW TO ORDER REPAIR PARTS
OUR LARGE SERVICE ORGANIZATION SPANS AMERICA
Installation and service information are available.
Call our TOLL FREE number:
1-800-528-2806
www.liftmaster.com

17
OPERATOR NOTES

18

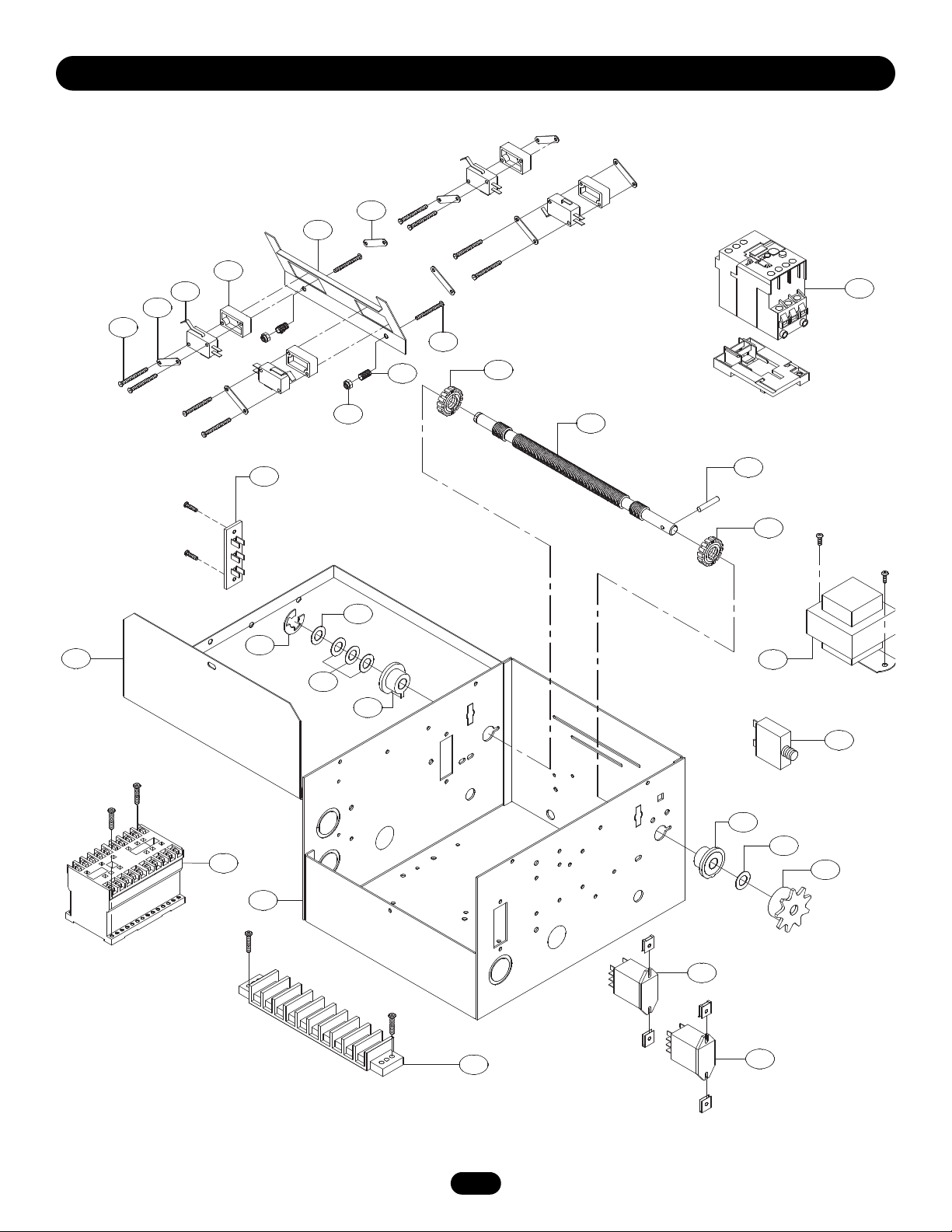

ELECTRICAL BOX - ILLUSTRATED PARTS
S7S7
3L8
L8 4
S4
S4
1
10
10 L7L7
2
8
6
11
11
9
7
L6
L6
L4L4
L2L2
L3L3
L1L1
S1S1
S6S6
S8S8
S2S2
S5S5
S9S9
S3S3
L5L5
L2L2
L6L6

19
REPLACEMENT PARTS KITS
Below are replacement kits available for your operator. For
replacement of electrical box, motor or brake components be sure
to match model number of your unit to kit number below to
ensure proper voltage requirements. Optional modifications and/or
accessories included with your operator may add or remove
certain components from these lists. Please consult a parts and
service representative regarding availability of individual
components of kits specified below. Refer to page 11 for all repair
part ordering information.
To order a complete electrical box replacement kit, add a
K- prefix to the model number of your operator. For example:
J5011M (Operator) = K-J5011M (Electrical Box Replacement Kit)
Notes:
• Single phase units are equipped with an external line break
device, and may be equipped with an additional internal pilot
duty thermal O/L device.
• Three phase units may be equipped with an internal pilot duty
thermal O/L device, or an external line break device.
COMPLETE FRAME REPLACEMENT KITS
K73-JFRAME Frame Model J
K73-HFRAME-R Frame Model H (Right Hand)
K73-HFRAME-L Frame Model H (Left Hand)
K73-HJFRAME-R Frame Model H (Right Hand)
K73-HJFRAME-L Frame Model H (Left Hand)
MOTOR KITS
K20-1033B2 Models H/J3311M, H/J3321M
K20-3033B4 Models H/J3323M, H/J3338M, H/J3343M
K20-3033M5 Model H/J3353M
K20-51033B Model H/J3325M
K20-1050B2 Models H/J5011M, H/J5021M
K20-3050B4 Models H/J5023M, H/J5038M, H/J5043M
K20-3050M5 Model H/J5053M
K20-51050B Model H/J5025M
K20-1075B2 Model H/J7511M, H/J7521M
K20-3075B4 Models H/J7523M, H/J7538M, H/J7543M
K20-3075B5 Model H/J7553M
K20-51075B Model H/J7525M
K20-1100B2T Models H/J1011M, H/J1021M
K20-3100B4T Models H/J1023M, H/J1043M
K20-3100B5T Model H/J1053M
BRAKE KITS
71-B120J 115 Volt Model J
71-B240J 230 – 460 Volt Model J
71-B575J 575 Volt Model J
71-B120H 115 Volt Model H
71-B240H 230 – 460 Volt Model H
71-B575H 575 Volt Model H
COMPLETE ELECTRICAL BOX REPLACEMENT KITS
K72-14130 – LIMIT SHAFT ASSEMBLY KIT
ITEM PART # DESCRIPTION QTY
L1 11-13361 Limit Shaft, Cube Style 1
L2 12-10028 Flange Bearing, 3/8" I.D. 2
L3 13-10024 Limit Nut 2
L4 15-48B9AXX Sprocket 48B9 x 3/8" Bore 1
L5 80-10025 Washer, Shim 3/8" I.D. x .050 THK. 1
L6 80-10026 Washer, Shim 3/8" I.D. x .010 THK. 4
L7 86-RP04-100 Roll Pin, 1/8 DIA. x 1" Long 1
L8 87-E-038 E Ring, 3/8" 1
K72-14130 – LIMIT SHAFT ASSEMBLY KIT
ITEM PART # DESCRIPTION QTY
S1 10-10013 Depress Plate 1
S2 10-12553 Nut Plate 4
S3 10-12806 Backup Plate 2
S4 18-10036 Spring, Depress Plate 2
S5 23-10041 Limit Switch 4
S6 31-12542 Standoff, Limit Switch 4
S7 82-PX04-20 Screw, #4-40 x 1-3/8" Pan Head Ph 8
S8 82-PX06-16 Screw, #6-32 x 1” Pan Hd Phil 2
S9 84-LH-06 Locknut, #6-32 Nylon Hex 2

20
COMPLETE ELECTRICAL BOX KITS
H/J3311M
H/J3321M H/J3323M H/J3343M H/J3353M H/J3325M H/J3338M H/J5011M H/J5021M H/J5023M H/J5043M H/J5053M H/J5025M H/J5038M H/J7511M H/J7521M H/J7523M H/J7543M H/J7553M H/J7525M H/J7538M H/J1011M H/J1021M H/J1023M H/J1043M H/J1053M
ITEM
4
6
8
9
PART NO.
21-5115
21-5230
21-5460
21-5575
24-115-1
24-230-5
25-2006
25-2008
25-2010
25-2015
25-2020
25-4001-8K
25-4002-5K
25-4004-K
DESCRIPTION
Transformer, 115 Volts
Transformer, 230 Volts
Transformer, 460 Volts
Transformer, 575 Volts
Relay, 115 Volts
Relay, 230 Volts
Overload, 6 Amp
Overload, 8 Amp
Overload 10 Amp
Overload 15 Amp
Overload 20 Amp
Overload 1.2-1.8 Amp
Overload 1.6-2.5 Amp
Overload 2.5-4.0 Amp
VARIABLE COMPONENTS
REPLACEMENT PARTS KITS
ITEM PART # DESCRIPTION QTY
1
03-8024-K Contactor 1
2 10-13792M1 Electrical Box 1
3 10-13899 Electrical Box Cover 1
4 21-5xxx (See Variable Components) 1
6 24-xxx-x (See Variable Components) 1
7 24-24-1 24Vac DPDT Relay 1
8 25-2xxx (See Variable Components) 1
9 25-4xxx (See Variable Components) 1
10 42-10040 Terminal Block, Radio 1
11 42-110 Terminal Block, 10 Position 1
