OWNER’SMANUAL
JHHJ
INDUSTRIAL DUTY COMMERCIAL DOOR OPERATOR
ogic
L3
FACTORY SET
NOT FOR RESIDENTIAL USE
A
L
E
R
T
S
Y
S
T
E
M
M
A
I
N
T
E
N
A
N
C
E
PATENT PENDING
The Maintenance Alert System™ allows the
installer to set an internal Maintenance
Cycle Counter. The Logic 3 operator
incorporates a self-diagnostic feature built
into the (MAS) Maintenance Alert System
LED. An LED on the 3-button station will
signal when the set number of cycles is
reached or when the operator requires
immediate service.
ThisOperatorFeatures
theEnhanced
RadioReceiver
BuiltonBoard
Serial # Box
Installation Date
2 YEAR WARRANTY

When you see these Safety Symbols and Signal Words on the
following pages, they will alert you to the possibility of serious
injury or death if you do not comply with the warnings that
accompany them. The hazard may come from something
mechanical or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following pages, it will
alert you to the possibility of damage to your door and/or the
door operator if you do not comply with the cautionary
statements that accompany it. Read them carefully.
Mechanical
Electrical
TABLE OF CONTENTS
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION WARNING
WARNING
2
SPECIFICATIONS
Carton Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operator Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operator Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PREPARATION
Hand Chain Handing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
INSTALLATION
Operator Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Manual Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Entrapment Protection Accessories . . . . . . . . . . . . . . . . . . . . . .8
ADJUSTMENT
Limit Switch Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

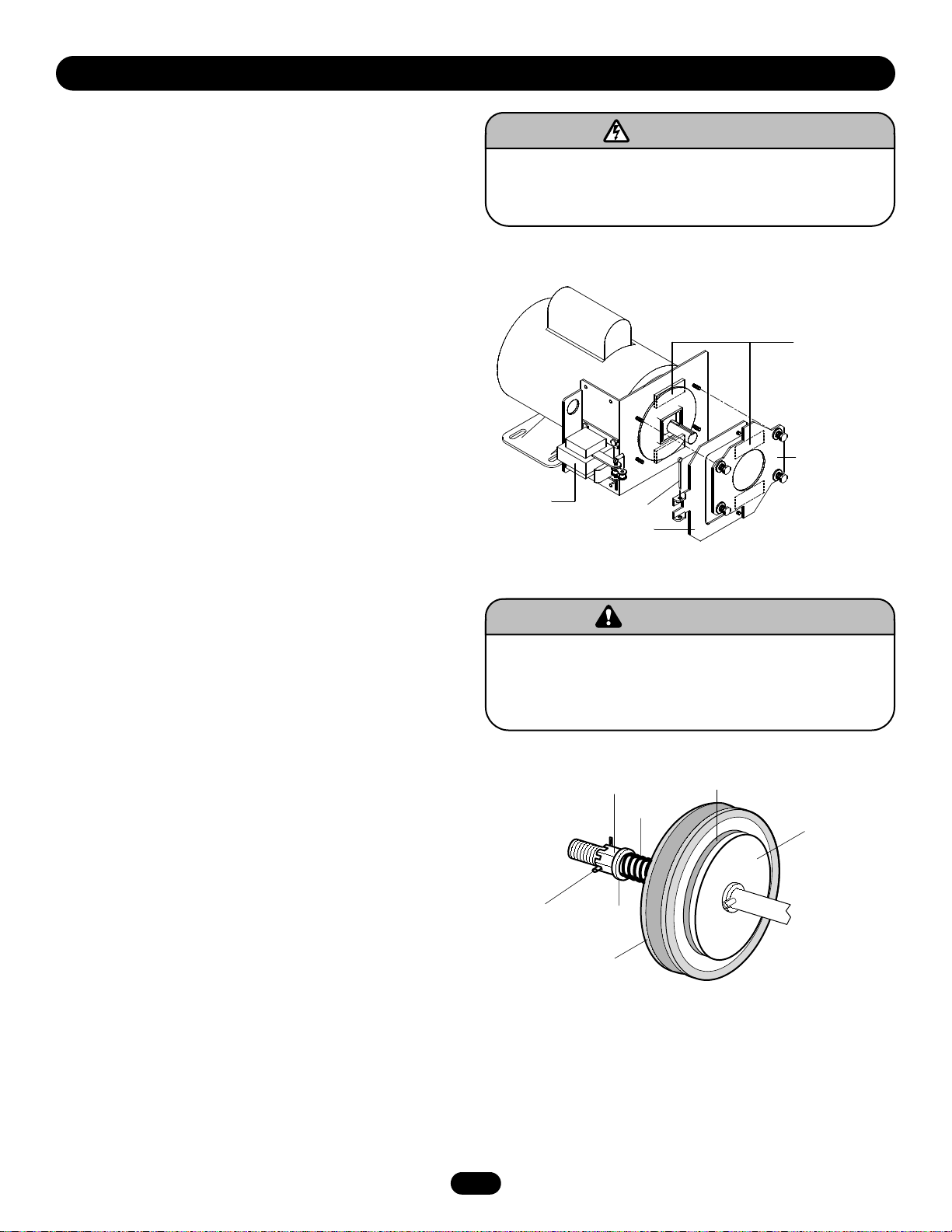

Brake Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Clutch Adjustment and Auxiliary Reversal System . . . . . . . . . . .9
POWER & GROUND WIRING
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Power Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Ground Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .10
CONTROL STATION WIRING & INSTALLATION
Control Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
External Radio Wiring Connections . . . . . . . . . . . . . . . . . . . . . .11
DIAGRAMS

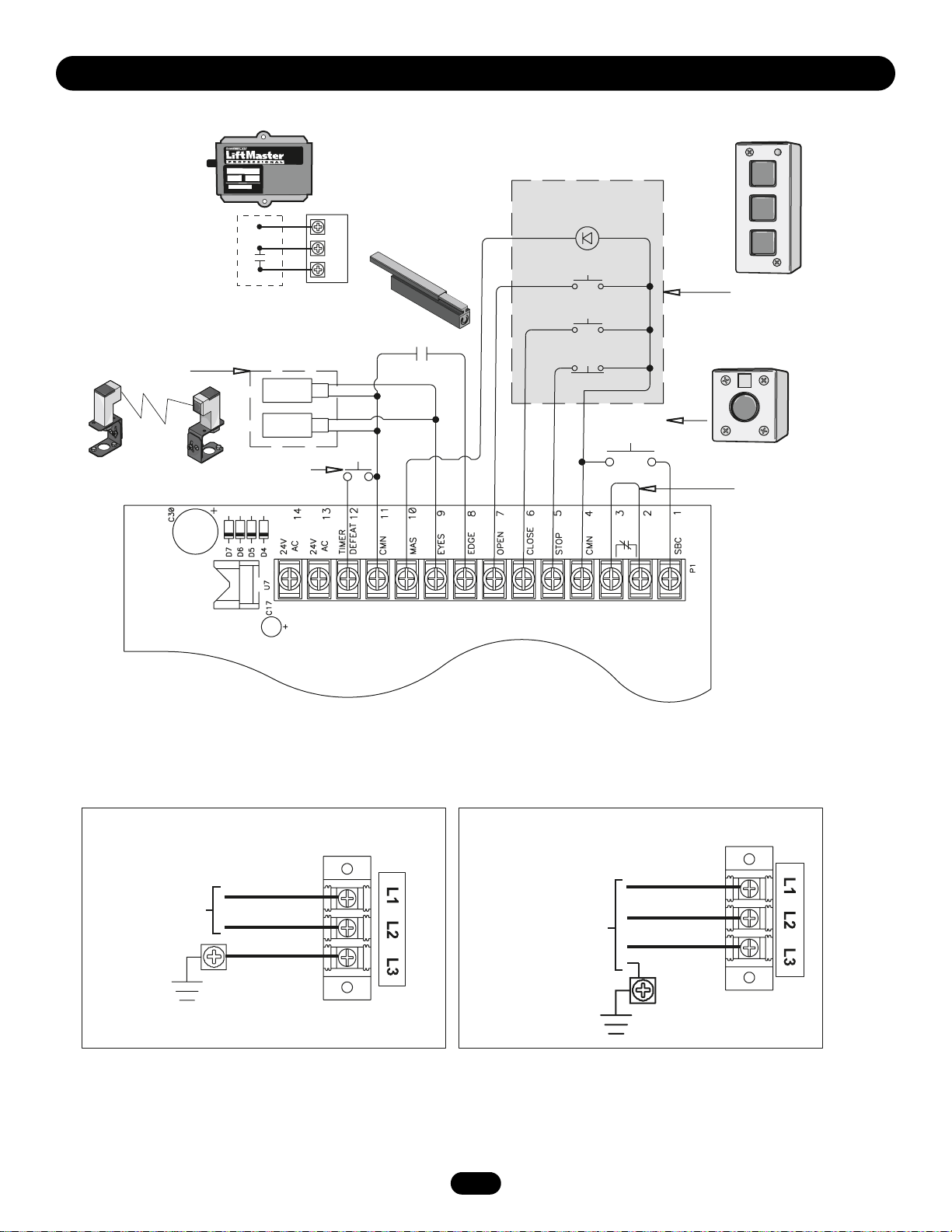

Standard Power & Control Connection Diagrams . . . . . . . . . . .12
1 Phase Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3 Phase Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

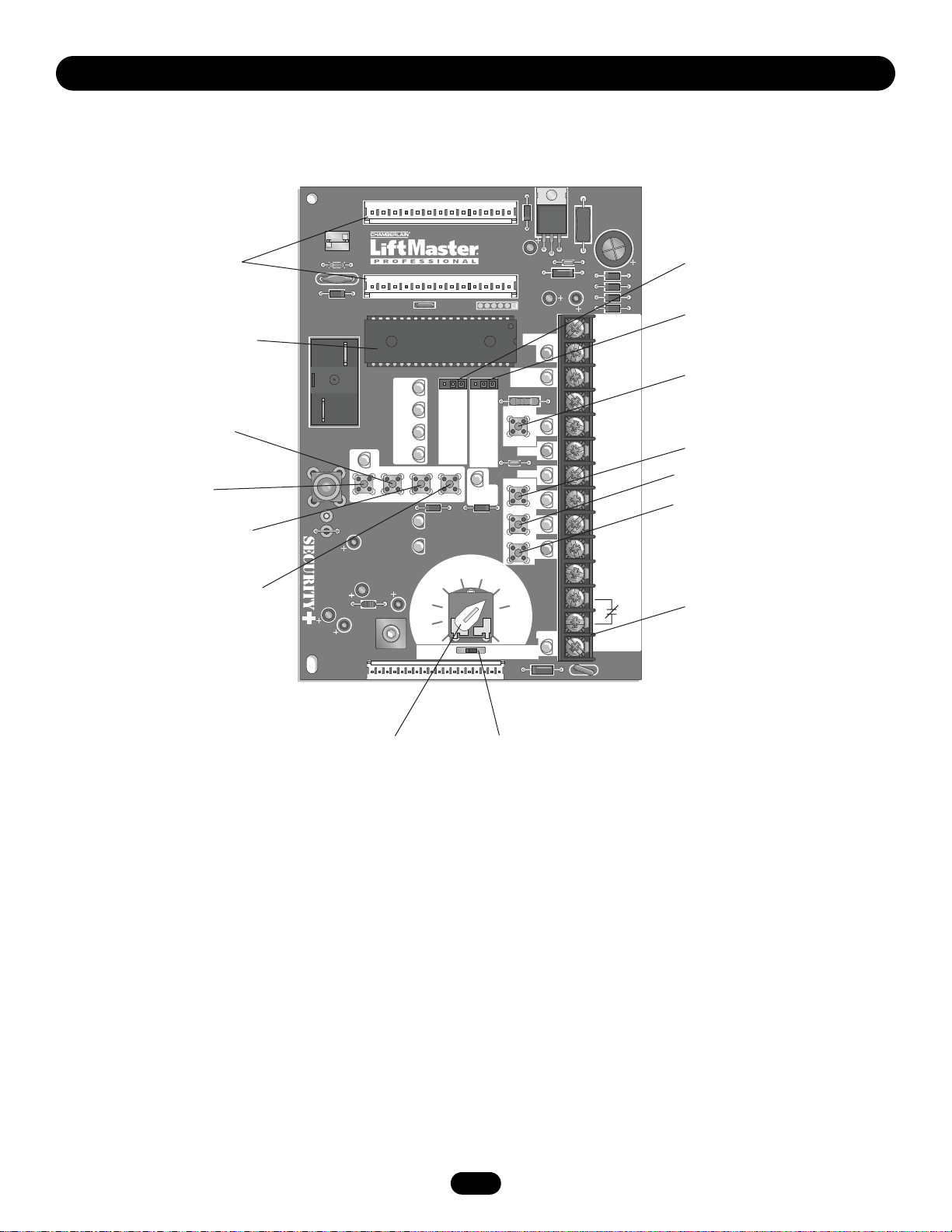

Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
PROGRAMMING
Logic Control Pushbuttons . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Determine and Set Wiring Type . . . . . . . . . . . . . . . . . . . . . . . .16
PROGRAMMING
Failsafe Wiring Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Self-Monitoring Safety Device Options . . . . . . . . . . . . . . . . . . .17
Programming Remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Maintenance Alert System (MAS) . . . . . . . . . . . . . . . . . . . . . . .19
Mid Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Timer to Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
AUTOMATICALLY LEARNED PROGRAMMING
Auxiliary Reversal System/RPM Sensor. . . . . . . . . . . . . . . . . . . 21
Maximum Run Timer (MRT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
OPTIONAL PROGRAMMING
Red/Green Warning Light Card . . . . . . . . . . . . . . . . . . . . . . . . . 22
Resetting Factory Defaults - Clearing Memory. . . . . . . . . . . . . . 23
MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . 23
TROUBLESHOOTING
Diagnostic Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Troubleshooting Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
REPAIR PARTS
Illustrated Parts - Electrical Box. . . . . . . . . . . . . . . . . . . . . . . . . 27
Repair Parts Kits -
Electrical Box Logic Control 3 . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Illustrated Parts - Model J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Repair Parts Kits -
Model J Logic Control 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Illustrated Parts - Model H. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Repair Parts Kits -
Electrical Box Logic Control 3 . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Illustrated Parts - Model HJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Repair Parts Kits -
Model HJ Logic Control 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Control Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
IMPORTANT NOTES:
• BEFORE attempting to install, operate or maintain the operator,
you must read and fully understand this manual and follow all
safety instructions.
• DO NOT attempt repair or service of your commercial door and
gate operator unless you are an Authorized Service Technician.

Before beginning your installation check that all components were provided.
CARTON INVENTORY
OPERATOR DIMENSIONS
3
14.50"
7.56"
6.94"
20.15"
7.62"
8.34"
16.81"
4.62"
16.43"
Hand Chain Wheel
Present with Models
H and HJ Only.
4.56"
5.50"
4.41"
6.59"
3/8" Bolt
7.56"
1.50"
13.75"
A
AA
BB
B
B
A
MOUNTING DIMENSIONS
A - Wall Mounting
B - Bracket Mounting (rolling door)
WEIGHTS AND DIMENSIONS
HANGING WEIGHT: 80-110 LBS.
K77-31339 - MODEL H
PART # DESCRIPTION QTY.
19-50106M #50 CHAIN, 106 PITCH 1
40-6000 DOOR OPERATOR LABEL 1
77-10897 PARTS BAG 1
10-10893 CHAIN RETAINING BRACKET 1
14-10466 PLASTIC BAG 1
80-207-19 KEY 1/4 X 1-1/2"LONG 1
27-10199 CABLE TIE 2
19-10929-25 HAND CHAIN - 25' 1
14-12133 PARTS BOX 1
02-103L3 PUSH BUTTON STATION 1
40-65 DOOR EDGE CAUTION LABEL 2
K77-31326 - MODEL HJ
PART # DESCRIPTION QTY.
19-10929-25 HAND CHAIN - 25' 1
19-50106M #50 CHAIN, 106 PITCH 1
10-10463 KEY HOLE BRACKET 1
10-10893 CHAIN RETAINING BRACKET 1
02-103L3 PUSH BUTTON STATION 1
14-12133 PARTS BOX 1
K77-31334 - MODEL J
PART # DESCRIPTION QTY.
19-50106M #50 CHAIN, 106 PITCH 1
40-6000 DOOR OPERATOR LABEL 1
77-10704 PARTS BAG 1
10-10463 KEY HOLE BRACKET 1
14-10466 CLEAR PLASTIC BAG 1
27-10199 CABLE TIE 1
80-207-19 KEY 1/4 X 1-1/2"LONG 1
27-10199 CABLE TIE 2
14-12133 PARTS BOX 1
02-103L 3-BUTTON STATION 1
40-65 DOOR EDGE CAUTION LABEL 2

4
OPERATOR SPECIFICATIONS
SAFETY
DISCONNECT:
Model J . . .Floor level disconnect for manual door operation.
Model H . . . . . . . . . . . . .Floor level chain hoist with electrical
interlock for manual door operation.
Model HJ . . . . . . . . . . . .Includes both floor level disconnect
systems stated above.
SAFETY PHOTO EYES (Optional): .Through beam or retro reflective
devices used to provide non-contact safety protection.
Directly interface to LiftMaster CPS-L or CPS-LN4 Commercial
Protector Systems.
SAFETY EDGE (Optional): Electric or pneumatic sensing device
attached to the bottom edge of door.
MOTOR
TYPE:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous Duty
HORSEPOWER: . . . . . . . . . . . . . . . . . . . 1/3, 1/2, 3/4 and 1 HP
SPEED: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1725 RPM
VOLTAGE: . 115/208/230V 1 Phase, 230/380/460/575V 3 Phase
CURRENT: . . . . . . . . . . . . . . . . . . . . . . . . See Motor Nameplate
ELECTRICAL
TRANSFORMER: . . . . . . . . . . . . . . . . . . . . . . .24Vac Secondary
CONTROL STATION: . . . . . . . . . . . . . . .NEMA 3-Button Station
Open/Close/Stop w/LED
WIRING TYPE: . . . . . . . . . . . . . . . . . . . . . . . . . . .C2 (Standard)
Momentary contact to OPEN & STOP, constant pressure to
CLOSE, plus wiring for sensing device to reverse and auxiliary
devices to open and close with open override. See pages 16, 17
and 18 for optional wiring types and operating modes.
LIMIT ADJUST: . . . . . . . . .Linear driven, fully adjustable screw
type cams. Adjustable to 24'
MECHANICAL
DRIVE REDUCTION: . . . . . . . .Primary: Heavy duty (5L) V-Belt
Secondary: #48 chain/sprocket; Output: #50 chain
OUTPUT SHAFT SPEED: . . . . . . . . . . . . . . . . . . . . . . . .36 RPM
DOOR SPEED: . . . . . . . . .6 - 7" per second depending on door
BRAKE (Optional): . . . . . . . . . . . .Solenoid actuated disc brake
BEARINGS: . . . . . . . . . . . . .Output Shaft:Shielded ball bearing;
Clutch Shaft: IronCopper sintered and oil impregnated
HAND CHAIN WHEEL: . . . . . . . . . . . . . . . .Left or right handing
Models H and HJ ONLY
To reduce the risk of SEVERE INJURY or DEATH, ALWAYS install
reversing sensors when the 3-button control station is out of
sight of door or any other control (automatic or manual) is used.
Reversing devices are recommended for ALL installations.
WARNING
CAUTION WARNING
WARNING

5
PREPARATION
It is imperative that the wall or mounting surface provide
adequate support for the operator.
This surface must:
a) Be rigid to prevent play between operator and door shaft.
b) Provide a level base.
c) Permit the operator to be fastened securely and with the
drive shaft parallel to the door shaft.
The safety and wear of the operator will be adversely affected if
any of the above requirements are not met.
For metal buildings, fasten 2" x 2" x 3/16" (or larger) angle iron
frames to the building purlins. Retain 5-1/2" between frames.
Both J and H series operators have dual output shafts and may
be mounted on either the right (standard) or left side of door, and
in either a vertical (standard) or horizontal mounting position. If
you need to move the drive sprocket, loosen BOTH set screws,
remove the sprocket and key, and place on the opposite side of
the drive shaft. Be sure to tighten BOTH set screws securely.
HAND CHAIN HANDING
For models H and HJ with manual hoist hand chain systems, the
handing of the operator must be determined at the time of order.
The handing is indicated by last letter of the model name
(R or L). The hand chain wheel can not be switched on site. If
your installation causes the hand chain to hang in the door
opening, hook the chain off to the side near the top of the door
jamb.
Output
Shaft
Drive
Sprocket
( ) Set
Screws
Key
To prevent possible SERIOUS INJURY or DEATH:
• DO NOT connect electric power until instructed to do so.
• If the door lock needs to remain functional, install an
interlock switch.
• ALWAYS call a trained professional door serviceman if door
binds, sticks or is out of balance. An unbalanced door may
not reverse when required.
• NEVER try to loosen, move or adjust doors, door springs,
cables, pulleys, brackets or their hardware, all of which are
under EXTREME tension and can cause SERIOUS personal
injury.
• Disable ALL locks and remove ALL ropes connected to door
BEFORE installing and operating door operator to avoid
entanglement.
• To prevent possible SERIOUS INJURY or DEATH from a
falling garage door, ALL doors intended to be motor operated
should be manufactured with solid door shafts.
WARNING
CAUTION WARNING
WARNING
5-1/2"
Shaft Support Bracket
with Bearing (Not Provided)
Door Sprocket

6
INSTALLATION
Before your operator is installed, be sure the door has been properly aligned and is working smoothly. The operator may be wall
mounted or mounted on a bracket or shelf. If necessary, refer to the preparation on page 5. Refer to the illustration and instructions
below that suits your application.
OPERATOR MOUNTING
1. Wall Mount: The operator should generally be installed below
the door shaft, and as close to the door as possible (Figure 1).
Bracket Shelf Mounting: The operator may be mounted either
above or below the door shaft (Figure 2).
IMPORTANT: The shelf or bracket must provide adequate support,
prevent play between operator and door shaft, and permit
operator to be fastened securely and with the drive shaft parallel
to the door shaft.
NOTE: The optimum distance between the door shaft and
operator drive shaft is between 12" - 15".
2. Place door sprocket on the door shaft. Do not insert the key
at this time.
3. Place drive sprocket on the appropriate side of the operator.
Do not insert the key at this time.
4. Wrap drive chain around door sprocket and join roller chain
ends together with master link.
5. Raise operator to approximate mounting position and position
chain over operator sprocket.
6. Raise or lower operator until the chain is taut (not tight).
Make sure the operator output shaft is parallel to door shaft
and sprockets are aligned. When in position, secure the
operator to wall or mounting bracket.
7. Align sprockets and secure (Figure 3).
8. Install Hand Chain (Models H and HJ only)
Place hand chain around hand chain wheel. Be sure to pass it
through both openings in the chain guide. Remove enough
links so chain hangs approximately 2 feet above the floor.
9. Mount Chain Keeper / Keyhole Bracket
Using suitable hardware mount the chain keeper
approximately 4 feet above the floor, near the free hanging
chain. Remove disconnect sash chain from bag and place the
end through the keyhole in the the chain keeper. Remove
excess links if necessary.
Optimum Distance
12-15"
Typical Right Hand
Wall Mounted Operator
Optimum Distance
12-15"
OPTIONAL
Mounting Bracket
P/N 08-9098
Be sure door
sprocket is properly
aligned with drive
before securing to
the shaft.
Chain Keeper
(4" above floor)
Figure 1
Figure 2
Figure 3

7

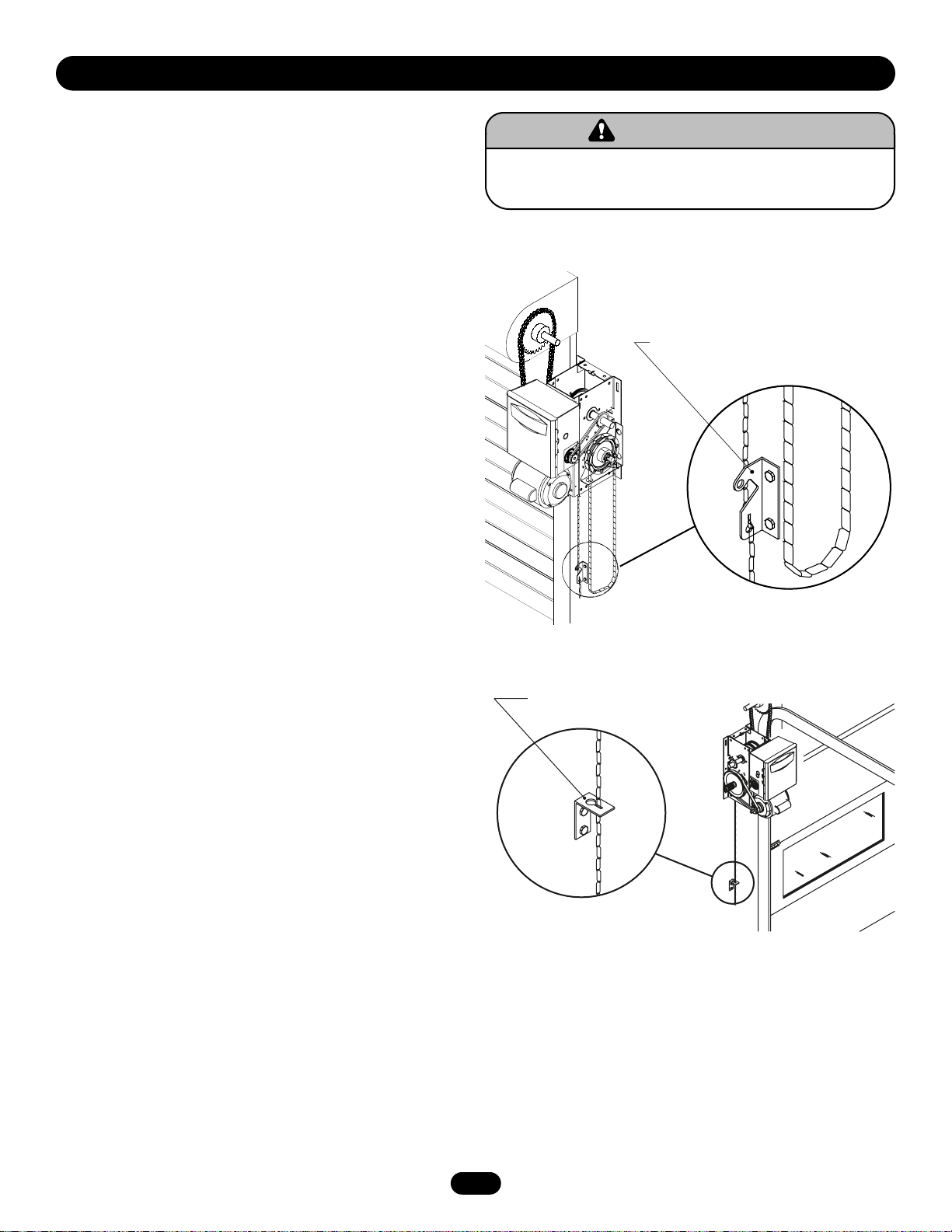

MANUAL OPERATION
This operator has provisions for manually operating the door in
case of emergency or power failure. To prevent possible SERIOUS INJURY from a moving chain,
ENGAGE interlock BEFORE manually operating your door.
WARNING
CAUTION WARNING
WARNING
MODEL H
These operators are equipped with a manual hoist. An electrical
interlock will disable the electrical controls when the hoist is used.
To operate the hoist:
1. Pull the disconnect chain (small chain) to engage the interlock
to disable the controls. The disconnect chain may be locked in
position by slipping the end through the keyhole of the chain
keeper mounted on the wall.
2. Operate the door in the desired direction by pulling on one side
or the other of the continuous loop hoist chain (large chain).
3. The disconnect chain must be released from the chain keeper
before the door will operate again electrically.
MODEL J
This operator has a floor level disconnect chain to disconnect the
door from the door operator.
1. To disengage, pull the chain and secure in the disengaged
position by slipping the end through the keyhole bracket
mounted on the wall. Or if emergency egress device is used,
pull handle to disengage operator from door.
2. The door may now be pushed up or pulled down manually.
Release the disconnect chain to operate the door again
electrically.
MODEL HJ
This operator includes both a floor level disconnect chain to
disconnect the door from the door operator and a disconnect
chain with manual hoist to electrically disable the operator
controls.
1. Refer to Model H instructions for hoist operation.
2. Refer to Model J instructions for manual operation.
Chain Keeper
(with pad locking provisions)
Electrical Interlock with Hoist for Models H and HJ
Keyhole Bracket
Manual Disconnect for Models J and HJ
INSTALLATION

8
ENTRAPMENT PROTECTION ACCESSORIES
(OPTIONAL)
PHOTO EYES & SENSING EDGES
Sensing devices provided for door industry type operators with an
isolated normally open (N.O.) dry contact output are compatible
with your operator. This includes pneumatic and electric edges,
and through beam and retro reflective photo eyes. If you would
like to order or receive more information on safety devices, please
contact your local LiftMaster Authorized Dealer.
If not pre-installed by the door manufacturer, mount the sensing
edge on the door according to the instructions provided with the
edge. The sensing edge may be electrically connected by either
coiled cord or take-up reel.
Important Notes:
a. Proceed with Limit Switch Adjustments described below before
making any sensing edge wiring connections to operator.
b. Electrician must hardwire the junction box to the operator
electrical box in accordance with local codes.
WIRING
For wiring of your sensing device to the operator, refer to the
wiring diagrams provided on pages 13 and 14. See field
connection terminals identified as Reversing Device.
TAKE-UP REEL
Take-up reel should be installed 12" above the top of the door.
COIL CORD
Connect operator end of coil cord to junction box (not provided)
fastened to the wall approximately halfway up the door opening.
ADJUSTMENT
To avoid SERIOUS PERSONAL INJURY or DEATH from
electrocution, disconnect electric power BEFORE manually
moving limit nuts.
WARNING
CAUTION WARNING
WARNING

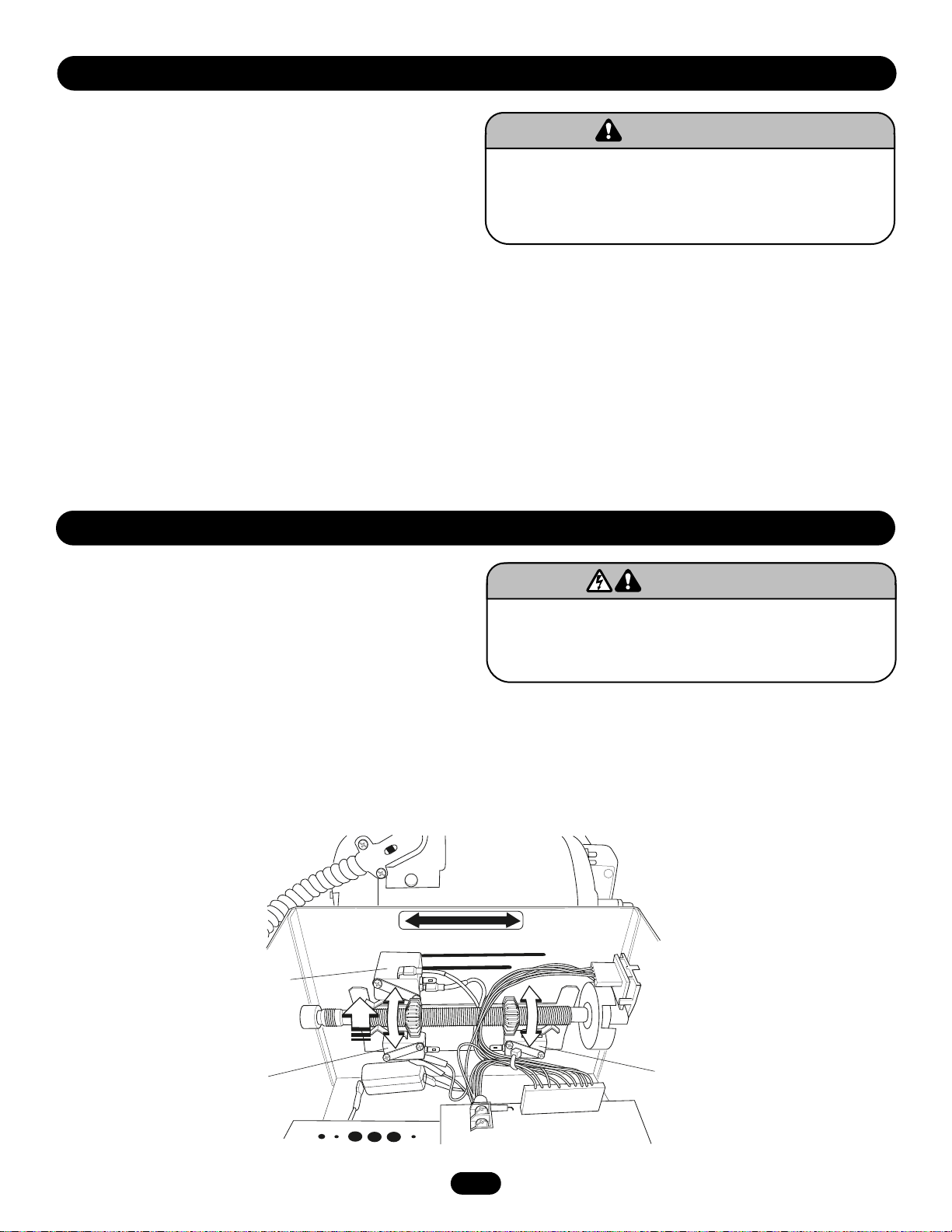

LIMIT SWITCH ADJUSTMENT
NOTE: Make sure the limit nuts are positioned between the limit
switch actuators before proceeding with adjustments.
1. Depress retaining plate to allow nut to spin freely. After
adjustment, release plate and move nut back and forth to
ensure it is fully seated in slot.
2. To increase door travel, spin nut away from actuator. To
decrease door travel, spin limit nut toward actuator.
3. Adjust open limit nut so that door will stop in open position
with the bottom of the door even with top of door opening.
4. Repeat Steps 1 and 2 for close cycle. Adjust close limit nut so
that actuator is engaged as door fully seats at the floor.
CLOSE OPEN
CLOSE Limit Switch OPEN Limit Switch
SAFETY
(Aux. Close) Limit Switch
INSTALLATION
To reduce the risk of SEVERE INJURY or DEATH, ALWAYS install
reversing sensors when the 3-button control station is out of
sight of door or any other control (automatic or manual) is used.
Reversing devices are recommended for ALL installations.
WARNING
CAUTION WARNING
WARNING

9
BRAKE ADJUSTMENT
A solenoid is standard on 3/4 and 1 horsepower models, and is
optional on 1/3 and 1/2 horsepower models. The brake is
adjusted at the factory and should not need additional adjustment
for the the life of the friction pad.
Replace friction pads when necessary. Refer to the illustration for
identification of components for the solenoid type brake system.
Friction Pads
Release Lever
Cotterpin
Plate Assembly
Solenoid
Cotterpin
Adjusting Nut
Spring
Clutch Pulley
Clutch Plate
Clutch Pad
Washer
To avoid SERIOUS PERSONAL INJURY or DEATH from
electrocution, disconnect electric power to operator before
adjusting slip clutch.
WARNING
CAUTION WARNING
WARNING
ADJUSTMENT
CLUTCH ADJUSTMENT AND
AUXILIARY REVERSAL SYSTEM
The Auxiliary Reversal System is designed to protect the door
and motorized operator. It is NOT a substitute for a safety sensing
device, nor will it work for sectional doors when a jackshaft
operator is used. The Auxiliary Reversal System works in tandem
with the adjustable clutch to detect if a closing door runs into or
comes across an obstruction. If an obstruction is met and causes
the clutch to slip, the Auxiliary Reversal System will return the
door to the full open position.
1. Remove cotterpin from nut on the clutch shaft.
2. Back off clutch nut until there is very little tension on the
clutch spring.
3. Tighten clutch nut gradually until there is just enough tension
to permit the operator to move the door smoothly but to allow
the clutch to slip if the door is obstructed. When the clutch is
properly adjusted, it should generally be possible to stop the
door by hand during travel.
4. Reinstall cotterpin.
To prevent possible SERIOUS INJURY or DEATH, install
reversing sensors when the 3-button control station is out of
sight of the door or any other control (automatic or manual) is
used. Reversing devices are recommended for ALL installations.
WARNING
CAUTION WARNING
WARNING

10
POWER WIRING & GROUND WIRING
POWER WIRING CONNECTIONS
1. Connect power wires coming from the main to the captive
terminal block in the electrical box enclosure marked with the
label shown below. See page 12.
2. Be sure to run all power wires through the conduit hole in the
electrical box enclosure marked with the label shown below.
NOTE: Must use #14 AWG or thicker wire for power wiring.
Hot Neutral Ground
ON THREE PHASE MACHINES ONLY: Incorrect phasing of the
power supply will cause the motor to rotate in the wrong
direction.
GROUND WIRING CONNECTIONS
1. Connect earth ground to the chassis ground screw in the
electrical box enclosure.
2. Use same conduit entry into the electrical box as the power
wiring.
IMPORTANT NOTE: This unit must be properly grounded. Failure
to properly ground this unit could result in electric shock and
serious injury.
OR IN THE AREA NEAR THE OPERATOR MUST
NOT BE PERFORMED UNTIL DISCONNECTING
THE ELECTRICAL POWER AND LOCKING-OUT
THE POWER VIA, THE MAIN DISCONNECT
SWITCH. UPON COMPLETION OF
MAINTENANCE THE AREA MUST BE CLEARED
AND SECURED, AT THAT TIME THE UNIT MAY
BE RETURNED TO SERVICE.
Maintenance
Alert SystemTM
If light is Flashing
Rapidly, it is time
for routine door
maintenance.
If light is Flashing
Slowly, followed
by a pause, call for
immediate service.
Service every
cycles/months
4'
Approximate
Control
Station
Optional
Controls
To reduce the risk of SEVERE INJURY or DEATH:
• ANY maintenance to the operator or in the area near the
operator MUST not be performed until disconnecting the
electrical power and locking-out the power via the operator
power switch. Upon completion of maintenance the area MUST
be cleared and secured, at that time the unit may be returned
to service.
• Disconnect power at the fuse box BEFORE proceeding.
Operator MUST be properly grounded and connected in
accordance with local electrical codes. The operator should be
on a separate fused line of adequate capacity.
• ALL electrical connections MUST be made by a qualified
individual.
• DO NOT install ANY wiring or attempt to run the operator
without consulting the wiring diagram. We recommend that
you install an optional reversing edge before proceeding with
the control station installation.
• ALL power wiring should be on a dedicated circuit and well
protected. The location of the power disconnect should be
visible and clearly labeled.
• ALL power and control wiring MUST be run in separate
conduit.
WARNING
CAUTION WARNING
WARNING

11
CONTROL WIRING CONNECTIONS
1. Connect control wires to the P1 terminal block located on the
Control Board (shown below).
CONTROL STATION WIRING AND INSTALLATION
CONTROL WIRING
USE COPPER WIRE ONLY 40-10032B
EXTERNAL RADIO WIRING CONNECTIONS
On all models with B2 control wiring, a terminal bracket marked
R1 R2 R3 is located on the outside of the electrical enclosure.
Any commercial type LiftMaster brand receiver may be mounted
to this bracket. The operator will then open a fully closed door,
close a fully open door, stop an opening door, and reverse a
closing door from the radio transmitter. In TS control wiring the
operator will only open the door or reset the timer to close.
However, for additional door control from a 3-button remote, a
commercial three-channel radio receiver (with connections for
OPEN/CLOSE/STOP) is recommended.
2. Be sure to run all control wires through the conduit hole in the
electrical box enclosure marked with the label shown below.
3. Apply power to the operator. Press OPEN push button and
observe direction of door travel and then Press the STOP
button.
If door did not move in the correct direction, check for improper
wiring at the control station or between operator and control
station. NOTE: In “Diag” mode the 3-button control station can be
tested to verify correct wiring of Open, Close and Stop buttons
without moving the door.
If the door moves in the wrong direction and or the limits move
in the wrong direction, turn dial to programming mode. Remove
the Motor Direction Jumper. Press and release the MRT button to
set the jumper to switch the motor direction and the limits
(Default). Or press and release the MID button to set the jumper
to switch the motor ONLY. Reinstall the Motor Direction Jumper
to save the settings. In run mode, use the jumper to change
direction as programmed above.
MOUNTING INSTRUCTIONS
1. Mount Control Stations no further than (12") from each other.
2. Mount Control Stations (12") from the door enclosure.
3. Mount WARNING NOTICE beside or below the Control Station.
4. Mount MAINTENANCE ALERT label to either side of control
station.
24 VOLT AC
24 VOLT AC
TIMER DEFEAT
COMMON
MAINTENANCE ALERT SYSTEM
PHOTO EYES
REVERSE
OPEN
CLOSE
STOP
COMMON
INTERLOCK
INTERLOCK
SINGLE BUTTON CONTROL
14
13
12
11
10
9
8
7
6
5
4
3
2
1

12
STANDARD POWER & CONTROL CONNECTION DIAGRAMS
Open
Close
Stop
Maintenance
Alert LED
Open/Close
Single Button
(WH)(RD)
Sensing Edge
CPS-L &
CPS-LN4
Timer Defeat
Switch
R1
R2
R3
Radio Control
(24V DC only)
Phase 1
Phase 2
Phase 3
Gnd
Neutral
Hot
Gnd
Remove Jumper
To Install External
Interlock
Three Phase Power WiringSingle Phase Power Wiring
Line Power
230/380/460/575 Vac
Three Phase
Line Power
115/230 Vac
Single Phase
3-Button
Station
OPEN
CLOSE
STOP

U1
POWER
TIMER
DEFEAT
MAS
4
MRT
1RADIO
MID
2
TIMER
TIMER ENABLE
TTS
FSTSE2
RELAY A RELAY B
D1 DIAG
C2
B2 PROG
3
24V
AC
24V
AC
TIMER
DEFEAT
CMN
MAS
EYES
EDGE OPEN
CLOSE
STOP
CMN
SBC
11 10
9
14 13 12
8 7 6 5 4 3 2 1
CLOSE
STOP
OPEN
EDGE
OLS
MID
SLS
MOTOR
DIRECTION
REV?
STD?
CLS
D25 D24 D26 D27
D36
C77
C73
C54
C78
L1
L5
P6
D35
S8
D16
P7
EYES
K3
P1
D34
F1
FAILSAFE (B2 C2 D1 E2)
NON FAILSAFE
D23 D15
D1
D22
R8
J1
X1
E1
R29
C18
D8
U7
R31
D31
C3
Ø
D7 D6 D5 D4C25
C17
C11
D3
Ø
2P1
Ø
P4
Ø
14LG
Ø
657–A
Ø
14GP
Ø
657–A
J3
ØØ
D2
Ø
D21 D13 D14 D28 D17 D19
CONTACTOR/3 PH ?
SINGLE PHASE ?
SBC
C71
®
Remove Jumper
To Install External
Door Interlock
3-Button
Station
Maintenance
Alert LED
(RD) (WH)
Open
Close
Stop
Open/Close
Single Button
Sensing
Edge
CPS-L & CPS-LN4
Hoist Interlock
When Present
TMR DEF
SWITCH
MOV
MOV
(YE) (BL)
(YE)
(OR)
(WH)
(YE)
(PU)
(WH)
(RD)
(GY)
(YE)
(RD)
(WH)
(PU)
(YE)
(OR)
(GY)
(OR) (PU)
(WH)
(WH)
(WH)
(WH)
(WH)
(PU)
(YE)
(WH)
(WH)
(WH)
(WH)
(WH)
(WH)
(YE)
(WH)
(WH)
(RD)
(RD)
(PU)
(YE)
(WH)
(RD)
(YE)
(GY)
(WH)
(OR)
(YE)
115 / 230 VOLT 1PH. POWER IN
hot
neutral
earth
(BK)
COM 120
VAC
120 / 240
VAC
+24 VAC -24 VAC
See Motor
Connections
8
01
4
6
2
6
2
8
4
01
1 2 3 4
RPM board Radio
R1 R2 R3
COM
NO
NC
NO
NC
COM
NO
NC
COM
OPEN L/S CLOSE L/S
SAFETY L/S
COIL
COM
NO
C
BA
(WH)
(BL) (GY)
(YE)
(BR)
(GY)
see motor
connections
NO
NC
LOCK
SENSOR
(see note at left)
NOTE: If Lock Sensor (optional) is provided, red
wire from main harness connected to NC on L/S
switch and white wire from COM L/S to NC open.
OPEN
CLOSE
STOP
13
LOGIC (VER. 3.0) 1 PHASE WIRING DIAGRAM

U1
POWER
TIMER
DEFEAT
MAS
4
MRT
1RADIO
MID
2
TIMER
TIMER ENABLE
TTS
FSTSE2
RELAY A RELAY B
D1 DIAG
C2
B2 PROG
3
24V
AC
24V
AC
TIMER
DEFEAT
CMN
MAS
EYES
EDGE OPEN
CLOSE
STOP
CMN
SBC
11 10
9
14 13 12
8 7 6 5 4 3 2 1
CLOSE
STOP
OPEN
EDGE
OLS
MID
SLS
MOTOR
DIRECTION
REV?
STD?
CLS
D25 D24 D26 D27
D36
C77
C73
C54
C78
L1
L5
P6
D35
S8
D16
P7
EYES
K3
P1
D34 F1
FAILSAFE (B2 C2 D1 E2)
NON FAILSAFE
D23 D15
D1
D22
R8
J1
X1
E1
R29
C18
D8
U7
R31
D31
C3
Ø
D7 D6 D5 D4C25
C17
C11
D3
Ø
2P1
Ø
P4
Ø
14LG
Ø
657–A
Ø
14GP
Ø
657–A
J3
ØØ
D2
Ø
D21 D13 D14 D28 D17 D19
CONTACTOR/3 PH ?
SINGLE PHASE ?
SBC
C71
®
Remove Jumper
To Install External
Door Interlock
3-Button
Station
Maintenance
Alert LED
(RD) (WH)
Open
Close
Stop
Open/Close
Single Button
Sensing
Edge
CPS-L & CPS-LN4
Hoist Interlock
When Present
TMR DEF
SWITCH
MOV
MOV
(YE) (BL)
(YE)
(OR)
(WH)
(YE)
(PU)
(WH)
(RD)
(GY)
(YE)
(RD)
(WH)
(PU)
(YE)
(OR)
(GY)
(OR)
(PU)
(WH)
(WH)
(WH)
(WH)
(WH)
(WH)
(GY) (YE)
(WH)
(WH)
(WH)
(WH)
(WH)
(WH) (WH)
(PU)
(BR)
(BR)
(WH)
(YE)
(WH)
(WH)
(RD) (PU)
(YE)
(WH)
(RD)
(YE)
(GY)
(WH)
(OR)
(YE)
230 / 380 / 460 VOLT 3PH. POWER IN
Phase A
Phase B
Phase C
(BK)
COM 120
VAC 240 / 460 /
575 VAC
+24 VAC -24 VAC
COIL COIL
COM COM
NO NO
See Motor
Connections
See Motor
Connections
8
01
4
6
2
6
2
8
4
01
1 2 3 4
RPM Board Radio
R1 R2 R3
COM
NO
NC
NO
NC
COM
NO
NC
COM
OPEN L/S CLOSE L/S
SAFETY L/S
A
B
C
D
OPEN
CLOSE
STOP
(WH)
(RD)
NO
NC
LOCK
SENSOR
(see note at left)
NOTE: If Lock Sensor (optional) is provided, red
wire from main harness connected to NC on L/S
switch and white wire from COM L/S to NC open.
14
LOGIC (VER. 3.0) 3 PHASE WIRING DIAGRAM

15
CONTROL BOARD
U1
POWER
TIMER
DEFEAT
MAS
4
MRT
1RADIO
MID
2
TIMER
TIMER
ENABLE
TTS
FSTSE2
RELAY A
RELAY B
D1 DIAG
C2
B2 PROG
3
24V
AC
24V
AC
TIMER
DEFEAT
CMN
MAS
EYES
EDGE
OPEN
CLOSE
STOP
CMN
SBC
11
10
9
14
13
12
8
7
6
5
4
3
2
1
CLOSE
STOP
OPEN
EDGE
OLS
MID
SLS
MOTOR DIRECTION
REV? STD?
CLS
D25
D24
D26
D27
D36
C77
C73
C54
C78
L1
L5
P6
D35
S8
D16
P7
EYES
K3
P1
D34
F1
FAILSAFE (B2 C2 D1 E2)
NON FAILSAFE
D23
D15
D1
D22
R8
J1
X1
E1
R29
C18
D8
U7
R31
D31
C3
Ø
D7
D6
D5
D4C25
C17
C11
D3
Ø 2P1
Ø
P4
Ø 14LG Ø 657–A Ø 14GP Ø 657–A
J3
ØØ
D2 Ø
D21
D13
D14
D28
D17
D19
CONTACTOR/3 PH ?
SINGLE PHASE ?
SBC
C71
®
Maximum Run
Timer Button
Midstop Learn
Button
Timer to Close
Learn Button
Wiring Type
Selector Dial
Maintenance Alert
System button for
programming
Open Button
Close Button
Stop Button
Auxilliary Board
Connectors
Programmed Chip
Failsafe Switch
Single Phase &
Three Phase Jumper
Motor Direction
Jumper
Control Wiring
Terminal Block
Radio Learn
Button
CONTROL BOARD ILLUSTRATION

16
PROGRAMMING
DETERMINE AND SET WIRING TYPE
Read the descriptions of the different wiring types to determine
which setting will be correct for each application.

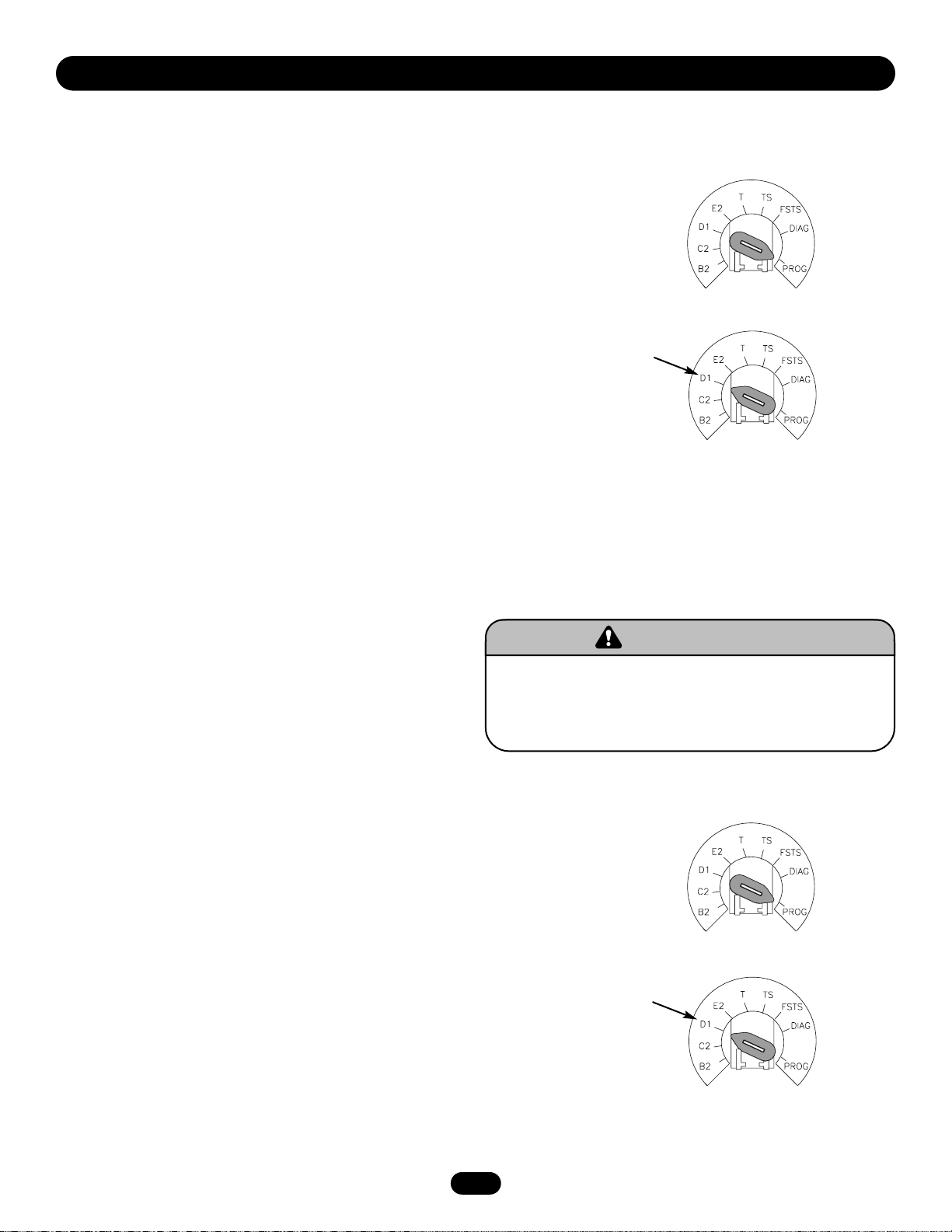

SET THE SELECTOR DIAL TO THE DESIRED WIRING MODE:
NOTE: For failsafe wiring you must also set failsafe switch to
FAILSAFE.
TYPE
C2 3-Button Station, 1-Button Station, 1 & 3 Button Radio
Control
Momentary contact to open and stop with constant
pressure to close, open override plus wiring for sensing
device to reverse. Programmable mid stop available with
this wiring type.
B2 3-Button Station, 1-Button Station, 1 & 3 Button Radio
Control
Momentary contact to open, close and stop, plus wiring
for sensing device to reverse and auxiliary devices to
open and close with open override. Programmable mid
stop available with this wiring type.
D1 2-Button
Constant pressure to open and close with wiring for
sensing device to stop.
E2 3-Button Station
Momentary contact to open with override and constant
pressure to close. Release of close button will cause
door to reverse (roll-back feature) plus wiring for
sensing device to reverse.
SELECTOR DIAL
FAILSAFE SWITCH
LOGIC CONTROL PUSHBUTTONS OPEN, CLOSE, STOP
Open, Close and Stop buttons are mounted directly on the Logic
Control board. Thus, making it easy to program as well as have
door control at the electrical box. Either the stop control or a
jumper must be wired between terminals 4 and 5 for the on board
push buttons to function.
NOTE: Refer to control board illustration on page 15 for all
component locations. Before programming the logic board, set
the operators open and close limits. LEDs on the logic board are
provided to assist setting the limits. As each limit is activated the
corresponding LED will light up. The abbreviations are Open
Limit Switch (OLS), Close Limit Switch (CLS) and Sensing Limit
Switch (SLS). Refer to page 8 for limit switch adjustment
instructions.
TYPE
TS 3-Button Station, 1-Button Station, 1 & 3 Button Radio
Control
Momentary contact to open, close, and stop with open
override and Timer To Close. Every device that causes
door to open, including a reversing device, activates the
Timer To Close. Auxiliary controls can be connected to
open input to activate the Timer To Close. If the timer
has been activated, the open button and radio control
can recycle the timer. The stop button will deactivate the
Timer To Close until the next command input. The Timer
To Close will function from the programmable mid stop
with this wiring type. (NOTE: Requires Optional self
monitoring photo eyes to operate.)
T 3-Button Station, 1-Button Station, 1 & 3 Button Radio
Control
Momentary contact to open, close, and stop, with open
override and Timer To Close. Every device that causes
the door to open, except a reversing device, activates the
Timer To Close. Auxiliary controls can be connected to
open input to activate the Timer To Close. If the Timer To
Close has been activated, the open button and radio
control can recycle the timer. The stop button will
deactivate the timer until the next command input. The
Timer to Close will function from the programmable mid
stop with this wiring type. (NOTE: Requires Optional self
monitoring photo eyes to operate.)

17
FAILSAFE WIRING TYPES
TYPE
FSTS 3-Button Station, 1-Button Station, 1 & 3 Button
Radio Control
Momentary button contact for open, close and stop
programming. Radio controls allowing open, close
and stop. User set mid stop. User set Timer To
Close. The single button station opens the door to
the full open limit bypassing the mid stop and
activates the Timer To Close, putting the operator in
TS mode until the door reaches the down limit, or
is stopped in travel. At which time the operator
enters the B2 mode. (NOTE: Requires Optional self
monitoring photo eyes to operate this feature/wire
type.)
C2 Failsafe 3-Button Station, 1-Button Station, 1 & 3 Button
Radio Control
Same functions as C2. Self Monitoring safety device
must be installed to operate door for each of the
following failsafe wiring types. See Self Monitoring
Safety Device Options.
B2 Failsafe 3-Button Station, 1-Button Station, 1 & 3 Button
Radio Control
Same functions as B2. Self Monitoring safety device
must be installed to operate door for each of the
following failsafe wiring types. See Self Monitoring
Safety Device Options.
D1 Failsafe 2-Button Station
Same functions as D1. Self Monitoring safety
device must be installed to operate door for each of
the following failsafe wiring types. See Self
Monitoring Safety Device Options.
E2 Failsafe 3-Button Station
Same functions as E2. Self Monitoring safety device
must be installed to operate door for each of the
following failsafe wiring types. See Self Monitoring
Safety Device Options.
SELF-MONITORING SAFETY DEVICE OPTIONS
To use the operator in any of the Failsafe wiring modes, or Timer
To Close wiring modes (TS, T, FSTS), a LiftMaster self monitoring
safety device must be installed.
RECOMMENDED LIFTMASTER SELF-MONITORING
SAFETY DEVICES:
CPS-L NEMA 1 Direct Connect Eyes
CPS-LN4 NEMA 4 Direct Connect Eyes
IMPORTANT NOTE:
1. External interlocks may be used with all functional modes.
2. Auxiliary devices are any devices that have only dry contacts.
Examples: photocell, loop detector, pneumatic or electrical
treadles, radio controls, one button stations, pull cords, etc.
3. Open override means that the door may be reversed while
closing by activating an opening device without the need to
use the stop button first.
PROGRAMMING

18
OPEN
CLOSE
STOP
U1
POWER
TIMER
DEFEAT
MAS
4
MRT
1RADIO
MID
2
TIMER
TIMER
ENABLE
TTS
FSTSE2
RELAY A
RELAY B
D1 DIAG
C2
B2 PROG
3
24V
AC
24V
AC
TIMER
DEFEAT
CMN
MAS
EYES
EDGE
OPEN
CLOSE
STOP
CMN
SBC
11
10
9
14
13
12
8
7
6
5
4
3
2
1
CLOSE
STOP
OPEN
EDGE
OLS
MID
SLS
MOTOR DIRECTION
REV? STD?
CLS
D25
D24
D26
D27
D36
C77
C73
C54
C78
L1
L5
P6
D35
S8
D16
P7
EYES
K3
P1
D34
F1
FAILSAFE (B2 C2 D1 E2)
NON FAILSAFE
D23
D15
D1
D22
R8
J1
X1
E1
R29
C18
D8
U7
R31
D31
C3
Ø
D7
D6
D5
D4C25
C17
C11
D3
Ø 2P1
Ø
P4
Ø 14LG Ø 657–A Ø 14GP Ø 657–A
J3
ØØ
D2 Ø
D21
D13
D14
D28
D17
D19
CONTACTOR/3 PH ?
SINGLE PHASE ?
SBC
C71
®
CLOSE
STOP
OPEN
EDGE
D1
D22
D2 Ø
D21
D13
Open
Close
Stop
SINGLE BUTTON CONTROL (SBC) REMOTE
This function programs a remote as a Wireless Single Button
Control. In B2 mode, operation is
OPEN/STOP/CLOSE/REVERSE/STOP. In C2 mode, operation is
OPEN/STOP/Constant pressure to CLOSE/STOP on release. There
is no operation in D1 mode. In E2 mode, operation is
OPEN/STOP/Constant pressure to CLOSE/REVERSE on release. In
T and TS modes, operation is OPEN/STOP/CLOSE/REVERSE/STOP
and Timer to Close start/refresh. In FSTS mode, operation is OPEN
with Timer to Close start/refresh only bypassing all up mid stops.
Momentary and constant pressure commands are processed in
this function.
1. Press and release the RADIO button on the logic board (LED
will light).
2. Press and release the SBC externally wired button or TIMER on
the logic board (LED flashes rapidly and then remains on solid).
3. Press and hold the remote button until the LED flashes rapidly.
The LED will then remain on solid after releasing.
4. Press and release the RADIO button on the logic board (LED
flashes rapidly and then turns off). The programming mode is
exited if no activity is performed within 30 seconds.
ERASING REMOTES
Press and hold the RADIO button on the logic board until the
RADIO LED flashes rapidly (approximately 5 seconds).
All remotes will be erased.
NEW ON BOARD PROGRAMMING
PROGRAMMING REMOTES
STANDARD SINGLE BUTTON REMOTE
1. Press and release the RADIO button (LED will light).
2. Press and hold the remote control button until the LED flashes
rapidly, then release remote control button. The LED will then
remain on solid after releasing the button.
3. Press and release the RADIO button to complete the
programming. The programming mode is exited if no activity is
performed within 30 seconds.
NOTE: Single button remote is not supported with E2 and E2
failsafe wiring modes.
REMOTE OPEN, CLOSE AND/OR STOP BUTTON
(Allows transmitter to operate as a 3- button control system)
A remote may be programmed to function as a Wireless Open,
Close or Stop Button.
1. Press and release the RADIO button on the logic board (LED
will light).
2. Press and release
OPEN button on logic board (remote functions as an
OPEN button)
OR
STOP button on logic board (remote functions as a
STOP button)
OR
CLOSE button on logic board (remote functions as a
CLOSE button)
LED flashes rapidly and then remains on solid.
3. Press and hold the remote button until the LED flashes rapidly.
The LED will remain on solid after releasing.
NOTE: To add more remote functions or remotes repeat steps 2
and 3.
4. After learning remote press and release the RADIO button on
the logic board (LED flashes rapidly and then turns off).
NOTE: Requires self-monitoring photo eyes when using constant
pressure to close (wiring C2, D1 and E2).
OPERATION
MODE
B2
C2
D1
E2
T, TS
FSTS
OPEN STOP CLOSE Reverse Constant
Pressure
Timer To
Close
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
PROGRAMMING

19
MAINTENANCE ALERT SYSTEM (MAS)
Feature: An internal cycle counter will activate a flashing LED on
the three button control station when the preset number of cycles
or months has elapsed (whichever occurs first). Setting this
feature is optional. By default this feature will never activate.
LiftMaster Logic 3.0 operators incorporate a self diagnostic
feature built into the MAS LED. In addition to indicating when
routine maintenance is due, the MAS LED can be used to
troubleshoot some problems with the operator.
Benefit: Notifies the end user when scheduled maintenance is
due. Assists the installing dealer in setting up a routine
maintenance program.
To Program:
1. Start with the door in the closed position
2. Turn the selector dial to PROGRAM
3. Press the MAS button on the logic control board
4. Press the STOP button to zero out the MAS counter
5. Press the OPEN button for every 5,000 cycles the operator
should wait before flashing the MAS LED and Press the
CLOSE button for every three months the operator should wait
before flashing the MAS LED.
6. Press MAS to confirm setting. The OPEN LED will flash once
for every 5,000 cycles programmed and the CLOSE LED will
flash once for every 3 months programmed.
7. Set selector dial back to desired wiring type.
NOTE: If MAS LED flashes 2 or more flashes in a row followed by
a pause, an operator error occurred. Turn to page 27 to diagnose
problem.
Example: A door is installed with 30,000 cycle springs and has
an annual service contract. To set the MAS, turn selector dial to
PROGRAM, press MAS button, press the STOP button to clear
the memory and then press the OPEN button 6 times (30,000
cycles) and close 4 times (12 months). Press the MAS again to
complete the programming. Set the selector dial to desired wiring
type.
Special Notes about MAS: A 5th wire must be run to the control
station to activate the MAS LED. The MAS LED on the control
board is always enabled. When the operator is serviced after the
MAS LED has started to flash, repeat the setup procedure to
program in the number or cycles desired until the next service
visit OR press and hold the MAS button for 5 seconds in the
PROGRAM mode to reset the MAS with its current programmed
value. To disable the MAS, follow the programming procedure
above and press the STOP button to reset the counter to zero.
Every time the operator leaves the close limit is counted as one
cycle.
To view how many cycles are programmed into the MAS, set the
selector dial to DIAGNOSTIC and press the MAS button. The
OPEN button LED will flash once for every 5,000 cycle increment
programmed and the CLOSE button LED will flash once for every
3 month increment programmed.
To view how many cycles have elapsed since the last time the
MAS was programmed, set the selector dial to “Diagnostic” and
press the “MAS” button. Press the OPEN button; the OPEN LED
will flash once for every 5,000 cycles that has elapsed. Press the
CLOSE button; the CLOSE LED will flash once for every (3)
months that has elapsed. Press the MAS button to exit.
Operation will vary
depending on
wiring type
SELECTOR DIAL
OPEN
CLOSE
STOP
Adds 5,000 cycles to Maintenance Alert System
Activation Counter.
Adds 3 Months to Maintenance Alert System
Activation Timer.
Clears memory, sets Maintenance Alert System
Activation Counter to 0 cycles and
0 months.
Press This To Get This
3-BUTTON STATION
OPEN
CLOSE
STOP
Maintenance
Alert LED
PROGRAMMING

20
Operation will vary
depending on
wiring type
SELECTOR DIAL
Operation will vary
depending on
wiring type
SELECTOR DIAL
PROGRAMMING
OPEN MID STOP
Feature: Door will open to an installer set height that is less than
fully open.
Benefit: The door opens to a midpoint between open and close
reducing heating and cooling costs. The door will not cycle fully,
providing longer door and operator life.
To Program:
1. Close the door.
2. Turn selector dial to “PROGRAM.”
3. Press the “MID SET” button on logic control board.
4. Press the OPEN button, wait until the door reaches the desired
mid stop height, then press the STOP button.
5. Press the MID SET button to complete programming.
6. Turn selector dial back to desired wiring type.
NOTE: A momentary open command will open the door fully from the
“Mid Stop” position. Once at the “Mid Stop,” Photo eyes and other
safety devices will not open the door beyond the mid stop position,
except in E2 mode. The Timer to Close will work from the Mid Stop.
To clear the Mid Stop set the selector dial to Program and press and
hold the MID SET button for 5 seconds. The MID SET LED will flash
rapidly and turn off once the Mid Stop has been cleared.
CLOSE MID STOP
A new feature is down mid stop which can be enabled with purchase
of the red/green light kit. See kit instructions of how to enable this
new feature.
TIMER TO CLOSE
Feature: Installer can set a timer to automatically close the door after
a preset amount of time. All safety devices must be unobstructed.
Benefit: The door will automatically close after pre set amount of
time. Great for Apartment Buildings, Fire Stations and other
applications where the end user wants the door to close
automatically after a specified amount of time.
Requirements: Must have at least one of the following safety
devices attached: CPS-L, CPS-LN4 or CPS-II card with valid safety
device. Wiring type must be set to TS, T or FSTS.
To Program Manually (Method 1):
1. Close the door.
2. Turn the selector dial to PROGRAM.
3. Press the TIMER button on the logic control board.
4. Press the STOP button to clear the timer.
5. Press the OPEN button for every 5 seconds the operator should wait
before attempting to close the door. Press the CLOSE button for
every 60 seconds the operator should wait before closing the door.
6. Press the TIMER button to complete programming. The
OPEN/CLOSE button LEDs will flash to confirm the timer setting.
The OPEN LED will flash once for every 5 seconds programmed and
the CLOSE LED will flash once for every 60 seconds programmed.
7. Turn the selector dial to desired timer wiring type (TS ,T or FSTS ).
Example: To close the door after 70 seconds. Turn selector dial to
Program, press the TIMER button, press the STOP button to clear the
timer, Press the CLOSE button once for 60 seconds and press the
OPEN button twice for 10 seconds. Press the TIMER button to finish
programming the timer. Turn selector dial to desired Timer wiring type.
(TS, T, FSTS).
To reduce the risk of SEVERE INJURY or DEATH, ALWAYS install
reversing sensors when the 3-button control station is out of
sight of door or any other control (automatic or manual) is used.
Reversing devices are recommended for ALL installations.
WARNING
CAUTION WARNING
WARNING
