Chamberlain Security+ 3112E User manual

Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■Periodic checks of the opener are required to ensure safe operation.
■The model number label is located on the front panel of your opener.
®
GARAGE DOOR OPENER
Models 3112 • 3122
For Residential Use Only

2
Introduction Pages 2-8
Safety symbol and signal word review........................2
Preparing your garage door ........................................3
Tools needed...............................................................3
Planning ..................................................................4-6
Carton inventory..........................................................
Hardware inventory .....................................................8
Assembly Pages 9-15
Assemble T-rail & attach the pulley bracket...........9-10
Install the trolley.........................................................11
Fasten the T-rail to the motor unit.............................12
Install the chain/cable and chain spreader ..........13-14
Tighten the chain and cable......................................15
Installation Pages 15-28
Installation safety instructions ...................................15
Determine the header bracket location................16-1
Install the header bracket..........................................18
Attach the T-rail to the header bracket......................19
Position the opener ...................................................20
Hang the opener .......................................................21
Install the door control...............................................22
Install the light ...........................................................23
Attach the emergency release rope and handle .......23
Electrical requirements..............................................24
Fasten the door bracket.......................................25-26
Connect the door arm to the trolley .....................2 -28
Adjustment Pages 29-31
Adjust the travel limits ...............................................29
Adjust the force .........................................................30
Test the safety reversal system.................................31
Operation Pages 32-35
Operation safety instructions ....................................32
Using your garage door opener ................................32
Using the wall-mounted door control ........................33
To open the door manually .......................................33
Care of your garage door opener .............................34
Having a problem?...............................................34-35
Programming Pages 36-37
To add a hand-held remote control ...........................36
To erase all codes .....................................................36
Multi-function remotes...............................................36
To add or change a Keyless Entry PIN.....................3
Repair Parts 38
Accessories 39
Service Numbers 40
Warranty 40
TABLE OF CONTENTS
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical
or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.
Mechanical
lectrical
WARNING
CAUTION
WARNING
WARNING
ATT NTION
AV RTISS M NT AV RTISS M NT
AV RTISS M NT
WARNING
CAUTION
WARNING
WARNING
ATT NTION
AV RTISS M NT AV RTISS M NT
AV RTISS M NT
WARNING
CAUTION
WARNING
WARNING
ATT NTION
AV RTISS M NT AV RTISS M NT
AV RTISS M NT
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.

3
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver Adjustable End Wrench
Socket Wrench
Drill
Tape Measure
2
1
Stepladder
Pencil
5mm & 8mm
Drill Bits
Carpenter's
Level
To prevent damage to garage door and opener:
• ALWAYS disable locks before installing and operating
the opener.
• ONLY operate garage door opener at 20V, 60 Hz to
avoid malfunction and damage.
To prevent possible SERIOUS INJURY OR DEATH:
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door may not reverse when
required.
• NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, all
of which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing and operating garage
door opener to avoid entanglement.
Preparing your garage door
Before you begin:
• Disable locks.
• Remove any ropes connected to garage door.
•Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:

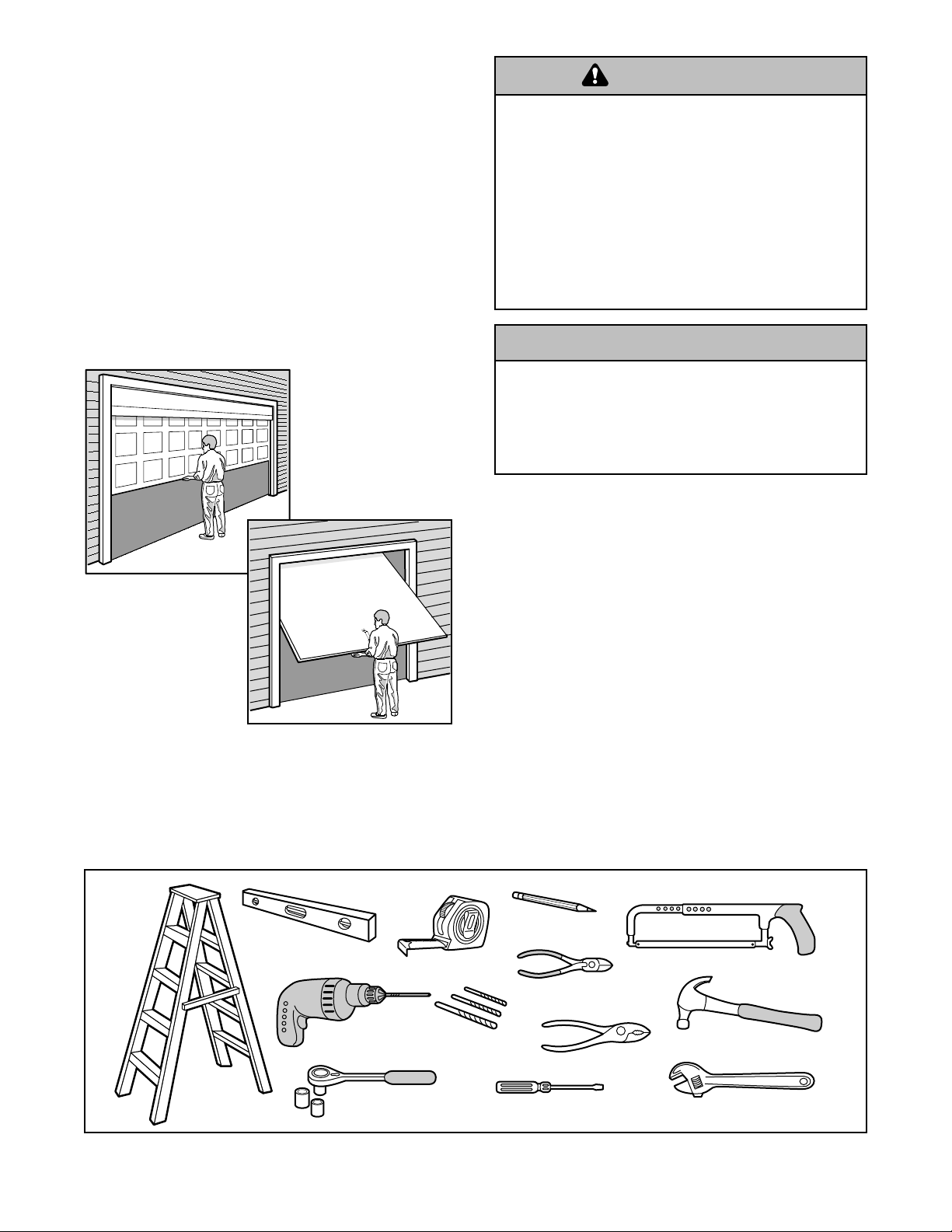

1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place,
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
WARNING
CAUTION
WARNING
WARNING
ATT NTION
AV RTISS M NT AV RTISS M NT
AV RTISS M NT
WARNING
CAUTION
WARNING
WARNING
ATT NTION
AV RTISS M NT AV RTISS M NT
AV RTISS M NT
Sectional Door
One-Piece Door

Safety Reversing Sensor
Support bracket &
fastening hardware
is required.
See page 21.
— — — — — — — —
Door
Center
Header Wall
FINISHED CEILING
Torsion
Spring
Extension
Spring
OR
Safety Reversing Sensor
Gap between floor
and bottom of door
must not exceed 6 mm.
Access
Door
Wall-
mounted
Door
Control
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 25 for details.
Motor unit
Slack in chain tension
is normal when
garage door is closed
(Optional Accessory)
(Optional Accessory)
4
S CTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
• Installation Step 1 – Look at the wall or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
• Installation Step 5 – Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
• Do you have an access door in addition to the
garage door? If not, Model 02CB Outside Quick
Release is required. See Accessories page.
• Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 6 mm. Otherwise, the safety
reversal system may not work properly. See
Adjustment Step 3. Floor or door should be
repaired.

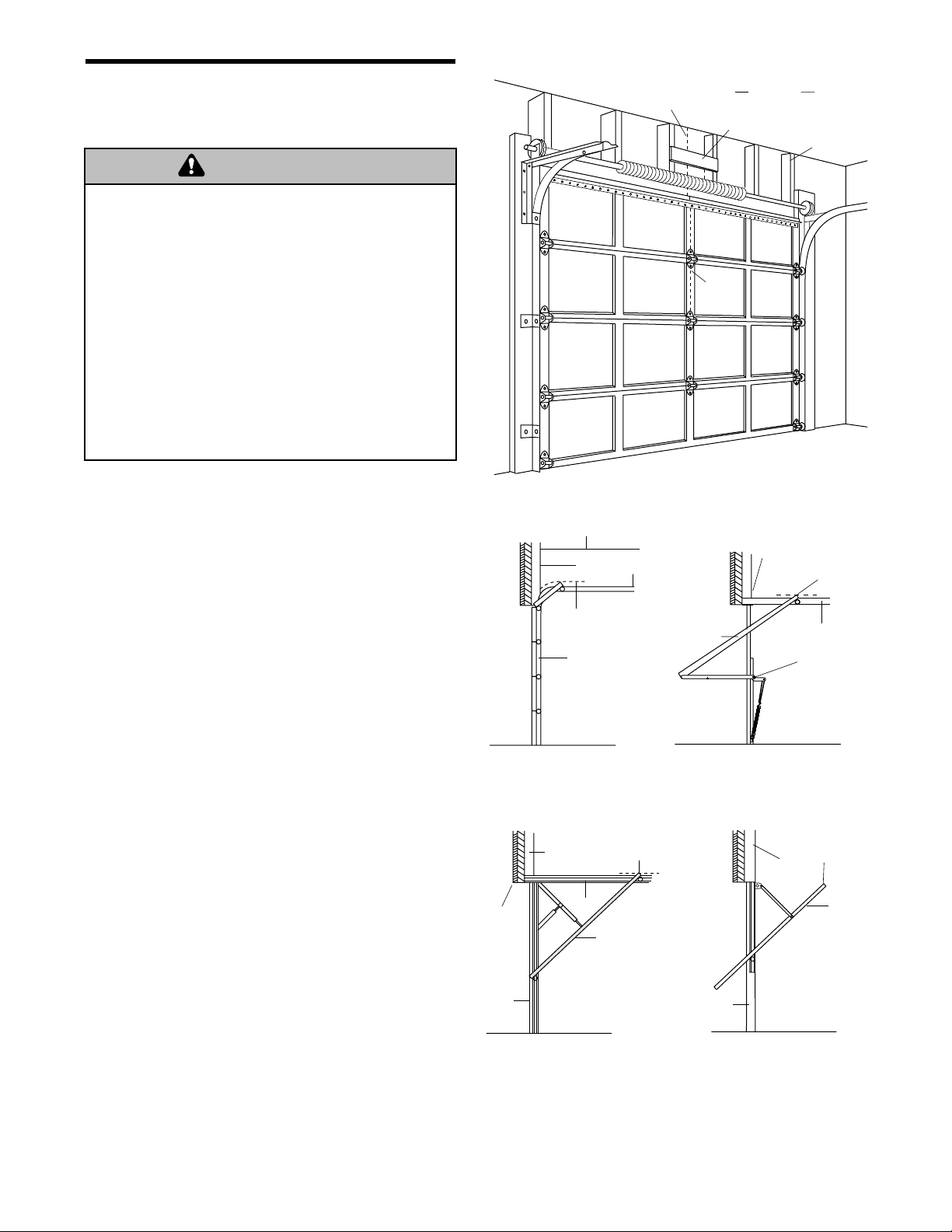

S CTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforce-
ment is required (Installation Step 10).
• The opener should be installed above the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within 1.2 m to the left or right of
the door center. See Installation Steps 1 and 10.
Cable Pulley
Bracket
Header
Bracket Trolley
Straight
Door
Arm Emergency
Release
Rope & Handle
Door Bracket
Garage
Door
Curved
Door
Arm
Garage
Door
Spring
Header
Wall
CLOS D POSITION
T-rail
Chain

5
Planning (Continued)

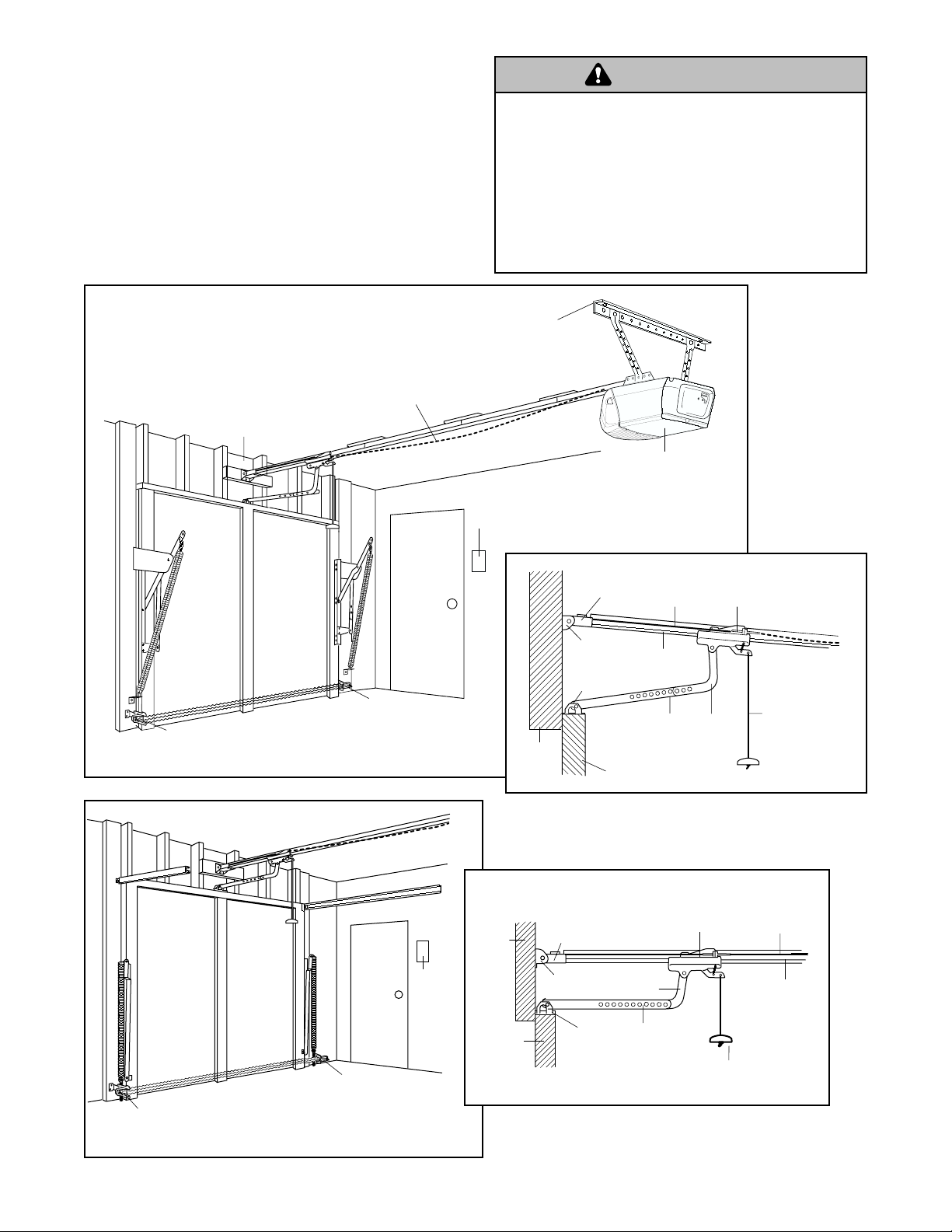

ON -PI C DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 10.
• Depending on your door’s construction, you may
need additional mounting hardware for the door
bracket (Step 10).
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage
door.
• The gap between the bottom of the garage door and
the floor MUST NOT exceed 6mm. Otherwise, the
safety reversal system may not work properly.
• The floor or the garage door MUST be repaired to
eliminate the gap.
WARNING
CAUTION
WARNING
WARNING
ATT NTION
AV RTISS M NT AV RTISS M NT
AV RTISS M NT
Safety
Reversing Sensor
(Optional Accessory)
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 21.
Slack in Chain Tension
is Normal When
Garage Door is Closed
Safety
Reversing Sensor
(Optional Accessory)
Header
Wall
Access
Door
Gap between floor and bottom
of door must not exceed 6 mm.
Wall-mounted
Door
Control
Motor Unit
ON -PI C DOOR WITHOUT TRACK
CLOS D POSITION
Access
Door
Gap between floor
and bottom of door
must not exceed 6 mm.
Safety Reversing
Sensor
(Optional Accessory)
Wall-
Mounted
Door
Control
Cable
Pulley Bracket
Door
Bracket
Straight
Door
Arm
Trolley
Header
Wall
T-rail
Garage
Door
Emergency Release
Rope & Handle
Chain
Header
Bracket
Curved
Door Arm
Safety Reversing
Sensor
(Optional Accessory)

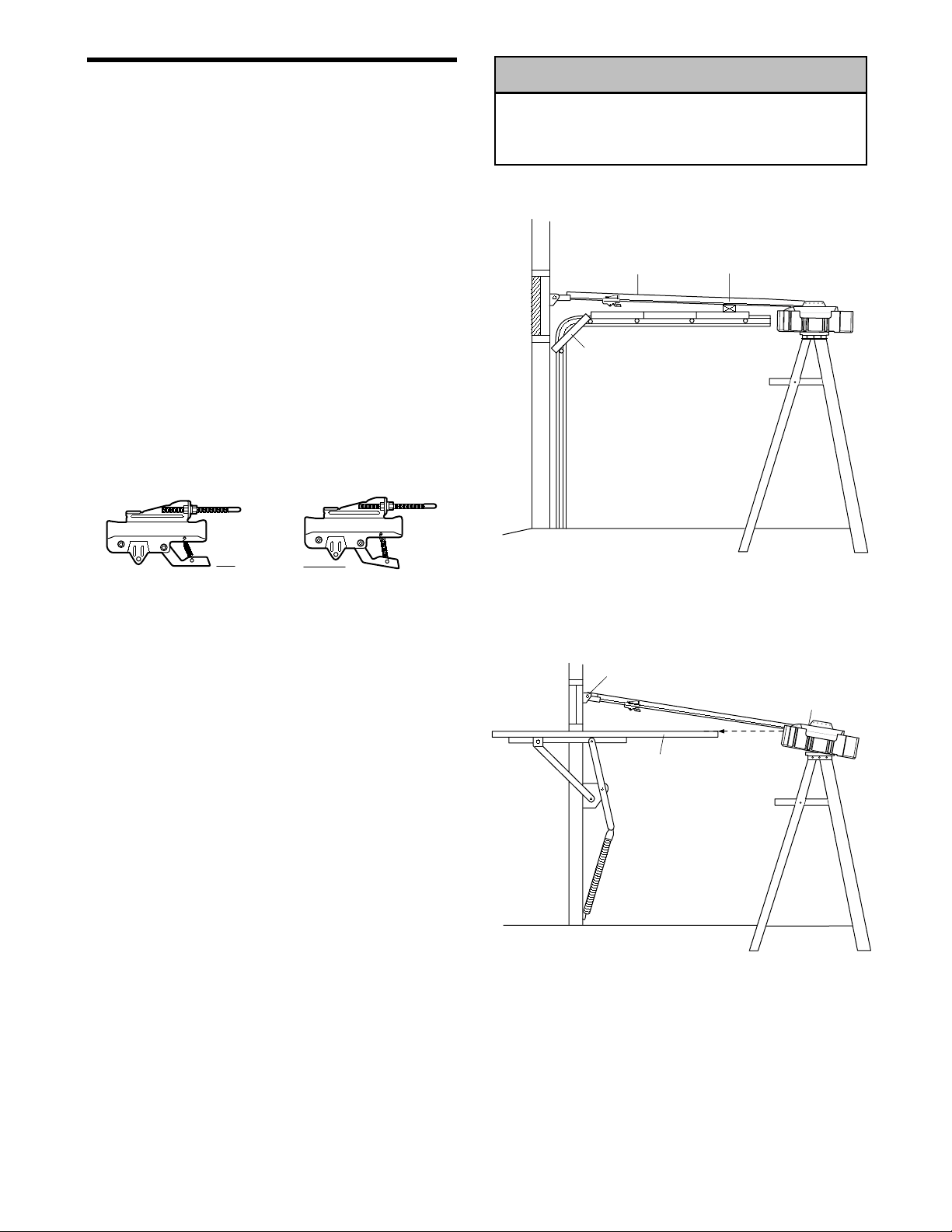

ON -PI C DOOR WITH TRACK
CLOS D POSITION
Cable
Pulley Bracket
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door
Bracket
Curved
Door
Arm
Header
Wall
Cable
T-rail
Garage
Door

6
Safety Reversing Sensor
(Optional Accessory)
Safety Reversing Sensor
(Optional Accessory)
Header Wall
Safety Reversing Sensor
(Optional Accessory)
Safety Reversing Sensor
(Optional Accessory)

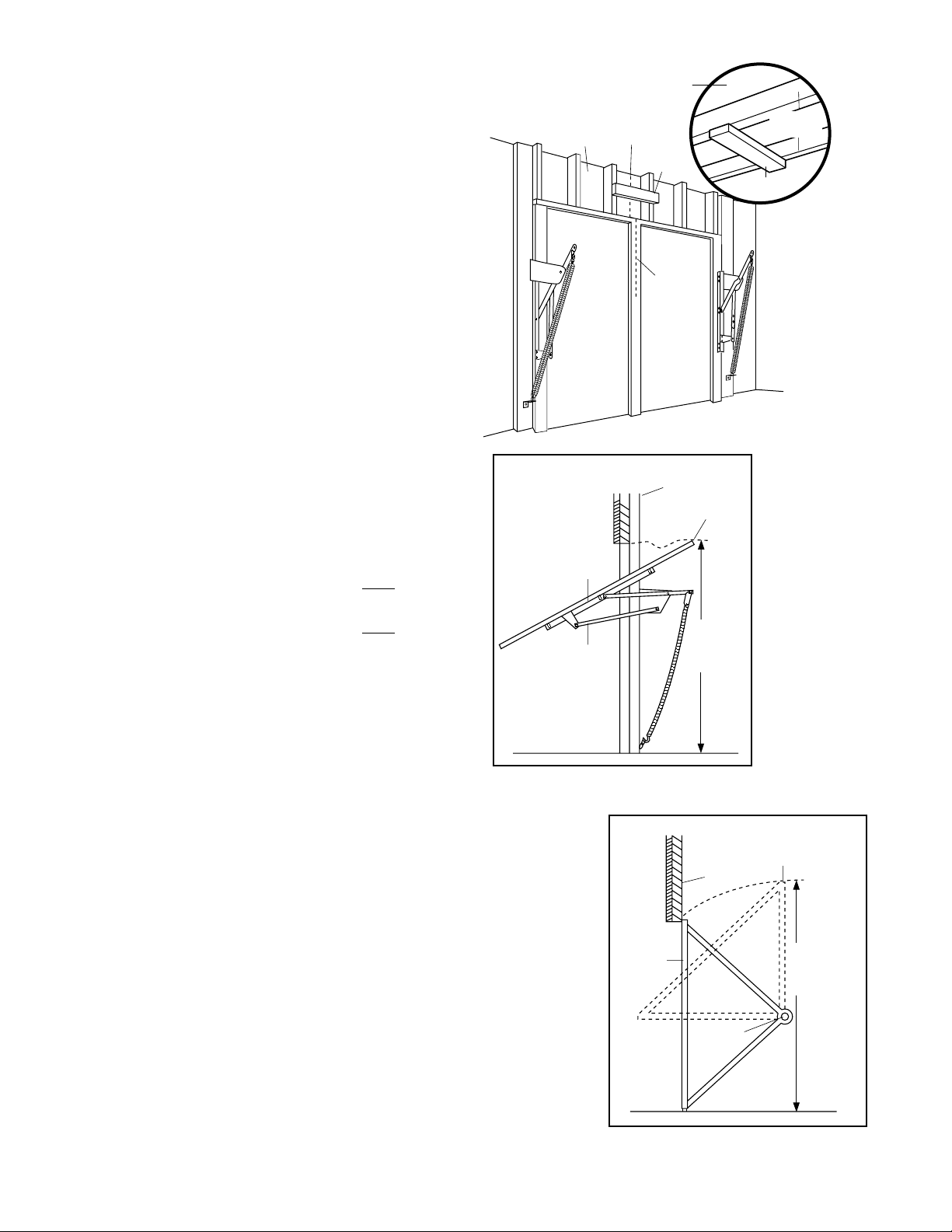

SLIDING GAT INSTALLATION
SWINGING GAT INSTALLATION
Planning (Continued)
GAT INSTALLATIONS
• It is recommended that you attach fine mesh or
screening across the inside of swinging or sliding
gates in order to prevent intruders from reaching
through the bars and releasing the trolley from the
door arm or pressing the door control button.
• The opener must be protected from rain and/or
moisture.
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing gate.
• Activate gate ONLY when the gate is in full view and
free from any obstructions.
• ALWAYS keep gate in sight until completely closed.
NEVER permit anyone to cross the path of the moving
gate.
• ALWAYS keep gate in good repair and make sure it
moves freely. An improperly maintained gate may not
reverse when required and could result in SEVERE
PERSONAL INJURY or DEATH.
WARNING
CAUTION
WARNING
WARNING
ATT NTION
AV RTISS M NT AV RTISS M NT
AV RTISS M NT

41B2616
Cable Pulley
Bracket
21 A238
2-Conductor Bell Wire
White & White/Red
41A3489
Trolley
41A4353
Header Bracket
1 8B35
Curved Door
Arm Section
1 8B34
Straight Door
Arm Section
Safety Labels
and
Literature
12B350
Hanging Brackets
UP
CEILING MOUNT ONLY
41A504
Door Bracket
108D68
Light Lens
950-315CB
SECURITY✚
Single-function
Remote Control
956-315CB
SECURITY✚
3-Channel
Mini Remote Control
41A4208
Chain Spreader
and Screws
41A34 3 Model 3112E
41A34 3-2 Model 3122E
Chain/Cable
Dispensing Carton
31D380
Sprocket Cover
Model 3112E Only
Model 3122E Only
Rail Brace
Rail Brace
T-Rail
Center Section
(each) 183B111
T-Rail
End Section
(each) 183B113
T-Rail
End Section (each)
183B113
41A55 -1
Lighted Door
Control Button

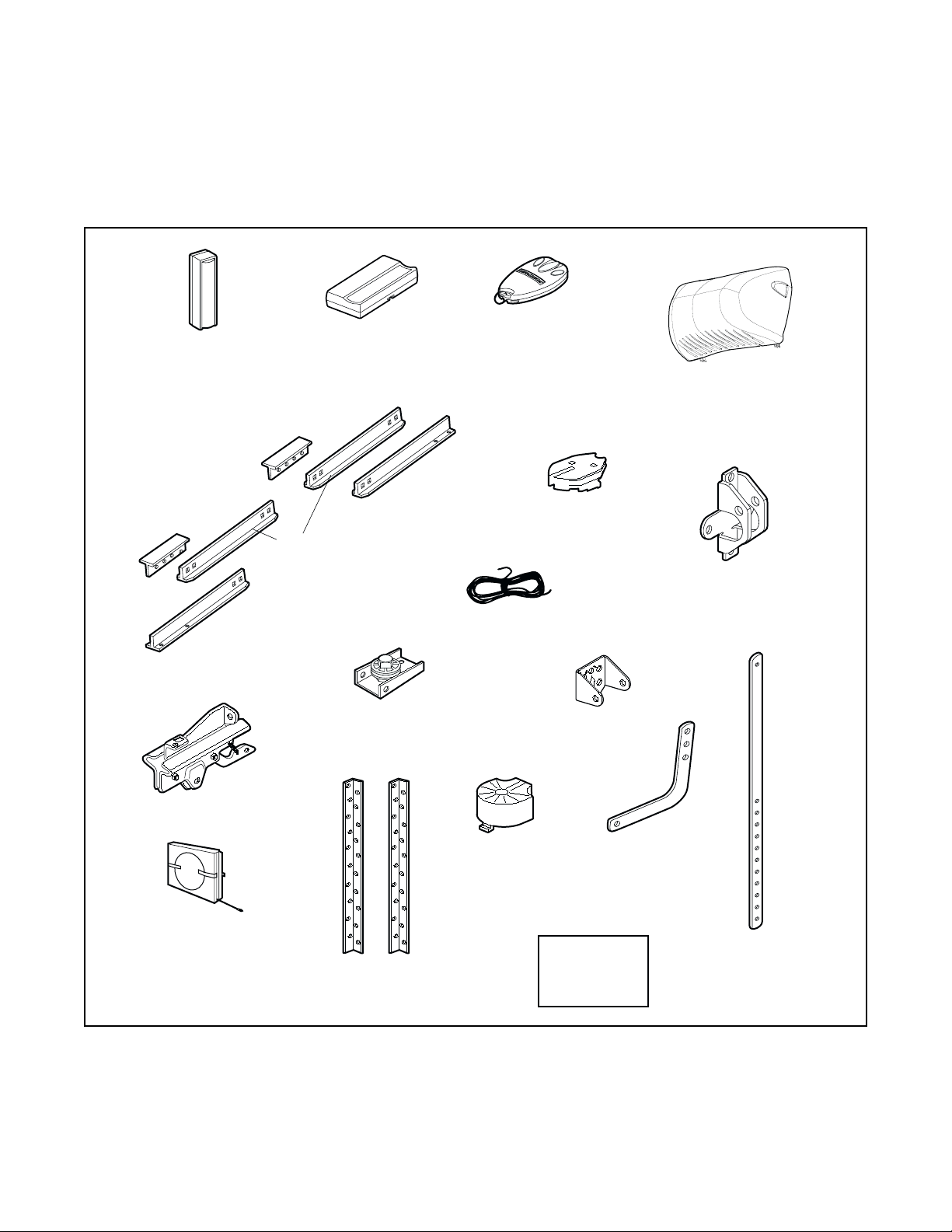

Your garage door opener is packaged in one carton
which contains the motor unit and the parts illustrated
below. Note that accessories will depend on the
model purchased. If anything is missing, carefully
check the packing material.
Parts may be stuck in the foam. Hardware for
assembly and installation is shown on the next page.
Save the carton and packing material until installation
and adjustment is complete.
Carton Inventory

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
8
Hex Bolt
5/16"-18x /8" (4)
Screw
6ABx1-1/4" (2)
Lock Washer
5/16" (4)
Nut
5/16"-18 (6)
Clevis Pin
5/16"x2-3/4" (1)
NOTICE
Handle Insulated
Staples (10)
Assembly Hardware 41A2848
Installation Hardware 41A3475-18
Dry Wall Anchors (2)
Rope
Lock Nut
1/4"-20x1/2" (12)
Nut
5/16"-18 (5)
Washered Bolt
5/16"-18x1/2" (2)
(mounted in opener)
Carriage Bolt
5/16"-18x2-1/2" (2)
Carriage Bolt
1/4"-20x1/2" (12)
Hex Bolt
5/16"-18x /8" (3) Master Link (2)
Ring Fastener (3)
Trolley
Threaded Shaft (1)
Lock Washer
5/16" (6)
Lag Screw
5/16"-9x1-5/8" (2)
Lag Screw
5/16"-18x1- /8" (2)
Clevis Pin
5/16"x1" (1)
Clevis Pin
5/16"x1-1/4" (1)

T-RAIL BACK
(TO MOTOR UNIT)
T-RAIL FRONT
(TO DOOR)
Cable pulley bracket
attaches to FRONT
END of T-rail
T-rail
(End Section)
T-rail
(Center Section)
Carriage Bolt
1/4"-20x1/2"
T-rail
(End Section)
Square Carriage
Bolt Hole
1/4" Lock Nut
Hex Bolts
5/16"-18x /8"
Cable Pulley
Bracket
Bracket & Rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"-18
9
ASSEMBLY STEP 1
For Sectional and
One-Piece Doors ONLY
Assemble the T-Rail and
Attach the Cable Pulley Bracket
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.

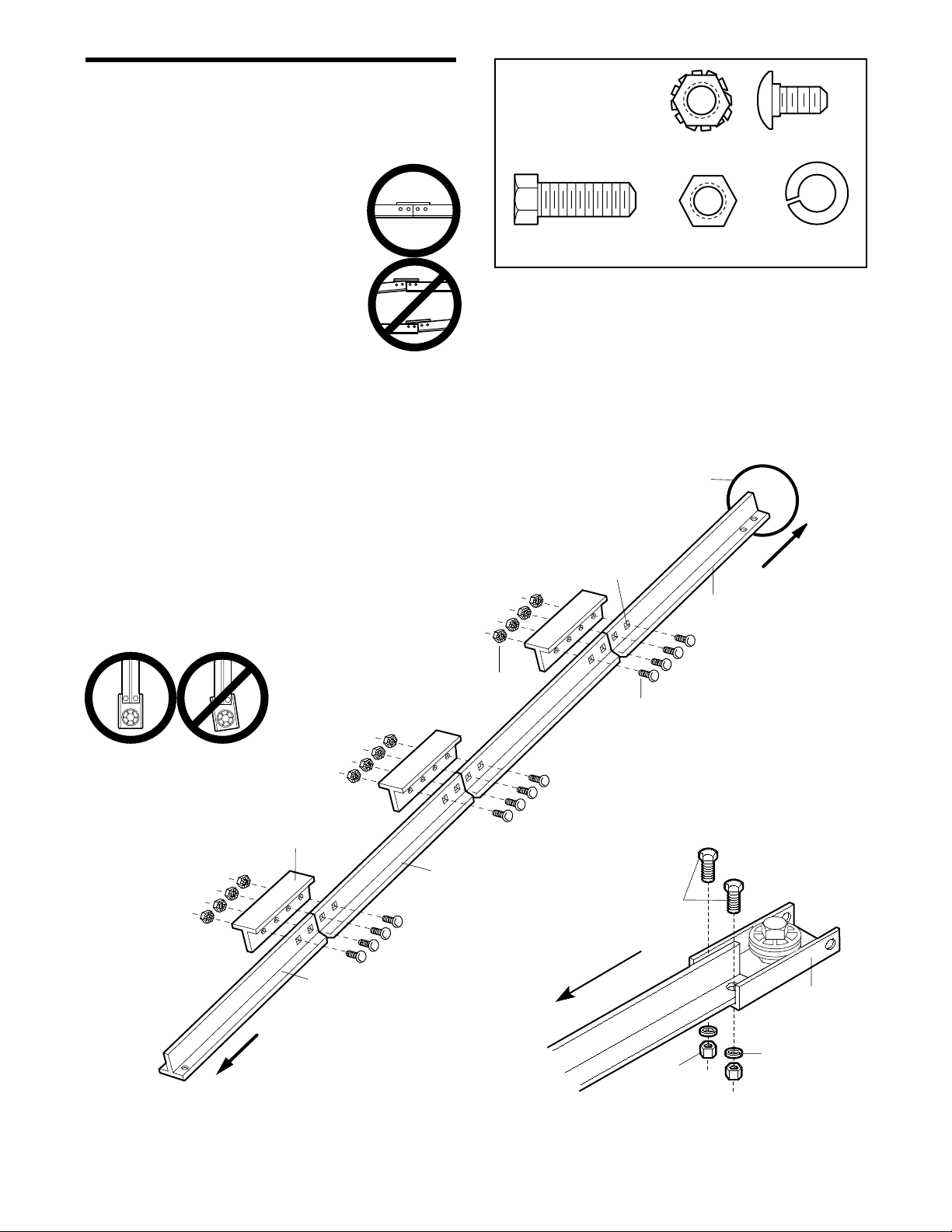

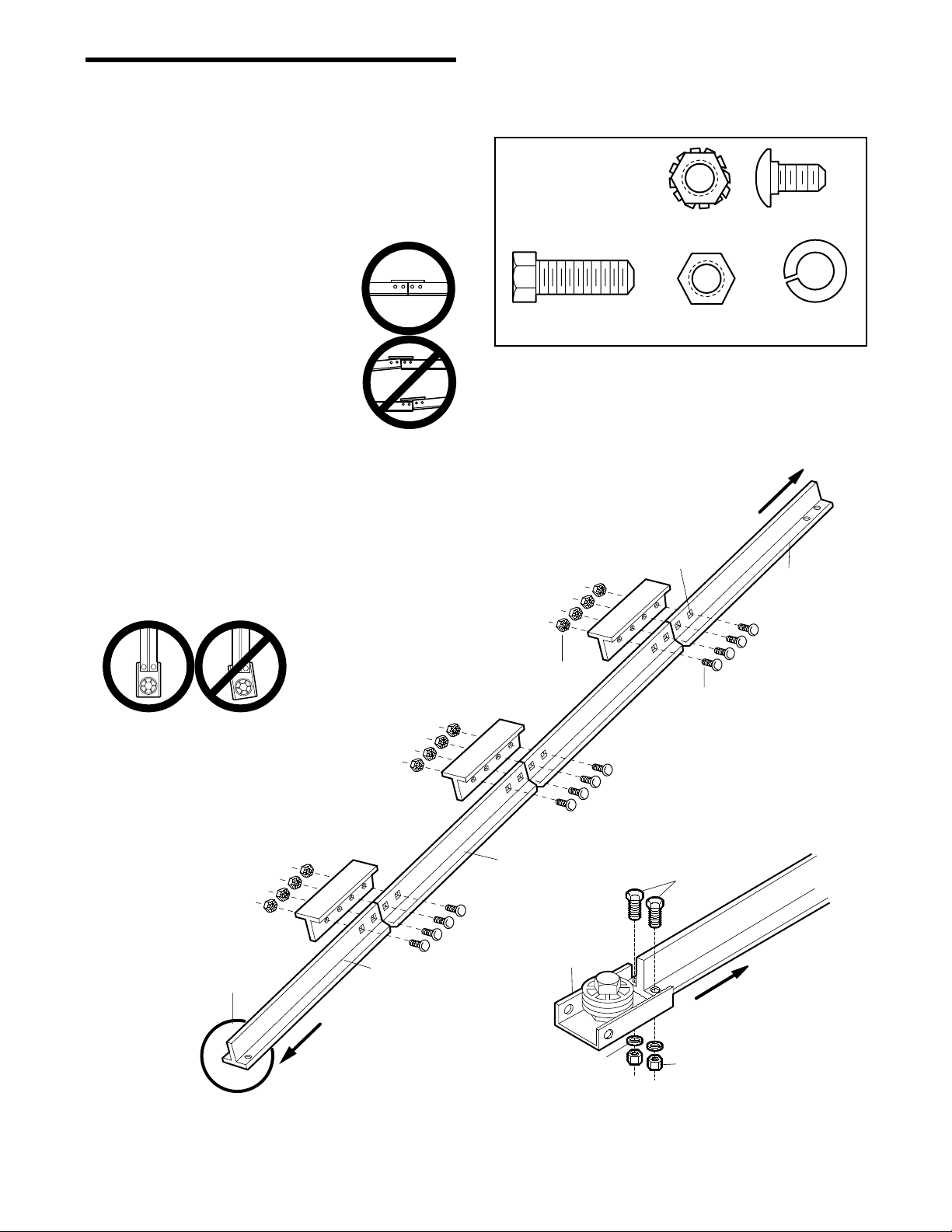

1. Align the four T-rail sections on a flat
surface exactly as shown. Center
sections are interchangeable. Front
and back sections are also
interchangeable for ease of assembly.
2. Insert the carriage bolts so the square
bolt necks seat in the square holes in
the T-rail sections and pass through
the round holes in the rail braces.
Assemble lock nuts, ensure alignment
and tighten.
NOTE: If T-rail is not assembled
exactly as shown, trolley will not travel smoothly
along length of rail or it will hit against nuts.
3. Position the cable pulley bracket on the front end
of the T-rail as shown. Fasten securely with the
hardware provided.
NOTE: When tightening the bolts be sure to keep
bracket parallel to the rail. Otherwise, the rail may
bow when the opener is operated.
Lock Nut
1/4"-20
Carriage Bolts
1/4"-20x1/2"
Hex Bolt
5/16"-18x /8"
Nut
5/16"-18 Lock Washer
5/16"
HARDWAR
SHOWN ACTUAL SIZ

AWAY FROM
OP N R
Rail connects to
opener at this end.
T-rail
(End Section)
Carriage Bolt
1/4"-20x1/2"
T-rail
(End Section)
Square Carriage
Bolt Hole
1/4" Lock Nut
Brace
Cable pulley bracket
attaches to this
end of T-rail.
T-rail
(Center Section)
10
ASSEMBLY STEP 1
For Sliding and Swinging Gates ONLY
Assemble the T-Rail and
Attach the Cable Pulley Bracket
To avoid installation difficulties, do
not run the garage door opener until
instructed to do so.
1. Align the four T-rail sections on a flat
surface exactly as shown. Center
sections are interchangeable. Front
and back sections are also
interchangeable for ease of
assembly.
2. Connect the center section and the
1/4" lock nuts to the end sections from
the same side, as shown.
NOTE: If T-rail is not assembled exactly as shown,
trolley will not travel smoothly along length of rail
or it will hit against nuts.
3. Insert the carriage bolts from the opposite side of
the end sections. Tighten the nuts. When
assembled, T-rail has a front-to-back position as
shown.
4. Position the cable pulley bracket on the front end
of the T-rail as shown. Fasten securely with the
hardware provided.
NOTE: When tightening the bolts be sure to keep
bracket parallel to the rail. Otherwise, the rail may
bow when the opener is operated.
Lock Nut
1/4"-20
Carriage Bolts
1/4"-20x1/2"
Hex Bolt
5/16"-18x /8"
Nut
5/16"-18 Lock Washer
5/16"
HARDWAR
SHOWN ACTUAL SIZ
Hex Bolts
5/16"-18x /8"
Cable Pulley
Bracket
Rail Bracket & T-rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"

Trolley
Threaded
Shaft
Lock Washer
5/16"
Outer Nut
5/16"-18
Inner Nut
5/16"-18
Trolley
Trolley
Tem orary Sto
Screwdriver
11
ASSEMBLY STEP 2
For Sliding and Swinging Gates Only
Install the Trolley
• Attach the trolley threaded shaft to the trolley with
the lock washer and nuts as shown.
• Insert a hex bolt into the hole in the front end of
the T-rail.
• Slide the trolley assembly along the rail until it
rests against the hex bolt (trolley sto ).
NOTE: If trolley hits against any nuts on the
T-rail, the bolts and nuts were attached
from the wrong side and must be
repositioned. Review Assembly Step 1.
Trolley
Threaded
Shaft
Lock Washer
5/16"
Outer Nut
5/16"-18
Inner Nut
5/16"-18
Trolley
Hex Bolt
Trolley Sto
Hex Bolt
5/16"-18x7/8"
Nut
5/16"-18
Lock Washer
5/16"
Cable Pulley
Bracket
Nut
5/16" Lockwasher
5/16"-18
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
ASSEMBLY STEP 2
For Sectional and One-Piece Doors Only
Install the Trolley
• Attach the trolley threaded shaft to the trolley with
the lock washer and nuts as shown.
• As a tem orary sto , insert a screwdriver into the
hole in the front end of the T-rail.
• Slide the trolley assembly along the rail to the
screwdriver sto .
NOTE: If trolley hits against any nuts on the
T-rail, the bolts and nuts were attached
from the wrong side and must be
repositioned. Review Assembly Step 1.
Lock Washer
5/16" Nut
5/16" -18
HARDWARE SHOWN ACTUAL SIZE

12
ASSEMBLY STEP 3
Fasten the T-Rail to the Motor Unit

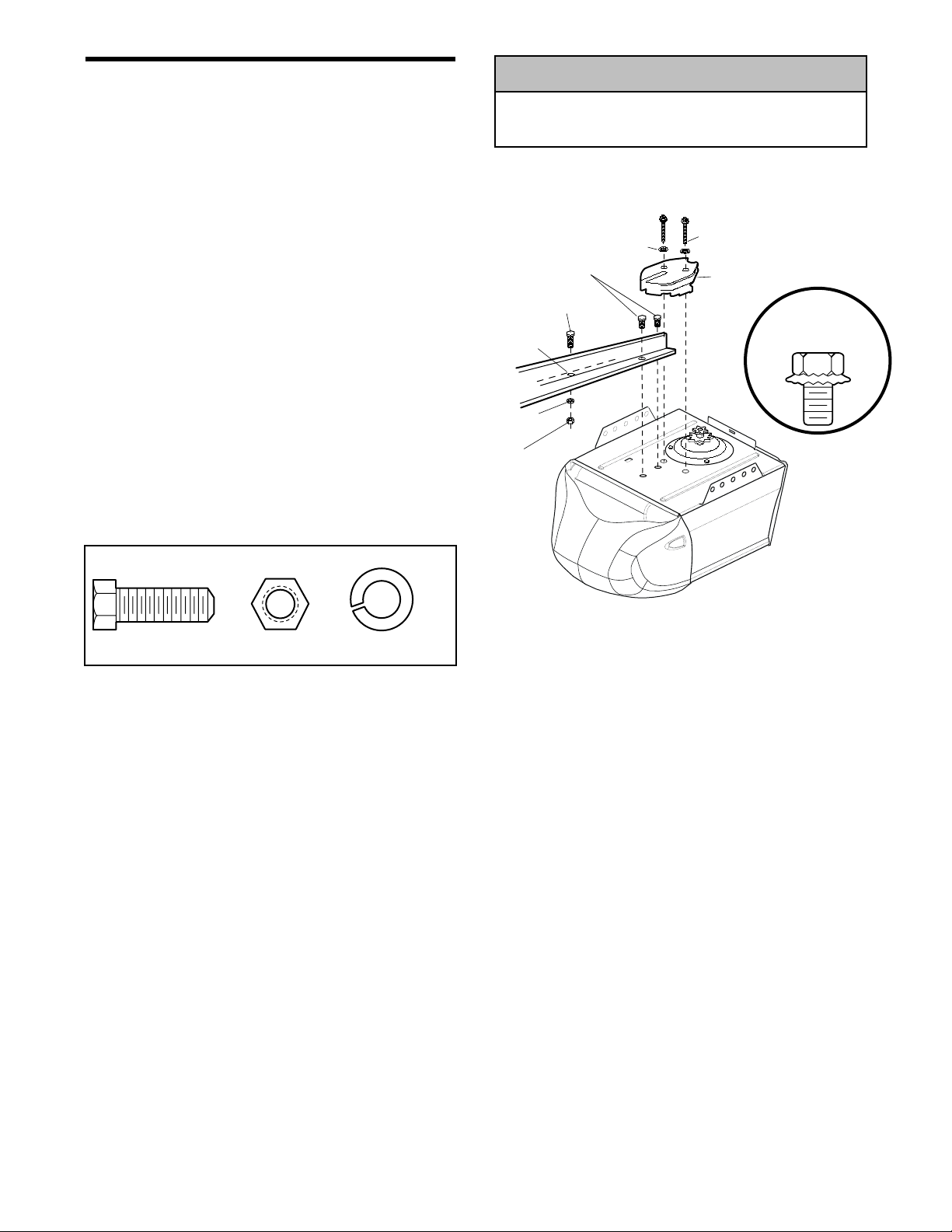

• Place the o ener on acking material to rotect
the cover. For convenience, ut a su ort under
the cable ulley bracket.
• Remove the two 5/16"-18x1/2" washered bolts
mounted in the to of the motor unit.
• Align the holes in the back section of the T-rail with
the holes in the motor unit.
• Fasten the rail with the two washered bolts
reviously removed. Tighten securely. Remember
to use only these bolts! Any other bolts will
ause serious damage to the opener.
• Insert a 5/16"-18x7/8" hex bolt into the cover
rotection bolt hole in the T-rail as shown. Tighten
securely with a 5/16" lock washer and nut.
NOTE: This bolt prevents trolley over-travel. eep a
25 mm minimum between the trolley and this bolt
when adjusting travel limits (see page 29).
MODEL 3122E ONLY:
•Attach chain s reader with #8x1” hex screws
and washers as shown.
Washered Bolt
5/16"-18x1/2"
T-rail
(Back
Section)
Cover
Protection
Bolt Hole
Nut
5/16"-18
Hex Bolt
5/16"-18x7/8"
Lock Washer
5/16"
USE ONLY THIS
TYPE AND SIZE
BOLT
Chain
S reader
#8x1"
Hex Screws
Washers
MODEL 3122E ONLY
Nut
5/16"-18 Lock Washer
5/16"
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
To avoid serious damage to opener, ONLY use bolts
mounted in top of motor unit.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT

Cable
Pulley
Cable
Loo
Master
Link Bar
Master Link
Cli -On S ring
Pin
Pin
Notch
Chain
Flat end
of Trolley
Threaded
Shaft
Master Link Ca
Master
Link Ca
Master Link
Cli -On S ring
Install Chain & Cable
In This Dire tion
ASSEMBLY STEP 4
For Sectional and One-Piece Doors Only
Install the Chain/Cable and Attach
the Sprocket Cover

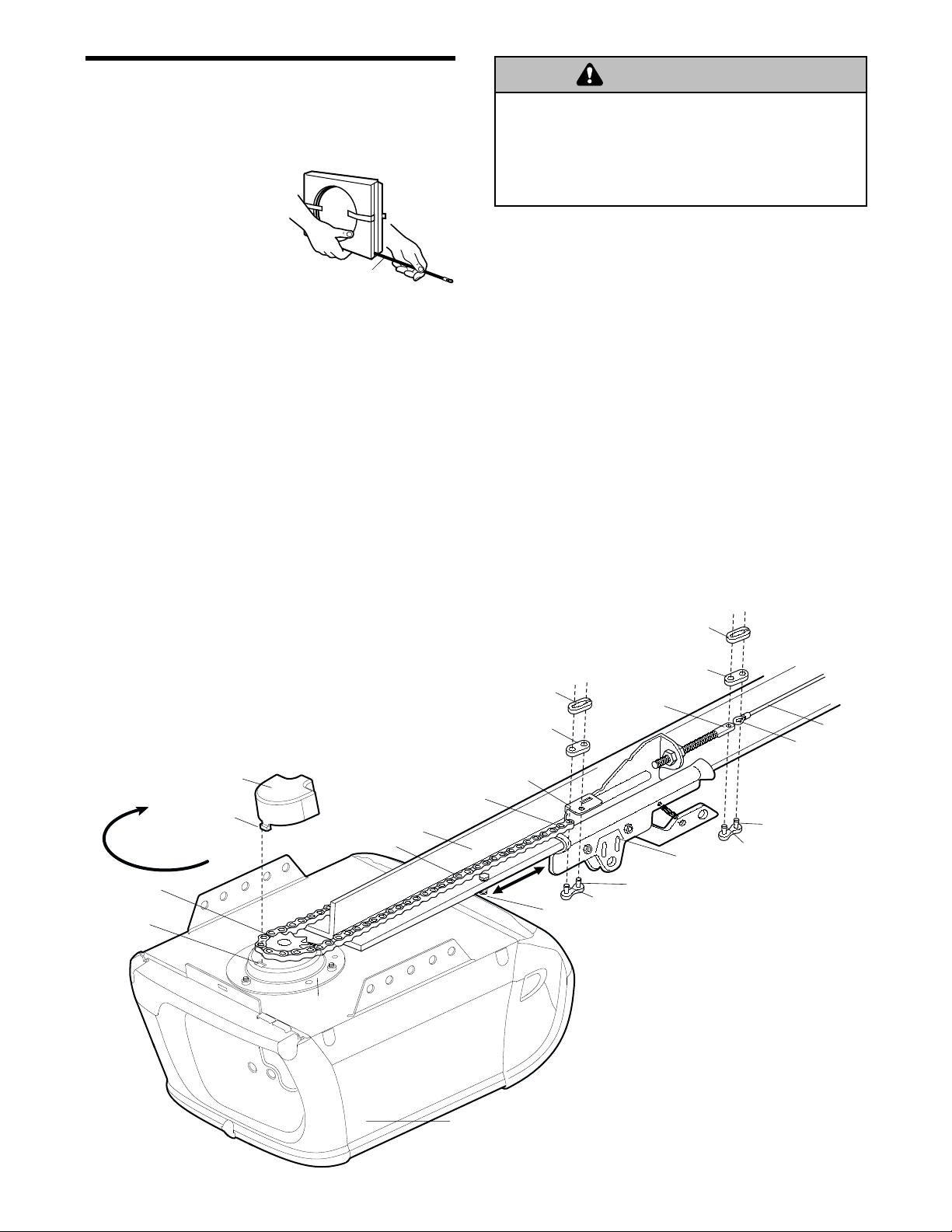

1. Pull the cable loo from
the carton and fasten it
to the trolley with a
master link from the
hardware bag
(Figure 1).
• Push ins of master
link bar through cable
loo and hole in front end of trolley.
• Push master link ca over ins and ast in
notches.
• Slide cli -on s ring over ca and onto in
notches until both ins are securely locked in
lace.
2. With the trolley against the screwdriver, dis ense
the cable around the ulley.
3. Model 3112E:
• Continue along the rail and around the motor unit
s rocket (Figure 2). The s rocket teeth must
engage the chain. Continue forward to the trolley
threaded shaft.
Model 3122E:
• Continue along the rail and around the motor unit
s rocket (Figure 2). Proceed back around the
correct groove in the chain s reader (Figure 3).
The s rocket teeth must engage the chain.

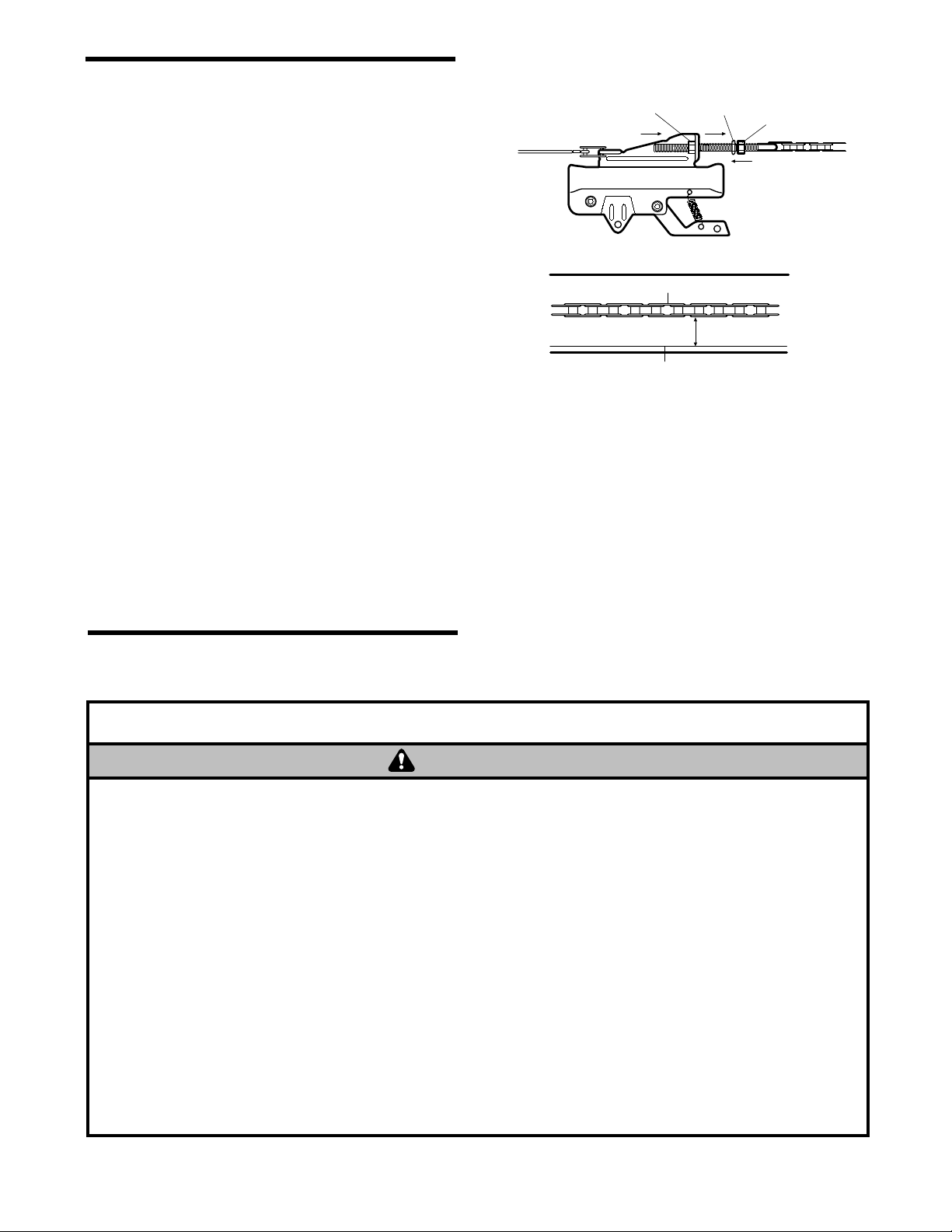

4. Use the second master link to connect the chain to
the flat end of the shaft (Figure 1). Che k to make
sure the hain is not twisted.
5. Remove the screwdriver.
ATTACHING THE SPROCKET COVER
3112E ONLY
Insert the back tab in the slot on the back of the
mounting late. Squeeze the cover slightly and insert
the front tab (Figure 4).
13
To avoid possible SERIOUS INJURY to fingers from
moving garage door opener
• ALWAYS keep hand clear of sprocket while operating
opener.
• Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Motor Unit
S rocket
Install Chain and Cable
In This Dire tion
Chain
S reader
Figure 2
Figure 1
Leave Chain
& Cable
Inside Carton to
Prevent Kinking.
Kee Chain & Cable
Taut When Dis ensing
6-Tooth
S rocket
Mounting
Plate
Chain
S reader
8-Tooth
S rocket
Mounting
Plate
Chain
S reader
Figure 3
One-Pie e Doors
6-Tooth S rocket A lication (Model 3122E)
Se tional Doors
8-Tooth S rocket A lication (Model 3122E)
(6-tooth s rocket can be used if slower travel s eed
is desired.)
S rocket
Cover
Mounting
Plate
Front Tab Slot
Back Tab Slot
To of Motor Unit
Figure 4

14
ASSEMBLY STEP 4
For Sliding and Swinging Gates Only
Install the Chain/Cable and Attach
the Sprocket Cover
1. Pull the cable loo from
the carton and fasten it to
the trolley with a master
link from the hardware
bag (Figure 1).
• Push ins of master link
bar through cable loo
and hole in front end of
trolley.
• Push master link ca over ins and ast
in notches.
• Slide cli -on s ring over ca and onto in
notches until both ins are securely locked
in lace.
2. To revent the trolley from jamming against the
o ener during o eration, osition trolley 5 to 15 cm
from the sto hole as shown. Then dis ense the
chain around the o ener s rocket (Figure 1). Make
sure the s rocket teeth engage the chain.
• Proceed around to the ulley bracket and forward
to the threaded trolley shaft.
3. Use the second master link to connect the chain to
the flat end of the shaft (Figure 1). Che k to make
sure the hain is not twisted.
ATTACHING THE SPROCKET COVER
3112E ONLY
Insert the back tab in the slot on the back of the
mounting late. Squeeze the cover slightly and insert
the front tab.
To avoid possible SERIOUS INJURY to fingers from
moving opener
• ALWAYS keep hand clear of sprocket while operating
opener.
• Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Leave Chain
& Cable
Inside Carton to
Prevent Kinking.
Kee Chain & Cable
Taut When Dis ensing
S rocket
Motor Unit
Back
Tab Slot
Mounting
Plate
Install Chain
in this Direction
Master
Link Pin
Master Link
Cli -On S ring
Master Link
Cli -On S ring
Flat End
of Trolley
Trolley Pin Notch
Flat End of
Threaded Shaft
Master
Link Ca
T-rail
Master
Link Ca
Chain
Back Tab
S rocket
Cover
Chain Link
Trolley Sto
(Hex Screw)
5-15 cm
Pin Notch
Master
Link
Pin
Cable Loo
Cable
Figure 1

15
ASSEMBLY STEP 5
Tighten the Chain and Cable
• S in the inner nut and lock washer down the
trolley threaded shaft, away from the trolley.
• To tighten the chain, turn outer nut in the direction
shown. AS YOU TURN THE NUT, KEEP THE
CHAIN FROM TWISTING.
• When the chain is a roximately 13 mm above the
base of the T-rail at its mid oint, re-tighten the
inner nut to secure the adjustment.
Spro ket noise an result if hain is either too
loose or too tight.
NOTE: When installation is complete, you may
notice some chain droop with the door closed. This is
normal. If the chain returns to the position shown
when the door is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the
emergency release handle to disconnect trolley
before adjusting chain.
You have now finished assembling your garage
door opener. lease read the following warnings
before proceeding to the installation section.
Lock
Washer
To Tighten Outer Nut
Inner Nut
Chain
Base of T-rail
13 mm
To Tighten
Inner Nut
Outer Nut
IMPORTANT INSTALLATION INSTRUCTIONS
1. READ AND FOLLOW ALL INSTALLATION WARNINGS
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door. An improperly balanced
door may not reverse when required and could result in
severe injury or death.
3. All repairs to cables, spring assemblies and other
hardware MUST be made by a trained door systems
technician before installing opener.
4. Disable all locks and remove all ropes connected to
garage door before installing opener to avoid
entanglement.
5. Install garage door opener 2.1 m or more above floor.
6. Mount emergency release handle 1.8 m above floor.
7. NEVER connect garage door opener to power source
until instructed to do so.
8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control
• within sight of the garage door
• out of reach of children at minimum height of 1.5 m
• away from all moving parts of the door.
10. Place entrapment warning label on wall next to garage
door control.
11. Place manual release/safety reverse test label in plain
view on inside of garage door.
12. Upon completion of installation, test safety reversal
system. Door MUST reverse on contact with a 25 mm
obstruction on the floor.
To redu e the risk of severe injury or death:
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
INSTALLATION

16
INSTALLATION STEP 1
Determine the Header Bracket
Location
Installation rocedures vary according to garage door
ty es. Follow the instructions which a ly to your
door.
If your door is a cano y or dual-track style garage
door, a door arm conversion kit is REQUIRED.
Follow the installation instructions included with the
re lacement door arm sectional.
SECTIONAL DOOR AND
ONE-PIECE DOOR WITH TRACK
1. Close the door and mark the inside vertical
centerline of the garage door.
2. Extend the line onto the header wall above the
door.
You an fasten the header bra ket within 1.2 m
of the left or right of the door enter only if a
torsion spring or enter bearing plate is in the
way; or you an atta h it to the eiling (see
page 17) when learan e is minimal. (It may be
mounted on the wall upside down if ne essary,
to gain approximately 1 m .)
If you need to install the header bracket on a
25 mm board (on wall or ceiling), use lag screws
(not rovided) to securely fasten the 25 mm board
to structural su orts as shown here and on
age 17.
3. O en your door to the highest oint of travel as
shown. Draw an intersecting horizontal line on the
header wall 5 cm above the high oint. This height
will rovide travel clearance for the to edge of the
door.
roceed to Step 2, page 18.
To prevent possible SERIOUS INJURY or DEATH
• Header bracket MUST be RIGIDLY fastened to
structural support on header wall or ceiling, otherwise
garage door might not reverse when required. DO NOT
install header bracket over drywall.
• Concrete anchors MUST be used if mounting header
bracket or 25 mm board into masonry.
• NEVER try to loosen, move or adjust garage door,
springs, cables, pulleys, brackets, or their hardware, all
of which are under EXTREME tension.
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door might not reverse when
required.
Vertical
Centerline
Finished
Ceiling
Vertical
Centerline
Header
Wall
25 mm
Board Structural
Su orts
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Header
Wall
Ceiling
SECTIONAL DOOR
WITH CURVED TRACK
Track
Highest Point
of Travel
Door
Header
Wall
Door Track
Jamb
Hardware
Highest Point
of Travel
ONE-PIECE DOOR
WITH HORIZONTAL
TRACK & JAMB
HARDWARE
Highest Point
of Travel
Door
Track
Garage
Exterior
Track
Header
Wall
Highest Point
of Travel
Door
Track CANOPY ONE-PIECE
DOOR WITH
VERTICAL TRACK
Header
Wall
ONE-PIECE DOOR
WITH HORIZONTAL &
VERTICAL TRACK

EXAMPLE
Distance from to of door
(at highest oint of travel) to floor ..........234 cm
Actual height of door.............................-224 cm
Remainder................................................10 cm
Add.........................................................+20 cm
Bracket height on header wall................=30 cm
(Measure UP from to of CLOSED door.)
roceed to Step 2, page 18.
17
Header Wall Vertical
Centerline
Vertical
Centerline
of Garage
Door
25mm
Board
Unfinished
Ceiling
25 mm Board
OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
Structural
Su orts
ONE-PIECE DOOR WITHOUT TRACK
1. Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. (See age 18).
If you need to install the header bracket on a
25 mm board (on wall or ceiling), use lag screws
(not rovided) to securely fasten the 25 mm board
to structural su orts as shown.
2. O en your door to the highest oint of travel as
shown. Measure the distance from the to of the
door to the floor. Subtract the actual height of the
door. Add 20 cm to the remainder. (See Exam le).
3. Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
NOTE: If the total number of centimeters exceeds
the height available in your garage, use the
maximum height possible, or refer to page 18 for
ceiling installation.
Door
Highest Point
of Travel
Header Wall
Pivot
Distance
Floor
One-pie e door without tra k:
pivot hardware
Header Wall
Highest Point
of Travel
Door
Floor
Distance
Jamb
Hardware
One-pie e door without tra k:
jamb hardware

18

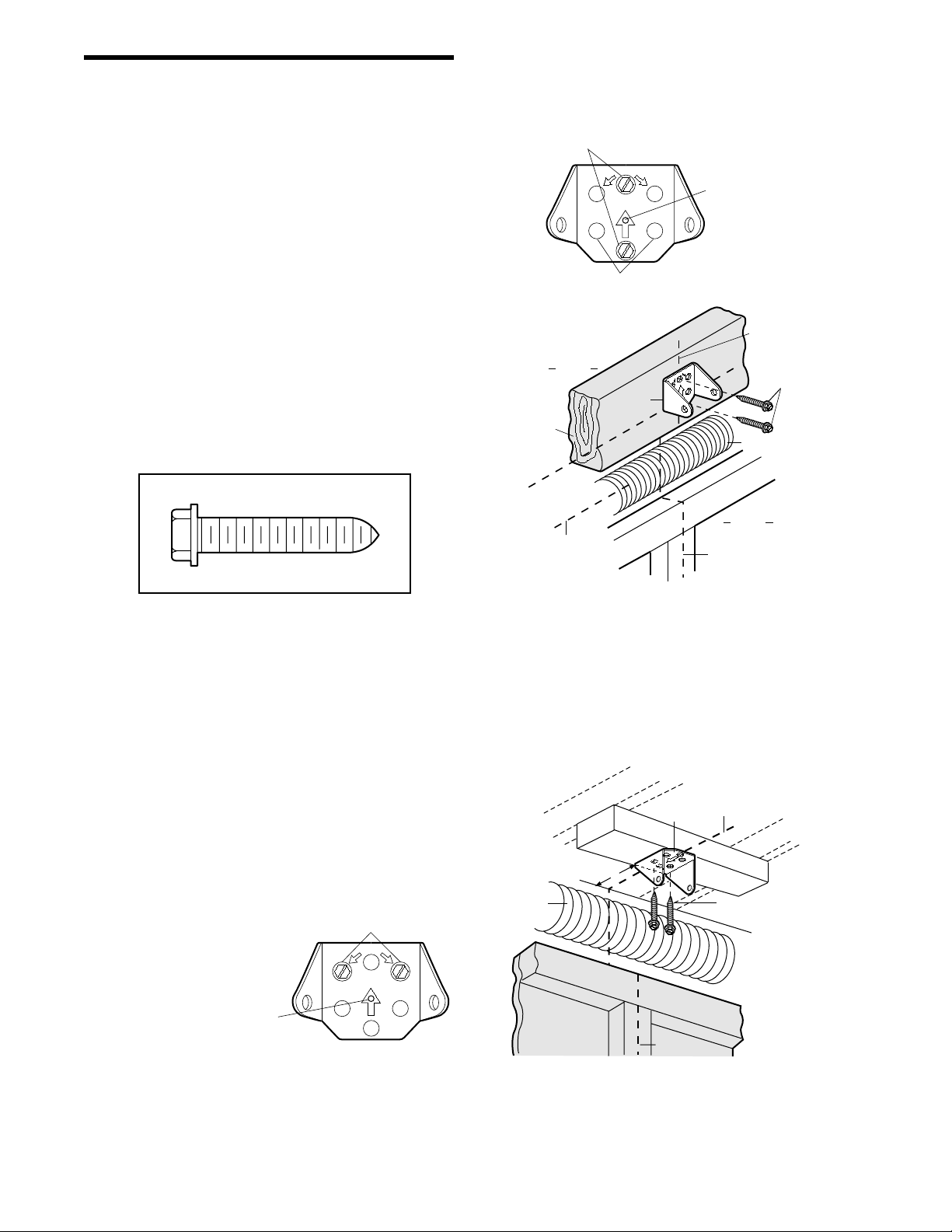

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your articular
requirements. Do not install the header bra ket
over drywall. If installing into masonry, use
on rete an hors (not provided).
WALL HEADER BRACKET INSTALLATION
• Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow ointing toward the
ceiling).
• Mark the vertical set of bracket holes (do not use
the holes designated for ceiling mount). Drill 5 mm
ilot holes and fasten the bracket securely to a
structural su ort with the hardware rovided.
Lag Screw
5/16"-9x1-5/8"
HARDWARE SHOWN ACTUAL SIZE
Lag Screws
5/16"x9x1-5/8"
Highest Point of
Garage Door Travel
Vertical
Centerline
Header
Wall
Garage
Door
UP
CEILING MOUNT ONLY
Wall Mounting Holes
O tional
Wall Mounting Holes
The nail hole is for
ositioning only.
You must use lag screws
to mount the header bracket.
UP
CEILING MOUNT ONLY
Door S ring
Header
Bracket
25 mm
Board
Vertical
Centerline
UP
CEILING MOUNT ONLY
Ceiling Mounting Holes
The nail hole is for
ositioning only.
You must use lag screws
to mount the header bracket.
UP
Lag Screws
5/16"x9x1-5/8"
Garage Door
Vertical Centerline
Header Wall
– Finished Ceiling –
Header
Bracket
15 cm Maximum
Vertical
Centerline
Door
S ring
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more
than 15 cm from the wall. Make sure the arrow is
ointing toward the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 5 mm ilot holes and
fasten bracket securely to a structural su ort with
the hardware rovided.

Clevis Pin
5/16" x 2-3/4" Ring Fastener
HARDWARE SHOWN ACTUAL SIZE
Header
Bracket
Tem orary
Su ort
Header Wall
Garage
Door
T-rail
Cable
Pulley
Bracket
Clevis Pin
5/16"x2-3/4"
Ring Fastener
Header
Bracket
Cable
Pulley
Bracket
T-rail
19
INSTALLATION STEP 3
Attach the T-Rail to the Header
Bracket
• Position the o ener on the garage floor below the
header bracket. Use acking material as a
rotective base.
NOTE: If the door spring is in the way you’ll need
help. Have someone hold the opener securely on
a temporary support to allow the rail to clear the
spring.
• Position the rail bracket against the header
bracket.
• Align the bracket holes and join with a clevis in
as shown.
• Insert a ring fastener to secure.

20
ONE-PIECE DOOR WITHOUT TRACK
• With the door fully o en and arallel to the floor,
measure the distance from the floor to the to of
the door.
• Using a ste ladder as a su ort, raise the to of
the o ener to this height.
• The to of the door should be level with the to of
the motor unit. Do not osition the o ener more
than 5 cm above this oint.
INSTALLATION STEP 4
Position the Opener
Follow instructions which a ly to your door ty e as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 25 mm board is convenient for setting an ideal
door-to-T-rail distance.
• Raise the o ener onto a ste ladder. You will need
hel at this oint if the ladder is not tall enough.
• O en the door all the way and lace a 25 mm
board on the to section beneath the T-rail.
• If the to section or anel hits the trolley when you
raise the door, ull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit. The trolley can
remain disconnected until Installation Ste 11
is com leted.
T-Rail
25 mm
Board
Door
Trolley
Release Arm
ENGAGED RELEASED
To prevent damage to garage door, rest garage door
opener rail on 25 mm board placed on top section of
door.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
To of Motor Unit
Header
Bracket
To of Door
