Chamberlain Series OCG User manual

3453135556
Included Wall Control MUST be installed prior to operation of this Garage
Door Operator
Safe-T-Beam
®
Safety Reverse System Must be installed to close door
SAVE THIS MANUAL FOR FUTURE REFERENCE
NOTE: Your Operator comes with a Rail Assembly which is standard for
up to a 7 foot 6 inch high door. An extension kit for an 8 foot high door
is available.
For Answers and Assistance:
1.800.929.3667
or visit www.overheaddoor.com
Includes Remote Control
and SERIES II Electronics
Series OCG

6To avoid damage to your door and/or
operator, make sure you disable any door
locks prior to installing your operator.
1Check your ceiling where the power
head of your new unit will be mounted.
Plan how you will be mounting the power head.
It is possible that ceiling joists may not be in the
exact position needed with respect to the garage
door operator. In any case, it may be necessary
to add an additional bracket and
fasteners (not
included with your new door operator kit).
2Check the wall directly above the garage
door.The door operator’s header bracket
must be securely fastened to this wall. Insure
that the structure will provide a strong mounting
location.
3Check to see if the mounting location
for the Safe-T-Beam®System “STB” is
clear from obstruction and has a wood
surface available for attaching the “STB”
brackets.The brackets may also be attached to
concrete if necessary but extra tools and special
fasteners (not supplied) will be required.
NOTE: 1-1/2" “STB” bracket adapters are
available through your local Overhead door Dealer.
4Is your garage door made of
light-weight steel, aluminum, fiberglass
or glass panels?Additional support bracing
must be added to these type doors. If this is the
case, please contact the door distributor or
manufacturer so that they can furnish you with a
“bracing kit.”
7Insure that your door is properly balanced
and moving freely. SEE WARNING BELOW.
8(NOT SHOWN) If your garage does not have
a separate entry door, you might want to
consider an emergency release kit (GER-2)for
installation on your garage door. See page Aat the
center of this manual.
5You need a 110-120 Volt power supply
available.If you plan to plug the unit into a
standard electrical outlet, is one available? The
outlet should be no more than about 3 feet from the
power head once it is mounted. (The cord is 4 ft. in
length.) SEE WARNING BELOW.
2
PRE-INSTALLATION CHECK LIST FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
Things to consider if you are planning to “do-it-yourself.”
In many cases you will be replacing an existing door operator with a new one, however, if this
will be the first operator installed there are some pre-installation issues which need to be
addressed. They are as follows:
The Overhead Door Corporation recommends that you read and fully understand
all information and instructions contained herein before choosing a “Do-it-yourself”
installation. Any questions should be directed to Overhead Door Corp. or an authorized
Overhead Door Dealer.
If your door sticks, binds, or is out of
balance, have it adjusted by a professional.
Door springs, cables, pulleys, brackets and
associated hardware are under extreme
tension and can cause serious injury or
death.
WARNING
DO NOT USE EXTENSION CORD!
Extension cords can cause dangerous
overheating conditions.
DO NOT USE PORTABLE GENERATOR!
This product is designed to operate on
standard house current. Do not use
alternate power supplies.
WARNING
(The issue numbers below refer to the circled numbers in the illustrations on page 3.)

3
7
TYPICAL SECTIONAL DOOR INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
TYPICAL
SUPPORT
BRACKET
EXTENSION SPRING
OR
TORSION SPRING
SAFE-T-BEAM®
BRACES
ADDED
HEADER BRACKET
MOUNTING BOARD
TYPICAL 1-PIECE DOOR INSTALLATION
48" POWER CORD
TO
120V GROUNDED
OUTLET
4
1
3
6
2
3
5
SECTIONAL DOOR 1-PIECE DOOR

4
SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE
PRE-INSTALLATION CHECKS . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
OPERATOR FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SAFETY FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
TOOLS RECOMMENDED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PARTS IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
OPERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
2INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-14
ELECTRICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 15-18
3SAFE-T-BEAM ®SYSTEM INSTALLATION . . . . . . . . . . 15-16
4WALL CONTROL INSTALLATION. . . . . . . . . . . . . . . . . . . . 17
5CONNECT OPERATOR TO POWER . . . . . . . . . . . . . . . . . 18
ADJUSTMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-21
6LIMIT SWITCHES & FORCE ADJUSTMENT . . . . . . . . . . . 19.
CONTACT REVERSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7PROGRAMMING REMOTE CONTROLS . . . . . . . . . . . 20-21
8BATTERY / VISOR CLIP INSTALLATION. . . . . . . . . . . . . . . 21
9LIGHT BULB AND LENS INSTALLATION. . . . . . . . . . . . . . 21
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MAINTENANCE & TROUBLESHOOTING . . . . . . . . . . . . . . . 22-24
SAFE-T-BEAM ®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
OPERATOR / RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A
TABLE OF CONTENTS OPERATOR FEATURES
CODEDODGER
®
Rolling Code Security System.
An electronic rolling code system that enhances the security of
the door operator by continuously changing the access code
each time the remote control is used. The door operator
responds to each new code only once. An access code copied
from a working system and tried again will not control the door
operator.
CODEDODGER
®
1, 2 or 3-Button Remote Control (included
with some models).
Operates 1, 2 or 3 garage doors from car.
Lighted Wall Button*.
Operates door operator from inside garage.
Lighted Wall Console* (included with some models).
Security vacation lock switch disables all controls. LED
Indicator shows whether system is locked or unlocked. Makes
console easy to find in dark. Controls door operator from inside
garage. Independent light control allows convenient manual
control of the automatic lighting system.
NOTE: Your garage door operator may not come with all above
items included as standard equipment.
*Operator MUST be installed with the
included Wall Control.
SAFETY FEATURES
Safe-T-Beam
®
(STB) Non-Contact Reversing System**.
Puts an invisible beam across the door opening. The door stops
and reverses to the full open position if anything passes
through the beam. Red and green LED indicators provide a self
diagnostic code if an operational problem exits.
Safe-T-Reverse
®
Contact Reversing System.
Automatically stops and reverses a closing door within 2
seconds of contact with an object.
Safe-T-Stop
®
Timed Reversed System.
Automatically opens a closing door if it fails to close completely
within 30 seconds.
Force Guard
®
Control.
Features adjustable open and close force settings. For
maximum safety, these must be set to the minimum force
required to fully open and close the door.
Relay Monitoring System.
Automatically stops and reverses a closing door if the closing
relay malfunctions.
Watch Dog
®
Monitoring System.
Automatically stops and reverses a closing door if the
Safe-T-Beam System** has an operational problem.
Automatic Lighting System.
One bulb lighting supplies up to 100 Watts of light for safer
evening exits and entries. Turns on when door is activated and
automatically turns off 5 minutes later.
Manual Emergency Release.
Manually releases door from door operator. Use during a power
failure or other emergency to allow manual opening and closing
of door.
**Safe-T-Beam®Safety Reverse System
MUST Be Installed To Close door.

5

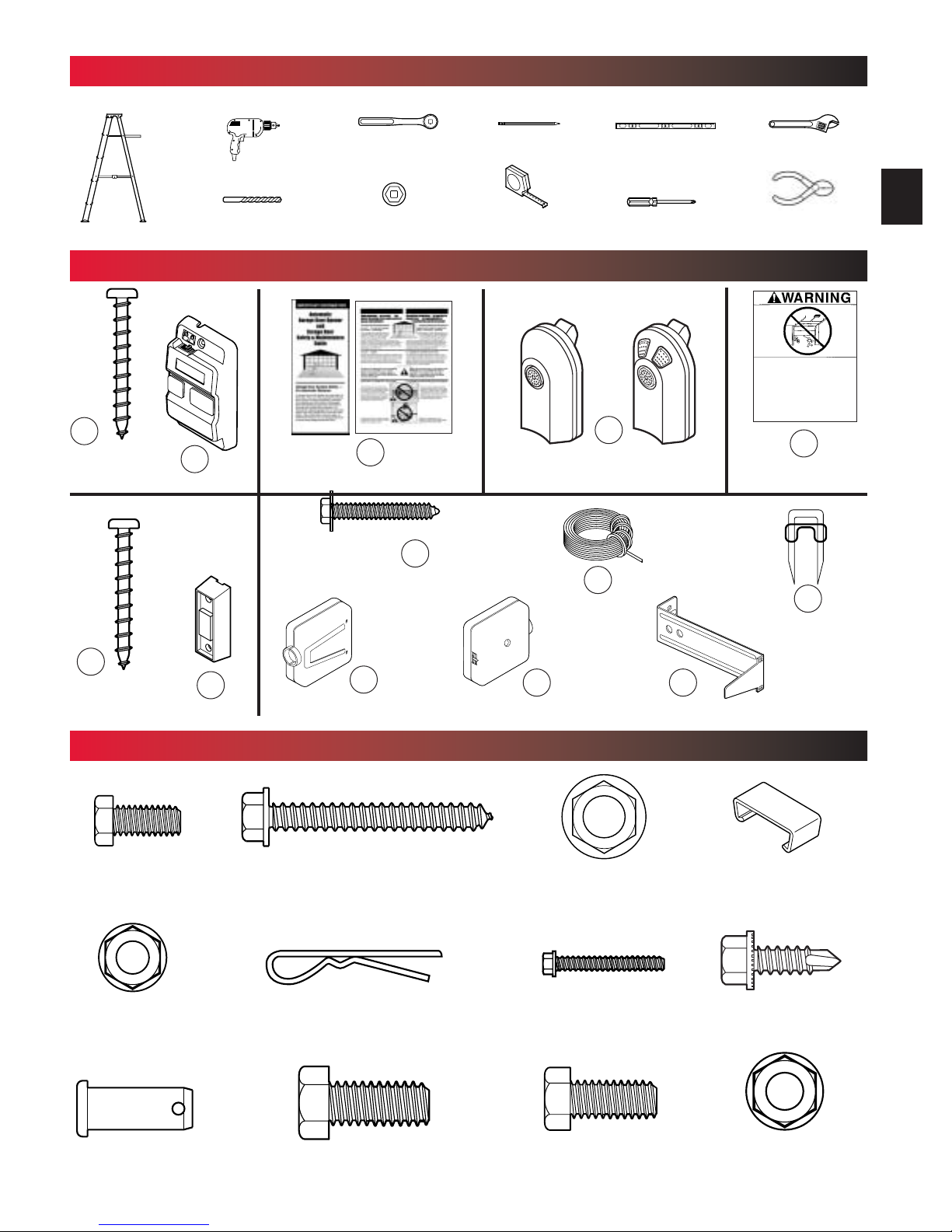

TOOLS RECOMMENDED FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
5/32" Drill Bit 7/16" and 9/16"
Sockets
Step ladder
Drill
Ratchet Carpenter’s level
Pencil
Tape measure Wire strippers
Phillips screwdriver
Adjustable wrench
PARTS IDENTIFICATION -
Not Shown Full Size .
30
40
Single-button
remote control Multi-button remote control
OR
38
44
29
36 35
33
31
32
37
FASTENERS -
Shown Full Size . See Parts List for description.
Lag screw - 1/4" x 2"
[22]
Screw - #8-32 x 1"
[39]
Self-drilling Screw
1/4"-20 x 3/4"
[42]
Nut - 1/4"-20
[10]Cotter pin
[25]
Clevis pin
[24]
Wire clip
[41]
Bolt - 3/8"-16 x 7/8"
[27]
Nut - 3/8"-16
[28]
Bolt - 1/4"-20 x 5/8"
[9]
34
Wall console
Wall button
Nut - 5/16"-18
[47]
#6 x 1-1/4" Pan
Head Phillips
Screw Safety Brochure Entrapment Warning
Label
#10"-16 x 1-1/4"
Machine Screw
Source STB
(Red LED) Sensor STB
(Green LED)
Wire
STB Bracket
Insulated Staple
Bolt - 5/16"-18 x 3/4"
[46]
33
#6 x 1-1/4" Pan
Head Phillips
Screw

6
Item Part Name Number Required
1Power head assembly (box) 1
2Boom assembly (box) 1
3Boom (box) 1
91/4"-20 x 5/8" hex head bolt (blue bag) 4
10 1/4"-20 hex flange nut (blue bag) 4
11 Carriage assembly (box) 1
12 Boom strap (blue bag) 1
13 Limit switch OPEN (white wire)(green bag) 1
14 Limit switch CLOSE (brown wire)(green bag) 1
15 Release cord (green bag) 1
16 Release knob (green bag) 1
17 Emergency release tag (green bag) 1
18 Header bracket (orange bag) 1
20 Door bracket (orange bag) 1
22 1/4" x 2" lag screw (orange bag) 8
23 Straight door arm (box) 1
24 Clevis pin (yellow bag) 2
25 Cotter pin (yellow bag) 2
26 Curved door arm (box) 1
27 3/8"-16 x 7/8" hex head bolt (yellow bag) 2
PARTS LIST
1-PIECE BOOM HARDWARE EXPLODED VIEW
FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
[2]
10
13
39
3
9
11
25
15
16
23
28
17
27
25
26
42
24
20 12
18
47
22
9
10
39
41
14
22
Item Part Name Number Required
28 3/8"-16 hex flange nut (yellow bag) 2
29 Wire (box) 1
30 Insulated staple (red bag) varies/model
31 Wall button (red bag) varies/model
32 Wall console (box) varies/model
33 No. 6 x 1-1/4" flat head phillips screw (red bag) varies/model
34 Entrapment WARNING label (manual) 1
35 Safe-T-Beam (STB) sensor (green LED)(box) 1
36 Safe-T-Beam (STB) source (red LED)(box) 1
37 Safe-T-Beam (STB) bracket (yellow bag) 1
38 Remote operator (box) varies/model
39 #8-32 x 1" machine screw (green bag) 2
40 Safety & maintenance guide (manual) 1
41 Wire clip (wide)(green bag) varies/model
42 1/4"-20 x 3/4" self-drilling screw (orange bag) 3
44 #10-16 x 1-1/4" phillips hex head screw (yellow bag) 4
46 5/16"-18 x 3/4" hex head bolt (orange bag) 3
47 5/16"-18 hex flange nut (orange bag) 4
1

Power Head Assembly
1J
1N
1X
1L
1N
1E
1K
1D
1A
1N
1H
1B
1Q1G1D
1F
49
1P
1M
1N
7
POWER HEAD EXPLODED VIEW
Item Part Name
1Power head assembly
1A Cover (by series/model)
1B Front panel assembly
1D Motor parts
1E Circuit board assembly
1F Capacitor (by series/model)
1G Opto wheel (not shown)
1H Carriage slide
1J Chain
1K Circuit board bracket
1L Drive module
1M Terminal strip
1N No. 8 x 3/4" hex washer head screw
1P Shock absorption stop (not shown)
1Q Motor mount bracket (not shown)
1X Chassis
49 Lens
POWER HEAD
PARTS LIST (pre-assembled)
Garage doors are large, heavy objects that move with the help of springs under
high tension and electric motors. Since moving objects, springs under tension,
and electric motors can cause injuries, your safety and the safety of others
depend on you reading the information in this manual. If you have questions or
do
not understand the information presented, call your nearest service representative.
If
you have questions or
do not understand the information presented, contact
Overhead Door Corp. or an authorized Overhead Door Dealer.
In this section and those that follow, the words Danger, Warning, and Caution
are used to emphasize important safety information. The word:
DANGER means that severe injury or death will result from failure to follow
instructions.
WARNING means that severe injury or death can result from failure to follow
instructions.
CAUTION means that property damage or injury can result from failure to
follow instructions.
The word NOTE is used to indicate important steps to be followed or
important considerations.
OVERVIEW OF
POTENTIAL HAZARDS
SAFETY INFORMATION
POTENTIAL
HAZARD EFFECT PREVENTION
Keep people clear of opening while door is
moving.
Do Not allow children to play with the door
operator.
Do Not operate a door that jams or one
that has a broken spring.
MOVING DOOR
WARNING:
Can Cause
Serious Injury
or Death
Turn off power before removing operator
cover.
When replacing cover, make sure wires
are not pinched or near moving parts.
Operator must be properly grounded.
ELECTRICAL
SHOCK
WARNING:
Can Cause
Serious Injury
or Death
Do Not try to remove, repair or adjust
springs or anything to which door spring
parts are fastened, such as, wood blocks,
steel brackets, cables or other like items.
Repairs and adjustments must be made
by a trained service person using proper
tools and instructions.
HIGH
SPRING
TENSION
WARNING:
Can Cause
Serious Injury
or Death
[1]

FIG. 1-2 Align arrow .
FIG. 1-1 Attach boom strap .
8
OPERATOR ASSEMBLY FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
1
NOTE: Boom assemblies are for 7 foot 6 inch high door.
An extension kit for an 8 foot high door is available.
OPEN BLUE PARTS BAG
1. Attach boom strap (Fig. 1-1).
•Place boom strap against boom so that projection
on strap mates with second hole from end of boom.
–Place 2 bolts (9) through boom strap and boom.
–Ignore fourth hole. (See NOTE)
–Securely tighten bolts and nuts (10).
NOTE: Your boom has 4 holes in the boom strap
end. The hole furthest away from the end is for an
extension kit if needed.
Drive chain can slide out of booms. Do not run until operator
is fully assembled.
CAUTION
Make sure that the carriage magnet is in place in the
top of the carriage slide.
CAUTION
[10]
[9]
BOOM ASSEMBLY: Use a clean, flat surface.
Boom is up-side
down
2. Slip carriage into carriage slot of boom .
•Flip the boom assembly up-side down.
•Place emergency release lever in “release”
position (See below).
–Check arrow on the side of carriage points
toward door end of boom.
–Slide carriage into boom at power head end
(Fig. 1-2).
–Flip boom assembly right-side up.
Lever in release position.
1/4"-20
1/4"-20 x 5/8"

FIG. 1-5 Attach emergency release cord & tag .
9
3. Attach boom to power head.
•Place boom in front of power head with boom strap
at opposite end.
•Support door end of boom (boom strap) at about
same height as power head.
–Check if magnet is in place (Fig. 1-3 inset). Insert
carriage slide into boom (Fig. 1-3). (Carriage slide
is long straight piece attached to chain.)
–Pull boom toward you as you feed chain into it.
(Fig. 1-3). When the end of the boom is within
about 2 chain links of the power head, you can
then push it the rest of the way. (It is a snug fit.)
–Securely fasten with 2 bolts (9) and nuts (10)
(Fig. 1-4) .
OPEN GREEN PARTS BAG

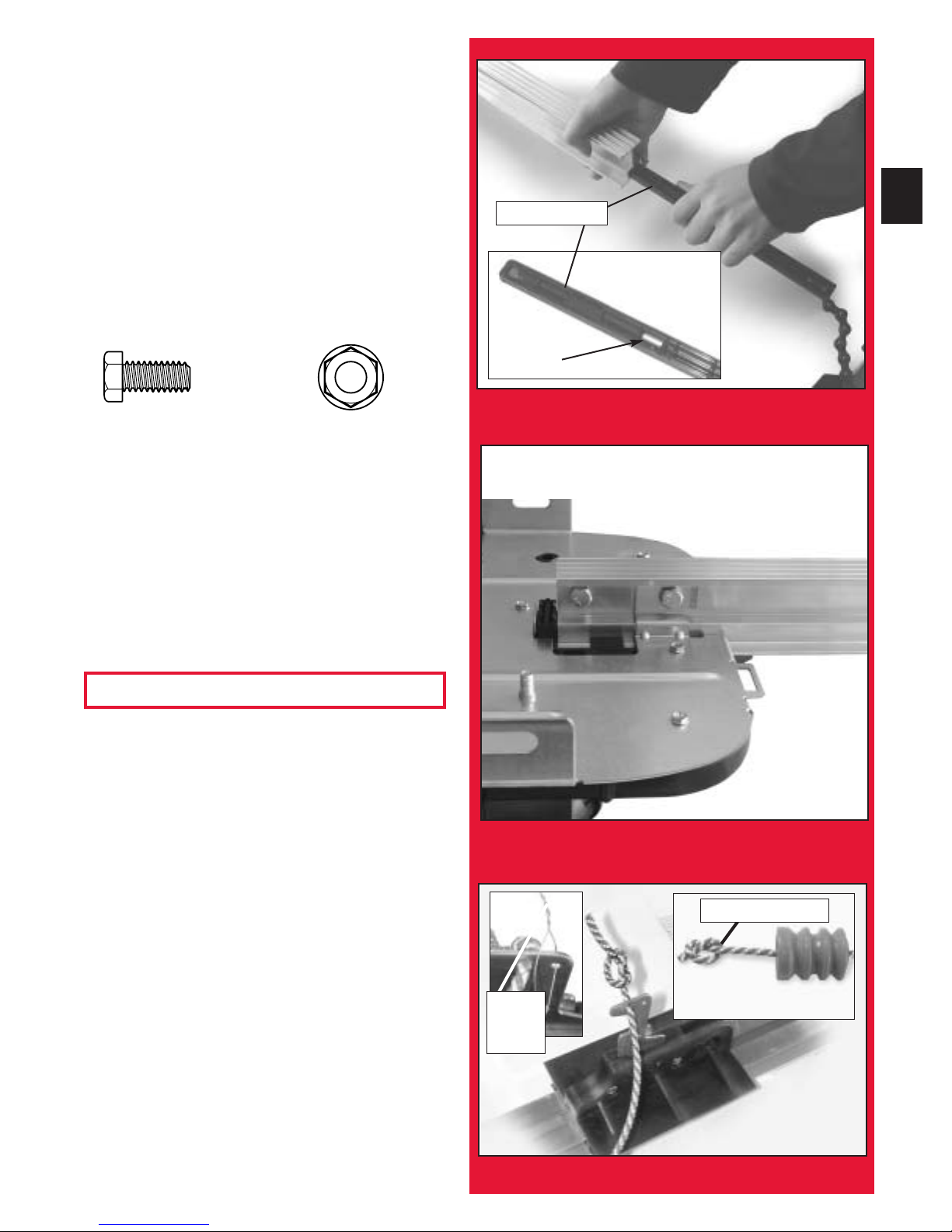

FIG. 1-3 Slip carriage slide into boom .
FIG. 1-4 Attach boom to power head .
magnet
4. Attach emergency release cord, knob and tag.
•Tie overhand knot in 1 end of cord. Tighten knot.
(FIG. 1-5 inset A).
–Slip opposite (no knot) end through knob.
–Slip through hole in emergency release lever
(Fig. 1-5).
–Tie overhand knot in this end also. Tighten knot.
5. Attach emergency release tag.
•Attach to hole in emergency release using metal
twist tie on tag. (Fig. 1-5 inset B).
[10]
[9]
carriage slide
wire
twist
tie
overhand knot
B
A
1/4"-20
1/4"-20 x 5/8"

10
7. Attach limit switch wires.
•Uncoil limit switch wires.
–Place into channels located along top of boom.
–Run wires back to power head through hole in top
of power head (Fig. 1-8).
–Use wire clips to hold wires in place (Fig. 1-9).
•Attach limit switch wires to terminals on power
head (Fig. 1-10).
–White wire (“OPEN”) to terminals #4 and #5.
–Brown wire (“CLOSE”) to terminals #5 and #6.
•Bundle extra wire and lay it on top of power head
(Fig. 1-10 inset).
6. Attach limit switches.
2 switches included, “CLOSE” limit switch (brown
wire) and “OPEN” limit switch (white wire)
(Fig. 1-6).
•Turn set screws (39) into threaded holes, just
enough so screw stays in place. (Fig. 1-6).
•Point arrow on top “CLOSE” limit switch toward
door end of boom.
–Place “CLOSE” limit switch (Brown wire) on boom
about 12” from boom strap (Fig. 1-7).
–Gently tighten set screw enough to keep switch
from moving.
•Point arrow on top “OPEN” limit switch toward
door end of boom.
–Place “OPEN” limit switch (white wire) on boom
where chain attaches to carriage slide. (Near
the power head.)
–Gently tighten set screw enough to keep switch
from moving.

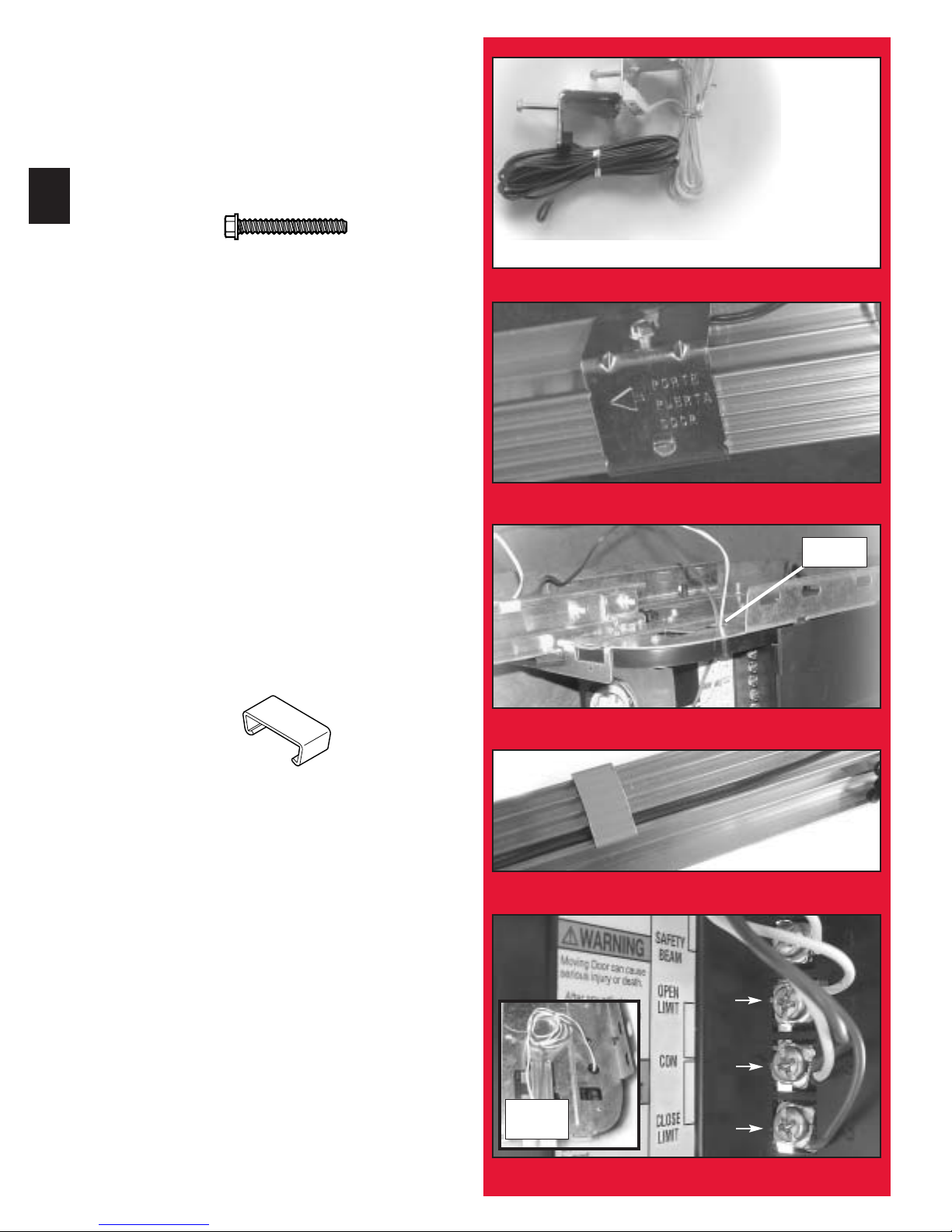

FIG. 1-6 Identify limit switches / insert set screws .
FIG. 1-7 Place limit switches .
FIG. 1-9 Wire clips .
FIG. 1-8 Run wire to power head .
FIG. 1-10 Attach wire at power head terminals .
[39]
[41]
Bundle
Wire
hole
4
5
6
#8-32 x 1"

FIG. 2-1 Finding highest point of travel
(sectional).
11
INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
2
IMPORTANT
1. READ AND FOLLOW ALL SAFETY, INSTALLATION AND
OPERATION INSTRUCTIONS. If you have questions or
do not understand an instruction, call Overhead Door
Corp. or an authorized Overhead Door Dealer.
2. Do Not install operator on an improperly balanced door.
An improperly balanced door could cause severe injury.
Repairs and adjustments to cables, spring assembly, and
other hardware must be made by a trained service
person using proper tools and instructions.
3. Remove all ropes and disable all locks connected to the
door before installing operator.
4. Install door operator 7 feet or more above floor. Mount
emergency release knob 6 feet above floor.
To reduce the risk of severe injury or death:
WARNING :
5. Do Not connect the operator to the source of power
until instructed to do so.
6. Locate the control button:
•Within sight of door.
•At minimum height of 5 feet, so small children cannot
reach it.
•Away from all moving parts of the door.
7. Install the Entrapment WARNING Label next to the wall
button or wall console. Install the emergency release
tag on, or next to, the emergency release.
8. The operator must reverse when the door contacts a
1-1/2 inch high object on the floor at the center of the
doorway. This is the size of a 2” x 4” board laid flat.
HEADER AND DOOR
MOUNTING BRACKETS:
1. Finding header bracket mounting location.
•Close garage door.
–Use a pencil.
-Mark center of garage door (one-half overall
width) with 6” vertical line at top edge of door.
-Continue this line on wall above door for
about 12" (Fig. 2-1).
•Raise garage door until top edge of door
reaches its maximum height
(Fig. 2-2).
•Place door at highest point.
– Measure height from top edge of door to floor.
•Close door again.
•Mark height measurement on wall above door.
–Make your mark across vertical line
made earlier.
•Marking final height:
The 2 basic types of garage door mechanisms are:
Track guided doors–have rollers on each side
which ride in “tracks” to guide the door up and down.
Trackless doors–swivel on large spring loaded
hinges as the door opens and closes.
For track guided –add 2-1/2" to height mark just
made on
wall. This is location for header bracket.
NOTE: If spring or its shaft is in way, measure 2-1/2"
above spring or shaft and mark this height as your
location for header bracket.
For trackless –
add 6"- 12” to your height mark
just made on the wall. This is location for
header bracket.
FIG. 2-2 Finding highest point
of travel (1-piece).
FIG. 2-3 Final height mark.
Header bracket must be fastened to garage framing.
Do Not fasten to drywall, particle board, plaster or other
such materials.
CAUTION
top of door
from here to
floor
from here to
floor
final height
mark

12

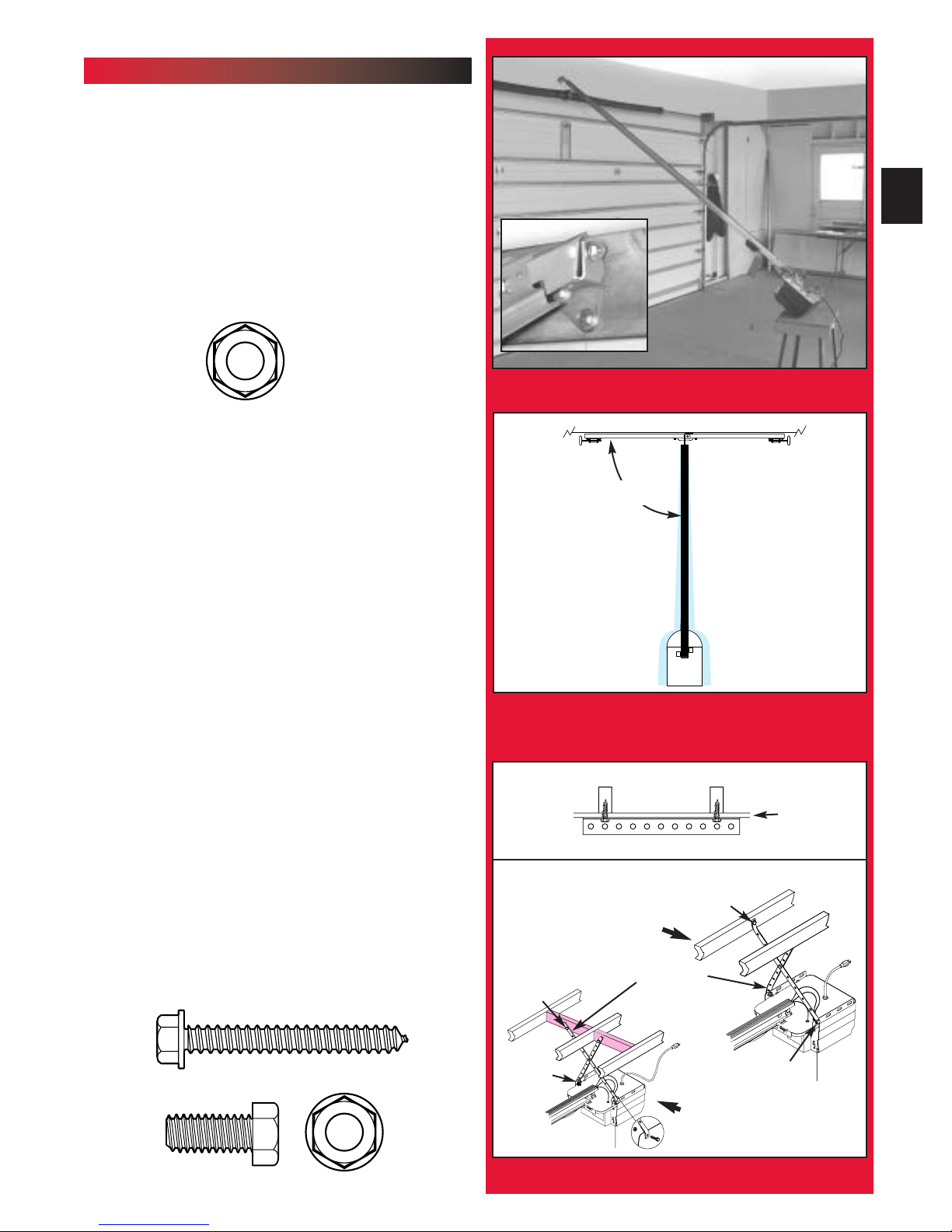

FIG. 2-4 Adding mounting surface .
[22]
Doors made of masonite, lightweight wood, fiberglass, and
sheet metal must be properly braced before mounting door
operator. Contact door manufacturer or distributor for a bracing
kit. The Overhead Door Corporation is not responsible for
damage caused due to improperly braced door.(Fig. 2-6)
CAUTION
FIG. 2-5 Header bracket in place (3 methods) .
FIG. 2-6 Examples of door bracing .
FIG. 2-7 Mounting door Bracket (sectional) .
[42]
Carriage bolt & nut.
preferred
123
FIG. 2-7B Mounting door Bracket (one-piece).
on top edge at top of back
bolted to studs in wall
NO SLOT
1/4" x 2"
1/4"-20 x 3/4"
even with or
above top roller
[22]1/4" x 2"
NOTE: If header bracket location needs to be
above header for garage door opening, you need to
add a “mounting surface.” A 2" x 6" board securely
attached (fasteners not included) across wall studs
on either side of your mark is sufficient (Fig. 2-4).
OPEN ORANGE PARTS BAG
2. Mounting the header bracket.
NOTE: Although header bracket may be oriented
several ways, method 1 is preferred if possible
because of added strength over other methods
(Fig. 2-5).
•Hold header bracket against wall
(Fig. 2-5).
–Place left edge on vertical line.
–Bottom edge on final height line.
• Mark screw hole locations on wall.
•Drill 5/32" pilot holes at each screw hole mark.
–Fasten header bracket with 3 lag screws (22)
(Fig. 2-5).
DOOR BRACKET:
3. Finding door bracket mounting location.
•Door bracket is mounted as high on door as
possible along vertical centerline.
NOTE: In the case of sectional type doors, door
bracket must be mounted NO LOWER THAN top set
of rollers (Fig. 2-7).
For 1-piece doors, door bracket must be mounted at
top edge of door.
4. Mounting the door bracket.
•Proper bracing should be verified at this point.
–Align door bracket centered on your
vertical centerline.
–Attach using 3 self-drilling screws (42).
–Use lag screws (22) for solid wooden doors.
NOTE: For solid wood doors, carriage bolts
WITHOUT SLOTTED HEADS (not included, but
available by calling the Overhead Door help line) may
be used for attaching door bracket.

Mounting Straps
[22]
13
MOUNTING THE OPERATOR:
1. Getting Started.
•Position boom/power head assembly (Fig. 2-7).
– Boom strap leaning on wall next to
header bracket.
–Place material on floor under power head to
protect from scratching. (A box, stool, or similar
device may be needed to clear a torsion
spring, as shown.)
2. Mounting the assembly.
•
Attach boom strap to header bracket using nut (47)
(Fig. 2-7 inset) . FINGER TIGHT ONLY.
•Support power head on step-ladder.
NOTE: Before final attachment to ceiling, insure that
assembly is in proper alignment (Fig. 2-9).
•Attach mounting straps to ceiling using lag
bolts (22) (Fig. 2-10).
•Set height of power head according to following:
–Track guided doors
.
-Boom must clear door at highest point of
travel.
-Be level or, power head slightly below level.
–Trackless doors
.
-Boom must clear door at highest point of
travel by 1" to 1-1/2".
•Securely tighten power head mounting bolts (46)
and nuts (47).
•Lower door.
•Fully tighten boom strap nut.
•DO NOT PLUG UNIT IN YET!
3. Adjusting length of emergency release cord.
•Check release knob height.
–Low enough you can reach it.
–High enough to clear your vehicle, but
NO HIGHER THAN 6 FEET ABOVE FLOOR.
•Tie a new overhand knot where desired.
–Cut off any extra cord.
YES
NO
NO
FIG. 2-10 Mounting the power head.
ANGLE IRON ON FINISHED CEILING
Attach angle iron to beams
UNFINISHED OR OPEN BEAM
Extra framing
not needed
Extra framing
NEEDED
VIEW FROM ABOVE
(not to scale)
[22]
[22]
[46][47]
[47]
90°
DOOR
HEADER BRACKET
DRYWALL
[46 & 47]
[46 & 47]
5/16"-18
5/16"-18 x 3/4"
5/16"-18
1/4" x 2"
FIG. 2-7 Position assembly.
FIG. 2-9 Operator must be aligned.

INSTALL DOOR ARMS: Sectional doors
OPEN YELLOW PARTS BAG
1. Attach the arms.
•Fasten curved door arm to door bracket using
clevis pin (24) and cotter pin (25) (Fig. 2-10).
•Straight arm to carriage using clevis pin (24) and
cotter pin (25) (Fig. 2-10).
2. Connecting the arms.
•
Slide carriage back and forth to adjust arm length.
–Overlap arms as much as possible.
–Make overall length as short as possible.
•Fasten arms together using 2 bolts (27) and
nuts (28) (Fig. 2-10). (Place the bolts as far
apart as possible.)
NOTE: Whenever possible, it is recommended that
the door arms assembly be angled away from the
door to prevent putting downward force on the door
and door bracket. (Fig. 2-11).
Additionally, where possible, the straight door arm
may be eliminated.
[25]
[24]
FIG. 2-10 Attaching door arms (sectional doors).
[27][28]
INSTALL DOOR ARMS: 1-piece doors
OPEN YELLOW PARTS BAG
1. Attach the arms.
•Straight arm to door bracket using clevis pin (24)
& cotter pin (25) (Fig. 2-12).
•Curved arm to carriage using clevis pin (24)
& cotter pin (25) (Fig. 2-12).
2. Connecting the arms.
•
Slide carriage back and forth to adjust arm length.
–Overlap arms as little as possible .
–Make overall length as long as possible .
•Fasten arms together using 2 bolts (27) and
nuts (28) (Fig. 2-12).
[25]
[24]
FIG. 2-12 Attaching door arms (one-piece doors).
14
REMINDER: If you have no other access to
your garage from the outside other than your
garage door, please consider a GER-2
emergency release kit shown on page A in
center of manual.
Call Customer Service at 1.800.929.3667, or
visit www.overheaddoor.com.
[27][28]
short as possible
long as possible
clevis & cotter pins
clevis &
cotter
pins
clevis &
cotter
pins
3/8"-16 x 7/8" 3/8"-16
3/8"-16 x 7/8" 3/8"-16
FIG. 2-11 Door arms at angle to door.
door arms
door
angle

3. Wiring.
•
Route wires (29) using either method shown (Fig. 3-5).
•Wires along boom are held in place with
wire clips.
–Wires can be slipped under the wire clips
already in place.
15
SAFE-T-BEAM ®SYSTEM INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
3
NOTE: The operator will not close the door
automatically unless the Safe-T-Beam®System is
installed.
1. Mounting brackets.
•Mark both sides of garage door frame or wall 5"
above floor.
(Fig. 3-1).
•Hold bracket against door frame or wall .
–Check brackets extend out from wall far
enough that tongue of bracket is beyond door,
tracks or any door hardware.
–If not:
-“STB” bracket extensions are available
at local dealer.
-Blocks of wood, etc. may be substituted for
extensions.
•Center bracket on your mark (Fig. 3-2).
•Fasten each with 2 screws (44) (Fig. 3-2).
NOTE: Mounting brackets can be attached to the
floor using concrete anchors (not provided).
2. Mounting “STB” source and sensor.
•If garage has only one garage door.
–Determine which side of garage receives most
direct sunlight (Fig. 3-4).
–Red LED should always be on sunny side
whenever possible (Fig. 3-4).
•For multiple doors.
–Preventing crossed signals is critical.
–Place source and sensor modules on adjacent
doors facing in opposite directions (Fig. 3-4).
NOTE: To help prevent interference from sun, “STB”
sensors (Green LED) may be placed further away from
the door opening where they will spend more time in
shadows.
•Slide source/sensor onto tongue of bracket until
it clicks into place (Fig. 3-3).
There should be no electrical power to the operator
while installing Safe-T-Beam System®wires. If you
have plugged in the power cord—UNPLUG IT NOW.
WARNING
FIG. 3-1 Mark door frame.
FIG. 3-2 Mount
brackets.FIG. 3-3 Attaching
“STB’s” to brackets.
[41]
FIG. 3-5 “STB” wiring methods.
Sensor
Source
Red
Green
Power
Head
Sensor
Source
Red
Green
Power
Head
AB
Dashed Line = striped wire
Solid Line = white wire
tongue
mark
center of
bracket
FIG. 3-4 “STB” locations.
#10"-16 x 1-1/4"
[44]
SUN
ONE DOOR
GARAGE
THREE DOOR
GARAGE
RED
LED
RED
LED
GREEN
LED
RED
LED GREEN
LED
GREEN
LED GREEN
LED RED
LED
RED
LED
RED
LED
GREEN
LED GREEN LED
TWO DOOR
GARAGE

FIG. 3-8 Terminal attachments at power head.
OPEN RED PARTS BAG
3. Wiring (cont’).
•Securely fasten wires to wall as you go.
–Use insulated staples (included).
–Staples should be snug only.
16
•Make wire attachments at “STB’s.”
–Splitting and stripping wire ends to be
connected as shown (Fig. 3-6).
–Loosen terminal screws.
–Insert wire under flat plate and tighten screw.
It does not matter which wire, white or
striped, goes on which terminal (Fig. 3-7).
•Make wire attachments at power head.
–“STB’s” are connected to terminals #2 and #3
on power head (Fig. 3-8).
4. Check the following.
•Insure that no part of door or its hardware is
in path between lenses of source and sensor.
•Insure that tops of lenses are between 5"-6"
above the floor (Fig. 3-9). The brackets are
flexible, and can be adjusted slightly if needed.
NOTE: “STB” alignment check must be performed
following connection to electrical power (see page18).
DO NOT PLUG IN YET!
Staples which are too tight can cut or pinch wires. Cut or
pinched wires can cause the “STB” System to stop working.
When using the insulated staples, make sure you fasten
them only as tightly as needed to hold the wire snugly.
CAUTION
[30]
FIG. 3-7 Terminal attachments at STB.
FIG. 3-9 Check lens height.
top edge of lens
between 5" - 6"
above floor.
FIG. 3-6 Splitting and stripping.
2
3

FIG. 5-1 Terminal attachments at power head.
WALL CONTROL INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
4
1. Finding the mounting location.
•Pick a convenient location for mounting
wall control.
–Location you choose should be in direct sight
of door.
–It should be at least 5' above floor to prevent
small children from operating door.
–It must be away from any moving parts. (You
should not be able to reach the door while
standing at wall control.)
2. Wiring.
•Run wire from power head to wall control.
•Securely fasten to ceiling using insulated
staples provided.
•Split and strip ends of wire (Fig. 4-5).
•On power head:
–Attach the striped wire to terminal #1 and
white wire to terminal #2 (Fig. 5-1).
•On back of wall control:
–Attach striped wire to terminal “B”, and
white wire to terminal “W.” (Fig. 5-2).
3. Mounting.
•Fasten wall control to wall with 2 screws
(either wall button or console use 33)
(Fig. 5-3).
•Remove protective backing from “entrapment”
warning label (Fig. 5-4)
.
–Stick label on wall near wall control.
NOTE: Additional wall controls are available from
your dealer. ONLY ONE OF YOUR WALL
CONTROLS MAY BE THE LIGHTED TYPE. If you
have a lighted wall control, all your additional controls
must be un-lighted. More than one lighted wall
control per operator will cause a malfunction.
Verify there is no power to the operator before
installing wall control wires.
WARNING
Use of any wall control other than the type
supplied will prevent the light from working and
could cause the door to operate on its own.
Cut or pinched wires can cause the wall control to
stop working. When using the insulated staples,
make sure you only pound them in as far as
needed to hold the wire snugly.
CAUTION
FIG. 5-2 Wall control wire attachment.
FIG. 5-3 Mounting wall control.
17
[33]
FIG. 5-4 Entrapment warning label.
button console
1
2
#6 x 1-1/4"

18
CONNECTING TO POWER FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
5
1. Plug the operator into a properly grounded
electrical outlet.
2. Check Safe-T-Beam®alignment (Fig. 6-3).
To reduce the risk of electrical shock, this
equipment has a grounded type plug that includes
a third (grounding) pin. This plug will only fit a
grounded type outlet. If you do not have a
grounded outlet, contact a qualified electrician to
install one. DO NOT alter the plug in any way. The
door operator must be properly grounded in order
to prevent personal injury and damage to
the components.
WARNING
FIG. 6-1 Removing motor cover.
Check local building codes to make sure that you
are not required to have your garage door operator
permanently wired, with circuit breaker protection.
If permanent wiring is required, have this installed
by a qualified electrician.
CAUTION
1. Instructions for electrician.
•Remove power from circuit.
•Remove motor cover (Fig. 6-1) .
–Removing hex head screw located in center
on bottom of cover.
–Slide cover down and off.
•Remove and throw away existing power cord.
•Remove 7/8" knockout plug (Fig. 6-2).
–Install a suitable entrance bushing.
•Connect permanent wiring to power head .
– White to white/black to black/ground to green
–Use only UL recognized wire nuts.
•Wires inside power head must be at least 6"
in length.
•Replace motor cover, and re-energize
the circuit.
2. Check Safe-T-Beam®alignment (Fig. 6-3).
The electrical power to the door operator MUST
BE turned off when the motor cover is removed.
Electrical power must remain off while making
electrical connections.
WARNING
WITH GROUNDED PLUG:
WITH PERMANENT WIRING:
The circuit board is light sensitive. Make sure
the motor cover has been replaced prior to
re-energizing the circuit.
CAUTION
Safe-T-Beam®Alignment Check
FIG. 6-2 Knock-out plug.
NOTE: The Overhead Door Corporation is not
responsible for charges resulting from work
performed by an independent electrician.
FIG. 6-3
screw
knock-out plug
After turning the electrical power on, if the
STB’s are not in proper alignment, the red
LED (Source) will blink continuously.
To correct the problem — the brackets are
flexible and can be adjusted slightly to bring
the system into alignment.
When the STB’s are in alignment the red LED
will stop blinking and stay on.
NOTE: If a problem exists with the “STB” that is
preventing the door from closing, the door can be
closed by holding the wall control button in until the
door is fully closed. (The remote control will not work.)

19
LIMIT SWITCH / FORCE ADJUSTMENT FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
6
NOTE: During operator cycling for force adjustment,
the motor protector may shut off power to the
operator. If this occurs, wait about 20 minutes to
allow the motor protector to reset.
1. Adjusting limit switches.
•Locate force control knobs on power head
(Fig. 7-1).
–Gently turn both control knobs
counter-clockwise until they stop.
•Verify emergency release lever in disengaged
position.
•Verify “OPEN” limit switch at point where chain
attaches to carriage slide
(Fig. 7-2).
•Manually close door.
•Move the “CLOSE” limit switch:
–Loosen set screw.
– Slide limit switch along boom to align front edge
of switch with back edge of carriage (Fig. 7-3).
–Gently tighten set screw.
•Press wall control button.
–Carriage slide will move toward power head
and stop at the “OPEN” limit switch.
•Manually open door.
•Move the “OPEN” limit switch:
–Loosen set screw.
– Slide limit switch along boom to align front edge
of switch with back edge of carriage (Fig. 7-4).
–Gently tighten set screw.
–Manually close door.
•Place emergency release lever in engaged
position.
•Press wall control button.
–Carriage slide will move toward door, engage
with carriage and stop at “CLOSE” limit switch.
2. Adjusting “OPEN” force.
•Press wall control button.
–
Door should open and stop at “OPEN” limit.
•Door does not fully open.
–Press wall control button.
–Door should close and stop at “CLOSE” limit.
–Turn “OPEN” force control knob slightly in
clockwise direction.
–Press wall control button.
-Continue step 2 until door opens completely.
3. Adjusting “CLOSE” force.
•Door is not fully closing.
–Cycle door, turning “CLOSE” force knob
clockwise slightly each time until door reaches
fully closed.
DOOR OPENS RAPIDLY .
Keep the path clear .
Position the ladder to the side of the power head
so it is clear of all moving parts of the operator
and door.
Always set the door operator to the minimum
force required to operate the door.
WARNING

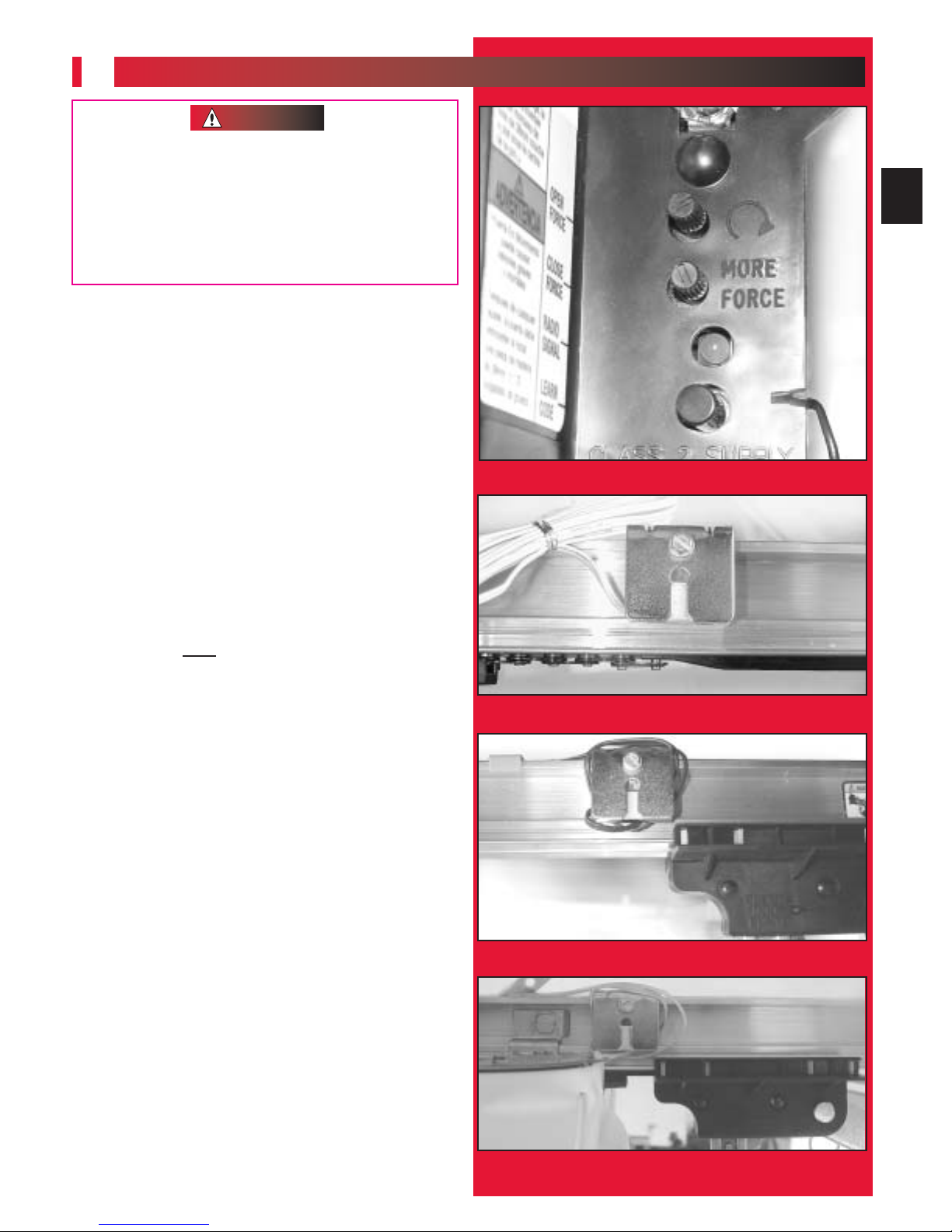

FIG. 7-1 Force adjustment screws .
FIG. 7-3 Align “CLOSE” limit switch .
FIG. 7-4 Align “OPEN” limit switch .
FIG. 7-2 Place “Open” limit switch .

FCC and IC CERTIFIED
20
PROGRAMMING REMOTE CONTROLS
7
FIG. 8-1 Learn code button and LED .
1. Programming.
•Locate learn code button and indicator LED
on front of power head (under force
adjustment screws) (Fig. 8-1).
•Press and release learn code button.
–Indicator LED will blink at a rate of twice
per second.
•Within 30 seconds, push remote control
button once.
–Indicator LED will stop blinking and stay on.
•Press remote control button again.
–LED will go out. Remote is now programmed.
2. Operating.
•Press remote button once.
–Door will move.
•Press button again.
–Door will stop.
•Press button again.
–Door will move in opposite direction.
The door will stop automatically at the fully open
or fully closed position.
SINGLE BUTTON REMOTE
This device complies with FCC Part 15 and RSS
210 of Industry Canada. This equipment has been
tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide
reasonable protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy, and if not installed and used in
accordance with the instructions may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which may be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
Re-orient or relocate the receiver antenna.
Increase the separation between the operator
and receiver.
Connect the operator into an outlet on a circuit
different from that to which the receiver is
connected.
Consult your local dealer.
CONTACT REVERSE TEST
The force adjustments and limit switch
settings MUST BE COMPLETED before testing
contact reverse.
1. Testing.
•Open garage door using wall control.
–Place a 2" x 4" board (laid flat) under center
of garage door opening (Fig. 7-5).
–Close door using wall control.
•When door hits board, it must stop and
reverse (within 2 seconds) to open position.
2. Adjustment.
•Door does not properly reverse.
–Check to see if door is at “close” limit.
–It should not have reached limit switch
before hitting board.
•Door is at close limit switch.
–Move limit switch closer to door.
•Test again. Repeat as necessary.
•Door is not reaching “close” limit, but
still does not reverse:
–Decrease “CLOSE FORCE “ setting
slightly (turn it counter-clockwise).
•Test again. Repeat as necessary.
FIG. 7-5 2 x 4 under center of door opening .
