Chamberlain Smart Garage MYQ-G0401 User manual

Smart Garage™
Control
MYQ-G0401
MYQ-G0401-E
MYQ-G0401-ES
Overview
Set Up Your Smart Garage
Control
Need Help?
Accessories and Parts
See How-To Video

2
Overview
What’s in the Box
Specications
Get to Know your Smart Garage
Control
Buttons and LEDs
Set Up Your Smart
Garage Control
Need Help?
Accessories and Parts
Overview

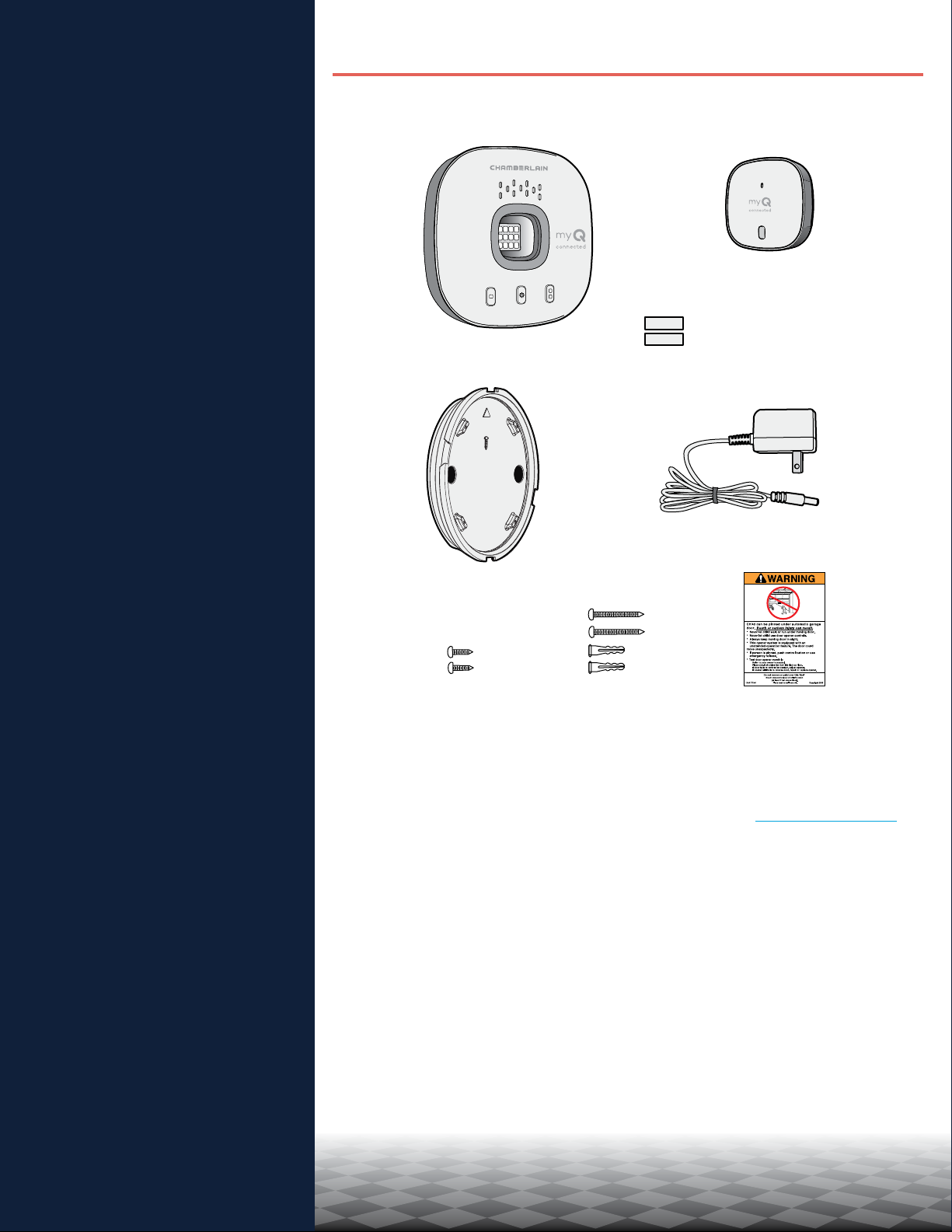

What’s in the Box
.
Hub
Door Sensor
MYQ-G0402
Power Adapter
Anchors and
Screws for Hub
Mounting Plate
Screws for
Door Sensor
Hook and Loop
Adhesive Strips
for Door Sensor
Warning Placard
Specications
• Smart Garage™ Control can control up to 2 garage door openers
(requires a second sensor, sold separately, see Accessories and Parts.)
• Smart Garage Control can control up to 16 myQ®accessories.
• Operating temperature: -4° to 149° F (-20° to 65° C).
• For use with sectional garage doors ONLY.
• The garage door MUST have safety sensors installed.
• Smart Garage Control is NOT compatible with gate operators.

3
Overview
What’s in the Box
Specications
Get to Know your Smart Garage
Control
Buttons and LEDs
Set Up Your Smart
Garage Control
Need Help?
Accessories and Parts
Overview
Get to Know your Smart Garage Control
Smart Garage Control lets you control up to 2 garage door openers, and 16
devices from the myQ App.
See Accessories and Parts.
Remote LED light
Remote Light Switch
Hub
Door Sensor
Garage Door
Opener
Remote Light Control
myQ App

4
Overview
What’s in the Box
Specications
Get to Know your Smart Garage
Control
Buttons and LEDs
Set Up Your Smart
Garage Control
Need Help?
Accessories and Parts
Overview
Buttons and LEDs
Blue LED
Power and settings
indicator
See LED indicators
Green LED
Wi-Fi®connection indicator
See LED indicators
Amber LED
Door sensor pairing indicator
See LED indicators
Red LED
Battery status indicator
See Test the door
sensor battery
Door 2 Button
Settings ( ) Button
Door 1 ButtonTest Button
Hub
Door Sensor
MYQ-G0402

5
Overview
Set Up Your Smart Garage
Control
What you Need
Connect Your Smart Garage Control
Check Your Wi-Fi Signal
Pair the Door Sensor to the Hub
Mount the Door Sensor
Choose the Hub Location
Mount the Hub
How-To Video
Add myQ Smart Partners and
Accessories
Need Help?
Accessories and Parts
Set Up Your Smart Garage Control
What You Need
• Access to your compatible garage door opener, check opener
compatibility by manufacturer
• A strong Wi-Fi signal in the garage, see Check Your Wi-Fi Signal
• Your Wi-Fi network password
• A ladder
• A drill with 5/32" bit
• A Phillips screwdriver
• Bluetooth enabled on your mobile device
Connect Your Smart Garage Control
1. Download the myQ App.
If you have already installed the app, make sure you have the latest version
to optimize your myQ experience.
2. Set up your account and log in.
3. Tap (+) to add your Smart Garage Control.
The app will guide you through installing and connecting your Smart
Garage Control and show you how to:
a. Pair the Door Sensor to the Hub.
b. Mount the Door Sensor.
c. Pair the hub to your garage door opener.
d. Mount the Hub.
Congratulations! Installation of your Smart Garage Control is
now complete.
App Store and the Apple and App Store logos are trademarks of Apple Inc.
Google Play and the Google Play logo are trademarks of Google LLC.

6
Overview
Set Up Your Smart Garage
Control
What you Need
Connect Your Smart Garage Control
Check Your Wi-Fi Signal
Pair the Door Sensor to the Hub
Mount the Door Sensor
Choose the Hub Location
Mount the Hub
How-To Video
Add myQ Smart Partners and
Accessories
Need Help?
Accessories and Parts 6 ft
6 ft
Hub mounting area
(indicated in gray)
6 ft
If you see:
Wi-Fi signal is strong.
You’re all set! Proceed to next step.
Wi-Fi signal is weak.
The hub may not connect to your Wi-Fi network. If it doesn’t
connect, see How to improve your Wi-Fi signal.
No Wi-Fi signal.
See How to improve your Wi-Fi signal.
Set Up Your Smart Garage Control
Check Your Wi-Fi Signal

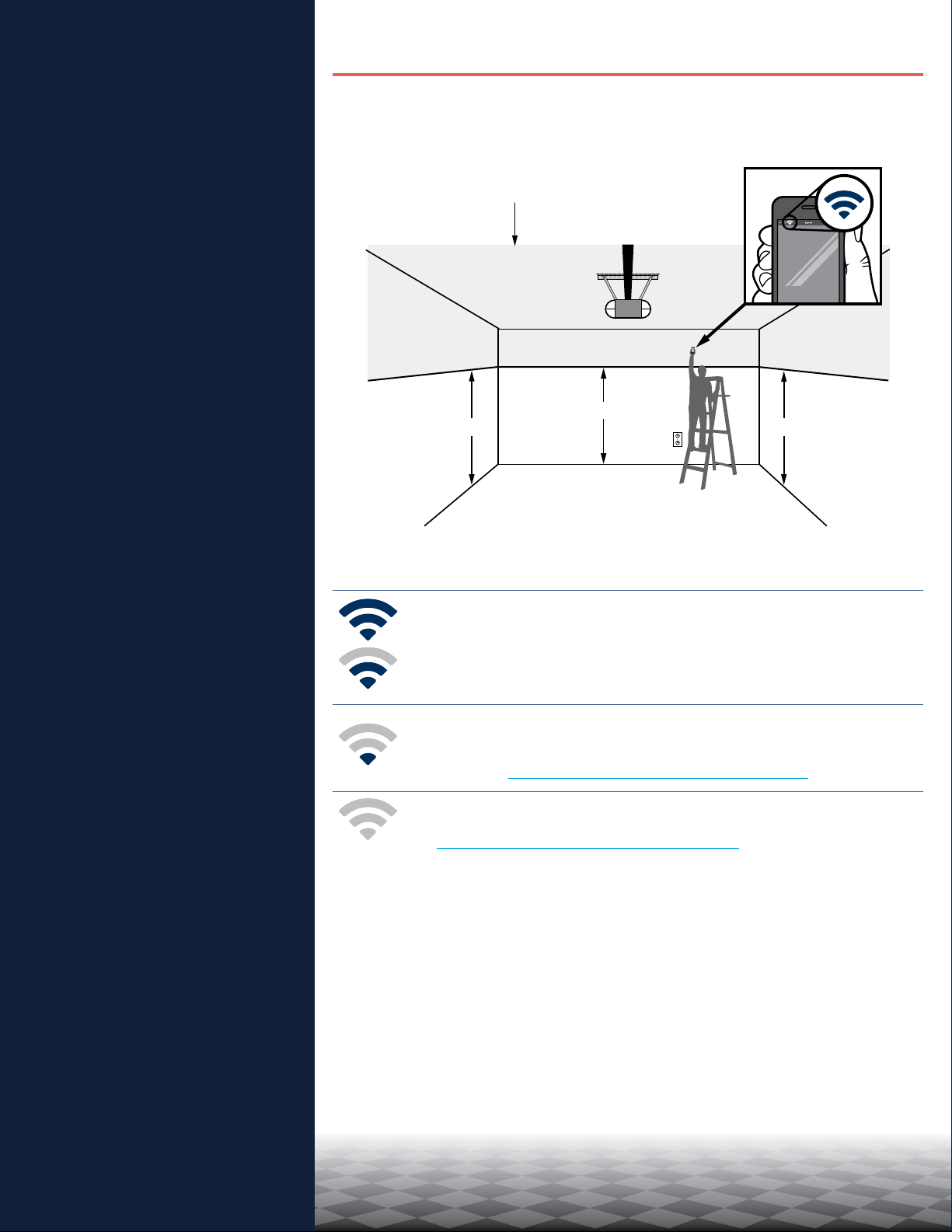

Make sure your device is connected to your Wi-Fi network. Hold the device
where you plan to mount the hub.

7
Overview
Set Up Your Smart Garage
Control
What you Need
Connect Your Smart Garage Control
Check Your Wi-Fi Signal
Pair the Door Sensor to the Hub
Mount the Door Sensor
Choose the Hub Location
Mount the Hub
How-To Video
Add myQ Smart Partners and
Accessories
Need Help?
Accessories and Parts
Set Up Your Smart Garage Control
Pair the Door Sensor to the Hub
The myQ App will pair the door sensor to the hub during initial set up.
Pair a second door sensor
To add a door sensor to a second garage door opener, in the myQ App tap
(+) to add a door sensor. Follow the instructions in the app.
Pair a replacement door sensor
To replace an existing door sensor follow the steps below.
1. The existing sensor is programmed to the hub as door 1 or door 2.
Press the test button on the existing door sensor. The hub beeps
one time if the sensor is door 1, and twice if door 2.
2. On the hub, press the button for door 1 or 2, corresponding to the
number of beeps heard. The LED lights solid amber.
3. Remove the pull tab from the new door sensor to activate the
battery.
4. Press and release the test button. The hub will ash and beep
indicating successful programming.
Mount the Door Sensor
Mount the door sensor (top facing up) with the included hook and loop
adhesive strips or optional screws to a clean, dry area on top panel of
garage door as shown. Test the door sensor battery every 6 months.
Hook and
loop adhesive
strips
Pry with coin
or screwdriver
OR
Mounting location
Make sure
“TOP” faces up
Hub
Door
Sensor
Test Button
Pull Tab
Amber LED
Door 1 Button
Door 2 Button

8
Overview
Set Up Your Smart Garage
Control
What you Need
Connect Your Smart Garage Control
Check Your Wi-Fi Signal
Pair the Door Sensor to the Hub
Mount the Door Sensor
Choose the Hub Location
Mount the Hub
How-To Video
Add myQ Smart Partners and
Accessories
Need Help?
Accessories and Parts
Set Up Your Smart Garage Control
Choose the Hub Location
Find an area on the ceiling, a side wall, or opposing wall to the garage door
that is:
• at least 6 feet above the ground.
• within 5 feet of an outlet.
• where the hub and light is visible at all times from within the garage.
• 4 feet away from any metal objects.
6 ft 6 ft
Hub mounting area
(indicated in gray)
Mount within 5 ft
of an outlet
6 ft

9
Overview
Set Up Your Smart Garage
Control
What you Need
Connect Your Smart Garage Control
Check Your Wi-Fi Signal
Pair the Door Sensor to the Hub
Mount the Door Sensor
Choose the Hub Location
Mount the Hub
How-To Video
Add myQ Smart Partners and
Accessories
Need Help?
Accessories and Parts
Set Up Your Smart Garage Control
Mount the Hub
1. With the arrow facing up, use the mounting plate to mark the drill holes.
2. Drill holes using a 5/32" bit.
3. Insert drywall anchors until they are ush with the surface.
4. Attach the mounting plate with screws.
Arrow facing up
Continue

10
Overview
Set Up Your Smart Garage
Control
What you Need
Connect Your Smart Garage Control
Check Your Wi-Fi Signal
Pair the Door Sensor to the Hub
Mount the Door Sensor
Choose the Hub Location
Mount the Hub
How-To Video
Add myQ Smart Partners and
Accessories
Need Help?
Accessories and Parts
Set Up Your Smart Garage Control
Mount the Hub

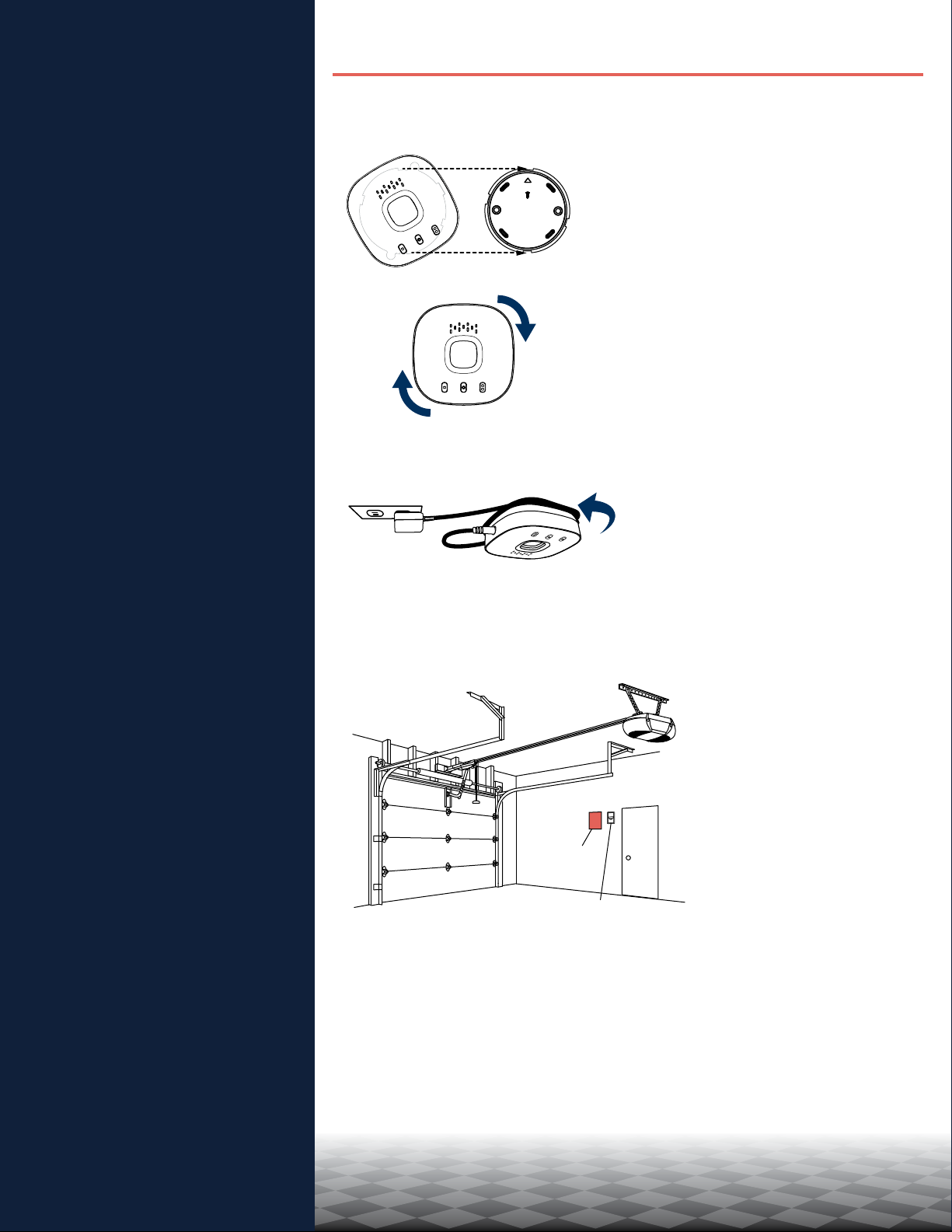

5. Place the hub on the mounting plate at an angle and rotate until secure.
NOTE: Wrap excess power cable around the hub and mounting bracket.
6. Attach the warning placard on the wall next to the door control.
Door Control
Warning
Placard

11
Overview
Set Up Your Smart Garage
Control
What you Need
Connect Your Smart Garage Control
Check Your Wi-Fi Signal
Pair the Door Sensor to the Hub
Mount the Door Sensor
Choose the Hub Location
Mount the Hub
How-To Video
Add myQ Smart Partners and
Accessories
Need Help?
Accessories and Parts
Set Up Your Smart Garage Control
How-To Video
How to Install and Set Up the
Chamberlain®Smart Garage
Control Using the myQ App
Smart Garage Control
12 3 4 5
Add Smart Garage Control

12
Overview
Set Up Your Smart Garage
Control
What you Need
Connect Your Smart Garage Control
Check Your Wi-Fi Signal
Pair the Door Sensor to the Hub
Mount the Door Sensor
Choose the Hub Location
Mount the Hub
How-To Video
Add myQ Smart Partners and
Accessories
Need Help?
Accessories and Parts
Set Up Your Smart Garage Control
Add myQ Smart Partners and Accessories
Your Smart Garage Control is compatible with a wide variety of interactive
service providers and accessories.
See myQ smart partners or select Works with myQ in the app.
See Accessories and Parts.

13
Overview
Set Up Your Smart Garage
Control
Need Help?
Garage door opener compatibility
Router compatibility and settings
How to improve your Wi-Fi signal
Test the door sensor battery
Change the door sensor battery
Erase Wi-Fi settings from the hub
Reset the hub to factory default
Update my Wi-Fi password in the
myQ App
LED indicators
The app says Monitor Mode
App error messages

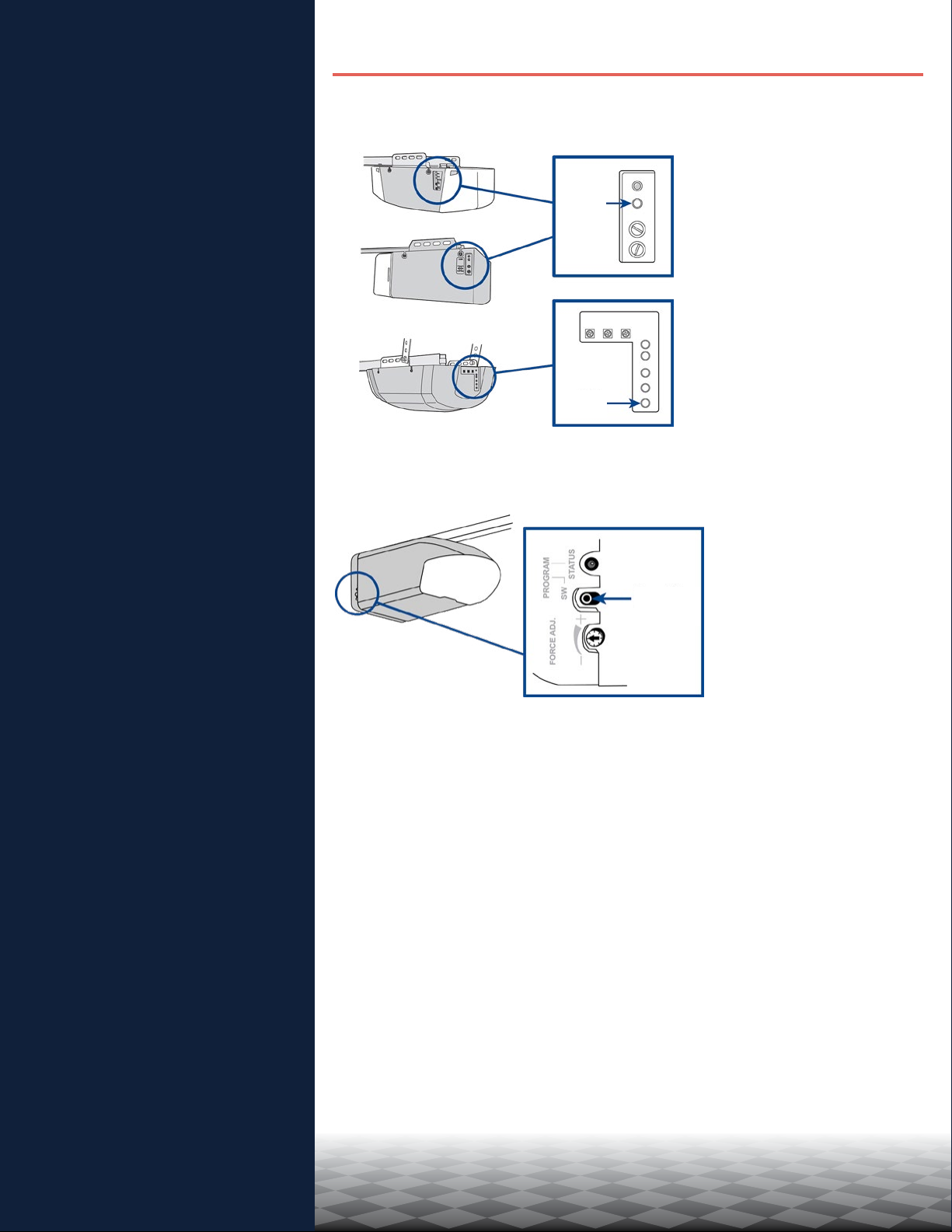

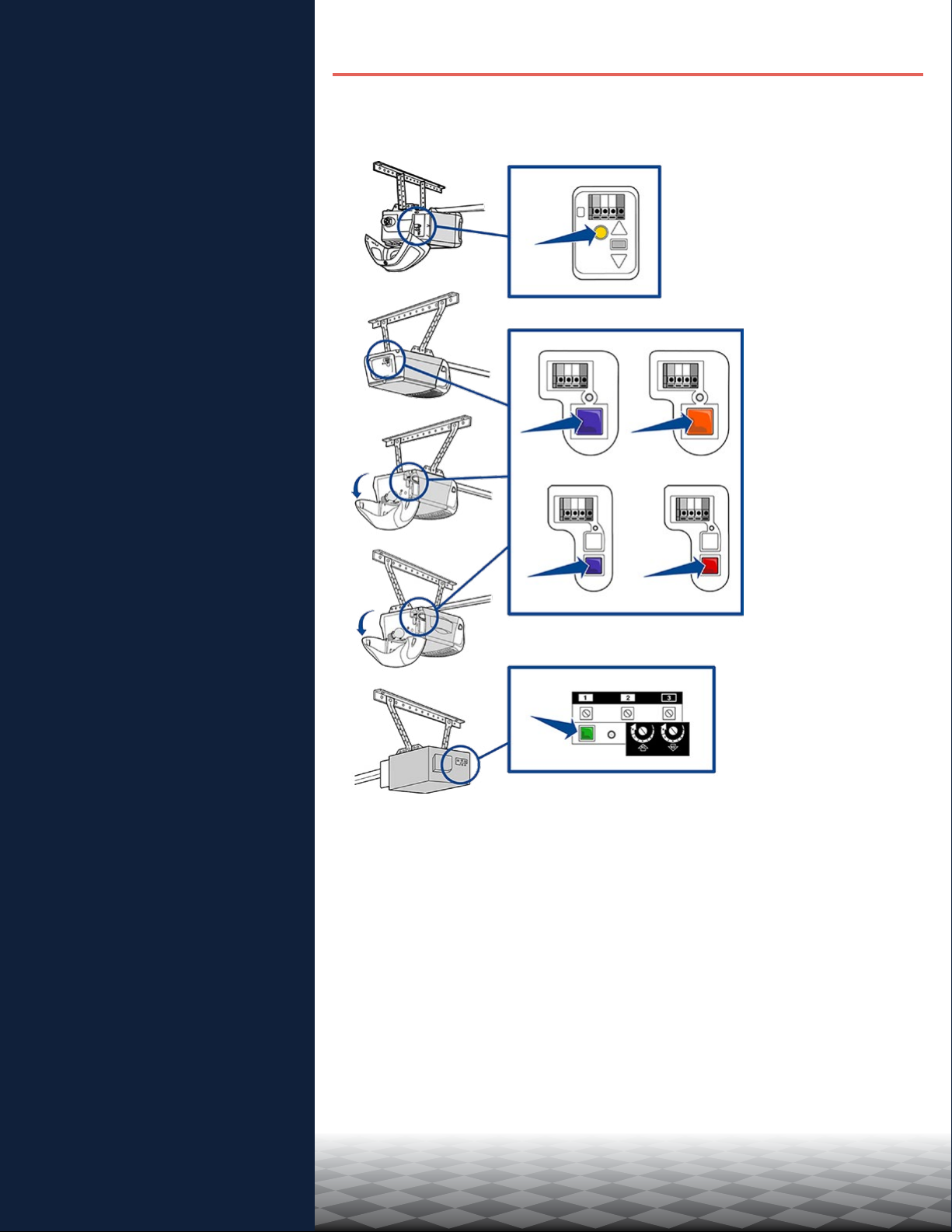

Locate a garage door opener
program or learn button
Accessories and Parts
Need Help?
Garage door opener compatibility
The Smart Garage Control is compatible with most garage door opener brands manufactured starting
January 1, 1993 and that have photoelectric safety sensors. Check opener compatibility by manufacturer.
Router compatibility and settings
Make sure the router has the following settings:
• 2.4 GHz is enabled, 5 GHz is NOT compatible
• 802.11g or 802.11n (802.11 b/g/n) is enabled
• DHCP is enabled.
• Security is set to WPA2.
• Inbound and outbound /TCP port 8883 is open
See more information about router settings and compatibility here.
How to improve your Wi-Fi signal
The Wi-Fi signal in a garage can be diminished because of the structure in the walls. If you have a
weak signal in your garage, try the following:
• Make sure the router is within 50 ft. of the hub.
• Move the router closer to your garage to minimize interference from walls and other objects.
• Use a Wi-Fi extender, see a list of tested Wi-Fi extenders
Test the door sensor battery
Test the door sensor battery every 6 months or if the Smart Garage Control is not working as expected.
1. Press and release the test button on the door sensor. The red LED on the door
sensor should blink and the hub should beep.
2. Wait 5-10 seconds, then repeat this test 5 more times (wait 5-10 seconds between each test).
3. If the LED doesn’t blink or the hub doesn’t beep with each press, try the following:
• Make sure you remove the pull tab from the door sensor.
• Debris may be present on the battery. Remove the sensor cover and slide the battery
out to check.
• Replace the battery, see Accessories and Parts.
Change the door sensor battery
1. Pry the latch panel on the bottom of the door sensor with a coin or screwdriver and lift
the top to remove it.
2. Using a soft non-conductive tool (such as a cotton swab), gently push the coin battery
out of the clip.
3. Gently but rmly insert the new battery into the clip and replace the cover.
Dispose of batteries properly. Replace ONLY with 3V CR2450 coin batteries, see Accessories and Parts.
Pry with coin
or screwdriver

14
Overview
Set Up Your Smart Garage
Control
Need Help?
Garage door opener compatibility
Router compatibility and settings
How to improve your Wi-Fi signal
Test the door sensor battery
Change the door sensor battery
Erase Wi-Fi settings from the hub
Reset the hub to factory default
Update my Wi-Fi password in the
myQ App
LED indicators
The app says Monitor Mode
App error messages
Locate a garage door opener
program or learn button
Accessories and Parts
Need Help?
Erase Wi-Fi settings from the hub
Erasing the Wi-Fi settings allows you to reset the Wi-Fi settings on the hub.
1. The green LED MUST be on or blinking to erase Wi-Fi settings.
2. Press and hold the button on the hub until the blue LED blinks.
Reset the hub to factory default
Resetting the hub to factory default will erase the Wi-Fi settings, and removes the device from the
myQ account.
1. Press and hold the button on the Wi-Fi hub until the blue LED blinks then release.
2. While the blue LED is blinking, press and hold the button again until the blue
LED pauses then blinks or beeps. The Wi-Fi hub is set to factory default.
To install and connect the hub, see Connect Your Smart Garage Control.
Update my network settings in the myQ App
When you replace your router or update any of your home network settings or password, you
need to update the settings in the myQ app and reconnect your Smart Garage Control.

15
Overview
Set Up Your Smart Garage
Control
Need Help?
Garage door opener compatibility
Router compatibility and settings
How to improve your Wi-Fi signal
Test the door sensor battery
Change the door sensor battery
Erase Wi-Fi settings from the hub
Reset the hub to factory default
Update my Wi-Fi password in the
myQ App
LED indicators
The app says Monitor Mode
App error messages
Locate a garage door opener
program or learn button
Accessories and Parts
Need Help?
LED indicators
The LEDs indicate the status of the Smart Garage Control.
Blinking blue
and green The hub was unable to connect to your home's
Wi-Fi router.
If unable to connect:
Check router compatibility
and settings, see Router
compatibility and settings.
Check the Wi-Fi signal, see How
to improve your Wi-Fi signal.
Unplug power to the router and
plug it back in.
Reset the hub, see Reset the hub
to factory default.
Blinking blue The hub is attempting to
connect to your home
Wi-Fi network.
If unable to connect:
Verify you entered the correct
password for your home Wi-Fi
network.
Make sure Bluetooth is enabled
on your phone.
Check the Wi-Fi signal, see How
to improve your Wi-Fi signal.
Solid blue The hub was unable to
connect to your home
Wi-Fi network.
Unplug power to your hub and
plug it back in. If it's not blinking
blue, press and hold the
button until the LED goes to a
blinking blue.
Turn off the feature in your
mobile device settings to
automatically switch between Wi-
Fi and mobile data.
Blinking
green The hub was unable to connect to the myQ
internet server.
If unable to connect:
Unplug power to the router and
plug it back in.
Make sure router TCP/UDP
port 8883 is open, see Router
compatibility and settings.
Solid green The hub has successfully
connected to the myQ
server.
Solid amber Door button 1 or 2 has
been pressed Press the test button on the door sensor to pair the sensor with the
hub.
Blinking
amber Door sensor is pairing to the hub.
No LED No power to the hub. Check the power connection.

16
Overview
Set Up Your Smart Garage
Control
Need Help?
Garage door opener compatibility
Router compatibility and settings
How to improve your Wi-Fi signal
Test the door sensor battery
Change the door sensor battery
Erase Wi-Fi settings from the hub
Reset the hub to factory default
Update my Wi-Fi password in the
myQ App
LED indicators
The app says Monitor Mode
App error messages
Locate a garage door opener
program or learn button
Accessories and Parts
Need Help?
The app says MonitorMode
The door sensor is paired to the hub, but the garage door opener is not.
• In the myQ App tap Monitor Mode, this will attempt to pair the garage door opener to
the hub. Try to open and close the garage door in the app.
• If the myQ hub is mounted on the ceiling move it to a location 6 feet off the ground, and
4 feet from any large metal objects. From the wall mounted door control, open and close
the garage door twice.
• Replace the battery in the door sensor. See Test the door sensor battery.
App error messages
Close error
A close error occurs when the door is commanded to close from the app and is unable to close
twice consecutively.
• Check for an obstruction in the safety sensor beam. Remove any obstructions and
conrm the door opens and closes from the wall mounted door control or a remote.
• If the myQ hub is mounted on the ceiling move it to a location 6 feet off the ground, and
4 feet from any large metal objects. From the wall mounted door control, open and close
the garage door twice.
• Replace the battery in the door sensor. See Test the door sensor battery.
Off line error
Your Smart Garage Control has lost connection to the router and cannot be controlled by
the myQ app.
• Check that the hub is plugged in and has power.
• The router may have lost connection to the Internet. Check the router and follow the
instructions that came with it to reconnect to the Internet.
• Tap the error message in the app and follow the instructions.

17
Overview
Set Up Your Smart Garage
Control
Need Help?
Garage door opener compatibility
Router compatibility and settings
How to improve your Wi-Fi signal
Test the door sensor battery
Change the door sensor battery
Erase Wi-Fi settings from the hub
Reset the hub to factory default
Update my Wi-Fi password in the
myQ App
LED indicators
The app says Monitor Mode
App error messages
Locate a garage door opener
program or learn button
Accessories and Parts
Need Help?
Locate a garage door opener program or learn button
Chamberlain®Products

18
Overview
Set Up Your Smart Garage
Control
Need Help?
Garage door opener compatibility
Router compatibility and settings
How to improve your Wi-Fi signal
Test the door sensor battery
Change the door sensor battery
Erase Wi-Fi settings from the hub
Reset the hub to factory default
Update my Wi-Fi password in the
myQ App
LED indicators
The app says Monitor Mode
App error messages
Locate a garage door opener
program or learn button
Accessories and Parts
Need Help?
Locate a garage door opener program or learn button
LiftMaster®Products
Yellow Program
Button
Orange
Program Button
Green Program
Button
Green Program
Button

19
Overview
Set Up Your Smart Garage
Control
Need Help?
Garage door opener compatibility
Router compatibility and settings
How to improve your Wi-Fi signal
Test the door sensor battery
Change the door sensor battery
Erase Wi-Fi settings from the hub
Reset the hub to factory default
Update my Wi-Fi password in the
myQ App
LED indicators
The app says Monitor Mode
App error messages
Locate a garage door opener
program or learn button
Accessories and Parts
Need Help?
Locate a garage door opener program or learn button
Genie Products
Learn Code
Button
Program Set Button
Learn Code
Button
Overhead Door Products

20
Overview
Set Up Your Smart Garage
Control
Need Help?
Garage door opener compatibility
Router compatibility and settings
How to improve your Wi-Fi signal
Test the door sensor battery
Change the door sensor battery
Erase Wi-Fi settings from the hub
Reset the hub to factory default
Update my Wi-Fi password in the
myQ App
LED indicators
The app says Monitor Mode
App error messages
Locate a garage door opener
program or learn button
Accessories and Parts
Need Help?
Locate a garage door opener program or learn button
Linear Products
Wayne Dalton Products
Learn
Button
Learn
Button
Program
SW Button
