6271 - Champ Foldi g Bed Dolly
WARNING
Frame Straighte i g Equipme t I c.
Read all asse bly instructions co pletely before atte pting to asse ble unit.
I proper asse bly could result in da age to the truck bed or injury to user.

P a r t s L i s t
A. (2) Base Supp rt Beams
B. (2) Side Rails
C. (4) Casters (2 L cking)
D. (12) End Caps
E. (16 each) B lts, Nuts, Washers and L ck Washers
Please n te: the b lts that are pre-installed n the side
rails already have the nuts and washers affixed t them
C
D
E
A
B

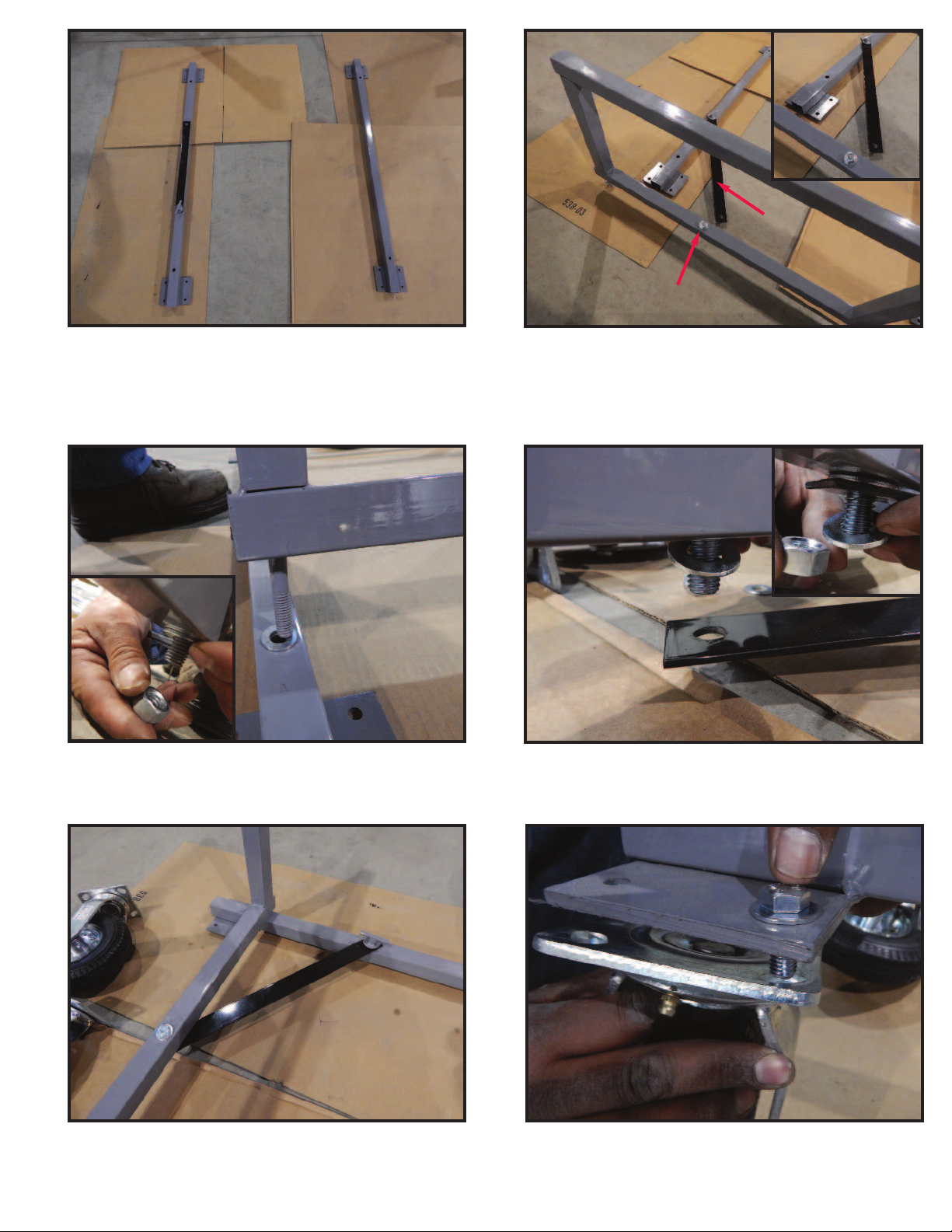

1.
Lay ut the base supp rt beams (A) like the ab ve picture. The next step is t attach the side rails (B) t the base
supp rt beams (A). When laying ut the side rails, make
sure t have the side rail with the supp rt bar b lt, next
t the base supp rt beam that has the supp rt bar, like
the ab ve picture.
2.
3.
Insert the pre-attached b lts n the side rails (B) int the
pre-drilled h les n the base supp rt beams (A). Fasten
with b lt.
Attach the supp rt bar t the b tt m f the side rail (B)
and fasten with b lt. (Make sure t place a washer n t p
f and bel w the supp rt bar. See the ab ve pictures)
4.
5. 6.
The ab ve pictures sh ws h w the supp rt bar sh uld
l k nce attached t the side rail.
Attach the (4) casters t the (2) base supp rt beams.
Slide the b lt thr ugh the washer and then thr ugh the
base supp rt beam and caster. Fasten with the l ck
washer and nut. Next, install the (12) end caps
Support Bar Bolt
Support Bar
