Granite VERLAND 70220 User manual

- OVERLANDCARTS.COM -
970202
ELECTRIC POWERED CARTS
OWNER’S MANUAL
Revised: MAR 2023
HOG HAULER CART
Part No: 70220

2
CONTENTS
CART FEATURES ..............................................................3
FREQUENTLY ASKED QUESTIONS................................4
CHARGING INFORMATION ...........................................5
OPERATING INSTRUCTIONS .........................................6
TROUBLESHOOTING ......................................................8
BATTERY INFORMATION................................................9

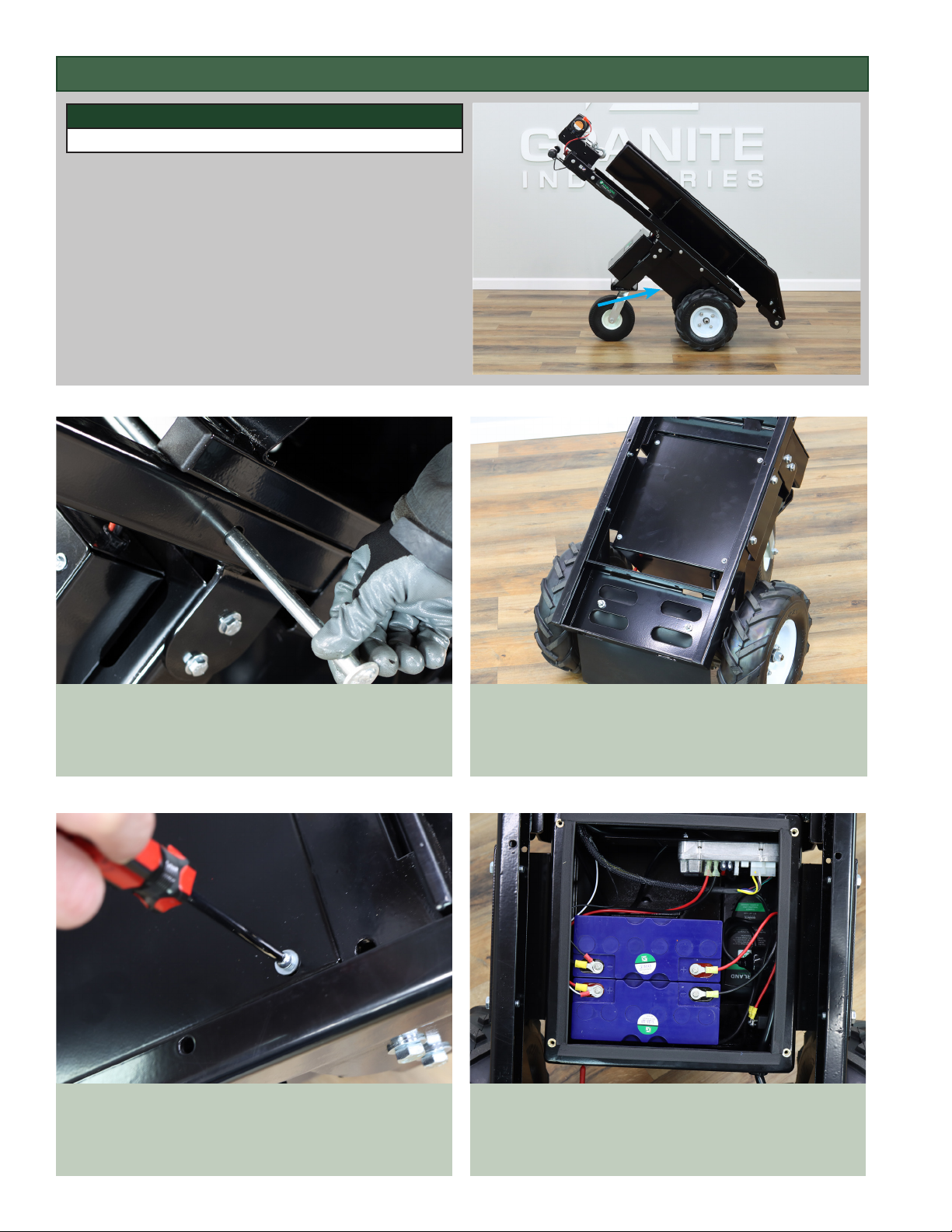

WINCH BATTERY REPLACEMENT .................................10

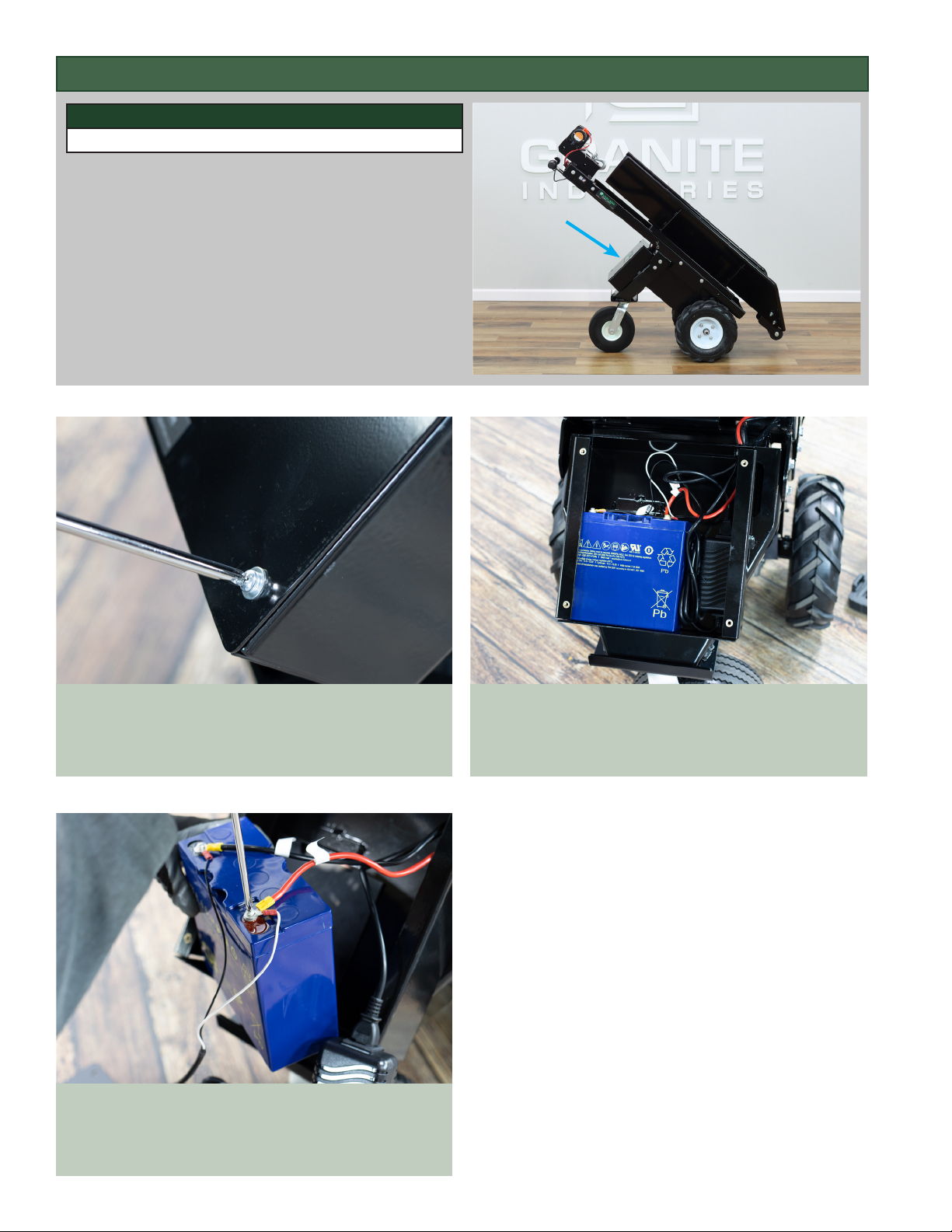

DRIVETRAIN BATTERY REPLACEMENT.........................12
PARTS LISTING .................................................................14
1 YEAR WARRANTY
• Electronics: Includes controller, s-drive, and wiring
• Powertrain: Includes transaxle containing the motor
and differential
• Wheels, Casters & Tires
• Batteries & Charger
• Hoppers: Includes Brentwood hopper, and white
garden hopper
• Chassis: Includes steel frame and powder coating
TERMS
Warranty starts from the delivery date of the cart.
We will repair, without charge, any defect due to faulty
material or workmanship. These warranties do not cover
failures due to abuse, misuse, improper installation,
accidental damage or when repairs or modifications
have been made or attempted to be made by anyone
other than Granite Industries. Any defective products
that meet warranty specifications and Granite Industries
approval, may be returned to the factory to be repaired
or replaced free of charge. (Granite Industries will pay to
ship replacement item(s) to the customer; however the
customer is responsible for shipment of products to the
factory.)
This remedy is the sole remedy in contact, tort or
otherwise, and Granite Industries is not liable for
incidental, consequential or special damages.
These warranties give you specific legal rights, and you
may have other rights which vary from state to state.
Should you have any questions, contact Granite Industries
at 877-447-2648. (Proof of purchase may be required).
Customer Service
877-447-2648
M-F, 8am - 5pm EST
US D752,834 S
US D752,835 S
US D752,836 S
US D752,837 S
US D752,838 S
US D752,307 S
US D752,308 S
US D779,762 S
US D779,765 S
US D781,020 S
Overland Carts are covered by one or more of the following patents:
Overland carts are a part of the Granite Industries family. All
carts are manufactured by Granite Industries in Archbold, Ohio.
To view more products from
Overland Carts scan the QR code
with your phone
or visit OverlandCarts.com

3
CART FEATURES
Built with you in mind.
Our carts come fully assembled
All Overland Carts come fully assembled, charged and ready to
use. All you have to do is power the cart on and drive away. (We do
recommend charging overnight after receiving.)
Crate Disassembly Instructions:
We recommend using a drill or an electric screwdriver with a #2
Phillips bit or a #2 square bit to remove the screws.
We recommend using a hammer or crowbar to remove the
portions that are nailed down.
We designed our carts to be simple to operate:
• To turn on, pull the red On/Off switch out towards you.
• Toggle the black switch for forward and reverse.
• Grasp and twist the throttle.
• To turn the cart off, simply push the red button in.
Safety Features
• Emergency Stop – The red E-Stop button allows the user to
immediately stop the progress of the cart.
• AutoLock – Automatically locks the wheels when the throttle
is not being applied. This feature prevents the cart from
rolling away from the user and also provides easy loading and
unloading on inclines.
• HillSense – Allows the cart to be used safely on inclines and
declines. The cart will travel at the speed set by the user, not
by the incline or decline.
• SmoothStart – On acceleration, power is applied to the drive
tires in a controlled manner ensuring a smooth start each time.
• Four Wheel Design – All Overland Carts have at least four
wheels to provide maximum stability.
They’ve been tested (again and again)
The standard 24 amp-hr rechargeable battery packs have been
extensively tested. We are confident to rate the batteries with a
6-8 hour real world capacity.
Satisfaction Guaranteed
Granite Industries is committed to making sure each Overland Cart meets your expectations. To ensure
customer satisfaction, we offer a 15 day money back guarantee. Use the cart and see how much easier the
cart makes your projects. If you’re not satisfied, simply contact Granite Industries at 877-447-2648 for a return
authorization and details.
Orders and quote requests can be emailed to [email protected] or faxed to 419-445-3304

4
FREQUENTLY ASKED QUESTIONS
How long do the batteries last on a single charge?
It is completely dependent upon how much weight is being carried, the type of terrain, and the softness or hardness of the
surface. We estimate a range of 6-8 hours of “real world” use. PLEASE NOTE: Most use is not as intense as our “real world”
estimates, so actual use time is typically much longer. Visit YouTube.com/OverlandCarts to view videos of our product testing.
When and how long should I charge my cart?
Charge your cart immediately after using. If, during operation, the battery indicator light goes to red, it is time to recharge. It is
recommended to leave the cart on the charger overnight to extend the life of the batteries.
How long will the batteries last before needing to be replaced?
The batteries are designed to last for 300-500 charge/discharge cycles, which translate into approximately 1-2 years. The
batteries are common, and can be purchased from Granite, your local battery supplier, or on Amazon.
Will tipping the unit hurt the batteries, electronics, or drive system?
No. Batteries, electronics, and drives can operate in any orientation.
What is the maximum speed?
All Overland Carts operate from 0 to 3.5 miles per hour in both forward and reverse.
While pushing my cart in manual/freewheel mode, it suddenly decelerates aggressively. What causes this?
There is a safety feature on your Overland Cart that is designed to prevent the cart from running away when the brake is
manually disengaged.
How much weight can my cart handle?
750 lbs is the maximum load for level ground.
Why does my cart lose traction when one wheel is off the ground?
The drive system is an open differential that allows the machine to efficiently make turns without skidding the tires. The drawback
is that if one of the drive tires leaves the ground, it will simply spin until all tires are back on the ground.
Is a balanced load important to the performance?
Yes. Balancing the load so that it is not top-heavy or side-loaded, will allow much safer operation. Furthermore, most of the load
should be located over top of the drive wheels for better traction.
How do I clean my Overland Cart?
Simply remove all debris, hose it down with soapy water, and towel dry. We do not recommend using a pressure washer.
Can I use my Overland Cart in cold temperatures?
You certainly can, but we recommend that you charge and store the batteries at room temperature.
What maintenance is required?
Not much, really! Simply remember to always recharge when not in use - it’s okay to leave the cart on the charger. The drive
system is sealed for life, thus no lubrication is required. Also, keep the unit dry to enhance its life and appearance.
How should I store my cart?
We recommend keeping your cart indoors, out of the rain and other
elements. For long-term, or “off season” storage, give the battery an
overnight charge, then disconnect the battery pack from the cart and
store it indoors at room temperature. Every 3-4 months, fully charge the
battery even though it’s not in use. This helps to prolong the life of the
batteries.

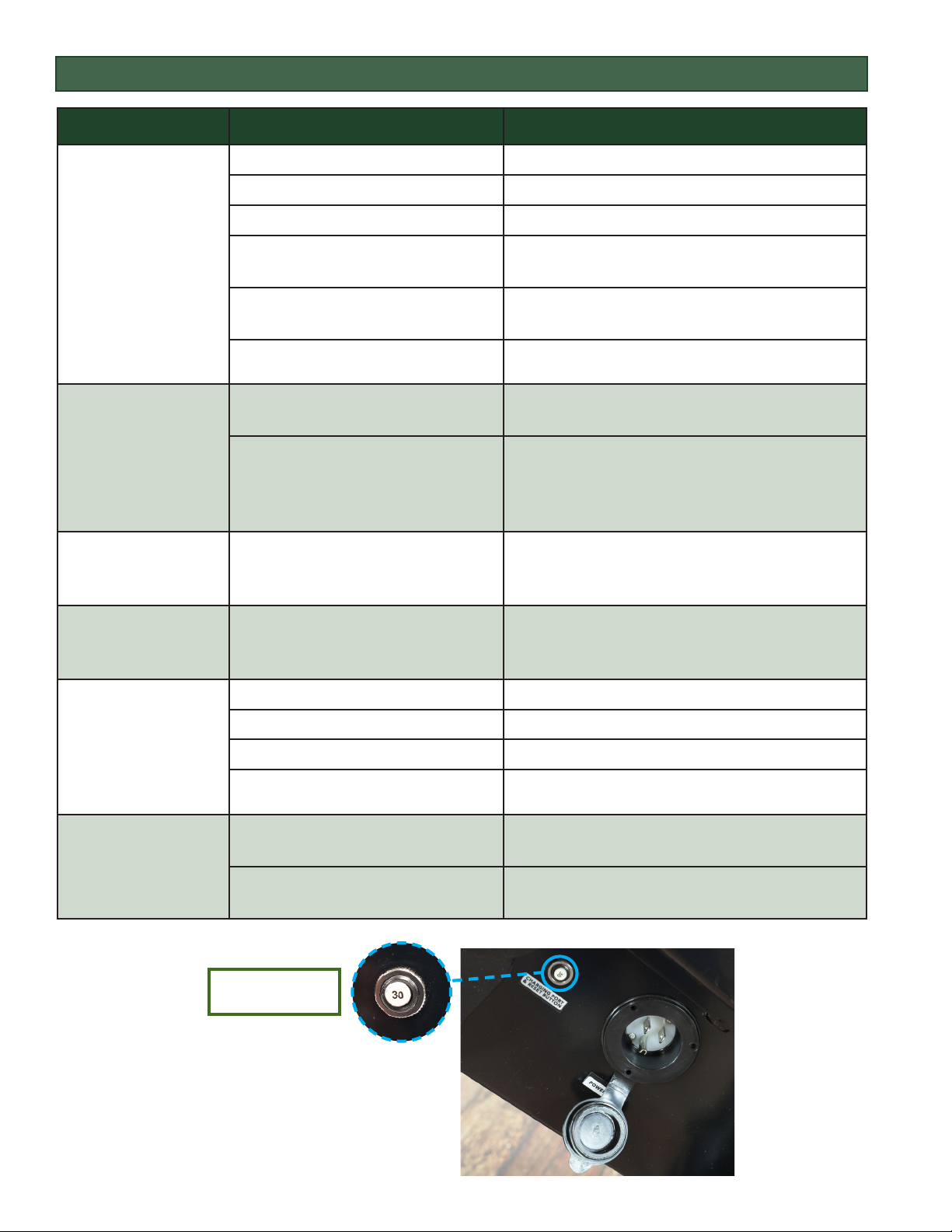

Where is the serial number?
Every Overland Cart comes with its own serial number. This is located on
the front side of the upper control box. You will need this number when you
fill out your warranty card. SERIAL NUMBERCART INFO

5
CHARGING INFORMATION
FREQUENTLY ASKED QUESTIONS
How do I identify the right and left tires?
Our ag tires have a specific tread pattern and if you ever need to replace a
tire, you need to identify them as right or left. To do so, stand in front of your
cart, so you are looking at the hopper. The left tire will be on your left side.
CHARGE YOUR CART
When your cart arrives, please plug it in and make sure the
battery is fully charged. There is a battery charge display on
the side of the battery pack.
The charger can be left connected to the batteries after a full
charge (green light) without harming the batteries. It uses a
three stage charging system to optimize battery longevity.
The charger uses minimum power in standby mode and
maintains the batteries at full charge.
For the best battery life, charge the cart after each use or at
the end of the work day. It’s preferable to let the batteries
charge overnight by plugging the cart into a 110V outlet.
80 25.0
%
V
Battery Capacity Voltage
BATTERY CAUTIONS AND WARNINGS
1. Before using the battery charger, read all instructions and
cautionary markings on the battery charger, batteries and
the product using the batteries.
2. Only use the type of batteries that the charger is specified
for. Other types of batteries may burst, causing personal
injury or damage.
3. Do not expose charger to rain or snow.
4. Do not cover the charger or charge battery in an airtight
enclosure. Ventilation is important to prevent overheating.
5. Make sure extension cord is not used unless absolutely
necessary. Use of improper extension cord could result in
risk of fire and electric shock. If extension cord must be
used, make sure:
• The pins on the plug of the extension cord are the
same number, size and shape as those on the charger.
(3 prong with ground)
• The extension cord is properly wired and in good
electrical condition. A 16 ga cord or heavier duty
extension cord is recommended.
6. Do not operate a charger that has been dropped,
damaged or has a damaged cord or plug - replace
immediately if there are signs of damage!
7. Do not disassemble the charger.
Capacity Single 12V
AGM Battery
24V AGM Battery
Pack
(Two 12V Batter-
ies in series)
100% Floating Charge
(when plugged in)
13.00V+ 26.00V+
100% 13.00V 26.00V
90% 12.75V 25.50V
80% 12.50V 25.00V
70% 12.30V 24.60V
60% 12.15V 24.30V
50% 12.05V 24.10V
40%
*Recharge Batteries*
11.95V 23.90V
30% 11.81V 23.62V
20% 11.66V 23.32V
10% 11.51V 23.02V
0% 10.5V 21.00V
1% 10.80V 21.60V
0% 9.50V 19.00V

6
SAFETY INFORMATION
• Flat free semi pneumatic tires are not pressurized and do not have a valve stem.
• Only use chargers and batteries issued by Overland Carts. Use of third party batteries or chargers may cause harm to
the user and the cart.
• Always make sure the attachments are latched securely before operating the cart.
• Always make sure the load is distributed evenly and the cart is stable before operating.
• Push in the red E-Stop whenever the cart is sitting still or whenever the batteries are charging.
• Do not exceed the rated capacity of 750 pounds for the cart on flat surfaces.
• Exercise caution when operating on inclines or declines.
• Do not drive the cart over sudden drops such as curbs, steps, or ledges. We recommend using ramps to navigate
uneven surfaces.
• The metal battery pack can be opened to reveal the batteries; however, the physical batteries should never be opened.
They are sealed lead acid batteries and cannot be resealed. Do not attempt to add more battery acid or water. If the
batteries need replaced, please purchase new batteries.
POWER YOUR CART ON
To power your cart on, pull the red E-stop button out. You will notice the battery indicator lights light up, and your cart is
ready for operation.
If the Overland Cart sits inactive for 20 minutes while on, it will go to sleep in order to conserve power. To wake the cart up,
push the E-Stop button in, and pull it back out to power your cart on again.

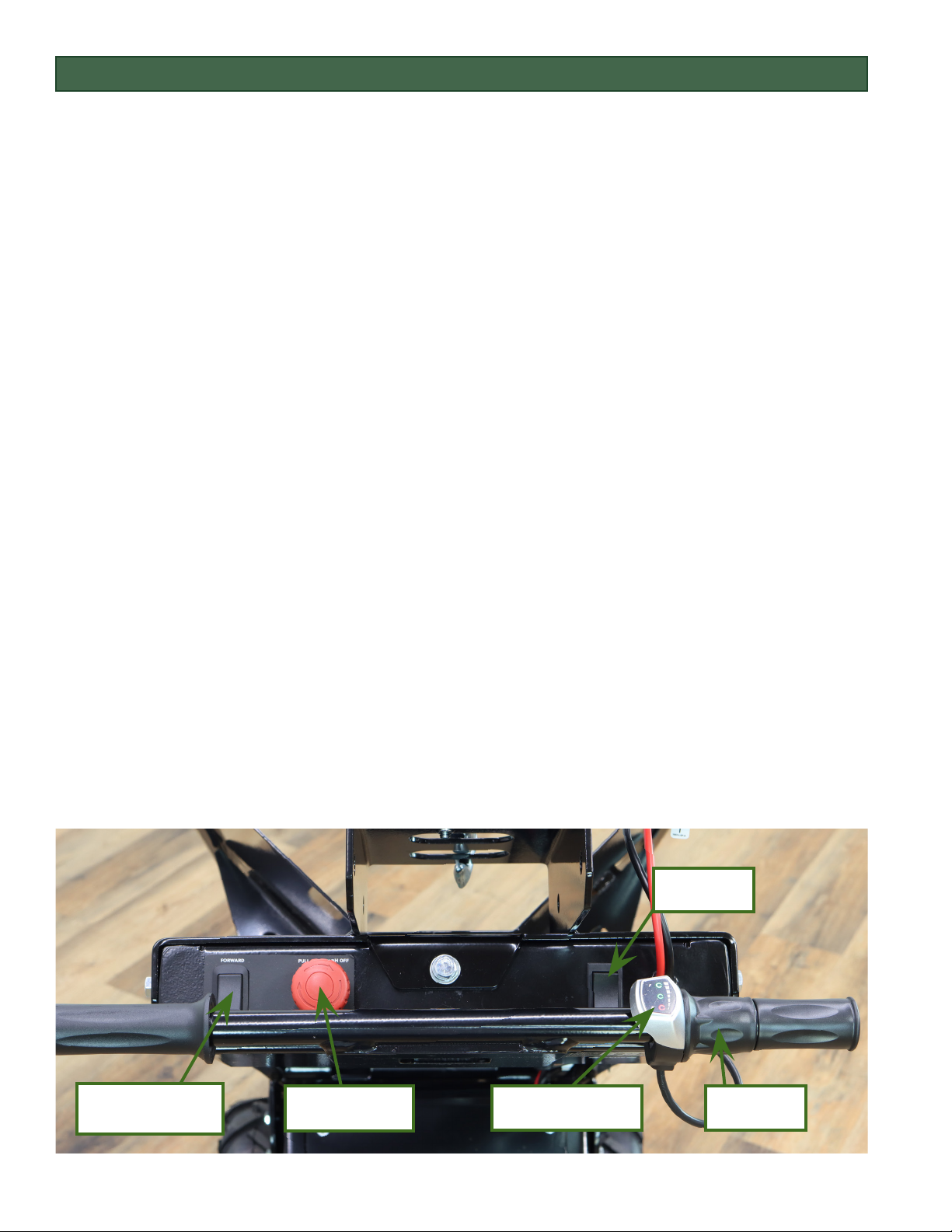

FORWARD/REVERSE
BUTTON THROTTLE
E-STOP BUTTON BATTERY INDICATOR
LIGHTS
OPERATING INSTRUCTIONS
BEST PRACTICES
• Hand wash your Overland Cart with soapy water. Never use a pressure washer.
• Do not drive your cart through deep puddles of water and do not submerge the drive system or battery box.
• The drive system is lubricated for life, so no maintenance is required.
• When the battery indicator light goes to red, it is time to recharge.
• Recharge cart immediately after using.
WINCH
CONTROL

7
FORWARD OPERATION REVERSE OPERATION
OPERATING INSTRUCTIONS
DRIVING YOUR CART
Once your cart is on, make sure your forward/reverse button is toggled upwards for forward. Twist the throttle towards
you and the cart will begin moving forward. While driving your Overland Cart forward, stay directly behind the cart with
both hands on the handles. When operating the cart in reverse, do NOT stand in the path of the cart and walk backwards.
Instead, turn around and stand beside the unit to prevent accidental injury.
SLOPES AND INCLINES
When going downhill, operate your cart in reverse, leading the cart downhill with the handles first. This will prevent your cart
from tipping over, especially if it is carrying a full load. Do not drive your cart across an incline, this may cause the cart to roll
over on it’s side. Always travel parallel with the slope or incline.
FREE WHEEL MODE
The drive system is equipped with a lever that overrides the electromechanical brake for manually operating your Overland
Cart. The brake lever allows you to override the electric brake when you need to push the cart manually, when loss of power
had occurred. With the brake in the disengaged position, the E-Stop button must be pushed in, and the power turned off, or
the drive system will not move freely. The controller will NOT operate the motor when the brake is disengaged.
When lever is in the down position the brake is engaged, and when up it is disengaged. When you reset the brake system the
unit will not operate until you toggle the power button off and back on, this process will need to be repeated every time the
brake in manually disengaged.
BRAKE
OVERRIDE LEVER
(ONE PER AXLE)
FREE WHEEL MODE
(LEVER DISENGAGED)
POWER MODE
(LEVER ENGAGED)

8
TROUBLESHOOTING
Issue Possible Problem Solution
Cart will not run
Batteries are dead Charge the Overland Cart
E-Stop is in the OFF position Pull e-stop out, to the ON position
Unit is in sleep mode Cycle the unit OFF for a couple seconds, then back ON
Cart is in freewheel mode (brake is
disengaged)
Re-engage motor brake (see free wheel mode section)
Electrical malfunction Disconnect and connect all electrical connections, and
make sure they are all secure
Moisture issue Let dry, avoid getting the s-drive and battery
box wet
Cart shuts off during use
Circuit breaker has tripped Push the reset button on the battery pack (see diagram
below).
Thermal overload (weight, climb angle,
or terrain may have exceeded transaxle
capacity)
Release throttle, allow transaxle to cool down at least
30 seconds. Unload some weight, cycle power switch
and operate machine again. Reset button will likely
need to be pushed.
Cart suddenly stops
Broken or loose motor wire or connector Check motor wires and brake wires to make sure none
are broken, and also check connector to make sure
wires are secure
Cart abruptly slows
down while in
freewheel mode
Safety feature has triggered preventing
the cart from rolling away
Push the cart slower while in freewheel mode
Batteries are not lasting
as long as desired
Cold batteries Keep batteries warm
Batteries not fully charged Make sure your cart is fully charged before using
Batteries are damaged or too old Replace your batteries
Loose wire connections Check all connections to make sure everything
is secure
Charger light goes
directly to green when
charging, but battery is
not charged
The battery and/or charger may have
gone bad
Test the charger on another battery if possible.
Replace battery and/or charger
The connections may have come loose,
or disconnected
Check charger and battery connections
RESET BUTTON

9
BATTERY INFORMATION
IMPORTANT RECOMMENDATIONS
• It is recommended to wear insulated gloves when handling batteries.
• If equipment is to be stored for a long period of time, the batteries should be disconnected to avoid undue drain.
• When replacing your batteries, fasten them tightly, but do not apply undue force to the terminals, or bend them.
• Do not place batteries in close proximity to objects which can produce sparks of flames.
• Avoid exposing batteries to heat.
• Do not mix batteries with different capacities, different ages or different makes.
• For best results and generally acceptable performance and longevity, keep operating temperature range between 5º F
(-15º C) and 122º F (50º C)
• It is good practice to ensure that the connections are re-torqued and the batteries are cleaned periodically.
• Do not attempt to disassemble batteries. Contact with sulfuric acid may cause harm. If it should occur, wash skin and
clothing with liberal amounts of water.
• Batteries should not be stored in a discharged state or at elevated temperatures.
• Please recycle old batteries. Do not throw them away, or attempt to burn them. Attempting to burn batteries (new or
old) may cause them rupture or explode.
BATTERY FEATURES
• Absorbent Glass Mat (AGM) technology for superior performance.
• AGM design ensures the acid inside the battery is spill-proof
• Vibration resistant
• Better performance in cold temperatures
• Faster charging
• Longer expected life
• Valve regulated, spill proof construction allows safe operation in any position. However upside down is not
recommended.
• Maintenance free design. There is no need to add electrolyte, as gases generated during the charge phase are
recombined in a unique oxygen cycle.
• Power/volume ratio yielding unrivaled energy density.
• Special separators, advanced plate composition and a carefully balanced electrolyte system ensure the battery has the
ability to recover from an excessively deep discharge.
• All batteries feature a series of low pressure, one-way relief valves. These valves safety release any excessive
accumulation of gas inside the battery and then reseal themselves.
• Batteries may be discharged over a temperature range of 5º F (-15º C) and 122º F (50º C), and charged at temperatures
ranging from -5º F (-15º C) and 104º F (40º C). For best results we recommend charging the batteries at room
temperature.
• The case materials impart great resistance to shock, vibration, chemicals and heat.
• U.L. recognized under file number MH 14533.
• ISO 9001/14001/18001 Certified

10
3
2
TOOLS
#1 or #2 Phillips Screwdriver
You will notice one 12v, 24ah battery and
a charger inside of the box. This battery
supplies power for the winch only.
WINCH BATTERY REPLACEMENT (12v, 24 amp)
1
Remove the four screws and washers from
the battery box.
Pull the battery out, loosen the screws and
disconnect the wiring from the battery.

11
WINCH BATTERY REPLACEMENT (12v, 24 amp)
4
Reconnect the wires to the battery as shown below.
Place the battery, charger and wires back into the box.
Secure the lid in place with the 4 screws and washers you removed in step 3.

12
3
2
TOOLS
#1 or #2 Phillips Screwdriver
Lift the hog channel off of the cart and set
aside. Doing so will expose the battery box
for the cart.
DRIVETRAIN BATTERY REPLACEMENT (24v, 24 amp)
1
Remove the pin from the rod holding the
hog channel in place.
Remove the 4 screws holding the battery
box cover in place.
4
Disconnect the wires from the battery
packs. Remove the old batteries.

13
DRIVETRAIN BATTERY REPLACEMENT (24v, 24 amp)
4

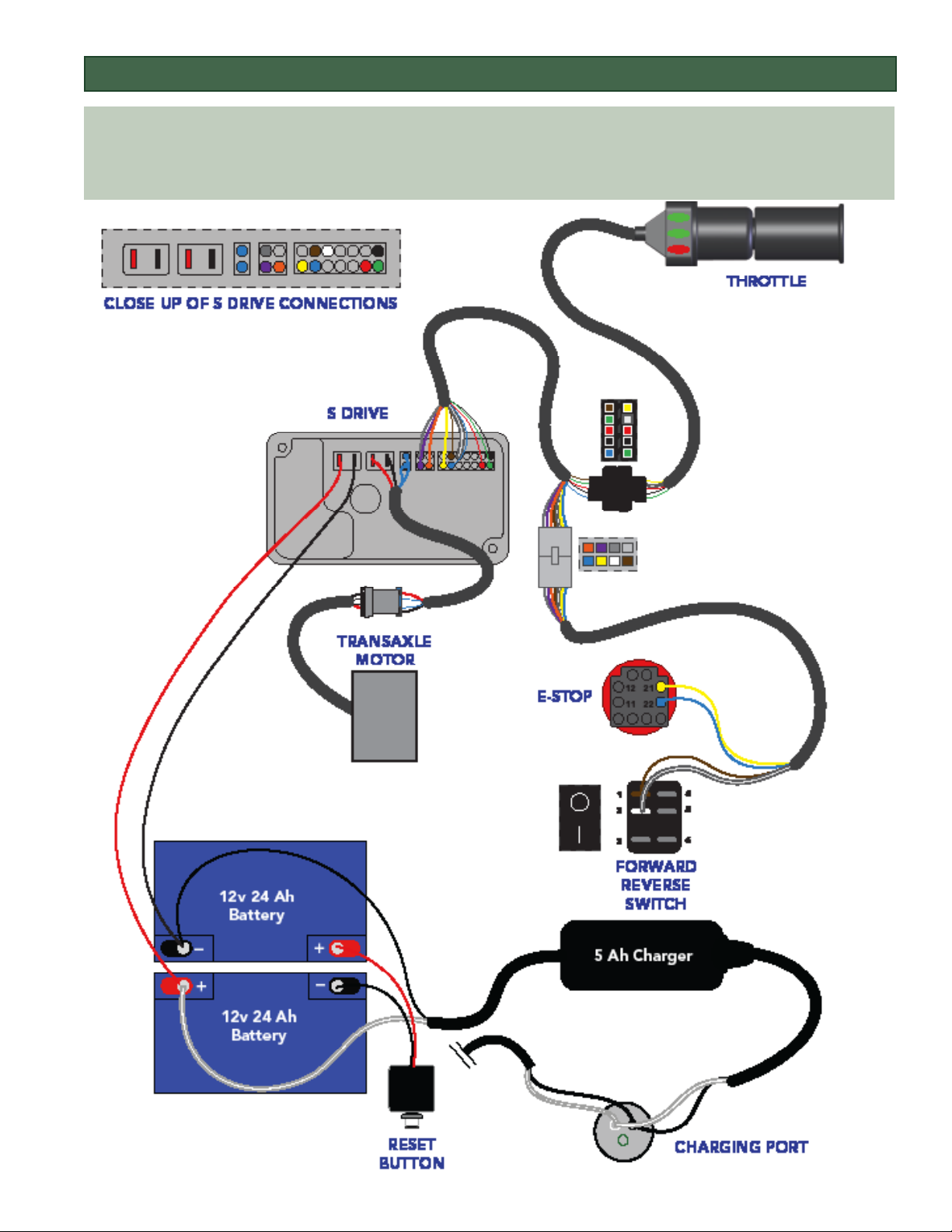

Install the new batteries. Use the diagram below to reconnect the wires to the battery.

14
DRIVETRAIN BATTERY REPLACEMENT (24v, 24 amp)
6
Reinstall the hog channel. Secure in place
with the rod and pin
LARGE BATTERY BOX
MI-12-6094
LARGE BATTERY BOX LID
MI-12-6125
FWD / REV SWITCH
PI-08-0145
E-STOP BUTTON
PI-08-0075
WINCH ROCKER SWITCH
PI-08-0067
PARTS LIST

15
PARTS LIST
HOG CHANNEL
ATTACHMENT
MI-12-6047
DRIVE WHEEL
PI-06-0182 (Flat Free Single Ag Left)
PI-06-0183 (Flat Free Single Ag Right)
CART FRAME
MI-12-6046
CASTER WITH 10” WHEEL
PI-06-0055
SMALL BATTERY BOX LID
MI-07-0916
WINCH
PI-11-0232

16
All Overland Carts are manufactured by:
Granite Industries
595 East Lugbill Rd.
Archbold, Ohio 43502
877-447-2648
OverlandCarts.com | GraniteInd.com
Part No Description Weight Dimensions
PI-08-0053 Throttle Kit 8 oz 4' cord
PI-08-0145 Forward/Reverse Switch 1 oz 1.75"H x 2"W x 1"W
PI-08-0075 E-Stop Switch 2 oz 1.5"H x 3"W x 1.5"D
PI-08-0146 24V 600W Transaxle 16 lb 7"H x 5"W x 23"D
PI-11-0191 24V 5A AGM Charger 2 lb 10' Cord
PI-11-0173 12V 3AH AGM Battery Charger for Winch 2 lb 10' cord
PI-11-0189 S Drive 90 1 lb 1.5"H x 5"L x 3"D
PI-06-0182 13” Left Flat Free Single Ag Tire - 3/4" Black Hub* 30 lb 13" Diameter - 8"W
PI-06-0183 13” Right Flat Free Single Ag Tire - 3/4" Black Hub* 30 lb 13" Diameter - 8"W
PI-06-0055 Rear Swivel Caster with 10" Flat Free Tire 10 lb 10” Diameter - 3“W
PI-08-0145 30A Replacement Breaker 3 oz 3"H x 1.5"W x 2"D
PI-11-0232 2000 lb winch with 49’ cabble 12 lb 4"H x 11"W x 4"D
PI-11-0215 12v 34A AGM Battery 13 lb 6.5"H x 7"W x 3"D
*When looking from the front of the cart
3 Amp Charger for Winch
PI-11-0173
S-Drive 90
PI-08-0189
600W Transaxle
PI-08-0146
E-Stop Switch
PI-08-0075
Throttle Kit
PI-08-0053
Fwd / Rev Switch
PI-08-0145
24V 5A AGM Charger
PI-11-0191
10” Swivel Caster
PI-06-0055
13” Flat Free Dual Ag
PI-06-0182 (Left)
PI-06-0183 (Right)
30A Replacement Breaker
PI-08-0045
