Champ XODA FS 898A User manual

( XODA FS 898A )
CW - 898A
Free standing
Water Dispenser Operation Manual
Content Page
Preface/ Parts 1
Piping Installation 2
Cup Holder Instruction 3
COz Cylinder Installation 4
Cold Operation Method 5
Hot Operation Method 6
Soda Operation Method 7
Safety Reminder 8
Container Instruction 9
Safety Warnning 10
Cleaning & Maintenance 11
Problem Shoot 12-13
Please read these instructions completely before operating this unit

PREFACE / PARTS
Before using this machine, we advise you to read this manual thoroughly.
Please follow the instructions for proper operation to prevent risk or damage.
Top Cover
Lid
of
Cup
Holder
Cold
+
Soda
Water
Tank
IC Board Control Panel
+— Drip Tray
Hot Water Tank ——| YL
Drain Container

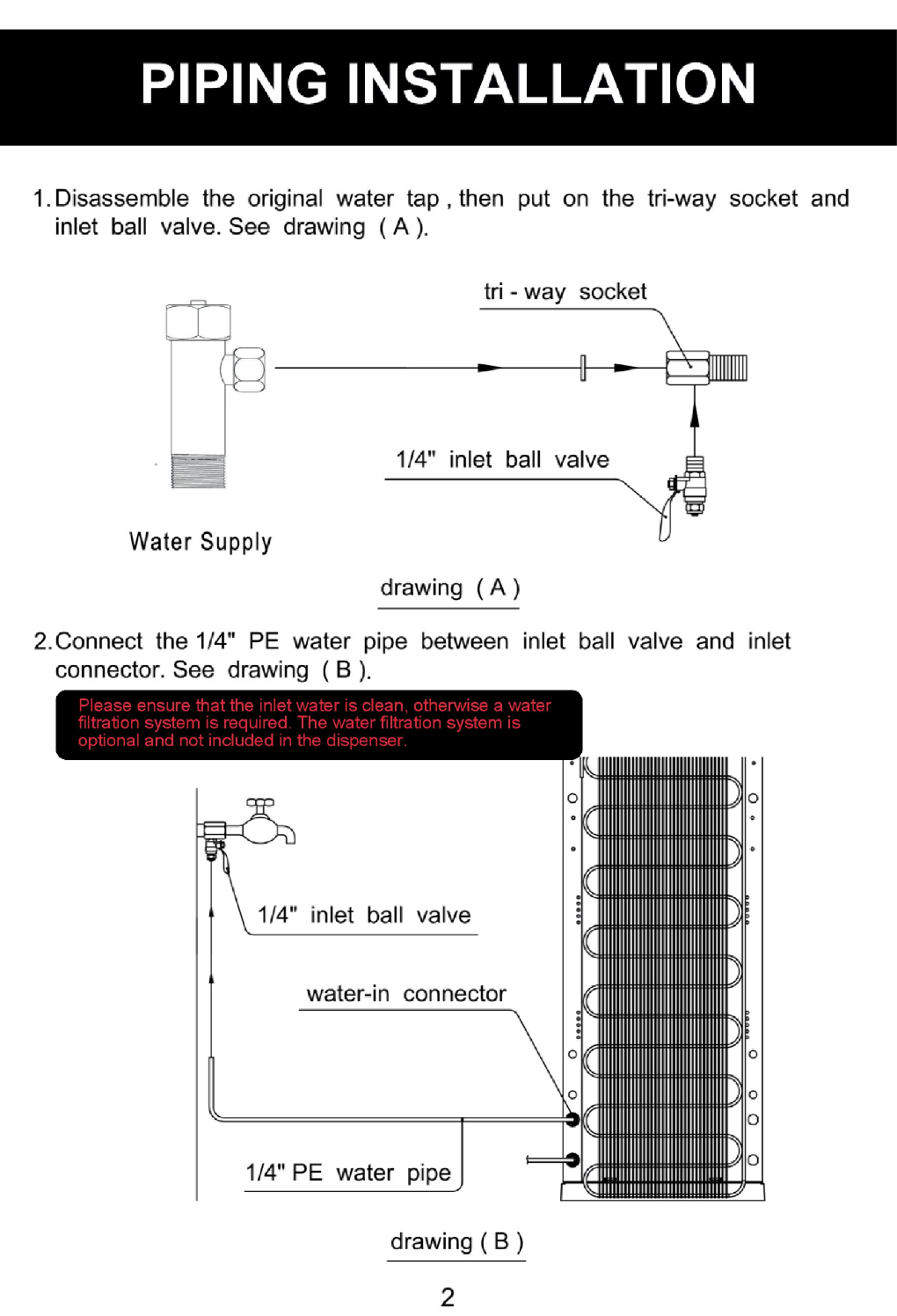

PIPING INSTALLATION
1.Disassemble the original water tap , then put on the tri-way socket and
inlet ball valve. See drawing (A).
tri- way socket
1/4" inlet ball valve
Water Supply
drawing (A)
2.Connect the 1/4" PE water pipe between inlet ball valve and inlet
connector. See drawing (B ).
1/4" inlet ball valve
water-in connector
1/4" PE water pipe
drawing (B )
2

CUP HOLDER INSTRUCTION
1.Push the clip on top
of the cup holder
lid as the arrow A
shown .
2.Hold the clip as shown
in the picture by arrow
1, then lift up the lid
as directed by arrow
3.Please load the cups into
the hidden cup holer with
bottoms up. Push cups
all the way down as
the arrow is showing till
no more may fit in.
4.Simply pull out the cups
gently when needed .

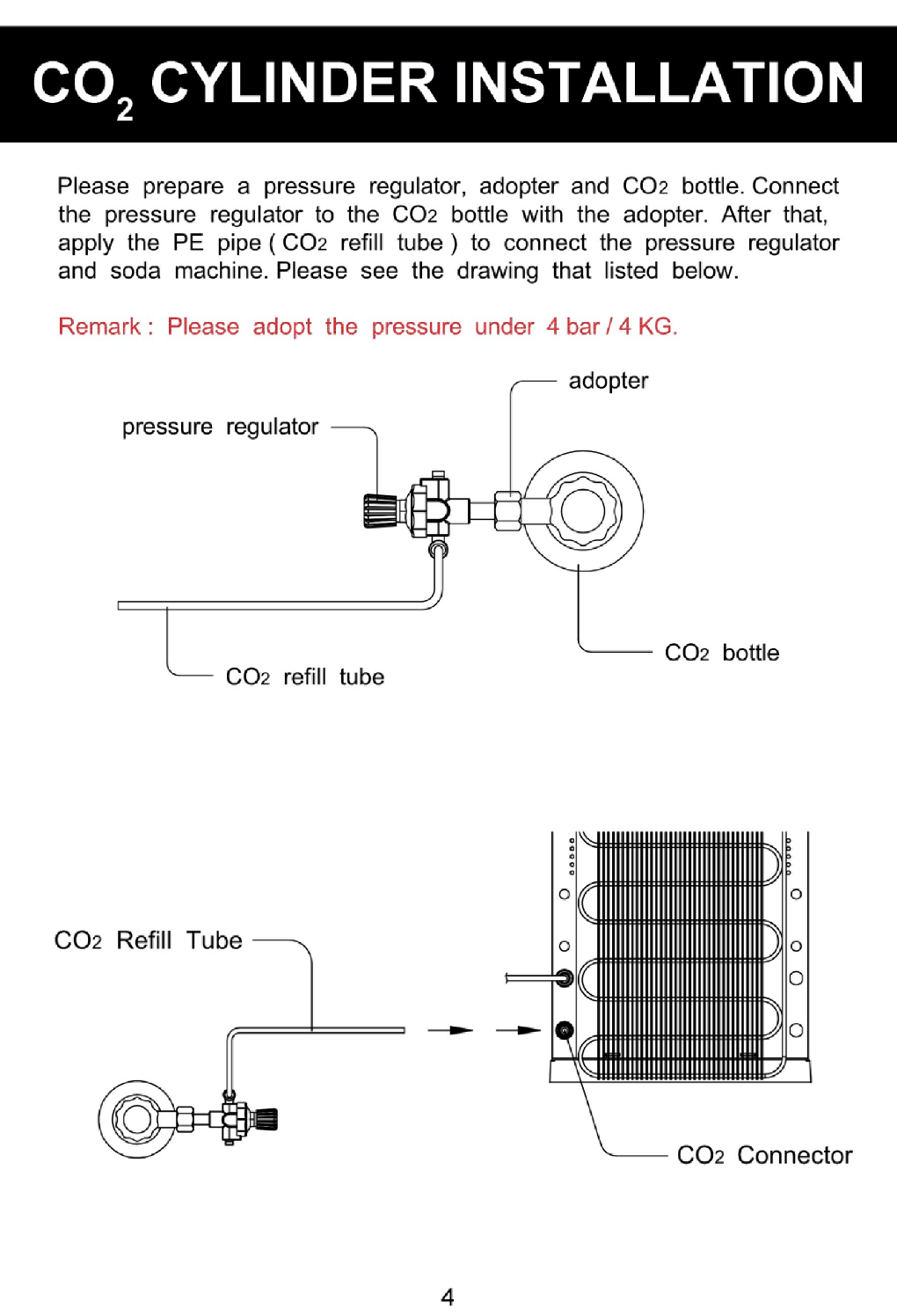

CO, CYLINDER INSTALLATION
Please prepare a pressure regulator, adopter and CO2 bottle. Connect
the pressure regulator to the COz bottle with the adopter. After that,
apply the PE pipe (COz2 refill tube ) to connect the pressure regulator
and soda machine. Please see the drawing that listed below.
Remark: Please adopt the pressure under 4 bar /4 KG.
adopter
pressure regulator
COz2 bottle
CO? refill tube
COz2 Refill Tube —*>
CQ2 Connector

COLD OPERATION METHOD
\ S
power switch
f
\ /
1.Ensure the power switches at rare
panel are OFF, then plug in the
power cord and connect inlet water.
2.Press ambient or cold water (if there
is no ambient water option) button
to dispense some water to flush fil-
ters. This is important to ensure
3.Touch and hold cold water button
to dispensed water untill water
comes out, it may take 1 - 2
minutes.
4.Turn on cold power switch at back,
the machine will start chilling
immediately. The chilling may
need up to 40 minutes.
For secure reason, the dispensing is
limited within 60 seconds. If you
need more water please touch button
again.
Cold Water Hot Water
Sparkling Water Ambient Water

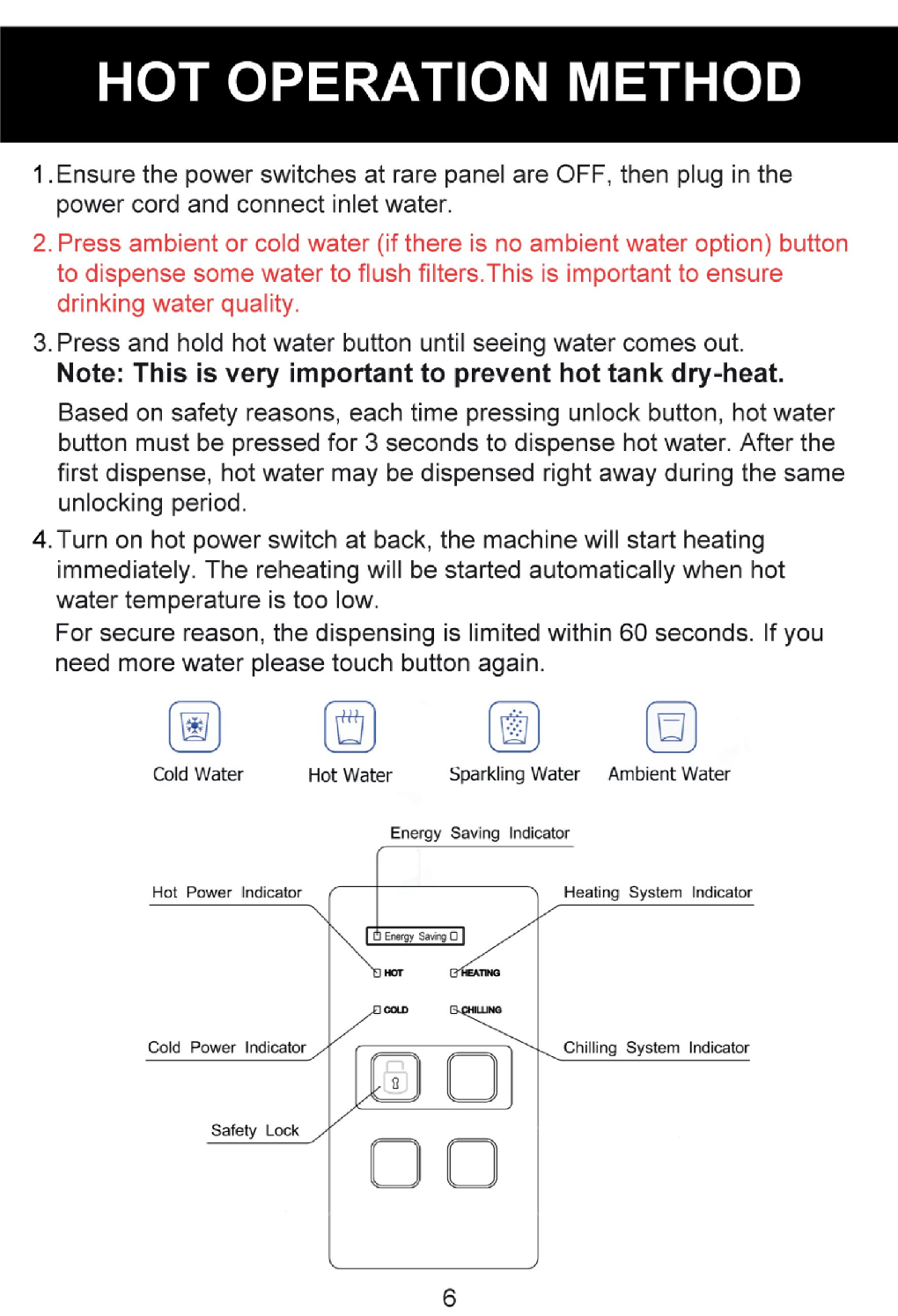

HOT OPERATION METHOD
1.Ensure the power switches at rare panel are OFF, then plug in the
power cord and connect inlet water.
2.Press ambient or cold water (if there is no ambient water option) button
to dispense some water to flush filters. This is important to ensure
drinking water quality.
3.Press and hold hot water button until seeing water comes out.
Note: This is very important to prevent hot tank dry-heat.
Based on safety reasons, each time pressing unlock button, hot water
button must be pressed for 3 seconds to dispense hot water. After the
first dispense, hot water may be dispensed right away during the same
unlocking period.
4.Turn on hot power switch at back, the machine will start heating
immediately. The reheating will be started automatically when hot
water temperature is too low.
For secure reason, the dispensing is limited within 60 seconds. If you
need more water please touch button again.
Cold Water Hot Water Sparkling Water Ambient Water
Energy Saving Indicator
NS
{a
Energy
Saving
a
HOT
‘TING:
a
Chilling System Indicator
i _)
(JU
Hot Power Indicator Heating System Indicator
Cold Power Indicator
Safety Lock

SODA OPERATION METHOD
1.Press ambient or cold water (if there is no ambient water option) button
to dispense some water to flush filters. This is important to ensure
drinking water quality.
2. Turn on the soda power switch at back, then press any button to
allow mains water filling into soda tank.
3.Please push the soda water button to drain out the primary soda
water in the tank. The newly produced soda water is now ready to
drink.
For secure reason, the dispensing is limited within 60 seconds. If you
need more water please touch button again.
Cold Water Hot Water Sparkling Water Ambient Water
>
power switch

SAFETY REMINDER
XN
ee
ti
Leave a space no less than
15cm between the wall and
dispenser .
XN
Keep the machine away from
sunlight , heat, and wetness .
/
7 ~
Be sure to use single outlet socket with correct power
voltage . Plug the power cord directly into electrical socket .
8

CONTAINER INSTRUCTION
1. The drain container comes with alarm system . Beep sounds to alert the
user when the drain container is full of water .
Remove the drain container from the machine as per picture 2 shown .
2. After the drain container is emptied , please place the drain container to
the machine .
a (2. )

SAFETY WARNNING
The appliance is not to be used by persons (including children ) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction .
This appliance can be used by children aged from 8 years and above
if they have been given supervision or instruction concerning use of the
appliance in a safe way and if they understand the hazards involved .
Cleaning and user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance and its cord
out of reach of children aged less than 8 years.
Never allow children near the water dispenser .
Never spillage on the connector .
Switch off the appliance and disconnect from supply before changing
accessories or approaching parts that move in use.
The appliances connected to the water mains by detachable hose-sets
should be the new hose-sets, that supplied with the appliance are to
be used and that old hose-sets should not be reused.
Disconnect the appliance from its power source during service and
when replacing parts .
Children shall not play with the appliance .
The edge of metal side panel is sharp, please be careful with it when
front lower cover is opened . For replacement, repair, and waste water
emptied , users MUST wear gloves to prevent injury .
10

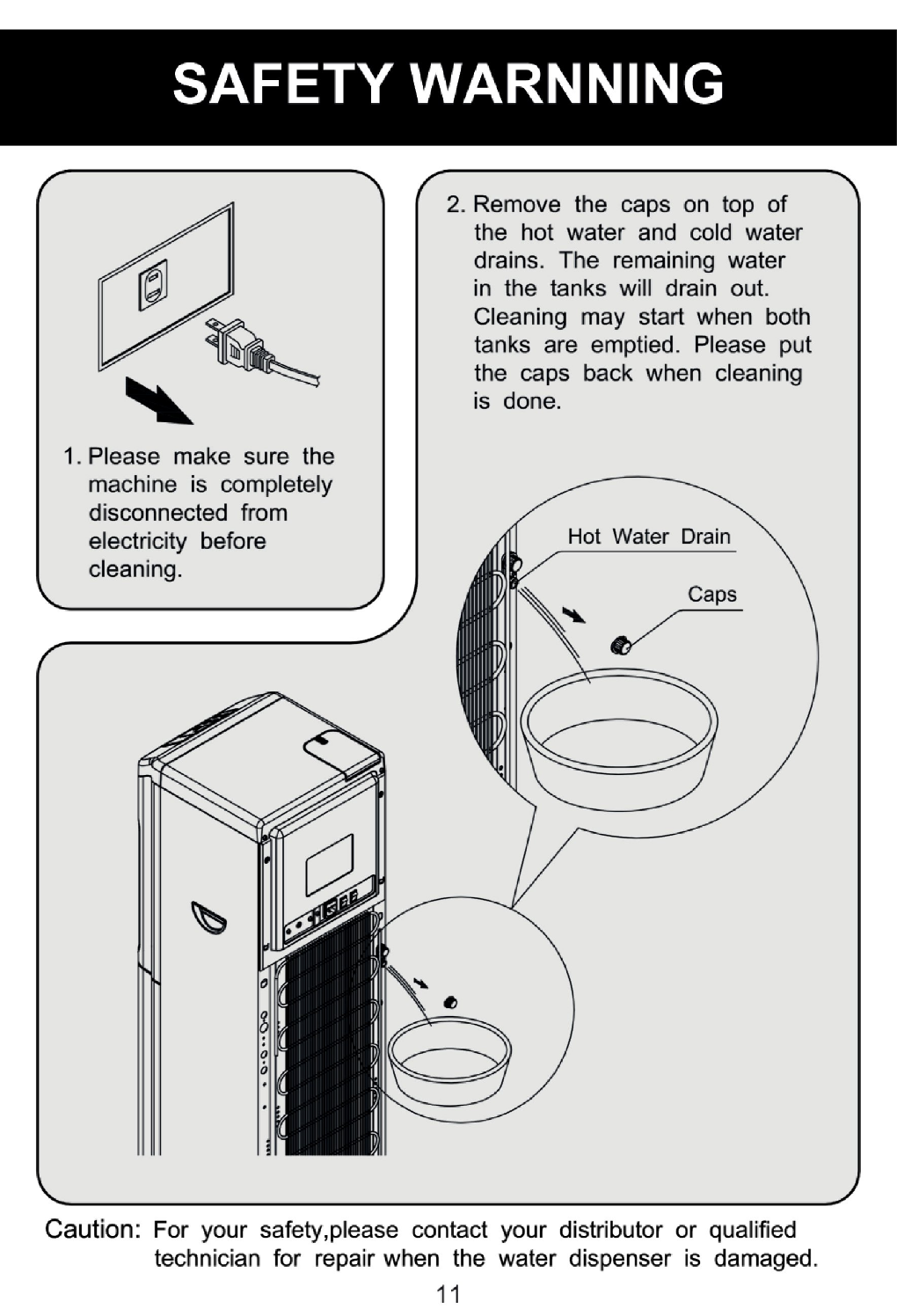

SAFETY WARNNING
(— \ >)
2. Remove the caps on top of
the hot water and cold water
drains. The remaining water
in the tanks will drain out.
Cleaning may start when both
tanks are emptied. Please put
the caps back when cleaning
is done.
1. Please make sure the
machine is completely
disconnected from
electricity before
cleaning.
XM y,
Caution: For your safety,please contact your distributor or qualified
technician for repair when the water dispenser is damaged.
11

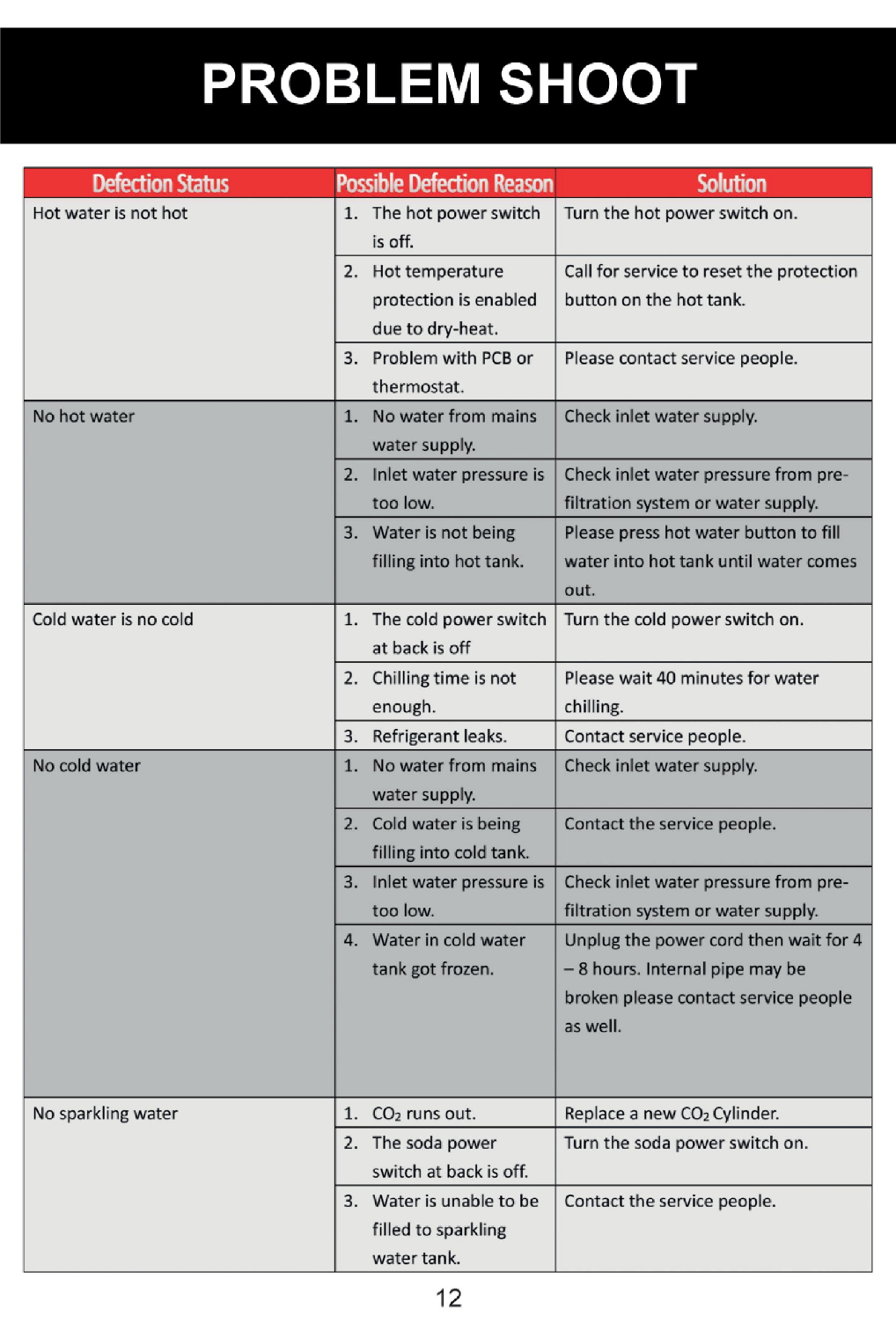

PROBLEM SHOOT
erate LUI
Hot water is not hot
est] Mime Core
1. The hot power switch
is off.
Stel
Turn the hot power switch on.
2. Hot temperature Call for service to reset the protection
protection is enabled | button on the hot tank.
due to dry-heat.
3. Problem with PCB or Please contact service people.
thermostat.
No hot water 1. No water from mains | Check inlet water supply.
water supply.
2. Inlet water pressure is | Check inlet water pressure from pre-
too low. filtration system or water supply.
3. Water is not being Please press hot water button to fill
filling into hot tank. water into hot tank until water comes
out.
Cold water is no cold 1. The cold power switch | Turn the cold power switch on.
at back is off
2. Chilling time is not Please wait 40 minutes for water
enough. chilling.
3. Refrigerant leaks. Contact service people.
No cold water 1. No water from mains | Check inlet water supply.
water supply.
2. Cold water is being Contact the service people.
filling into cold tank.
3. Inlet water pressure is | Check inlet water pressure from pre-
too low. filtration system or water supply.
4. Water in cold water Unplug the power cord then wait for 4
tank got frozen. — 8 hours. Internal pipe may be
broken please contact service people
as well.
No sparkling water 1. COz runs out. Replace a new CO: Cylinder.
2. The soda power Turn the soda power switch on.
switch at back is off.
3. Wateris unable tobe | Contact the service people.
filled to sparkling
water tank.
12

PROBLEM SHOOT
ra ray
Hot water is dripping from dispensing
aT oe alee ec se
1. Inlet water pressure is
Se
Check inlet water pressure from pre-
nozzle. too low. filtration system or water supply.
2. The solenoid valve got | Contact service people.
malfunction.
Sparkling water is dripping from 1. The remaining Wait for a few seconds, it will be
dispensing nozzle. sparkling water in stopped.
pipe is flowing due to
CO2
2. The solenoid valve got | Contact service people.
malfunction.
UV indicator light is blinking and 1. UVlampis failure or | Replace a UV lamp or check if the UV
hearing beeps when dispensing no UV lamp is wire is disconnected.
water. connected
2. UV board is failure. Contact service people.
All dispensing buttons are blinking 1. There is leakage Unplug the power cord, then dry
and hearing beeps when press detected inside of water on the internal base or ask for
button. water dispenser. service.
2. The waste water Please drain all water from waste
container is full. water container.
Bubble of sparkling water is 1. The COz and water Please wait more time.
insufficient. doesn’t mixed
properly.
2. CO almostruns out. | Replace CO: cylinder
3. CQ2 output pressure is | Please adjust output pressure to 4 bar
too low. as Suggestion.
