Champ XODA UC 105B User manual

( XODA UC 105B )
CW - M105U
Under Counter
Water Dispenser Operation Manual
Content Page
Preface/ Parts 1
Piping Installation 2
COz Cylinder Installation 3
Cold Operation Method 4
Hot Operation Method 5
Soda Operation Method 6
UV Lamp Replacement 7
Filter Replacement 8-9
Safety Reminder 10
Cleaning & Maintenance 11
Problem Shoot 12-13
Please read these instructions completely before operating this unit

ate ae
Before using this machine, we advise you to read this manual
thoroughly. Please follow the instructions for proper operation to
prevent risk or damage.
Cold + Soda Water Tank
( inside )
Top Cover
Indicating Panel
Hot Water Tank
( inside )
(— Cold Power Indicator
Chilling Indicator
COLD
era RAINE)
HOT
Hot Power Indicator
Sparkling
eS EVM Beata

PIPING INSTALLATION
1.Disassemble the original water tap , then put on the tri-way socket and
inlet ball valve. See drawing (A).
tri- way socket
1/4" inlet ball valve
Water Source
drawing (A)
2.Connect the 1/4" PE water pipe between inlet ball valve and inlet
connector. See drawing (B ).
eA
Hot Water Connector / Qe (Optional )
FZ Pre - Filtration System
FA x Ambient/Cold/Soda
go Water Out Connector
Water - in Connector
1/4" PE Water Pipe
Ball Valve
drawing (B )
2

CO2 CYLINDER INSTALLATION
Please prepare a pressure regulator, adopter and CO2 bottle. Connect
the pressure regulator to the COz bottle with the adopter. After that,
apply the PE pipe (COz refill tube ) to connect the pressure regulator
and soda machine. Please see the drawing that listed below.
Remark: Please adopt the pressure under 4 bar/4 KG.
Adopter
Pressure Regulator
CO2 Bottle
COz2 Refill Tube
CO2 Connector — C02 Refill Tube

COLD OPERATION METHOD
1.Ensure the power switches at rare panel are OFF, then plug in the
power cord and connect inlet water.
2.Press ambient or cold water (if there is no ambient water option) button
to dispense some water to flush filters. This is important to ensure
drinking water quality.
3.Touch and hold cold water button to dispensed water untill water
comes out, it may take 1 - 2 minutes.
4.Turn on cold power switch at back, the machine will start chilling
immediately. The chilling may need up to 40 minutes.
For secure reason, the dispensing is limited within 60 seconds. If you
need more water please touch button again.
Cold Water Hot Water Sparkling Water Ambient Water
(— Cold/Hot/Soda > (— Cold Water Button >»
power switch

HOT OPERATION METHOD
1.Ensure the power switches at rare panel are OFF, then plug in the
power cord and connect inlet water.
2.Press ambient or cold water (if there is no ambient water option) button
to dispense some water to flush filters. This is important to ensure
drinking water quality.
3.Press and hold hot water button until seeing water comes out.
Note: This is very important to prevent hot tank dry-heat.
Based on safety reasons, each time pressing unlock button, hot water
button must be pressed for 3 seconds to dispense hot water. After the
first dispense, hot water may be dispensed right away during the same
unlocking period.
4.Turn on hot power switch at back, the machine will start heating
immediately. The reheating will be started automatically when hot
water temperature is too low.
For secure reason, the dispensing is limited within 60 seconds. If you
need more water please touch button again.
r
\
¢
Operation Buttons
Cold Water Hot Water
Sparkling Water Ambient Water

SODA OPERATION METHOD
1.Press ambient or cold water (if there is no ambient water option) button
to dispense some water to flush filters. This is important to ensure
drinking water quality.
2. Turn on the soda power switch at back, then press any button to
allow mains water filling into soda tank.
3.Please push the soda water button to drain out the primary soda
water in the tank. The newly produced soda water is now ready to
drink.
For secure reason, the dispensing is limited within 60 seconds. If you
need more water please touch button again.
Cold Water Hot Water Sparkling Water Ambient Water
(— Cold/Hot/Soda > (— >
power switch

UV LAMP REPLACEMENT
Please replace UV lamp immediately when touching button with hearing
2 times long beep sound and the UV indicator on front panel is blinking.
Unplug power cord, and remove top cover from machine as indicated by
arrow A in the image 1.TO disconnect the wire of UV lamp, and
remove UV lamp to replace a UV lamp.
Va
Top Cover
1
>
(~ 3)

FILTER REPLACEMENT
1. Push up top cover by following direction as arrow A to remove top
panel
2. Use a tool to unlock the locker at the position of arrow B.
3. To revolve the locker 90 degree counterclockwise then pull locker
up.
4. Pull the filter set up for replacement .
c >
Top Cover

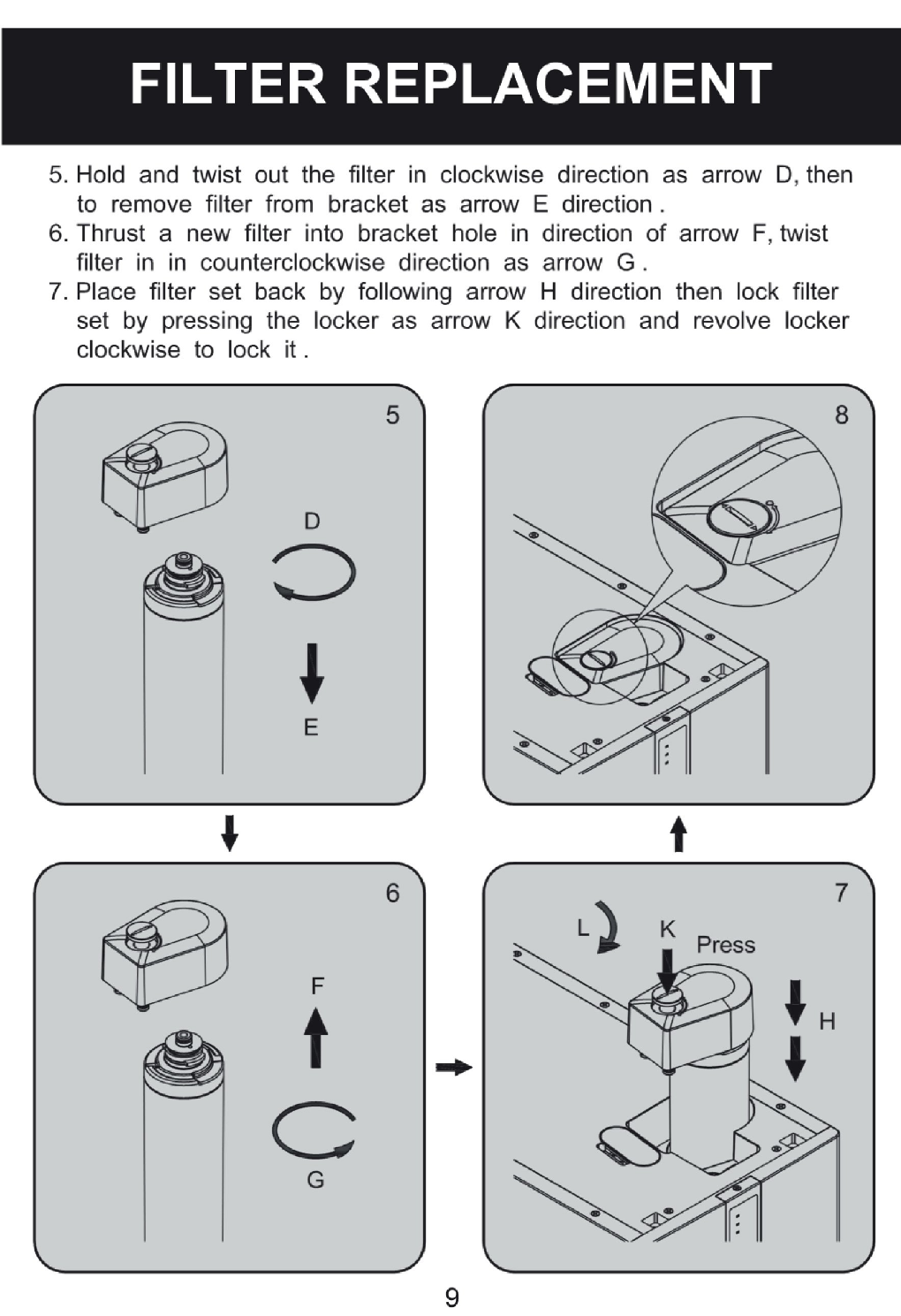

FILTER REPLACEMENT
. Hold and twist out the filter in clockwise direction as arrow D, then
to remove filter from bracket as arrow E direction.
. Thrust a new filter into bracket hole in direction of arrow F, twist
filter in in counterclockwise direction as arrow G.
. Place filter set back by following arrow H direction then lock filter
set by pressing the locker as arrow K direction and revolve locker
clockwise to lock it.
5] 4

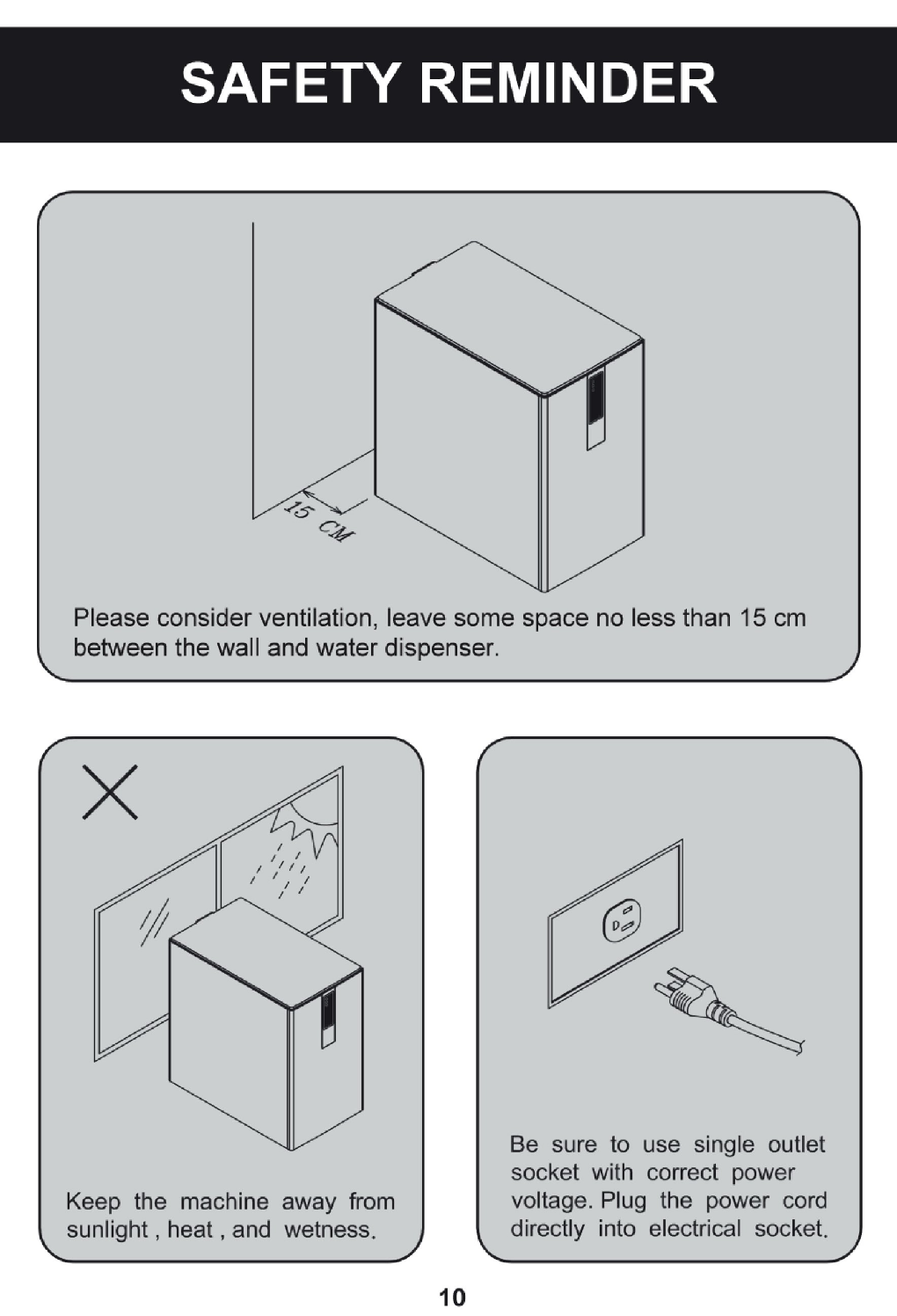

SAFETY REMINDER
Please consider ventilation, leave some space no less than 15 cm
\ between the wall and water dispenser.
J
Be sure to use single outlet
socket with correct power
Keep the machine away from voltage. Plug the power cord
sunlight , heat , and wetness, D directly into electrical socket.
XK KM /
10

CLEANING & MAINTENANCE
( \
>
Hot Water Drain
1. Please make sure the
machine is completely
disconnected from
G electricity before cleaning
/
(—
2. Remove the cap of hot
water drain. The remaining
water in the tank will drain
out.
Cleaning may start when
both tank are emptied.
Please put the cap back
when cleaning is done.
X J
Caution : 1. Prevent water entering into the circuit board or other electric
parts while cleaning. The dispenser maybe damaged if water
go into interior electric parts.
2. For your safety , please contact your distributor or qualified
technician for repair when the water dispenser is damaged.
11

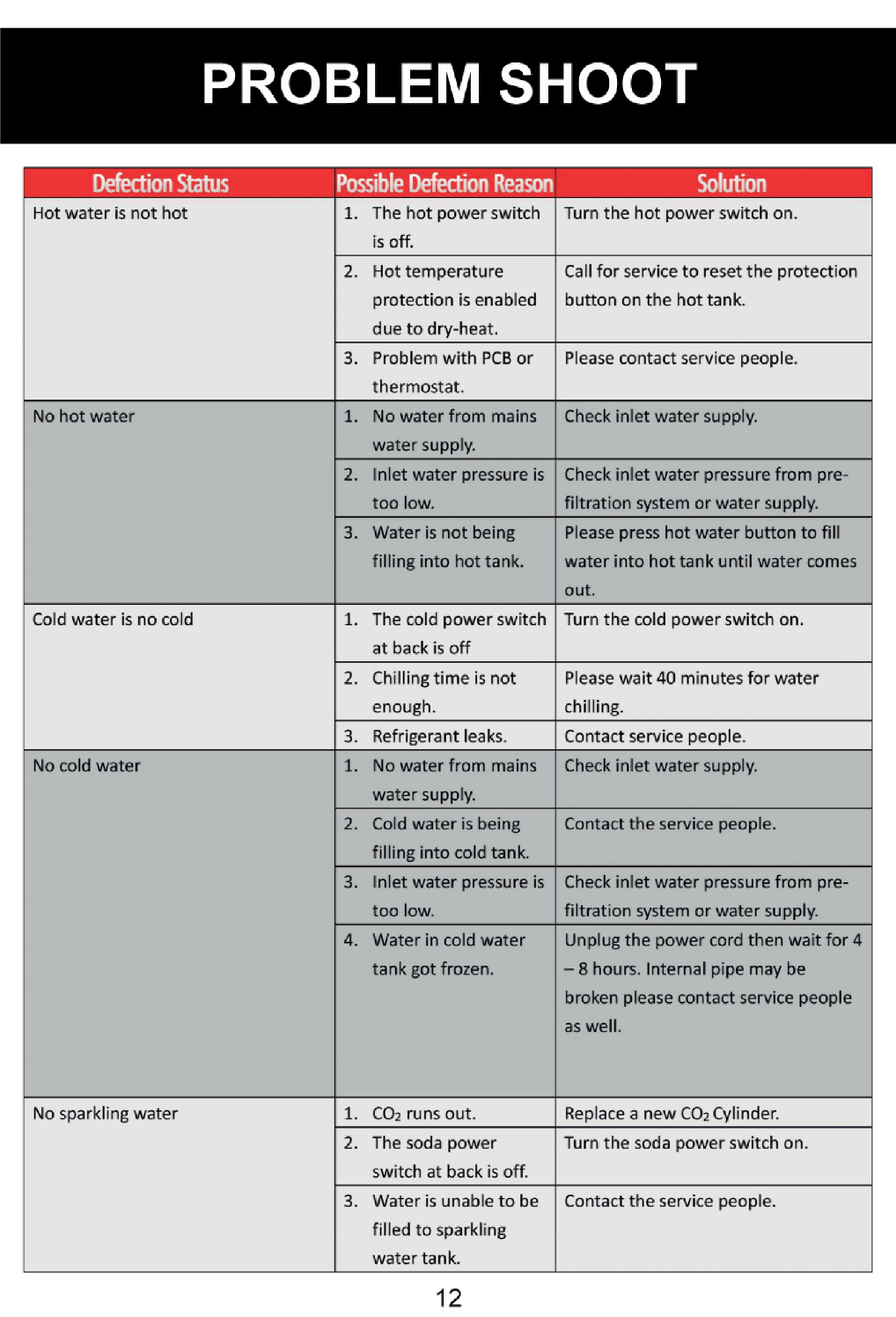

PROBLEM SHOOT
erate LUI
Hot water is not hot
est] Mime Core
1. The hot power switch
is off.
Stel
Turn the hot power switch on.
2. Hot temperature Call for service to reset the protection
protection is enabled | button on the hot tank.
due to dry-heat.
3. Problem with PCB or Please contact service people.
thermostat.
No hot water 1. No water from mains | Check inlet water supply.
water supply.
2. Inlet water pressure is | Check inlet water pressure from pre-
too low. filtration system or water supply.
3. Water is not being Please press hot water button to fill
filling into hot tank. water into hot tank until water comes
out.
Cold water is no cold 1. The cold power switch | Turn the cold power switch on.
at back is off
2. Chilling time is not Please wait 40 minutes for water
enough. chilling.
3. Refrigerant leaks. Contact service people.
No cold water 1. No water from mains | Check inlet water supply.
water supply.
2. Cold water is being Contact the service people.
filling into cold tank.
3. Inlet water pressure is | Check inlet water pressure from pre-
too low. filtration system or water supply.
4. Water in cold water Unplug the power cord then wait for 4
tank got frozen. — 8 hours. Internal pipe may be
broken please contact service people
as well.
No sparkling water 1. COz runs out. Replace a new CO: Cylinder.
2. The soda power Turn the soda power switch on.
switch at back is off.
3. Wateris unable tobe | Contact the service people.
filled to sparkling
water tank.
12

PROBLEM SHOOT
ra ray
Hot water is dripping from dispensing
eT oe ame eee
1. Inlet water pressure is
Se
Check inlet water pressure from pre-
nozzle. too low. filtration system or water supply.
2. The solenoid valve got | Contact service people.
malfunction.
Sparkling water is dripping from 1. The remaining Wait for a few seconds, it will be
dispensing nozzle. sparkling water in stopped.
pipe is flowing due to
CO2
2. The solenoid valve got | Contact service people.
malfunction.
UV indicator light is blinking and 1. UVlampis failure or | Replace a UV lamp or check if the UV
hearing beeps when dispensing no UV lamp is wire is disconnected.
water. connected
2. UV board is failure. Contact service people.
All dispensing buttons are blinking 1. There is leakage Unplug the power cord, then dry
and hearing beeps when press detected inside of water on the internal base or ask for
button. water dispenser. service.
2. The waste water Please drain all water from waste
container is full. water container.
Bubble of sparkling water is 1. The COz and water Please wait more time.
insufficient. doesn’t mixed
properly.
2. CO almostruns out. | Replace CO: cylinder
3. CQ2 output pressure is | Please adjust output pressure to 4 bar
too low. as Suggestion.
