CLINIMAX SIMEX 09001 Technical manual

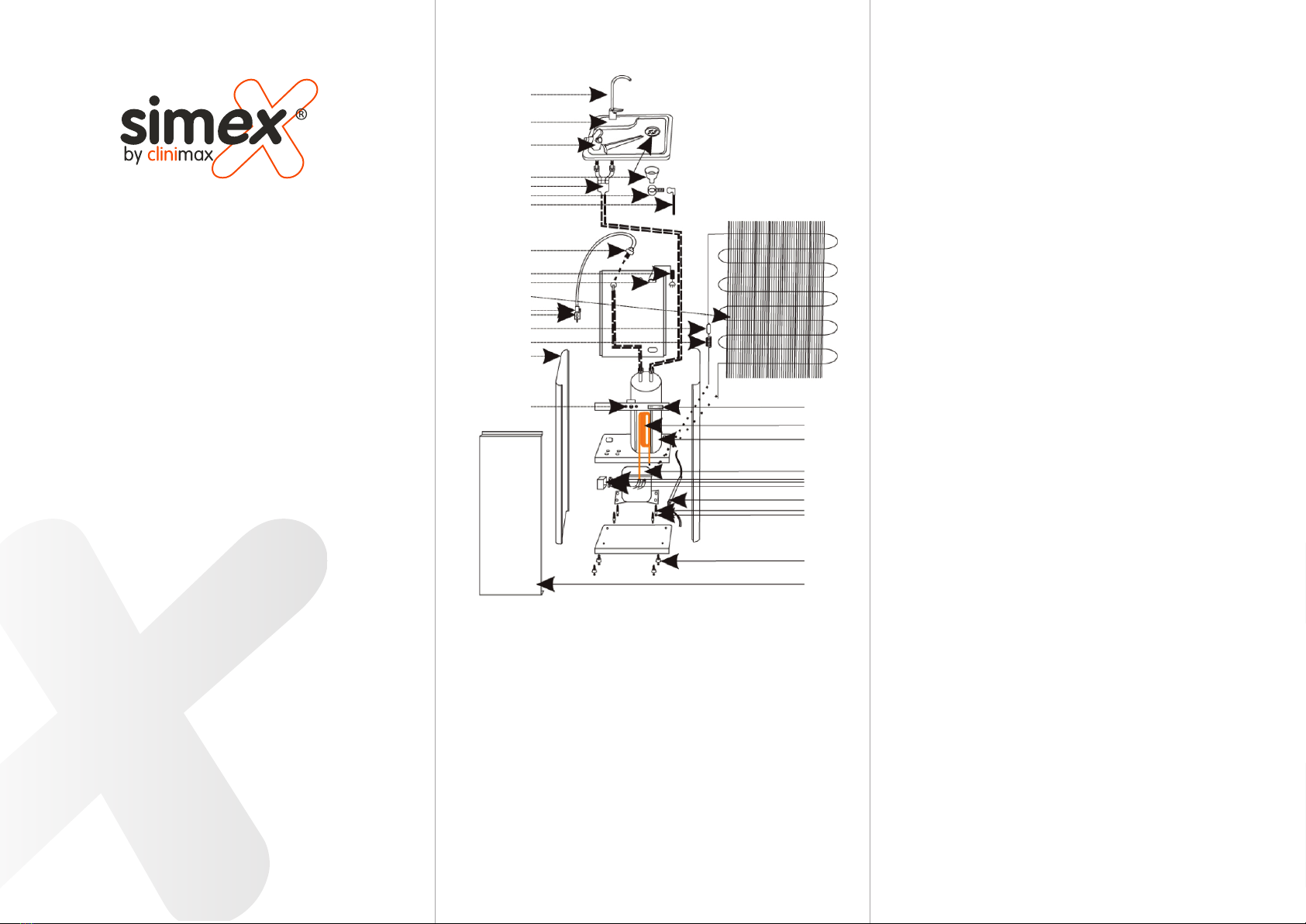

PARTS NOTES
1. Gooseneck tap
2. Top cover
3. Drinking water tap
4. Water tray
5. 3-way valve
6. Drainage elbow
7. Waste water pipe
8. In –water screw cap
9. Plug line
10. Junction box
11. Condensor
12. Water tee connection
13. Water inlet valve
14. Dryness filter
15. Capillary tube
16. Side pannel
17. Cold thermostat
18. On/off button
19. Evaporator
20. Cold tank
21. Compressor
22. Protector
23. Starter
24. Protective cover
25. Wire
26. Anti-shock pad
27. Bolt
28. Rubber foot
29. Front pannel
4
5
6
7
1
2
3
8
9
10
11
12
13
14
15
16
17 18
19
20
24
25
26
27
28
29
23
22
21
MANUAL INSTRUCTIONS
1. THIS DEVICE IS INTENDED TO BE USED IN DOMESTIC
AND SILIAR APPLICATION.
2. THIS DEVICE CAN BE UISED BY CHILDREN WITH AGED
8YEARS AND PEOPLE WITH REDUCED
PHYSICAL,SENSORY OR MENTAL ABILITIES OR LACK OF
EXPERIENCE AND KNOWLEDGE,IF THEY HAVE BEEN
GIVEN SUPERVISION OR APPROPRIATE TRAINING
REGARDING THE USE OF DEVICE IN A SAFE MANNER
AND UNDERSTAND THE DANGERS INVOLVED.
3. CHILDREN SHOULD NOT PLAY WITH THE DEVICE.
4. CLEANING AND MAINTENANCE TO BE PERFORMED BY
THE USER SHOULD NOT BE CARRIED OUT BY CHILDREN
WITHOUT SUPERVISION.
5. IF THE POWER CABLE IS DAMAGED, IT MUST BE
REPLACED BY THE MANUFACTURER OR BY ITS
AFTER-SALES SERVICE OR SILIAR QIALITIED
PERSONNEL IN ORDER TO AVOID A DANGER.
OPERATION AND MAINTENANCE
A Maintenance for the machine
1. Please often clean the surface of the water cooler machine
and keep it clean.
2. Do not pour tea dregs into the basin to avoid blocking up
the drain pipe.
3. Cut off the power if long time of no using (over three
days)to avoid overheating.
4. Shall keep the surroundings and the ground near the
machine dry, if there are leakages, shall close the water
recourse and cut off the power, and then inform our
company or agents.
B Maintenance for the filter element
1. Two filter elements usually need to be changed one time
in 3-6months or so, (it differs from water quality and
quantity)to avoid the appearances of dregs and bacterium
etc. Please purchase them from the distributors of our
company.
2. Shall cut off the power when replacing the filter elements,
close the water recourse and open the front panel, back-out
the shell of the filter element clockwise( there are special
tools provided with the machine), tear off the filter element,
change new filter element( at the position of the inlet, it is
colating at the position of the outlet, it is finely filtering),
screw the shell of the filter element counter clockwise.
OPERATION INSTRUCTION
Running water clarification type
Water Cooler
Ref. 09001
PRECAUTION
Don’t connect the power until the water
comes out after opening the water tap!
• Parts notes
• Manual instruction
• Operation and maintenance
• Installation
• Features
• Technical data
• Maintenance
• Annex list
Before installation, please read the
booklet of directions in every detail so as
to understand corrects methods for
installation and operation. please take
care of this booklet of directions and the
guarantee statement.

INSTRUCTIONS
A .Before installation(do not get through the power)
1. Place the machine on level ground, keep it 15cm away
from the wall to let air through.
2. Do not place high-pressure articles, combustibles and
conducting materials etc. near the machine.
3. Do not keep it sun-scorched and rain-drenched to avoid
dangers.
4. Please use running water recourse, do not use other
water recourses insufficient, need to add a blower pump, if
the hydraulic pressure too high, need to add a pressure
reduction valve. We suggest the water pressure is adjusted
to 0. 2MPa-0. 25MPa.
B. Disposing pipes
1. The method for disposing pipes in this booklet( See parts
notes ) only give some instructions to ordinary
circumstances, under special circumstances, please design
another in accordance with the work field (Ask our
company or agents to design and install).
2. Shall install a water inlet valve on the intake channel, for
the convenience of maintenance in the future.
3. Please adopt the standardized fittings provide by the
machine, if adopt other fittings, the resistance to pressure of
the fittings shall be 1 Mpa, to avoid a leaking in the future.
4. Take down the front panel( lift up the front panel and pull
it outward),tear off the shells of two filter elements, install
two filter elements provided the machine( at the position of
the inlet, it is colating, the position of outlet, it is finely
filtering ) please screw it with a special wrench.
5. Separately install two stainless steel hook-type taps two
outlets on the basin.
6. Please connect the drinker and the running water pipe
with 3/8 joint and a highpressure soft tube; the drain pipe
connects the outlet of the machine.
C Power distributions (please do not get through the power
first)
1. Please distribute the power according to the voltage
indicated on the data plate of the machine.
2. Must use three-core sockets with ground wires( the
ground wire shall be connected well.
3. After finished distribution, do not get through the power
to avoid overheating and damaging the machine.
D Steps of installation
1. All the allocations and distributions shall be finished in
accordance with the above instructions.
2. Open the water inlet valve, lift up the press-handles of the
red and blue taps. Lay down the press-handles until two
taps drain water for a while.
3. Open the cooling switch.
4. Install the front panel.
After finished the installation, please check whether there
are leakages from the machine, if there are leakages, please
cut off power immediately and close the water recourse and
repair it.
FEATURES
This machine can get rid of dregs, peculiar smell, colon
bacillus, slight chemical medicines etc.
This machine possesses big capacity, stainless steel shell,
safe and sanitary stainless steel inner bladder, low noise etc
This machine is a kind of drinker combining purification,
supply for continual cold and warm water and is an ideal
drinker suitable for schools hospitals, organs and factories
and various public places etc.
Function Voltage Frequency Cooling Power Cooling
Capacity
Cold Water 50-60 Hz 220V - 240 V 120 W 25 L/h (7-12 ºC)
TECHNICAL DATA
PROBLEM REASON MÉTODO DE FIJACIÓN
Not cooling
Not cooling
Water leakage
Water too small
No water drain
out of the tap
Drainage not smooth
The cooling switch
keeps closed
The socket is
cut off
The water pipe
damaged
The filter elements
is dirty
Water inlet valve
closed or water break
Dregs has been blocked
up the drain pipe
Open the switch
Change the socket
or check the power
Closed the power
and inform repairs
Change the filter elements
Open the intake valve
or check the water
resource
Remove the obstruction
with the iron wires
MAINTENANCE
*If there are any other breakdowns, please contact with our company or agents.
ANNEX LIST
NAME
6M water pipe
Filter
Drain pipe
Joint
Wrench
Inlet tube
Operation
Instruction
QUANTITY
1 PC
1 PC
2 Sets
1 PC
1 PC
1 PC
1 Set / 2 PCS
