Elkay LBWD00XXC Installation manual

INSTALLATION, CARE & USER MANUAL
Built-in Filtered Water Dispenser

[phone] 1 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser
Contents
1. General Information........................2
1.1 Installation, Care & User Manual ..........2
1.2 Disclaimer ............................2
1.3 Serial Number Location .................2
1.4 Contact Information.....................2
1.5 Notice of Changes .....................2
1.6 Models Covered in Manual ...............3
1.7 Radio Frequency Compliance.............3
1.8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Safety ...................................4
2.1 General ..............................4
2.2 Safety Alert Symbol.....................4
2.3 Personal Safety........................4
2.4 Property Damage ......................5
3. Installation Preparation .....................5
3.1 General Information ....................5
4. Installation ...............................6
4.1 Tools Required ........................6
4.2 Installer Supplied Parts Required ..........6
4.3 Critical Depth Dimensions................6
4.4 Mounting Height Dimensions .............7
4.5 Water Dispenser Installation ..............7
4.5.1 Installing Water Dispenser into the Wall 7
4.5.2 Installing the Filter Box..............8
4.5.3 Connecting the Water Lines..........9
4.6 Connecting the Optional Catch Basin Drain 10
4.7 Remote Filter Location .................12
4.8 Remote Water Chiller ..................13
5. Startup .................................13
6. Cleaning ................................14
7. Maintenance .............................14
7.1 Filter Cartridge Replacement ............14
8. Troubleshooting..........................16
9. Frequently Asked Questions (FAQ) ..........16
10. Wiring Diagram ..........................17

Elkay Manufacturing Company 2 [phone]
Built-in Filtered Water Dispenser 1000005232 (Rev. A - 04/19)
1. General Information
1.1 Installation, Care & User Manual
Read all instructions carefully BEFORE starting the
installation and familiarize yourself with the various parts
of this product.
This manual contains step-by-step installation,
adjustment, and maintenance instructions for the Built-in
Water Dispenser. Followed carefully, these instructions
will result in an easy, trouble-free installation of this Elkay
Manufacturing Company (Elkay) product. Additional use
and care documents can be found on the Elkay website
at http://www.elkay.com/support.
Any deviations, additions, or deletions from the
described methods, without the prior written approval of
our Customer Care department, will void the warranty
covering this product.
Make sure the installation and use of this product meet all
local, state, and federal plumbing and electrical codes.
Save these instructions for future reference.
WARNING
To avoid product or property damage, personal
injury, or even possible death, carefully read,
understand, and follow all the instructions in
this Installation, Care, & Use Manual before installing
this product.
Improper installation, use, and/or maintenance of
this product could cause a dangerous situation that
results in injury or death.
Do not operate power tools unless you read and
understand the instructions and warnings in this
and all other applicable manuals. Proper use of tools
and the products described in this guide is your
responsibility.
Failure to follow these instructions could result in
personal injuries, water damage, and other damage
to oors, pipes, walls, and other portions of your
home.
1.2 Disclaimer
The information contained in this Installation, Care, & Use
Manual is given free of charge. It is based upon technical
data which we believe to be reliable and is intended
for use by persons having knowledge of this technical
area at their own discretion and risk. Elkay assumes no
responsibility for results obtained or damage incurred
from the use of this material either in whole or in part by
the buyer.
1.3 Serial Number Location
Please use the serial number located on the inside right
wall of the main enclosure, just above the junction box.
Use this serial number when contacting us with questions
concerning the installation of this product.
1.4 Contact Information
General Information
Elkay Manufacturing Company
2222 Camden Court
Oak Brook, IL 60523
Phone: [phone]
Email: [e-mail]
Website: http://www.elkay.com
USA/Canada Customer Care
Phone: [phone]
Email: [e-mail]
International Customer Care
Phone: [phone]
Email: [e-mail]
Installation Services
Phone: [phone]
Email: [e-mail]
Website: http://www.elkay.com/contact-us/install
1.5 Notice of Changes
The information, specications, and illustrations in this
manual are based on the information that was available
at the time this material was written and can change at
any time.
Dimensions are given in inches (") and millimeters (mm).

[phone] 3 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser
1.6 Models Covered in Manual
LBWD00XXC
LBWD06XXK
1.7 Radio Frequency Compliance
The water dispenser and lter communicate with each
other through a Near Field Communication (NFC) device.
This short-range, wireless connectivity technology is
designed to monitor the status of the lter and to alert the
user when it is time to change the lter.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two (2) conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modications not approved by the
manufacturer could void the user’s authority to operate
the equipment.
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept
any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de
license. L’exploitation est autorisée aux deux conditions
suivantes: (1) l’appareil ne doit pas produire de
brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. The user
should avoid prolonged exposure within 20 cm of the
antenna, which may exceed the FCC radio frequency
exposure limits.
1.8 Warranty
This product is covered by a Limited Warranty and Elkay
will not be held responsible for damage of any kind in
connection with the installation of the product.
Refer to the Elkay website http://www.elkay.com/warranty
and click on DRINKING WATER PRODUCT WARRANTY

Elkay Manufacturing Company 4 [phone]
Built-in Filtered Water Dispenser 1000005232 (Rev. A - 04/19)
2. Safety
THINK
SAFETY!
Think Safety
Before performing any work, read and
understand the safety instructions in
this manual.
2.1 General
The Elkay Manufacturing Company (Elkay) cannot
anticipate every possible circumstance that might involve
a potential hazard during the installation or maintenance
of this product. The warnings and instructions in this
Installation, Care, & Use Manual are, therefore, not
all-inclusive. If a tool, installation procedure, or work
method that is not specically recommended by Elkay is
used, you must be satised that it is safe for yourself and
others. You should also make sure that the product will
not be damaged by the methods you choose.
Most work-related accidents are caused by failure to
observe basic safety rules or precautions. An accident
can often be avoided by recognizing potentially
hazardous situations before an accident occurs. As you
install and maintain this product, you must be alert to
potential hazards. You should also have the necessary
training, skills, and tools to perform any installation or
maintenance procedure.
2.2 Safety Alert Symbol
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
This manual contains WARNINGS, CAUTIONS,
NOTICES, SAFETY INSTRUCTIONS, and NOTES which
must be followed to prevent the possibility of improper
service, damage to the equipment, personal injury, or
death. The following keywords call the reader’s attention
to potential hazards.
Hazards are identied by the “Safety Alert Symbol”
and followed by a signal word such as “WARNING” or
“CAUTION”.
2.3 Personal Safety
WARNING
These warnings indicate a potentially hazardous
situation which, if not avoided, could result in serious
injury or death. Follow all instructions related to the
installation and/or maintenance of this product (unit).
Personal Protection
Be sure to use all personal protective
equipment, such as sturdy safety glasses,
work shoes, hearing protection, and cut resistant
gloves, whenever necessary, to ensure your own
safety.
To avoid eye injury, always wear protective
glasses with side shields when using
power tools. Also, make sure no one else
can be injured by ying particles when using
power tools.
Always wear ear protection, such as
earmuffs or earplugs, when using power
tools.
Wear protective cut resistant gloves
during installation to protect against
sharp edges from sheet metal
components.
Power Tool Hazard
To prevent personal injury or possible death,
always follow the electrical safety
recommendations of the power tool’s manufacturer.
• Do not use power tools in an unsafe manner.
• Power tools should only be connected to a circuit
protected by a ground-fault circuit interrupter
(GFCI).
• If an extension cord is required, always use an
appropriate extension cord.
Shock and Electrocution Hazards
Failure to follow these instructions could result
in severe electrical burns, signicant injuries,
and even death.
Water will conduct electric current to
create a short circuit, resulting in
injury or death.
• Never use electric power tools around water or
wet oors/surfaces.
• Keep all liquids away from electrical cords and
power tools.
• If an extension cord is required, always use an
appropriate extension cord.
• DO NOT create a short circuit between a source
of electricity and a liquid by being in contact with
both simultaneously.

[phone] 5 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser
WARNING
Contacting live electrical wiring with
power tools or hand tools can cause
serious injury or death.
• Make sure all related circuit breakers are turned
OFF.
• Test for live circuits or wiring inside any wall
where installation of the product requires cutting
into a wall.
Prior to any maintenance, make sure the
unit is disconnected from the power
source and the circuit breaker is turned
OFF.
Prior to installation, test for live circuits or
wiring inside the wall before cutting or
drilling into the wall. Before working near
any electrical circuit or wiring, remove all power and
use a circuit tester to verify the power has been
disconnected. Contact with live electricity can cause
serious bodily injury and in some cases death.
CAUTION
These cautions indicate a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury. Follow all instructions related to
installation and/or maintenance of this product.
Tripping Hazard
Personal injury can result from tripping over
power cords, tools, or other installation items.
DO NOT leave items laying around the work area.
Cutting Hazard
The installation of this product requires using
power tools.
Keep hands away from the cutting edge of any
tool used in the installation of our product.
Placing ngers in or around the cutting blades
could result in serious personal injury.
Use Proper Tools
Always use proper tools which are in good
working condition during the installation of the
product.
2.4 Property Damage
NOTICE
Inspect Before Cutting
Make sure no electrical wiring or plumbing is
present before cutting into a wall.
3. Installation Preparation
NOTICE
The installation of this product
requires electrical and
plumbing connections that use specic skills and
knowledge. If you are unsure or not qualied to make
these connections, consult a qualied plumber,
electrician, or installer for this installation.
Professional installation is recommended.
3.1 General Information
1. This water dispenser is designed for indoor use only
and should not be installed outdoors or in a humid
environment. This water dispenser should not be
installed on exterior walls.
NOTICE A water supply pressure below
40 psi will result in decreased
water ow through the unit and damage to the
product. A pressure above 105 psi will also cause
damage to the product.
2. Make sure the water supply pressure to the product
is between 40 and 105 psi. The water dispenser with
lter requires 40 psi minimum water pressure.
3. Use care when opening and removing the packaging
to prevent damage to the product.
a. Inspect the product for any shipping damage and
report it immediately to the location of purchase.
Installation of a damaged product will void the
warranty.
b. Conrm that all parts have been included for the
proper installation of this product. Contact the
location of purchase if damaged parts are found.
NOTICE Make sure no electrical wiring,
potable water inlet pipes, or
drain water outlet pipes will be damaged during
installation of the product. Damage to any of these
items can cause electrical damage, re, and/or water
damage.
4. Shut off the water supply source and disconnect
power to the electrical circuit being used to operate
the product before starting the installation.

Elkay Manufacturing Company 6 [phone]
Built-in Filtered Water Dispenser 1000005232 (Rev. A - 04/19)
4. Installation

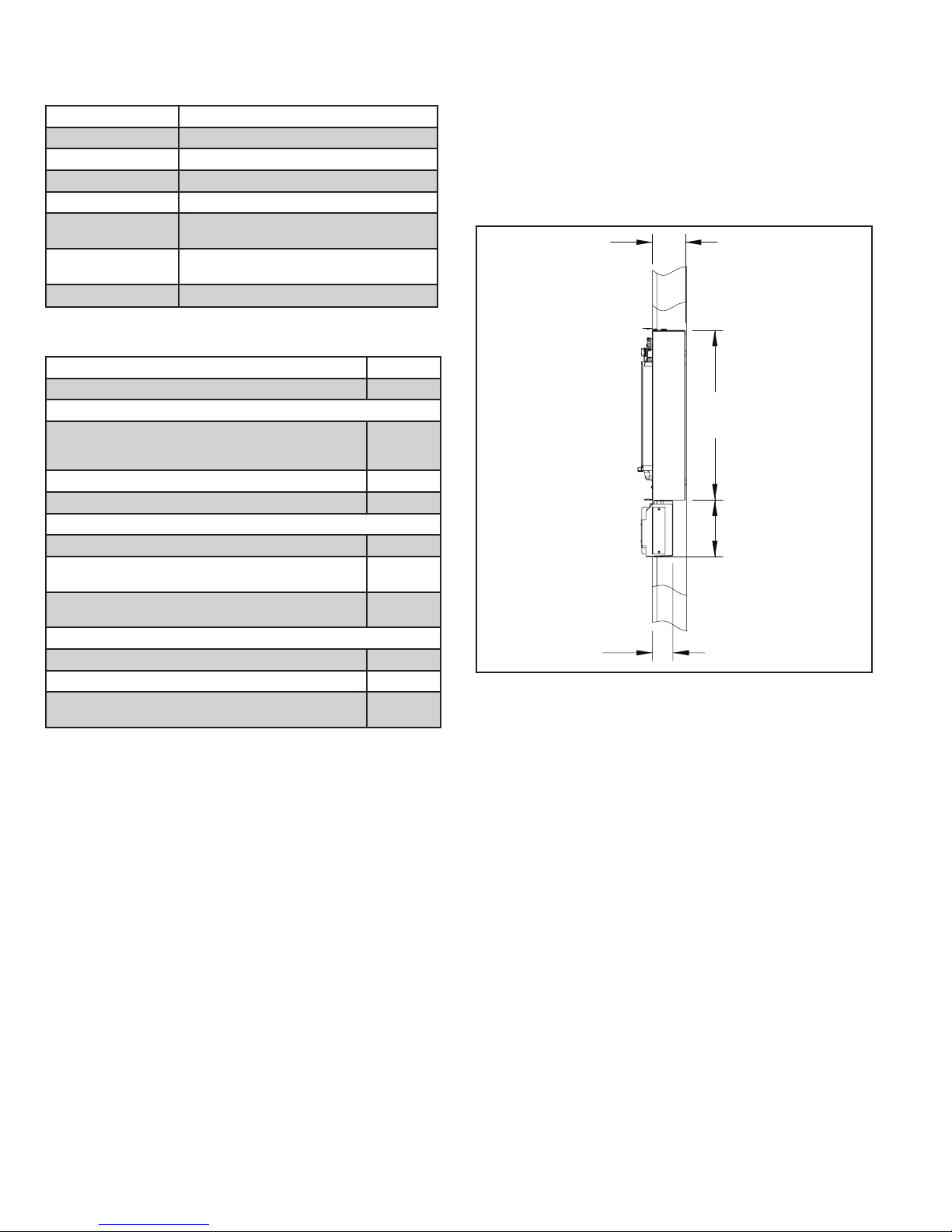

4.1 Tools Required
Tool Used For
Tape Measure Locate the mounting opening.
Wall Cutting Tool Remove section of wall to insert unit.
Level Proper mounting into the wall cavity.
Phillips Screw Driver Remove electrical box cover.
Various Electrician's
Hand Tools
Connecting power source to the unit's
wiring.
Various Plumber's
Hand Tools
Connecting unit's plumbing to the household
water source and waste drain.
3/32 Allen Wrench Remove the front covers.
4.2 Installer Supplied Parts Required
Description Qty.
#8 Flathead Screws 1-1/4" long. 8
Electrical
12/2 with ground electrical wire (depending on local
building codes the installation could require rigid
conduit, armored cable, or plastic sheath NM-B cable).
—
Electrical wire nuts (appropriate size). —
GFCI circuit (connected into an electrical circuit). 1
Water
3/8" exible water tubing (copper or plastic). —
Quarter-turn shut off valve at the location of the water
source.
1
1/4 inch copper or plastic tubing if a remote lter is
installed
15 feet or
less
Optional Catch Basin Drain
1-1/4" P-trap and related parts. —
Plumbers Putty —
Additional 3/4 inch drain hose if the installation requires
a longer drain hose than the supplied 13-inch long hose.
—
4.3 Critical Depth Dimensions
1. Make sure the wall cavity is deep enough to house the
water dispenser (dimension A).
2. If the optional lter unit will be installed make
sure there is adequate space to route electrical
wiring between the wall and the lter box which
is approximately 1-5/8" for standard 2 x 4 wall
construction.
A
B
C
D
Water Dispenser
A) 3-7/8" (97 mm) deep. B) 19-7/8" (505 mm) high.
Filter Unit
C) 6-5/8" (169 mm) high. D) 2-3/8" (61 mm) deep.

[phone] 7 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser

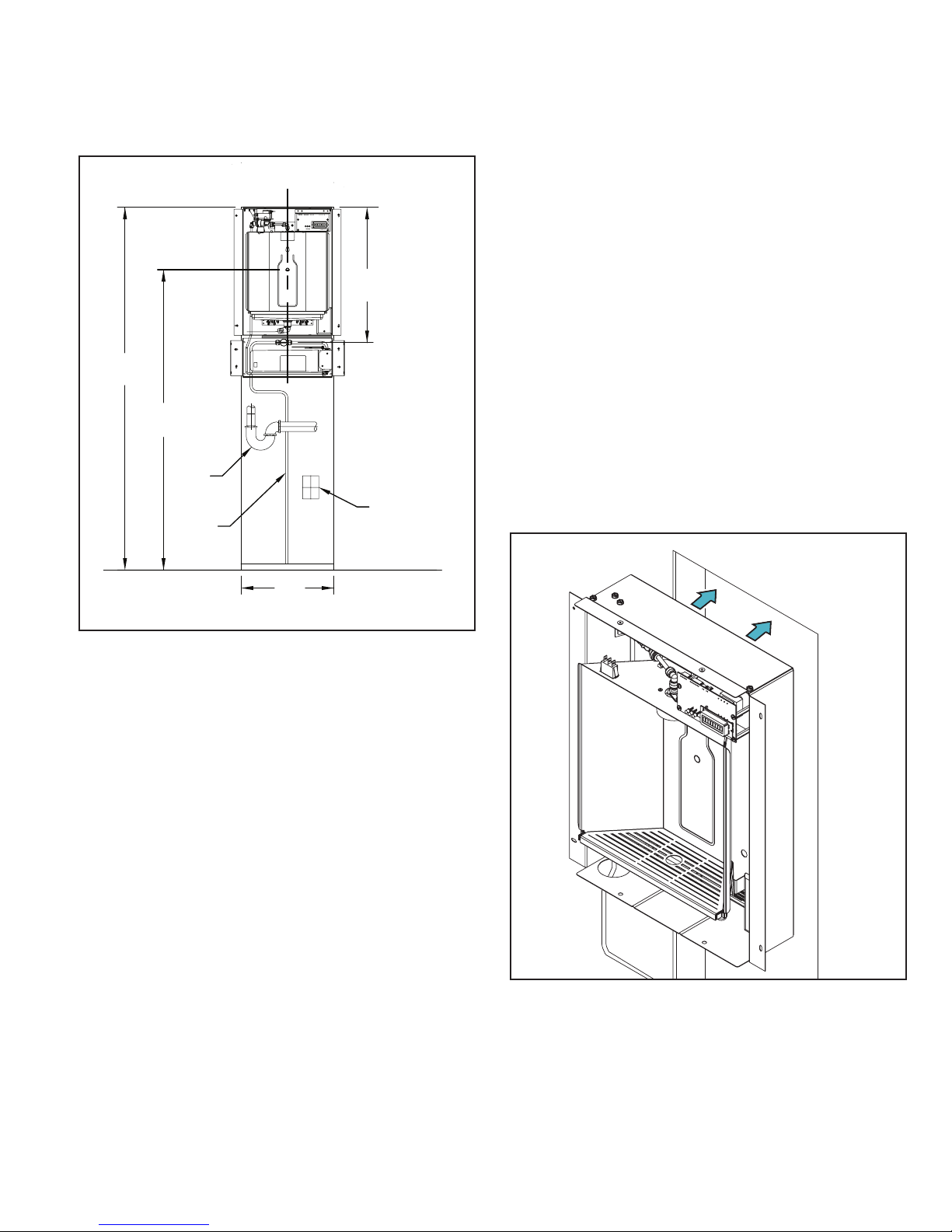

4.4 Mounting Height Dimensions
1. The suggested water dispenser mounting height to the
center of the water dispenser sensor (D) is 47 inches
(1194 mm). This height can be adjusted higher or
lower depending on the desires of the user.
A
B
D
C
1
23
A
Wall Opening Dimensions
1) P-trap. 2) 3/8 inch exible water tubing. (3) Electrical box.
Wall Opening Dimensions
A) 14-1/2 inches (368 mm) wall opening.
.
Unit Height (from oor)
B) 55-3/4 inches (1441 mm). C) 47 inches (1194 mm).
Rough-in Reference Dimensions
D) 21-1/8 inches (537 mm) centerline of lter water inlet.
Note Item 1: If the p-trap is sealed within the wall, under
the water dispenser, all the plumbing
joints must be glued. The glue must be
appropriate for the PVC pipe utilized. If the
p-trap uses threaded components, they
must be easily accessible.
Note Item 2: According to most electrical codes, the
electrical box cannot be sealed inside a
wall cavity with no access. If the electrical
connection is placed under the unit, a
user-supplied removable wall cover will be
required to access the junction box.
4.5 Water Dispenser Installation
There are several installation options available:
• Water dispenser with attached lter box and lter.
• Water dispenser with a remote lter.
Note: When the lter is located in a remote location,
mount the lter vertically on a wall or other supporting
structure.
• Water dispenser with remote lter and chiller.
Note: When the lter is located in a remote location,
mount the lter vertically on a wall or other supporting
structure before the water chiller.
• Water dispenser with optional waste drain.
Use the following sections to install the water dispenser
using the appropriate conguration.
4.5.1 Installing Water Dispenser into the Wall
1. Cut the opening into the wall using the suggested
mounting dimensions as a guide.
2. Place the unit into the wall cavity and slide it up
against the drywall at the top of the opening. The
unit is designed with 1/4 inch overlap to conceal any
irregularities at the top of the wall opening.

Elkay Manufacturing Company 8 [phone]
Built-in Filtered Water Dispenser 1000005232 (Rev. A - 04/19)

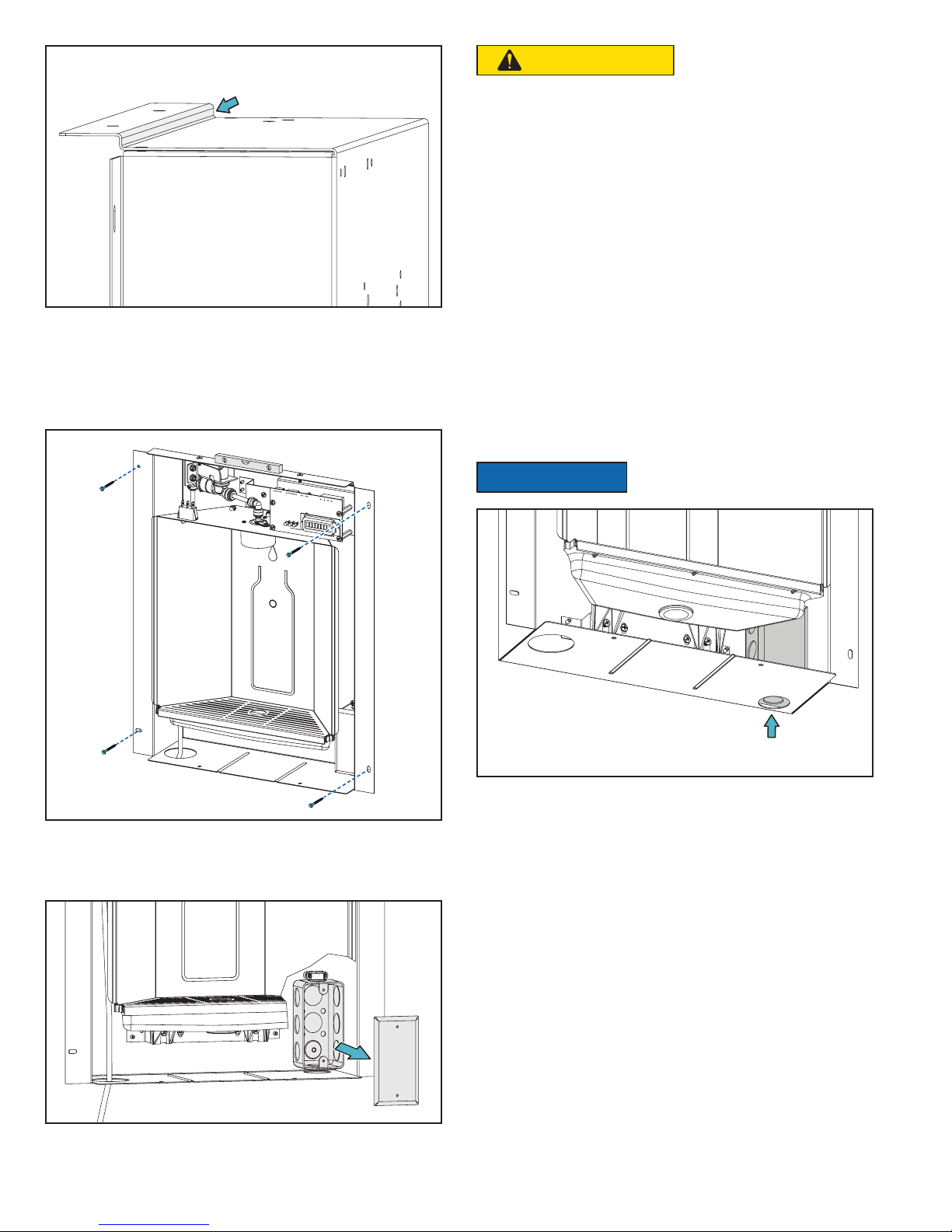

A 1/4 inch offset helps conceal any irregularities at the top of the wall
opening.
3. Using a bubble level, level the water dispenser and
attach it to the wall studs using four #8 athead
screws.
4. Locate the electrical gang box, at the lower right-hand
corner of the water dispenser, and remove the cover.
CAUTION Follow all safety
practices and industry
regulations and standards when connecting any
electrical device.
5. Connect a 110 VAC power supply to the water
dispenser. Route the wiring through the wall into the
bottom of the electrical gang box.
• A 15 AMP GFCI Circuit Breaker is required for safe
installation.
• Route the appropriate electrical wiring through a
wiring clamp into the gang box.
• Tighten the wiring clamp to prevent the wire from
being pulled out of the gang box.
• Connect black wire to supplied voltage line (black)
wire and the white wire to neutral.
• Use provided wire nuts to insulate the connections.
• If required by code a green grounding screw can be
used to connect a grounding wire inside the gang
box.
NOTICE Do not use a cord with a three-
prong plug to power this unit.
Note: If an optional filter unit will be installed under the
water dispenser, the space behind that filter box is
limited so make sure any electrical wiring will not
interfere with mounting the filter box into the wall.
Refer to "4.3 Critical Depth Dimensions" on page
6 for additional information.

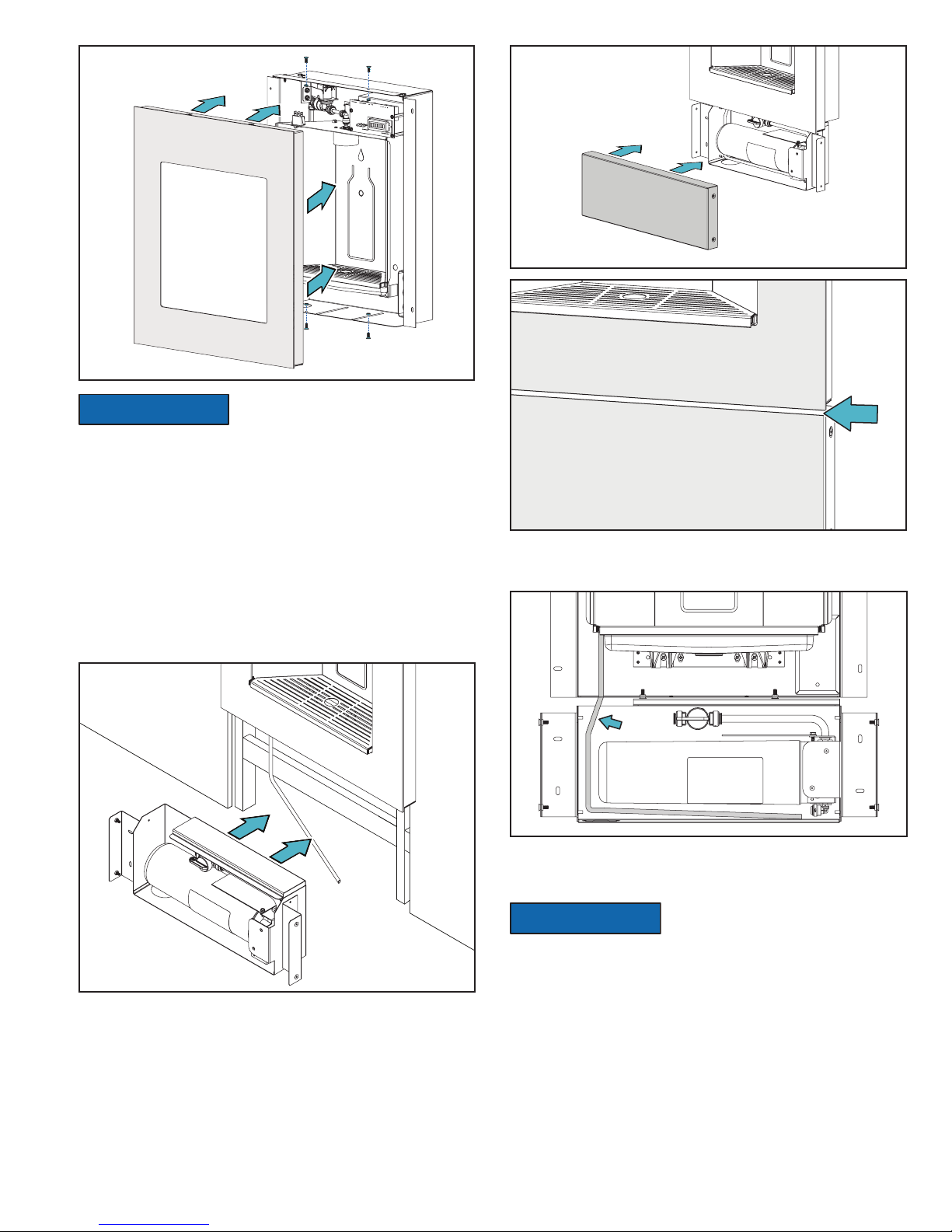

4.5.2 Installing the Filter Box
1. If the lter unit is being installed in the wall opening
under the water dispenser, replace the front cover of
the water dispenser to help locate and align the lter
box under the water dispenser.

[phone] 9 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser
NOTICE
It is recommended to attach the
front cover with the top two
mounting screws to prevent it from falling away from
the water dispenser while the lter unit is being
installed.
2. Place the lter unit into the wall opening and slide it up
against the bottom of the water dispenser. Make sure
the lter unit is in alignment with the water dispenser
and screw it in place using four #8 athead screws.
Do not completely tighten the screws until the lter
unit cover is installed and the t between the water
dispenser cover and the lter cover is checked.
Note: Some side-to-side and up-and-down movement of
the housing is capable to accurately align the filter
unit with the water dispenser.
3. Replace the lter unit cover and check the gap
between the two covers. Adjust the lter box to create
an even gap all the way across the units.
Create an even gap across the entire unit.

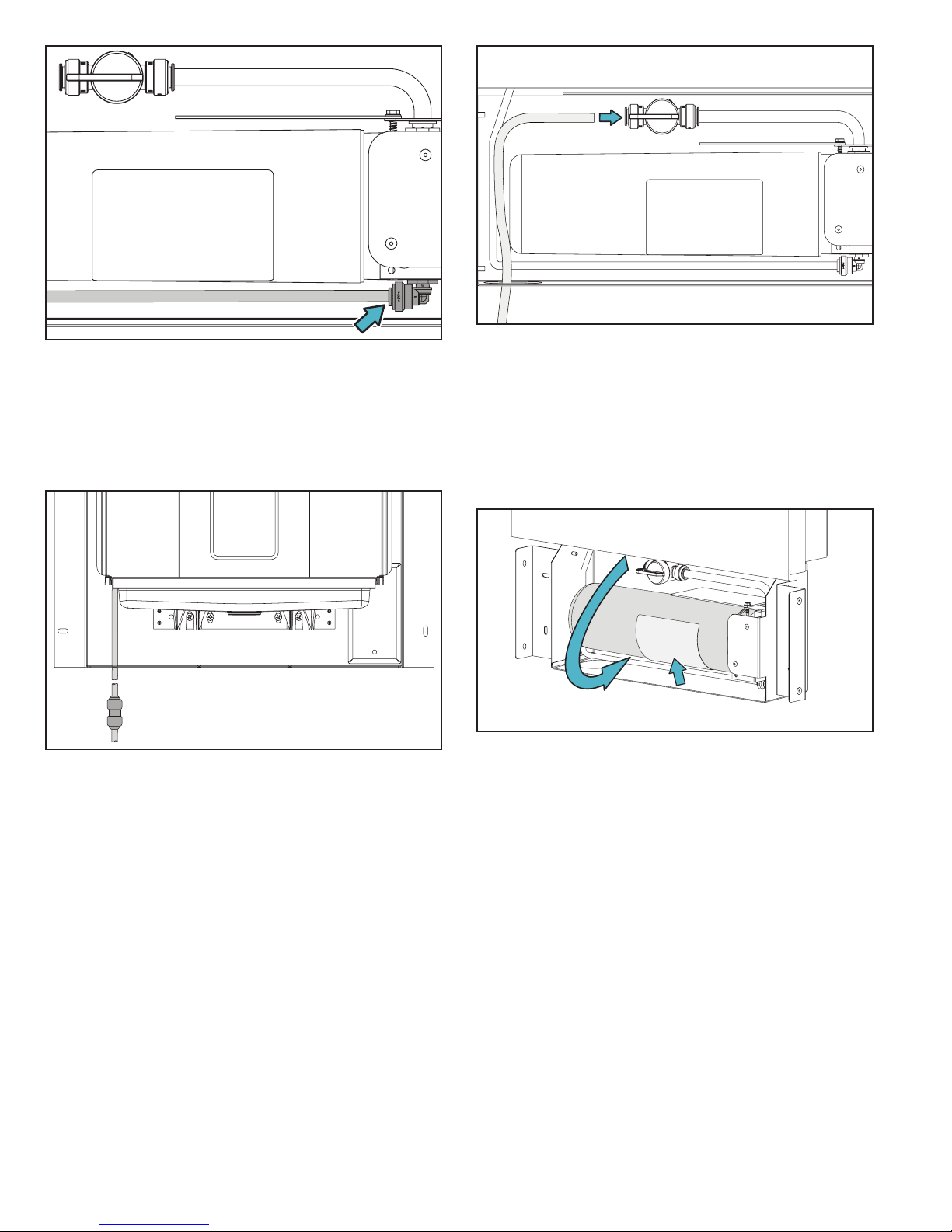

4.5.3 Connecting the Water Lines
1. Connect the 1/4 inch water line from the water
dispenser to the lter housing.
NOTICE
Do not disconnect the 1/4 inch
tubing from the water valve at
the top of the water dispenser. This connection has
been factory tested to be leak-free and could result in
water leaking into the unit if this connection is
changed.
a. If the lter unit is installed below the water
dispenser, connect the 1/4 inch tube to the tting
below the lter, as shown.

Elkay Manufacturing Company 10 [phone]
Built-in Filtered Water Dispenser 1000005232 (Rev. A - 04/19)
b. If the lter is installed in a remote location, attach
an installer supplied length of 1/4 inch tubing to the
1/4 inch tubing from the water dispenser using a
union coupling. The type of 1/4 inch tubing, copper
or plastic, should meet all local regulations and
building codes.
Note: Do not place the remote filter more than 15 feet
from the water dispenser.
2. Connect an installer supplied 3/8 inch water supply
tube to the quarter-turn shutoff valve, as shown. The
type of tubing, copper or plastic, should meet all local
regulations and building codes.
Note: Elkay also recommends installing a shutoff valve
at the source of the water supply for the water
dispenser.
3. Mark the current date on the water lter label and
attach it to lter head, if not already installed. Firmly
press the lter onto the lter head and turn it clockwise
to install or counterclockwise to remove. Make sure
the label is facing outward.
4.6 Connecting the Optional Catch Basin Drain
The water dispenser does not require a drain connection
to the household wastewater plumbing. The water
dispenser has a built-in catch basin that will hold the
typical overow that can occur when using the product.
Some local building codes, however, may require a
wastewater drain to prevent the potential overow of
water. The following steps cover the installation of the
drain.

[phone] 11 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser

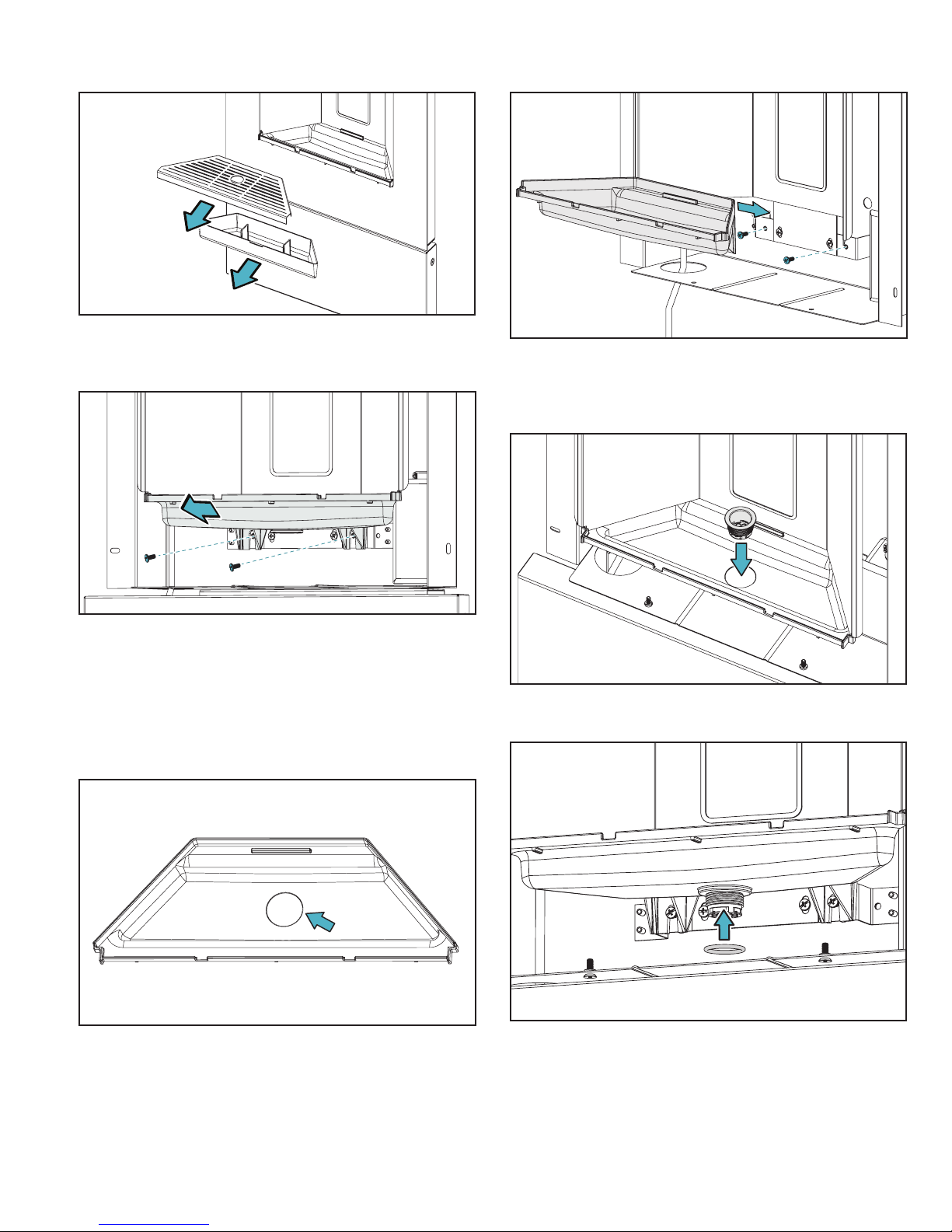

1. Remove the metal tray and the plastic drip tray from
the drain basin.
2. Remove the two screws attaching the drain basin to
the water dispenser. Remove the drain basin.
3. Place the drain basin on a at, hard surface, such
as a piece of sacricial wood. Carefully drill a hole
in the basin using a 1-inch hole saw using the
centering-dimple as a guide to center the hole saw.
Note: Do not use a 1-1/8 inch hole saw as this will make
the opening too large.
4. Place the drain basin back into the water dispenser
and reinstall the two screws.
5. Place a small amount of plumbers putty around the lip
of the strainer ange and insert it into the hole. If the
ange does not t, carefully open the size of the hole.
6. Install the O-ring over the strainer threads.

Elkay Manufacturing Company 12 [phone]
Built-in Filtered Water Dispenser 1000005232 (Rev. A - 04/19)

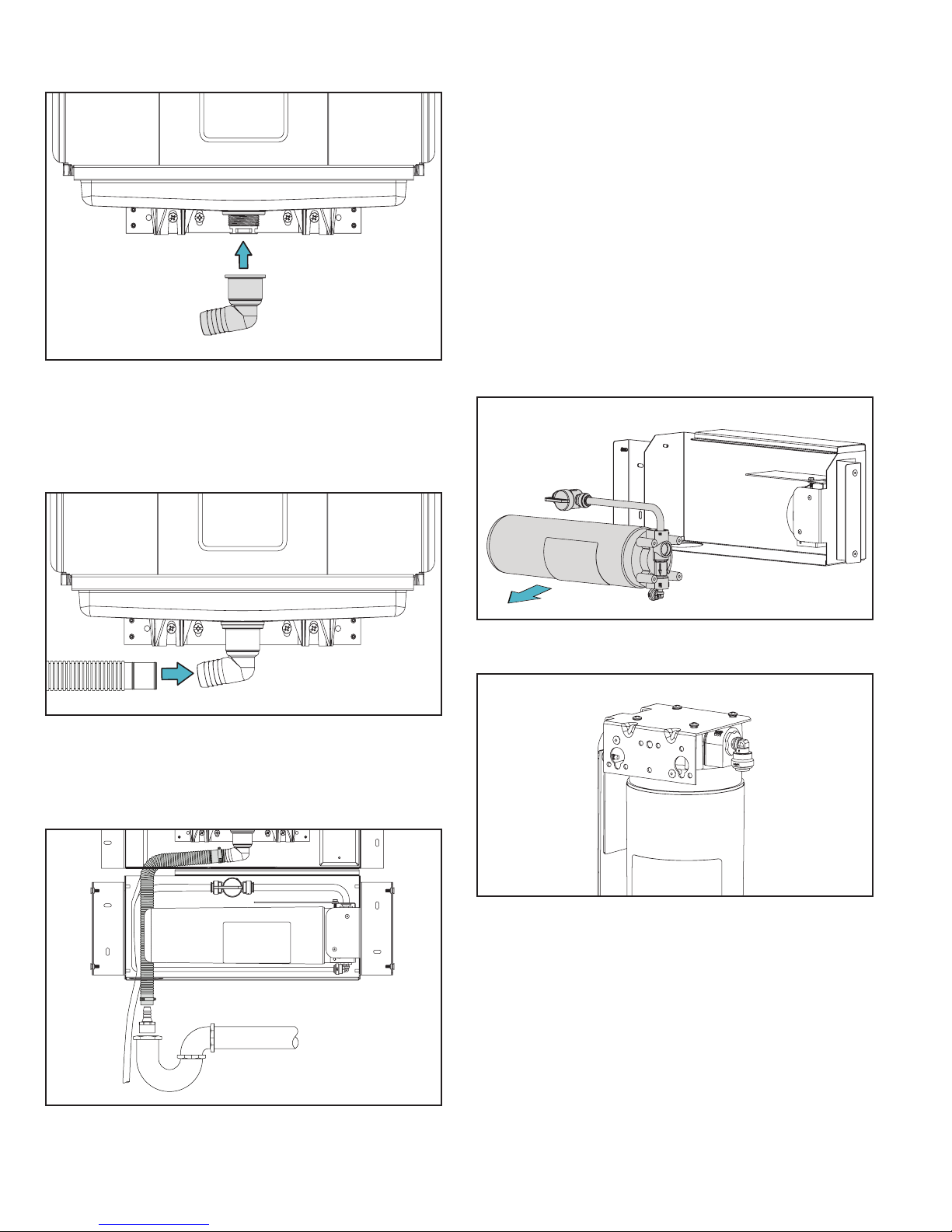

7. Thread the strainer into the drain adapter. Tighten the
connection to create a watertight seal.
8. Attach one end of the 3/4 inch exible drain hose to
the 3/4 inch barbed drain adapter connection using the
supplied hose clamp. The supplied exible drain is 13
inches long. If a longer drain hose is required, it must
be installer-supplied.
9. Route the drain hose through the lter box and attach
the other end to the p-trap drain adapter using a hose
clamp. The drain adapter is designed to be glued into
a 1-1/4 inch PVC pipe.
10. Connect the drain adapter into the household waste
drain pipe.
If the p-trap is located inside a sealed walled, it must
have permanently-glued joints. If the p-trap is in an
accessible location, a standard non-glued p-trap is
acceptable.
Note: Whichever installation method is used, it must
meet local standards and building codes.
4.7 Remote Filter Location
The lter unit can also be installed remotely, up to 15 feet
away from the water dispenser. The remote lter location
is normally associated with the installation of a water
chiller.
1. If desired, remove the lter unit from the lter box.
2. Securely mount the lter unit in the desired location.

[phone] 13 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser
3. Connect a 3/8 inch water supply line, copper or
plastic, to the quarter-turn shutoff valve.
4. Connect a 1/4 inch water line, copper or plastic, to the
outlet connector of the lter.
5. Connect the 1/4 inch water line to either a remote
chiller or the 1/4 inch water line on the water
dispenser. Use a union connection tting to connect
the water line to the water dispenser.
NOTICE
Do not disconnect the 1/4 inch
tubing from the water valve at
the top of the water dispenser. This connection has
been factory tested to be leak-free and could result in
water leaking into the unit if this connection is
changed.
6. If a remote chiller is installed, follow the installation
instructions provided with that unit.
4.8 Remote Water Chiller
A remote water chiller can be installed in connection with
the water dispenser to supply chilled water. The chiller
must be installed within 15 feet of the water dispenser, in
an accessible location. Install the chiller with adequate
ventilation space as outlined in the water chiller manual.
The standard installation of the built-in water dispenser
supplies ltered water at the ambient temperature of the
water supply that comes into the unit. This temperature
can vary greatly depending on the location of the
incoming water line.
Follow the installation instructions that come with the
water chiller. A lter unit must also be installed prior to
the chiller, and the water line from the chiller to the water
dispenser cannot be more than 15 feet long. When the
lter is located in a remote location, mount the lter
vertically on a wall or other supporting structure near the
chiller.
Water
Filter
Water
Chiller
Water
Dispenser
Note: The remote chiller can take from 24 to 48 hours to
provide completely chilled water.
5. Startup
1. Open the shutoff valve(s) for the water supply. Check
for any water leaks.
2. Place the ON/OFF switch in the upper left-hand corner
of the water dispenser opening in the OFF position.
Turn ON power to the unit (typically a circuit breaker).
3. Move the power switch to the ON position and make
sure the LED lights are lit.

Elkay Manufacturing Company 14 [phone]
Built-in Filtered Water Dispenser 1000005232 (Rev. A - 04/19)

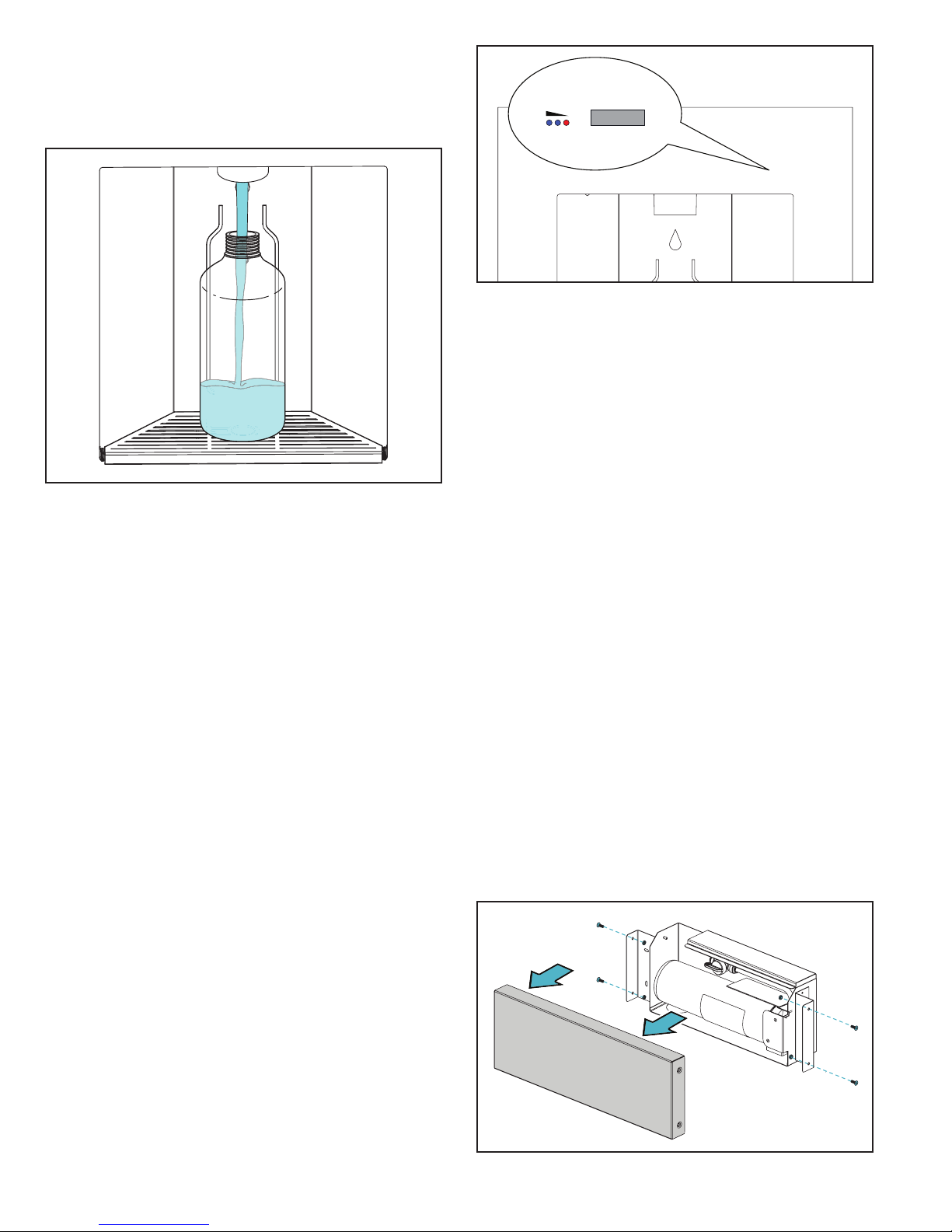

4. Place a container under the water dispenser spout
to activate the ll sensor and dispense at least one
gallon of water to bleed off any trapped air from the
supply lines and lter as well as ush any ne carbon
particles from the lter.
Note: The water dispenser is set to automatically shut off
after 16 ounces of water has been dispensed to
prevent overow and potential ooding so multiple
activations will be required to get the required one
gallon of water ow through the unit.
5. If there are no leaks and the unit is functioning
correctly, install the water dispenser cover and then
install the lter box cover using the athead screws
and a 3/32 inch Allen wrench.
6. Upon initial startup, the PLASTIC BOTTLES SAVED
indicator panel should show several bottles have been
saved due to the water used to initially start up the
unit.
7. The left-most FILTER LIFE indicator light should also
be lit. This light shows the lter is functioning correctly
and has used less than 65 percent of its capacity.
When the middle blue light illuminates, the lter has
reached 66 percent of its life and will need to be
changed soon. When this indicator light comes on, a
replacement lter should be ordered.
The right-most red light will illuminate in red and
indicates that the lter should be changed.
FILTER LIFE PLASTIC BOTTLES SAVED
8. Once the installation is complete, the water has been
turned on, and any trapped air has been bled from the
system re-check for any water leaks.
6. Cleaning
Warm, soapy water can be used to clean the exterior
panels of the unit. Extra caution should be used to clean
the glass cover panel. It can be easily scratched and
should only be cleaned with mild soap and water or glass
cleaner and a clean, soft cloth. Use of harsh chemicals
(including bleach), petroleum-based, or abrasive cleaners
will void the warranty.
Complete care and cleaning instructions can be found at
http://www.elkay.com/care-and-cleaning and click on
Drinking Water Products Care
For care of the outside surfaces of the water dispenser
refer to the Elkay website http://www.elkay.com/
drinking-products-care
7. Maintenance
7.1 Filter Cartridge Replacement
A lter cartridge is designed to lter approximately 750
gallons of water at which time it must be replaced. The
lter should also be replaced every 12 months if the
750-gallon maximum is not reached.

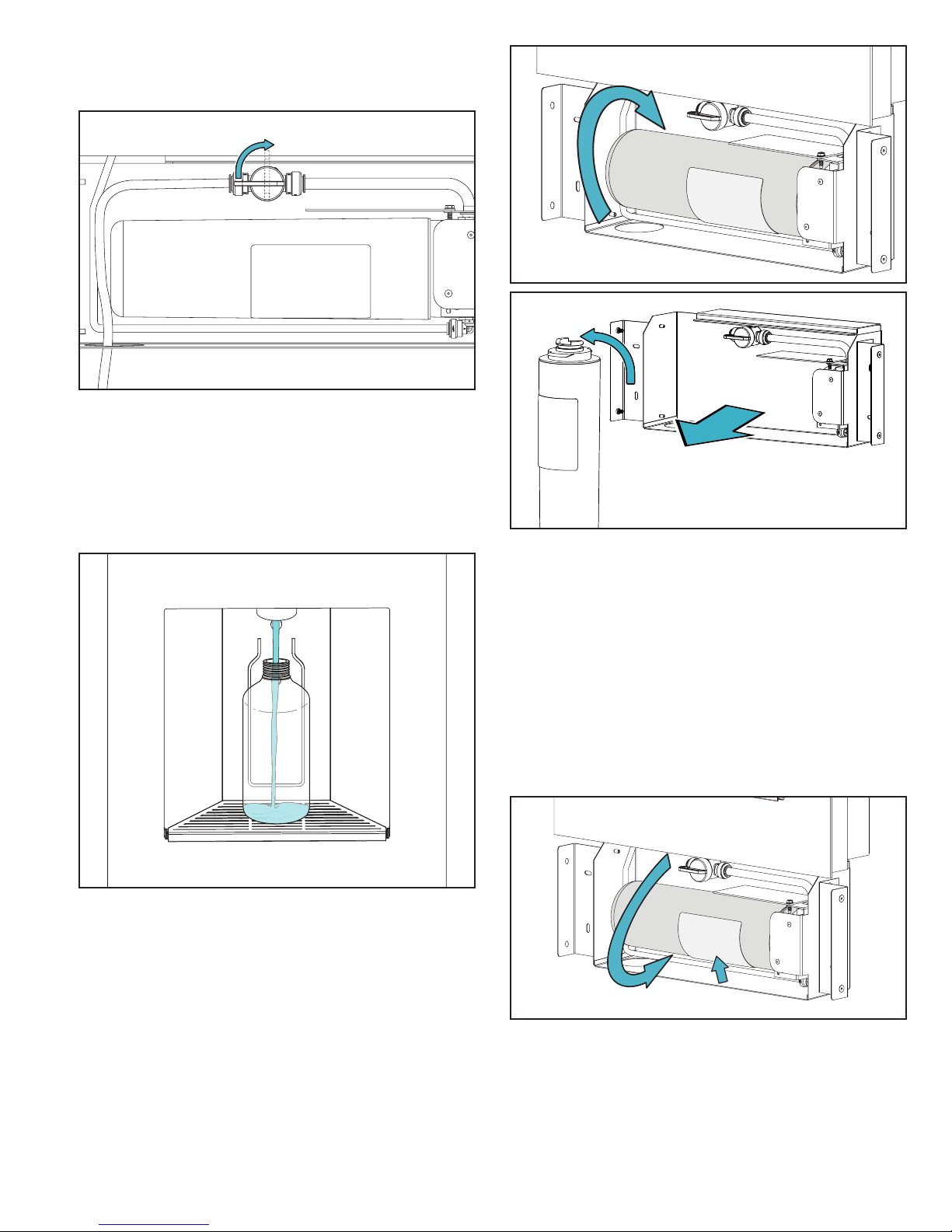

1. Remove four screws from lter box cover using a 3/32
Allen wrench (if lter box is installed).

[phone] 15 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser
2. Shut off the water supply using the shut-off valve.
Turn water shut-off valve handle to the OFF position
(clockwise). The handle will be facing up when closed.
Note: The filter head contains an automatic shut-off
valve that stops the flow of water, in case filter is
inadvertently removed without shutting OFF the
water supply.
3. Activate the water dispenser using a water bottle to
relieve pressure in the water line.
4. Shut OFF power to the unit at the circuit breaker.
5. Place a towel inside the lter box, under the lter, to
absorb any water that leaks out of the lter when it is
removed.
6. Twist the lter counterclockwise until it is disengaged.
Remove the lter and quickly hold it upright.
7. Drain the lter before disposing of it in the trash. The
lter can be discarded along with the everyday trash.
8. Remove and discard the protective cap from the new
lter cartridge.
9. Mark the current date on the label of the new lter
cartridge in the space provided.
10. Attach the lter cartridge by rmly inserting it onto
the lter head and twisting it clockwise until it is
completely seated. The label must be facing outward
to be correctly installed.
11. Restore power to the unit at the circuit breaker.

Elkay Manufacturing Company 16 [phone]
Built-in Filtered Water Dispenser 1000005232 (Rev. A - 04/19)
12. Check the lter status light. If the red light is blinking
the lter is installed incorrectly. A steady blue light
indicates the lter is installed properly.
13. Open the water supply valve.
14. Place a container under the spout to activate the ll
sensor and dispense at least one gallon of water.
This amount of water will bleed any trapped air from
the supply lines and lter as well as ush any ne
carbon particles from the lter.
Note: The unit is set to automatically shut off after 16
ounces of water has been dispensed to prevent
overow and potential ooding so activations will
be required to get the needed one gallon of water
ow through the unit.
15. Check for leaks.
16. Re-install the lter box cover.
8. Troubleshooting
Description Possible Cause Remedy
Water is not getting cold. Standard water dispenser (non-
chilled)
Water chiller is not operating
properly.
Standard unit only supplies ambient temperature water.
Refer to water chiller manual.
Water runs continuously from
water dispenser.
Sensor is defective or dirty. Clean or replace sensor.
Solenoid or solenoid diaphragm is
defective.
Replace solenoid water valve.
Note: To verify faulty solenoid, disconnect the power
while water is running. If water flow does not stop
immediately then replace the solenoid.
Low water flow. Supply water pressure is less than
required.
Water pressure must be between 40 and 105 psi.
Filter is plugged. Replace filter.
Solenoid water valve not opening
fully.
Replace solenoid water valve.
No water flow. No electrical power. Restore power to the unit.
Water shut-off valve(s) closed. Open all shut-off valves (one is located inside the filter box
if installed and another may be at the water source).
Bottle sensor is not operating
properly.
Sensor is malfunctioning and must be replaced.
Blocked or damaged water line. Locate affected line and remove blockage or damage.
Blinking red light. No filter. Replace filter.
Filter incorrectly installed. Check filter is completely installed.
Blinking red and blue light. Filter wire disconnected. Check filter cable connections.
9. Frequently Asked Questions
(FAQ)
For FAQ questions refer to the Elkay website
elkay.com/ezh2o-liv

[phone] 17 Elkay Manufacturing Company
1000005232 (Rev. A - 04/19) Built-in Filtered Water Dispenser
10. Wiring Diagram
Water Dispenser
Main
Control Board
Alcove LED's
IR Board
NFC filter board
ON/OFF
switch
Molex
connector for
extension cable
RS232 comm
Water valve
120VAC
120VAC
120VAC Electrical Box
(inside water
dispenser)
Electrical Line IN
3.3 volts
RS232 comm
Extension cable for NFC board:
Can be 18 inches for local use
OR 18 ft for remote use.
Built-in Filtered Water Dispenser
Wiring Diagram
Ferrite Bead
Mfr: Fair-Rite
Part # 0443167251
