Champion Global Power Equipment 100520 User manual

OPERATOR'S MANUAL
MODEL #100520
8750W PORTABLE
INVERTER GENERATOR
REV 20210408 Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

100520 - 8750W PORTABLE INVERTER GENERATOR TABLE OF CONTENTS
2
TABLE OF CONTENTS
Introduction................................................... 3
Safety Definitions .......................................... 3
Important Safety Instructions....................... 4
Fuel Safety .........................................................6
Safety Labels.......................................................7
Safety Symbols.....................................................8
Operation Symbols .................................................9
Quick Start Label Symbols....................................... 10
Controls and Features ................................. 11
Generator ......................................................... 11
Control Panel ..................................................... 12
Intelligauge ....................................................... 13
FCC Statement ................................................... 14
Parts Included .................................................... 14
Assembly..................................................... 15
Unpacking ........................................................ 15
Remove Shipping Support Brackets............................. 15
Install the Wheel Kit.............................................. 15
Connect the Battery.............................................. 16
Add Engine Oil.................................................... 16
Add Fuel .......................................................... 17
Grounding ........................................................ 18
Operation..................................................... 18
Generator Location............................................... 18
Surge Protection ................................................. 19
Starting the Engine............................................... 19
Connecting Electrical Loads ..................................... 20
Do Not Overload Generator ...................................... 21
GFCI............................................................... 21
Eco (Economy) Mode............................................. 21
12V DC Automotive Style Outlet ................................. 22
Stopping the Engine.............................................. 22
Operation at High Altitude ....................................... 23
Moving the Generator ............................................ 23
Maintenance................................................ 24
Cleaning the Generator .......................................... 24
Changing the Engine Oil ......................................... 24
Cleaning and Adjusting the Spark Plug.......................... 24
Cleaning the Air Filter ............................................ 25
Cleaning the Spark Arrestor ..................................... 25
Adjusting the Governor........................................... 26
Maintenance Schedule........................................... 26
Storage ........................................................ 26
Short Term Storage (up to 30 days) ............................. 26
Mid Term Storage (30 days – 1 year) ........................... 26
Long Term Storage (over 1 year) ................................ 27
Removing from Storage.......................................... 27
Specifications.............................................. 28
Generator Specifications......................................... 28
Engine Specifications ............................................ 28
Oil Specifications................................................. 28
Fuel Specifications ............................................... 28
Temperature Specifications...................................... 28
Parts Diagram .................................................... 29
Parts List ......................................................... 30
Engine Parts Diagram............................................ 32
Engine Parts List ................................................. 33
Wiring Diagram................................................... 35
Troubleshooting........................................... 36
Warranty* .................................................... 37
Warranty Qualifications .......................................... 37
Repair/Replacement Warranty................................... 37
Do Not Return The Unit To The Place Of Purchase ............. 37
Warranty Exclusions ............................................. 37
Other Exclusions ................................................. 37
Limits of Implied Warranty and Consequential Damage........ 37
Contact Information .............................................. 37

100520 - 8750W PORTABLE INVERTER GENERATOR INTRODUCTION
3
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100520
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).

100520 - 8750W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas and
areas containing conductive material such as metal decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or medical
appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.

100520 - 8750W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the starter cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads.
Connect electrical equipment in the off position, and then turn
them on for operation.
Turn electrical equipment off and disconnect before stopping
the generator.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively

100520 - 8750W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand when temperatures rise.
–In the case of any petroleum gasoline fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Always turn the generator off and let cool for a minimum of two
minutes before removing the gasoline cap. Afterwards, loosen
gasoline cap to relieve pressure from the gasoline tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved fuel container to transfer the
gasoline to the generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot lights,
heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always make certain that the gasoline cap, air filter, spark plug,
fuel lines and exhaust system are properly secured, connected
and in place.
Always allow spilled gasoline to evaporate fully before attempting
to start the engine.
Make certain that the generator is resting firmly on level ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel valve is in the OFF position and the
gasoline tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and other
sources of ignition.
Do not store generator or gasoline near furnaces, water heaters,
or any other appliances that produce heat or have automatic
ignitions.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.

100520 - 8750W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Top
Safety Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
Muffler Side
LABEL DESCRIPTION
A
PELIGRO
El uso de un generador en
interiores PUEDE MATARLO
EN MINUTOS. El escape del
generador contiene monóxido
de carbono. Éste es un
veneno que no se puede ver
ni oler. NUNCA lo use dentro
del hogar ni el garaje,
INCLUSO SI las puertas y
ventanas están abiertas.
Úselo SÓLO a la INTEMPERIE
lejos de ventanas, puertas, y
orificios de ventilación.
DANGER
Utiliser une génératrice à
l’intérieur PEUT VOUS TUER EN
QUELQUES MINUTES.
L’échappement de la génératrice
contient du monoxyde de carbone.
Il s’agit d’un poison que vous ne
pouvez ni voir ni sentir.
Ne l’utilisez JAMAIS dans la
maison ou le garage MÊME SI les
portes et les fenêtres sont
ouvertes. Utilisez-la UNIQUEMENT
À L’EXTÉRIEUR, loin des fenêtres,
portes et trappes de ventilation.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
DANGER
Using a generator indoors CAN KILL YOU
IN MINUTES. Generator exhaust contains
carbon monoxide. This is a poison you
cannot see or smell.
1385-L-SF-C
--- --- --- --- ---
ColorsLPN 1385-L-S F
Rev C
Size 155 x 75 mm
Artwork Notes
2mm safe margin; white t o be printe d shown in 50%
process magenta
Revision Changes
B: corrected some words on FR translation
C: Need a dd the text h eight
This ar twork belongs to C hampion Power Equi pment. The conte nts are confiden tial and privileg ed and shall not be dis closed to or used by or f or
outside p arties withou t the explicit conse nt of Champion Power E quipment.
Safety Symbols/
CO Danger
B
1110-L-OP-B
UNLEADED FUEL ONLY. Minimum octane
rating of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 87.
Maximum 10 % d'éthanol.
K109 --- --- ---
ColorsLPN 1110 -L-OP
Rev B
Size 46 x 46 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white to be
printed show n in 50% process magenta
Revision Changes
-Changed Oc tane rating from 85 to 87 (2 0200407)
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Fuel
C
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws and regulations relating to fire prevention requirements.
If installed, clean every 100 hours or every season.
1531-L-SF-A
ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
componentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas que pueden provocar
incendios alrededor de la vegetación seca. Un supresor de chispas puede que
sea necesario. El operadaor debe comunicarse con las agencias locales de
bomberos para las leyes y reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
ColorsLPN 1531- L-SF
Rev A
Size 252 x 2 6 mm
Artwork Notes
3mm co rner radi us; 2mm saf e margin; to b e printed
on white substrate
Revision Changes
---
This ar twork belongs to C hampion Power Equi pment. The conte nts are confiden tial and privileg ed and shall not be dis closed to or used by or f or
outside p arties withou t the explicit conse nt of Champion Power E quipment.
K485 152 --- ---
Hot Surface
D
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
AC AMPS
AMPÈRES C.A.
FREQUENCY (Hz)
FRÉQUENCE (Hz)
RPM
tr / min
PHASE
PHASE
POWER FACTOR
FACTEUR DE
PUISSANCE
AC VOLTS
VOLTS C.A.
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
INSULATION CLASS
CLASSE D’ISOLATION
MAX AMBIENT TEMP.
TEMP. AMBIANTE MAX.
GASOLINE WATTS
WATTS D'ESSENCE
100520
58.3/29.2
60
3600
1
1.0
120/240
F
7000
104°F
40°C
Dataplate
B
C
A
D

100520 - 8750W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Clearance. Keep all objects at least 5 feet from generator. Heat from the muffler and exhaust gas can
ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 ft (1.5m) from all objects to prevent combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations.

100520 - 8750W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9

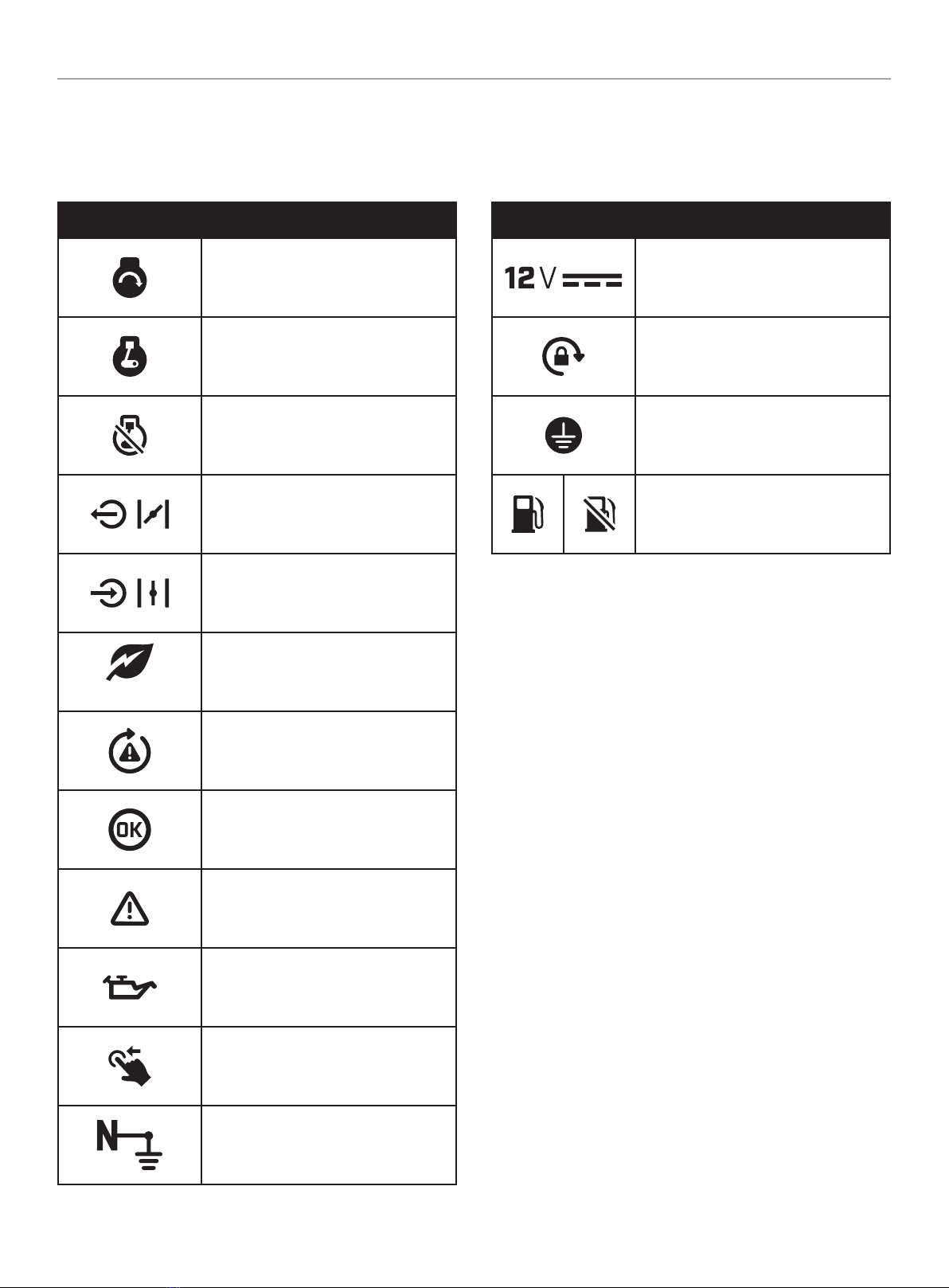

Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
START
ON
STOP or OFF
Choke. Pull choke knob to “CHOKE”
position.
Run. Push choke knob to “RUN” position.
ECO
Economy Mode Switch
AC Reset
Output OK
Overload
Low Oil
Circuit Breaker Reset: Push
Neutral Bonded to Frame. Neutral circuit
IS electrically connected to the frame/
ground of the generator.
SYMBOL MEANING
12V Direct Current
Locking Receptacle
Ground Terminal
Fuel/Gasoline Valve ON/OFF

100520 - 8750W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
10
Quick Start Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
1541-L-OP-A
10W-30

1

2 3 325 64 187
LPN 1541-L-OP
Rev A
Size 230 x 25 mm
Artwork Notes
2mm safe margin; to be printed on white substrate
Revision Changes
---
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
K376 186 152 CG12945
Colors

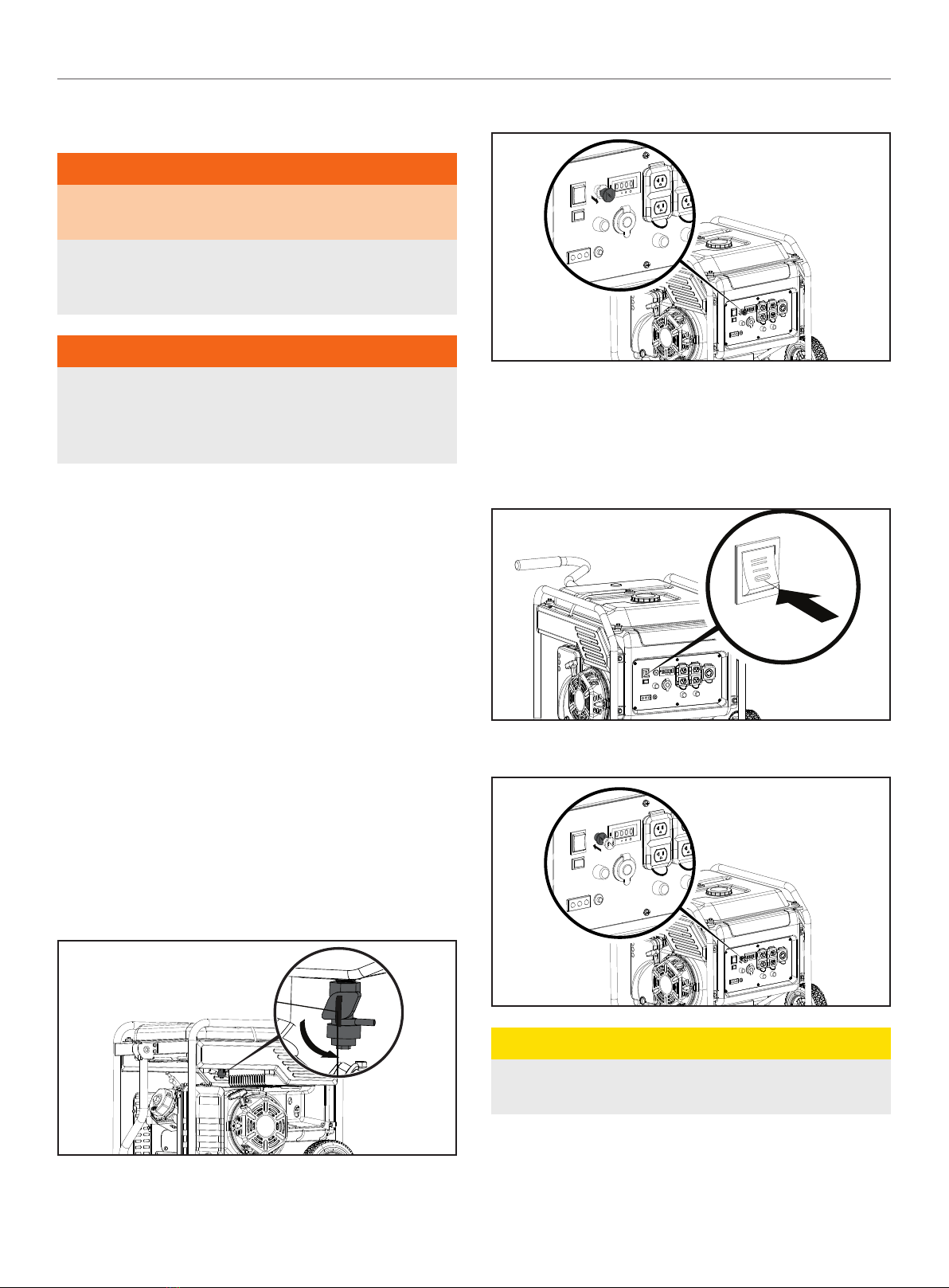

Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30.
2. Check gasoline level.

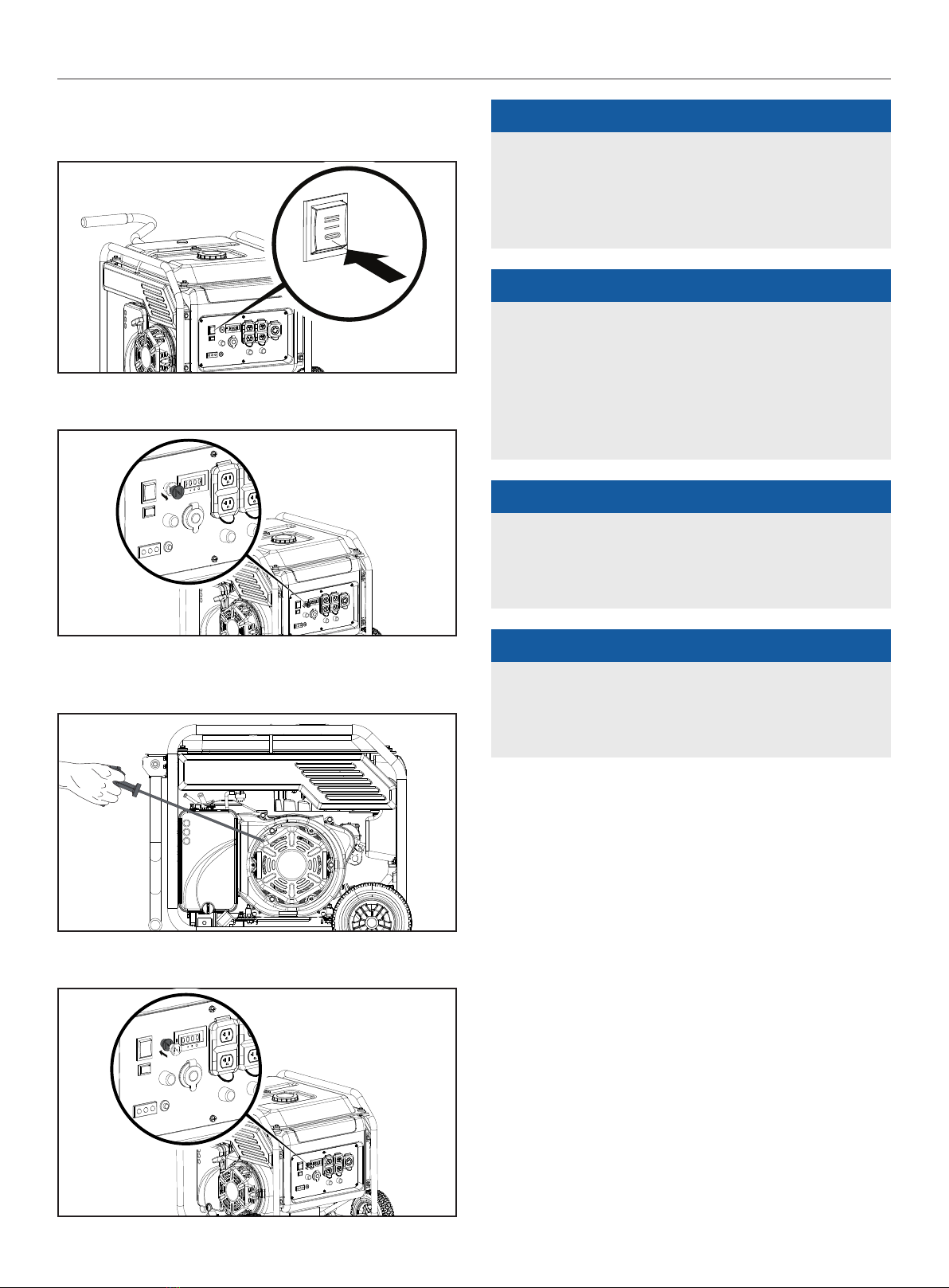

When adding gasoline, use a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
3. Turn the fuel valve to “ON” position.
4. Press the ignition switch to the “ON” position.
5. Pull the choke to the “CHOKE” position.
6. Pull the starter cord.
7. Push choke button to the “RUN” position.
8. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Press the ignition switch to the “OFF” position.
3. Turn the fuel valve to the “OFF” position.
Electric Start
See page 19 in “Operation” section.

100520 - 8750W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
11
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.

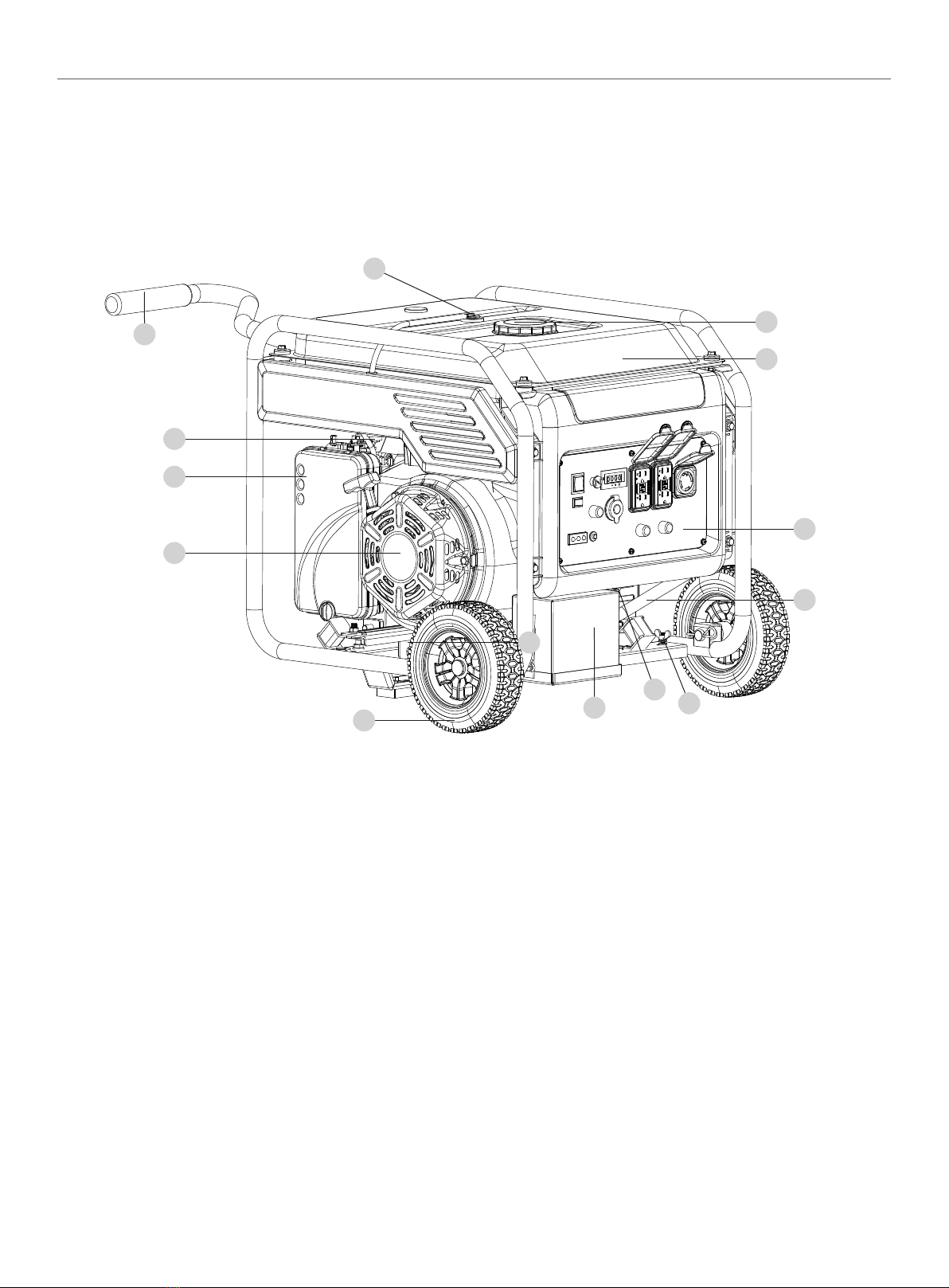

Generator
1. Reversal Valve
2. Folding Handle –Used to move unit by lifting and rolling on
wheels. Do not use to lift or carry the unit.
3. Fuel Valve – Used to turn fuel supply on and off to engine.
4. Air Filter – Protects the engine by filtering dust and debris
from the intake air.
5. Recoil Starter – Used to manually start the engine.
6. Never Flat Wheels – 8 in. (20.3 cm).
7. Battery – Provides 12V DC power the starting system.
8. Oil Fill Cap/Dipstick –Used to check and fill oil level.
9. Ground Terminal – Consult an electrician for local grounding
regulations.
10. Quick Drain Tube –Used to quickly drain engine oil.
11. Control Panel –See “Control Panel” section.
12. Gasoline Tank – 4.2 gal. (16 L).
13. Fuel Cap – Remove to add fuel.
1
2
8
79
4
3
5
6
11
10
12
13
10

100520 - 8750W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
12

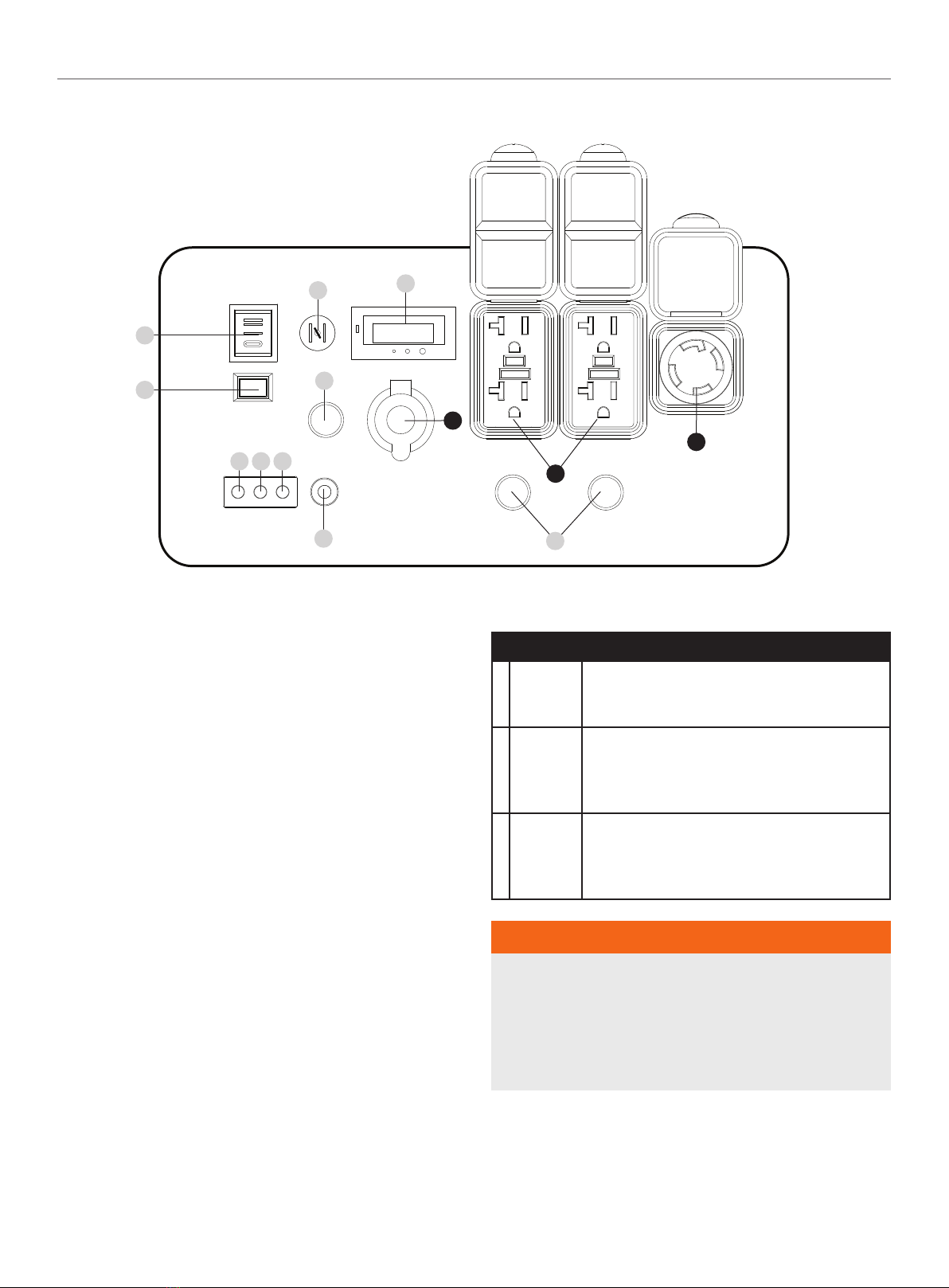

Control Panel
1. Ignition Switch – Used to put in START mode or STOP the
generator.
2. Economy Mode Switch – Enables/disables automatic idle
control.
3. Choke – Used to start a cold engine.
4. Intelligauge – Four mode digital meter for displaying voltage,
frequency (hertz), run time, and total run time.
5. Output Indicator Light – Remains ON during normal
operating conditions. Turns OFF when generator is
overloaded.
6. Overload Indicator Light – When ON generator is overloaded
and power to receptacles is cut.
7. Oil Warning Indicator Light – When ON engine will shut
down and not run. Check oil level.
8. AC Overload Reset Button – Used to re-energize
receptacles after overload fault.
9. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
RECEPTACLES
Az12V DC, 8 Amp (Automotive) May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical loads.
BC
(4×) 120V AC, 20A GFCI (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
CY
120/240V AC, 30A Locking (NEMA L14-30R)
May be used to supply electrical power for
operation of 120/240 Volt AC, 30 Amp, single
phase, 60 Hz electrical loads.
WARNING
Do not operate a device while it is plugged into the 12V DC
outlet. Prolonged exposure to engine exhaust can cause
serious injury or death. While charging a device do no place
on the exhaust side of the generator. Extreme heat caused by
exhaust can damage the device, and cause a potential
fire hazard.
1
3
9
89
567
4
2
C
A
B

100520 - 8750W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
13

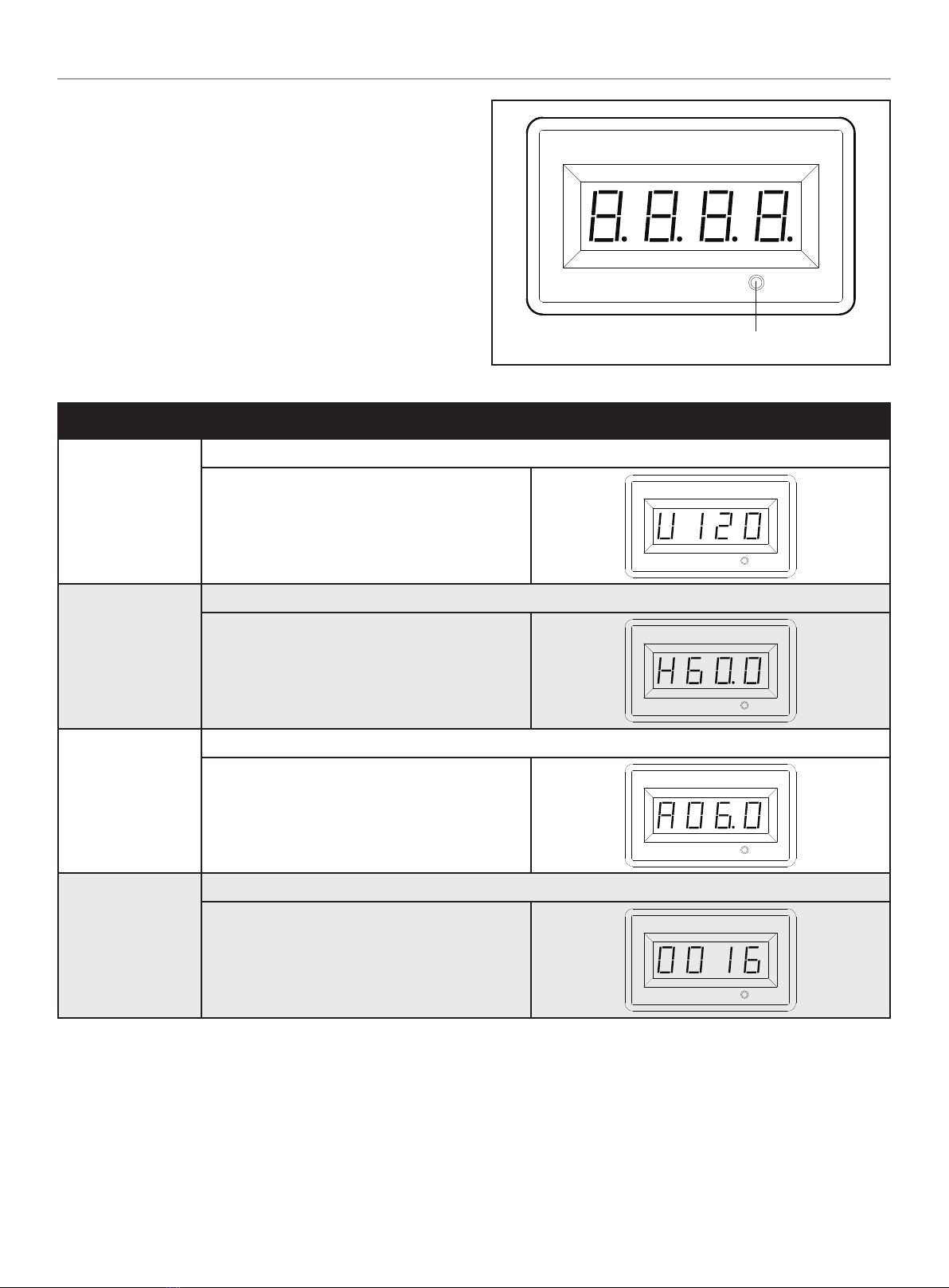

MODE DESCRIPTION
Voltage (V)
Output voltage of the generator.
Example: 120 volts
Frequency (H)
Output frequency in hertz.
Example: 60.0 hertz
Run Time (R)
Run time of the generator for the current session
Example: 6 hours
Total Run Time
Total run time of the generator since first operation
Example: 16 hours
Intelligauge
Four mode digital meter for displaying voltage, frequency (hertz),
run time, and total run time.
The LCD displays each mode by pressing the button below the
display.
MODE BUTTON

100520 - 8750W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
14
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and
receiver.
–Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult dealer or an experienced radio/TV technician for help.
Parts Included
Accessories
Flexible Oil Funnel .....................................................................1
Dual 2.4A Port USB Adapter ......................................................1
Battery Charging Cables............................................................1
Assembly Parts
Wheels
8 in. (20.3 cm) Never Flat Wheel (A).................................. 2
Roll Pin (B)........................................................................ 2
Large R-clip (C) ................................................................2
Engine Vibration Mounts
Support Leg with Vibration Mounts (D)..............................1
Flange Bolt (M8×16) (E)....................................................2
Folding Handle
Handle (F)......................................................................... 1
Flange Bolt (M6×30) (G) ................................................... 4
A
D
FG
B
E
C

100520 - 8750W PORTABLE INVERTER GENERATOR ASSEMBLY
15
ASSEMBLY
Your generator requires some assembly. This unit ships from our
factory without oil. It must be properly serviced with fuel and oil
before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Carefully cut each corner of the box from top to bottom. Fold
each side flat on the ground to provide a surface area to work
with the generator.

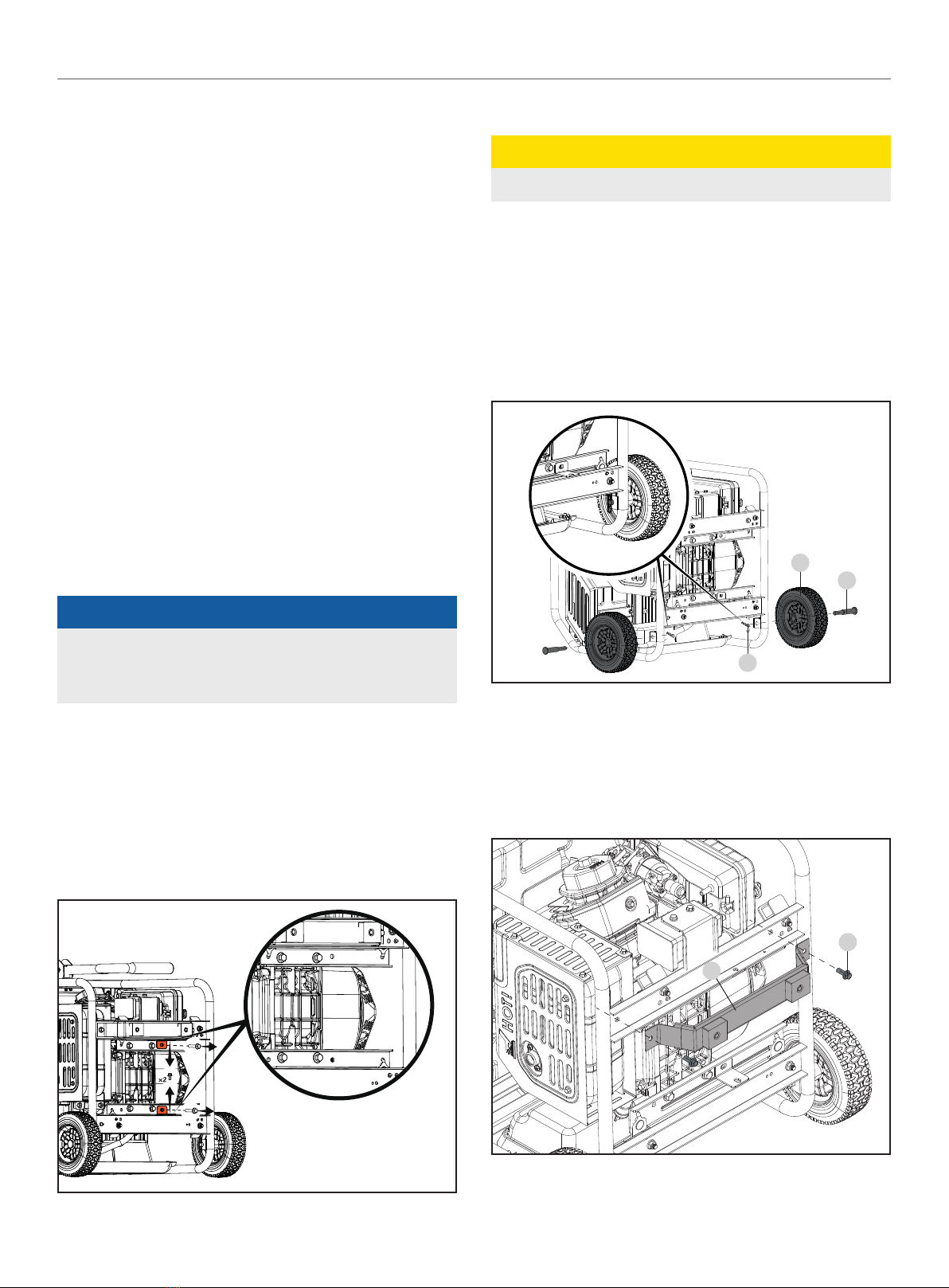

Remove Shipping Support Brackets
To protect the generator during shipping, support brackets have
been installed between the engine and frame. These brackets
MUST BE REMOVED BEFORE adding oil or gasoline to the
generator.
NOTICE
DO NOT attempt to run generator without first removing the
shipping support brackets. Damage to the generator as a result
of not removing the brackets will void the warranty.
1. BEFORE filling the engine with oil or gasoline, tip the
generator onto it’s recoil end. Tip onto the flattened
cardboard box the generator came in or other protective
surface so as to not scratch the frame.
2. Remove the bolts from the orange support brackets. Bolts
and brackets can be discarded.
3. Tip the generator upright.
Install the Wheel Kit
CAUTION
The wheel kit is not intended for over-the-road use.
Install the Wheels
1. Before adding fuel and oil, tip the generator onto it’s end.
2. Slide the roll pin (B) through the wheel (A) from the outside.
3. Slide the roll pin through the mount point on the frame.
4. Secure with the R-clip (C).
5. Repeat to attach the second wheel.
A
B
C
Install the Support Leg
1. Attach the support leg (D) to the generator frame with flange
bolts (E).
2. Slowly tip the generator back down so that it rests on the
wheels and support leg.
D
E

100520 - 8750W PORTABLE INVERTER GENERATOR ASSEMBLY
16
Install the Handle
1. Place the handle (F) over the mounting channel on the frame.
2. Secure the handle to the frame using the four flange
bolts (G).
F
G
Connect the Battery
1. Remove the protective cover from the black (-) lead on the
battery.
2. Attach the black (-) lead to the black (-) terminal on the
battery with the bolt and secure with the nut.

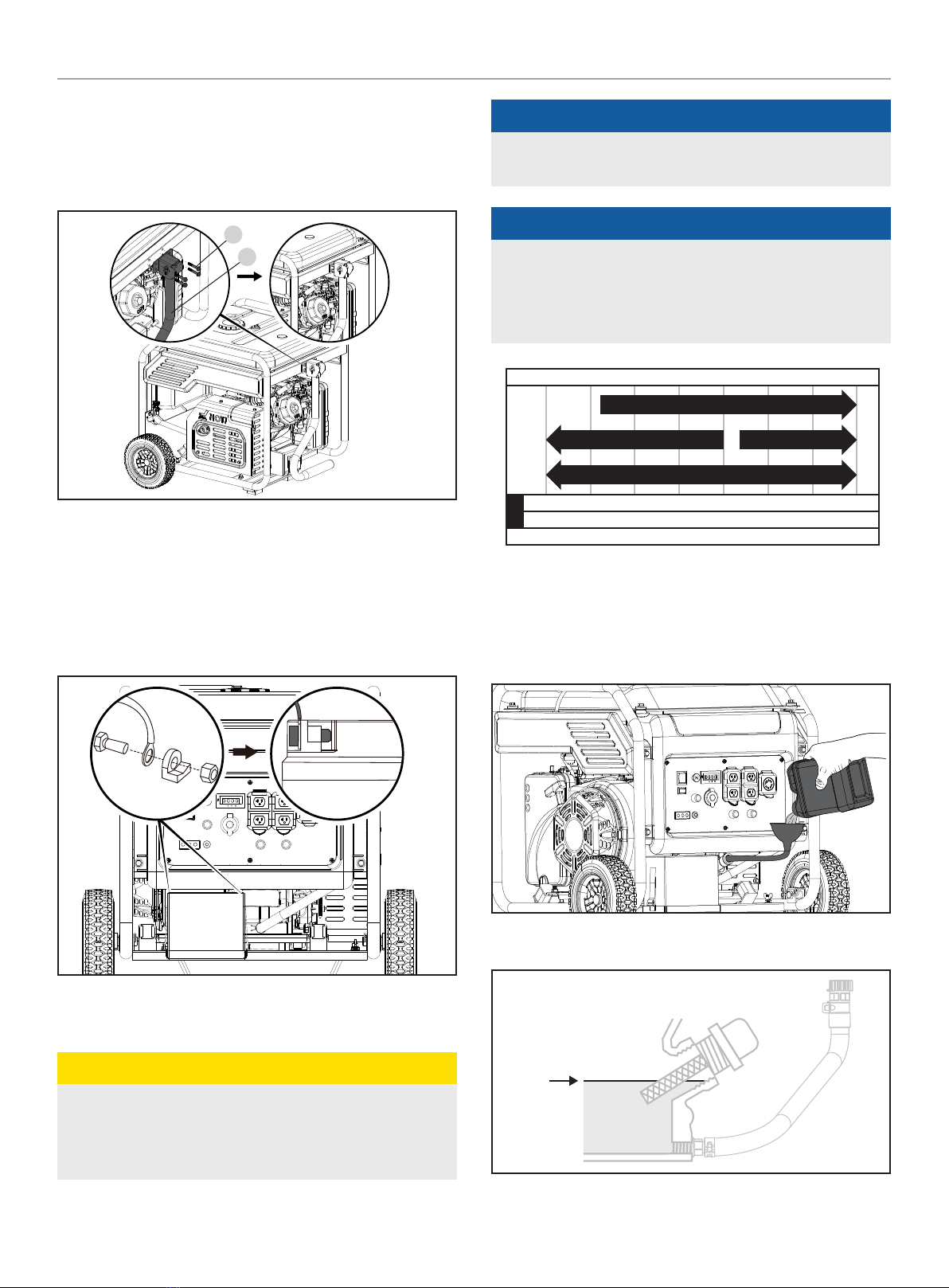

Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the generator as a result of failing to follow these
instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil.
If running generator in extreme temperatures, refer to the
following chart for recommended oil type.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel, add up to 37.2 fl. oz. (1.2 qt.) of oil (not
included) and replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level at every use and add as needed.
MAX

100520 - 8750W PORTABLE INVERTER GENERATOR ASSEMBLY
17
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.

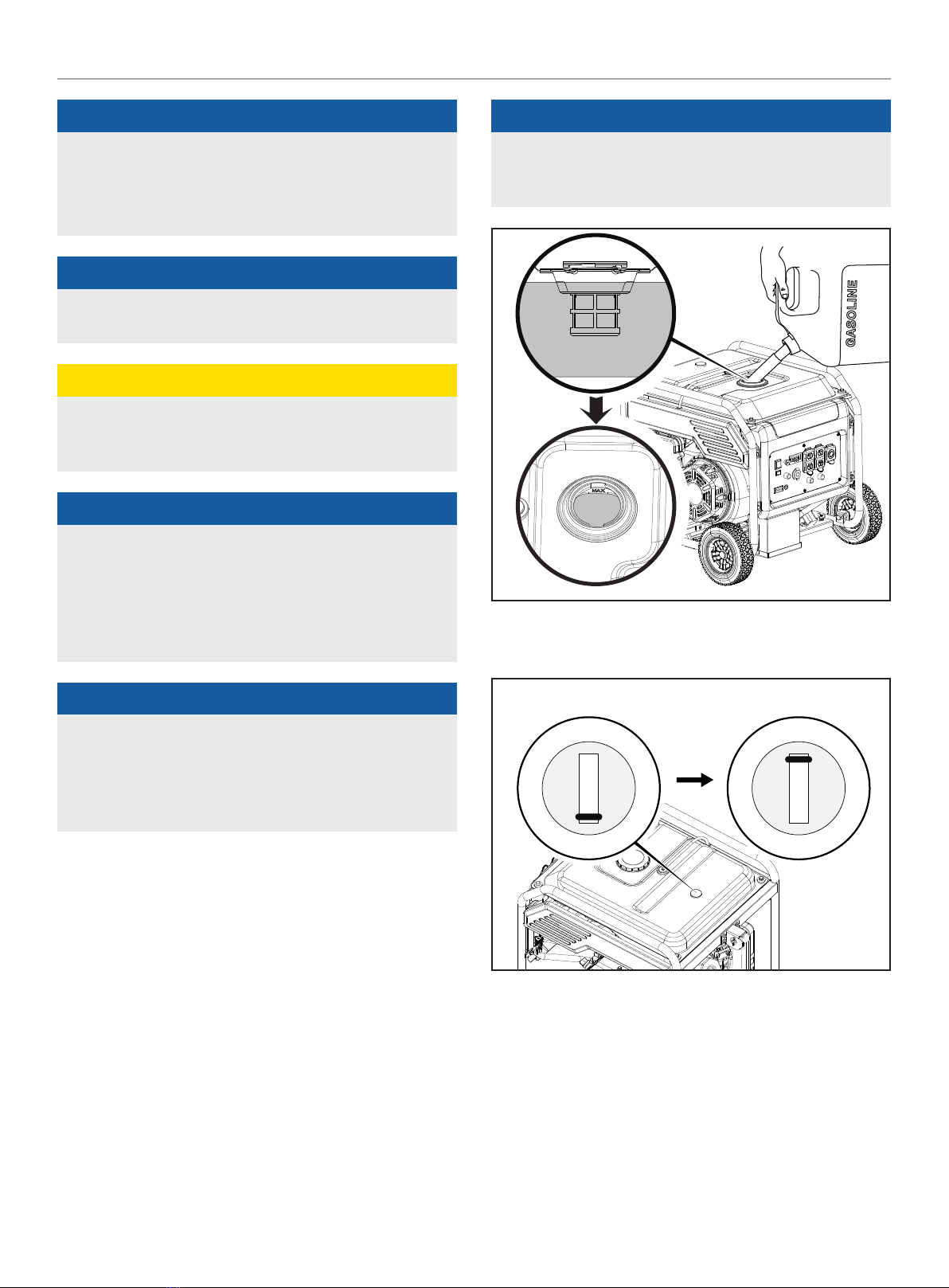

NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not increase the recommended
oil change interval. Full synthetic 5W-30
oil will aid in starting in cold ambient < 41º F (5º C)
temperatures.
Add Fuel
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches the MAX fill line. DO NOT OVERFILL. Gasoline can
expand after filling. A minimum of ¼ in. (6.4 mm) of space left
in the tank is required for gasoline expansion, although more
than ¼ in. (6.4 mm) is recommended. Gasoline can be forced
out of the tank as a result of expansion if overfilled, and can
affect the stable running condition of the generator.
NOTICE
If no Max fill line is present on your unit’s metal tank neck as
shown in picture, fill gasoline 1/2” (12.7mm) above white tank
filter.
MAX MAX
3. Fuel gauge on top of tank will read “F” when full of gasoline
and “E” when tank is empty and needs to be refilled.
EMPTY FULL
EF EF
4. Screw on the gasoline cap and wipe away any spilled fuel.

100520 - 8750W PORTABLE INVERTER GENERATOR OPERATION
18
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in. (6.4
mm) below the top of the tank to allow for gasoline expansion.
DO NOT pump gasoline directly into the generator at the pump.
Use an approved container to transfer the gasoline to the
generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blend gasoline. When using ethanol-gasoline blends there are
some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These blends can eventually separate, leaving water or
a watery goo in the tank, fuel valve and carburetor. The
compromised gasoline can be drawn into the carburetor
and cause damage to the engine and/or potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using improper
gasoline, improperly stored gasoline, and/or improperly
formulated stabilizers, are not covered by manufacturer’s
warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric
shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is not
functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground of
the generator.
–The generator system ground connects lower frame cross-
member below the alternator. The system ground is connected
to the AC neutral wire.
* See your model’s control panel for specified type of grounding.
OPERATION
Generator Location
NEVER operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle. Please consult your local authority. In
some areas, generators must be registered with the local utility.
Generators used at construction sites may be subject to additional
rules and regulations. Generators should be on a flat, level surface
at all times. (Even while not in operation) Generators must have
at least 5 ft. (1.5 m) of clearance from all combustible material.
In addition to clearance from all combustible material, generators
must also have at least 3 ft. (91.4 cm) of clearance on all sides to
allow for adequate cooling, maintenance and servicing. Generators
should never be started or operated in the back of a SUV, camper,
trailer, in the bed of a truck (regular, flat or otherwise), under
staircases/stairwells, next to walls or buildings, or in any other
location that will not allow for adequate cooling of the generator
and/or the muffler. DO NOT contain generators during operation.
Allow generators to properly cool before transport or storage.
Place the generator in a well-ventilated area. DO NOT place the
generator near vents or intakes where exhaust fumes could be
drawn into occupied or confined spaces. Carefully consider wind
and air currents when positioning generator.

100520 - 8750W PORTABLE INVERTER GENERATOR OPERATION
19
Failure to follow proper safety precautions may void
manufacturer’s warranty.
WARNING
Do not operate or store the generator in rain, snow, or wet
weather.
Using a generator or electrical appliance in wet conditions,
such as rain or snow, or near a pool or sprinkler system,
or when your hands are wet, could result in electrocution.
WARNING
During operation the muffler and exhaust fumes will become
hot. If adequate cooling and breathing space are not supplied,
or if the generator is blocked or enclosed, temperatures can
become extremely heated and may lead to fire.
Surge Protection
Electronic devices, including computers and many programmable
appliances use components that are designed to operate within a
narrow voltage range and may be affected by momentary voltage
fluctuations. While there is no way to prevent voltage fluctuations,
you can take steps to protect sensitive electronic equipment.
–Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-duration
voltage fluctuations.
Starting the Engine
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never
start or stop the generator manually with electrical devices
plugged in or turned on.
3. Turn the gasoline fuel valve to the “ON” position.
4. Pull the choke to the “CHOKE” position.
Electric Start
1. Press and hold the ignition switch to the “START” position.
Release as the engine begins to start. If the engine fails to
start within five seconds, release the switch and wait at least
ten seconds before attempting to start the engine again.
2. Once engine starts, push choke button to the “RUN” position.
CAUTION
If the ignition switch is held down in the “START” position
longer than 5 seconds it could damage the starter.

100520 - 8750W PORTABLE INVERTER GENERATOR OPERATION
20
Manual Start
1. Push the engine switch to the “ON” position.
2. Pull choke button to “CHOKE” position.
3. Pull the starter cord slowly until resistance is felt and then
pull rapidly. Several pulls may be required.
4. Once engine starts, push choke button to the “RUN” position.
NOTICE
Keep choke in “CHOKE” position for only 1 pull of the recoil
starter. After first pull, press choke to “RUN” position for up
to 3 pulls of the recoil starter. Too much choke leads to spark
plug fouling/engine flooding due to lack of incoming air. This
will cause the engine not to start.
NOTICE
For gasoline restarts with hot engine in hot ambient
temperature > 86°F (30°C), keep the choke in “CHOKE”
position for only 1 pull of the recoil starter. After first pull,
press choke to the “RUN” position for 3 more pulls of the recoil
starter. Too much choke leads to spark plug fouling/engine
flooding due to lack of incoming air. This will cause the engine
not to start.
NOTICE
For gas starting in cold ambient temperature < 59°F
(15°C), the choke must be in 100% of “CHOKE” position for
recoil start procedures. Do not over-choke. As soon as engine
starts, press the choke button to the “RUN” position.
NOTICE
If the engine starts but does not continue to run make certain
that the generator is on a flat, level surface. This engine is
equipped with a low oil sensor that will prevent the engine
from running when the oil level falls below a critical threshold.
Connecting Electrical Loads
Let the engine stabilize and warm up for a few minutes after
starting.
Plug in and turn on the desired 120 or 240 (if applicable) Volt AC
single phase, 60 Hz electrical loads.
–DO NOT connect 3-phase loads to the generator.
–DO NOT overload the generator.
