Champion Global Power Equipment CPG4000DHY-EU User manual

OPERATOR'S MANUAL
MODEL #CPG4000DHY-EU
3500W WIRELESS REMOTE START OPEN
FRAME INVERTER
or visit www.championpowerequipment.co.uk
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REGISTER YOUR PRODUCT ONLINE
at www.championpowerequipment.co.uk
REV 20210222
[phone]
NO OIL
SUPPLIED
IN UNIT
Add 10w30
Oil Before Use

www.TakeYourGeneratorOutside.com
As the only safe way to use a portable generator, taking your generator
outside is absolutely mandatory to keep your family safe from carbon
monoxide. But there’s even more you can do. By educating yourself
about all carbon monoxide risks, you’ll be better prepared to protect
your family from this colorless, oderless threat.

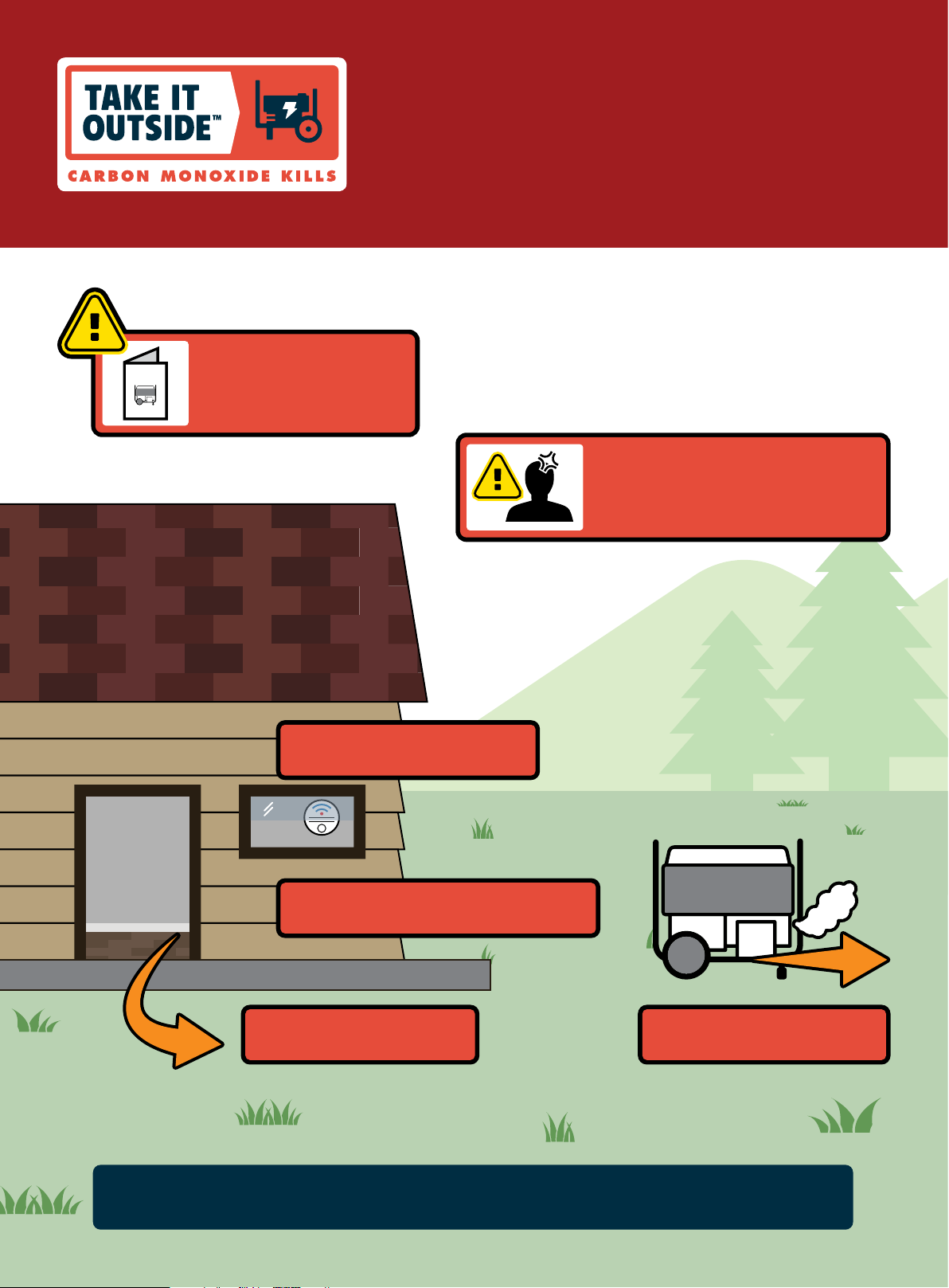

CARBON MONOXIDE SAFETY: THE BIG PICTURE
KNOW THE SYMPTOMS
• Headache
• Nausea
• Shortness of breath
• Dizziness
• Fatigue
STAY ALERT WITH CARBON
MONOXIDE DETECTORS
POINT FUMES AWAY FROM
NEARBY PEOPLE
KEEP IT OUTSIDE AND AWAY FROM
DOORS, WINDOWS, AND GARAGES
ALWAYS READ
THE OPERATOR’S
MANUAL FIRST
MANUAL
IF YOU FEEL SYMPTOMS,
LEAVE RIGHT AWAY

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER TABLE OF CONTENTS
3
TABLE OF CONTENTS
Introduction...................................................4
Safety Definitions ..........................................4
Important Safety Instructions.......................5
Fuel Safety ........................................................ 7
Safety and Dataplate Labels...................................... 8
Safety Symbols.................................................... 9
Operation Symbols ............................................... 10
Quick Start Label Symbols....................................... 11
Controls and Features ................................. 12
Generator ......................................................... 12
Control Panel ..................................................... 13
Wireless Remote Control......................................... 14
FCC Statement for Remote Control Device...................... 14
Parts Included .................................................... 15
Assembly..................................................... 16
Unpacking ........................................................ 16
Install the Wheel Kit.............................................. 16
Connect the Battery.............................................. 16
Add Engine Oil.................................................... 17
Add Fuel .......................................................... 18
Grounding ........................................................ 19
Operation.....................................................20
Generator Location............................................... 20
Surge Protection ................................................. 20
Wireless Set Button .............................................. 20
Starting the Engine............................................... 21
Battery............................................................ 23
Connecting Electrical Loads ..................................... 23
Do Not Overload Generator ...................................... 23
Eco (Economy) Mode............................................. 24
Parallel Operation ................................................ 24
Stopping the Engine.............................................. 24
Moving the Generator ............................................ 25
Operation at High Altitude ....................................... 25
Maintenance................................................26
Cleaning the Generator .......................................... 26
Changing the Engine Oil ......................................... 26
Cleaning and Adjusting the Spark Plug.......................... 26
Cleaning the Air Filter ............................................ 27
Cleaning the Spark Arrestor ..................................... 27
Adjusting the Governor........................................... 27
Generator Battery ................................................ 27
Remote Control Battery.......................................... 28
Maintenance Schedule........................................... 28
Storage ........................................................28
Short Term Storage (up to 30 days) ............................. 28
Mid Term Storage (30 days – 1 year) ........................... 29
Long Term Storage (over 1 year) ................................ 29
Removing from Storage.......................................... 29
Specifications..............................................31
Generator Specifications......................................... 31
Engine Specifications ............................................ 31
Oil Specifications................................................. 31
Fuel Specifications ............................................... 31
Battery Specifications............................................ 31
Temperature Specifications...................................... 31
Parts Diagram .................................................... 32
Parts List ......................................................... 33
Engine Parts Diagram............................................ 35
Engine Parts List ................................................. 36
Wiring Diagram................................................... 38
Troubleshooting...........................................39
Warranty* .................................................... 41
Warranty Qualifications .......................................... 41
Repair/Replacement Warranty................................... 41
Do Not Return The Unit To The Place Of Purchase ............. 41
Warranty Exclusions ............................................. 41
Other Exclusions ................................................. 41
Limits of Implied Warranty and Consequential Damage........ 41
Contact Information .............................................. 41

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER INTRODUCTION
4
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
[phone]
MODEL NUMBER
CPG4000DHY-EU
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER IMPORTANT SAFETY INSTRUCTIONS
5
IMPORTANT SAFETY INSTRUCTIONS
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
ONLY OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, any vehicles, basements, crawlspaces and
sheds, enclosure or compartment, including the generator
compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a house, out building, sheds, garages,
vehicles or confined spaces, EVEN IF if doors and windows are
open and well ventilated.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
NEVER use generator with muffler extension or added
extraction systems this will invalidate your warranty.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain a
minimum distance of 5 ft. (1.5 m) from dry vegetation and any
surrounding areas to prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather.
DO NOT allow children under the age of 18 or unqualified
persons to operate or service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas and
areas containing conductive material such as metal decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or medical
appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER IMPORTANT SAFETY INSTRUCTIONS
6
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch any hot surfaces on the generator including
muffler system when running or stopped for less than 1 hour.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Never use muffler extensions.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result. Unintentional
startup can result in entanglement, traumatic amputation or
laceration.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
WARNING
This product contains a sealed battery. Never attempt to open
it.
In the event the sealed battery is damaged and leaking fluid it
should be disposed of immediately and replaced.
All batteries supplied are covered by 1 year warranty only and
are not part of the 3 year extended warranty.
If battery fluid is exposed to hands, eyes or face, wash and
rinse with fresh water. If this doesn’t resolve the issue,
immediate medical attention is required.
WARNING
This product contains a button battery. If swallowed, it could
cause severe injury or death in just 2 hours. Seek medical
attention immediately.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
The Starting Watts listed on your generator is the wattage the
generator can output for an average of 6 seconds (Inverter) or
10 minutes (Open Frame Type).
The Maximum Watts is the MAX watts output the generator
can run at – however it is not recommended to run your
generator at the maximum watts for periods more than
average 5 minutes (Inverter) and 60 minutes (Open Frame
Type).
Once this period is over, and if the wattage has not
reduced, the Overload Protection will activate and the
generator will trip.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
–Muffler extensions or extraction systems need to be added

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER IMPORTANT SAFETY INSTRUCTIONS
7
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand when temperatures rise.
–In the case of any petroleum gasoline fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing gasoline:
DO NOT use any naked flames including lighters, cigars, matches
or cigarettes when attempting to replace fuel.
Turn the generator off and let cool for at least ten minutes before
removing the gasoline cap. Always loosen the cap slowly to relieve
pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved container to transfer the fuel to
the generator.
DO NOT overfill the gasoline tank.
DO NOT attempt to remove/refill fuel in any confined spaces,
vehicles or building.
If any petrol or flammable liquid spills outside the generator tank it
MUST be cleaned up first before starting the generator
Always keep gasoline away from sparks, open flames, pilot lights,
heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always check that the gasoline cap, air filter, spark plug, fuel lines
and exhaust system are properly in place.
Always allow spilled gasoline to evaporate fully before attempting
to start the engine.
Always be certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
When transporting or servicing the generator:
Always check that the fuel valve is in the OFF position and the
gasoline tank is empty.
For LPG compatible models, check that the LPG cylinder is
disconnected and stored securely away from the generator.
Remove/Disconnect spark plug or HT lead.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and other
sources of ignition.
Do not store generator, gasoline or LPG cylinders near furnaces,
water heaters, or any other appliances that produce heat or have
automatic ignitions.
Do Not store generator with fuel left inside the tank, over time it
will solidify and contaminate.
DANGER
NEVER place a gasoline container, gasoline tank, LPG cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER IMPORTANT SAFETY INSTRUCTIONS
8
Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
Top
B
Back
LABEL DESCRIPTION
A
El uso de un generador en interiores PUEDE MATARLO EN
MINUTOS. El escape del generador contiene monóxido de
carbono. Éste es un veneno que no se puede ver ni oler. NUNCA lo use dentro del
hogar ni el garaje, INCLUSO SI las puertas y ventanas están abiertas. Úselo SÓLO
a la INTEMPERIE lejos de ventanas, puertas, y orificios de ventilación.
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
 PELIGRO
ONLY use OUTSIDE and far away
from windows, doors, and vents.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Utiliser un générateur à l’intérieur PEUT VOUS TUER EN QUELQUES
MINUTES. L’échappement du générateur contient du monoxyde de
carbone. Il s’agit d’un poison que vous ne pouvez ni voir ni sentir. Ne l’utilisez JAMAIS
dans la maison ou le garage MÊME SI les portes et les fenêtres sont ouvertes.
Utilisez-le
UNIQUEMENT À L’EXTÉRIEUR, loin des fenêtres, portes et trappes de ventilation.
 DANGER
 DANGER
1596-L-SF-A
K185 2945 109 ---
ColorsLPN 1596 -L-SF
Rev A
Size Spec ’db y CPEC
Artwork Notes
2mm safe margin; to be prin ted on white su bstrate
Revision Changes
---
This artw ork belongs to Champi on Power Equipment. Th e contents are confi dential and privileg ed and shall not be disclo sed to or used by or for
outside par ties without th e explicit consent o f Champion Power Equi pment.
CO Danger/
Safety Icons
B
1110-L-OP-B
UNLEADED FUEL ONLY. Minimum octane
rating of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 87.
Maximum 10 % d'éthanol.
K109 --- --- ---
ColorsLPN 1110 -L-OP
Rev B
Size 46 x 46 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white to be
printed show n in 50% process magenta
Revision Changes
-Changed Oc tane rating from 85 to 87 (2 0200407)
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Fuel
C
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws and regulations relating to fire prevention requirements.
If installed, clean every 100 hours or every season.
1531-L-SF-A
ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
componentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas que pueden provocar
incendios alrededor de la vegetación seca. Un supresor de chispas puede que
sea necesario. El operadaor debe comunicarse con las agencias locales de
bomberos para las leyes y reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
ColorsLPN 1531- L-SF
Rev A
Size 252 x 2 6 mm
Artwork Notes
3mm cor ner radius ; 2mm safe marg in; to be print ed
on white substrate
Revision Changes
---
This art work belongs to Cham pion Power Equipment. T he contents are con fidential and privi leged and shall not be disc losed to or used by or for
outside pa rties withou t the explicit consen t of Champion Power E quipment.
K485 152 --- ---
Hot Surface
A
C

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER IMPORTANT SAFETY INSTRUCTIONS
9
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Clearance. Keep all objects at least 5 feet (1.5m) from generator. Heat from the muffler and exhaust gas
can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Ear Protection. Ear protection is recommended when working close to the generator. If the generators
noise level is over 85 dBa, ear protection is mandatory. See specifications page for noise level
measurements.
Electric Hazard. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire Hazard. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.
Risk Of Being Burnt. To reduce the risk of injury or damage, avoid contact with any hot surface.
Carbon Monoxide(co) Danger.
Wet Conditions Alert. Do not expose to rain or use in damp locations except as follows:
If you must operate in rain or damp locations, DO NOT operate without proper protection of the electrical
components.
Use of a safety canopy that is fire retardant and will provide proper air ventilation for the engines exhaust
stream can be used. Keep all objects a minimum of 5 feet (1.5m) away from the generator at all times.
Heat from the muffler surface and exhaust stream can ignite combustible materials.

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER IMPORTANT SAFETY INSTRUCTIONS
10
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Start/Stop
Wireless Pair button
Overload Reset button
Low Oil
ECO Economy Mode Button
Choke Button
12V Direct Current
Circuit Breaker Reset:
Push
SYMBOL MEANING
Parallel Connection(s)
Neutral Floating.
Neutral circuit IS NOT
electrically connected to
the frame/ground of the
generator.
Fuel/Gasoline Valve
On/Off

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER IMPORTANT SAFETY INSTRUCTIONS
11
Quick Start Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
Starting the Engine
DANGER
Position the generator outside as far away as possible
from windows, doors, ventilation equipment and out
buildings.
1. Check oil level. (No oil supplied with unit)
Add recommended 10W30 NON synthetic oil on first use.
2. Check gasoline level.
When adding gasoline, use a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
3. Turn the fuel valve to “ON” position.
4. Press the START/STOP button once.
5. Choke engine
Press the choke button.
6. Pull the recoil cord.
7. Run engine
Press the choke button.
8. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Press the START/STOP button once.
3. Turn the fuel valve to “OFF” position.
Wireless and Electric Start
See page 21 in “Operation” section.
10W-30

1

2 3 35 6 7 182
1X
4
1X
LPN
Rev
Size 215 x 25 mm
Artwork Notes
2mm safe margin; to be printed on white substrate
Revision Changes
---
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
K376 186 152 CG12945
Colors

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER CONTROLS AND FEATURES
12
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Fuel Cap – Remove to add fuel.
2. Gasoline Tank – 2.9 gal. (11 L)
3. Air Filter – Protects the engine by filtering dust and debris
from the intake air
4. Fuel Valve – Used to turn fuel supply on and off to engine.
5. Battery – Provides 12V DC power the starting system.
6. Recoil Starter – Used to manually start the engine
7. Power Button
8. Control Panel –See “Control Panel” section.
9. Carrying Handle(s) –Used to lift or carry the unit.
1
2
3
4
5
8
9
6
7

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER CONTROLS AND FEATURES
13

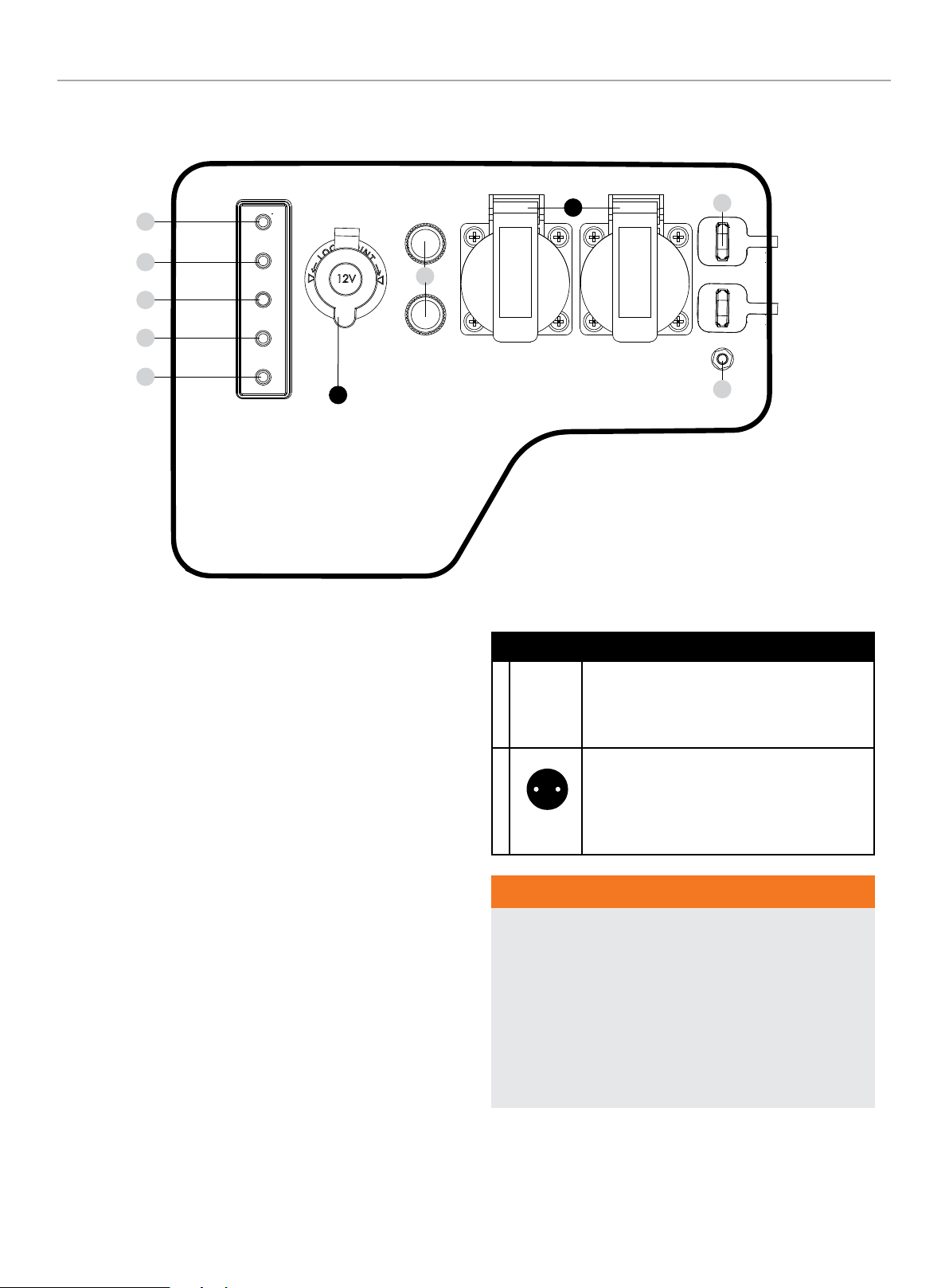

Control Panel
1. Choke Button – Used to start a cold engine.
1a. Green – Choke is ON.
1b. Off – Choke is OFF.
2. Economy Mode Button – Enables/disables automatic idle
control.
2a. Off – Economy Mode is OFF.
2b. Green – Economy Mode is ON.
3. Oil Warning Indicator Light – When ON, engine will shut
down and not run. Check oil level.
4. AC Overload Reset Button – Used to re-energize
receptacles after overload fault.
4a. Green – Systems Normal.
4b. Red Constant – Overload Warning.
4c. Red Flash – Overload Fault. Push to reset.
5. Wireless Reset – Used to reset or pair remote control(s).
5a. Blue – Unit is paired with remote. Push to Reset.
5b. Off – Unit is not paired with remote.
6. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
7. Ground Terminal – Consult an electrician for local
grounding regulations.
8. Parallel Outlets – Used for parallel operation (parallel kit
sold separately).
RECEPTACLES
Az
12V DC, 8 Amp (Automotive)
May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical
loads.
B
2 x 16A Schuko 220v (EU)
1 x 13A & 1 x 16A 230v (UK)
May be used to supply electrical power for
operation of 220-240 Volt AC, single phase,
50 Hz electrical loads.
WARNING
NEVER use both AC & DC together, this will damage
generator and possible equipment.
One or the other MUST ONLY be used at a time.
Prolonged exposure to engine exhaust can cause serious
injury or death.
While charging a device do no place on the exhaust side of
the generator. Extreme heat caused by exhaust can damage
the device, and cause a potential fire hazard.
1
5
6
7
8
2
3
4
B
A

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER CONTROLS AND FEATURES
14
Wireless Remote Control
This generator is equipped with a RED wireless remote control
system for starting and stopping. The system consists of (4) main
components:
1. Receiver Control Module (RCM)
2. Remote Control
3. Start/Stop button
4. Auto-Choke
The Remote Control functions are enabled when:
1. The START/STOP button is in “STANDBY” mode and flashes
green once per second.
The Remote Control functions are disabled when the above
condition is not met.
To start the generator wirelessly, press the “START” abutton on
on the Remote Control one time to enter standby mode, indicated
by the START/STOP button on control panel flashing green once
per second. Press the “START” button on the Remote Control
again to start the engine. The engine will attempt to start (6)
times. The RCM controls the Auto-Choke during each attempt
to start. If the generator does not start, call Champion Customer
Care team for assistance at [phone].
To stop the generator wirelessly, press the “STOP” $button on
the Remote Control one time.
Remote Control Power Consumption
While the START/STOP button is in “STANDBY” mode and flashing
green once per second, the RCM is active and waiting for a remote
signal. This standby function requires a small amount of electrical
current from the battery and will shut off automatically after 12
hours.
Pushing and holding the “STOP” $button on the remote control
for 5 seconds or pushing and holding the START/STOP button
on the control panel for 5 seconds disables the standby function
manually and the RCM will no longer consume any battery power
or wait for remote signal. This is indicated by the START/STOP
button no longer flashing.
RED Statement for Remote Control Device
1. This device complies with RED Rules. Operation is subject to
the following two conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTICE
This equipment has been tested and found to comply with
latest EU ‘RED’ directive. These limits are designed to provide
protection against harmful interference in a residential or
commercial installation/areas. This equipment generates, uses
and can radiate radio frequency energy and if not installed and
used correctly in accordance with the instructions, may cause
some harmful interference to radio communications. If this
equipment does cause harmful interference to radio equipment
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and
receiver.
–Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Call technical help on [phone] for assitance.

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER CONTROLS AND FEATURES
15

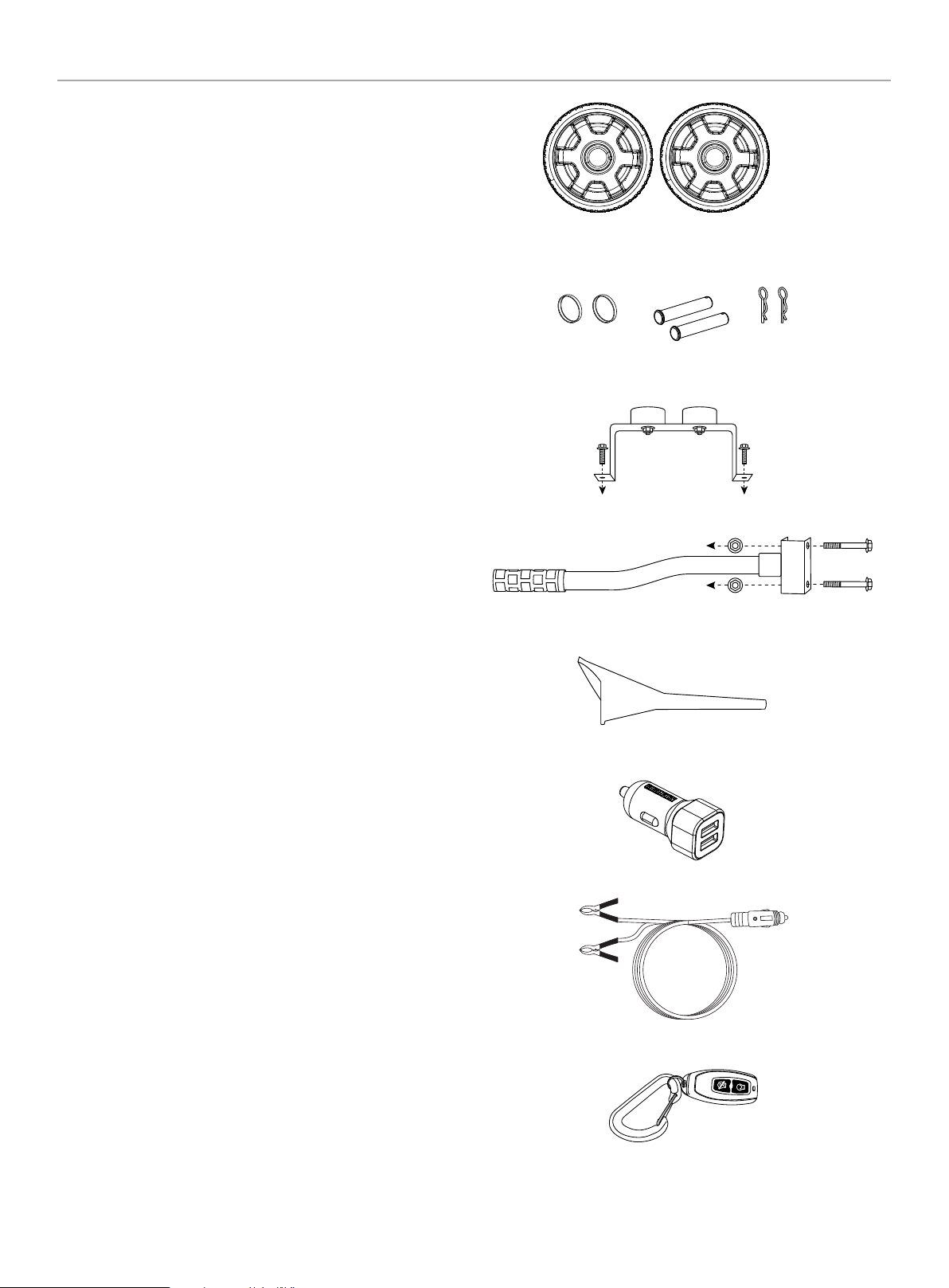

Parts Included
Wheel Kit
8 in. (20.3 cm) Never Flat Wheel ..................................2
Wheel hub caps ...................................................2
Roll Pin .............................................................2
Large R-clip ........................................................2
Support Leg w/Vibration Mounts...............................................1
Flange Bolt M8x16 (for Support Leg).........................................2
Handle ......................................................................................1
Flange Bolt M8x45 (for handle) .................................................2
Flange Lock Nut M8..................................................................2
Other
Oil Funnel..................................................................................1
Dual Port USB Adapter (5V/2.4A) ...............................................1
Battery Charging Cables............................................................1
Remote Key Fob ........................................................................1

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER ASSEMBLY
16
ASSEMBLY
Your generator requires some assembly. This item is shipped from
our factory without oil. Recommend 10w30 Non synthetic oil &
fuel (Petrol) needs to be added on first use before starting the
engine.
If you have any questions regarding the assembly of
your generator, call our Technical Support Team at
[phone]. Please have your serial number and model
number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Carefully cut each corner of the box from top to bottom. Fold
each side flat on the ground to provide a surface area to work
with the generator.
Install the Wheel Kit
CAUTION
The wheel kit is not intended for over-the-road use.
Install the Wheels
1. Before adding fuel and oil, carefully tip the generator onto the
control panel side.
2. Remove wheel hub cap (B) from wheel by inserting a small
screwdriver into the slot provided and pry upward.
3. Slide the roll pin (C) through the wheel (A) from the outside.
4. Slide the roll pin through the mount point on the frame.
5. Insert r-clip (D) into hole at end of roll pin.
6. Re-install hub cap on wheel.
7. Repeat to attach the second wheel.
C
A
D
Install the Support Leg
1. Attach the support leg (E) to the generator frame with flange
bolts (F).
2. Slowly tip the generator back down so that it rests on the
Wheels and support leg.
F
E
Install the Handle
3. Place the handle (G) over the mounting channel on the frame.
4. Secure the handle to the frame using the two flange bolts (H)
(M8x45).
5. Place a flange lock nut (I) on the end of each bolt and fasten
securely. DO NOT over tighten the flange lock nuts.
G
I
H
Connect the Battery
1. Remove the protective cover from the red (+) lead on the
battery.
2. Attach the red (+) lead to the red (+) terminal on the battery
with the bolt and secure with the nut.
3. Repeat for the black (–) battery lead.
B

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER ASSEMBLY
17
No oil in engine, recommended 10w30 Non
synthetic engine oil needs to be added.
CAUTION
DO NOT attempt to crank or start the engine before it has
been properly filled with the recommended type 10w30 Non
synthetic and amount of oil. Damage to the generator as
a result of failing to follow these instructions will void your
warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30 oil.
However, using the listed conventional oils shown in the
“Recommended Engine Oil Type” chart may be used for typical
use including the first 5 hours of the break-in run time period
of the engine.
If running generator in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel, add up to 20.3 fl. oz. / 0.6 qt. (0.6 L) of oil (not
included) and replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level at every use and add as needed.
MAX
OIL DIP STICK
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
CAUTION
As a good general rule of thumb the bottom 2 threads on the
oil port is full, Always make sure the generator is level and
never tip the generator to check oil levels.

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER ASSEMBLY
18

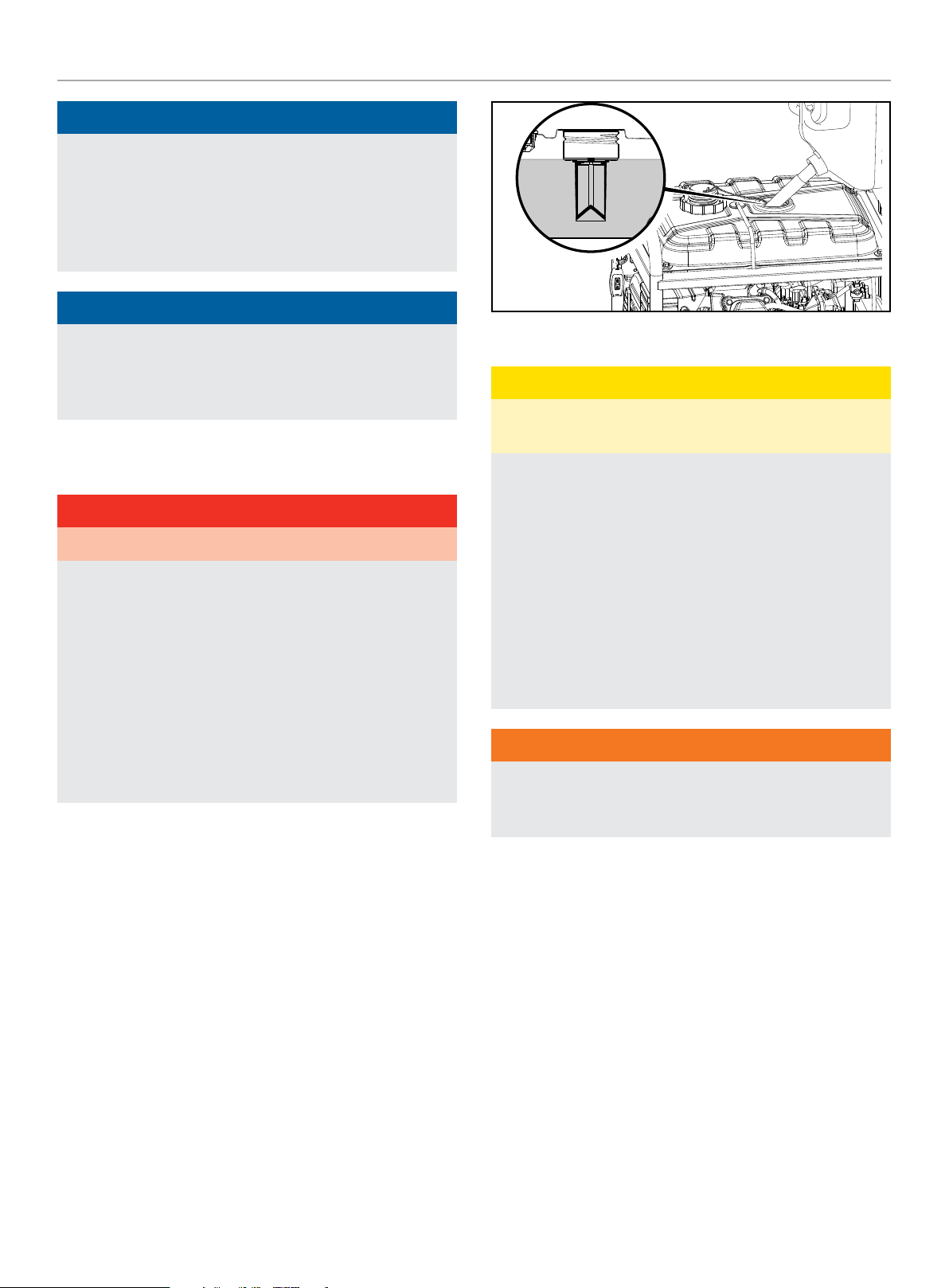

NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Only synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not decrease the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.
Add Fuel
DANGER
Gasoline vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator. Use an
approved container to transfer the fuel to the generator.
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼ in. (6.4 mm) is recommended. Gasoline
can be forced out of the tank as a result of expansion if
overfilled, and can affect the stable running condition of the
generator. The approximate fuel level is shown on the fuel
gauge on top of the fuel tank.
3. Screw on the gasoline cap and wipe away any spilled fuel.
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the pump.
Use an approved fuel container to transfer the gasoline to the
generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER OPERATION
19
NOTICE
The generator engine works well with 10% or less ethanol
blended gasoline. When using ethanol-gasoline blends there
are some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These ethanol blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor. The compromised gasoline can be drawn into
the carburetor and cause damage to the engine and/or
create potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using ethanol blended
gasoline higher than 10% by volume, improperly stored
gasoline, and/or improperly formulated stabilizers, are not
covered by manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric
shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is not
functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground of
the generator.
–The generator system ground connects lower frame cross-
member below the alternator. The system ground is connected
to the AC neutral wire.
* See your Specifications section for specified type of grounding.
OPERATION
Generator Location
WARNING
NEVER operate install a this generator inside any confined
spaces, building, garage, basement, crawlspace, shed,
vehicles, enclosure or compartment, including a generator
compartment of a recreational vehicle.
NEVER operate or start the generator in the back of an
SUV, camper, trailer, truck bed (regular sides, flat or other
configuration), under staircases, stairwells, next to walls
or buildings or in any other location that will not allow for
adequate cooling of the generator or for the proper exit of the
exhaust flow from the muffler system.
It is not recommended operating or storing this generator
in wet weather conditions such as rain or snow. Using a
generator in wet conditions could result in serious injury or
death due to electrocution. If it has to be used in damp or wet
weather a recommended covering needs to be used for safety.
In some state’s generators may be required to be registered
with the local utility company when used at construction sites
and may be subject to additional rules and regulations, consult
your local municipal authority.
Generators should always be operated on a flat, level surface
at all times (even when not in operation).
Generators must have a minimum of 5 feet (1.5 m) of
clearance from all combustible material.
Generators must also have a minimum of 3 feet (91.4 cm)
of air flow clearance on all sides to allow for adequate
performance cooling, maintenance and servicing.

CPG4000DHY-EU - 3500W WIRELESS REMOTE START OPEN FRAME INVERTER OPERATION
20
WARNING
Always place the generator in a well-ventilated area. NEVER
place the generator near air intake vents or where exhaust
fumes could be drawn into occupied or confined spaces.
Always carefully consider wind and air currents when
positioning generator.
Always allow generators to properly cool before transport or
for storage purposes.
Failure to follow proper safety precautions may result in
personal injury, damage to the generator and void the
manufacturer’s warranty.
WARNING
During operation the muffler and exhaust fumes will become
hot. If adequate cooling and breathing space are not supplied,
or if the generator is blocked or enclosed, temperatures can
become extremely heated and may lead to fire.
WARNING
Do Not install or operate this generator with any muffler/
exhaust extraction or extension in place otherwise you will
damage the engine. Failure to comply with this results in your
warranty immediately invalidated and terminated.
Surge Protection
Electronic devices, including computers and many programmable
appliances use components that are designed to operate within a
narrow voltage range and may be affected by momentary voltage
fluctuations. While there is no way to prevent voltage fluctuations,
you can take steps to protect sensitive electronic equipment.
–Install CE & UKCA Certified, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-duration
voltage fluctuations.
Wireless Set Button
The wireless set button is a feature that lets the user synchronize
the remote key fob to the generator. Up to two remote key fobs
can be synchronized to the generator at a time. Follow the
proceeding steps to reset a remote or synchronize two remotes:
1. Press the START/STOP button once on the front panel of the
generator. The button will flash green once per second.
2. Push and hold the wireless set button for approximately three
(3) seconds. The wireless set button will illuminate blue and
the START/STOP button will stop flashing.
3. Push and release the STOP $button on the remote key
fob. The START/STOP button will flash green once and the
wireless set button will flash blue once to indicate the remote
program has been erased.
