Champion Power Equipment 100220 System manual

OWNER’S MANUAL & OPERATING INSTRUCTIONS
196cc
REPLACEMENT ENGINE
12039 Smith Ave.
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
MADE IN CHINA
REV 100220-20180509
100220
MODEL NUMBER

Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999
AN IMPORTANT MESSAGE ABOUT TEMPERATURE:
Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to
40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to
50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be
brought back within this range before operation. In any event, the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and other vents.
*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.
For residents of California:
WARNING: This product contains chemicals known to the State of California to cause cancer or birth defects
and other reproductive harm.
WARNING: The engine exhaust from this product contains chemicals known to the State of California
to cause cancer and birth defects and other reproductive harm.

100220
TABLE OF CONTENTS
Introduction ............................ 1
Introduction .......................... 1
Manual Conventions. ...................... 2
Safety Rules . ........................... 3
Controls and Features ..................... 5
Replacement Engine .................... 5
Parts Included ........................ 5
Assembly .............................. 6
Add Engine Oil ........................ 6
Add Engine Fuel ....................... 7
Operation . ............................. 8
Starting the Engine ..................... 8
Stopping the Engine .................... 8
Operation at High Altitude ................ 8
Maintenance and Storage ................... 9
Engine Maintenance .................... 9
Oil .............................. 9
Spark Plugs ........................ 9
Air Filter .......................... 9
Cleaning ......................... 10
Maintenance Schedule. ............... 10
Storage ............................ 10
Engine Storage ..................... 10
Troubleshooting. ........................ 11
Specifications . ......................... 12
Engine Specifications .................. 12
Fuel .............................. 12
Oil ............................... 12
Spark Plugs ......................... 12
Valve Clearance. ...................... 12
Keyway Shaft ........................ 12

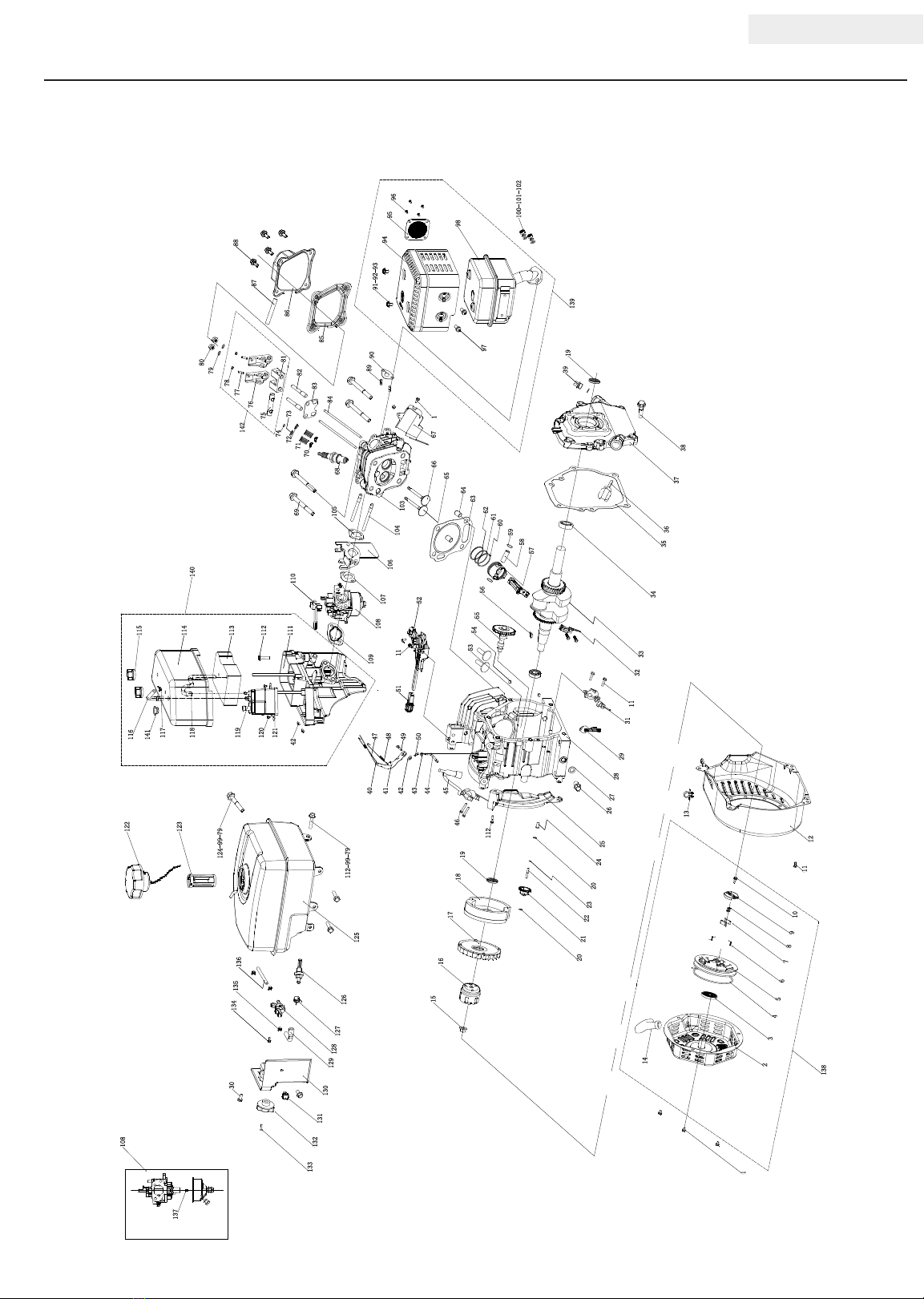

Parts Diagram. ....................... 13
Parts List . .......................... 14
196cc
REPLACEMENT ENGINE

1
ENGLISH 100220
INTRODUCTION
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
1-877-338-0999
100220
For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.
Introduction
Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and
Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines.
With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying
service.
Every effort has been made to ensure the accuracy and completeness of the information in this manual, and we
reserve the right to change, alter and/or improve the product and this document at any time without prior notice.
Since CPE/CET highly value how our products are designed, manufactured, operated and are serviced, and also
highly value your safety and the safety of others, we would like you to take the time to review this product manual
and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please
always exercise common sense and always error on the side of caution when operating the product to ensure no
accidents, property damage, or injury occurs. We want you to continue to use and be satisfied with your CPE/CET
product for years to come.

2
100220 ENGLISH
MANUAL CONVENTIONS
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your engine, we can
help. Please call our help line at 1-877- 338-09 99
NOTE

3
ENGLISH 100220
SAFETY RULES
Engine exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death. If you start to feel dizzy or weak, get to fresh
air immediately.
DANGER
Operate engine outdoors only in a well ventilated
area DO NOT operate the engine inside any
building, including garages, basements,
crawlspaces and sheds, enclosure or compartment,
including the engine compartment of a recreational
vehicle. DO NOT allow exhaust fumes to enter a
confined area through windows, doors, vents or
other openings. DANGER CARBON MONOXIDE,
using an engine indoors CAN KILL YOU IN
MINUTES.
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories. Traumatic amputation or
severe laceration can result.
DANGER
Keep hands and feet away from rotating parts. Tie up
long hair and remove jewelry. Operate equipment with
guards in place. DO NOT wear loose-fitting clothing,
dangling drawstrings or items that could become
caught.
Read this manual thoroughly before operating your
engine. Failure to follow instructions could result in
serious injury or death.
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
Sparks can result in fire or electrical shock.
DANGER
When servicing the engine:
Disconnect the spark plug wire and place it where
it cannot contact the plug. DO NOT check for spark
with the plug removed. Use only approved spark
plug testers.
Running engines produce heat. Severe burns can
occur on contact. Combustible material can catch
fire on contact.
DO NOT touch hot surfaces. Avoid contact with
hot exhaust gases. Allow equipment to cool before
touching. Maintain at least three feet of clearance
on all sides to ensure adequate cooling. Maintain
at least five feet of clearance from combustible
materials.
WARNING

4
100220 ENGLISH
SAFETY RULES
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
DANGER
When adding or removing fuel:
Turn the engine off and let it cool for at least two
minutes before removing the fuel cap. Loosen the
cap slowly to relieve pressure in the tank. Only fill
or drain fuel outdoors in a well-ventilated area.
DO NOT overfill the fuel tank. Always keep fuel
away from sparks, open flames, pilot lights, heat
and other sources of ignition. DO NOT light or
smoke cigarettes.
When starting the engine:
DO NOT attempt to start a damaged engine. Make
certain that the gas cap, air filter, spark plug,
fuel lines and exhaust system are properly in
place. Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the engine is resting firmly on
level ground.
When transporting or servicing the engine:
Make certain that the fuel valve is in the off
position and the fuel tank is empty. Disconnect the
spark plug wire.
When storing the engine:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
WARNING
Improper treatment or use of the engine can damage
it, shorten its life and void your warranty.
Use the engine only for intended uses. Operate
only on level surfaces. DO NOT expose engine to
excessive moisture, dust, or dirt.
DO NOT allow any material to block the cooling
slots. DO NOT use the engine if:
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
CAUTION

5
ENGLISH 100220
(1) Muffler
(2) Fuel Tank – 0.9 gallons (3.4 L) capacity fuel tank.
(3) Fuel Valve Knob – Turn this valve to the “On”
position to supply fuel to the engine.
(4) Engine Switch
(5) Recoil Starter – Used to start the engine.
(6) Throttle – Controls engine speed
(7) Choke Lever – Used to start the engine
(8) Oil Filler Cap – Check and fill engine oil level.
(9) Oil Drain Bolt – Remove to drain engine oil.
(10) Air Cleaner – Protects the engine by filtering dust
and debris from the intake air
(11) Crank Shaft
Replacement Engine
CONTROLS AND FEATURES
Read this owner’s manual before operating your engine. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.
1
210
11
9
567
4
8
3
Parts Included
Your 100220 Gasoline Powered Engine ships with the
following parts:
Other
– Spark Plug Socket. ...................... 1

6
100220 ENGLISH
ASSEMBLY
Add Engine Oil Add Engine Oil Cont’d.
1. Place the engine on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel add up to 0.6 qt. (0.6 L) of oil (not
included) and replace oil fill cap/dipstick. DO NOT
OVERFILL.
4. Check engine oil level daily and add as needed.
The engine is equipped with a low oil shut-off
sensor and will stop when the oil level in the
crankcase falls below the threshold level.
CAUTION
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
NOTE
The recommended oil type is 10W-30 automotive oil.
NOTE
We consider the first 5 hours of run time to be the
break-in period for the engine. During the break in
period we recommend using standard automotive
non-synthetic blended oils. After the break in
period synthetic lubricant can be used but is not
required. Adjusting throttle setting will increase/
decrease engine speed helping to seat piston
rings. Avoid bogging or lugging the engine down
and avoid prolonged running at constant RPM.
After the 5 hour break-in period, change the oil.
Using synthetic lubricants does not increase the
recommended oil change interval.
NOTE
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.
NOTE
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the engine as a
result of failure to follow these instructions will void
your warranty.
CAUTION
Full Synthetic 5W-30
Degrees Celsiusº (Outside)
(Outside)
Degrees Fahrenheitº

7
ENGLISH 100220
ASSEMBLY
Add Fuel Cont’d.
Add Fuel
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol content
of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT OVERFILL. Fuel
can expand after filling. A minimum of
¼in. (6.4 mm) of space left in the tank is required
for fuel expansion, more than ¼in. (6.4 mm) is
recommended. Fuel can be forced out of the tank as
a result of expansion if it is overfilled, and can affect
the stable running condition of the product. When
filling the tank, it is recommended to leave enough
space for the fuel to expand.
Pouring fuel too fast through the fuel screen may
result in blow back of fuel at the operator while
filling.
WARNING
6. Screw on the fuel cap and wipe away any spilled fuel.
Our engines work well with 10% or less ethanol
blend fuels. When using blended fuels there are
some issues worth noting:
– Ethanol-gasoline blends can absorb more water
than gasoline alone.
– These blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor.
– With gravity-fed fuel supplies, this compromised
fuel can be drawn into the carburetor and cause
damage to the engine and/or potential hazards.
– There are only a few suppliers of fuel stabilizer
that are formulated to work with ethanol blend
fuels.
– Any damages or hazards caused by using
improper fuel, improperly stored fuel, and/
or improperly formulated stabilizers, are not
covered by manufacture’s warranty.
It is advisable to always shut off the fuel supply,
run the engine to fuel starvation and drain the tank
when the equipment is not in use for more than 30
days.
NOTE
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼in. (6.4 mm) below the
top of the tank to allow for fuel expansion.
DO NOT pump gas directly into the tank at the gas
station. Use an approved container to transfer the
fuel to the tank.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
CAUTION

8
100220 ENGLISH
OPERATION
Operation at High Altitude
The density of air at high altitude is lower than at sea
level. Engine power is reduced as the air mass and
air-fuel ratio decrease. Engine power and output will
be reduced approximately 3½% for every 1000 feet of
elevation above sea level. This is a natural trend and
cannot be changed by adjusting the engine. At high
altitudes increased exhaust emissions can also result
due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting,
increased fuel consumption and spark plug fouling.
To alleviate high altitude issues other than the natural
power loss, Champion Power Equipment can provide a
high altitude carburetor main jet. The alternative main
jet and installation instructions can be obtained by
contacting Customer Support. Installation instructions
are also available in the Technical Bulletin area of the
Champion Power Equipment internet site.
The part number and recommended minimum altitude
for the application of the high altitude carburetor main
jet is listed in the table below.
In order to select the correct high altitude main jet
it is necessary to identify the carburetor model. For
this purpose, a code is stamped on the side of the
carburetor. Select the correct main jet part number
corresponding to the carburetor code found on your
particular carburetor.
Operation using the alternative main jet at
elevations lower than the recommended minimum
altitude can damage the engine. For operation at
lower elevations, the standard main jet must be
used. Operating the engine with the wrong engine
configuration at a given altitude may increase
its emissions and decrease fuel efficiency and
performance.
WARNING
Carburetor
Code Main Jet Part Number Altitude
P19-1-Z
Standard 26.131017.00.Z
3500 Feet
(1067 Meters)
Altitude 26.131017.00.01.Z
P19-1-H
Standard 26.131017.00.H
Altitude 26.131017.00.01.H
P19-1-Y
Standard 26.131017.00.Y
Altitude 26.131017.00.01.Y
Starting the Engine
1. Make certain the engine is on a flat, level surface.
2. Flip engine switch to “ON” position (Item A).
3. Rotate the fuel valve to the “ON” position (Item B).
4. Move the throttle lever (Item C) to the “Fast”
position.
5. Move the choke lever (Item D) to the “Choke”
position.
6. Pull the starter cord slowly until resistance is felt and
then pull rapidly. SEE NOTE BELOW.
7. As engine warms up, move the choke lever (Item D)
to “Run.”
A
B
C
D
Keep choke lever in “Choke” position for 2 pulls of
the recoil starter. After first pull, move choke lever
to the “Run” position for up to the next 3 pulls of
the recoil starter. Too much choke leads to spark
plug fouling/engine flooding due to the lack of
incoming air. This will cause the engine not to start.
NOTE
Stopping the Engine
1. Turn the fuel knob to the “Of f” position. (B)
2. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
3. Turn the engine switch to the “Off” position. (A)
Important: Always ensure that the Fuel Valve and the
Engine Switch are in the “OFF” position when the
engine is not in use.
If the engine will not be used for a period of two (2)
weeks or longer, please see the Storage section for
proper engine and fuel storage.
NOTE
If the engine starts but does not run make certain
that the engine is on a flat, level surface. The
engine is equipped with a low oil sensor that will
prevent the engine from running when the oil level
falls below a critical threshold.
NOTE

9
ENGLISH 100220
MAINTENANCE AND STORAGE
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the engine.
For service or parts assistance, contact our help line
at 1-877-338- 0999.
NOTE
Never operate a damaged or defective engine.
WARNING
Improper maintenance will void your warranty.
WARNING
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.
Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.
1. Remove the oil drain plug with a 12 mm socket and
extension (not included).
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Using a funnel, add up to 0.6 qt. (0.6 L) of oil and
replace oil fill cap/dipstick.
6. Dispose of used oil at an approved waste
management facility.
0.7 - 0.8 mm
0.028 - 0.031 in.
Spark Plugs
1. Remove the spark plug cable from the spark plug.
2. Use a spark plug socket to remove the plug.
3. Inspect the electrode on the plug. It must be clean and
not worn to produce the spark required for ignition.
4. Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
5. Refer to the spark plug recommendation chart when
replacing the plug.
6. Carefully thread the plug into the engine.
7. Use a spark plug socket to firmly install the plug.
8. Attach the spark plug wire to the plug.
Air Filter
1. Unscrew wing nut to remove the air filter cover.
2. Remove the supporter and foam element.
3. Tap the foam element to remove dirt and debris. Use
compressed air (25 PSI) to clear debris.
4. For the foam element: Wash in liquid detergent and
water. Squeeze thoroughly dry in a clean cloth.
5. Saturate in clean engine oil.
6. Squeeze in a clean, absorbent cloth to remove all
excess oil.
7. Reassemble the elements and the supporter.
8. Reattach the air filter cover and snap in place.
9. Tighten wing nuts.

10
100220 ENGLISH
MAINTENANCE ANDSTORAGE
DO NOT use a garden hose to clean the engine.
CAUTION
Water can contaminate the fuel system and can
enter the engine through the cooling slots and
damage the engine.
Maintenance Schedule
Follow the service intervals indicated in the schedule
below. Service your engine more frequently when
operating in adverse conditions. Contact our help line at
1-877-338-0 999 to locate the nearest Champion Power
Equipment authorized service dealer for your engine
maintenance needs.
*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.
Storage
Refer to the Maintenance section for proper cleaning
instructions.
Engine Stored for Less than 30 Days
1. Allow the engine to cool completely before storage.
2. Clean engine according to the Maintenance section.
3. To extend the fuel storage life add fuel stabilizer.
4. Turn the fuel valve to the off position.
Engines Stored for Over 30 Days
1. Run the engine with the fuel valve in the “Off”
position until the engine stops.
2. The engine needs to cool completely before storage.
3. Clean engine according to the Maintenance section.
4. Drain all fuel completely from the fuel line and
carburetor to prevent gum from forming.
5. Add a fuel stabilizer into the fuel tank.
6. Change the oil.
7. The fuel valve needs to be in the off position.
8. Remove the spark plug and pour about 1⁄2 ounce
(14.8 ml) of oil into the cylinder. Crank the engine
slowly to distribute the oil and lubricate the cylinder.
9. Reattach the spark plug.
Cleaning
Use a damp cloth to clean exterior surfaces of the engine.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the engine.
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load or in hot
environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance*
Clean spark arrester
Clean fuel tank and filter*
Every 250 hours
Clean combustion chamber*
Every 3 years
Replace fuel line
Never store the engine inside next to appliances where
there is a source of heat or open flame, spark or pilot light
because they can ignite gasoline vapors.
DO NOT store an engine near fertilizer or any corrosive
material.
Even with an empty gas tank, gasoline vapors could ignite.
WARNING
Engine exhaust contains odorless and colorless
carbon monoxide gas.
To avoid accidental or unintended ignition of your
engine during periods of storage, the following
precautions should be followed:
– When storing the engine for short or extended
periods of time make sure that the Engine
Switch and the Fuel Valve are set in the OFF
position.
DANGER

11
ENGLISH 100220
For further technical support:
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
[e-mail]
TROUBLESHOOTING
Problem Cause Solution
Engine will not start No fuel Add fuel
Faulty spark plug Replace spark plug
Engine will not start;
Engine starts but runs roughly
Low oil level Fill crankcase to the proper level
Place engine on a flat, level surface
Choke in the wrong position Adjust choke
Spark plug wire loose Attach wire to spark plug
Engine shuts down during operation
Out of fuel Fill fuel tank
Low oil level Fill crankcase to the proper level.
Place generator on a flat, level surface
Engine cannot supply enough power or
overheating Insufficient ventilation Check for air restriction. Move to a well ventilated area
Engine gallops Engine governor defective Contact the help line

12
100220 ENGLISH
Oil
Use 10W-30 automotive oil.
Oil capacity is 0.6 qt. (0.6 L).
Please reference the following chart for recommended
oil types for use in the engine.
Fuel
Fuel capacity is 0.9 gallons (3.4 L). Use regular
unleaded gasoline with a minimum octane rating of 85
and an ethanol content of less than 10% by volume.
65.1
65.1
4833
307.1
135.6
82.1 166.2
5
35.2 39.5
2-Ø9（HOLE）
80
2-9X14（SLOT）
4-M8X1.25 DEPTH 15（S & W TYPES）
5/16 -24 UNF DEPTH 15
(Q.U.P.T &V TYPES)
106
346.9
331.9
Ø19.05 0
-0.03
4.78 0
-0.05
16.36 0
-0.1
5/16-24UNF
2BTAP
17
45.5
58.5
61.7
Ø41.25+0.039
0
5
Q轴
120.5
368
360.5
214
Engine Specifications
– Engine. ................... 196 cc OHV CPE
– PTO Rotation ............... Counterclockwise
– Ignition Mode .............. TCI (transistorized)
– Displacement ...................... 196 cc
– Torque (max) ........... 8.1 ft-lb at 2800 RPM
– Compression ....................... 8.5:1
– Output Shaft ... 3/4 in. x 2.4 in. (1.9 cm x 6.1 cm)
– End Hole ............. Tapped 5 /16 in. 24 UNF
– Fuel Capacity .............. 0.9 gallons (3.4 L)
– Gross Weight ...............40.3 lb. (18.3 kg)
– Net Weight.................35.7 lb. (16.2 kg)
– Height . .................. 14.2 in. (36.1 cm)
– Width ................... 14.5 in. (36.8 cm)
– Length. . . . . . . . . . . . . . . . . . . 12.1 in. (30.7 cm)
Keyway Shaft
Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.
NOTE
SPECIFICATIONS
Maintenance Valve Clearance
– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.
Spark Plugs
OEM spark plug: NHSP F6RTC
Replacement spark plug: NGK BPR6ES or equivalent
Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
Full Synthetic 5W-30
Degrees Celsiusº (Outside)
(Outside)
Degrees Fahrenheitº

13
ENGLISH 100220
SPECIFICATIONS
Parts Diagram
1
2345678910
11 12
13
14
15
16
17
18 19
20 21 22 23
24 25
26 27 28
32 33
34
35 36
37
38
39
40 41
42 43 44
45
46
47 48 49 50
51
52
53 54 55 56
57
58
59
60
61
62
63
64
65
66 67
68
69
70
71
72 73
74
76
77
78
79
80
81
82
83
84
85
86
87
88
89 90 91 92 93
94 95 96
97
98
100 101 102
103
104
105
106
107
108
109
110
111 112
113 114 115
116
117 118 119 120 121
122 123
125
126
127
128
129
130
132
133
134 135 136
75
1
31
131
137
138
139
140
108
29
141
20
30
11
7999112
7999124
42
112
11
19
142

14
100220 ENGLISH
SPECIFICATIONS
#Part Number Description Qty
11.5789.0608 Flange Bolt M6 x 8 5
222.061100.00.2 Cover, Recoil Starter, Black 1
321.061005.00 Spring, Recoil Starter 1
42.10.003.1 Rope Ø4 x 1550, Black 1
521.061001.01 Reel, Recoil Starter 1
645.060003.00 Spring, Ratchet 2
745.060002.00 Starter Ratchet, Steel 2
845.060009.00 Spring, Ratchet Guide 1
945.060007.00 Ratchet Guide 1
10 45.060008.00 Screw, Ratchet Guide 1
11 1.5789.0612 Flange Bolt M6 x 12 8
12 24.080100.01.48 Fan Cover, Yellow 1
13 2.05.002 Clamp Ø9.5 x 5 1
14 21.061300.00 Handle, Recoil, Soft 1
15 2.02.006 Nut M14 x 1.5 1
16 21.060001.01 Pulley, Starter 1
17 23.080001.00 Cooling Fan 1
18 24.120100.06 Flywheel 1
19 2.11.001 Oil Seal Ø25 x Ø41.3 x 6 2
20 2.03.020.1 Washer Ø6.2 x Ø15 x 0.5, Black 2
21 21.110100.00 Gear, Governor 1
22 21.110013.00 Shaft, Governor Gear 1
23 21.110011.00 Clip, Governor Gear 1
24 21.110012.01 Bushing, Govornor Gear, Steel 1
25 23.080600.00 Air Guide, Right 1
26 2.08.037 Drain Bolt M10 x 1.25 x 25 2
27 2.03.016 Washer Ø10 x Ø16 x 1.5, Drain Bolt 2
28 26.030100.00 Crankcase 1
29 21.120400.01 Diode Assembly 1
30 1.5789.0612.3 Flange Bolt M6 x 12 2
31 21.127000.02 Oil Level Sensor 1
32 23.050200.00 Connecting Rod 1
33 25.050100.03 Crankshaft 1
34 1.276.6205 Bearing 6205 2
35 24.030008.00 Gasket, Crankcase Cover 1
36 22.031000.00.48 Oil Dipstick Assembly, Yellow 1
37 24.030007.00 Cover, Crankcase 1
38 1.5789.0832 Flange Bolt M8 x 32 6
39 22.031000.01.48 Oil Filter Cap, Yellow 1
40 23.110005.01 Spring, Throttle Return 1
41 21.110003.00 Arm, Governor 1
42 1.6177.06 Flange Nut M6 3
43 2.03.021.1 Washer Ø6.4 x Ø13 x 1, Black 1
44 21.110001.00 Shaft, Governor Arm 1
45 22.123000.01 Ignition Coil, Silicon Rubber 1
46 1.5789.0625 Flange Bolt M6 x 25 2
47 23.110006.00 Rod, Governor 1
48 23.110007.00 Spring, Governor 1
49 2.08.040 Bolt M6 x 21, Governor Arm 1
50 21.110008.00 Pin, Shaft 1
51 24.111008.01 Grip Sheath, Speed Governor 1
52 24.111000.02 Control Assembly 1
53 25.040013.00 Lifter, Valve 2
54 2.04.001 Dowel Pin Ø9 x 14 2
55 26.041000.01 Camshaft 1
56 2.14.012 Woodruff Key 4 x 7.5 x 19 1
57 26.050005.00 Piston 1
58 23.050003.00 Pin, Piston 1
59 2.09.001 Circlip Ø18 x Ø1 2
60 26.050303.00 Ring, Oil 1
61 26.050302.00 Ring, Second Piston 1
62 26.050301.00 Ring, First Piston 1
63 26.030009.00 Gasket, Cylinder Head 1
64 2.04.003 Dowel Pin Ø10 x 14 2
65 23.040002.00 Valve, Intake 1
66 23.040006.00 Valve, Exhaust 1
67 26.080400.00 Air Guide, Lower 1
68 2.15.002(F6RTC) Spark Plug F6RTC 1
69 1.5789.0860 Flange Bolt M8 x 60 4
70 23.040017.00 Oil Seal, Valve 2
71 21.040003.00 Spring, Valve 2
72 21.040007.00 Retainer, Exhaust Valve Spring 1
#Part Number Description Qty
73 21.040001.00 Retainer, Intake Valve Spring 1
74 21.040008.00 Rotator, Exhaust Valve 1
75 24.040202.00 Shaft, Rocker Arm 1
76 22.040009.00 Rocker Arm 2
77 22.040012.00 Screw, Valve Adjustment 2
78 21.040021.00 Nut M6 x 0.5, Lock 2
79 1.97.1.06 Washer Ø6 6
80 1.6177.1.06 Flange Nut M6 2
81 24.040201.00 Retainer, Rocker Arm 1
82 23.040010.00 Bolt, Rocker Arm 2
83 24.040004.00 Guide Plate, Push Rod 1
84 23.040005.00 Push Rod 2
85 21.020002.01 Gasket, Cylinder Head Cover 1
86 24.021000.00 Cover, Cylinder Head 1
87 21.020001.00 Breather Tube 1
88 1.5789.0615 Flange Bolt M6 x 15 4
89 2.01.010 Stud Bolt M8 x 35 2
90 26.100001.00 Gasket, Exhaust Pipe 1
91 1.16674.0510 Flange Bolt M5 x 10 2
92 1.848.05 Washer Ø5 2
93 1.93.05 Lock Washer Ø5 2
94 24.101202.00 Muffler Protector 1
95 46.101300.05 Muffler Screen 1
96 1.818.0406 Screw M4 x 6 4
97 1.9074.4.0510 Screw/Washer Assembly M5 x 10 2
98 24.101100.00 Muffler 1
99 1.93.06 Lock Washer Ø6 6
100 1.6175.08 Nut M8 2
101 1.848.08 Washer Ø8 2
102 1.93.08 Lock Washer Ø8 2
103 26.010100.00 Cylinder Head 1
104 2.01.009 Stud Bolt M6 x 110 2
105 24.130002.00 Gasket, Insulator 1
106 23.130001.00 Insulator, Carburetor 1
107 22.130003.00 Gasket, Carburetor 1
108 26.131000.00 Carburetor 1
26.131000.02
109 21.130004.00 Gasket, Air Cleaner 1
110 21.130100.00 Choke Handle 1
111 24.091100.01 Base, Air Cleaner 1
112 1.5789.0620 Flange Bolt M6 x 20 5
113 24.091003.02 Element, Air Cleaner 1
114 24.091200.02 Cover, Air Cleaner 1
115 24.091600.01 Screw Cap, Air Clean Cover 2
116 22.070014.00 Pipe, Reversal Valve 1
117 2.06.006 Clamp Ø7 x Ø1 1
118 22.070013.00 Pipe, Air Cleaner
119 24.070700.00 Carbon Canister 1
120 1.845.2995 Screw ST2.9 x 9.5 2
121 2.03.037 Washer Ø3.2 x Ø14 x 1 2
122 24.070100.02 Cap, Fuel Tank 1
123 81.070301.00 Fuel Filter, Fuel Tank 1
124 1.5789.0633 Flange Bolt M6 x 33 1
125 24.071000.01 Fuel Tank 1
126 21.070600.03 Joint, Fuel Pipe 1
127 2.06.016 Clamp Ø8.7 x b8 1
128 24.070400.00 Fuel Valve 1
129 24.070011.01 Pipe Ø4.5 x (30 + 30) 1
130 24.070010.00 Veil, Fuel Tank 1
131 5.1010.003.3 Ignition Switch, Red 1
132 24.070001.00 Fuel Knob 1
133 1.818.0412 Bolt M4 x 12 1
134 1.16674.0512.2 Flange Bolt M5 x 12 1
135 2.06.007 Clamp Ø8 x b6 3
136 24.070011.00 Fuel Pipe Ø4.5 x Ø9.5 x 230 1
137 26.131017.00 Main Jet, Standard 1
26.131017.00.01 Main Jet, Altitude /
138 22.061000.00 Recoil Assembly 1
139 24.101000.00 Muffler Assembly 1
140 24.091000.02 Air Cleaner Assembly 1
141 2.12.001 Buffer Ø7.5 x 7.5 1
142 24.040200.00 Rocker Arm Assembly 1

WARRANTY*
CHAMPION POWER EQUIPMENT
2 YEAR LIMITED WARRANTY
Warranty Qualifications
Champion Power Equipment (CPE) will register this warranty upon
receipt of your Warranty Registration Card and a copy of your sales
receipt from one of CPE’s retail locations as proof of purchase.
Please submit your warranty registration and your proof of purchase
within ten (10) days of the date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of two years (parts and labor) from
the original date of purchase and 180 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the sole
responsibility of the purchaser. This warranty only applies to the
original purchaser and is not transferable.
Do Not Return The Unit To The Place Of Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any issue
via phone or e-mail. If the problem is not corrected by this method,
CPE will, at its option, authorize evaluation, repair or replacement
of the defective part or component at a CPE Service Center. CPE
will provide you with a case number for warranty service. Please
keep it for future reference. Repairs or replacements without prior
authorization, or at an unauthorized repair facility, will not be covered
by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need periodic
parts and service to perform well. This warranty does not cover repair
when normal use has exhausted the life of a part or the equipment as a
whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as starting batteries, and storage covers.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion Power
Equipment parts.
When applicable, this warranty does not apply to products used for
prime power in place of a utility.
Limits of Implied Warranty and Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product. THIS
WARRANTY AND THE ATTACHED U.S. EPA, CARB and/or ECCC
EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE)
ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the
original unit. The length of the warranty governing the exchanged
unit will remain calculated by reference to the purchase date of the
original unit.
This warranty gives you certain legal rights which may change from
state to state or province to province. Your state or province may also
have other rights you may be entitled to that are not listed within this
warranty.
Contact Information
Address
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670 USA
www.championpowerequipment.com
Customer Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338- 0999
[e-mail]
Fax no.: 1-562-236-9429
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338- 0999
[e-mail]
24/7 Tech Support: 1-562-204-1188
WARRANTY
*Except as otherwise stipulated in any of the following enclosed Emission Control System Warranties (when applicable) for the Emission Control System: U.S.
Environment Protection Agency (EPA), California Air Resources Board (CARB) and/or Environment and Climate Change Canada (ECCC).

Champion Power Equipment, Inc. (CPE),
The United States Environment Protection Agency (U.S. EPA.) and the California Air Resources Board (CARB)
Emission Control System Warranty
Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air
Resources Board (CARB) emission regulations.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
The US EPA, California Air Resources Board, and CPE are pleased to explain the Federal and California Emission
Control Systems Warranty on your 2018 small off-road engine (SORE) and engine powered equipment. In
California, new, small off-road engines (SORE) and new equipment that use small off-road engines (SORE) must
be designed, built and equipped to meet the State’s stringent anti smog standards. In the other states, new engines
and equipment must be designed, built and equipped, at the time of sale, to meet U.S. EPA regulations for small
off-road engines (SORE). CPE warrants the emission control system on your small off-road engine (SORE) and
equipment for the period of time listed below, provided there has been no abuse, neglect, unapproved modification,
or improper maintenance of your equipment.
Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system,
catalytic converter and fuel lines. Also included may be hoses, belts, connectors and other emission related
assemblies. Where a warrantable condition exits, CPE will repair your small off-road engine (SORE) at no cost to
you including diagnosis, parts and labor. For engines less than or equal to 80cc, only the fuel tank and fuel line is
subject to the evaporative emission control warranty requirements of this section.
MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:
This emission control system is warranted for two years, subject to provisions set forth below. If, during the
warranty period, emission related part on your engine is defective in materials or workmanship, the part will be
repaired or replaced by CPE.
OWNER WARRANTY RESPONSIBILITIES:
As the small off-road engine (SORE) owner, you are responsible for the performance of the required maintenance
listed in your Owner’s Manual. CPE recommends that you retain all your receipts covering maintenance on your
small off-road engine (SORE), but CPE cannot deny warranty solely for the lack of receipts or for your failure to
ensure the performance of all scheduled maintenance.
As the small off-road engine (SORE) owner, you should however be aware that CPE may deny you warranty
coverage if your small, off-road engine (SORE) or a part has failed due to abuse, neglect, improper maintenance or
unapproved modifications.
You are responsible for presenting your small off-road engine to an Authorized CPE service outlet or alternate
service outlet as described in (3)(f.) below, CPE dealer or CPE, Santa Fe Springs, Ca. as soon as a problem exists.
The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact:
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
[email protected]

EMISSION CONTROL SYSTEM WARRANTY
The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage.
1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines
(SORE) (for other states, 1997 and later model year engines). The ECS Warranty Period shall begin on the date
the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive
months thereafter.
2. GENERAL EMISSIONS WARRANTY COVERAGE
CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent
purchaser that each of its small off-road engines (SORE) is:
a. Designed, built and equipped so as to conform to U.S. EPA emissions standards for spark-ignited
engines at or below 19 kilowatts and all applicable regulations adopted by the California Air Resources Board
and
b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical
in all material respects to the part as described in the engine manufacturer’s application for certification for a period
of two years.
3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:
a. Any warranted part that is not scheduled for replacement as required maintenance in the Owners
Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it
shall be repaired or replaced by CPE according to Subsection “d” below. Any such part repaired or replaced under
the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.
b. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the
Owners Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the
effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or
replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.
c. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in
the Owner’s Manual shall be warranted for the period of time prior to the first scheduled replacement point for that
part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by CPE
according to Subsection “d” below. Any such emissions-related part repaired or replaced under the ECS Warranty,
shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for
such emissions-related part.
d. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be
performed at no charge to the owner at a CPE Authorized Service Outlet.
e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered
by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a CPE Authorized
Service Outlet.
f. CPE shall pay for covered emissions warranty repairs at non-authorized service outlets under the
following circumstances:
i. The service is required in a population center with a population over 100,000 according to U.S.
Census 2000 without a CPE Authorized Service Outlet AND
ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile
limitation does not apply in the following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska,
Nevada, New Mexico, Oregon, Texas, Utah and Wyoming.
g. CPE shall be liable for damages to other original engine components or approved modifications
proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.
h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted emission-related parts
sufficient to meet the expected demand for such emission-related parts.
i. Any CPE Authorized and approved emission-related replacement part may be used in the performance of
any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not
reduce CPE’s warranty obligation.
j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids
this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable
hereunder for failures of any warranted parts of a CPE engine caused by the use of such an unapproved add-on or
modified part.
