Champion DH-1 Gas User manual

(1M) 9/06 Printed in U.S.A.
CH017
Door-type
Gas Heated
High Temperature Dishwasher
D-H1 GAS
D-H1 GAS DOOR-TYPE
STANDARD FEATURES
• Automatic tank fill
• Detergent/chemical connection provisions
• Door safety switches
• Automatic electric drain valve
• One gas heating system for boosting
the final rinse and tank heat
• Interchangeable upper and lower spray arms
• ow-water tank heat protection
• Pump motor, drip-proof 1 Hp
• Stainless steel pump impeller
• Stainless steel front and side panels
• Top-mounted, splash-proof control console
• Single point electrical connection (see chart)
• Balanced door lift system
SPECIFIER STATEMENT
Specified unit will be Champion model D-H1 gas
heated high temperature dishwashing machine.
Features top mounted control cabinet, balanced
door-lift with door safety switch, interchangeable
stainless steel wash and rinse arms, 55 racks/hr.,
1.1 US gals/rack. Constructed of Type 304 SST.
1 year parts and labor warranty.
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: [phone] Fax: [phone]
www.championindustries.com
Project
Item No.
Quantity
OPTIONS & ACCESSORIES
Corner Model
Drain Tempering Kit
Vent Fan Control Switch
Gas

Door-type
Gas Heated
High Temperature Dishwasher
D-H1 GAS
D-H1 GAS DOOR-TYPE
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: [phone] • www.championindustries.com
ength between table connections: 25-3/4"
Shipping weight crated: 775 l s.

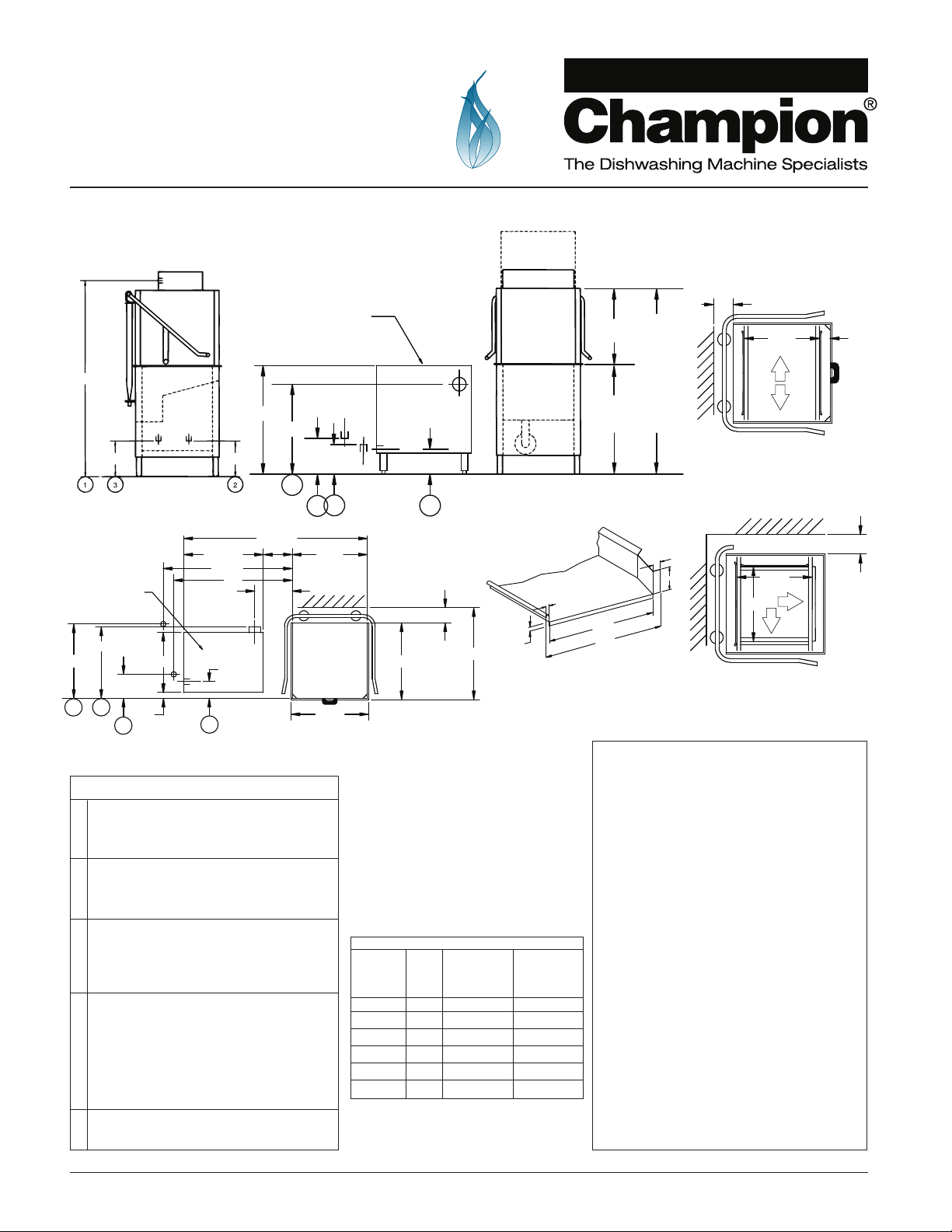

Dimensions shown in inches
C rner Operati n
20-1/8" 2-7/8"
STRAIGHT THROUGH OPERATION
Front
Inside Tracks
5
5-1/4" Min.
2
5-1/4" Min.
5
20-1/8"
20-1/8"
C
Inside Tracks
Front
2
Fr nt View
Side View
Typical Table
C nstucti n
60-1/2"
8-7/8" 11"
84"
Door
Removal
17"
Clear.
75"
Doors
Up
34"
Load
Height
57-1/2"
Machine
Height
7
2A 61B
*Hatco
GasBooster
Mod. # PMG-100
2
10-1/4"
25-7/8"
31-1/4"
4
1-1/4" Roll
1-1/8"
24-1/4"
20-7/8"
7-1/4"
2-1/8"
SPECIFICATIONS
Capacities
Racks per hr. (NSF rated) 55
Wash tank (gal.) 9
Motor horsepower 1
Water consumption
Gal. per hr. (max. use) 61
Gal. per rack 1.1
Temperature °F
Wash 150
Rinse 180
Heating
Gas
PMG60 (40°F rise) 58,000 BTU/hr
PMG100 (70°F rise) 105,000 BTU/hr
Time cycle in seconds
Wash 40
Dwell 10
Rinse 10
Total cycle 60
Utilities
1 Electrical
A. Machine connection (see box)
B. Booster connection requires
15 amps @ 120/60/1
2 Hot Water
3/4" NPT hot water 140°F for 40°F rise
booster. 3/4" NPT hot water 110°F for
70°F rise booster. Flow pressure 20-22 psi.
3 Drain
A. 2" OD machine connection
B. 3/4" NPT relief valve to open drain
C. 1/2" NPT vent to open drain
D. 3/4" male threaded hose end
4 Gas
40°F rise - P Gas 25 CFH for 60,000 BTU/hr.
Natural 60 CFH for 60,000 BTU/hr.
70°F rise - P Gas 41 CFH for 100,000 BTU/hr.
Natural 100 CFH for 100,000 BTU/hr.
PMG-60 requires 1/2" NPT.
PMG-100 requires 3/4" NPT.
5 Gas Flue - 4" OD exhaust
A. Rear of booster
*Booster shown is the PMG-100. Contact factory
for PMG-60 drawings and electrical information.
Warning: Plumbing, gas and electrical connections
should be made by qualified personnel who will
observe all the applicable plumbing, sanitary and
safety codes and the National Electrical Code.
Gas
Machine Load Amps
Minimum Maximum
Supply Ckt. Overcurrent
Rated Conductor Protective
Voltage Amps Ampacity Device
115/60/1 22 30 30
208/60/1 13 20 20
240/60/1 11 15 15
208/60/3 6 15 15
240/60/3 6 15 15
480/60/3 3 15 15
Plan View
26−3/4"
10"
63−1/2"
27−1/2"
26−1/2"
13"
44−5/8"
5−3/4"
MIN. 5−1/4"
26"
41"
24−5/8"
25−5/8"
2"
Gas Booster
7
2A
61B
20−3/4"
8−1/4"
1
31−3/4"
2
Warning: Gas burner intake air and exhaust
venting required in accordance with local codes.
Exhaust must be vented outside.
Plum ing Note: Because of variation in house-supplied
water pressure, pressure regulating valves (PRV’s)
for incoming water may be needed. The PRV’s can
be purchased from Champion or obtained locally.
Note: Water Hammer Arrestor (meeting ASSE-1010
standard or equivalent) to be supplied (by others) in
common water supply line at service connection.
Note: Specify vent location option on booster
when ordering.
Note: For corner application, contact Factory
Straight Thr ugh
Operati n
