Champion CHTW150 User manual
2
1
3
4
6
5
Description:
1. Touch Button -MFB
2. LED of Earbud
3. Charging Pin of Earbud
4. Microphone
5. LED of Charging Case
6. Charging port of Charging Case
Content:
1 x T1 TWS Earbuds
1 x TYPE-C Charging Cable
6 pairs x Silicon Gel Tips（S/M/L)
1 x Quick Guide
Product Spec
Bluetooth: V5.0
Frequency Range: 2402 - 2480 MHz
Sensitivity: 97±3dB
Impedance: 32 ohm ±15%
Input: DC 5V / 250mA
Earbuds Battery: 60mAh x 2
Charging Pod Battery: 400mAh
Charge Time: 1.5 hours
Charging for Earbuds:
Fully charge the battery for 2-3 hours before using the earbuds for the first time,
or when they have been unused for extended periods.
Put the earbuds into the charging case, they will charge automatically. The
indicators of earbuds will be lit-on green and charging case will be lit-on white.
When earbuds are fully charged, the indicators of earbuds and charging box will
be off.
Charging for Charging Case:
When the charging case is connected with charger (or computer USB port) by
included charging cable, the indicator will flash in green. When the charging case
is fully charged, the indicator will be lit-on in green.
NOTE:
When the charging case is out of battery, the earbuds will not turn on/off
automatically when removed from or placed back into the charging case. In this
case, turn the earbuds on/off manually.
First Use & Pairing
Connect
Touch the MFB for 2 secs on both
earbuds to turn on the earbuds.
(You will hear the prompt tone).
The earbuds will automatically
enter pairing mode
Take out L&R earbuds from charging case,
the earbuds will automatically power on
and enter into pairing mode.
Auto Power-On & Pairing Manual Power-On & Pairing
Paring Mode
When earbuds are into pairing mode,
one earbuds will flash into white and green
and the rest will not flash
when earbuds are connected.
Turn on the device’s Bluetooth setting.
Search for and choose TW150 to pair,
your device will show “connected”.
LED flash
In green & white
LED flash
In green & white
and then off
TW150
BLUETOOTH
Bluetooth
Connected
Connect
2S
2S
Power-Off

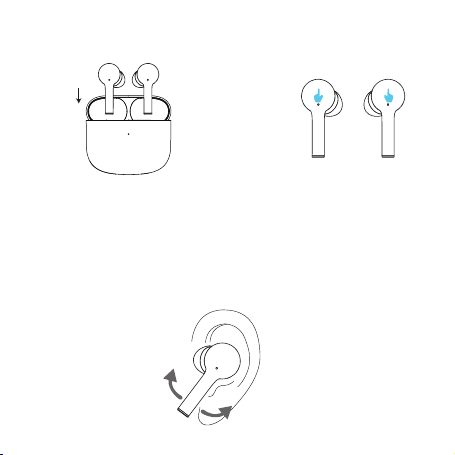

Wearing
Insert the earphones directed towards your ear canal. Twist gently until the
earbuds fit comfortably and get better sound experience.
1. Touch the MFB for 8 secs on both
earbuds to power off the earbuds.
2. The earbuds will automatically turn off
when without pairing for 10mins.
Put L&R earbuds into charging pod, the
earbuds will automatically power off.
Auto Power-Off Manual Power-Off
8S
8S
