Champion 65525 User manual

OWNER’S MANUAL & OPERATING INSTRUCTIONS
10006 Santa Fe Springs Road
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
2 INCH
SEMI-TRASH PUMP
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
MADE IN CHINA
REV 65525-20110516
65525
MODEL NUMBER
1YEAR
LIMITED WARRANTY

Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999

65525
SEMI-TRASH PUMP
TABLE OF CONTENTS
Introduction ............................ 1
Introduction .......................... 1
Semi-Trash Pump ...................... 1
Accessories .......................... 1
This Booklet .......................... 1
Manual Conventions....................... 2
Safety Rules ............................ 3
Controls and Features ..................... 5
Semi-Trash Pump ...................... 5
Parts Included ........................ 6
Wheel Kit.......................... 6
Hose Kit .......................... 6
Other ............................ 6
Assembly .............................. 7
Remove the Semi-Trash Pump
from the Shipping Carton ................. 7
Install the Wheel Kit .................... 7
Install the Support Leg .................. 7
Install the Handles ..................... 7
Add Engine Oil ........................ 8
Add Fuel ............................ 8
Operation .............................. 9
Semi-Trash Pump Location ................ 9
Connecting a Hose Kit ................... 9
Starting the Engine .................... 10
Stopping the Engine ................... 10
Maintenance and Storage .................. 11
Engine Maintenance ................... 11
Oil ............................. 11
Spark Plugs ....................... 11
Air Filter ......................... 11
Cleaning ......................... 12
Adjustments ....................... 12
Maintenance Schedule................ 12
Storage ............................ 12
Engine Storage ..................... 12
Semi-Trash Pump Storage ............. 12
Troubleshooting......................... 13
Specifications .......................... 14
Engine Specifications .................. 14
Semi-Trash Pump Specifications ........... 14
Fuel .............................. 14
Oil ............................... 14
Spark Plugs ......................... 14
Valve Clearance....................... 14
Parts Diagram........................ 15
Parts List ........................... 16
Engine Parts Diagram .................. 17
Engine Parts List ..................... 18
Warranty ............................. 19
Warranty Qualifications ................. 19
Repair/Replacement Warranty ............. 19
Do Not Return The Unit To
The Place Of Purchase.................. 19
Warranty Exclusions. . . . . . . . . . . . . . . . . . . . 19
Normal Wear ...................... 19
Installation, Use and Maintenance........ 19
Other Exclusions .................... 19
Limits of Implied Warranty and Consequential
Damage .......................... 19
Contact Information.................... 19
Address .......................... 19
Customer Service ................... 19
Technical Service ................... 19
Emission Control System Warranty.......... 20
2 INCH

1REV 6552520110516
ENGLISH 65525
Introduction
Congratulations on your purchase of a Champion Power
Equipment semi-trash pump. CPE designs and builds
semi-trash pumps to strict specifications. With proper
use and maintenance, this semi-trash pump will bring
years of satisfying service.
Semi-Trash Pump
This unit is a gasoline engine driven, impeller based semi-
trash pump. It is designed to pump clear water only.
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Accessories
Champion Power Equipment manufactures and sells
accessories designed to help you get the most from your
purchase. To find out more about our covers, hose kits
and other accessories, please visit our web site at:
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the accuracy and
completeness of the information in this manual. We reserve
the right to change, alter and/or improve the product and
this document at any time without prior notice.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
1-877-338-0999
65525
For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.
INTRODUCTION

REV 65525-20110516 2
65525 ENGLISH
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
MANUAL CONVENTIONS
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your semi-trash pump,
we can help. Please call our help line at 1-877-338-0999
NOTE

3REV 6552520110516
ENGLISH 65525
SAFETY RULES
Engine exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death.
Operate semi-trash pump outdoors only in a
well ventilated area DO NOT operate the semi-
trash pump inside any building, enclosure or
compartment.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other openings.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts. Tie
up long hair and remove jewelry. Operate equipment
with guards in place. DO NOT wear loose-fitting
clothing, dangling drawstrings or items that could
become caught.
DANGER
The semi-trash pump develops powerful force.
DO NOT move the semi-trash pump when it is in
use. DO NOT use hoses or connectors that are
worn, damaged or frayed. DO NOT allow children or
unqualified persons to operate or service the semi-
trash pump.
DANGER
Sparks can result in fire or electrical shock.
When servicing the semi-trash pump:
Disconnect the spark plug wire and place it where
it cannot contact the plug. DO NOT check for spark
with the plug removed. Use only approved spark
plug testers.
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
Read this manual thoroughly before operating your
semi-trash pump. Failure to follow instructions
could result in serious injury or death.
WARNING
Semi-trash pump exhaust contains carbon
monoxide, a colorless, odorless, poison gas.
Breathing carbon monoxide will cause nausea,
dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
Pumping volatile liquids may result in an explosion
or fire. These liquids will corrode the pump and void
your warranty.
DANGER
DO NOT immerse this unit in water.
WARNING

REV 65525-20110516 4
65525 ENGLISH
SAFETY RULES
Improper treatment or use of the semi-trash pump
can damage it, shorten its life and void your warranty.
Use the semi-trash pump only for intended uses.
Operate only on level surfaces. DO NOT expose
semi-trash pump to excessive moisture, dust, or dirt.
DO NOT allow any material to block the cooling slots.
DO NOT use the semi-trash pump if:
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
CAUTION
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel:
Turn the engine off and let it cool for at least two
minutes before removing the fuel cap. Loosen the
cap slowly to relieve pressure in the tank. Only fill
or drain fuel outdoors in a well-ventilated area.
DO NOT overfill the fuel tank. Always keep fuel
away from sparks, open flames, pilot lights, heat
and other sources of ignition. DO NOT light or
smoke cigarettes.
When starting the semi-trash pump:
DO NOT attempt to start a damaged semi-trash
pump. Make certain that the gas cap, air filter,
spark plug, fuel lines and exhaust system are
properly in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the semi-trash pump is resting
firmly on level ground.
When operating the semi-trash pump:
DO NOT move or tip the semi-trash pump during
operation. DO NOT tip the semi-trash pump or allow
fuel or oil to spill.
When transporting or servicing the semi-trash pump:
Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty. Disconnect the
spark plug wire.
When storing the semi-trash pump:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
DANGER
Exceeding the semi-trash pump’s specification for
maximum head can damage the semi-trash pump
and/or hose kits connected to it.
DO NOT modify the semi-trash pump in any
way. DO NOT attempt to exceed the rated flow.
Attempting to increase the rated flow may damage
the unit and/or shorten its life.
CAUTION
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
WARNING
Water pumped through this unit shall not be used
as drinking water.
WARNING
DO NOT pump salt, sludge, sewer, sea, or any other
type of water containing solid material.
WARNING

5REV 6552520110516
ENGLISH 65525
(1) Fuel Tank – 1.06 gallon (4 L) capacity fuel tank.
(2) Air Filter – Protects the engine by filtering dust
and debris from the intake air.
(3) Muffler
(4) 2” Outlet – 2” NPT outlet connector.
(5) Low Oil Sensor – Senses the level of oil in the
crankcase and shuts the engine down if the level
falls too low.
(6) Oil Filler Cap – Check and fill engine oil level.
(7) 2” Inlet – 2” NPT inlet connector.
(8) Throttle – Used to adjust engine speed.
(9) Choke lever– Used to start the engine.
(10) Fuel Valve
(11) Engine Switch – Used to start the engine.
(12) Recoil Starter – Used to start the engine.
Semi-Trash Pump
CONTROLS AND FEATURES
41 2 3
7
11
9
8
12
10
6
5
Read this owner’s manual before operating your semi-trash pump. Familiarize yourself with the location and function
of the controls and features. Save this manual for future reference.

REV 65525-20110516 6
65525 ENGLISH
CONTROLS AND FEATURES

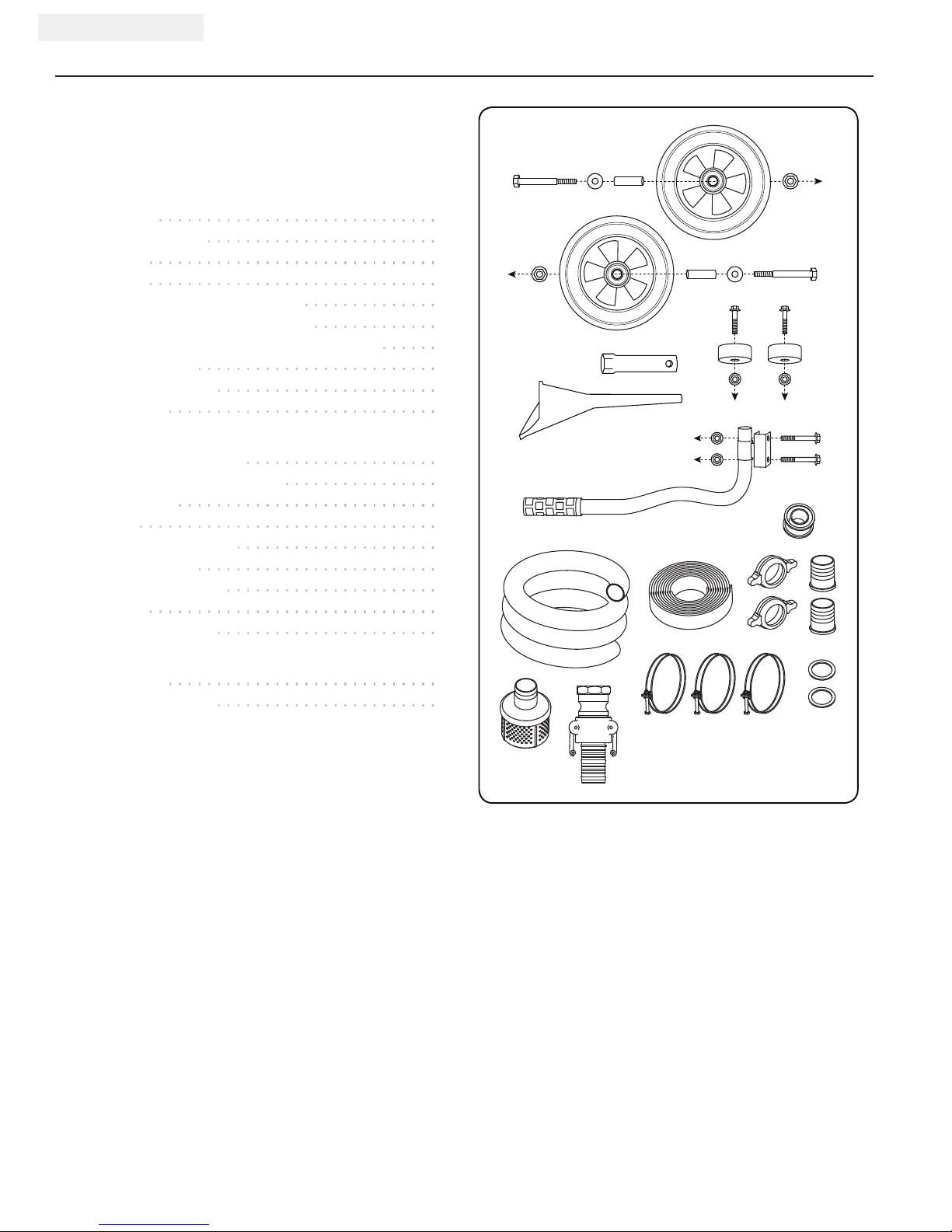

Parts Included
Your Model 65525 Gasoline Powered semi-trash pump
ships with the following parts:
Wheel Kit
– 6” Wheel ............................. 2
– Vibration Mounts........................ 2
– Bushing .............................. 2
– Handle .............................. 1
– Flange Bolt (M8x75 for Wheel) .............. 2
– Flange Bolt (M8x45 for Handle) ............. 2
– Flange Bolt (M8x25 for Vibration Mounts) ...... 2
– Lock Nut (M8)......................... 2
– Flat Washer 8 mm....................... 2
– Nut (M8) ............................ 4
Hose Kit
– 12’ Rigid Intake Hose .................... 1
– 20’ Collapsible Outlet Hose ................ 1
– Teflon Tape ........................... 1
– Clamp ............................... 3
– Outlet Hose Adapter ..................... 2
– Gasket (plastic)......................... 2
– Outlet Hose Fitting ...................... 2
– Strainer .............................. 1
– Cam Lock Coupler ....................... 1
Other
– Oil Funnel ............................ 1
– Spark Plug Socket ....................... 1

7REV 6552520110516
ENGLISH 65525
Your semi-trash pump requires some assembly. This unit
ships from our factory without oil. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
semi-trash pump, call our help line at 1-877-338-0999.
Please have your serial number and model number
available.
Remove the Semi-Trash Pump from the Shipping Carton
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the semi-
trash pump.
3. Carefully cut each corner of the box from top to bottom.
ASSEMBLY
Install the Wheel Kit
The wheel kit is not intended for over-the-road use.
CAUTION
You will need the following tools to install the wheels:
• 12 mm wrench OR adjustable wrench (not included)
• Socket wrench with a 12 mm socket (not included)
1. Slide the M8x75 wheel bolt through the washer,
sleeve and wheel.
2. Slide the bolt through the mount point on the frame.
3. Fasten securely with the M8 nut.
4. Repeat steps 1-3 to attach the second wheel.
Install the Support Leg
1. Attach the two rubber vibration mounts to the frame
cross member with a cap screw (M8x25) and lock
nut (M8).
2. Attach the support leg to the generator frame with
cap screws (M8x16) and lock nuts (M8).
3. Tip the semi-trash pump slowly so that it rests on
the wheels and vibration mounts.
Install the Handles
1. Line up the holes at the base of the handle with the
receiving holes on the semi-trash pump frame.
2. Thread cap screws (M8x45) through the frame and
handle.
3. Place a lock nut (M8) on the end of the cap screw and
fasten securely. DO NOT over tighten the lock nut.

REV 65525-20110516 8
65525 ENGLISH
ASSEMBLY
The engine is equipped with a low-oil-shutoff and
will stop when the oil level in the crankcase falls
below the threshold level.
CAUTION
Add Fuel
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol content
of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT overfill. Allow
approximately ¼ inch of space for fuel expansion.
6. Screw on the fuel cap and wipe away any spilled fuel.
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼ inch below the top of
the tank to allow for fuel expansion.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
CAUTION
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
NOTE
1. Place the semi-trash pump on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add 0.63 qt (0.6 L) of oil (included) and replace oil
fill cap/dipstick. See “Specifications” pages for oil
recommendations based on operating conditions.
4. Check engine oil level daily and add as needed.

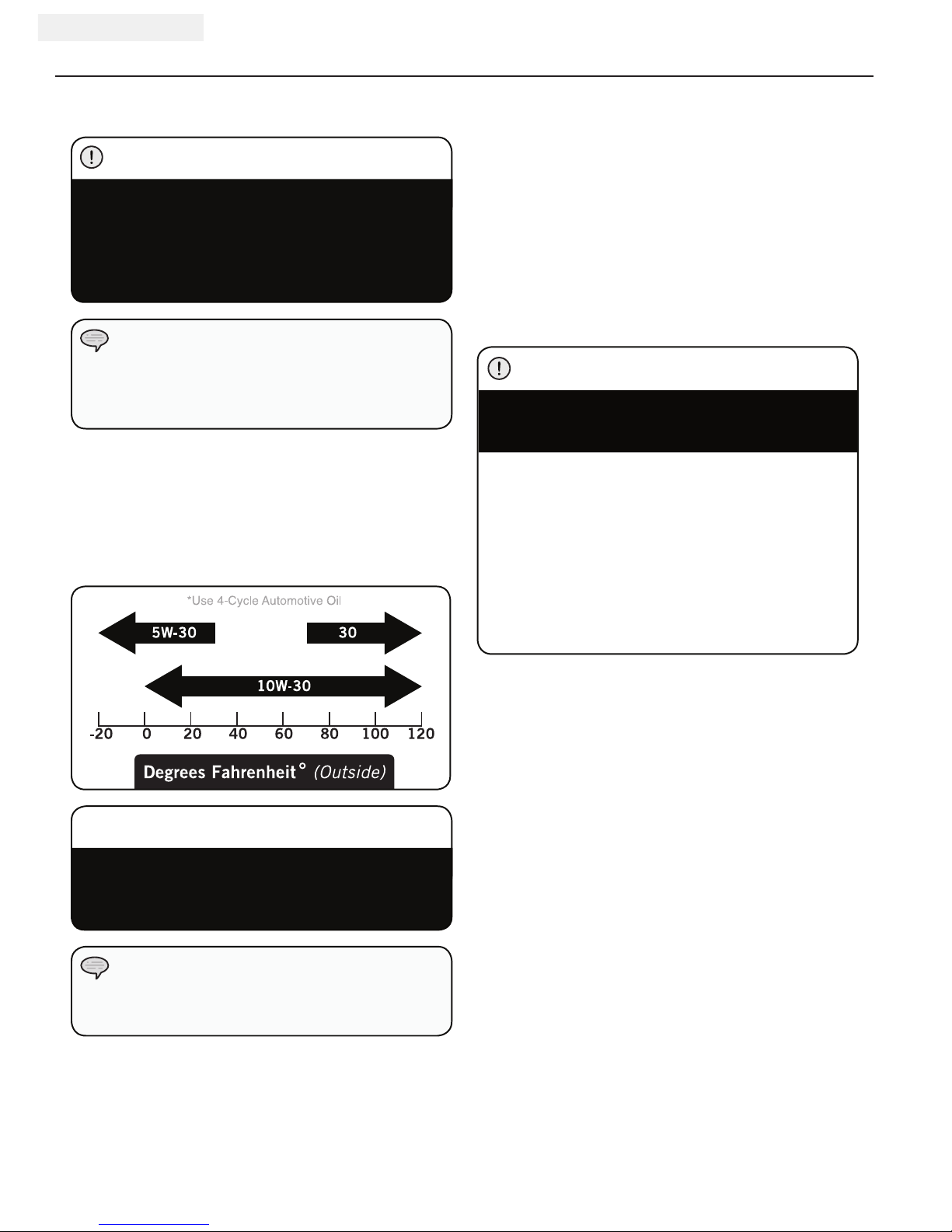

The recommended oil type is 10W-30 4-cycle
automotive oil. Please see “Specifications” section
for more information on oil types.
NOTE
Add Engine Oil
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the semi-
trash pump as a result of failure to follow these
instructions will void your warranty.
CAUTION

9REV 6552520110516
ENGLISH 65525
Semi-Trash Pump Location
Place the semi-trash pump in a well- ventilated area. DO
NOT place the semi- trash pump near vents or intakes
where exhaust fumes could be drawn into occupied
or confined spaces. Carefully consider wind and air
currents when positioning semi- trash pump.
This semi-trash pump must have at least five feet of
clearance from combustible material. Leave at least
three feet of clearance on all sides of the semi-trash
pump to allow for adequate cooling, maintenance and
servicing.
Place the pump on a level surface free from any
obstructions or potential hazards. The pump should
be placed close to the water level to ensure maximum
pump performance.

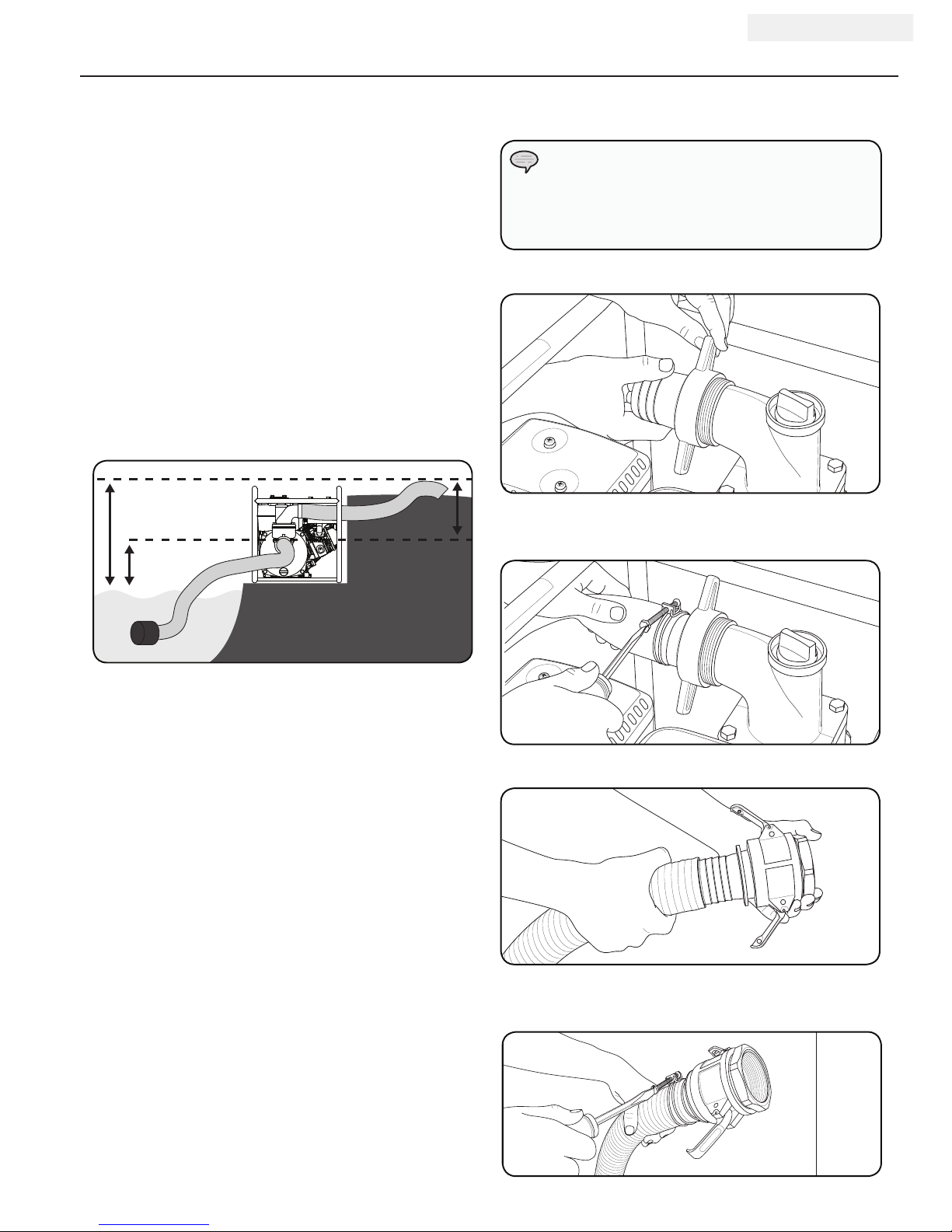

Connecting a Hose Kit
1. Attach and thread the connector to the threaded flange.
2. Slide the flexible, outlet hose over connector and
secure with the hose clamp.
4. Fasten the quick coupler to the suction hose with
the hose clamp.
3. Insert quick coupler in the rigid suction hose.
Pump output will be affected by the type, length, and
size of the suction and discharge hoses. The pumping
height, also known as the total head, is the distance
from the water level to the point of discharge. As
this distance increases, pump output decreases. The
discharge capacity is greater than the suction capacity.
Therefore, it is important that the suction head is less
than the discharge head.
The time required to draw water from the source to
the pump (self-priming time) can be decreased by
minimizing the suction head.
OPERATION
Both the intake and discharge ports are 2 in. NPT.
Please insure the connectors to the suction and
discharge hose are 2 in. NPT threaded.
NOTE
TOTALHEAD
DISCHARGEHEAD
SUCTIONHEAD

REV 65525-20110516 10
65525 ENGLISH
Starting the Engine
1. Make certain the semi-trash pump is on a flat, level
surface.
2. Flip engine switch (A) to “ON” position.
3. Rotate the fuel valve (B) to the “ON” position.
4. Move the choke lever (C) to the “Choke” position.
5. Pull the starter cord slowly until resistance is felt
and then pull rapidly.
6. As engine warms up, move the choke lever (C) to “Run”.
7. Move the throttle lever (D) to the “Fast” position.
Stopping the Engine
1. Turn the ignition switch to the “Off” position.
2. Rotate the fuel valve to the “Off” position.
3. Allow the engine to cool thoroughly.
Remove the cap from the cooling pump chamber
and allow it drain completely.
Pump performance can be adjusted using the throttle.
To decrease pump output, slide the throttle to the right.
To increase it, slide the throttle to the left.
5. Wrap the 2” NPT inlet clockwise with the Teflon
tape provided. Carefully thread the male connector
to the intake port.
6. Attach the quick coupler to the male coupler and
lock in place with the cam lock.
7. Attach the strainer to the intake hose and secure
with the hose clamp.
8. Remove the cap from the pump chamber and
completely fill the chamber with clean water. Tighten
the cap.
OPERATION
If the engine starts but does not run make certain
that the semi-trash pump is on a flat, level surface.
The engine is equipped with a low oil sensor that
will prevent the engine from running when the oil
level falls below a critical threshold.
NOTE
Connecting a Host Kit Cont’d.
DO NOT run the pump dry.
Running the pump dry can destroy the pump seals
and will void the warranty. If the pump was running
while dry, stop the engine and allow it to cool
thoroughly before filling the chamber with water.
WARNING
A
B
D
C

11 REV 6552520110516
ENGLISH 65525
MAINTENANCE AND STORAGE
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the semi-trash pump.
Never operate a damaged or defective semi-trash pump.
For service or parts assistance, contact our help
line at 1-877-338-0999.
NOTE
Maintenance, replacement, or repair of emission
control devices and systems may be performed
by any non-road engine repair establishment or
individual.
NOTE
WARNING
Improper maintenance will void your warranty.
WARNING
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.
Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.

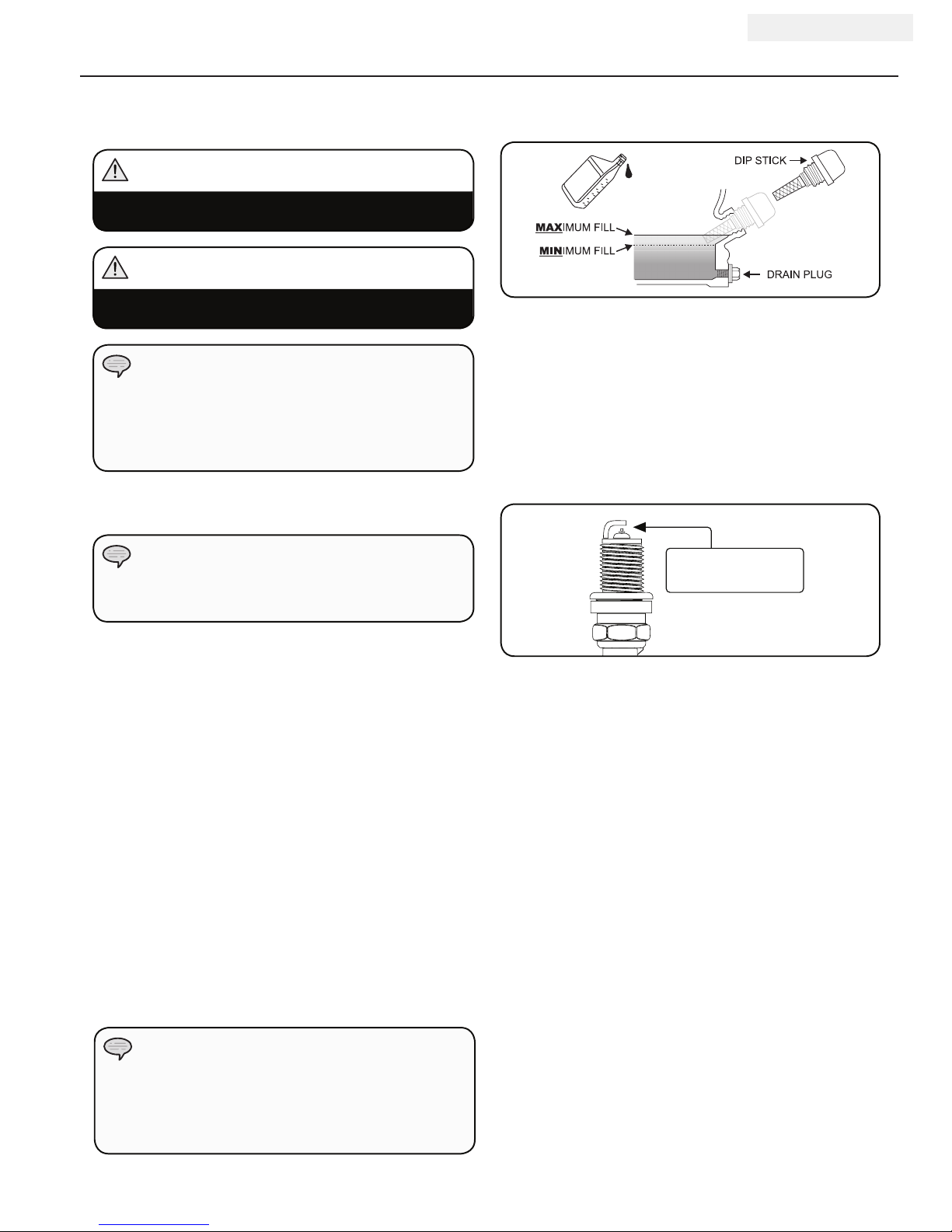

1. Remove the oil drain plug with a 12 mm socket and
extension.
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add 0.63 qt (0.6 L) of oil and replace oil fill
cap/dipstick.
6. Dispose of used oil at an approved waste
management facility.
Spark Plugs
1. Remove the spark plug cable from the spark plug.
2. Use the spark plug tool that shipped with your semi-
trash pump to remove the plug.
3. Inspect the electrode on the plug. It must be clean and
not worn to produce the spark required for ignition.
4. Make certain the spark plug gap is 0.7 - 0.8mm or
(0.028 - 0.031 in.).
5. Refer to the spark plug recommendation chart when
replacing the plug.
6. Carefully thread the plug into the engine.
7. Use the spark plug tool to firmly install the plug.
8. Attach the spark plug wire to the plug.
Oil Cont’d.
0.7 - 0.8 mm
0.028 - 0.031 in.
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
Air Filter
1. Remove the snap-on cover holding the air filter to
the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water. Squeeze
thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to remove all
excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in place.

REV 65525-20110516 12
65525 ENGLISH
MAINTENANCE AND STORAGE
Storage
For longer term storage, please follow these guidelines.
Engine Storage
1. Allow the engine to cool completely before storage.
2. Clean the engine according to the instructions in the
Maintenance section.
3. Drain all fuel completely from the fuel line and
carburetor to prevent gum from forming.
4. Add a fuel stabilizer into the fuel tank.
5. Change the oil.
6. Remove the spark plug and pour about ½ ounce
of oil into the cylinder. Crank the engine slowly to
distribute the oil and lubricate the cylinder.
7. Reattach the spark plug.
Semi-Trash Pump Storage
1. Allow the semi-trash pump to cool completely before
storage.
2. Turn off the fuel supply at the fuel valve.
3. Drain the pump chamber thoroughly.
4. Clean the semi-trash pump according to the
instructions in the Maintenance section.
5. Once the pump is dry, spray WD-40 or similar
product into the pump housing through all ports and
drainage hole.
6. Store in a clean, dry place out of direct sunlight.
Adjustments
The air-fuel mixture is not adjustable. Tampering with
the governor can damage your semi-trash pump and
your electrical devices and will void your warranty. CPE
recommends that you contact our service line at
1-877-338-0999 for all other service and/or adjustment
needs.
Maintenance Schedule
Follow the service intervals indicated in the following
maintenance schedule.
Service your semi-trash pump more frequently when
operating in adverse conditions.
Contact our help line at 1-877-338-0999 to locate the
nearest Champion Power Equipment certified service dealer
for your semi-trash pump or engine maintenance needs.
*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.
Use a damp cloth to clean exterior surfaces of the engine.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the engine.
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 Hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load or in hot
environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance *
Clean spark arrester
Clean fuel tank and filter *
Every 3 years
Replace fuel line
Cleaning
DO NOT spray engine with water.
CAUTION
Water can contaminate the fuel system.

13 REV 6552520110516
ENGLISH 65525
TROUBLESHOOTING
Problem Cause Solution
Semi-trash pump will not start No fuel Add fuel
Faulty spark plug Replace spark plug
Semi-trash pump will not start; Semi-trash
pump starts but runs roughly
Low oil level Fill crankcase to the proper level; place
semi-trash pump on a flat, level surface
Choke in the wrong position Adjust choke
Spark plug wire loose Attach wire to spark plug
Semi-trash pump shuts down during
operation
Out of fuel Fill fuel tank
Low oil level Fill crankcase to the proper level; place
semi-trash pump on a flat, level surface
Semi-trash pump overheating or
performing poorly
Strainer or hose clogged Remove debris from strainer or hose
Pump not primed Re-prime pump
Suction hose out of water Place suction hose under the surface of
the water
Head limit exceeded Relocate pump so suction head is less
than discharge head (maximum 98 feet)
Air leak Tighten connectors and clamps or replace
seal packing
For further technical support:
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
[e-mail]

REV 65525-20110516 14
65525 ENGLISH
SPECIFICATIONS
Engine Specifications
– Engine.................... 163 cc OHV CPE
Valve Clearance
– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Oil
Use 4-Cycle automotive oil.
Oil capacity is 0.63 qt qt (0.6 L).
Please reference the following chart for recommended
oil types for use in the semi-trash pump.
Fuel
Fuel capacity is 1.06 gallons (4 L). Use regular
unleaded gasoline with a minimum octane rating of 85
and an ethanol content of less than 10% by volume.
Semi-Trash Pump Specifications
– Inlet Diameter................... 2 inch NPT
– Outlet Diameter ................. 2 inch NPT
– Fuel Capacity .............. .1.06 gallons (4 L)
– Total Head .................. . 98 feet (30 m)
– Suction Head ................. . 26 feet (8 m)
– Max Delivery Volume .... . 158 gal/min (598 L/min)
– Max Solid Waste .......... ¾” diameter (1.9 cm)
– Gross Weight ............... 81.4 lbs. (37 kg)
– Net Weight................. 74.8 lbs. (34 kg)
– Height ................... 18.2 in. (46.3 cm)
– Width .................. 18.7 in. (47.66 cm)
– Length. . . . . . . . . . . . . . . . . . . 20.2 in. (51.2 cm)
Spark Plugs
Your semi-trash pump comes equipped with a ¾” long
reach plug (19 mm):
–NGK BR6ES or equivalent
Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).

15 REV 6552520110516
ENGLISH 65525

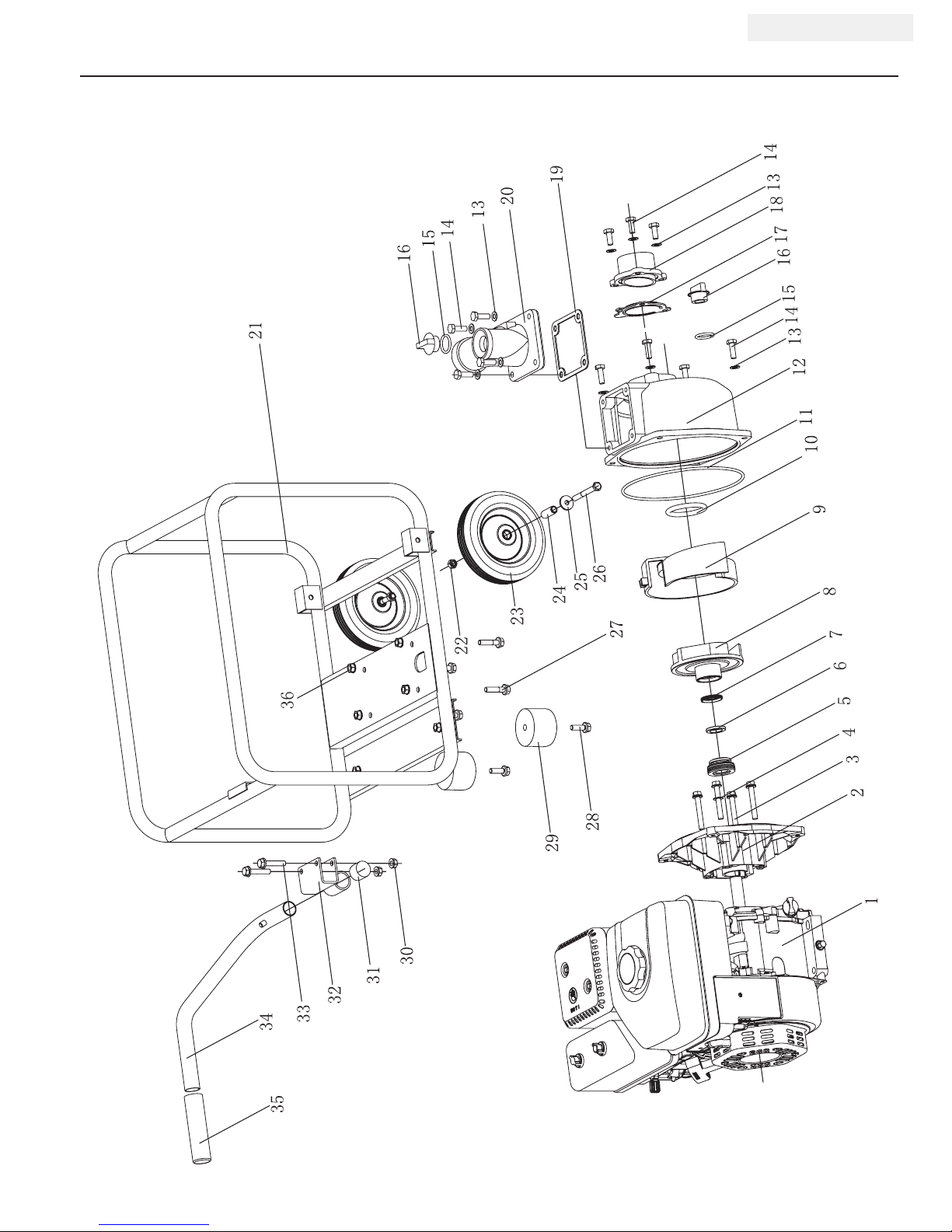

Parts Diagram
SPECIFICATIONS

REV 65525-20110516 16
65525 ENGLISH Parts List
# Part Number Description Qty
1168F-G10 Engine 1
2WP-20-1000500 Pump Body 1
3GB5789 M8x55 Bolt M8x55 4
4WP-20-1000005 Washer 4
5WP-20-1000510 Casing Wear Ring 1
6WP-20-1000402 Impeller Wear Ring 1
7WP-20-1000403 Impeller Seals 1
8WP-20-1000401 Impeller 1
9WP-20-1000302 Spiral Case 1
10 GB3452.1 53x7 "O" Ring (53X7) 1
11 GB3452.1 196x4 "O" Ring (196X4) 1
12 WP-20-1000200 Pump Cover 1
13 GB97.1 8 Packing 8 11
14 GB5783 M8x20 Flange Bolt M8x20 7
15 GB3452.1 23.6x3.55 "O" Ring (23.6X3.55) 2
16 WP-20-1000207 Plug 2
17 WP-20-1000209 One Way Valve 1
18 WP-20-1000206-CPE Glange (NPT) 1
19 WP-20-1000204 Seal Packing 1
20 WP-20-1000203-CPE Elbow Draft Tube (NPT) 1
21 WP20-03291000 Frame 1
22 GB6184 M8 Nut M8 2
23 ST168FD-1144053F Wheel 2
24 WP20-03271202 Bushing 2
25 GB96 8 Washer 8 2
26 GB5782 M8x75 Flange Bolt M8x75 2
27 GB5789 M8x35 Flange Bolt M8x35 4
28 GB5789 M8x25 Flange Bolt M8x25 2
29 ST290QXG-2000003 Rubber 2
30 GB6177 M8 Nut M8 8
31 ST02FD-03143401 Handle Cap 1
32 ST02FD-03143402 Handle Bracket 1
33 GB5789 M8x45 Flange Bolt M8x45 2
34 WP20-03271101 Handle 1
35 ST188FD-1741002-C Handle Bar Grip 1
36 GB6187.1 M8 Nut M8 4

17 REV 6552520110516
ENGLISH 65525
Engine Parts Diagram
SPECIFICATIONS
