Channel Vision 6500 User manual

500-141 rev A2
Specifications:
Image Sensor:
Picture Elements:
Resolution:
S/N Ratio:
Min Illumination:
Electronic Shutter:
Iris Control:
Flickerless Mode:
Gain Control:
Back Light Comp.:
Gamma Characteristic:
Operating Temp:
Sony 1/3” Super HAD
NTSC: 510x492
470 lines
More than 48 dB
0.2 LUX @ F2.0
1/60s - 1/100,000s, ON/OFF Switch-able
Built-in DC Drive Iris Control
1/60s ON/OFF switchable
High/Low switchable
ON/OFF switchable
0.45
-10°C to 50°C (14°F to 122°F)
Specifications subject to change without notice.
Auto White Balance:
Camera Lens:
Focal Length & App. Ratio:
Angle Field of View:
Sync. System:
Power Supply:
Power Consumption:
Video Output:
Color Temperature: 2500K-9500K
Vari-Focal with DC Drive Iris Lens
3.3mm-12mm, F1.6-360
Wide: 78.9°x58.3°, Tele: 35.4°x26.5°
Internal, Negative sync.
12VDC
230 mA
1 Vp-p @ 75 ohms
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or workmanship which occurs
during normal use of this product with new or rebuilt parts, free of charge in the USA, for two years from
the date of original purchase. This is a no hassle warranty with no mail in warranty card needed. This
warranty does not cover damages in shipment, failures caused by other products not supplied by Channel
Vision Technology, or failures due to accident, misuse, abuse, or alteration of the equipment. This warranty
is extended only to the original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling [phone] toll free. A Return
Authorization number must be obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other rights (which vary from state to state).
If a problem with this product develops during or after the warranty period, please contact Channel Vision
Technology, your dealer or any factory-authorized service center.
6500
Color Box Camera
By
6

2
Features:
High quality 1/3” Sony Super HAD CCD sensor
Vari-focal lens
Built-in anti-aliasing filter and IR-cut optical filter
Digital Signal Processor (DSP) chip-set provides image
control
High sensitivity, low smear, high anti-blooming and high
S/N ratio
Automatic Gain Control (AGC) and Auto White Balance
(AWB)
h
h
h
h
h
h
The is a color box camera. Its vari-focal lens provides a
wide range of adjustment allowing the system installer to
achieve the best possible view. Typical applications included
factories, retail stores, warehouses, and other commercial
buildings.

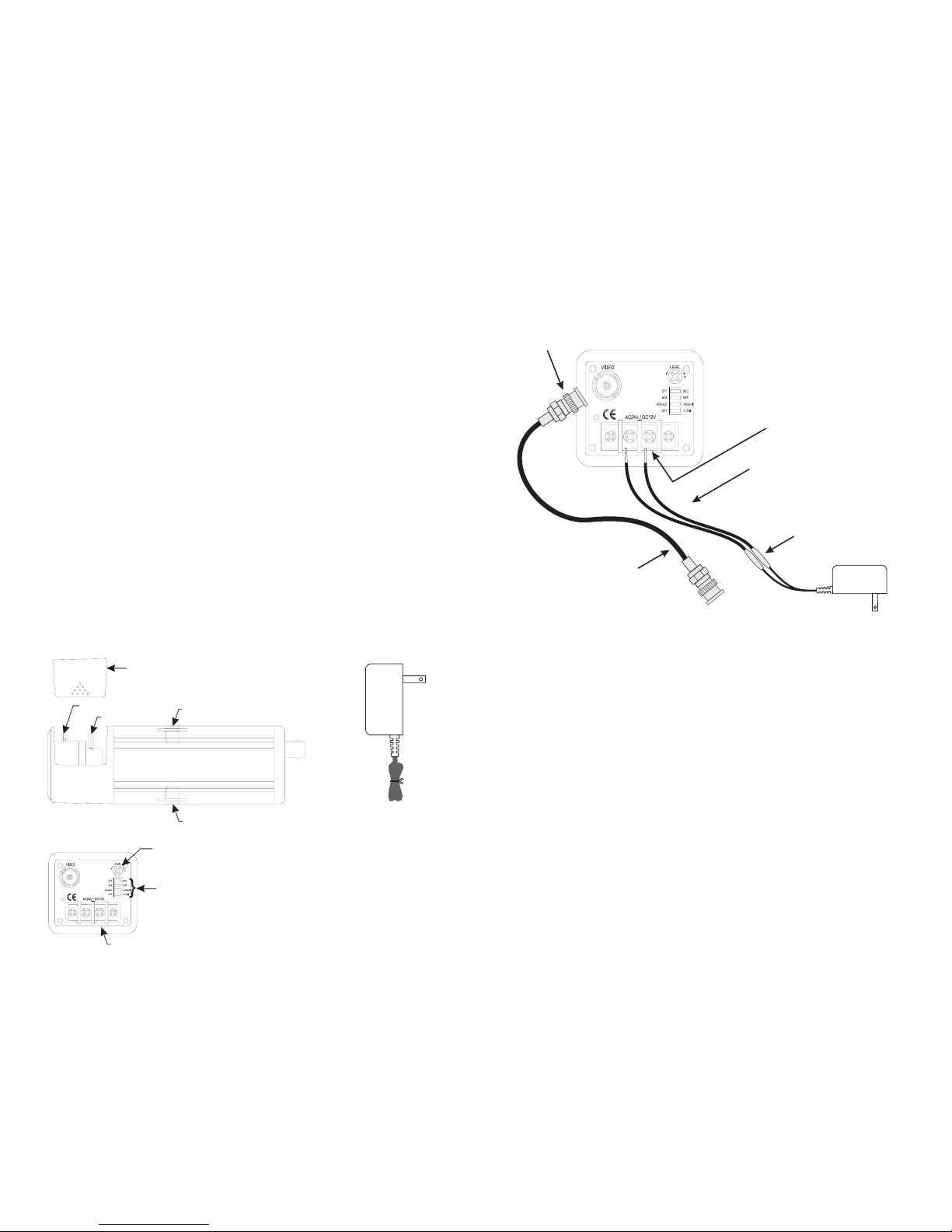

6500
Box Camera
Side View
Rear View
Zoom Mounting Hole
Mounting Hole
Power Suppl
y
connection accepts 12VDC or 24VAC
Focus
Cover
Power Supply
BLC: Back Light Compensation ON/OFF
AES: Auto Electronic Shutter ON/OFF
AGC: Auto Gain Control High/Low
FL: Flicker Lens ON/OFF
VR Adjustment level for DC Drive Lens
(Switch AES OFF before adjusting)
-
3
Model
6
5
00
Installation:
Mount camera in the desired location.
Attach the camera’s video output to a coax extension
that is long enough to reach your monitor or video
distribution equipment.
If necessary, extend the power supply leads so they are
long enough to reach the camera.
Point the camera at the desired location and adjust the
view with the zoom and focus controls. You may also
make electronic adjustments using the dip switches.
h
h
h
h
2-Conductor power
supply extension
(not included)
Connections are not
polarity sensitive
Crimp-on splice
connectors
(not included)
To Monitor
or
Video distribution
Power supply
(included)
Coax extension
(not included)
BNC connector
-
