Char-Broil 463272509 User manual

Assembly instructions © 2008
PRODUCT GUIDE
MODEL 463272509
© 2008 Char-Broil, LLC Columbus, GA 31902 Printed in China
Serial Number
Date Purchased
IMPORTANT: Fill out the product record information below.
See rating label on grill for serial number.
For support and to register your
grill, please visit us at
www.charbroil.com
Estimated assembly time: 15 - 20 minutes
If you have questions or need
assistance during assembly,
please call 1-888-430-7870.
09/09/08 •80017952
The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Char-Broil®; America's Legendary Barbeque Company®;
AmericanGourmet®;Bandera®;BrushHawg®;CB940®;Char-Diamonds®;Char-BroilCharcoal/Gas®;DiamondFlame®;EverybodyGrills®;EverybodyOutside®;
FastStart®; Fireball®; Firenzy®; FlavorMaster®; Grill2Go®; Grill2Go® Express®; Grill Lovers®; H20 Smoker®; Keepers of the Flame®; New Braunfels Smoker
Company®; Oklahoma Joe's®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Precision Flame®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature
Series®;TheBigEasy®;TheMinuteGrill®;Trentino®;WildWestTradition®;andthefollowingmarks:
® ®
Protected under one or more ofthe following U.S. Patents:4,989,579; 5,421,319;5,458,309; 5,579,755; 5,996,573; 6,114,666; 6,135,104; 6,209,533; 6,279,566; 6,331,108; 6,484,900;6,526,876; 6,595,197; 6,640,799; 6,640,803;6,729,873; 6,739,473;6,749,424;
6,863,100;6,935,327;6,951,213;6792,935;7,047,590;D364,535;D372,637;D373,701;D377,735;D383,035;D397,910;D405,643;D406,005;D406,009;D413,043;D413,229;D414,982;D415,388;D416,164;D416,441;D417,587;D417,588;D422,516;D423,876;
D428,303;D430,772;D435,396; D436,004;D438,059;D438,060;D438,427;D439,110;D442,505;D443,179;D443,354;D443,464;D447,384;D447,385; D447,909;D448,610;D448,614;D448,615; D448,616;D448,975;D449,492;D450,544;D451,759;D454,028;
D454,031;D455,205;D455,206;D456,202; D456,222;D456,223;D457,789;D458,520;D458,760;D458,802; D459,088;D459,148D459,149;D459,161;D459,163; D459,586; D459,943;D460,312;D460,313;D460,318;D461,359; D465,123;D465,693;D466,307;
D466,439; D466,752; D473,414; D474,371;D477,498; D477,501;D477,504; D477,506; D477,746; D478,471; D478,472; D480,914;D491,410; D494,009;D494,413; D498,523;D500,359; D504,048;D530,098; D535,000;Canada: 87,743;87,744; 97,504;99,355;
102,037;104,200;2,315,567;2,336,036;France:010,231;010,422;010,590;010,849;1,089,646;Germany:1,089,646;SouthKorea:384,565;China:99,127,066.5;UnitedKingdom:2,099,402;1,089,646.OtherPatentsPending.
©2008W.C.BradleyCompany
The following are trademarks of W.C. Bradley Co.: Commercial Series™; Designer Series™; Grill2Go® Advantage™; Longhorn™; Double Chef™; QuickSet™;
ReadyWhenYouAre™;HogandYardBird™;YouBringtheParty™;SureFire™;UniversalGrillParts™
TEC™isatrademarkofTecInfraredGrills.
TM REVISION 00

1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING
CAUTION
For residential use only. Do not use for commercial
cooking.
DANGER
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor
or moderate injury.
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
THIS GRILL IS FOR OUTDOOR USE ONLY.
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before attempting
to assemble and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
WARNING:
Failure to follow all manufacturer’s instructions could result
in serious personal injury and/or property damage.
CAUTION:
Some parts may contain sharp edges – especially as noted
in the manual! Wear protective gloves if necessary.
TABLE OF CONTENTS
For Your Safety . ...................................2-3
Use and Care . . ...................................4-9
Limited Warranty....................................10
Parts List. . . .......................................11
Parts Diagram......................................12
Assembly . . . . . . . . ...............................13-21
Troubleshooting. . . . . .............................22-24
Registration Card ...................................27
2

WARNING
CALIFORNIA PROPOSITION 65
1. Combustion by-products produced when using
this product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handling this product.
Installation Safety Precautions
•Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied.Aconversion kit must be
purchased for use with natural gas.
•Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code,ANSI Z223.1/ NFPA54, Natural Gas and Propane
Installation Code, CSAB149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles,ANSIA119.2/NFPA1192, and CSAZ240 RV Series,
Recreational Vehicle Code, as applicable.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code,ANSI / NFPA70 or Canadian
Electrical Code, CSAC22.1. Keep any electrical cords and/or
fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and/or
Canada only. Do not modify for use in any other location.
Modification will result in a safety hazard.
WARNING
Do not attempt to repair or alter the
hose/valve/regulator for any “assumed” defect. Any
modification to this assembly will void your warranty
and create the risk of a gas leak and fire. Use only
authorized replacement parts supplied by
manufacturer.
3

USE AND CARE
OPD Hand Wheel
LP (Liquefied Petroleum Gas)
•LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
•LP gas is highly flammable and may ignite unexpectedly when
mixed with air.
LP Cylinder Filling
•Use only licensed and experienced dealers.
•LP dealer must purge new cylinder before filling.
•Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volume of propane in cylinder will vary by
temperature.
•Afrosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
•Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
•To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under “Gas Companies” for nearest certified LP
dealers.
LP Cylinder
•The LP cylinder used with your grill must meet the
following requirements:
•Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
•LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods. Transport Canada (TC). See LP cylinder collar for
marking.
•LP cylinder valve must have:
•Type 1 outlet compatible with
regulator or grill.
•Safety relief valve.
•ULlisted Overfill Protection
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LP cylinders equipped with this type of valve.
•LP cylinder must be arranged for vapor withdrawal and include
collar to protect LP cylinder valve.Always keep LP cylinders in
upright position during use, transit or storage.
LP cylinder in upright position for vapor withdrawal
LP Tank Removal, Transport And Storage
• Turn OFF all control knobs and LP tank valve.Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Lift LP tank wire upward off of LP tank collar, then
lift LP tank up and off of support bracket. Install safety cap onto
LP tank valve.Always use cap and strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
LP Tank Valve
Retainer Strap
Safety Cap
• Adisconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LP tank
in enclosed spaces such as a carport, garage, porch, covered
patio or other building. Never leave an LP tank inside a vehicle
which may become overheated by the sun.
• Do not store an LP tank in an area where children play.
• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• If the information in two points above is not
followed exactly, a fire causing death or serious
injury may occur.
• An over filled or improperly stored cylinder is a
hazard due to possible gas release from the safety
relief valve. This could cause an intense fire with
risk of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately
get away from the LP cylinder/appliance and call
your fire department.
DANGER
4

WARNING
If “growing” bubbles appear do not use or move the LP
cylinder. Contact an LP gas supplier or your fire
department!
Connecting Regulator to the LP Cylinder
1.LP cylinder must be properly secured onto grill. (Refer to
assembly section.)
2.Turn all control knobs to the OFF position.
3.Turn LP cylinder OFF by turning hand-wheel clockwise to a
full stop.
4.Remove the protective cap from LP cylinder valve.Always use
cap and strap supplied with valve.
Safety Relief Valve
Nipple has to be centered
into the LP cylinder valve.
OPD Hand Wheel
Type 1 outlet with
thread on outside
c k w
o
l
i
s
C
e
f
f
O
Do not use a POL transport plug
(plastic part with external threads)!
It will defeat the safety feature of
the valve.
Strap and Cap
LP Cylinder Exchange
•Many retailers that sell grills offer you the option of replacing
your empty LP cylinder through an exchange service. Use only
those reputable exchange companies that inspect, precision fill,
test and certify their cylinders. Exchange your cylinder only
for an OPD safety feature-equipped cylinder as described
in the "LP Cylinder" section of this manual.
•Always keep new and exchanged LP cylinders in upright
position during use, transit or storage.
•Leak test new and exchanged LP cylinders BEFORE
connecting to grill.
LP Cylinder Leak Test
For your safety
•Leak test must be repeated each time LP cylinder is exchanged
or refilled.
•Do not smoke during leak test.
•Do not use an open flame to check for gas leaks.
•Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open flames
or sparks.
•Use a clean paintbrush and a 50/50 mild soap and water
solution.
▲Do not use household cleaning agents. Damage to gas
train components can result.
Brush soapy solution onto areas indicated by arrows
in figure below.
5.Hold regulator and insert nipple into LP
cylinder valve. Hand-tighten the
coupling nut, holding regulator in a
straight line with LP cylinder valve so
as not to cross-thread the connection.
5

6.Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP cylinder
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only – do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the
connection, do not use this regulator!
Straight
Hold coupling nut and regulator
as shown for proper connection
to LP cylinder valve.
DANGER
• Do not insert any tool or foreign object into the valve
outlet or safety relief valve. You may damage the valve
and cause a leak. Leaking propane may result in
explosion, fire, severe personal injury, or death.
Leak Testing Valves, Hose and Regulator
1.Turn all grill control knobs to OFF.
2.Be sure regulator is tightly connected to LP cylinder.
3.Completely open LP cylinder valve by turning hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct
before proceeding.
4.Brush soapy solution onto areas circled below.
5.If “growing” bubbles appear, there is a leak. Close LP
cylinder valve immediately and retighten connections. If leaks
cannot be stopped do not try to repair. Call for replacement
parts.
6.Always close LP cylinder valve after performing leak test by
turning hand wheel clockwise.
NOTE: Sideburner
shelf fascia not
shown for clarity.
• Outdoor gas appliance is not intended to be installed
in or on a boat.
• Outdoor gas appliance is not intended to be installed
in or on an RV.
• Never attempt to attach this grill to the self-contained
LP gas system of a camper trailer or motor home.
• Do not use grill until leak-tested.
• If a leak is detected at any time, STOPand call the fire
department.
• If you cannot stop a gas leak, immediately close
LPcylinder valve and call LP gas supplier or your fire
department!
WARNING
6

WARNING
For Safe Use of Your Grill and to Avoid Serious
Injury:
•Do not let children operate or play near grill.
•Keep grill area clear and free from materials that burn.
•Do not block holes in sides or back of grill.
•Check burner flames regularly.
•Use grill only in well-ventilated space. NEVER use in
enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of any
kind.
•Do not use charcoal or ceramic briquets in a gas grill.
(Unless briquets are supplied with your grill.)

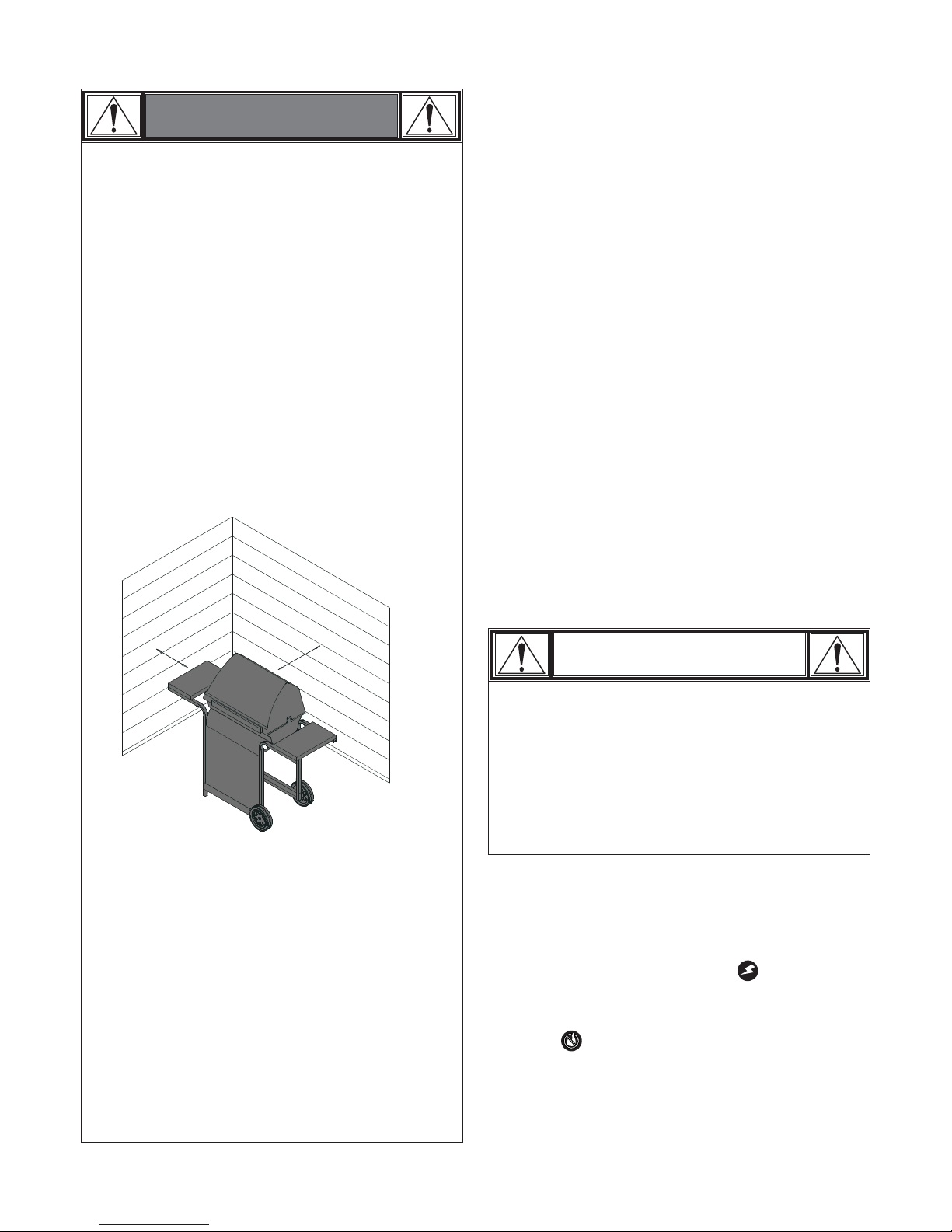

• Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch fire
or sources of ignition such as pilot lights on water
heaters, live electrical appliances, etc.
• Apartment Dwellers:
Check with management to learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from walls
or rails. Do not use on or under balconies.
• NEVER attempt to light burner with lid closed. A
buildup of non-ignited gas inside a closed grill is
hazardous.
• Never operate grill with LP cylinder out of correct
position specified in assembly instructions.
• Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position. Lighting instructions continued on next page.
Main Burner Ignitor Lighting
▲
Do not lean over grill while lighting.
1. Turn OFF all Gas Burner Control Valves.
2. Turn ON gas source or tank.
3.Open lid during Lighting.
4. To ignite turn burner control valve to .
5. Once burner has ignited (use flame viewing port to verify)
turn knob to desired setting.
6. If Ignition does not occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes, and repeat the lighting
procedure.
7. Ignite remaining burners by repeating steps 4 through 6
for each burner.
Safety Tips
▲Before opening LP cylinder valve, check the coupling nut for
tightness.
▲When grill is not in use, turn off all control knobs and LP
cylinder valve.
▲Never move grill while in operation or still hot.
▲Use long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
▲Maximum load for sideburner and side shelf is 10 lbs.
▲The grease tray must be inserted into grill and emptied after
each use. Do not remove grease tray until grill has
completely cooled.
▲Clean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces,
ensure no loose bristles remain on cooking surfaces prior to
grilling. It is not recommended to clean cooking surfaces
while grill is hot.
▲If you notice grease or other hot material dripping from grill
onto valve, hose or regulator, turn off gas supply at once.
Determine the cause, correct it, then clean and inspect valve,
hose and regulator before continuing. Perform a leak test.
▲Keep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
▲Do not store objects or materials inside the grill cart
enclosure that would block the flow of combustion air to the
underside of either the control panel or the firebox bowl.
▲The regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
▲If you have a grill problem see the "Troubleshooting Section".
▲If the regulator frosts, turn off grill and LPcylinder valve
immediately. This indicates a problem with the cylinder and it
should not be used on any product. Return to supplier!
CAUTION
• Putting out grease fires by closing the lid is not possible.
Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may
result. If a grease fire develops, turn knobs and LP
cylinder off.
• Do not leave grill unattended while preheating or burning
off food residue on HI. If grill has not been regularly
cleaned, a grease fire can occur that may damage the
product.
7

Burner Flame Check
•Remove cooking grates and troughs. Light burners, rotate
knobs from to . You should see a smaller flame in
position than seen on . Perform burner flame check
on sideburner, also.Always check flame prior to each use. If
only low flame is seen refer to "Sudden drop or low flame" in
the Troubleshooting Section.
Main Burner Match-Lighting
▲Do not lean over grill while lighting.
1.Open lid during lighting.
2.Place match into match holder (hanging from side of cart).
Light match, place into lighting hole on right or left side of
firebox.
3.Push in and turn far right or far left knob to position. Be
sure burner lights and stays lit.
4.If ignition does NOT occur in 5 seconds, turn the burner
control knob OFF, wait 5 minutes, and repeat the lighting
procedure
5. Light other burners by pushing knob in and turning to
position.
CAUTION
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure. If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Turn controls and gas source or tank OFF when not
in use.
WARNING
Sideburner Ignitor Lighting
▲Do not lean over grill while lighting.
1. Turn OFF all gas burner control valves.
2. Turn ON gas source or tank.
3. To ignite SIDEBURNER, open sideburner cover.
4. Turn sideburner knob to , to ignite burner.
5. Once burner has ignited, turn knob to desired setting.
6. If sideburner does not light, turn knob to OFF, wait 5
minutes, then repeat lighting procedure.
Sideburner Match Lighting
1.Open lid during lighting. Turn
on gas at LP cylinder.
2.Place lit match near burner.
3.Turn sideburner knob to .
H
Warning:
Top cover must be open
when side burner(s) is in
operation.
Turning Grill Off
•Turn all knobs to position. Turn LP cylinder off by
turning hand-wheel clockwise to a full stop.
Ignitor Check
•Turn gas off at LP cylinder. Press and hold electronic ignitor
button. "Click" should be heard and spark seen each time
between collector box or burner and electrode. See
"Troubleshooting" if no click or spark.
Valve Check
•Important: Make sure gas is off at LP cylinder before
checking valves. Knobs lock in position. To check
valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
before using grill. Turn knobs to LOW position then turn back to
position. Valves should turn smoothly.
Hose Check
•Before each use, check to see if hoses are cut or worn.
Replace damaged hoses before using grill. Use only
valve/hose/regulator specified by manufacturer.
General Grill Cleaning
•Do not mistake brown or black accumulation of grease and
smoke for paint. Interiors of gas grills are not painted at the
factory (and should never be painted).Apply a strong solution
of detergent and water or use a grill cleaner with scrub brush
on insides of grill lid and bottom. Rinse and allow to completely
air dry. Do not apply a caustic grill/oven cleaner to painted
surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
▲Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.
•Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use nonabrasive scouring powder
for stubborn stains.
•Painted surfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.
•Stainless steel surfaces: To maintain your grill’s high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on grease
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of
the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to
clean cooking surfaces while grill is hot.
OFF
OFF
OFF
8

CAUTION
Storing Your Grill
•Clean cooking grates.
•Store in dry location.
•When LP cylinder is connected to grill, store outdoors in a well-
ventilated space and out of reach of children.
•Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturer.
•Store grill indoors ONLY if LPcylinder is turned off and
disconnected, removed from grill and stored outdoors.
•When removing grill from storage, follow “Cleaning the Burner
Assembly” instructions before starting grill.
Electrode
SPIDER ALERT!
If you notice that your grill is getting hard to light or that the
flame isn’t as strong as it should be, take the time to check and
clean the venturi’s.
In some areas of the country, spiders or small insects have been
known to create “flashback” problems. The spiders spin webs, build
nests and lay eggs in the grill’s venturi tube(s) obstructing the flow of
gas to the burner. The backed-up gas can ignite in the venturi behind
the control panel. This is known as a flashback and it can damage
your grill and even cause injury.
To prevent flashbacks and ensure good performance the burner and
venturi assembly should be removed from the grill and cleaned
before use whenever the grill has been idle for an extended period.
SPIDER AND WEBS
INSIDE BURNER TUBE
Burner
SPIDER WEBS
INSIDE VENTURI
VALVE
CONTROL PANEL

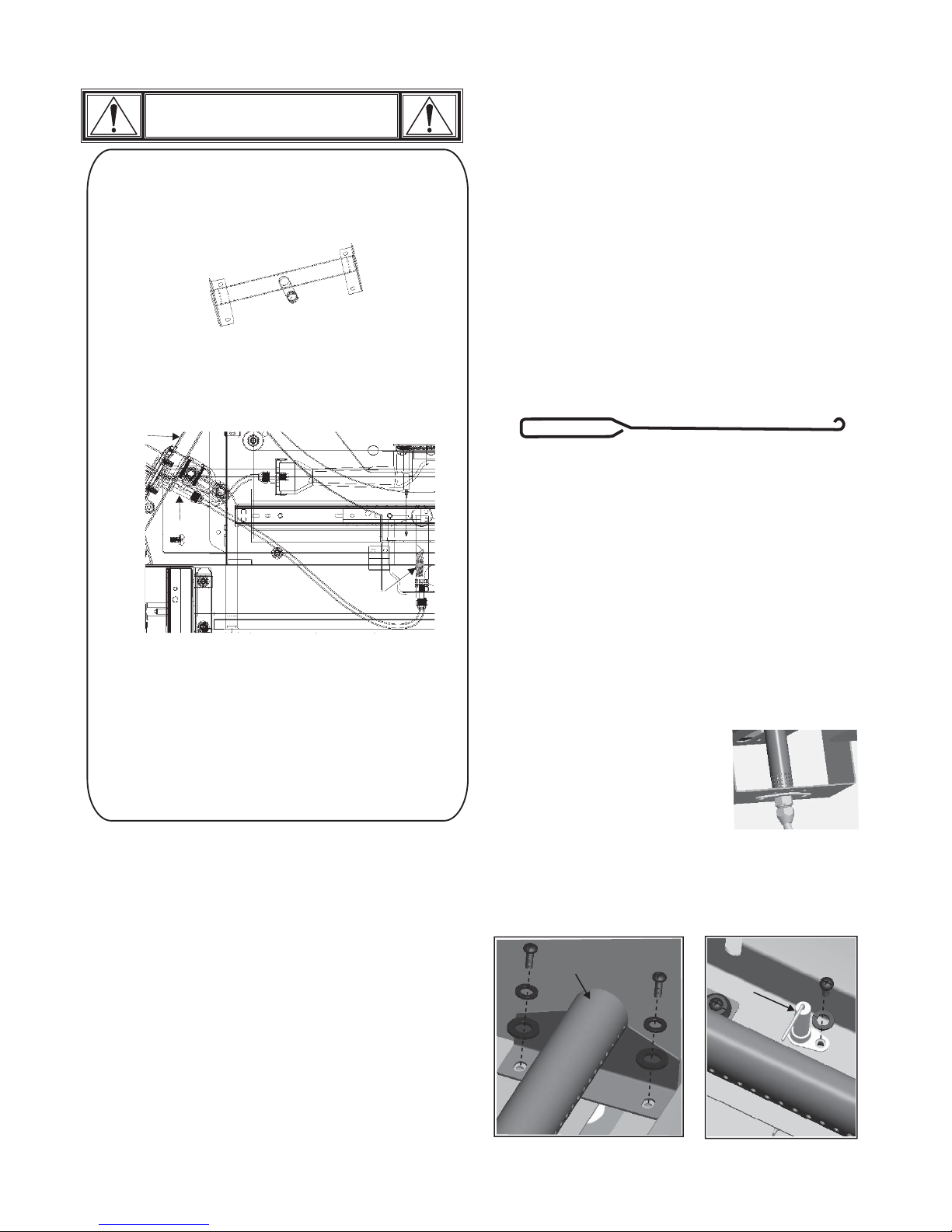

Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and flame tamers.
3. Remove screws and carryover tubes from rear of burners.
4. Remove screw and washers to disengage burner from
bracket on firebox.
5. Remove screws to detach electrode from burner. Electrode
should remain in firebox.
6. Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works well)
into a small hook. Run the hook through each burner
tube several times.
(B) Use a narrow bottle brush with a flexible handle (do not
use a brass wire brush), run the brush through each
burner tube several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
7. Wire brush entire outer surface of burner to remove food
residue and dirt.
8. Clean any blocked ports with a stiff wire such as an open
paper clip.
9. Check burner for damage, due to normal wear and corrosion
some holes may become enlarged. If any large cracks or
holes are found replace burner.
VERY IMPORTANT: Burner tubes must reengage valve
openings. See illustrations at right.
10. Attach electrode to burner.
11. Carefully replace burners.
12. Attach burners to brackets on firebox.
13. Reposition carryover tubes and attach
to burners. Replace flame tamers and
cooking grates.
Correct
burner-to-valve
engagement
9

This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this
product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods
indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or
freight pre-paid by the consumer for review and examination.
*Note: A dated sales reciept WILL be required for warranty service.
The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.
This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable.
Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a
substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records.
This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or
discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the
discoloration of stainless steel surfaces.
This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.
ITEMS MANUFACTURER WILL NOT PAY FOR:
1. Shipping cost, standard or expedited, for warranty and replacement parts
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use
of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.
DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. Manufacturer will not be responsible for
any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or
damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than
Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper
installation or installation not in accordance with local codes or printed manufacturer instructions.
THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE
SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET
FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTIONARISING UNDER THE LAWS OF ANY STATE,
INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE OR USE, IS HEREBY
LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies
in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the
product paid by the original consumer.
NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions
may not apply to you. This limited warranty gives you specific legal rights as set foth herein. You may also have other rights which vary from state
to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or
the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser
prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this
product in order to obtain performance under this limited warranty.
If you wish to obtain performance of any obligation under this limited warranty, you should
write to:
Consumer Relations
P. O. Box 1240
Columbus, GA 31902-1240
Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of
the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be
refused.
LIMITED WARRANTY
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood,
RUST is not considered a manufacturing or materials defect.
SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
PERFORATION, MANUFACTURING,
AND MATERIAL DEFECTS ONLY
Stainless Burner
Firebox and Lid
All Other Parts
Limited Lifetime
2 years from date of purchase*
1 year from date of purchase*
10

PARTS LIST
11
NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from
those on your particular grill model. However, the method of assembly remains the same.
Not Pictured:
Key Qty Description
…1DOORMAGNET
…1 WRENCH, F/ CASTERS
…1 HARDWARE PACK
…1 ASSEMBLY MANUAL, ENGLISH
Key Qty
Description
A1 TOP LID, CENTER
B1 TOP LID, LEFT
C1 TOP LID, RIGHT
D1 TOP LID, INNER
E1 LOGO PLATE ASSEMBLY
F1 BEZEL, F/ TEMPERATURE GAUGE
G2 HANDLE END, F/ TOP LID
H1 HANDLE, F/ TOP LID
I2 RUBBER BUMPER A
J2 RUBBER BUMPER B
K1 HARDWARE F/ TOP LID ASSEMBLY
L1 FIREBOX
M1 LEFT SIDE UPPER PANEL
N1 RIGHT SIDE UPPER PANEL
O1 UPSIDE PANEL, LEFT, OUTER
P1 UPSIDE PANEL, RIGHT, OUTER
Q1 REAR PANEL, FIREBOX
R3 BURNER
S1 ELECTRODE SET, F/ LEFT BURNER
T2
ELECTRODE SET, F/ MIDDLE/RIGHT
BURNER
U1 HEAT SHIELD, LOWER, FIREBOX
V1
HOSE VALVE REGULATOR
ASSEMBLY
W1 CONTROL PANEL, MAIN
X3 BEZEL, F/ KNOB
Y1 REAR PANEL, UPPER CART
Z4 CONTROL KNOB
AA 2 MATCH HOLDER
BB 1 DOWNSIDE PANEL, LEFT, CART
CC 1 DOWNSIDE PANEL, RIGHT, CART
DD 1 ELECTRIC PULSE IGNITOR
EE 1 BATTERY CAP F/ EI MODULE
FF 1 HEAT SHIELD, F/ EI MODULE
GG 1 IGNITOR WIRE, F/ SIDEBURNER
HH 1 REAR PANEL, LOWER CART
II 1 GROMMET F/ NATURAL GAS HOSE
JJ 1 HEAT SHIELD, FIREBOX
KK 1 FRONT BRACE, LEFT
LL 1 FRONT BRACE, RIGHT
MM 1 BOTTOM SHELF, F/ TANK TRAY
NN 1 WING SCREW F/ TANK
OO 2 CASTER, LOCKING
PP 2 CASTER, FIXED, 260MM SWIVEL
Key Qty
Description
QQ 1 UPPER DOOR BRACE
RR 1 DOOR ASSY, LEFT, NO HANDLE
SS 2 HANDLE, F/ FRONT DOOR
TT 1 CONDIMENT TRAY, F/ DOOR
UU 1 DOOR ASSY, RIGHT, NO HANDLE
VV 1 TROUGH A ASSY
WW 1 TROUGH B ASSY
XX 1 TROUGH MIDDLE
YY 1 WARMING RACK
ZZ 3 COOKING GRATE, PORC CAST IRON
AAA 1 SIDEBURNER SHELF
BBB 1 FASCIA, LEFT SIDE SHELF
CCC 1 DRIP PAN, F/ SIDE BURNER
DDD 1 LID, F/ SIDEBURNER
EEE 2 RUBBER BUMPER, F/ LID
FFF 1 SIDEBURNER
GGG 1 ELECTRODE, F/ SIDEBURNER
HHH 1 GRATE, F/ SIDEBURNER
III 1 BEZEL, F/ SIDEBURNER KNOB
JJJ 1 SIDE SHELF RIGHT
KKK 1 FASCIA, RIGHT SIDE SHELF
LLL 1 TOWEL BAR, F/ RIGHT SIDE SHELF
MMM 1 TEMPERATURE GAUGE

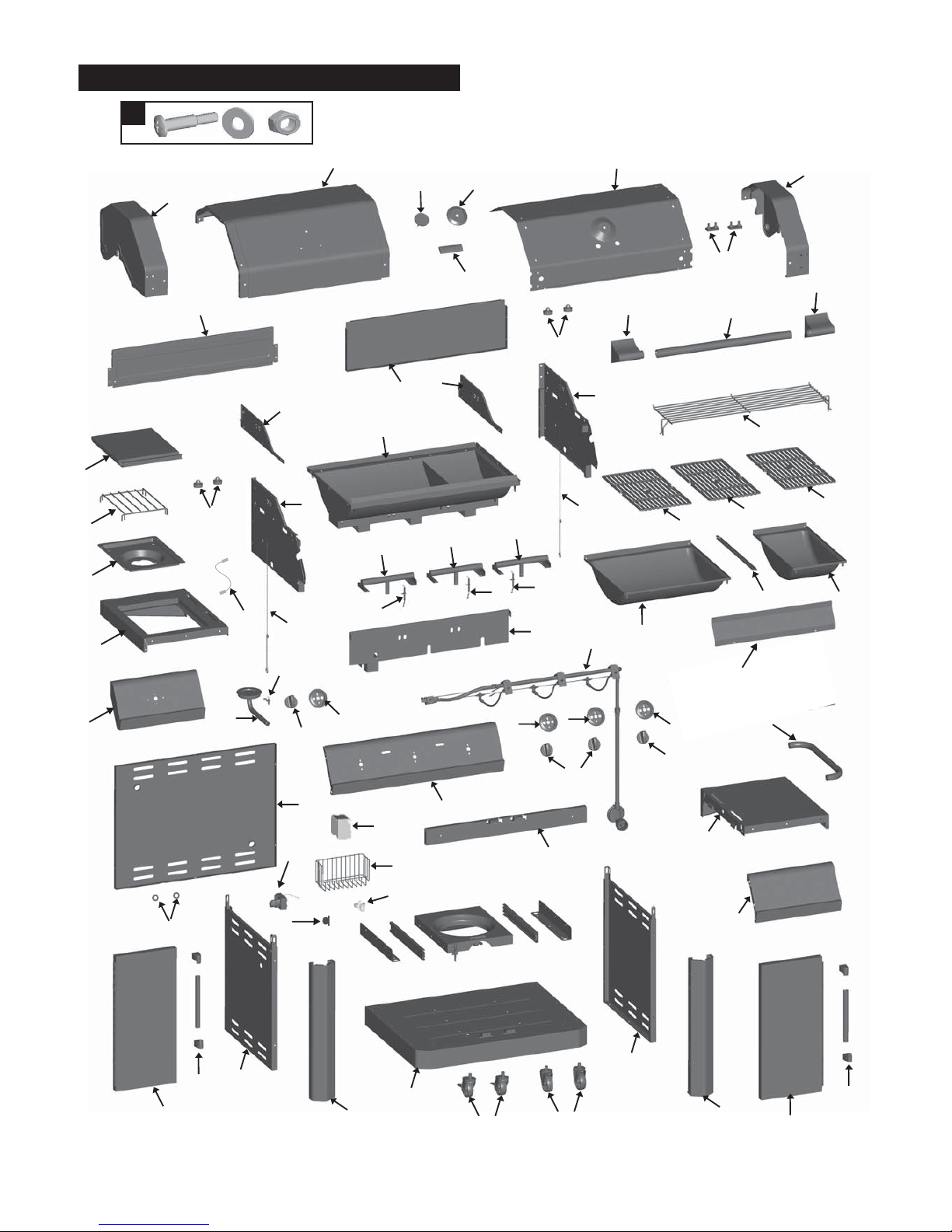

PARTS DIAGRAM
12
A
K
B
AA
AA
C
D
E
F
MMM
G
GH
I
J
L
M
N
O
P
Q
RRR
STT
V
W
XX
Y
Z
Z
Z
BB CC
EE
FF
DD
GG
II
HH
AAA
BBB
CCC
DDD
EEE
FFF
GGG
HHH
III
JJ
KK LL
MM
NN
OO PP
QQ JJJ
KKK
RR
SS SS
TT
UU
VV
WW
XX
YY
ZZ ZZ ZZ
LLL
X
U

Right and Left Shelf Assembly
1A
Towel Bar
Right Side Shelf
C
B
1/4-20x3/4” Screw
7mm Flat Washer
Attach two 1/4-20x3/4” screws, 7mmflat washers and 7mm
lock washers through side shelf holes (right shelf ONLY) into
towel bar shown A.
Insert side shelf over screws and washers through bracket
shown B.
Attach one 1/4-20x1-1/2” screw, one 1/4-20x1/2” screw,two
7mmflat washers and two7mm lock washers at the rear shelf
flange shown C.
Attach three 1/4-20x1/2” screws, 7mm flat washers and 7mm
lock washers to front shelf flange shown D.
Only right shelf shown for assembly, repeat above
steps B-D for left sideburner shelf.
1/4-20x1/2”
7mm Lock
washer washer screw
1/4-20x1-1/2”
13
ASSEMBLY
7mm Lock Washer
7mm Flat 1/4-20x3/4”
7mm Flat Washer 7mm Lock Washer
1/4-20x1-1/2” Screw
7mm Flat Washer
7mm Lock Washer
1/4-20x1/2” Screw
7mm lock Washer
7mm Flat Washer
1/4-20x1/2” Screw
Tabs into Cut-outs
And Holes over Bulges
D

Sideburner Assembly
2
14
Position sideburner valve bracket beneath sideburner shelf fascia so that valve stem comes through larger
center hole in fascia. Align the holes on valve bracket with left and right holes on fascia. Secure using screws
and lock washers that were removed from bracket, shown A.
Attach sideburner bezel to fascia using two#8-32x3/8”
fascia.
Place sideburner bezel over valve stem on front side of fascia. Align small holes on bezel with upper and lower holes on
B.
Press sideburner control knob onto valve stem, shown
valve stem
#8-32x3/8”
4mm Lock
washer
screw
B
Note: Make sure set the Bezel with
longer slot at the top.
Sideburner Bezel
Control Knob
Valve bracket
A
Sideburner shelf Fascia
Sideburner shelf
Screws and washers
removed from
valve bracket
First, remove the two screws and lock washers factory attached to the sideburner valve bracket.
screws and 4mm lock washers.
Note: Use left and right holes
on fascia to attach valve bracket
Note: Use upper and lower holes
on fascia to attach bezel

3
15
Insert sideburner into left shelf. The stud on bottom of burner fits into rear small hole in sideburner drip pan, shown A.
Under sideburner shelf, attach sideburner ignitor wire to electrode. Make sure burner tube engages sideburner valve, shown B.
Secure burner to sideburner drip pan with Wing nut, shown B.
Burner tube
Sideburner drip pan
Sideburner
A
Burner tube
Electrode
Wing nut
Sideburner drip pan
Vale
B
Sideburner ignitor wire

Sideburner Grate

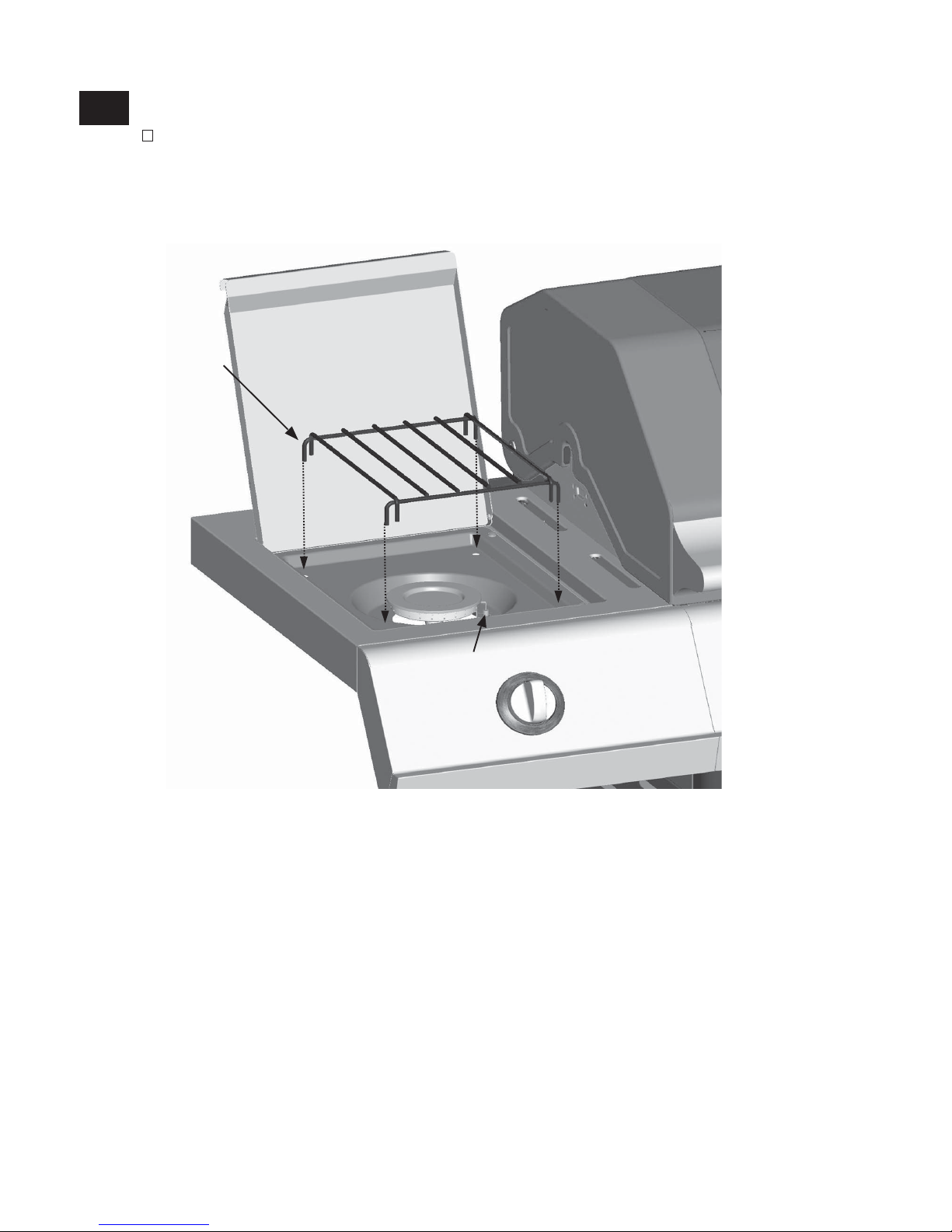

4Place sideburner cooking grate onto sideburner shelf, aligning grate legs with holes in shelf.
16
Sideburner Grate
Electrode

Trough Install

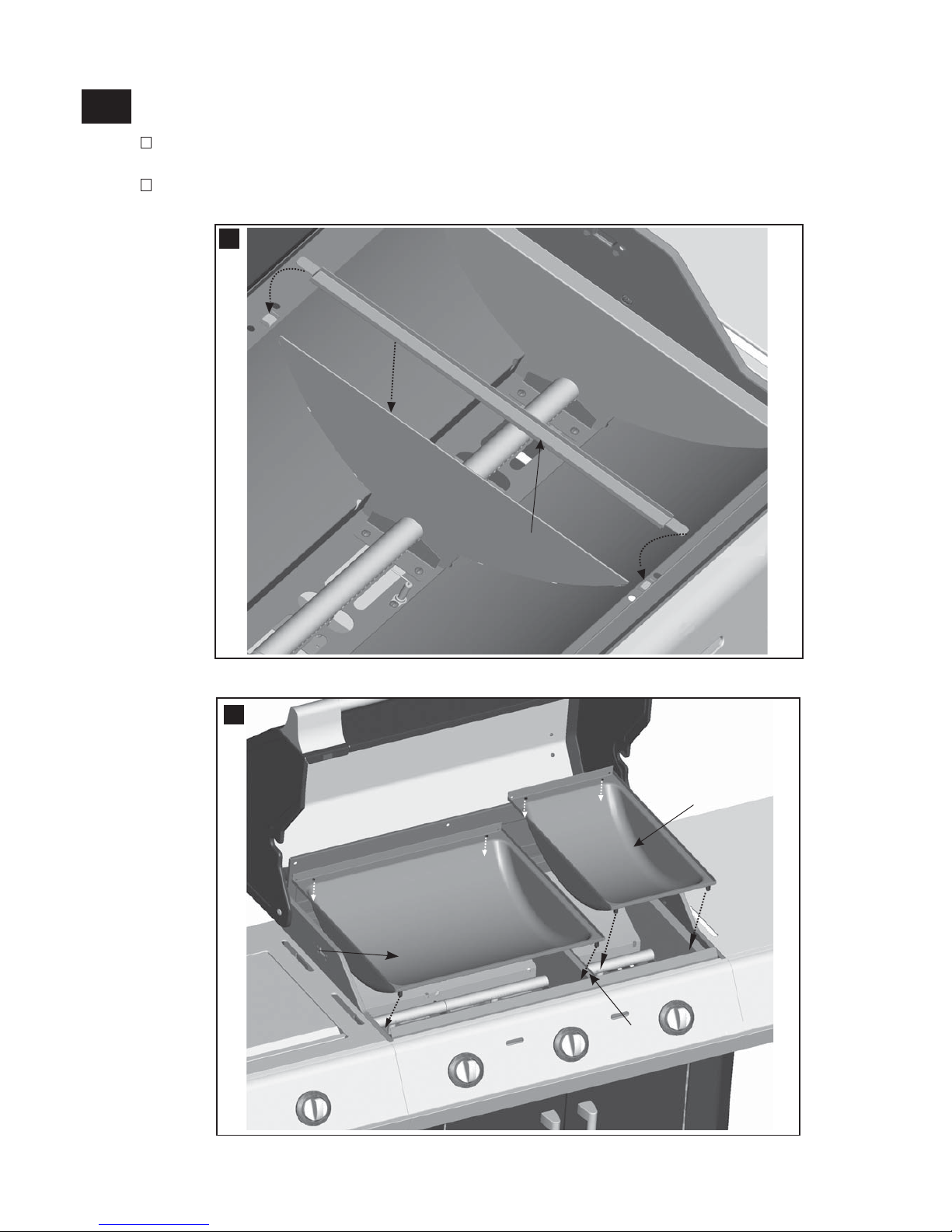

5Place Trough Middle onto firebox, shown A.
17
Place Trough A and Trough B onto firebox. Make sure Troughs are put in the right direction, shown B
A
B
Trough Middle
Front
Rear
Trough A
Front
Rear
Rear
Front
Trough B
Trough Middle

Cooking Grate and Warming Rack
6
18
Place cooking grates onto the firebox as shown.
Place the Warming Rack onto the the firebox.Make sure
insert the Warming Rack ends into the holes properly shown
as below.
Cooking Grate
Warming Rack

7Condiment BasketAssembly

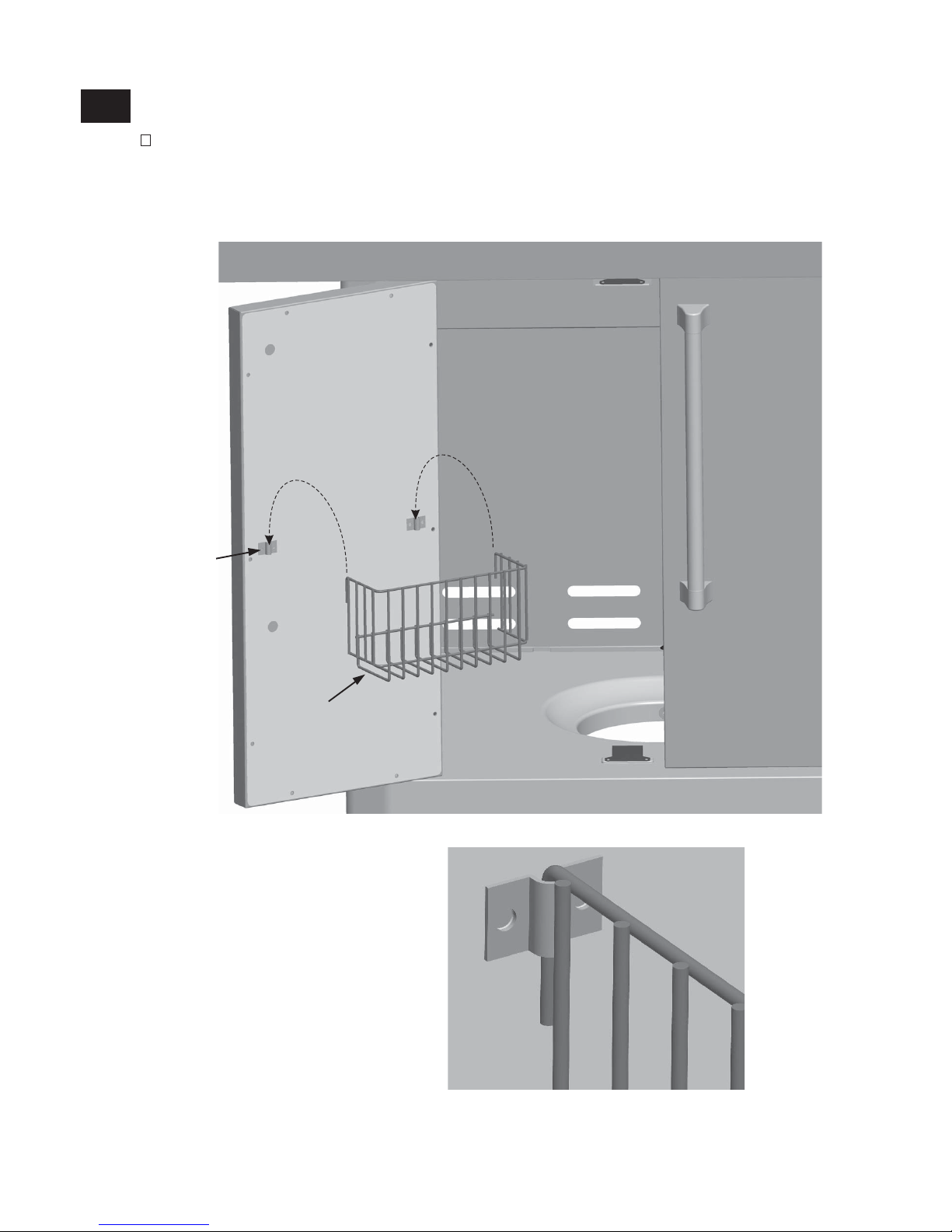

Open the door and place the Condiment Basket on the left door inside, make sure insert the legs of the
Condiment Basket into the brackets which were attached on the door inside shown as below.
Condiment basket
bracket
19

8Electronic Ignition
20
Unscrew battery cap on left side panel of cart. Insert AA battery into ignitor, negative (—) end first .
Replace battery cap.
Battery Cap Battery Positive(+)
side up towards Cap
+-
