MS4400 / MS4400I
Medical Scale
USER MANUAL
Please keep the instruction manual at hand all the time for future reference.

1
TABLE OF CONTENTS
PREFACE........................................................................................2
GENERAL INFORMATION..............................................................2
SAFETY INSTRUCTION..................................................................2
ENVIROMENTAL.............................................................................3
CLEANING.......................................................................................3
MAINTENANCE...............................................................................3
WEIGHING OPERATION.................................................................4
WARRANTY-LIABILITY...................................................................4
RECYCLING....................................................................................5
READING BEFORE USE.................................................................5
CAUTION.........................................................................................5
EXPLANATION OF THE GRAPHIC SYMBOLS ..............................6
EMC GUIDANCE AND MANUFACTURER'S DECLARATION ........8
INCORRECT POSTURE DURING WEIGHING-A .........................14
INCORRECT POSTURE DURING WEIGHING-B .........................15
CORRECT POSTURE DURING WEIGHING.................................16
SPECIFICATION............................................................................17
LCD DISPLAY................................................................................18
KEY FUNCTIONS..........................................................................19
CAUTIONS BEFORE WEIGHING .................................................20
HOW TO WEIGH YOUR BABY CORRECTLY ..............................21
INSTRUCTION FOR BATTERY INSTALLATION..........................27
ERROR MESSAGE........................................................................28
TROUBLE SHOOTING..................................................................29

2
PREFACE
Thank you for choosing CHARDER MEDICAL product. All features of this
product were designed to state of the art and are optimized for simple and
straightforward use. If you have any queries or experience any problems
not addressed in the operating instructions, please contact your
CHARDER MEDICAL service partner, or visit us on the Internet at
www.chardermedical.com
GENERAL INFORMATION
We strongly recommend that MS 44 baby scale should be operated by
medical professionals.
SAFETY INSTRUCTION
Before putting the device into use, please read with care the
information given in the Operating Instructions. They contain important
instructions for installation, proper use and maintenance of the device.
The manufacturer shall not be liable for damages arising out of failure to
heed the following instructions:
These batteries should be kept away from small children. If swallowed,
promptly seek medical assistance.
Expected Service Life: 5 years
When using electrical components under increased safety requirements,
always comply with the appropriate regulations.
Improper installation will render the warranty null and void.
This device is designed for use indoors.
Observe the permissible ambient temperatures for use
The device meets the requirements for electromagnetic compatibility. Do not
exceed the maximum values specified in the applicable standards.
Ensure that the patient does not lean against the device risk of falling!
If you have any problem, contact your local CHARDER MEDICAL service.

3
ENVIROMENTAL
All batteries contain toxic compounds; disposal of batteries should be
delegated to a competent organization, complying with the deposit of
Poisonous Waste Regulation 1972.
Please do not incinerate batteries.
The optimum operating temperature for the scale is 5℃to +35℃; although it
will operate at higher and lower temperatures the scales battery life will be
adversely effected.
You are legally obliged to hand in used batteries/rechargeable batteries to a
local collection point so that they can be disposed of in an
environmentally-friendly way. When buying new batteries, select batteries low
in harmful substances and no mercury(Hg), cadmium(Cd) or lead(Pb).
CLEANING
We would recommend using alcohol based wipes or similar when cleaning the
scales.
Please do not use large amounts of water when cleaning the scales as this will
cause damage to the scales electronics, you should also refrain from using
corrosive liquids or high pressure washers.
Always turn off the scale before cleaning.
MAINTENANCE
The scale does not require any routine maintenance. However, we
recommend checking the scale’s accuracy at regular intervals. The
regularity of these checks is dependent on the level of use and the state of
the scale. If any inaccuracies occur, please contact your local dealer or
CHARDER MEDICAL service partner.

4
WEIGHING OPERATION
Before reading detailed instructions on how to use all the weighing
functions that are built into your scale, please read the following important
guidelines:
Always be sure that the display shows `Zero` before use, if it does not then
please press the ZERO key.
The Professional Medical Hoist scale is designed to detect when a stable
weight is achieved, your reading should be taken at this point.
WARRANTY-LIABILITY
If a fault or defect is present on receipt of the unit which is within CHARDER
MEDICAL’s scope of responsibility, CHARDER shall have the right to either
repair the fault or supply a replacement unit. Replaced parts shall be the
property of CHARDER. Should the fault repairs or replacement delivery not be
successful, the statutory provisions shall be valid. The period of warranty shall
be two years, beginning on the date of purchase. Please retain your receipt as
proof of purchase. Should your scale require servicing, please contact your
dealer or CHARDER MEDICAL Customer Service.
No responsibility shall be accepted for damage caused through any of the
following reasons: Unsuitable or improper storage or use, incorrect installation
or commissioning by the owner or third parties, natural wear, changes or
modifications, incorrect or negligent handling , overuse, chemical,
electrochemical or electrical interference or humidity, unless this is attributable
to negligence on the part of CHARDER MEDICAL.
If operating, climatic or any other influences lead to a major change in
conditions or material quality, the treaty for perfect unit functioning shall be
rendered null and void. If CHARDER provides and individual warranty, this
means that the unit supplied will be free of faults for the length of the
warranty period.

5
RECYCLING
This product is not to be treated as regular household waste, but should be
handed into an electrical/electronic equipment recycling centre.
You can obtain further details from your local council, your municipal waste
disposal company or the firm which you purchased the product.
READING BEFORE USE
Before reading detailed instructions on how to use all the weighing
functions that are built into your scale, please read the following important
guidelines:
Always be sure that the display shows `Zero` before use, if it does not
then please press ZERO key to reset.
Note: Do not measure weight during movement, tilt will cause
inaccuracy.
CAUTION
DO NOT USE THIS DEVICE WITHOUT ANY HELP FROM MEDICAL
PROFESSIONALS.
!

6

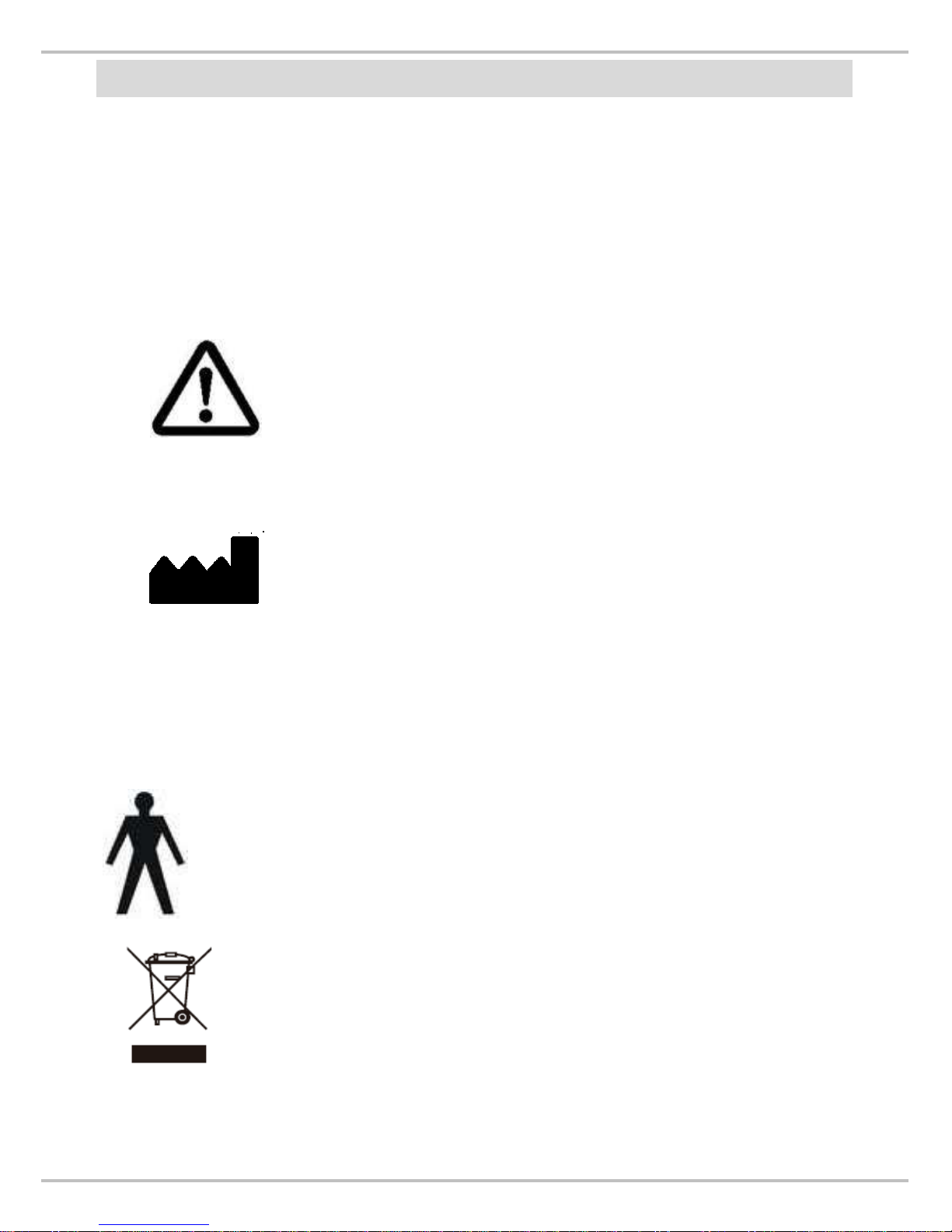

EXPLANATION OF THE GRAPHIC SYMBOLS
SN-T13000001
Designation of the serial number of
every device, applied at the device.
(Number as an example)
“Please note the accompanying
documents“
or “Observe operating instructions”
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City 412, Taiwan (R.O.C.)
Identification of manufacturer of
medical product including address
Type B applied part
Dispose of old appliances
separately from your household
waste!l!
Instead, take them to communal
collection points.

7
Carefully read this operation manual
before setup and commissioning,
even if you are already familiar with
Charder scales.
Transport and storage temperature
limit indicating the upper and the
lower limit
(Transport and storage temperature
on packaging)
+60°C
-20°C

8
EMC GUIDANCE AND MANUFACTURER'S DECLARATION
Guidance and manufacturer’s declaration-electromagnetic emissions
The MEDICAL SCALE MS4400 is intended for use in the electromagnetic
environment specified below.
The customer or the user of the MEDICAL SCALE MS4400 should assure
that it is used in such an environment.
Emission test Compliance Electromagnetic
environment-guidance
RF emissions
CISPR 11
Group 1 The MEDICAL SCALE
MS4400 uses RF energy only
for its internal function.
Therefore, its RF emissions
are very low and are not likely
to cause any interference in
nearby electronic equipment.
RF emissions
CISPR 11
Class B
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations
/flicker emissions
IEC 61000-3-3
Compliance
The MEDICAL SCALE
MS4400 is suitable for use in
all establishments, including
domestic establishments and
those directly connected to the
public low-voltage power
supply network that supplies
buildings used for domestic
purposes.

9
Guidance and manufacturer’s declaration-electromagnetic immunity
The MEDICAL SCALE MS4400 is intended for use in the electromagnetic
environment specified below.
The customer or the user of the MEDICAL SCALE MS4400 should assure that it is
used in such an environment.
Immunity test
IEC 60601 test
level
Compliance
level
Electromagnetic
environment-guidance
Electrostatic
discharge(ESD)
IEC 61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30%
Electrical fast
transient/burst
IEC 61000-4-4
± 2kV for
power supply
lines + 1kV for
input/output
lines
± 2kV for power
supply lines Not
applicable
Mains power quality
should be that of a
typical commercial or
hospital environment.
Surge IEC
61000-4-5
± 1kV line(s) to
line(s) ± 2kV
line(s) to earth
± 1kV differential
mode Not
applicable
Mains power quality
should be that of a
typical commercial or
hospital environment.

10
Voltage Dips,
short
interruptions
and voltage
variations on
power supply
input lines IEC
61000-4-11
<5% UT(>95%
dip in UT) for
0,5 cycle 40%
UT(60% dip in
UT) for 5
cycles 70%
UT(30% dip in
UT) for 25
cycles <5%
UT(>95% dip
in UT) for 5 s
<5% UT(>95%
dip in UT) for 0,5
cycle 40%
UT(60% dip in
UT) for 5 cycles
70% UT(30% dip
in UT) for 25
cycles <5%
UT(>95% dip in
UT) for 5 s
Mains power quality
should be that of a
typical commercial or
hospital environment. If
the user of the MEDICAL
SCALE MS4400
requires continued
operation during power
mains interruptions, it is
recommended that the
MEDICAL SCALE
MS4400 be powered
from an uninterruptible
power supply or a
battery.
Power
frequency(50/60
Hz) magnetic
field IEC
61000-4-8
3 A/m 3 A/m The MEDICAL SCALE
MS4400 power
frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.

11
Guidance and manufacturer’s declaration-electromagnetic immunity
The MEDICAL SCALE MS4400 is intended for use in the electromagnetic
environment specified below.
The customer or the user of the MEDICAL SCALE MS4400 should assure that is
used in such and environment.
Immunity test
IEC 60601 test
level Compliance level Electromagnetic environment-guidance
Conducted RF
IEC 61000-4-6
3 Vrms
150 KHz to 80 MHz
3 Vrms
Portable and mobile RF
communications equipment
should be used no closer to any
part of the MEDICAL SCALE
MS4400 including cables, than
the recommended separation
distance calculated from the
equation applicable to the
frequency of the transmitter.
Recommended separation
distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,5 GHz
Where P is the maximum output
power rating of the transmitter in
watts (W) according to the
transmitter manufacturer and d is
the recommended separation
distance in metres (m).
Field strengths from fixed RF
transmitters, as determined by an
electromagnetic site survey
a
,
should be less than the
compliance level in each
frequency range
b
.
Interference may occur in the
vicinity of equipment marked with
the following symbol:

12
Radiated RF
IEC 61000-4-3
3 V/m 80MHz to 2,5
GHz
3 V/m
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects and
people.
a Field strengths from fixed transmitters, such as base stations for radio
(cellular/cordless) telephones and land mobile radios, amateur radio, AM and
FM radio broadcast and TV broadcast cannot be predicted theoretically with
accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the
measured field strength in the location in which the MEDICAL SCALE MS4400
is used exceeds the applicable RF compliance level above, the MEDICAL
SCALE MS4400 should be observed to verify normal operation. If abnormal
performance is observed, additional measures my be necessary, such as
re-orienting or relocating the MEDICAL SCALE MS4400.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be les than
3 V/m.

13
Recommended separation distance between portable and mobile RF
communications equipment and the MEDICAL SCALE
The MEDICAL SCALE MS4400 is intended for use in an electromagnetic
environment in which radiated RF disturbances are controlled. The customer or
the user of the MEDICAL SCALE MS4400 can help prevent electromagnetic
interference by maintaining a minimum distance between portable and mobile
RF communications equipment (transmitters) and the MEDICAL SCALE
MS4400 as recommended below, according to the maximum output power of
the communications equipment.
Separation distance according to frequency of transmitter m
Rated maximum output
power of transmitter
W
150 kHz to 80 MHz
d =1,2√P
80 MHz to 800 MHz
d =1,2√P
800 MHz to 2,5 GHz
d =2,3√P
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in metres (m) can be estimated using the
equation applicable to the frequency of the transmitter, where p is the maximum
output power rating of the transmitter in watts (W) according to the transmitter
manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher
frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects
and people.

14
INCORRECT POSTURE DURING WEIGHING-A
a
b

15
INCORRECT POSTURE DURING WEIGHING-B
c
d

16
e
CORRECT POSTURE DURING WEIGHING
f

17
SPECIFICATION
Capacity
10kg 15kg
Division
10g 20g
Accuracy for OIML
APPROVAL
±15g ±30g
Accuracy for
Non-OIMLAPPROVAL
±20g ±40g
Operating Temp. and
Humidity
5 ℃ / 35 ℃
15% - 85% RH
Transport and Storage
Temp. and Humidity
- 20°C + 60°C
10% - 95% RH
Unit
kg unit is approval of OIML
Dimensions (including)
79 x 105 x 193(H) mm
Keys
ON/OFF/ZERO ; HOLD ; TARE
Battery
1.5V AAA batteries * 6
Restriction of height of
baby
55 cm
Accessories
Scale * 1 / Sling * 1 / S Hook * 1
/ User Manual * 1

18
Stable
Hold
Kg
g unit
lb unit
Net weight
Zero indicator
Low battery
LCD DISPLAY

19
KEY FUNCTIONS
KEY DESCRIPTIONS
ON/OFF/ZERO
1. Press to turn the scale on.
2. Press this key and hold for 3 seconds to turn the scale off.
3. Press this key with the scale on to zero the scale.
HOLD
1. Press this key to release the HOLD function.
TARE
1. Press to tare the weight of subject such as diaper or clothes put in
the sling.
When the power is on, the HOLD feature will automatically switch on and
the arrow at Hold will flash. When the weight is greater than 10g and is
stable, the arrow stops flashing and display locks.
Press HOLD to release it
