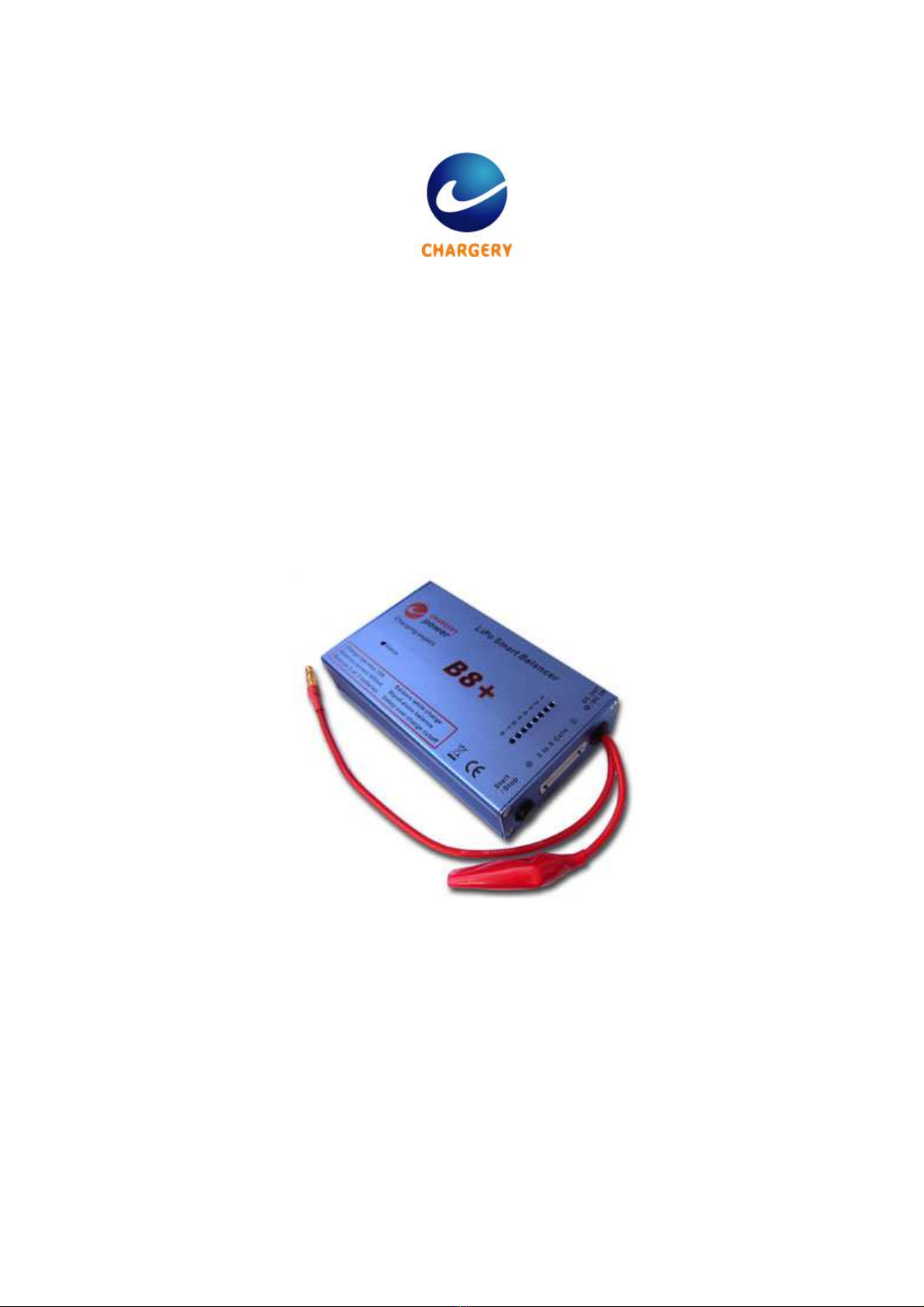

Chargery Power CY-B8+ User manual

Operating Instructions
Smart Balancer
For 2 to 8 LiPo batteries
Chargery Power Co., Lt .
A : Room 20B, Haihui building, Nanhai Avenue, Nanshan, Shenzhen, China
Zip co e: 518054
Tel : [phone]
Fax: [phone]
Email: Jasonwang3a@1 3.com
Web: www.chargery.com

LiPo Smart Balancer CY-B8+.
www.chargery.com page 2 total 8
CY- B8+ is designed specially for 3 to 8 LiPo cells in series; it can detect and balance each cell
in a pack while the battery pack is charged. It is important to read the instructions before using
the balancer.
There is 1 balance socket and 2 leads on the right of CY – B8+. You should assure the
connection in accordance with CONNECTION DIAGRAM.
The Chargery LiPo Balancer is an extremely smart device. It can balance any 2S to 8S lithium
polymer battery pack, and automatically cut off the charging process while any cell voltage is
over 4.25V.
Two working ways to balance the battery pack:
Stand-Alone Mode --- without input power.
Balance while Charging mode --- using a LiPo professional charger
Features:
Balance while charge
Balance 2*4S, 2*3S or 4*2S battery packs simultaneously
Automatically cut-off charging circuit while detecting the voltage of cell is over 4.25v
Automatically detect and indicate battery balance status for any 2 to 8 cells pack
Audio alarm for over voltage
Audio alarm for under voltage
LED(s) display each cell in balancing
Reverse polarity an short circuit protection (input an output an Balance
connector)
With Special Connector Conversion Board (CCB) to fit all kinds of battery connectors
Use CY-B8+ to etect an balance (Stan -Alone Mo e):
1. Connect Li-Poly Battery Pack to the CCB
2. Connect B8+ to the plug F on the CCB through the special wire with 9pin connector
3. Press the Start/Stop button,
4. Wait 2-3 seconds until the balance LED indicates battery pack conditions as below:
Battery balancing LED 9PIN balance connector,
connect to balance jack
of battery pack Status LED
DC OUT
DC IN
Connect to the
positive of charger
Start & Stop Switcher

LiPo Smart Balancer CY-B8+.
www.chargery.com page 3 total 8
A: The voltage ifference of the cells in series is un er 0.020V: Blue status LED
and red LED(s) is on for 1-2s, and then off.
B: The voltage ifference of the cells in series is 0.02 to 0.20V: Blue status LED is
off, the red LED(s) flash (on for 5s and off for 3s). These cells are balanced until the red
LED(s) is off.
C: The voltage ifference of the cells in series is over 0.20V: The buzzer will beep
3 times every 5s, at the same time the blue status LED is off, then the red LED(s) flash
(on for 5s and off for 3s). The cells are balanced until the red LED(s) is off.
5. Press the Start/Stop button again to stop the balancing process.
Use CY-B8+ to balance the battery while charge:
While balancing, you can charge the battery, but we suggest you use the professional lipo
charger such as C 50 as the Power supply.
The operating steps are as below:
1. Connect the DC power supply to the lipo charger C 50
2. Connect the B8+ to the CCB through the Special wire
3. Plug the balance connector of the battery pack into the CCB
4. Connect the DC OUT（+）of the B8+ to the battery positive power leads
5. Connect the DC IN (+) of B8+ to the DC out (+) of C 50
. Connect the DC OUT (-) of C 50 to the battery negative power leads
7. Press the Start/Stop on the B8+ to start the balancing process
8. Press the START/ENTER button on the C 50 to start charging process
NOTE:
DC OUT Power lea s is shorter than DC IN power lea s. The shorter power lea is only
been connecte to the positive of the battery pack, an the other is use to connect
the CHARGER such as C650 an Battery pack.
During the charge, the balancer continues to detect and balance each cell as Stand-Alone mode.
When the battery is full charged, the battery is also balanced.
The charging current and the charging voltage will vary depending on the charger. During the
charging process, when the voltage of any cell is over 4.25V or lower than 3.0V, the balancer will
cut off the charging circuit forcibly, at the same time, the blue status LED flash quickly and the
buzzer will beep continuously.
During the charge, the balancer continues to detect and balance each cell, when the difference

LiPo Smart Balancer CY-B8+.
www.chargery.com page 4 total 8
of any cell voltage is more than 20mV. The warnings and actions are as below:
Fully charge an balance finishe alerts: all LED is OFF ------- keep the connection
between CY-B + and battery pack
The ifference of any cell voltage is over 0.20V while charging: the buzzer will
beep 3 times every 5s, blue status LED is off, and the red LED(s) flash ( “on” for 5s and
“off” for 3s.) ---- Please reduce charge rate to 0.5A and carefully monitor the balance
status.
Error Alarm an possible reasons:
Red LEDs flash Corresponding cell is balancing and the difference of cell voltage is less
than 200mV. Or any cell voltage is over 4.2V
Red LEDs flash
and Buzzer beeps
Corresponding cell is balancing and the difference of cell voltage is over
200mV
Blue LED flash and
Buzzer beeps any cell voltage in a pack is under 3.0V or over 4.30V at any time
Main Specification:
Battery Cells : 2S - 8S
Input Voltage: max. 40V
Output Voltage: max. 40V
Max charging Current: 10A
Balancing Current: 300mA.
Over Charge Protection : 4.30±0.05 V/cell
Low voltage alarm: 3.0±0.05V / cell
DC In positive Lead: silicon wire 200mm long ending in 4.0mm Banana male connector
DC Out positive Lead: silicon wire 100mm long ending in alligator
Output balance connector: Wire to board connector, JST EHR male
Charging Negative lead: silicon wire 300mm long ending in 4.0mm Banana male
connector and alligator.
Compact size: 108 x 4 x 24 mm.
Case type: Aluminum Alloy
Weight:150g
Warnings:
Lithium polymer batteries can be a fire hazard if charged or discharged improperly.
Never Charge/Discharge Lithium Batteries unattended
Charge in an area free of flammable materials, on non-flammable brick, concrete, etc
Keep Lithium batteries, Charger, and Balancer AWAY FROM CHILDREN and PETS!
Never attempt to charge an impact-damaged (crashed) battery pack
Packs which are chronically far out of balance may be damaged and should be discarded
Do not use in direct sun light
Do not use when ambient temperature is extremely high
Use and store in a dry environment
Un-plug balancer from the Li-poly pack when not in use

LiPo Smart Balancer CY-B8+.
www.chargery.com page 5 total 8
Warranty and Service
Chargery Power Co., Ltd. as manufacture of R/C model power warrants its CHARGERY
charger and battery pack to be free of defects in material and workmanship. This warranty
is effective for 18 months from date of purchase. If within the warranty period the customer
is not satisfied with the products performance resulting from a manufacturing defect the
accessory will be replaced or repaired. This warranty does not cover the damage due to
wear, overloading, incompetent handling or using of incorrect accessories.
Charging Expert for R/C Mo el

LiPo Smart Balancer CY-B8+.
www.chargery.com page total 8
B8+ Connection Diagram
Stand-Alone Mode (without input)
JST XH
JST XH
4cells
－
＋
B8+
5cells
JST XH
－
＋
B8+
6cells
－
＋
JST
X
H
B8+
7cells
JST XH
－
＋
B8+
8cells
JST XH
－
＋
B8+
3cells
B8+
2cells
B8+
JST XH

LiPo Smart Balancer CY-B8+.
www.chargery.com page 7 total 8

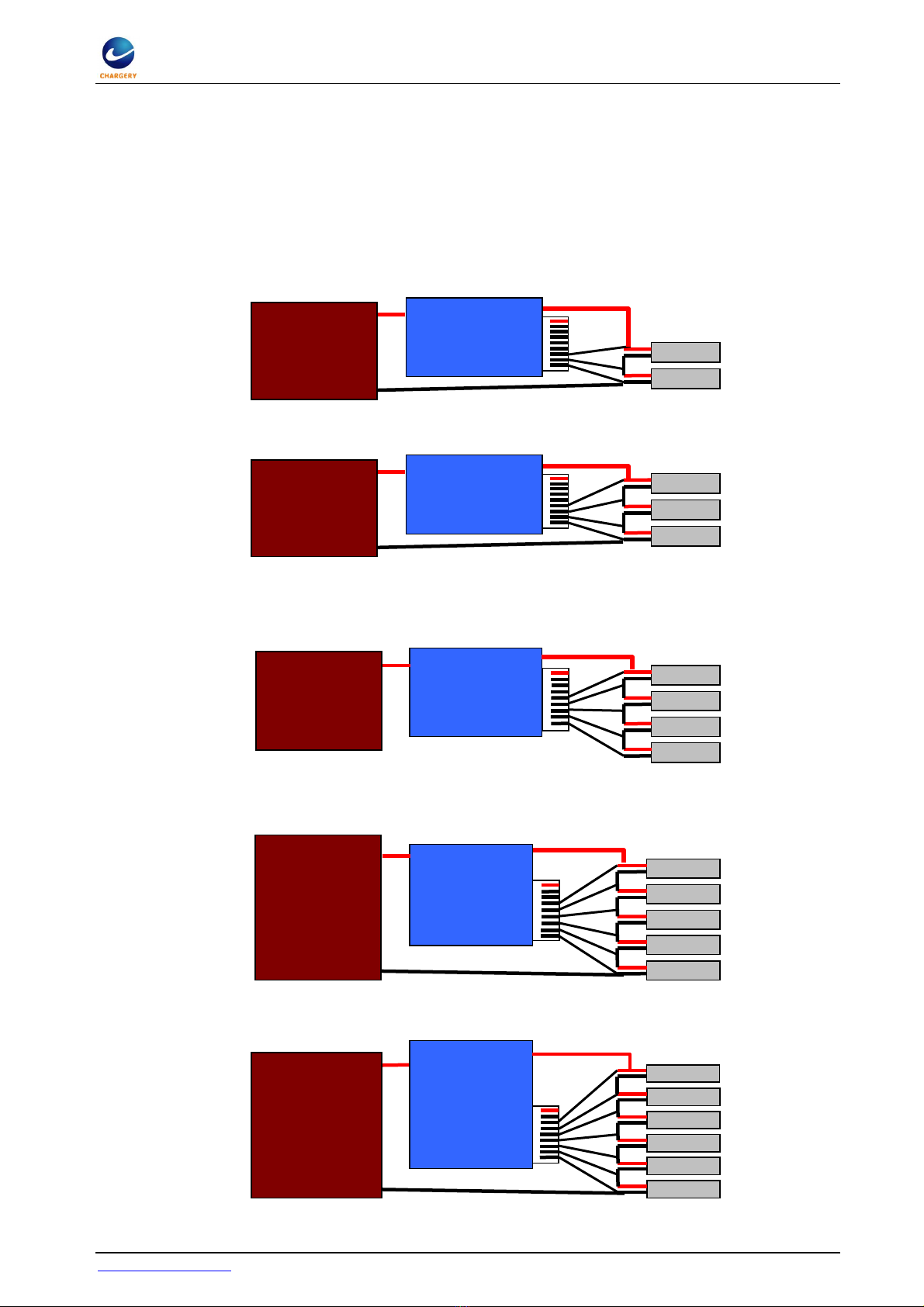

B8+ Connection Diagram
Balance while Charge
4cells
－
＋
B8+
C650
DC OUT
DC IN
5cells
－
＋
B8+
C650
DC OUT
DC IN
3cells
C650
DC OUT DC IN
B8+
6cells
－
＋
B8+
C650
DC OUT
DC IN
2cells
C650
DC OUT DC IN
B8+

LiPo Smart Balancer CY-B8+.
www.chargery.com page 8 total 8
7cells
－
＋
C650
DC OUT DC IN
8cells
－
＋
B8+
C650
DC OUT DC IN
B8+
