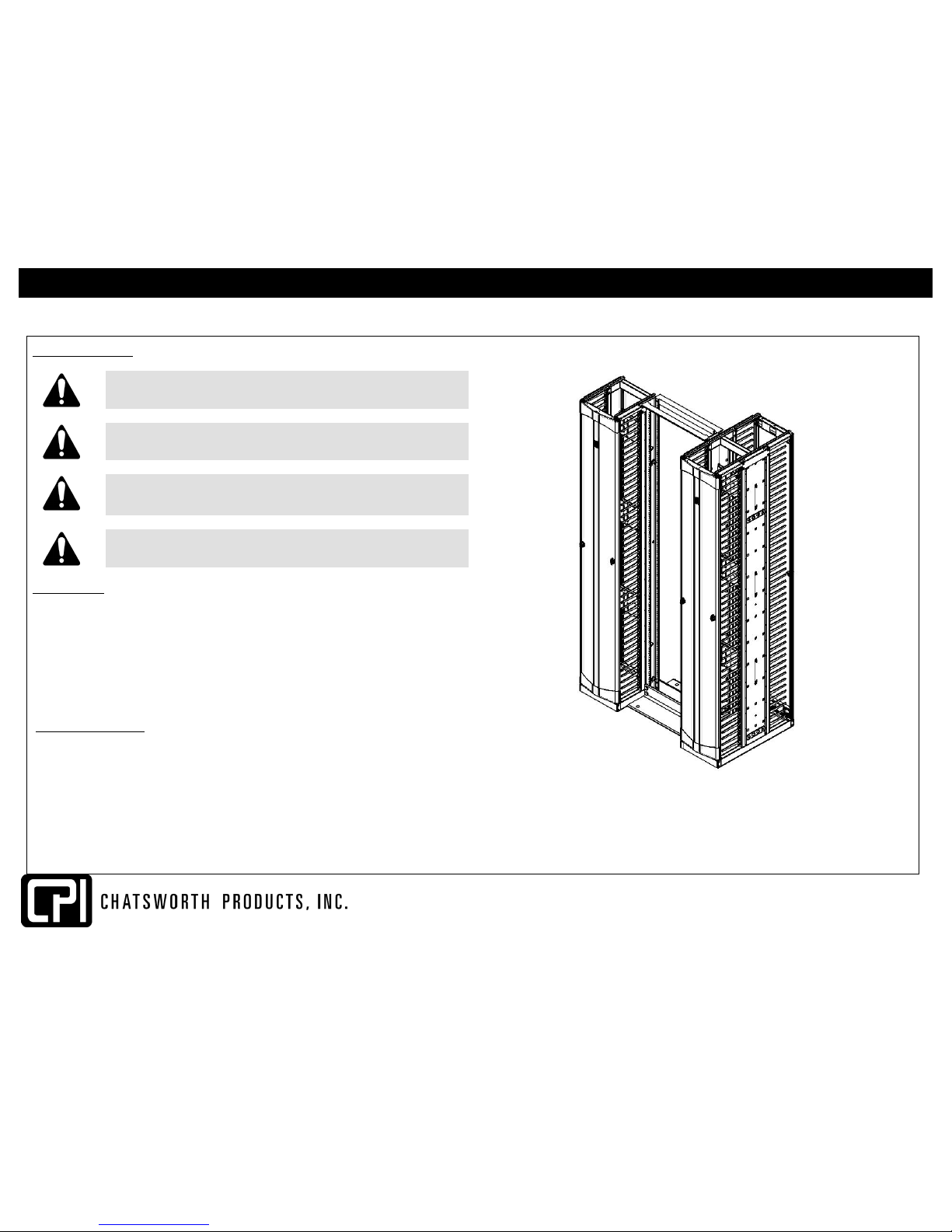

Chatsworth Products Evolution User manual
Evolution®Vertical Cable Managers
IIS-735511, 01/06/10, Rev. 2, CPI/J Garza
For international phone numbers, see our website or contact CPI Tech Support.
This drawing contains proprietary and confidential information and is protected by U.S. andinternational law. Unauthorized
reproduction, disclosure or use of the drawing or the information therein is expressly forbidden except as agreed to in writing
by Chatsworth Products, Inc.
Page 1 of 5
Installation Instructions
Safety Information
WARNING: Product is heavy. Use two people to lift.
WARNING: Do not lift product by plastic fingers.
WARNING: Product not designed for stand-alone use. Support
product properly until bolted to rack. Do not leave unsupported
product unattended.
WARNING: Make sure door pins engage completely when
installing door.
Intended Use
Install this vertical cable manager (VCM) only in a restricted service environment,
such as a data center. Use indoors only, in environmentally controlled areas; do
not use outdoors, in harsh environments or in air-handling spaces. Use this VCM
to house copper and fiber data communications cabling. Allow only qualified
service personnel to use this VCM.
Packaged Hardware
QTY DESCRIPTION
8 ½-20 x 1 Bolts
8 ½ Washers
8 ½-20 Hex Nuts
2 ¼-20 x ¾ Hex Cap Screws (not required for Evolution VCM)
2 ¼-20 Hex Nuts (not required for Evolution VCM)
Evolution®Vertical Cable Managers
Page 2 of 5
Installation Instructions
MOUNTING INSTRUCTIONS

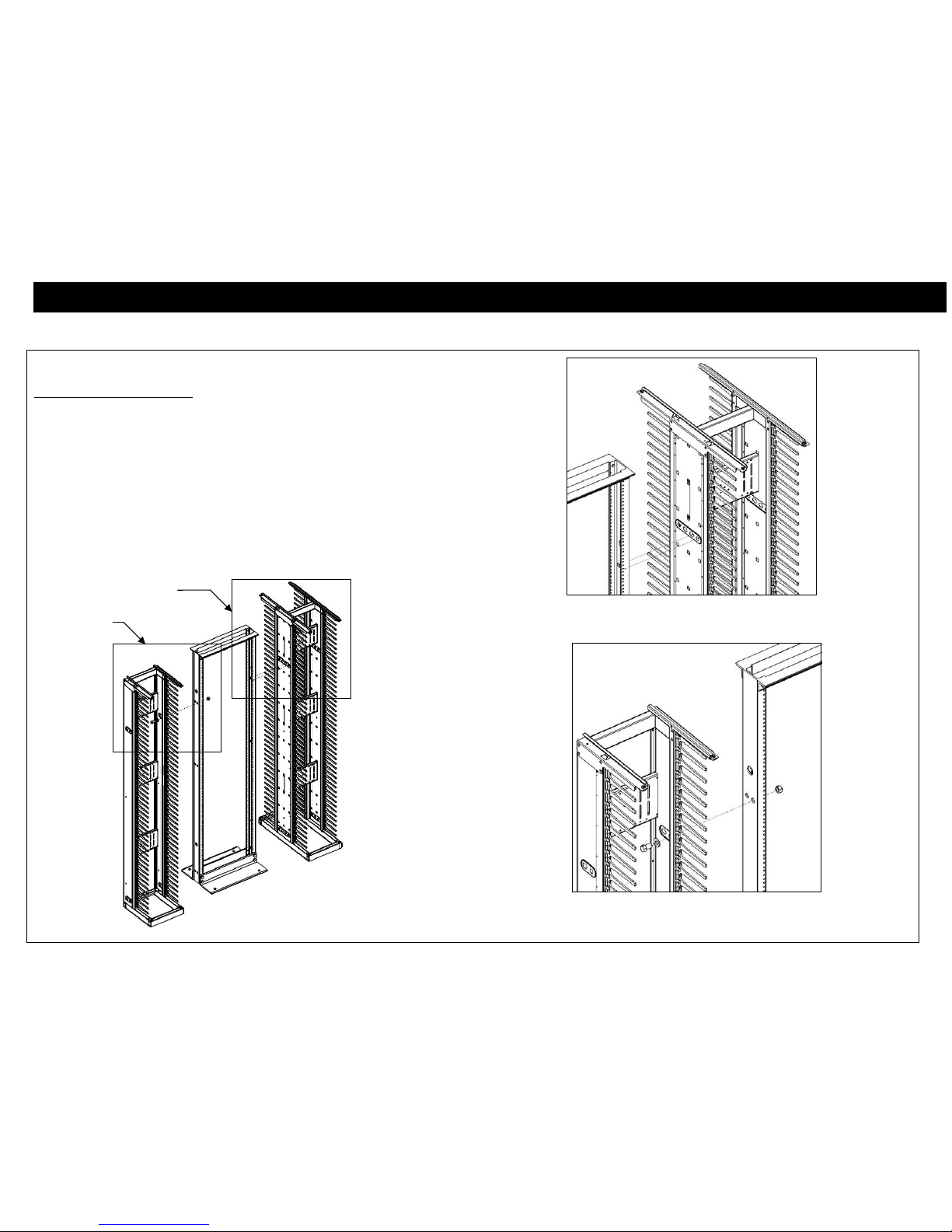

1. Stand the Vertical Cable Manager (VCM) and position it next to the rack
as shown in FIGURE 1.
2. The VCM must be contacting the floor when installed.
3. For the Double Sided VCM, align with rack using the front mounting holes
to bias the manager towards the rear as shown in DETAIL A.
4. Attach the VCM to the rack with 4 each of ½-20x1” hex bolts, ½” flat
washers, and ½-20 hex nuts as shown in DETAIL B. CPI Universal racks
have threaded inserts that the bolts screw into.
DETAIL B
FIGURE 1
DETAIL
A
DETAIL B
DETA
I
LA
Evolution®Vertical Cable Managers
Page 3 of 5
Installation Instructions
DOOR INSTALLATION

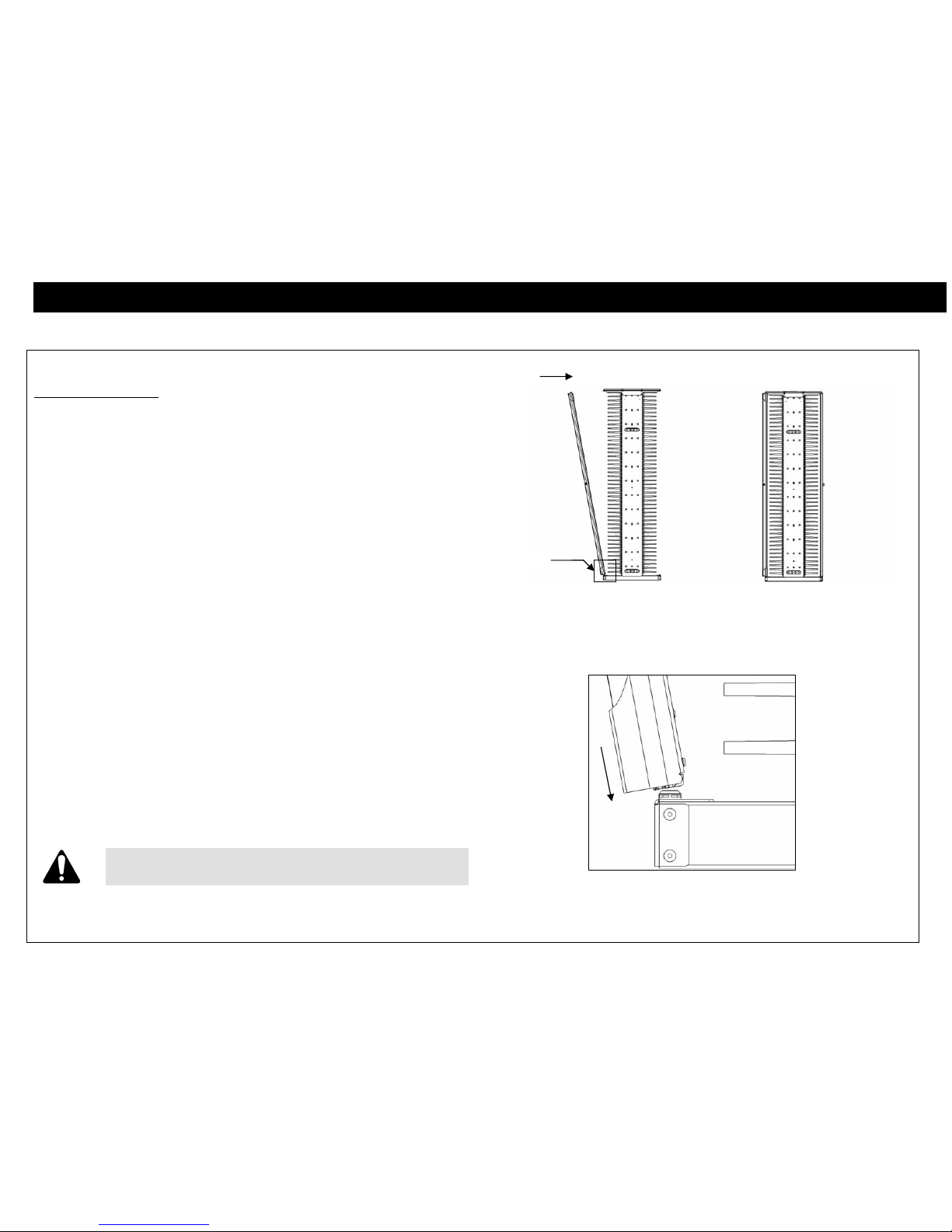

The door attaches to the VCM using four hinge mechanisms operated by the
knobs on the front of the door.
The Evolution g1 Single Sided Vertical Cable Manager uses only the front
door.
The Evolution g2 Double Sided Vertical Cable Manager uses a front and
rear door.
To install the door:
1. Position the door with the top side up.
a. For the front door, the CPI Logo will be located at the top.
b. For both doors, the knobs rotate inwards to retract the hinges.
2. Rotate the knobs inward to retract the hinges.
3. Lift the door to place bottom hinges over bushings on the base of the
VCM as shown in DETAIL C.
4. Push the door in to align the top hinges with the bushings on top of the
VCM as shown in FIGURE 2.
5. Release the knobs to engage the door hinges with the VCM.
6. The door is now closed as shown in FIGURE 3.
WARNING: Make sure door pins engage completely when
installing door.
FIGURE 2 FIGURE 3
DETAIL C
DETAIL C
Evolution®Vertical Cable Managers
Page 4 of 5
Installation Instructions
DOOR OPERATION
1. Closed: All knobs point vertically.
2. Left Hinging: Rotate right knob inward to open door as shown in DETAIL D.
3. Right Hinging: Rotate left knob inward to open door as shown in DETAIL E.
4. Door Removal: Rotate both knobs inward to retract hinges. Lift door to
remove from VCM.
The door rotates 180 degrees before the knob contacts the plastic fingers
on the VCM.
DETAIL E
DETAIL D
FIGURE 4
FIGURE 5
DETAIL D
DETAIL E
Evolution®Vertical Cable Managers
Page 5 of 5
Installation Instructions
OPTIONAL CABLE SPOOL KIT
To attach optional Cable Spool Kit, use provided screw to mount to Mid Sections
of Single Sided and Double Sided VCM as shown in FIGURE 6.
NOTE: Cable Spool Kit not to be used with 6 inch wide configurations
of Evolution VCM.
For easier installation, attach Lashing Bar and Fiber Segregation
accessories before Cable Spool Kit.
Cable S
p
ool
Single Sided Accessory
Panel Shown 10-16 x ¾ Thread
Cutting Screw
FIGURE 6
