Introduction
User Manual for Lead Acid Line Interactive UPS
VL-Series A: This document is the User Manual for CPI 120VAC, 800VA - 3000VA Lead Acid Pure
Sine Wave Line Interactive Uninterruptible Power Supplies (UPS) (Sales Models VL800A, VL1100A,
VL1500A, VL2000A, VL2200A, VL3000A, VL3000A-1).
VL-Series B: User Manual for CPI 200-240VAC, 3000VA - 5000VA Lead Acid Pure Sine Wave Line
Interactive Uninterruptible Power Supplies (UPS) (Sales Models VL3000B, VL5000B, VL5000B-1).
©2022 Chatsworth Products, Inc. All rights reserved.
UL Listed for use in U.S. and Canada.
Legal Information
The information contained in this guide is subject to change without notice. Chatsworth Products, Inc.
(CPI) shall not be liable for technical or editorial errors or omissions contained herein; nor is it liable for
any injury, loss, or incidental or consequential damages resulting from the furnishing, performance or
use of this material and equipment.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 4
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Important Safety Warning
Please comply with all warnings and operating instructions in this manual strictly. Save this manual prop-
erly and read carefully the following instructions before installing the unit. Do not operate this unit before
reading through all safety information and operating instructions carefully.
Transportation
• Please transport the UPS system only in the original package to protect against shock and impact.
Preparation
• Condensation may occur if the UPS system is moved directly from cold to warm environment. The
UPS system must be absolutely dry before being installed. Please allow at least two hours for the
UPS system to acclimate the environment.
• Do not install the UPS system near water or in moist environments.
• Do not install the UPS system where it would be exposed to direct sunlight or near heater.
• Do not block ventilation holes in the UPS housing.
Installation
• Do not connect appliances or devices which would overload the UPS system (e.g. laser printers)
to the UPS output sockets.
• Place cables in such a way that no one can step on or trip over them.
• Do not connect domestic appliances such as hair dryers to UPS output sockets.
• The UPS can be operated by any individuals with no previous experience.
• Connect the UPS system only to an earthed shockproof outlet which must be easily accessible
and close to the UPS system.
• Please use power cables approved by regulatory agencies (e.g. the mains cable of your
• computer) to connect the UPS system to the building wiring outlet (shockproof outlet).
• Please use power cables approved by regulatory agencies to connect the loads to the
• UPS system.
• When installing the equipment, it should ensure that the sum of the leakage current of the UPS
and the connected devices does not exceed 3.5mA.
• Temperature Rating - Units are considered acceptable for use in a maximum ambient of 40°C
(104°F).
• For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall
be easily accessible.
• CAUTION: The unit is heavy. Lifting the unit requires a minimum of two people.
• Check if there is a protection device against over current and short circuit in the upstream of the
UPS system. The recommended protection spec is 11A for 800VA, 1100VA, 15A for 1500VA,
20A for 2000VA, 2200VA and 30A for 3000VA with a B or C trip curve.
Operation
• Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof
socket outlet) during operations since this would cancel the protective earthing of the UPS system
and of all connected loads.
• The UPS system features its own, internal current source (batteries). The UPS output sockets
or output terminals block may be electrically live even if the UPS system is not connected to the
building wiring outlet.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 5
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
• In order to fully disconnect the UPS system, rst press the OFF/Enter button to disconnect
• the mains.
• Prevent no uids or other foreign objects from inside of the UPS system.
• The EPO, RS-232 and USB circuits are an IEC 60950 safety extra low voltage (SELV) circuit. This
circuit must be separated from any hazardous voltage circuits by reinforced insulation.
Maintenance, Service, and Faults
• The UPS system operates with hazardous voltages. Repairs may be carried out only by qualied
maintenance personnel.
• Caution - risk of electric shock. Even after the unit is disconnected from the mains (building wiring
outlet), components inside the UPS system are still connected to the battery and electrically live
and dangerous.
• Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify
that no current is present and no hazardous voltage exists in the terminals of high capability
• capacitor such as BUS-capacitors.
• To avoid electrical shock, turn off the unit and unplug it form the AC power source before servicing
the battery.
• Only persons are adequately familiar with batteries and with the required precautionary measures
may replace batteries and supervise operations. Unauthorized persons must be kept well away
from the batteries.
• Caution - risk of electric shock. The battery circuit is not isolated from the input voltage.
• Hazardous voltages may occur between the battery terminals and the ground. Before touching,
please verify that no voltage is present!
• Batteries may cause electric shock and have a high short-circuit current. Please take the
• precautionary measures specied below and any other measures necessary when working
• with batteries:
»Remove wristwatches, rings and other metal objects
»Use only tools with insulated grips and handles.
• When changing batteries, install the same number and same type of batteries.
• Do not attempt to dispose of batteries by burning them. This could cause battery explosion.
• Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It
may be toxic.
• When replacing batteries, replace with the same type and number of batteries or battery packs.
• Do not dismantle the UPS system.
• A battery can present a risk of electrical shock and high short-circuit current. The following
• precautions should be observed when working on batteries:
»Remove watches, rings, or other metal objects.
»Use tools with insulated handles.
»Wear rubber gloves and boots.
»Do not lay tools or metal parts on top of batteries.
»Disconnect charging source prior to connecting or disconnecting battery terminals.
»Determine if battery is inadvertently grounded. If inadvertently grounded, remove source
from ground. Contact with any part of a grounded battery can result in electrical shock.
The likelihood of such shock can be reduced if such grounds are removed during
installation and maintenance.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 6
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Installation and Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
Please keep the original package in a safe place for future use.
Rear Panel View
1. Programmable outlets: connect to non-critical loads.
2. Output receptacles: connect to mission-critical loads.
3. AC input
4. Input circuit breaker
5. Network/Fax/Modem surge protection
6. Emergency power off function connector (EPO)
7. USB communication port
8. RS-232 communication port
9. SNMP intelligent slot
10. External battery connector
VL800A, VL1100A, VL1500A, Rear View
VL2000A, VL2200A, VL3000A
VL3000A-1

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 7
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
VL3000B, Rear View
VL5000B, Rear View
1. Programmable outlets: connect to non-critical loads.
2. Output receptacles: connect to mission-critical loads.
3. AC input
4. Input circuit breaker
5. Network/Fax/Modem surge protection
6. Emergency power off function connector (EPO)
7. USB communication port
8. RS-232 communication port
9. SNMP intelligent slot
10. External battery connector
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package
is damaged. Please keep the original package in a safe place for future use.
Rear Panel View

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 8
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
E MI /RFI
Fi l t e r s
Battery
Char g e r Battery
DC-to-DC
Converter
Inverter
AVR
TX
Out put

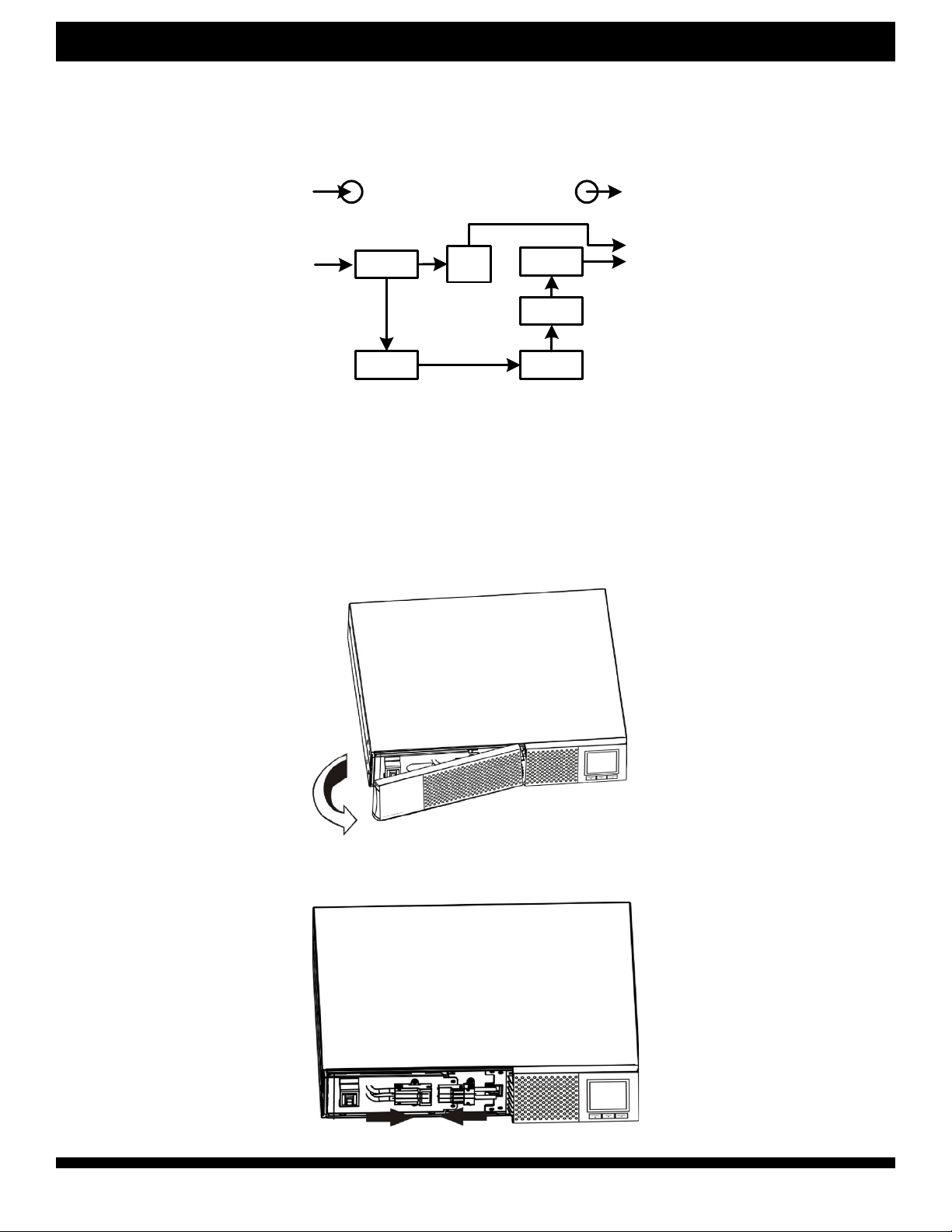

The UPS is composed of mains input, EMI/RFI Filters, Inverter, Battery charger, DC-to-DC converter,
battery, AVR TX and UPS output.
Install the UPS
For safety consideration, the UPS is shipped out from factory without connecting battery wires. Before
installing the UPS, please follow below steps to re-connect battery wires rst.
Step 1: Remove front panel.
Step 2: Connect the AC input and re-connect battery wires.
Operating Principle
The operating principle of the UPS is shown below.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 9
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Step 3: Put the front panel back to the unit.
Rack-mount Installation
CAUTION – Do NOT use the mounting brackets to lift the unit. The mounting brackets are only
for securing the unit to the rack.
Step 1
Step 2

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 10
VL-Series (800VA-5000VA)Chatsworth Products (CPI)

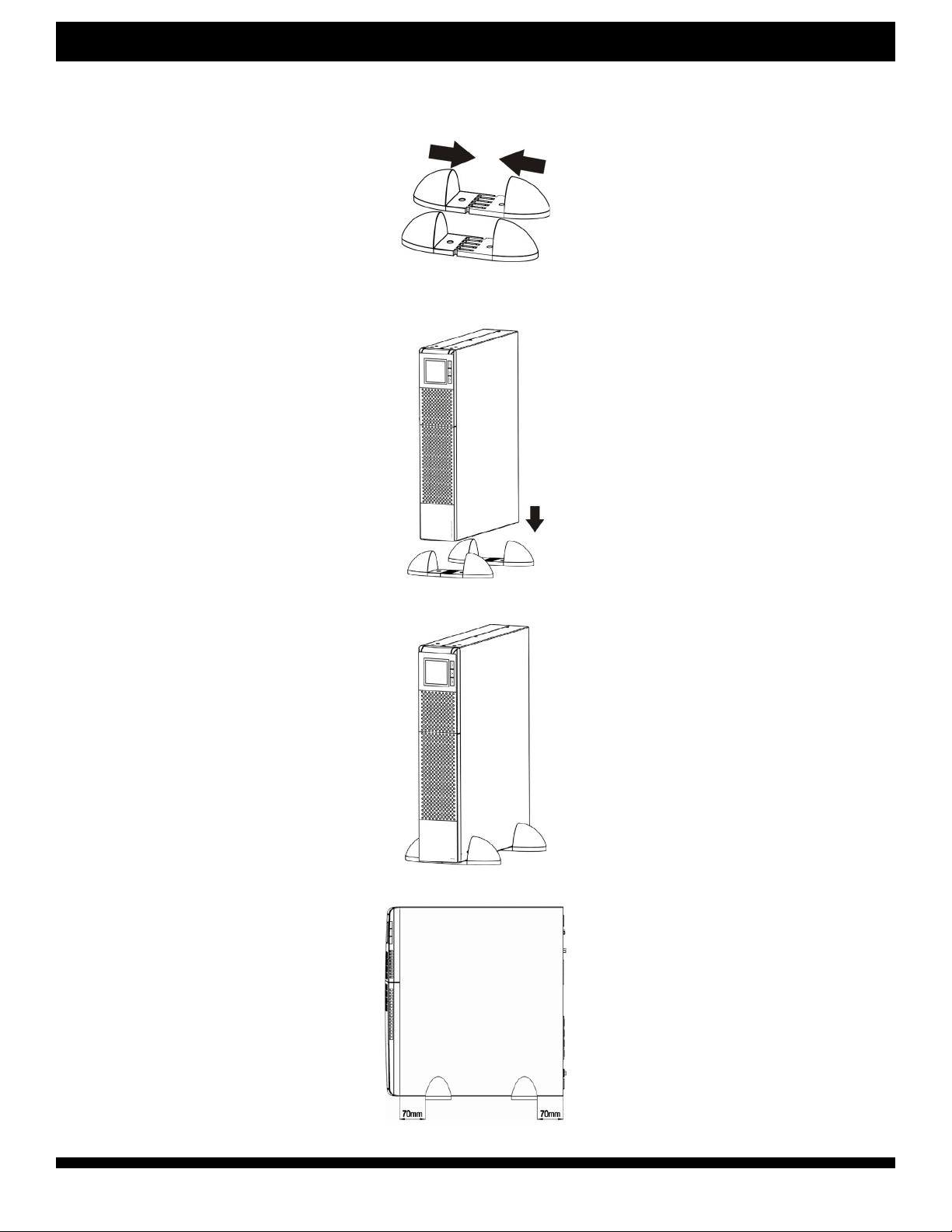

Tower Installation
Step 1
Step 2
Step 3
NOTE: When installing the UPS
or battery pack with feet, please
keep 2.75 in (70 mm) distance
from the edge of the unit.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 11
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Setup the UPS
UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords.
UPS output connection
There are two kinds of outputs: programmable outlets and general outlets. Please connect non-critical
devices to the programmable outlets and critical devices to the general outlets. During power failure, you
may extend the backup time to critical devices by setting shorter backup time for non-critical devices.
Communication connection
Communication ports:
USB port RS-232 port Intelligent slot
To allow for unattended UPS shutdown/start-up and status monitoring, connect the communication
cable one end to the USB/RS-232 port and the other to the communication port of your PC. With
the monitoring software installed, you can schedule UPS shutdown/start-up and monitor UPS status
through PC.
The UPS is equipped with intelligent slot perfect for either SNMP or Dry Contact/Relay card. When in-
stalling either SNMP or Dry Contact/Relay card in the UPS, it will provide advanced communication and
monitoring options.
USB port and RS-232 port can’t work at the same time.
Surge Protection
Fax/Phone surge port
Connect a single modem/phone/fax line into surge-protected “IN” outlet on the back panel of the UPS
unit. Connect from “OUT” outlet to the equipment with another modem/fax/phone line cable.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 12
VL-Series (800VA-5000VA)Chatsworth Products (CPI)

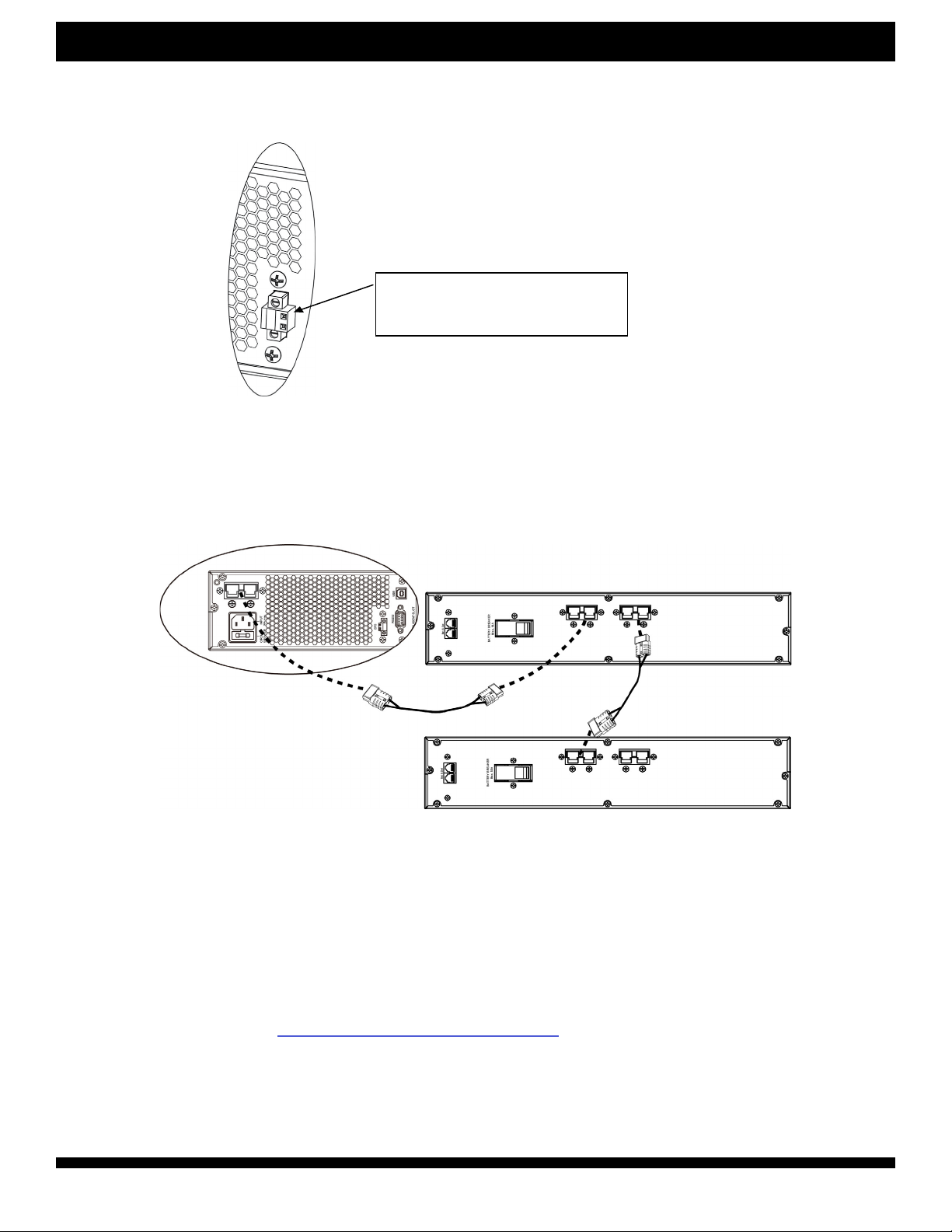

Disable and enable EPO function
Keep the pin 1 and pin 2 closed for UPS normal operation. To activate EPO function, cut the wire
between pin 1 and pin 2.
It’s in closed status for UPS
normal operation.
External battery connection
Connect one end of external battery cable to UPS unit and the other end to battery box. Use supplied
battery detection wire in detection port of UPS unit and plug the other end to battery bank.
CAUTION: Connection to External Battery shall be installed by SERVICE PERSONNEL only.
NOTE: It’s only allowed to connect external battery boxes up to 1 units.
Turn on the UPS
Press the ON/Mute button on the front panel for two seconds to power on the UPS.
Note: The battery charges fully during the rst ve hours of normal operation. Do not expect full
battery run capability during this initial charge period.
Install software
For optimal computer system protection, install UPS monitoring software to fully congure UPS
shutdown. Please follow steps below to download and install monitoring software:
1. Go to the website https://www.chatsworth.com/software
2. Under Uninterruptible Power Supplies, click ViewPower software icon and then choose your
required OS to download the software.
3. Follow the on-screen instructions to install the software.
4. When your computer restarts, the monitoring software will appear as an orange plug icon located
in the system tray, near the clock.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 13
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Battery Replacement
NOTICE: This UPS is equipped with internal batteries and only service person can replace the batteries.
CAUTION! Consider all warnings, cautions, and notes before replacing batteries.
Note: Upon battery disconnection, equipment is not protected from power outages.
Step 1: Remove front panel.
Step 2: Disconnect battery wires.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 14
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Step 3: Pull out the battery box by removing two screws on the front panel.
Step 4: Remove the top cover of battery box and replace the inside batteries.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 15
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Step 5: After replacing the batteries, put the battery box back to original location and screw it tightly.
Step 6: Re-connect the battery wires.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 16
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Step 7: Put the front panel back to the unit.
Battery Kit Assembly
NOTICE: Please assemble battery kit rst before installing it inside of UPS. Please select correct battery
kit procedure below to assemble it.
Two Battery Kit
Step 1: Remove adhesive tapes.
Step 2: Connect all battery terminals by following below diagram.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 17
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Step 3: Put assembled battery packs on one side of plastic shells and insert one more defect battery
on the space.
Step 4: Cover the other side of plastic shell as below chart. Then, battery kit is fully assembled.
Four Battery Kit
Step 1: Remove adhesive tapes.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 18
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Step 2: Connect all battery terminals by following below diagram.
Step 3: Put assembled battery packs on one side of plastic shells.
Step 4: Cover the other side of plastic shell as below chart. Then, battery kit is fully assembled.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 19
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Six Battery Kit
Step 1: Remove adhesive tapes.
Step 2: Connect all battery terminals by following below diagram.
Step 3: Put assembled battery packs on one side of plastic shells.
Step 4: Cover the other side of plastic shell as below chart. Then, battery kit is fully assembled.

CPI User Manual for Lead Acid Line Interactive UPS 04/22v.1 Page 20
VL-Series (800VA-5000VA)Chatsworth Products (CPI)
Operations
Button Operation
Button Function
ON/MUTE Button
• Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS.
• Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at
least 3 seconds to disable or enable the alarm system. But it’s not applied to the situations
when warnings or errors occur.
• Up key: Press this button to display previous selection in UPS setting mode.
• Switch to UPS self-test mode: Press and hold ON/Mute button for 3 seconds to enter UPS
self-testing while in AC mode
OFF/ENTER
Button
• Turn off the UPS: Press and hold this button at least 2 seconds to turn off the UPS
• Conrm selection key: Press this button to conrm selection in UPS setting mode.
SELECT Button
• Switch LCD message: Press this button to change the LCD message for input voltage, input
frequency, battery voltage, output voltage and output frequency.
• Setting mode: Press and hold this button for 3 seconds to enter UPS setting mode when UPS
is off.
• Down key: Press this button to display next selection in UPS setting mode.
Select +
OFF/Enter Button
• Rack or Tower display switch: Press Select and OFF/Enter buttons simultaneously for 3
seconds. The display changes from/to Rack to/from Tower.
