Chattanooga Intelect TENS User manual
Intelect IFC
®
Intelect TENS
®
Intelect TENS
®
Intelect TENS
®
2003 Encore Medical
2003 Encore Medical
2003 Encore Medical
2003 Encore Medical
2003 Encore Medical
NMES
®
Intelect
NMES
®
Intelect
77393A
77395A
77684C
77392A
77391A
77394A
Chapter Page
4.7 Adjust the Pulse Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4.8 Adjust the Pulse Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.9 Adjust Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.10 Adjust Channel Amplitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.11 Turn Unit Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.12 Patient Compliance Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.13 Portability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4.14 " Low Battery " indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4.15 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4.16 Care of Electrodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4.17 Care of Electrode cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
5 HANDLING AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6 SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
7 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
8 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
9 WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Chapter Page
1 INTRODUCTION
1.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.3 Indications for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.4 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.5 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.6 Adverse Reactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 PRODUCT DESCRIPTIONS
2.1 Front and Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
3 STIMULATION MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9
4 INSTRUCTIONS FOR USE
4.1 Check Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.2 Connect electrodes to lead wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.3 Connect lead wires to unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4.4 Place electrodes on skin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.5 Adjust Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.6 Select the mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Contents
Chapter Page
4.7 Adjust the Pulse Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4.8 Adjust the Pulse Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.9 Adjust Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.10 Adjust Channel Amplitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.11 Turn Unit Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.12 Patient Compliance Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.13 Portability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4.14 " Low Battery " indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4.15 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4.16 Care of Electrodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4.17 Care of Electrode cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
5 HANDLING AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6 SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
7 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
8 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
9 WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Chapter Page
1 INTRODUCTION
1.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.3 Indications for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.4 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.5 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.6 Adverse Reactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 PRODUCT DESCRIPTIONS
2.1 Front and Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
3 STIMULATION MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9
4 INSTRUCTIONS FOR USE
4.1 Check Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.2 Connect electrodes to lead wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.3 Connect lead wires to unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4.4 Place electrodes on skin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.5 Adjust Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.6 Select the mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Contents
12
1.4.5 Stimulation should not be applied over swollen, infected, or inflamed areas or skin eruptions, e.g., phlebitis,
thrombophlebitis, varicose veins, etc.
1.4.6 Stimulation should not be applied over, or in proximity to, cancerous lesions.
1.4.7 For external use only.
1.4.8 Do not use TENS on the eye area.
1.4.9 This device should be used only under the continued supervision of a licensed medical practitioner.
1.4.10 Safety of TENS devices for use during pregnancy or delivery has not been established.
1.4.11 Electronic equipment such as ECG monitors and ECG alarms may not operate properly when TENS is in use.
1.4.12 Apply the electrodes to clean, dry, and unbroken skin only.
1.4.13 This device should not be used while driving, operating machinery, or during any activity in which
involuntary muscle contractions may put the user at undue risk of injury.
1.4.14 This device should be kept out of the reach of children.
1.4.15 Keep electrodes separate during treatment. Electrodes in contact with each other could result in improper
stimulation or skin burns.
1.5 Precautions:
1.5.1 Caution should be used for patients with suspected or diagnosed heart problems.
1.5.2 Caution should be used for patients with suspected or diagnosed epilepsy.
1.5.3 Caution should be used in the presence of the following:
(a)When there is a tendency to hemorrhage following acute trauma or fracture
(b)Following recent surgical procedures when muscle contraction may disrupt the healing process.
1.1 General information:
This TENS is a lightweight and portable medical device which can help to reduce pain and discomfort. It utilizes low
electric-current to stimulate muscle nerves to achieve the symptomatic relief of chronic intractable pain, post-
traumatic and post-surgical pain.
1.2. Cautions
Federal law (USA) restricts this device to sale by or on the order of practitioners licensed by the State in which they
practice to use or order the use of the device.
1.3. Indications for use:
This device is used in symptomatic relief of chronic intractable pain, post-traumatic and post-surgical pain.
1.4 Warnings:
1.4.1 The long-term effects of chronic electrical stimulation are unknown.
1.4.2 Stimulation should not be applied over the carotid sinus nerves, particularly in patients with a known
sensitivity to the carotid sinus reflex.
1.4.3 Stimulation should not be applied over the neck or mouth. Severe spasm of the laryngeal and pharyngeal
muscles may occur and the contractions may be strong enough to close the airway or cause difficulty in
breathing.
1.4.4 Stimulation should not be applied transthoracically in that the introduction of electrical current into the
heart may cause cardiac arrhythmias.
1. INTRODUCTION
12
1.4.5 Stimulation should not be applied over swollen, infected, or inflamed areas or skin eruptions, e.g., phlebitis,
thrombophlebitis, varicose veins, etc.
1.4.6 Stimulation should not be applied over, or in proximity to, cancerous lesions.
1.4.7 For external use only.
1.4.8 Do not use TENS on the eye area.
1.4.9 This device should be used only under the continued supervision of a licensed medical practitioner.
1.4.10 Safety of TENS devices for use during pregnancy or delivery has not been established.
1.4.11 Electronic equipment such as ECG monitors and ECG alarms may not operate properly when TENS is in use.
1.4.12 Apply the electrodes to clean, dry, and unbroken skin only.
1.4.13 This device should not be used while driving, operating machinery, or during any activity in which
involuntary muscle contractions may put the user at undue risk of injury.
1.4.14 This device should be kept out of the reach of children.
1.4.15 Keep electrodes separate during treatment. Electrodes in contact with each other could result in improper
stimulation or skin burns.
1.5 Precautions:
1.5.1 Caution should be used for patients with suspected or diagnosed heart problems.
1.5.2 Caution should be used for patients with suspected or diagnosed epilepsy.
1.5.3 Caution should be used in the presence of the following:
(a)When there is a tendency to hemorrhage following acute trauma or fracture
(b)Following recent surgical procedures when muscle contraction may disrupt the healing process.
1.1 General information:
This TENS is a lightweight and portable medical device which can help to reduce pain and discomfort. It utilizes low
electric-current to stimulate muscle nerves to achieve the symptomatic relief of chronic intractable pain, post-
traumatic and post-surgical pain.
1.2. Cautions
Federal law (USA) restricts this device to sale by or on the order of practitioners licensed by the State in which they
practice to use or order the use of the device.
1.3. Indications for use:
This device is used in symptomatic relief of chronic intractable pain, post-traumatic and post-surgical pain.
1.4 Warnings:
1.4.1 The long-term effects of chronic electrical stimulation are unknown.
1.4.2 Stimulation should not be applied over the carotid sinus nerves, particularly in patients with a known
sensitivity to the carotid sinus reflex.
1.4.3 Stimulation should not be applied over the neck or mouth. Severe spasm of the laryngeal and pharyngeal
muscles may occur and the contractions may be strong enough to close the airway or cause difficulty in
breathing.
1.4.4 Stimulation should not be applied transthoracically in that the introduction of electrical current into the
heart may cause cardiac arrhythmias.
1. INTRODUCTION
2.1 Front and Rear panel:
3
(c)Over the menstruating or pregnant uterus
(d)Over areas of the skin which lack normal sensation.
1.5.4 Some patients may experience skin irritation or hypersensitivity due to the electrical stimulation or electrical
conductive medium. The irritation can usually be reduced by using an alternate conductive medium, or
alternate electrode placement.
1.5.5 Electrode placement and stimulation settings should be based on the guidance of the prescribing
practitioner.
1.5.6 This device should be used only with the leads and electrodes recommended for use by the manufacturer.
1.5.7 Isolated cases of skin irritation may occur at the site of the electrode placement following long-term
application.
1.5.8 Effectiveness is highly dependent upon patient selection by a person qualified in the management of pain-
afflicted patients.
1.5.9 If the stimulation levels are uncomfortable or become uncomfortable, reduce the stimulation amplitude to a
comfortable level and contact your physician if problems persist.
1.6 Adverse Reactions:
1.6.1 Possible skin irritation or electrode burn under the electrodes may occur.
1.6.2 Possible allergic skin reaction to tape or gel may occur.
2. PRODUCT DESCRIPTIONS
4
Front View
Back View
Top View
Channel 1 On/Off and
Amplitude Control
Channel 1 Output
Receptacle
Channel 2 Output
Receptacle
Channel 2 On/Off and
Amplitude Control
Amplitude Knob
Pulse Rate
Pulse Width
Battery Cover
Clip
Timer
Lid Cover
Mode Button
Mode
Battery Indicator
Set Button
Increase Button
Decrease Button
Channel Output
Knob Cover
Knob Cover
Knob Cover
2.1 Front and Rear panel:
3
(c)Over the menstruating or pregnant uterus
(d)Over areas of the skin which lack normal sensation.
1.5.4 Some patients may experience skin irritation or hypersensitivity due to the electrical stimulation or electrical
conductive medium. The irritation can usually be reduced by using an alternate conductive medium, or
alternate electrode placement.
1.5.5 Electrode placement and stimulation settings should be based on the guidance of the prescribing
practitioner.
1.5.6 This device should be used only with the leads and electrodes recommended for use by the manufacturer.
1.5.7 Isolated cases of skin irritation may occur at the site of the electrode placement following long-term
application.
1.5.8 Effectiveness is highly dependent upon patient selection by a person qualified in the management of pain-
afflicted patients.
1.5.9 If the stimulation levels are uncomfortable or become uncomfortable, reduce the stimulation amplitude to a
comfortable level and contact your physician if problems persist.
1.6 Adverse Reactions:
1.6.1 Possible skin irritation or electrode burn under the electrodes may occur.
1.6.2 Possible allergic skin reaction to tape or gel may occur.
2. PRODUCT DESCRIPTIONS
4
Front View
Back View
Top View
Channel 1 On/Off and
Amplitude Control
Channel 1 Output
Receptacle
Channel 2 Output
Receptacle
Channel 2 On/Off and
Amplitude Control
Amplitude Knob
Pulse Rate
Pulse Width
Battery Cover
Clip
Timer
Lid Cover
Mode Button
Mode
Battery Indicator
Set Button
Increase Button
Decrease Button
Channel Output
Knob Cover
Knob Cover
Knob Cover
56
"DECREASE" control button (inverted triangle-button)
This button decreases the pulse width from 300~50µs, decreases the pulse rate from 150 to 2Hz, and decreases the
timer in continuous mode to from 90 to 5 min.
"MODE" button (round-button on the right side of the control panel)
This button selects a Stimulation-Mode. It offers the mode status from five types of stimulation modes which are
Burst, Normal, MRW (Modulated Rate and Width), SD (Strength Duration) and Bi-Pulse.
"SET" button (round-button on the middle of the control panel)
This button sets the rate, width and timer. Press the 'SET' button to enter a parameter setting mode including rate,
width and timer.
"LCD screen"
This LCD will be utilized to display stimulating mode/ pulse width/ pulse rate and to display the timer. The channel
output is indicated on the left side (Channel 1) and right side (Channel 2) of the LCD screen. The modes show on
the top of the LCD panel. The pulse rate and width show on the middle-right of the screen. The timer and clock
symbol show on the middle-left of the screen; the clock symbol will flash in final 5 min.
Battery compartment
9 Voltage battery- 1 pc
Knob Cover:
An acrylic knob cover protects Amplitude Controls from accidental user touch when
the unit is being used. After adjusting the output, remember to have the cover closed.
Lid Cover:
A panel covers the controls for Mode, Set, INCREASE and DECREASE adjustments. Your medical professional may
ask to set these controls for you and request you leave the cover in place.
Amplitude Controls:
It controls the "INTENSITY" level of stimulating pulses. These controls (located at the top of the unit) regulate the
amplitude, or intensity, of the stimulation and are the ON/OFF CONTROL. The ON indicator signal will stay lit as
long as the unit is working, and mimics the output of the electrical pulse.
Caution: If the stimulation levels are uncomfortable or become uncomfortable, reduce the stimulation
intensity to a comfortable level and contact your physician if problems persist.
"INCREASE" control button (triangle-button)
This button increases the pulse width from 50~300µs, increases the pulse rate from 2 to 150Hz, and increases the
timer from 5 to 90 mins in continuous mode.
56
"DECREASE" control button (inverted triangle-button)
This button decreases the pulse width from 300~50µs, decreases the pulse rate from 150 to 2Hz, and decreases the
timer in continuous mode to from 90 to 5 min.
"MODE" button (round-button on the right side of the control panel)
This button selects a Stimulation-Mode. It offers the mode status from five types of stimulation modes which are
Burst, Normal, MRW (Modulated Rate and Width), SD (Strength Duration) and Bi-Pulse.
"SET" button (round-button on the middle of the control panel)
This button sets the rate, width and timer. Press the 'SET' button to enter a parameter setting mode including rate,
width and timer.
"LCD screen"
This LCD will be utilized to display stimulating mode/ pulse width/ pulse rate and to display the timer. The channel
output is indicated on the left side (Channel 1) and right side (Channel 2) of the LCD screen. The modes show on
the top of the LCD panel. The pulse rate and width show on the middle-right of the screen. The timer and clock
symbol show on the middle-left of the screen; the clock symbol will flash in final 5 min.
Battery compartment
9 Voltage battery- 1 pc
Knob Cover:
An acrylic knob cover protects Amplitude Controls from accidental user touch when
the unit is being used. After adjusting the output, remember to have the cover closed.
Lid Cover:
A panel covers the controls for Mode, Set, INCREASE and DECREASE adjustments. Your medical professional may
ask to set these controls for you and request you leave the cover in place.
Amplitude Controls:
It controls the "INTENSITY" level of stimulating pulses. These controls (located at the top of the unit) regulate the
amplitude, or intensity, of the stimulation and are the ON/OFF CONTROL. The ON indicator signal will stay lit as
long as the unit is working, and mimics the output of the electrical pulse.
Caution: If the stimulation levels are uncomfortable or become uncomfortable, reduce the stimulation
intensity to a comfortable level and contact your physician if problems persist.
"INCREASE" control button (triangle-button)
This button increases the pulse width from 50~300µs, increases the pulse rate from 2 to 150Hz, and increases the
timer from 5 to 90 mins in continuous mode.
3.3 MRW (Modulated Rate and Width) Mode:
The pulse rate and width are automatically varied in a cycle to produce a pleasant,
massage-like sensation. It's believed that nerves can become accustomed to, or
"accommodated" to the same electrical stimulus after a period of time and thus
would require increasing the intensity to further block the pain. The Modulation
mode offers different electrical stimulation, thus preventing nerve accommodation
so less intensity is required for long and effective treatment.
In this mode, during the beginning of 0.5 sec. period, the WIDTH is decreased to
50% of its original setting, and during the next 0.5 sec. period, the RATE is
decreased to 50% of its original setting. Therefore, the total cycle time is 1 second.
The Stimulation Mode button is located under the front lid cover and is
adjusted by pressing the "MODE" control button.
Be sure that when adjusting these stimulation modes, the intensity (amplitude)
output controls are set to the minimum output positions.
3.1 BURST Mode:
The burst mode provides a "burst" of seven pulses. There are two bursts that
are delivered per second. Positive pulse and negative pulse are delivered
continuously at fixed 100 Hz. Pulse width are adjustable from 50~300µs.
3.2 NORMAL Mode:
The Normal mode produces a continuous train of impulses. The stimulation parameters are not automatically
interrupted nor varied in any way. In this mode, the pulse rate ( from 2 to 150Hz)
and pulse width ( from 50 to 300µs) are fully adjustable. The normal mode is quite
versatile because it may be applied with a variety of rate and width settings.
3.STIMULATION MODES
8
7
3.3 MRW (Modulated Rate and Width) Mode:
The pulse rate and width are automatically varied in a cycle to produce a pleasant,
massage-like sensation. It's believed that nerves can become accustomed to, or
"accommodated" to the same electrical stimulus after a period of time and thus
would require increasing the intensity to further block the pain. The Modulation
mode offers different electrical stimulation, thus preventing nerve accommodation
so less intensity is required for long and effective treatment.
In this mode, during the beginning of 0.5 sec. period, the WIDTH is decreased to
50% of its original setting, and during the next 0.5 sec. period, the RATE is
decreased to 50% of its original setting. Therefore, the total cycle time is 1 second.
The Stimulation Mode button is located under the front lid cover and is
adjusted by pressing the "MODE" control button.
Be sure that when adjusting these stimulation modes, the intensity (amplitude)
output controls are set to the minimum output positions.
3.1 BURST Mode:
The burst mode provides a "burst" of seven pulses. There are two bursts that
are delivered per second. Positive pulse and negative pulse are delivered
continuously at fixed 100 Hz. Pulse width are adjustable from 50~300µs.
3.2 NORMAL Mode:
The Normal mode produces a continuous train of impulses. The stimulation parameters are not automatically
interrupted nor varied in any way. In this mode, the pulse rate ( from 2 to 150Hz)
and pulse width ( from 50 to 300µs) are fully adjustable. The normal mode is quite
versatile because it may be applied with a variety of rate and width settings.
3.STIMULATION MODES
8
7
9
NOTE: Always read this instruction manual before use.
PREPARATION FOR USE
4.1 Check Battery:
Insert a fresh 9V alkaline or rechargeable battery into the battery compartment. Make sure that you are installing the
battery properly. The battery is inserted in the casing on the back of the stimulator unit. BE SURE TO MATCH
THE POSITIVE AND NEGATIVE ENDS OF THE BATTERY TO THE MARKINGS IN THE BATTERY
COMPARTMENT OF UNIT. To remove the battery cover, press and pull down following the direction of the
arrow indicated on the battery cover.

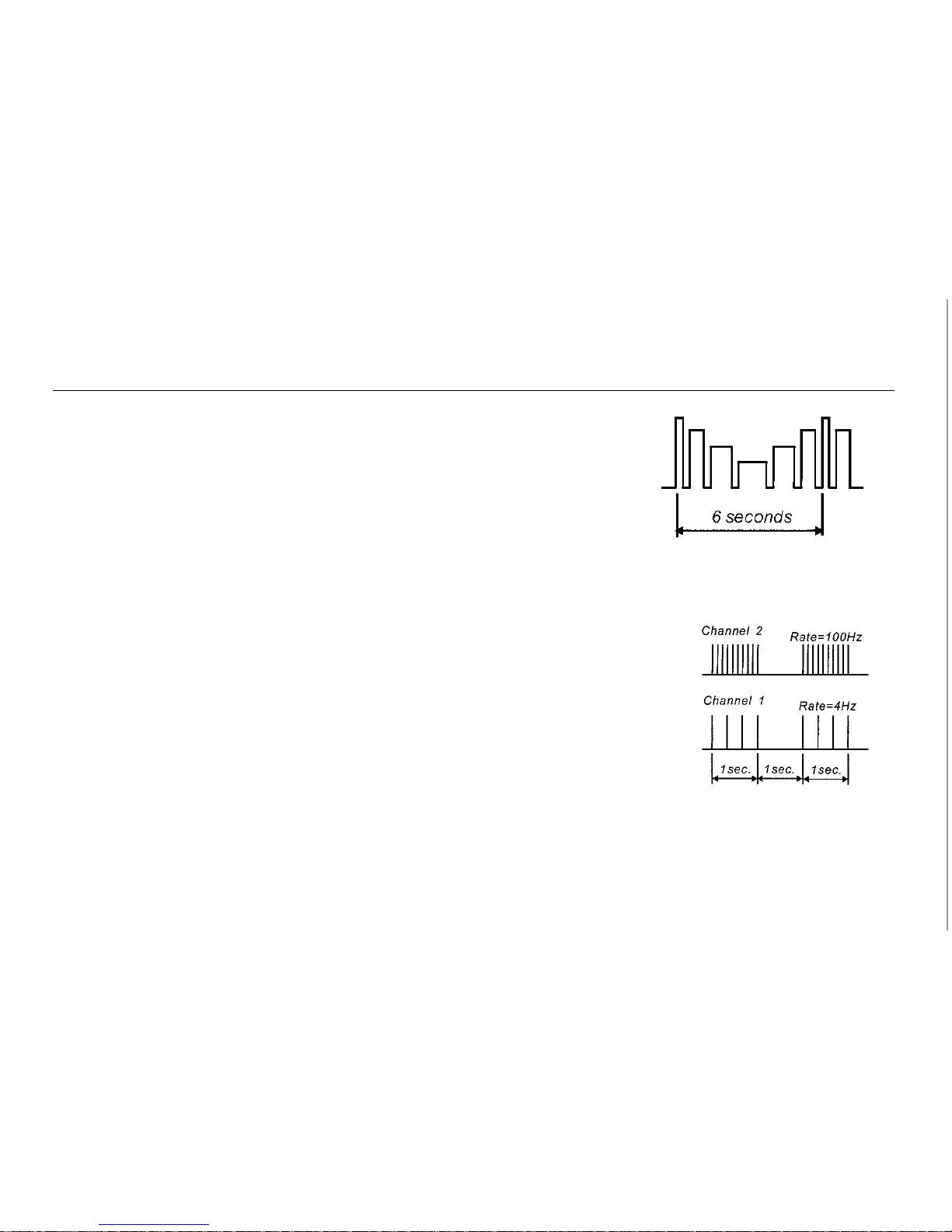

3.4 SD (Strength Duration) Mode:
Strength-Duration modulation consists of alternating modulated intensity and
pulse width, so the intensity is always increasing while the pulse width is
decreasing and vice-versa. The stimulation intensity is modulated to 62.5%
maximum of setting (width equal to setting). The pulse width is modulated to 67%
of setting (intensity equal to setting). Total cycle time is 6 seconds. Pulse rate
(from 2~150Hz) and pulse width (from 50~300µs) are fully adjustable.
3.5 Bi-Pulse Mode:
Delivers 4 pulses per second to Channel 1(i.e. the pulse rate of Channel 1 is fixed
at 4 Hz) while delivering 100 pulses per second to Channel 2 (i.e. the pulse rate of
Channel 2 is fixed at 100 Hz). Stimulation is burst on for 1.0 second, then off for 1.0
second (the illustration shows each pulse as a vertical line). Pulse width (from
50~300µs) is fully adjustable.
4. INSTRUCTIONS FOR USE
10
9
NOTE: Always read this instruction manual before use.
PREPARATION FOR USE
4.1 Check Battery:
Insert a fresh 9V alkaline or rechargeable battery into the battery compartment. Make sure that you are installing the
battery properly. The battery is inserted in the casing on the back of the stimulator unit. BE SURE TO MATCH
THE POSITIVE AND NEGATIVE ENDS OF THE BATTERY TO THE MARKINGS IN THE BATTERY
COMPARTMENT OF UNIT. To remove the battery cover, press and pull down following the direction of the
arrow indicated on the battery cover.
3.4 SD (Strength Duration) Mode:
Strength-Duration modulation consists of alternating modulated intensity and
pulse width, so the intensity is always increasing while the pulse width is
decreasing and vice-versa. The stimulation intensity is modulated to 62.5%
maximum of setting (width equal to setting). The pulse width is modulated to 67%
of setting (intensity equal to setting). Total cycle time is 6 seconds. Pulse rate
(from 2~150Hz) and pulse width (from 50~300µs) are fully adjustable.
3.5 Bi-Pulse Mode:
Delivers 4 pulses per second to Channel 1(i.e. the pulse rate of Channel 1 is fixed
at 4 Hz) while delivering 100 pulses per second to Channel 2 (i.e. the pulse rate of
Channel 2 is fixed at 100 Hz). Stimulation is burst on for 1.0 second, then off for 1.0
second (the illustration shows each pulse as a vertical line). Pulse width (from
50~300µs) is fully adjustable.
4. INSTRUCTIONS FOR USE
10
4.3 Connect lead wires to unit:
Before proceeding to this step, be sure the unit is turned OFF. Holding the insulated portion of the lead wire
connector, insert the angled-"L" plug into the receptacle on the top of the main unit. Ensure the lead wires are
inserted correctly.
The unit has two output receptacles which are controlled by Channel 1 and Channel 2 Amplitude Control knobs at
the top of the unit. You may choose to use one channel with one pair of lead wires or both channels with two pairs
of lead wires. Using both channels gives the user the advantage of stimulating two different areas at the same time.
CONNECTING THE STIMULATOR

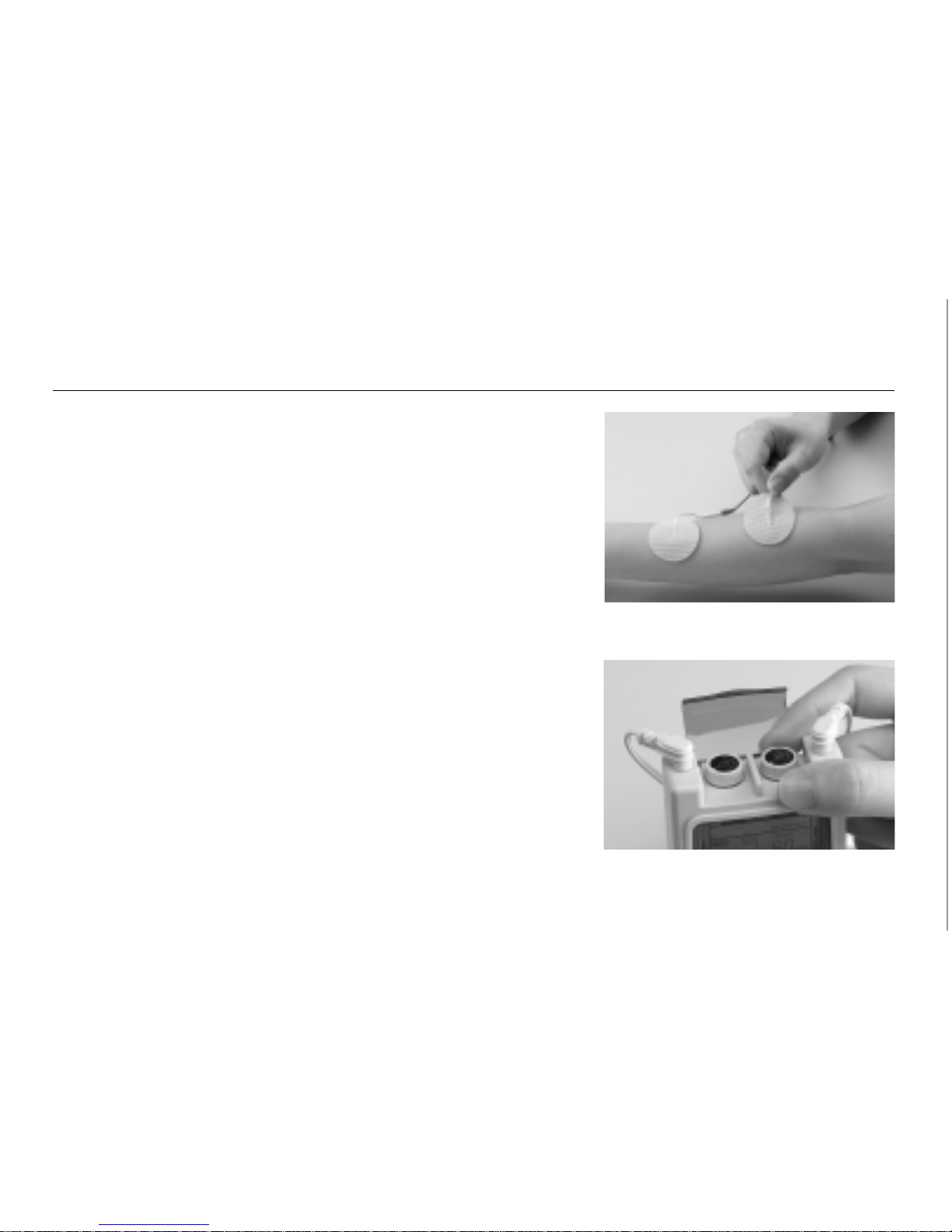

4.2 Connect electrodes to lead wires:
Insert the lead wire connector into electrodes connector (standard 0.08 inch female connection).
MAKE SURE NO BARE METAL OF THE PINS IS EXPOSED.
Caution:
* Always use the electrodes with the requirements of the EN60601-1 and EN60601-2, such as with CE mark, or which are
legally marketed in the US under 510(K) procedure.
12
11
Self-adhesive
Electrodes Pads
Angle"L"-shape
plug
4.3 Connect lead wires to unit:
Before proceeding to this step, be sure the unit is turned OFF. Holding the insulated portion of the lead wire
connector, insert the angled-"L" plug into the receptacle on the top of the main unit. Ensure the lead wires are
inserted correctly.
The unit has two output receptacles which are controlled by Channel 1 and Channel 2 Amplitude Control knobs at
the top of the unit. You may choose to use one channel with one pair of lead wires or both channels with two pairs
of lead wires. Using both channels gives the user the advantage of stimulating two different areas at the same time.
CONNECTING THE STIMULATOR
4.2 Connect electrodes to lead wires:
Insert the lead wire connector into electrodes connector (standard 0.08 inch female connection).
MAKE SURE NO BARE METAL OF THE PINS IS EXPOSED.
Caution:
* Always use the electrodes with the requirements of the EN60601-1 and EN60601-2, such as with CE mark, or which are
legally marketed in the US under 510(K) procedure.
12
11
Self-adhesive
Electrodes Pads
Angle"L"-shape
plug
14

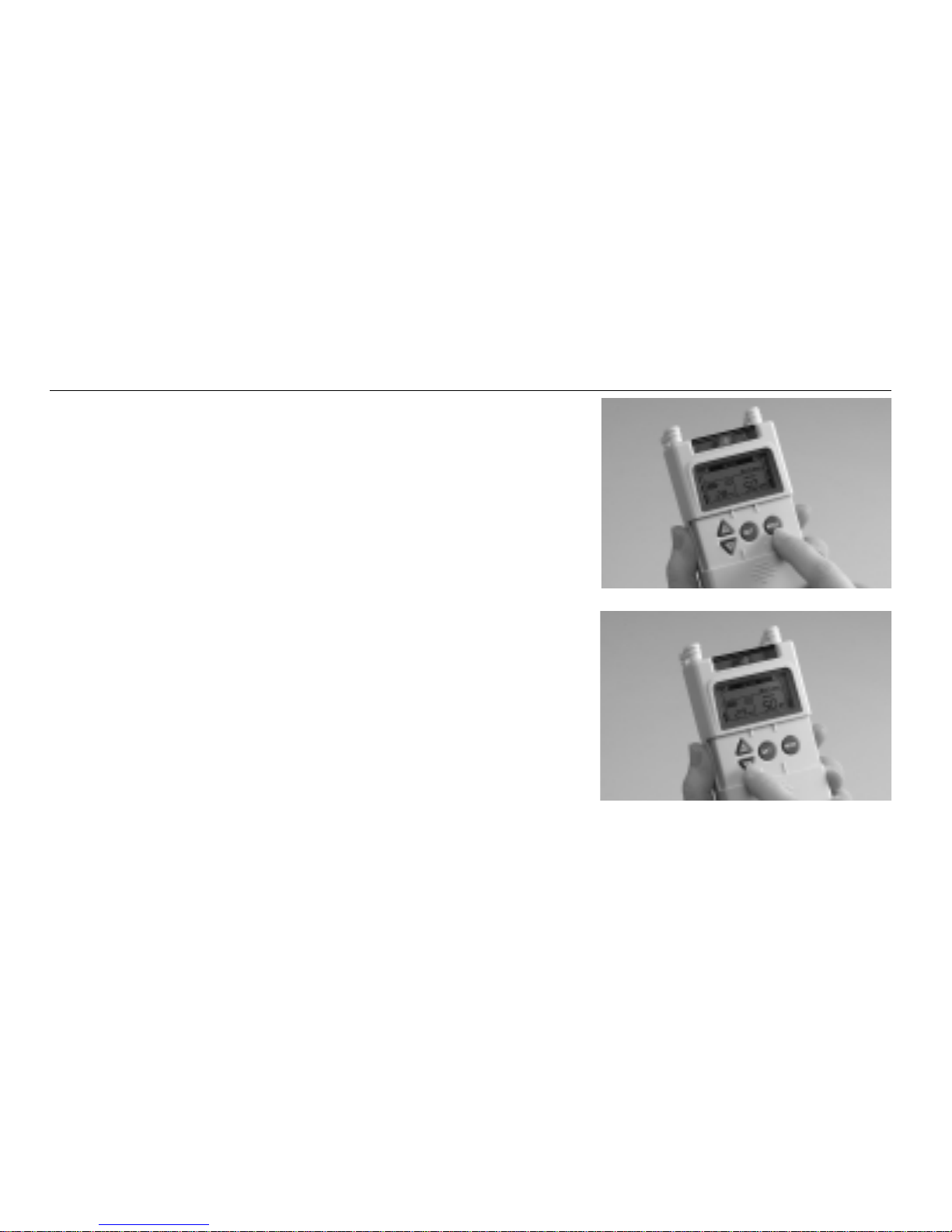

4.6 Select the mode:
Press "MODE" button to set the stimulation mode recommended by your
physician or therapist. For details about stimulating waveform and
sequences, please refer to Sec. 3 "Stimulation Modes".
Caution: Consult physicians for your suitable stimulation mode.
4.7 Adjust the Pulse Rate:
The pulses rate are adjustable 2~150Hz. 2Hz~20 Hz in 1 Hz increment
and 20~ 150 Hz in 5 Hz increment.
Press the SET button to enter the Pulse Rate set function, then press
INCREASE or DECREASE buttons to adjust Pulse Rate to the setting
recommended by your medical professional.
4.4 Place electrodes on skin:
Apply electrodes to the exact site indicated by your physician following the
instruction included with the electrodes labeling. Before applying
electrodes, be sure the skin surface over which electrodes are placed is
thoroughly cleaned and dried. Make sure the electrodes are placed firmly
to skin and make good contact between the skin and the electrodes. Place
the electrodes over the skin; attach them properly, firmly and evenly.
ADJUSTING THE CONTROLS
4.5 Adjust Output:
Turn Amplitude Control knob for Channel 1 or 2 clockwise, then you will
hear a "beep" sound. Before you increase the Amplitude, you must select
the mode, rate and width.
Caution: If the stimulation levels are uncomfortable or become uncomfortable, reduce
the stimulation intensity to a comfortable level and contact your medical
practitioner if problems persist.
13
14
4.6 Select the mode:
Press "MODE" button to set the stimulation mode recommended by your
physician or therapist. For details about stimulating waveform and
sequences, please refer to Sec. 3 "Stimulation Modes".
Caution: Consult physicians for your suitable stimulation mode.
4.7 Adjust the Pulse Rate:
The pulses rate are adjustable 2~150Hz. 2Hz~20 Hz in 1 Hz increment
and 20~ 150 Hz in 5 Hz increment.
Press the SET button to enter the Pulse Rate set function, then press
INCREASE or DECREASE buttons to adjust Pulse Rate to the setting
recommended by your medical professional.
4.4 Place electrodes on skin:
Apply electrodes to the exact site indicated by your physician following the
instruction included with the electrodes labeling. Before applying
electrodes, be sure the skin surface over which electrodes are placed is
thoroughly cleaned and dried. Make sure the electrodes are placed firmly
to skin and make good contact between the skin and the electrodes. Place
the electrodes over the skin; attach them properly, firmly and evenly.
ADJUSTING THE CONTROLS
4.5 Adjust Output:
Turn Amplitude Control knob for Channel 1 or 2 clockwise, then you will
hear a "beep" sound. Before you increase the Amplitude, you must select
the mode, rate and width.
Caution: If the stimulation levels are uncomfortable or become uncomfortable, reduce
the stimulation intensity to a comfortable level and contact your medical
practitioner if problems persist.
13
Press "MODE" button
Press "MODE" button
Press "MODE" button
Press "MODE" button
Press "MODE" button
4.8 Adjust the Pulse Width:
The pulse width is adjustable 50~300µs in 10µs increments.
Press the SET button to enter the Pulse Width set function, then press INCREASE or DECREASE buttons to adjust
Pulse Width to the setting recommended by your medical professional.
4.9 Adjust Timer:
The timer is adjustable 5~90 minutes or continuous in 5 minute increments. Continuous option is just
the next step to 90 minutes, i.e. from 5~90 minutes to continuous and then to 5 minutes is a cycle.
During the 5 minute final count down, the clock symbol will flash once every second.
4.10 Adjust Channel Amplitude:
Turn Channel 1 or 2 clockwise. The output indication will be showed on the left side (Channel 1) and right side
(Channel 2) of the LCD screen as long as the unit is in operation. Slowly turn the Channel Amplitude control until
you reach the setting recommended by your medical professional. Repeat for the other channel, if both channels are
to be used.
Caution: If the stimulation levels are uncomfortable or become uncomfortable, reduce the stimulation intensity to a comfortable level
and contact your medical practitioner if problems persist.
16
15
Burst Mode
Normal Mode
MRW Mode
SD Mode
Bi-Pulse Mode
Adjust (1) Pulse Width (2) Timer by
"SET" & " INCREASE/DECREASE" button.
Adjust (1) Pulse Rate (2) Pulse Width (3) Timer by
"SET" & " INCREASE/DECREASE" button.
Adjust (1) Pulse Rate (2) Pulse Width (3) Timer by
"SET" & " INCREASE/DECREASE" button.
Adjust (1) Pulse Rate (2) Pulse Width (3) Timer by
"SET" & " INCREASE/DECREASE" button.
Adjust (1) Pulse Width (2) Timer by
"SET" & " INCREASE/DECREASE" button.
Operation Procedure Chart:
Press "MODE" button
Press "MODE" button
Press "MODE" button
Press "MODE" button
Press "MODE" button
4.8 Adjust the Pulse Width:
The pulse width is adjustable 50~300µs in 10µs increments.
Press the SET button to enter the Pulse Width set function, then press INCREASE or DECREASE buttons to adjust
Pulse Width to the setting recommended by your medical professional.
4.9 Adjust Timer:
The timer is adjustable 5~90 minutes or continuous in 5 minute increments. Continuous option is just
the next step to 90 minutes, i.e. from 5~90 minutes to continuous and then to 5 minutes is a cycle.
During the 5 minute final count down, the clock symbol will flash once every second.
4.10 Adjust Channel Amplitude:
Turn Channel 1 or 2 clockwise. The output indication will be showed on the left side (Channel 1) and right side
(Channel 2) of the LCD screen as long as the unit is in operation. Slowly turn the Channel Amplitude control until
you reach the setting recommended by your medical professional. Repeat for the other channel, if both channels are
to be used.
Caution: If the stimulation levels are uncomfortable or become uncomfortable, reduce the stimulation intensity to a comfortable level
and contact your medical practitioner if problems persist.
16
15
Burst Mode
Normal Mode
MRW Mode
SD Mode
Bi-Pulse Mode
Adjust (1) Pulse Width (2) Timer by
"SET" & " INCREASE/DECREASE" button.
Adjust (1) Pulse Rate (2) Pulse Width (3) Timer by
"SET" & " INCREASE/DECREASE" button.
Adjust (1) Pulse Rate (2) Pulse Width (3) Timer by
"SET" & " INCREASE/DECREASE" button.
Adjust (1) Pulse Rate (2) Pulse Width (3) Timer by
"SET" & " INCREASE/DECREASE" button.
Adjust (1) Pulse Width (2) Timer by
"SET" & " INCREASE/DECREASE" button.
Operation Procedure Chart:
Individual treatment time:
Press "INCREASE" button (triangle button) or “DECREASE” button (inverted
triangle button) to see next record of treatment time with the number of times or
previous record of treatment time with the number of times.
Press and hold Set button for 3 seconds to delete the displayed record. After the
record is deleted, the unit will make a "beeping" sound.
NOTE:
1. If the treatment time is under one minute, it will not be recorded. For example, If your
treatment time is 10 minutes and 30 seconds, the patient compliance timer will record 10
minutes, not 11 minutes.
2. The patient compliance timer can only record up to 999 minutes for each treatment.
Therefore, if you keep using the stimulator for over 999 minutes, it will only record 999
minutes and the record time will flash to mean the treatment time is over 999 minutes.
18
4.11 Turn Unit Off:
Turn both Channel Amplitude controls to OFF. Then unplug the electrode lead wires, grasping them by the plug, not
the cord. If treatment will be resumed shortly, the electrodes may be left on the skin. When the electrodes are
removed, clean the skin thoroughly with mild soap and water. If there is skin irritation, consult your prescribing
medical practitioner.
Caution: When the therapy time is completed, if the user doesn't turn off the amplitude knob, the unit will continue "beeping" every 10
seconds until the amplitude knob is turned off completely.
4.12 Patient Compliance Timer:
The patient compliance timer can memorize 60 sets of operation records; the total record time is 999 hours.
After the unit is turned off, you can start to use patient compliance timer. First, press and hold “Mode” button and
turn on the amplitude knob simultaneously to initiate patient compliance timer.
17
