Bio-logic®AuDX PRO FLEX®
Quick start
Quick start guide
Doc. No.7-26-1370-EN/00
Part No.7-26-13700-EN
Bio-logic®

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
2
Bio-logic®
Device connectors
Start menu
Current time
Battery status
Select patient
Additional
information
about options for
current screen
Turn off device
Customize settings
Note: not all Start Menu options will be available depending on the configuration of your device
On/Off button Power supply USB cable
Label printer Patient response
button
Headphones or
second transducer
Air Pump
Probe

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
3
Bio-logic®
Connect the probe to the red connector and the air cable to the pump connector. From the start menu, select
the Immittance button, then select Tymp, and select Clinical. Select the test ear by pressing either the Right
or Left button. Cartoon mode will show an airplane on the screen during the tympanometry test. Connect a
second transducer to the blue connector for Contralateral Reflex testing.
The system will first check the probe fit and wait for
the pressure build up.
Note: The LED light on the probe will pulse at a steady
pace to indicate a correct fit. During the test, if the
probe tip fit is not correct, the LED light will blink at
a fast pace and an error message prompting you to
retry or cancel the test will appear on the screen.
Once a proper seal has been obtained, the test will proceed. A tympanometry test will be performed, followed
by a reflex measurement (when Clinical is chosen)
Tympanometry result Reflex threshold foundReflex test in progress Overall Reflex test result
Select the appropriate ear tip size and place it on the probe tip.
Insert the probe in the ear making sure that the eartip fits tightly into the ear canal.
Testing: Tympanometry
Tympanometry test screen
Air Pump
Second transducer
Headphones or
second transducer

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
4
Bio-logic®

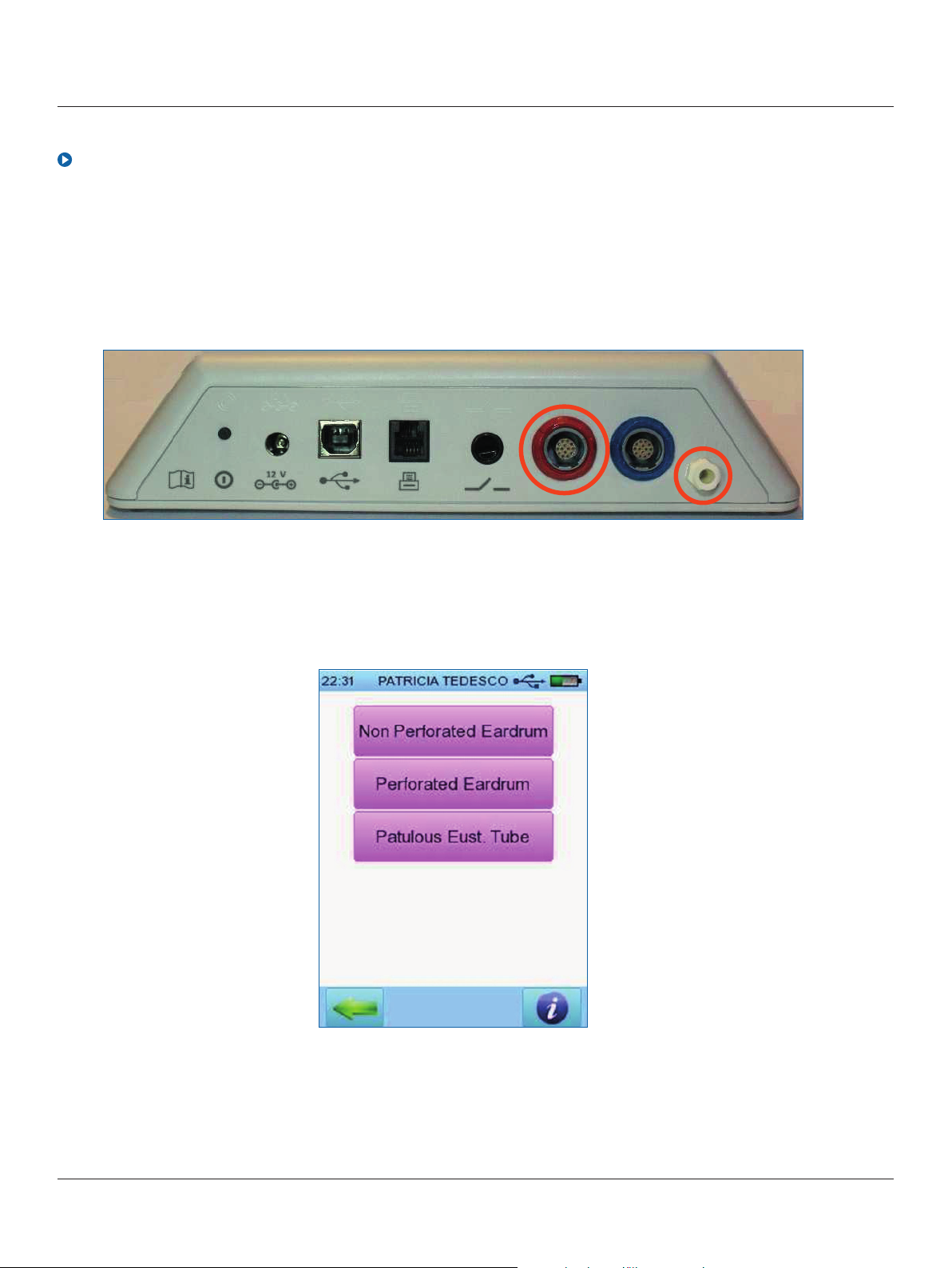

Eustachian Tube Function (ETF) testing
Connect the probe to the red connector and the air cable to the pump connector and select the ETF button
from the start menu. Select the test ear by pressing either the Right or Left button.
Select the appropriate ear tip size and place it on the probe tip.
Insert the probe in the ear making sure that the ear tip fits tightly into the ear canal.
Select the type of test you would like to perform: Non Perforated Eardrum,
Perforated Eardrum or Patulous Eustachian Tube

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
5
Bio-logic®
Non Perforated Eardrum: This
test records three tympanograms,
with the patient performing the
Toynbee and then Valsalva's
maneuver between the tests. This
changes the middle ear pressure,
causing the tympanogram peaks
to shift between the recordings.
Perforated Eardrum: This test
pressurizes the ear canal (and
middle ear when the eardrum is
perforated). To test the Eustachian
tube function, the patient should
be instructed to swallow multiple
times during the test. If the
Eustachian tube opens, pressure
will drop.
Special care must be taken to
ensure an airtight fit of the probe
during testing, to make sure the
observed pressure drop is through
the Eustachian tube and not
caused by leakage.
Patulous Eustachian Tube:
This test is performed without
stimulus. If the Eustachian tube is
permanently open, the resulting
higher fluctuation of admittance
may mean that the rhythms of
heartbeat or breathing can be
identified in the admittance curve.
An airtight fit of the probe during
testing is essential.

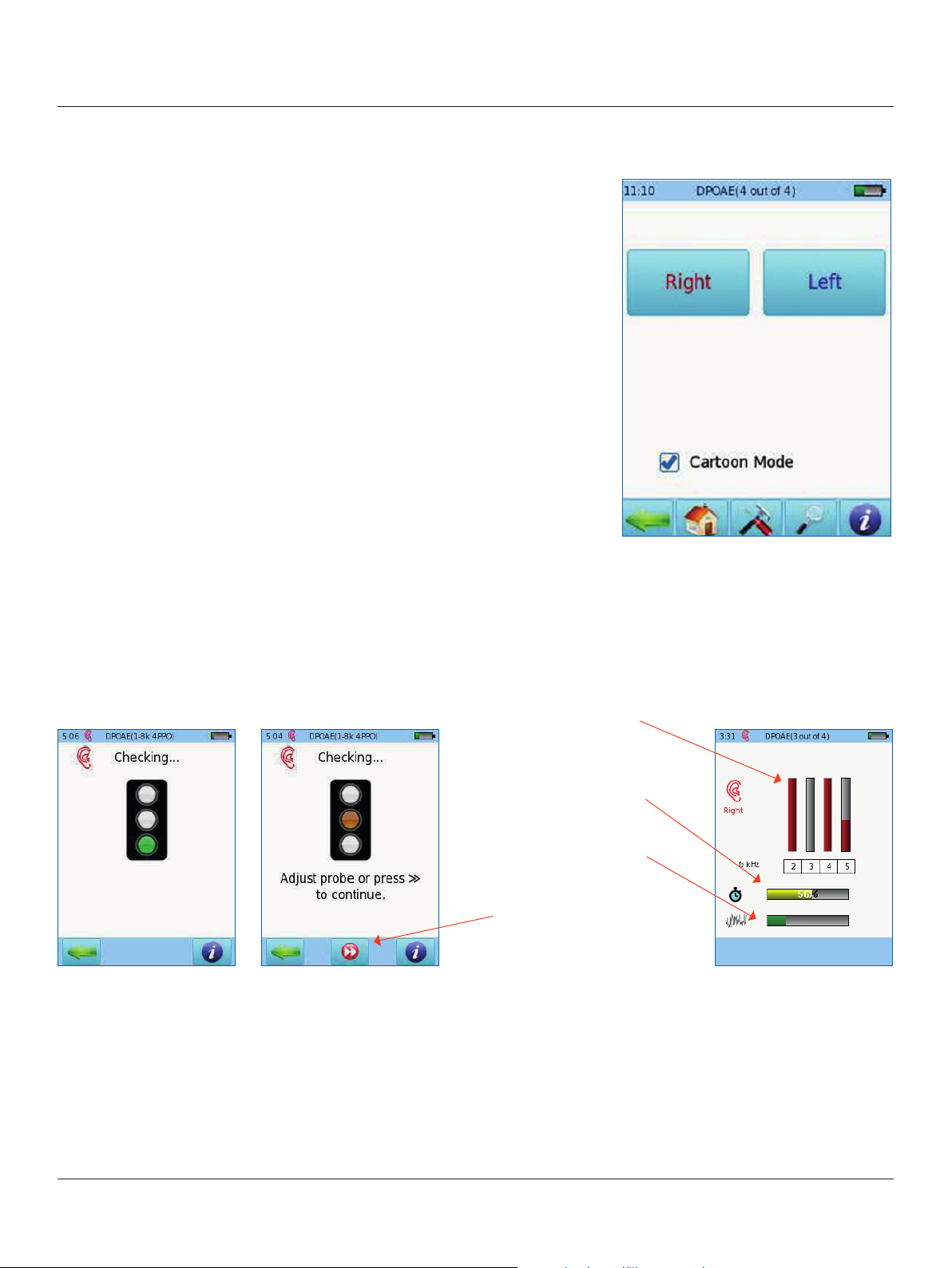

Distortion Product Otoacoustic Emissions (DPOAE) screening
Connect the probe to the red connector or use the tympanometry probe and select the DPOAE Quick button
from the start menu.

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
6
Bio-logic®
Probe fit override for
patients with PE tubes
or tympanic membrane
perforation
Progress for each
tested frequency
Overall test progress
Noise floor level
A calibration will be performed prior to measurement. A green light indicates successful calibration
(see below left). After successful ear probe calibration, the test will start automatically.
Select the appropriate ear tip size and place it on the probe tip.
Insert the probe in the ear making sure that the ear tip fits tightly
into the ear canal.
Select one of the available Presets. Then select the test ear by
pressing either the Right or Left button. Cartoon mode will start
the test showing a cartoon instead of the progress bar.

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
7
Bio-logic®
DPOAE screening test results
Basic results view
Detailed results view
Please note that the initial result screen depends on the module settings in "DPOAE Preferences"
If the required criteria
were met, the result
will be PASS. If not,
it will be REFER.
Print results to a label
or to a pdf file or full
page report on PC.
Test other ear
Re-test failed frequencies
Switch to results of the other ear
after both ears have been tested
Red or blue bars indicate
response, grey bars indicate noise
Outcome for each test sorted
by f2 and L2
Numeric values shown
in table format
Note: These circles indicate that other screens are available to
view. Swipe your finger right or left to get other views

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
8
Bio-logic®

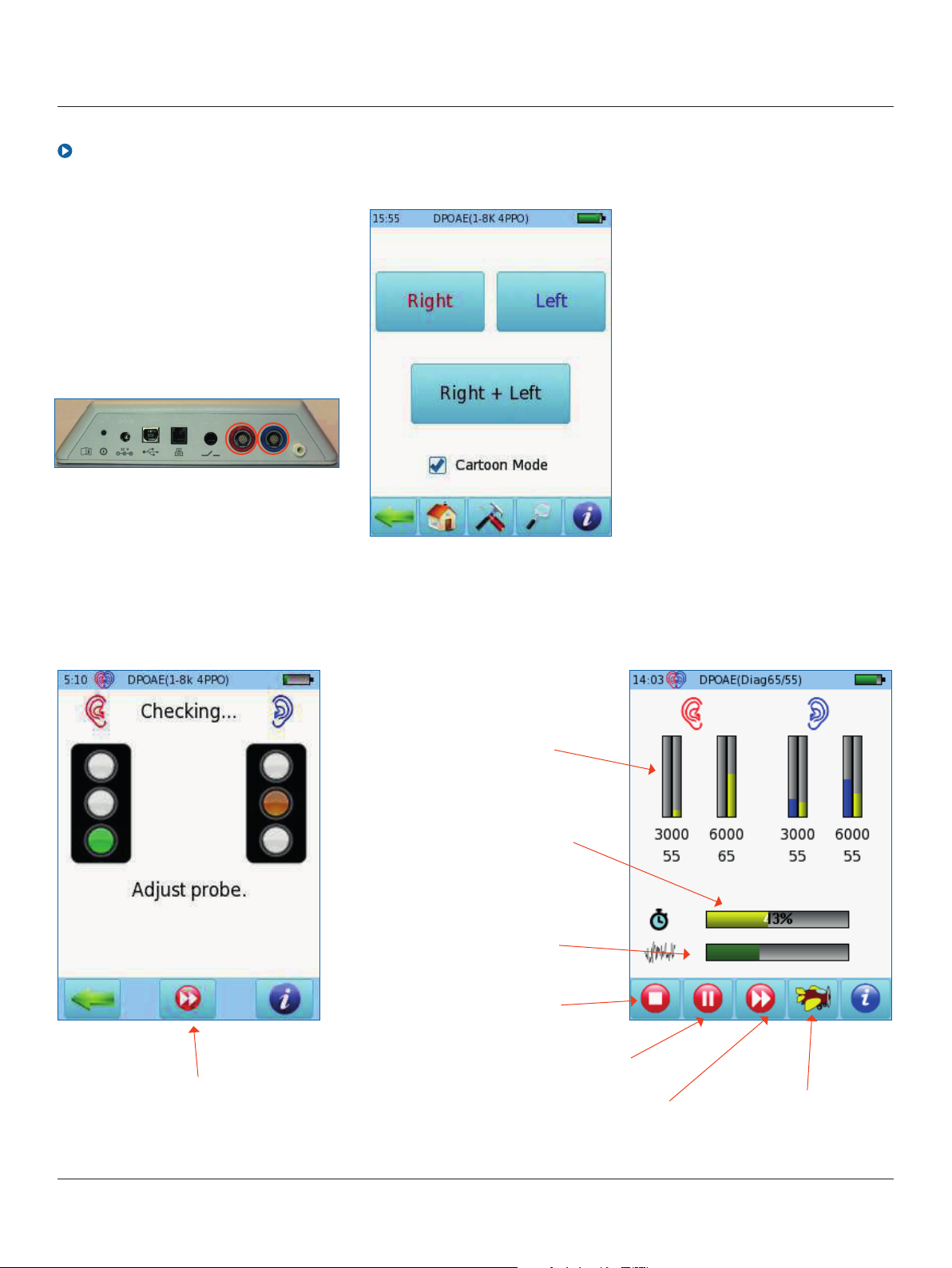

DPOAE diagnostic / high resolution
Select one of the Presets for
DPOAE Diagnostic and connect
the red probe to the red
connector. To perform binaural
testing, also connect the blue
probe to the blue connector.
A calibration will be performed
prior to measurement. A green light
indicates successful calibration. After
successful ear probe calibration, the
test will start automatically.
Select the appropriate ear tip
size and place it on the probe
tip. Insert the probe in the ear
making sure that the ear tip fits
tightly into the ear canal.
Select the test ear by pressing
either the Right or Left button,
or the Right + Left button for
binaural testing.
Cartoon mode will start the test
showing a cartoon instead of the
progress bar, this can be changed
during the test by tapping on the
plane icon at the bottom of the
device screen.
Probe fit override for patients with
PE tubes or middle ear perforations Skip a frequency
Pause/resume test
Stop test
Progress for each
tested frequency
in each ear
Binaural, multifrequency testing
Switch to
cartoon mode
Overall test progress
Noise floor level

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
9
Bio-logic®
DPOAE diagnostic / high resolution test results
DPOAE threshold
Note: These circles
indicate that other
screens are available
to view. Swipe your
finger right or
left to get other
Green check marks
indicate valid
response
Outcome for
each test sorted
by f2 and L2
Red or blue bars
indicate response,
grey bars
indicate noise
Print results to a
label or to a pdf file
High resolution
test results (4 PPO)
Numeric values
shown in
table format
Test other ear
Select one of the Presets for
DPOAE Threshold and connect
the red probe to the red
connector. To perform binaural
testing, also connect the blue
probe to the blue connector.
Select the appropriate ear tip
size and place it on the probe
tip. Insert the probe in the ear
making sure that the ear tip fits
tightly into the ear canal.
Select the test ear by pressing
either the Right or Left button,
or the Right + Left button for
binaural testing.
Cartoon mode will start the test
showing a cartoon instead of the
progress bar, this can be changed
during the test by tapping on the
plane icon at the bottom of the
device screen.

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
10
Bio-logic®
DPOAE diagnostic / high resolution test results
Probe fit override for patients with
PE tubes or middle ear perforations
Skip a frequency
Pause/resume test
Stop test
Progress for each
tested frequency
in each ear
cartoon mode
for children
Noise floor level
Green background
indicates range of
normal hearing
Print results to a label
or to a pdf file
DPOAE threshold test results

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
11
Bio-logic®

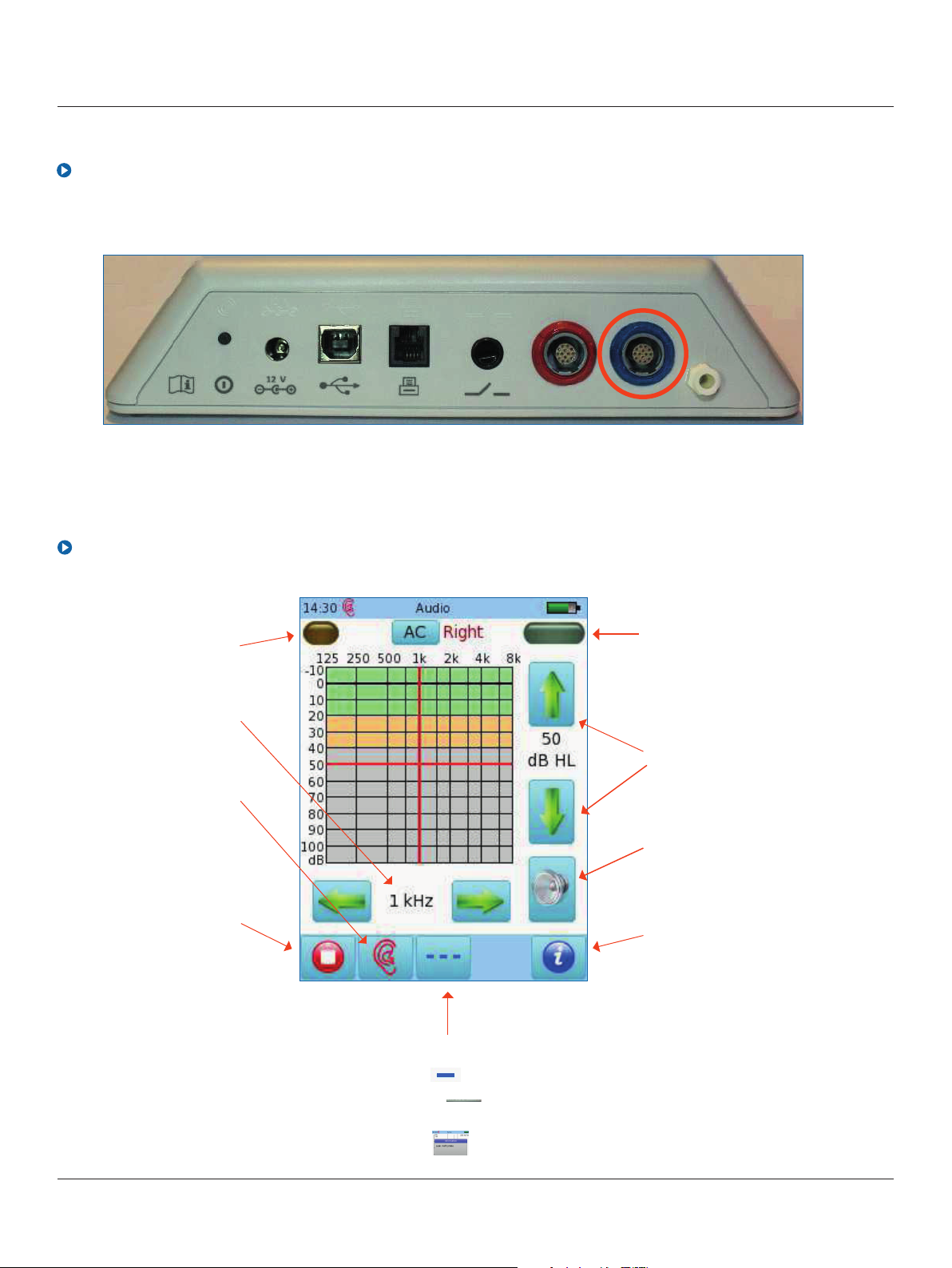

Audiometry diagnostics
Connect the headphones to the blue connector and select an Audiometry Preset from the start menu.
Select the ear on which you want to start the test. The test screen will be displayed.
Stimulus on indicator
Select the ear to test
Select the stimulus
levels
Patient response
indicator
Stimulus
presentation button
Additional information
about options for
current screen
Stop test
Select the frequency
Test screen
Select the type of stimulus:
pure tone
pulsed tone
or warble

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
12
Bio-logic®
Green background
indicates range of
normal hearing
Print results to a label
or to a pdf file
Audiometry test results
Audiometry screening
Connect the headphones to the blue connector and select the Audiometry:
Screening button from the start menu. Select the ear on which you want to start the test.

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
13
Bio-logic®
Audiometry screening: Test screen
Select the Select
the stimulus levels
Select the ear to test
Select the frequency
Press to present
the stimulus
Stop test
Additional information
about options for
current screen
Select the type
of stimulus:
pure tone
pulsed tone
or warble
As you present the
stimulus, the current
level will be displayed
on the corresponding
(yellow) square. Once
the hearing status for
a frequency has been
identified, move on
to the next frequency.
Once all frequencies have been tested for one
ear, you can test the other ear.
Tapping twice on a
square will display NR
(no response).
Tap three times to get
back to a blank square.

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
14
Bio-logic®
When the test is finished, press the Stop
button. You can add the patient’s personal
data, and save on the device, print to a
label (a label printer is required) or print to
a pdf file or full page report on PC.

Quick Guide:
Bio-logic®AuDX PRO FLEX®Quick start
Otometrics - Next generation Bio-logic products
15
Bio-logic®
Quick Guide Information
Release date: 2017-01-11
Revision: 02
Valid from: Firmware Rev. 2.1, Mira PC Software Rev. 1.6.4
Applies to: Model: SOD100497, web description SOD06, SOD07, SOD08 and SOD09
All mentioned items, products, brands and trademarks are registered or owned by the mentioned companies.
All information, illustrations, and specifications provided within this manual are based on the latest product
information available at the time of publication. PATH medical reserves the right to make changes at any time
without notice.
Please note that not all products displayed on our webpage or advertising materials are available in all
territories.
Please contact your local distributor or PATH medical for further information.
The latest revision of the Quick Start Guide is available online at www.pathme.de/download.
Errors and omissions excepted.
Copyright Notice
No part of this manual may be reproduced, translated, stored, or transmitted, in any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent
of PATH medical GmbH.
Copyright © 2016 PATH medical GmbH
PATH medical GmbH
Landsberger Straße 65
82110 Germering
Germany
Tel: [phone]
Fax: [phone]
Internet: www.pathme.de
