Before You Begin
1. Before You Begin
What Is Included
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetdj.com.
Intellectual Property
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2020 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, and XPRESS-512S / XPRESS-1024 are registered trademarks or
trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other
countries. Other company and product names and logos referred to herein may be trademarks of their
respective companies.
• XPRESS-512S / XPRESS-1024
• USB cable
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
ON A value to be entered or selected
Symbol Meaning
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.

Page 2 of 8
Before You Begin
XPRESS-512S / XPRESS-1024 User Manual Rev. 1
Safety Notes
• This product is not intended for permanent installation.
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Make sure the power (USB) cord is not crimped or damaged.
• Never disconnect the product from power by pulling or tugging on the cord.
• Make sure there are no flammable materials close to the product when operating.
• Do not touch the product’s housing when operating because it may be very hot.
• The voltage of the outlet to which you are connecting this product must be within the range
stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the
product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer or rheostat.
• Never carry the product from the power cord.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher
temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Do not open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
Keep this User Manual for future use. If the product is sold to someone else, be sure that they
also receive this document.

Page 3 of 8
XPRESS-512S / XPRESS-1024 User Manual Rev. 1
Introduction
2. Introduction
Product Overview
Product Dimensions
USB In
Power
Indicator
USB
Indicator
USB
Indicator
Power
Indicator
USB In
DMX Out DMX Out
XPRESS-1024 XPRESS-512S
1.8 in
45 mm
4.3 in
110 mm
2.6 in
66 mm
1.4 in
35 mm
1.4 in
35 mm
2.9 in
74 mm

Page 4 of 8
Setup
XPRESS-512S / XPRESS-1024 User Manual Rev. 1
3. Setup
DC Power
The XPRESS-512S / XPRESS-1024 is a hot-swappable USB-to-DMX interface, designed to connect to
and be powered by the USB port of a computer using Windows®(7 to 10) or Mac OS X. The required DC
voltage is 5 V, which is standard across most computers.
ShowXpress Software
The XPRESS-512S / XPRESS-1024 requires a computer with the ShowXpress software installed to
function until a Standalone program is uploaded. Download the ShowXpress software for free from
www.chauvetdj.com.
Plug and Play
The XPRESS-512S / XPRESS-1024 drivers are included in the installation of the ShowXpress software.
Once the software is installed, both products are hot-swappable, and will re-connect within seconds of
being plugged in to the computer.
In the unlikely case that the product is not recognized, the drivers can be downloaded from
www.chauvetdj.com and manually installed.
Minimum System Requirements
• Windows®7/8/10 - Core 2 duo (year 2005), 2 GB RAM
• Mac OS X - All Intel-based Mac computers with Leopard and more
Mounting
The XPRESS-512S should be placed on a flat, stable surface.
The XPRESS-1024 can either be placed on a flat, stable surface, or secured with zip-ties, screws, or
anything else which fits through the mounting holes.
Before deciding on a location for either product, read the Safety Notes.

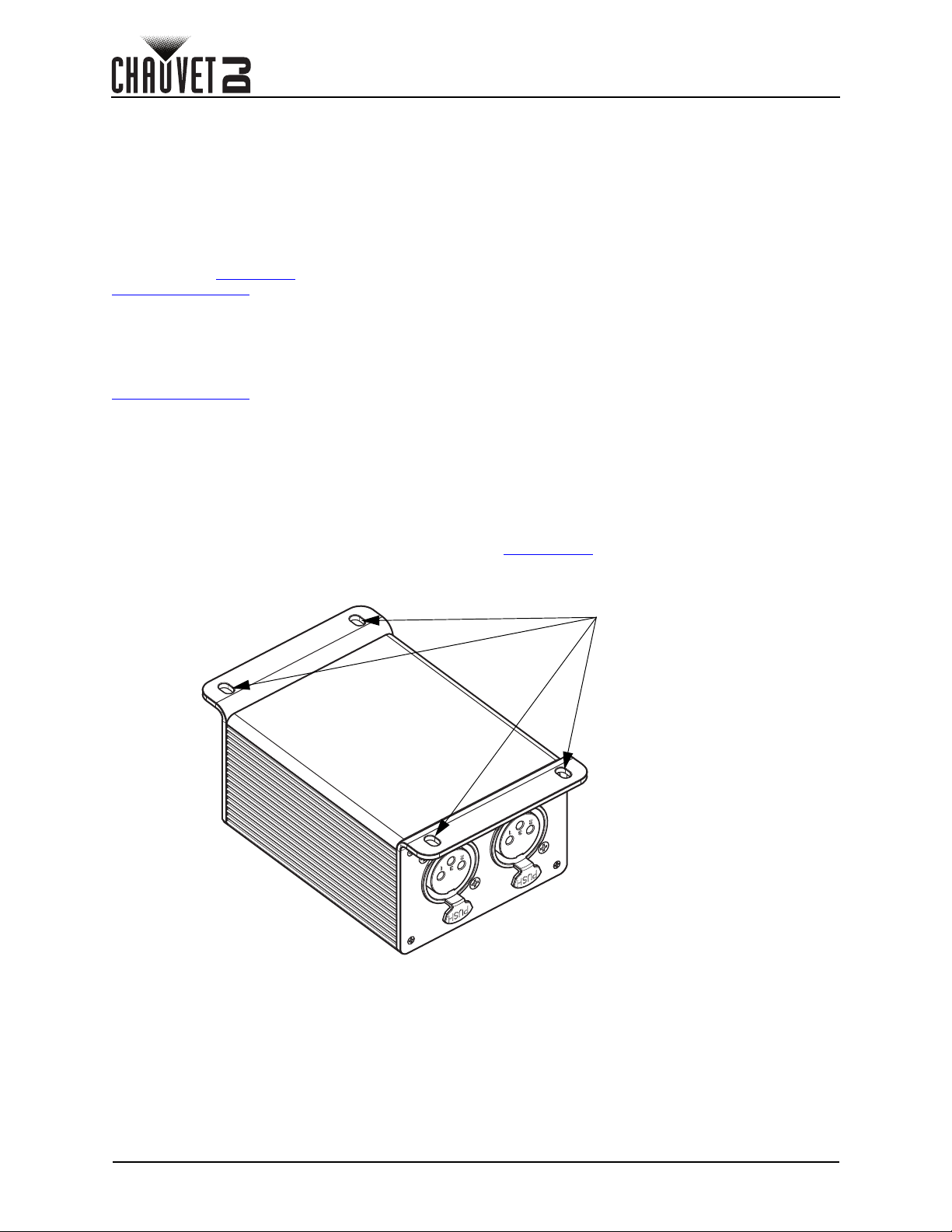

Mounting Holes (x4)

Page 5 of 8
XPRESS-512S / XPRESS-1024 User Manual Rev. 1
Operation
4. Operation
LED Indicators
When plugged in, the two LED indicators display the status of the product.
The PWR indicator indicates that the product is receiving sufficient DC power.
The USB indicator indicates that the product is connected to, and receiving a signal from, the ShowXpress
software.
Troubleshooting
If the USB indicator is not flashing, try the following steps:
1. Close the ShowXpress software.
2. Disconnect the XPRESS-512S / XPRESS-1024 from the computer.
3. Wait 10 seconds.
4. Re-connect the XPRESS-512S / XPRESS-1024 to the computer.
5. Re-open the ShowXpress software.
If this does not work, try re-installing the device driver manually. The current device drivers are available on
www.chauvetdj.com.
If re-installing the device driver does not work, call Chauvet Customer Service.
Standalone Playback
The XPRESS-512S / XPRESS-1024 can store a DMX program to call back while not plugged into a
computer. After programming the show to be uploaded, do the following:
1. Navigate to the StandAlone tab.
2. Add the desired scene or scenes to one or more Timelines.
3. Assign the program to one of the Zones using the drop-down menu.
4. Click Upload data.
Timelines
The Timelines allow for the placement and timing of multiple scenes in a Zone. Only one set of Timelines
can be activated in each Zone at one time.
Zones
4 zones are available for independent programming. Activating a program in one zone does not affect the
programs running in the other zones, but does replace any program previously running in that zone.
Zones may overlap with each other, but if affecting the same value as a program in another zone, the most
recently activated value will take precedence.
Art-Net™ Universe Access
The use of either product each unlocks an additional Art-Net™ universe through the ShowXpress software
while it is plugged in. If used, these universes count towards the total maximum number of universes
allowed by the software (6 universes).
Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.
The uploaded program will immediately begin when the product is connected to power.
The use of Art-Net™ may require additional hardware.

Page 6 of 8
Technical Specifications
XPRESS-512S / XPRESS-1024 User Manual Rev. 1
5. Technical Specifications
Dimensions and Weight
Note: Dimensions in inches are rounded.
Power
Thermal
DMX
Ordering
Product Length Width Height Weight
XPRESS-512S 2.9 in (74 mm) 1.4 in (35 mm) 1.4 in (35 mm) 0.2 lb (0.1 kg)
XPRESS-1024 4.3 in (110 mm) 2.6 in (66 mm) 1.8 in (45 mm) 0.4 lb (0.2 kg)
Power Supply Type Input Voltage
USB (external) 5 V DC (USB)
Maximum External Temperature Cooling System
104 °F (40 °C) Convection
Product Output Connector Channel Range Refresh Rate
XPRESS-512S 3-pin XLR 512 + 512 via Art-Net™ 40 Hz
XPRESS-1024 3-pin XLR x2 1024 + 512 via Art-Net™ 40 Hz
Product Name Item Code UPC Number
XPRESS-512S 11081585 781462219338
XPRESS-1024 11081584 781462219321

Page 7 of 8
XPRESS-512S / XPRESS-1024 User Manual Rev. 1
Returns
Returns
In case you need to get support or return a product:
• If you are located in the U.S., contact Chauvet World Headquarters.
• If you are located in the UK or Ireland, contact Chauvet Europe Ltd.
• If you are located in Benelux, contact Chauvet Europe BVBA.
• If you are located in France, contact Chauvet France.
• If you are located in Germany, contact Chauvet Germany.
• If you are located in Mexico, contact Chauvet Mexico.
• If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local
distributor. See www.chauvetdj.com for distributors outside the U.S., UK, Ireland, Benelux, France,
Germany, or Mexico.
Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization
(RMA) number before shipping the product. Be prepared to provide the model number, serial number, and
a brief description of the cause for the return.
To submit a service request online, go to www.chauvetdj.com/service-request.
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet
will not issue call tags.
Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA
number.
Before sending the product, clearly write the following information on a piece of paper and place it inside
the box:
• Your name
• Your address
• Your phone number
• RMA number
• A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be
your responsibility. FedEx packing or double-boxing are recommended.
If you are located outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico,
contact your distributor of record and follow their instructions on how to return Chauvet
products to them. Visit our website www.chauvetdj.com for contact details.
Write the RMA number on a properly affixed label. DO NOT write the RMA number directly
on the box.
Chauvet reserves the right to use its own discretion to repair or replace returned
product(s).

Page 8 of 8
Contact Us
XPRESS-512S / XPRESS-1024 User Manual Rev. 1
Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.
Follow the instructions to request support or to return a product. Visit our website for contact details.
General Information Technical Support
Chauvet World Headquarters
Address: 5200 NW 108th Ave. Voice: [phone]
Sunrise, FL 33351 Fax: [phone]
Voice: [phone] Email: [email protected]
Fax: [phone]
Toll Free: [phone] Website: www.chauvetdj.com
Chauvet Europe Ltd
Address: Unit 1C Email: [email protected]
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetdj.eu
NG16 6NT
Voice: [phone]
Fax: [phone]
Chauvet Europe BVBA
Address: Stokstraat 18 Email: BNLte[email protected]
9770 Kruishoutem
Belgium Website: www.chauvetdj.eu
Voice: [phone]
Chauvet France
Address: 3, Rue Ampère
91380 Chilly-Mazarin
Email: [email protected]
France Website: www.chauvetdj.eu
Voice: [phone]
Chauvet Germany
Address: Bruno-Bürgel-Str. 11
28759 Bremen
Email: [email protected]
Germany Website: www.chauvetdj.eu
Voice: [phone]
Chauvet Mexico
Address: Av. de las Partidas 34 - 3B
(Entrance by Calle 2)
Email: [email protected]
Zona Industrial Lerma Website: www.chauvetdj.mx
Lerma, Edo. de México, CP 52000
Voice: [phone]
