Chauvet EPIX Drive 2000 IP User manual

Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL

1
EN
QUICK REFERENCE GUIDE
ÉPIX Drive 2000 IP QRG Rev. 5
About This Guide
The ÉPIX Drive 2000 IP Quick Reference Guide (QRG) has basic product information such as connection, mounting,
menu options, and control values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product’s housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Temporary outdoor operation is fine.
• When using this product in an outdoor environment, use IP65 (or higher) rated power and data cables. Be sure to
secure unused power and data ports with attached IP65 covers.
• DO NOT operate this product if the housing, ports, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact your distributor to request support or return a
product. Visit www.chauvetprofessional.com for contact information.
What is Included
• ÉPIX Drive 2000 IP
• Seetronic Powerkon IP65 Power Cord
• Omega Bracket with Mounting Hardware
• 2 Rack Ears and Screws
• Warranty Card
• Quick Reference Guide

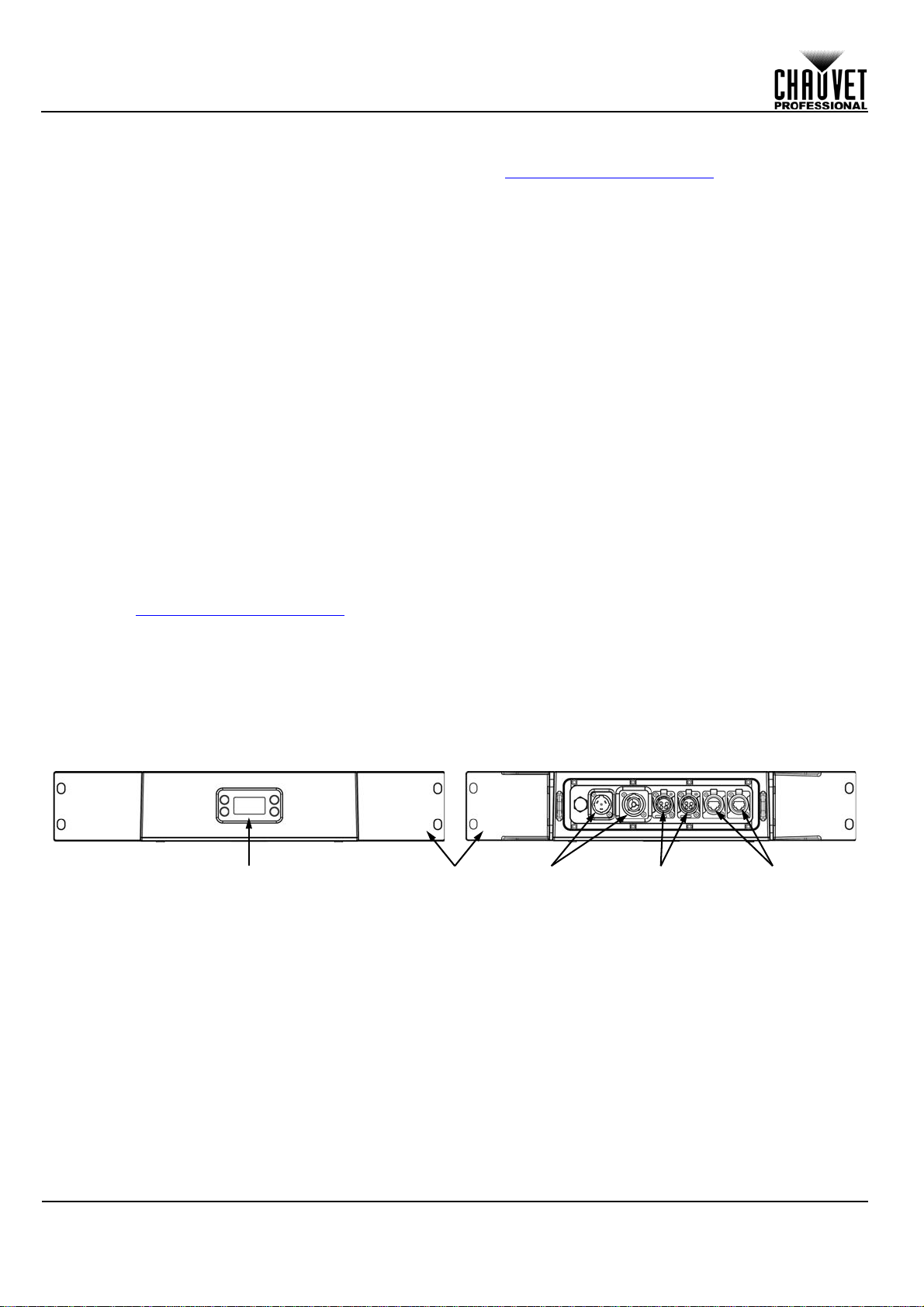

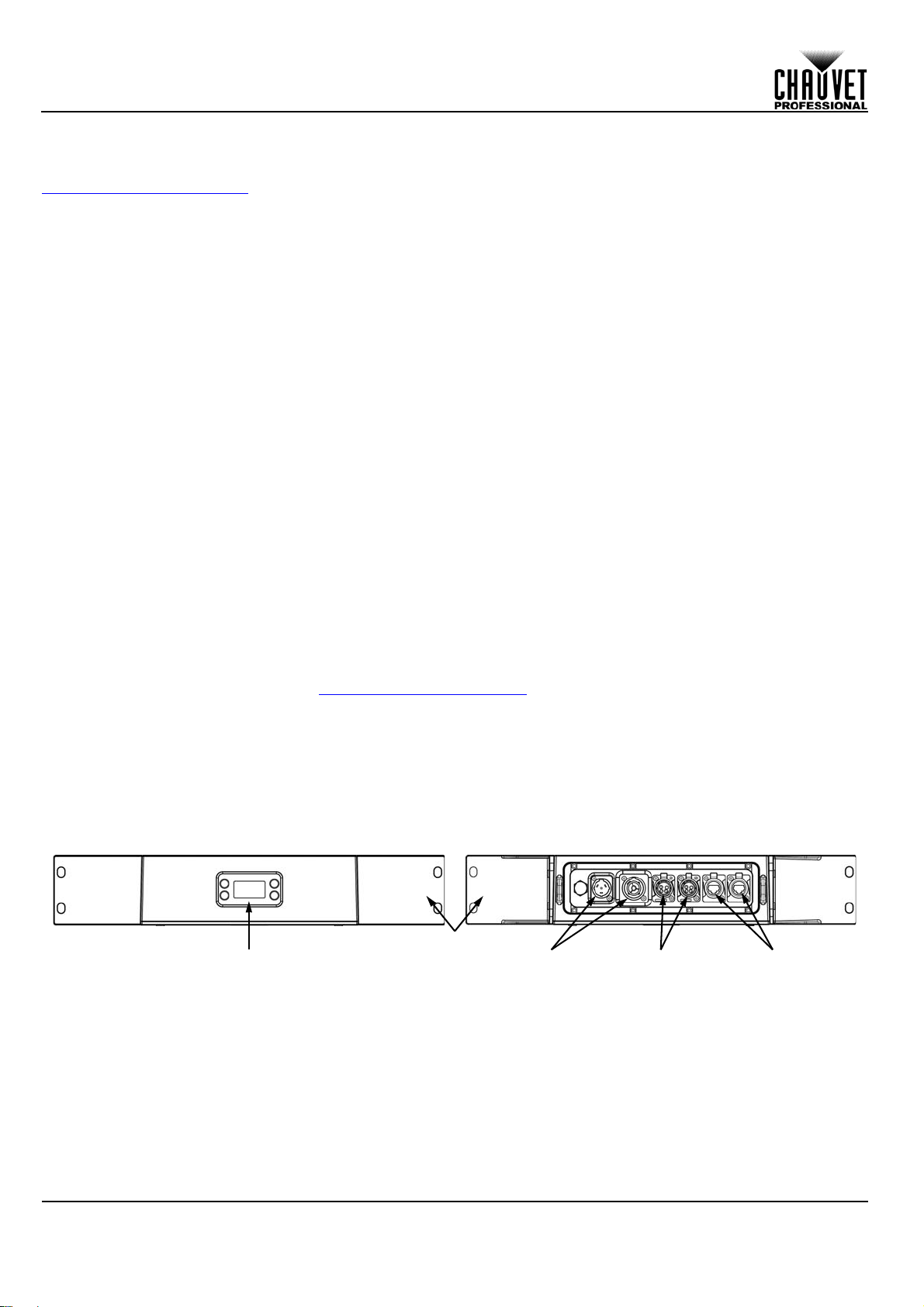

Product Overview
ÉPIXProducts
Output SeetronicetherKon In/Out
OLED
Control Panel Power In/Out
Rack Ears

EN
2
ÉPIX Drive 2000 IP QRG Rev. 5
QUICK REFERENCE GUIDE
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 3 ÉPIX Drive 2000 IP products at 120 V, 4 products at 108 V, or 5 products at 230 V. Never exceed this
number. Power linking cords can be purchased separately.
AC Plug
Signal Connections
The ÉPIX Drive 2000 IP can link to a controller or controller software using an ethernet connection. If using other
Art-Net™, sACN, or Kling-Net-compatible products with the ÉPIX Drive 2000 IP, they can all be controlled individually on
a single network. See the User Manual for information about how to connect and configure the product for these signals.
Control Personalities
The ÉPIX Drive 2000 IP uses Art-Net™ an sACN for its control personalities:
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP that transfers large amount of DMX512 data using an etherCON RJ45
connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com.
Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture
for Control Networks to transport DMX512 data over IP or any otherACN compatible network.ACN is maintained by the
Professional Lighting and Sound Association (PLASA).
Kling-Net Connection
Kling-Net is a network protocol that allows auto configuration of display devices using an etherCON RJ45 Ethernet
connection. Refer to the ArKaos software manual for detailed instructions on programming this product.

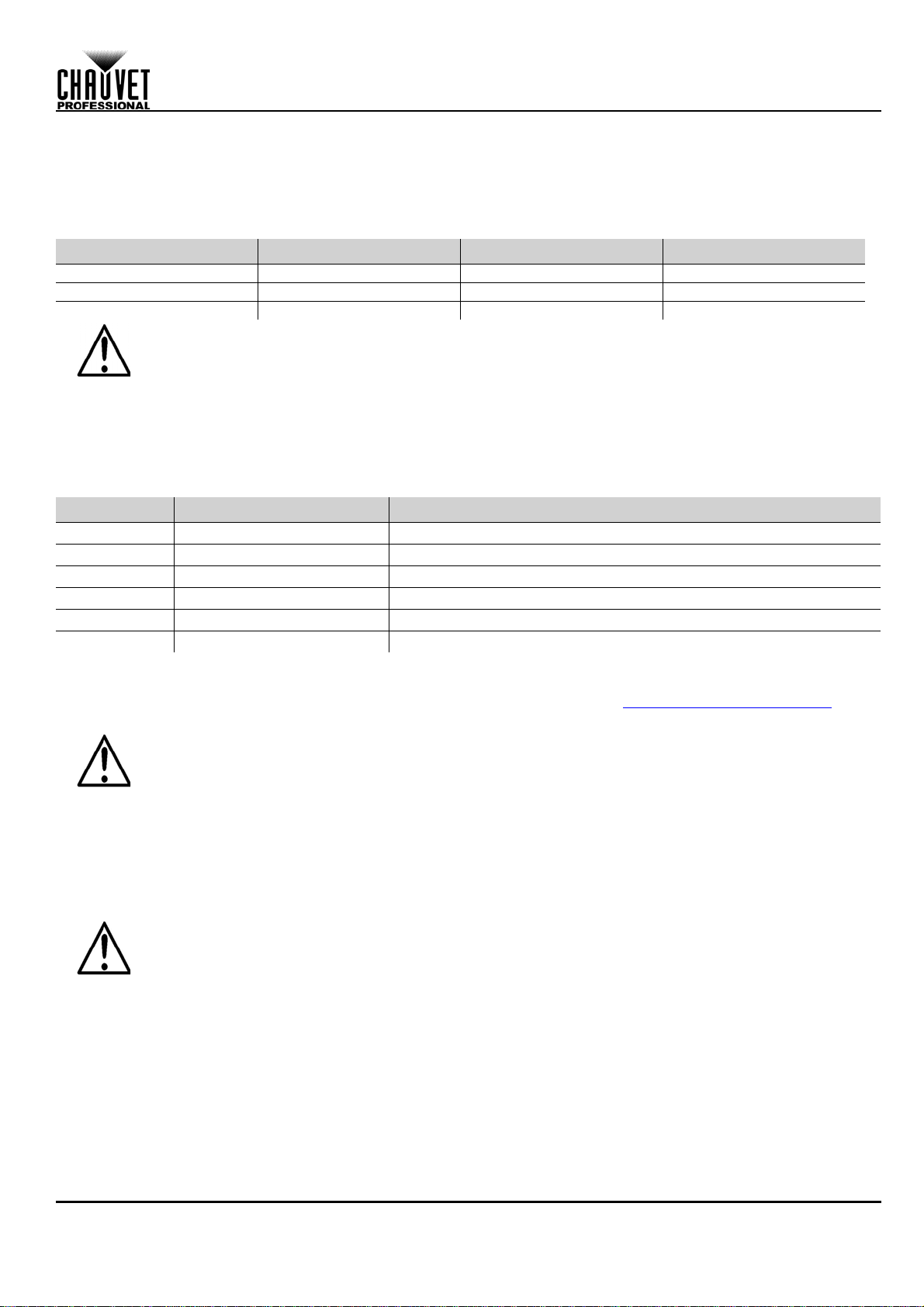

Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
Personality Channels Description
Pixel 300 per ÉPIX Strip IP Complete pixel control
7-Channel 7 Dimmer, auto programs, and strobe
5-Section 15 per ÉPIX Strip IP Controls LED output in 5 groups of 20 LEDs
10-Section 30 per ÉPIX Strip IP Controls LED output in 10 groups of 10 LEDs
25-Section 75 per ÉPIX Strip IP Controls LED output in 25 groups of 4 LEDs
50-Section 150 per ÉPIX Strip IP Controls LED output in 50 groups of 2 LEDs
This product is not designed to respond to controllers sending in Broadcast mode via Art-Net™.
For best results, use Unicast mode. For information about which control protocol your controller
uses, please contact the manufacturer of your controller.
For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000 Mbps) Ethernet card
and network router.

3
EN
QUICK REFERENCE GUIDE
ÉPIX Drive 2000 IP QRG Rev. 5
Connecting ÉPIX Products
The ÉPIX Drive 2000 IP is the power supply for the ÉPIX IP and ÉPIX Tour series of products. Each product must be
daisy-chained together in series. This power supply is capable of powering up to 2000 LEDs in the various configurations.
The ÉPIX Drive 2000 IP can support various ÉPIX products daisy chained in the various
configurations, up to a total of 2000 LEDs (up to 1000 LEDs per port).
Example configurations for each port include:
• 10 ÉPIX Strip IP products
• 18 ÉPIX Strip Tour products
• 6 ÉPIX Bar Tour products
• 5 ÉPIX Strip IP products and 9 ÉPIX Strip Tour products
• 5 ÉPIX Strip IP products and 3 ÉPIX Bar Tour products
• 5 ÉPIX Strip IP products, 3 ÉPIX Strip Tour products, and 2 ÉPIX Bar Tour products
Make sure the total length of the connecting shielded 4-pin XLR cables does not exceed 210 ft
(64 m). Using unshielded cables will increase the maximum cable lengths to 300 ft (91 m) shown
in the diagram above. Download the User Manual from www.chauvetprofessional.com for more
details.
NOTE: Do not combine the ÉPIX Strip IP with the ÉPIX Strip Tour or ÉPIX Bar Tour on the same
output of the ÉPIX Drive 2000 IP if any personality other than Pixel is selected.
Standard 4-pin XLR “Scroller Cables” are typically shielded.
Use ONLY IP65 4-pin XLR cables with the ÉPIX Drive 2000 IP. For our CHAUVET Professional line
of IP65 4-pin XLR cables, go to https://www.chauvetprofessional.com/accessories.
Length of cables between ÉPIX Drive 2000 IP
and 1st product must not exceed 65 ft (20 m)
when shielded, or 200 ft (60 m) when unshielded
Length of cables between products must
not exceed 60 ft (18 m) when shielded,
or 75 ft (23 m) when unshielded
Total length of cables cannot exceed 210 ft (64 m)
when shielded, or 300 ft (91 m) when unshielded
1= Power + (12 AWG or larger)
2= Data + (18–24 AWG)
3= Data - (18–24 AWG)
4= Power - (12 AWG or larger)

EN
4
ÉPIX Drive 2000 IP QRG Rev. 5
QUICK REFERENCE GUIDE
Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the
mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting
clamps, go to http://trusst.com/products. The rack mount ears are not shipped connected to the product.

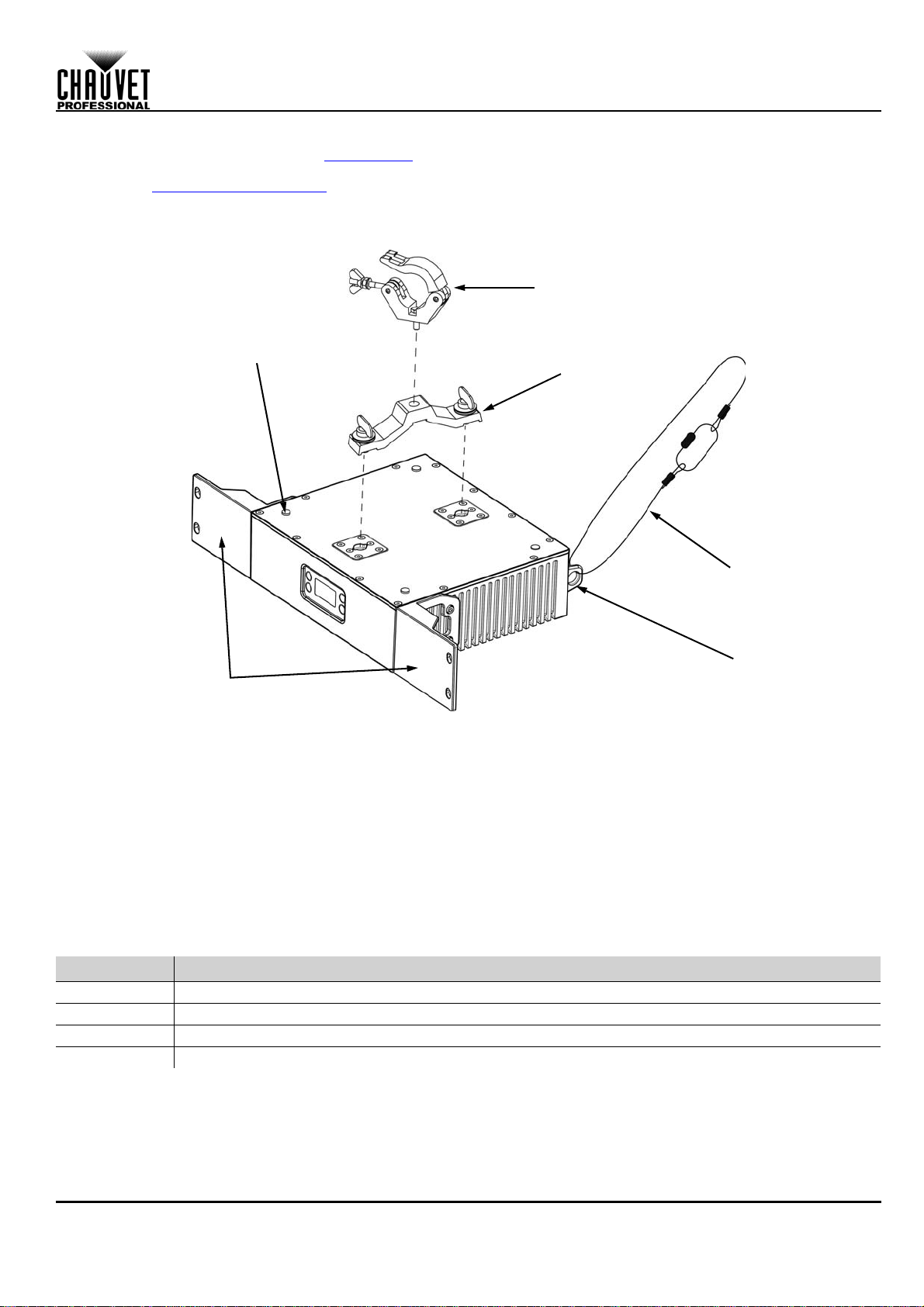

Mounting Diagram
Mounting Guidelines
Chauvet recommends using the following guidelines when mounting this product:
• Before deciding on a location, always make sure there is easy access to the product for maintenance and
programming.
• Make sure that the structure or surface ontowhich you are mounting the product can support the product’s weight
(see the User Manual).
• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point,
such as an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When mounting the product on the floor, make sure that the product and cables are away from people and
vehicles.
Control Panel Description
Button Function
<MENU> Exits from the current menu or function or navigates downwards through the Main Level list
<ENTER> Enables the currently displayed menu or sets the currently selected value into the selected function
<UP> Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN> Navigates downwards through the menu list or decreases the numeric value when in a function
Safety Cable
Removable
Rack Ears
Rubber Feet for
SurfaceMounting
(x4) Omega
Bracket
Safety Loop
Mounting
Clamp

5
EN
QUICK REFERENCE GUIDE
ÉPIX Drive 2000 IP QRG Rev. 5
Menu Map
Main Level Programming Levels Description
Auto Address No Automatically finds and addresses the
products
Yes
View Linked
Fixtures Port A 1. _ _ _ – 18. _ _ _ Displays the connected products
Port B
LED Output
Off Turns off all LED output
Red Red LEDs at full
Green Green LEDs at full
Blue Blue LEDs at full
White All LEDs at full
Fade Color fade program
Scroll Color scroll program
Protocol
Port A Art-Net
Selects the protocol for each port and
determines what other menu options are
available
Kling-Net _ _ _ _ _ _ _ _ _ _
sACN
Port B Art-Net Kling-Net _ _ _ _ _ _ _ _ _ _
sACN
Display Inverse No Rotates display 180°
Yes
Factory Reset No Resets the product to factory defaults
Yes
Port A
(Art-Net™ and
sACN only)
Personality
Pixel
Sets control personality for Port A (see
Control Personalities)
7-Channel
5-Section
10-Section
25-Section
50-Section
Universe 000–246 (Art-Net™)
001–247 (sACN) Sets the lowest of the 6 consecutive universes to which PortA is assigned
IP Address IP Address #1–6 1–126 . 0–255 .
0–255 . 0–255 Sets the IP addresses for Port A Note: all addresses must be unique
DMX Address 001–_ _ _ Sets the starting address for PortA (highest
channel determined by Personality)
Port B
(Art-Net™ and
sACN only)
Personality
Pixel
Sets control personality for Port B (see
Control Personalities)
7-Channel
5-Section
10-Section
25-Section
50-Section
Universe 000–246 (Art-Net™)
001–247 (sACN) Sets the lowest of the 6 consecutive universes to which Port B is assigned
IP Address IP Address #1–6 1–126 . 0–255 .
0–255 . 0–255 Sets the IP addresses for Port B Note: all addresses must be unique
DMX Address 001–_ _ _ Sets the starting address for Port B (highest
channel determined by Personality)
Screen Lock No Locks Screen
Passcode: UP, DOWN, UP, DOWN, ENTER
Yes

EN
6
ÉPIX Drive 2000 IP QRG Rev. 5
QUICK REFERENCE GUIDE
Control Values
Pixel Mode (300 Channels per ÉPIX Strip IP)
Channel Function Value Percent/Setting
1Red1 000 255 0–100%
2Green1 000 255 0–100%
3Blue1 000 255 0–100%
4Red2 000 255 0–100%
5Green2 000 255 0–100%
6Blue2 000 255 0–100%
7Red3 000 255 0–100%
8Green3 000 255 0–100%
9Blue3 000 255 0–100%
10 Red 4 000 255 0–100%
11 Green 4 000 255 0–100%
12 Blue 4 000 255 0–100%
13 Red 5 000 255 0–100%
14 Green 5 000 255 0–100%
15 Blue 5 000 255 0–100%
16 Red 6 000 255 0–100%
17 Green 6 000 255 0–100%
18 Blue 6 000 255 0–100%
19 Red 7 000 255 0–100%
20 Green 7 000 255 0–100%
21 Blue 7 000 255 0–100%
22 Red 8 000 255 0–100%
23 Green 8 000 255 0–100%
24 Blue 8 000 255 0–100%
25 Red 9 000 255 0–100%
26 Green 9 000 255 0–100%
27 Blue 9 000 255 0–100%
28 Red 10 000 255 0–100%
29 Green 10 000 255 0–100%
30 Blue 10 000 255 0–100%
31 Red 11 000 255 0–100%
32 Green 11 000 255 0–100%
33 Blue 11 000 255 0–100%
34 Red 12 000 255 0–100%
35 Green 12 000 255 0–100%
36 Blue 12 000 255 0–100%
37 Red 13 000 255 0–100%
38 Green 13 000 255 0–100%
39 Blue 13 000 255 0–100%
40 Red 14 000 255 0–100%
41 Green 14 000 255 0–100%
42 Blue 14 000 255 0–100%
43 Red 15 000 255 0–100%
44 Green 15 000 255 0–100%
45 Blue 15 000 255 0–100%
46 Red 16 000 255 0–100%
47 Green 16 000 255 0–100%
48 Blue 16 000 255 0–100%
49 Red 17 000 255 0–100%
50 Green 17 000 255 0–100%
51 Blue 17 000 255 0–100%
52 Red 18 000 255 0–100%
53 Green 18 000 255 0–100%
54 Blue 18 000 255 0–100%

7
EN
QUICK REFERENCE GUIDE
ÉPIX Drive 2000 IP QRG Rev. 5
55 Red 19 000 255 0–100%
56 Green 19 000 255 0–100%
57 Blue 19 000 255 0–100%
58 Red 20 000 255 0–100%
59 Green 20 000 255 0–100%
60 Blue 20 000 255 0–100%
61 Red 21 000 255 0–100%
62 Green 21 000 255 0–100%
63 Blue 21 000 255 0–100%
64 Red 22 000 255 0–100%
65 Green 22 000 255 0–100%
66 Blue 22 000 255 0–100%
67 Red 23 000 255 0–100%
68 Green 23 000 255 0–100%
69 Blue 23 000 255 0–100%
70 Red 24 000 255 0–100%
71 Green 24 000 255 0–100%
72 Blue 24 000 255 0–100%
73 Red 25 000 255 0–100%
74 Green 25 000 255 0–100%
75 Blue 25 000 255 0–100%
76 Red 26 000 255 0–100%
77 Green 26 000 255 0–100%
78 Blue 26 000 255 0–100%
79 Red 27 000 255 0–100%
80 Green 27 000 255 0–100%
81 Blue 27 000 255 0–100%
82 Red 28 000 255 0–100%
83 Green 28 000 255 0–100%
84 Blue 28 000 255 0–100%
85 Red 29 000 255 0–100%
86 Green 29 000 255 0–100%
87 Blue 29 000 255 0–100%
88 Red 30 000 255 0–100%
89 Green 30 000 255 0–100%
90 Blue 30 000 255 0–100%
91 Red 31 000 255 0–100%
92 Green 31 000 255 0–100%
93 Blue 31 000 255 0–100%
94 Red 32 000 255 0–100%
95 Green 32 000 255 0–100%
96 Blue 32 000 255 0–100%
97 Red 33 000 255 0–100%
98 Green 33 000 255 0–100%
99 Blue 33 000 255 0–100%
100 Red 34 000 255 0–100%
101 Green 34 000 255 0–100%
102 Blue 34 000 255 0–100%
103 Red 35 000 255 0–100%
104 Green 35 000 255 0–100%
105 Blue 35 000 255 0–100%
106 Red 36 000 255 0–100%
107 Green 36 000 255 0–100%
108 Blue 36 000 255 0–100%
109 Red 37 000 255 0–100%
110 Green 37 000 255 0–100%
111 Blue 37 000 255 0–100%
Channel Function Value Percent/Setting

EN
8
ÉPIX Drive 2000 IP QRG Rev. 5
QUICK REFERENCE GUIDE
112 Red 38 000 255 0–100%
113 Green 38 000 255 0–100%
114 Blue 38 000 255 0–100%
115 Red 39 000 255 0–100%
116 Green 39 000 255 0–100%
117 Blue 39 000 255 0–100%
118 Red 40 000 255 0–100%
119 Green 40 000 255 0–100%
120 Blue 40 000 255 0–100%
121 Red 41 000 255 0–100%
122 Green 41 000 255 0–100%
123 Blue 41 000 255 0–100%
124 Red 42 000 255 0–100%
125 Green 42 000 255 0–100%
126 Blue 42 000 255 0–100%
127 Red 43 000 255 0–100%
128 Green 43 000 255 0–100%
129 Blue 43 000 255 0–100%
130 Red 44 000 255 0–100%
131 Green 44 000 255 0–100%
132 Blue 44 000 255 0–100%
133 Red 45 000 255 0–100%
134 Green 45 000 255 0–100%
135 Blue 45 000 255 0–100%
136 Red 46 000 255 0–100%
137 Green 46 000 255 0–100%
138 Blue 46 000 255 0–100%
139 Red 47 000 255 0–100%
140 Green 47 000 255 0–100%
141 Blue 47 000 255 0–100%
142 Red 48 000 255 0–100%
143 Green 48 000 255 0–100%
144 Blue 48 000 255 0–100%
145 Red 49 000 255 0–100%
146 Green 49 000 255 0–100%
147 Blue 49 000 255 0–100%
148 Red 50 000 255 0–100%
149 Green 50 000 255 0–100%
150 Blue 50 000 255 0–100%
151 Red 51 000 255 0–100%
152 Green 51 000 255 0–100%
153 Blue 51 000 255 0–100%
154 Red 52 000 255 0–100%
155 Green 52 000 255 0–100%
156 Blue 52 000 255 0–100%
157 Red 53 000 255 0–100%
158 Green 53 000 255 0–100%
159 Blue 53 000 255 0–100%
160 Red 54 000 255 0–100%
161 Green 54 000 255 0–100%
162 Blue 54 000 255 0–100%
163 Red 55 000 255 0–100%
164 Green 55 000 255 0–100%
165 Blue 55 000 255 0–100%
166 Red 56 000 255 0–100%
167 Green 56 000 255 0–100%
168 Blue 56 000 255 0–100%
Channel Function Value Percent/Setting

9
EN
QUICK REFERENCE GUIDE
ÉPIX Drive 2000 IP QRG Rev. 5
169 Red 57 000 255 0–100%
170 Green 57 000 255 0–100%
171 Blue 57 000 255 0–100%
172 Red 58 000 255 0–100%
173 Green 58 000 255 0–100%
174 Blue 58 000 255 0–100%
175 Red 59 000 255 0–100%
176 Green 59 000 255 0–100%
177 Blue 59 000 255 0–100%
178 Red 60 000 255 0–100%
179 Green 60 000 255 0–100%
180 Blue 60 000 255 0–100%
181 Red 61 000 255 0–100%
182 Green 61 000 255 0–100%
183 Blue 61 000 255 0–100%
184 Red 62 000 255 0–100%
185 Green 62 000 255 0–100%
186 Blue 62 000 255 0–100%
187 Red 63 000 255 0–100%
188 Green 63 000 255 0–100%
189 Blue 63 000 255 0–100%
190 Red 64 000 255 0–100%
191 Green 64 000 255 0–100%
192 Blue 64 000 255 0–100%
193 Red 65 000 255 0–100%
194 Green 65 000 255 0–100%
195 Blue 65 000 255 0–100%
196 Red 66 000 255 0–100%
197 Green 66 000 255 0–100%
198 Blue 66 000 255 0–100%
199 Red 67 000 255 0–100%
200 Green 67 000 255 0–100%
201 Blue 67 000 255 0–100%
202 Red 68 000 255 0–100%
203 Green 68 000 255 0–100%
204 Blue 68 000 255 0–100%
205 Red 69 000 255 0–100%
206 Green 69 000 255 0–100%
207 Blue 69 000 255 0–100%
208 Red 70 000 255 0–100%
209 Green 70 000 255 0–100%
210 Blue 70 000 255 0–100%
211 Red 71 000 255 0–100%
212 Green 71 000 255 0–100%
213 Blue 71 000 255 0–100%
214 Red 72 000 255 0–100%
215 Green 72 000 255 0–100%
216 Blue 72 000 255 0–100%
217 Red 73 000 255 0–100%
218 Green 73 000 255 0–100%
219 Blue 73 000 255 0–100%
220 Red 74 000 255 0–100%
221 Green 74 000 255 0–100%
222 Blue 74 000 255 0–100%
223 Red 75 000 255 0–100%
224 Green 75 000 255 0–100%
225 Blue 75 000 255 0–100%
Channel Function Value Percent/Setting

EN
10
ÉPIX Drive 2000 IP QRG Rev. 5
QUICK REFERENCE GUIDE
226 Red 76 000 255 0–100%
227 Green 76 000 255 0–100%
228 Blue 76 000 255 0–100%
229 Red 77 000 255 0–100%
230 Green 77 000 255 0–100%
231 Blue 77 000 255 0–100%
232 Red 78 000 255 0–100%
233 Green 78 000 255 0–100%
234 Blue 78 000 255 0–100%
235 Red 79 000 255 0–100%
236 Green 79 000 255 0–100%
237 Blue 79 000 255 0–100%
238 Red 80 000 255 0–100%
239 Green 80 000 255 0–100%
240 Blue 80 000 255 0–100%
241 Red 81 000 255 0–100%
242 Green 81 000 255 0–100%
243 Blue 81 000 255 0–100%
244 Red 82 000 255 0–100%
245 Green 82 000 255 0–100%
246 Blue 82 000 255 0–100%
247 Red 83 000 255 0–100%
248 Green 83 000 255 0–100%
249 Blue 83 000 255 0–100%
250 Red 84 000 255 0–100%
251 Green 84 000 255 0–100%
252 Blue 84 000 255 0–100%
253 Red 85 000 255 0–100%
254 Green 85 000 255 0–100%
255 Blue 85 000 255 0–100%
256 Red 86 000 255 0–100%
257 Green 86 000 255 0–100%
258 Blue 86 000 255 0–100%
259 Red 87 000 255 0–100%
260 Green 87 000 255 0–100%
261 Blue 87 000 255 0–100%
262 Red 88 000 255 0–100%
263 Green 88 000 255 0–100%
264 Blue 88 000 255 0–100%
265 Red 89 000 255 0–100%
266 Green 89 000 255 0–100%
267 Blue 89 000 255 0–100%
268 Red 90 000 255 0–100%
269 Green 90 000 255 0–100%
270 Blue 90 000 255 0–100%
271 Red 91 000 255 0–100%
272 Green 91 000 255 0–100%
273 Blue 91 000 255 0–100%
274 Red 92 000 255 0–100%
275 Green 92 000 255 0–100%
276 Blue 92 000 255 0–100%
277 Red 93 000 255 0–100%
278 Green 93 000 255 0–100%
279 Blue 93 000 255 0–100%
280 Red 94 000 255 0–100%
281 Green 94 000 255 0–100%
282 Blue 94 000 255 0–100%
Channel Function Value Percent/Setting

11
EN
QUICK REFERENCE GUIDE
ÉPIX Drive 2000 IP QRG Rev. 5
7-Channel Mode
283 Red 95 000 255 0–100%
284 Green 95 000 255 0–100%
285 Blue 95 000 255 0–100%
286 Red 96 000 255 0–100%
287 Green 96 000 255 0–100%
288 Blue 96 000 255 0–100%
289 Red 97 000 255 0–100%
290 Green 97 000 255 0–100%
291 Blue 97 000 255 0–100%
292 Red 98 000 255 0–100%
293 Green 98 000 255 0–100%
294 Blue 98 000 255 0–100%
295 Red 99 000 255 0–100%
296 Green 99 000 255 0–100%
297 Blue 99 000 255 0–100%
298 Red 100 000 255 0–100%
299 Green 100 000 255 0–100%
300 Blue 100 000 255 0–100%
Channel Function Value Percent/Setting
1Dimmer 000 255 0–100%
2Red 000 255 0–100%
3Green 000 255 0–100%
4Blue 000 255 0–100%
5 Auto Program
000 010 No function
011 027 Auto program 1
028 043 Auto program 2
044 059 Auto program 3
060 076 Auto program 4
077 092 Auto program 5
093 108 Auto program 6
109 124 Auto program 7
125 141 Auto program 8
142 157 Auto program 9
158 173 Auto program 10
174 189 Auto program 11
190 206 Auto program 12
207 222 Auto program 13
223 238 Auto program 14
239 255 All programs (Auto programs 1–14)
6Speed 000 255 0–100%
7 Strobe 000 010 No function
011 255 Strobe, slow to fast
Channel Function Value Percent/Setting

EN
12
ÉPIX Drive 2000 IP QRG Rev. 5
QUICK REFERENCE GUIDE
5-Section Mode (15 Channels per ÉPIX Strip IP)
10-Section Mode (30 Channels per ÉPIX Strip IP)
Channel Function Value Percent/Setting
1 Red 1–20 000 255 0–100%
2 Green 1–20 000 255 0–100%
3 Blue 1–20 000 255 0–100%
4 Red 21–40 000 255 0–100%
5 Green 21–40 000 255 0–100%
6 Blue 21–40 000 255 0–100%
7 Red 41–60 000 255 0–100%
8 Green 41–60 000 255 0–100%
9 Blue 41–60 000 255 0–100%
10 Red 61–80 000 255 0–100%
11 Green 61–80 000 255 0–100%
12 Blue 61–80 000 255 0–100%
13 Red 81–100 000 255 0–100%
14 Green 81–100 000 255 0–100%
15 Blue 81–100 000 255 0–100%
Channel Function Value Percent/Setting
1 Red 1–10 000 255 0–100%
2 Green 1–10 000 255 0–100%
3 Blue 1–10 000 255 0–100%
4Red11–20 000 255 0–100%
5 Green 11–20 000 255 0–100%
6 Blue 11–20 000 255 0–100%
7 Red 21–30 000 255 0–100%
8 Green 21–30 000 255 0–100%
9 Blue 21–30 000 255 0–100%
10 Red 31–40 000 255 0–100%
11 Green 31–40 000 255 0–100%
12 Blue 31–40 000 255 0–100%
13 Red 41–50 000 255 0–100%
14 Green 41–50 000 255 0–100%
15 Blue 41–50 000 255 0–100%
16 Red 51–60 000 255 0–100%
17 Green 51–60 000 255 0–100%
18 Blue 51–60 000 255 0–100%
19 Red 61–70 000 255 0–100%
20 Green 61–70 000 255 0–100%
21 Blue 61–70 000 255 0–100%
22 Red 71–80 000 255 0–100%
23 Green 71–80 000 255 0–100%
24 Blue 71–80 000 255 0–100%
25 Red 81–90 000 255 0–100%
26 Green 81–90 000 255 0–100%
27 Blue 81–90 000 255 0–100%
28 Red 91–100 000 255 0–100%
29 Green 91–100 000 255 0–100%
30 Blue 91–100 000 255 0–100%

13
EN
QUICK REFERENCE GUIDE
ÉPIX Drive 2000 IP QRG Rev. 5
25-Section Mode (75 Channels per ÉPIX Strip IP)
Channel Function Value Percent/Setting
1Red1–4 000 255 0–100%
2 Green 1–4 000 255 0–100%
3 Blue 1–4 000 255 0–100%
4Red5–8 000 255 0–100%
5 Green 5–8 000 255 0–100%
6 Blue 5–8 000 255 0–100%
7 Red 9–12 000 255 0–100%
8 Green 9–12 000 255 0–100%
9 Blue 9–12 000 255 0–100%
10 Red 13–16 000 255 0–100%
11 Green 13–16 000 255 0–100%
12 Blue 13–16 000 255 0–100%
13 Red 17–20 000 255 0–100%
14 Green 17–20 000 255 0–100%
15 Blue 17–20 000 255 0–100%
16 Red 21–24 000 255 0–100%
17 Green 21–24 000 255 0–100%
18 Blue 21–24 000 255 0–100%
19 Red 25–28 000 255 0–100%
20 Green 25–28 000 255 0–100%
21 Blue 25–28 000 255 0–100%
22 Red 29–32 000 255 0–100%
23 Green 29–32 000 255 0–100%
24 Blue 29–32 000 255 0–100%
25 Red 33–36 000 255 0–100%
26 Green 33–36 000 255 0–100%
27 Blue 33–36 000 255 0–100%
28 Red 37–40 000 255 0–100%
29 Green 37–40 000 255 0–100%
30 Blue 37–40 000 255 0–100%
31 Red 41–44 000 255 0–100%
32 Green 41–44 000 255 0–100%
33 Blue 41–44 000 255 0–100%
34 Red 45–48 000 255 0–100%
35 Green 45–48 000 255 0–100%
36 Blue 45–48 000 255 0–100%
37 Red 49–52 000 255 0–100%
38 Green 49–52 000 255 0–100%
39 Blue 49–52 000 255 0–100%
40 Red 53–56 000 255 0–100%
41 Green 53–56 000 255 0–100%
42 Blue 53–56 000 255 0–100%
43 Red 57–60 000 255 0–100%
44 Green 57–60 000 255 0–100%
45 Blue 57–60 000 255 0–100%
46 Red 61–64 000 255 0–100%
47 Green 61–64 000 255 0–100%
48 Blue 61–64 000 255 0–100%
49 Red 65–68 000 255 0–100%
50 Green 65–68 000 255 0–100%
51 Blue 65–68 000 255 0–100%
52 Red 69–72 000 255 0–100%
53 Green 69–72 000 255 0–100%
54 Blue 69–72 000 255 0–100%
55 Red 73–76 000 255 0–100%
56 Green 73–76 000 255 0–100%
57 Blue 73–76 000 255 0–100%

EN
14
ÉPIX Drive 2000 IP QRG Rev. 5
QUICK REFERENCE GUIDE
50-Section Mode (150 Channels per ÉPIX Strip IP)
58 Red 77–80 000 255 0–100%
59 Green 77–80 000 255 0–100%
60 Blue 77–80 000 255 0–100%
61 Red 81–84 000 255 0–100%
62 Green 81–84 000 255 0–100%
63 Blue 81–84 000 255 0–100%
64 Red 85–88 000 255 0–100%
65 Green 85–88 000 255 0–100%
66 Blue 85–88 000 255 0–100%
67 Red 89–92 000 255 0–100%
68 Green 89–92 000 255 0–100%
69 Blue 89–92 000 255 0–100%
70 Red 93–96 000 255 0–100%
71 Green 93–96 000 255 0–100%
72 Blue 93–96 000 255 0–100%
73 Red 97–100 000 255 0–100%
74 Green 97–100 000 255 0–100%
75 Blue 97–100 000 255 0–100%
Channel Function Value Percent/Setting
1Red1–2 000 255 0–100%
2 Green 1–2 000 255 0–100%
3 Blue 1–2 000 255 0–100%
4Red3–4 000 255 0–100%
5 Green 3–4 000 255 0–100%
6 Blue 3–4 000 255 0–100%
7Red5–6 000 255 0–100%
8 Green 5–6 000 255 0–100%
9 Blue 5–6 000 255 0–100%
10 Red 7–8 000 255 0–100%
11 Green 7–8 000 255 0–100%
12 Blue 7–8 000 255 0–100%
13 Red 9–10 000 255 0–100%
14 Green 9–10 000 255 0–100%
15 Blue 9–10 000 255 0–100%
16 Red 11–12 000 255 0–100%
17 Green 11–12 000 255 0–100%
18 Blue 11–12 000 255 0–100%
19 Red 13–14 000 255 0–100%
20 Green 13–14 000 255 0–100%
21 Blue 13–14 000 255 0–100%
22 Red 15–16 000 255 0–100%
23 Green 15–16 000 255 0–100%
24 Blue 15–16 000 255 0–100%
25 Red 17–18 000 255 0–100%
26 Green 17–18 000 255 0–100%
27 Blue 17–18 000 255 0–100%
28 Red 19–20 000 255 0–100%
29 Green 19–20 000 255 0–100%
30 Blue 19–20 000 255 0–100%
31 Red 21–22 000 255 0–100%
32 Green 21–22 000 255 0–100%
33 Blue 21–22 000 255 0–100%
34 Red 23–24 000 255 0–100%
35 Green 23–24 000 255 0–100%
36 Blue 23–24 000 255 0–100%
Channel Function Value Percent/Setting

15
EN
QUICK REFERENCE GUIDE
ÉPIX Drive 2000 IP QRG Rev. 5
37 Red 25–26 000 255 0–100%
38 Green 25–26 000 255 0–100%
39 Blue 25–26 000 255 0–100%
40 Red 27–28 000 255 0–100%
41 Green 27–28 000 255 0–100%
42 Blue 27–28 000 255 0–100%
43 Red 29–30 000 255 0–100%
44 Green 29–30 000 255 0–100%
45 Blue 29–30 000 255 0–100%
46 Red 31–32 000 255 0–100%
47 Green 31–32 000 255 0–100%
48 Blue 31–32 000 255 0–100%
49 Red 33–34 000 255 0–100%
50 Green 33–34 000 255 0–100%
51 Blue 33–34 000 255 0–100%
52 Red 35–36 000 255 0–100%
53 Green 35–36 000 255 0–100%
54 Blue 35–36 000 255 0–100%
55 Red 37–38 000 255 0–100%
56 Green 37–38 000 255 0–100%
57 Blue 37–38 000 255 0–100%
58 Red 39–40 000 255 0–100%
59 Green 39–40 000 255 0–100%
60 Blue 39–40 000 255 0–100%
61 Red 41–42 000 255 0–100%
62 Green 41–42 000 255 0–100%
63 Blue 41–42 000 255 0–100%
64 Red 43–44 000 255 0–100%
65 Green 43–44 000 255 0–100%
66 Blue 43–44 000 255 0–100%
67 Red 45–46 000 255 0–100%
68 Green 45–46 000 255 0–100%
69 Blue 45–46 000 255 0–100%
70 Red 47–48 000 255 0–100%
71 Green 47–48 000 255 0–100%
72 Blue 47–48 000 255 0–100%
73 Red 49–50 000 255 0–100%
74 Green 49–50 000 255 0–100%
75 Blue 49–50 000 255 0–100%
76 Red 51–52 000 255 0–100%
77 Green 51–52 000 255 0–100%
78 Blue 51–52 000 255 0–100%
79 Red 53–54 000 255 0–100%
80 Green 53–54 000 255 0–100%
81 Blue 53–54 000 255 0–100%
82 Red 55–56 000 255 0–100%
83 Green 55–56 000 255 0–100%
84 Blue 55–56 000 255 0–100%
85 Red 57–58 000 255 0–100%
86 Green 57–58 000 255 0–100%
87 Blue 57–58 000 255 0–100%
88 Red 59–60 000 255 0–100%
89 Green 59–60 000 255 0–100%
90 Blue 59–60 000 255 0–100%
91 Red 61–62 000 255 0–100%
92 Green 61–62 000 255 0–100%
93 Blue 61–62 000 255 0–100%
Channel Function Value Percent/Setting

EN
16
ÉPIX Drive 2000 IP QRG Rev. 5
QUICK REFERENCE GUIDE
94 Red 63–64 000 255 0–100%
95 Green 63–64 000 255 0–100%
96 Blue 63–64 000 255 0–100%
97 Red 65–66 000 255 0–100%
98 Green 65–66 000 255 0–100%
99 Blue 65–66 000 255 0–100%
100 Red 67–68 000 255 0–100%
101 Green 67–68 000 255 0–100%
102 Blue 67–68 000 255 0–100%
103 Red 69–70 000 255 0–100%
104 Green 69–70 000 255 0–100%
105 Blue 69–70 000 255 0–100%
106 Red 71–72 000 255 0–100%
107 Green 71–72 000 255 0–100%
108 Blue 71–72 000 255 0–100%
109 Red 73–74 000 255 0–100%
110 Green 73–74 000 255 0–100%
111 Blue 73–74 000 255 0–100%
112 Red 75–76 000 255 0–100%
113 Green 75–76 000 255 0–100%
114 Blue 75–76 000 255 0–100%
115 Red 77–78 000 255 0–100%
116 Green 77–78 000 255 0–100%
117 Blue 77–78 000 255 0–100%
118 Red 79–80 000 255 0–100%
119 Green 79–80 000 255 0–100%
120 Blue 79–80 000 255 0–100%
121 Red 81–82 000 255 0–100%
122 Green 81–82 000 255 0–100%
123 Blue 81–82 000 255 0–100%
124 Red 83–84 000 255 0–100%
125 Green 83–84 000 255 0–100%
126 Blue 83–84 000 255 0–100%
127 Red 85–86 000 255 0–100%
128 Green 85–86 000 255 0–100%
129 Blue 85–86 000 255 0–100%
130 Red 87–88 000 255 0–100%
131 Green 87–88 000 255 0–100%
132 Blue 87–88 000 255 0–100%
133 Red 89–90 000 255 0–100%
134 Green 89–90 000 255 0–100%
135 Blue 89–90 000 255 0–100%
136 Red 91–92 000 255 0–100%
137 Green 91–92 000 255 0–100%
138 Blue 91–92 000 255 0–100%
139 Red 93–94 000 255 0–100%
140 Green 93–94 000 255 0–100%
141 Blue 93–94 000 255 0–100%
142 Red 95–96 000 255 0–100%
143 Green 95–96 000 255 0–100%
144 Blue 95–96 000 255 0–100%
145 Red 97–98 000 255 0–100%
146 Green 97–98 000 255 0–100%
147 Blue 97–98 000 255 0–100%
148 Red 99–100 000 255 0–100%
149 Green 99–100 000 255 0–100%
150 Blue 99–100 000 255 0–100%
Channel Function Value Percent/Setting

17
ES
GUÍA DE REFERENCIA RÁPIDA
ÉPIX Drive 2000 IP GRR Rev. 5
Acerca de esta Guía
La Guía de Referencia Rápida (GRR) del ÉPIX Drive 2000 IP contiene información básica sobre el producto, como
conexión, montaje, opciones de menú y valores de control. Descargue el Manual de Usuario de
www.chauvetprofessional.com para información más detallada.
Exención de Responsabilidad
La información y especificaciones contenidas en esta GRR están sujetas a cambio sin previo aviso.
Notas de Seguridad
Estas notas de seguridad incluyen información importante sobre el montaje, uso y mantenimiento.
• NO abra este producto. No contiene ninguna pieza reparable por el usuario.
• Para evitar un desgaste innecesario y para alargar su vida útil, desconecte completamente el producto de la
alimentación mediante el interruptor o desenchufándolo durante periodos en que no se use.
• CUIDADO: cuando traslade el producto entre ambientes de temperatura extrema (p. ej., desde un camión frío a
una sala de fiestas húmeda y caliente) se puede formar condensación en la electrónica internadel producto. Para
evitar que se produzca un fallo, deje que el producto se aclimate totalmente al entorno antes de conectar la
alimentación.
• CUIDADO: la carcasa de este producto puede estar caliente cuando las luces están en funcionamiento.
• Monte este producto en una ubicación con ventilación adecuada, al menos a 20 in (50 cm) de superficies
adyacentes.
• NO deje ningún material inflamable a menos de 50 cm de este producto mientras esté funcionando o conectado
a la alimentación.
• USE un cable de seguridad cuando monte este producto en lo alto.
• NO sumerja este producto (IP65). Es apto para un funcionamiento temporal en exteriores.
• Cuando utilice este producto en exteriores, use cables de datos y alimentación con protección IP65 (o superior).
Asegúrese de proteger los puertos de datos y alimentación que no se usen colocando tapas IP65.
• NO ponga en funcionamiento este producto si la carcasa, puertos o cables parecen dañados.
• NO conecte este producto a un atenuador o reostato.
• Conecte este producto SOLO a un circuito con toma de tierra y protegido.
• En caso de un problema grave de funcionamiento, deje de usarlo inmediatamente.
• La temperatura ambiente máxima es de 113 °F (45 °C). No haga funcionar este producto a temperaturas más
altas.
Contacto
Fuera de EE.UU, Reino Unido, Irlanda, México o Benelux, póngase en contacto con su distribuidor para solicitar
asistencia o devolver el producto. Visite www.chauvetprofessional.com para información de contacto.
Qué va Incluido
• ÉPIX Drive 2000 IP
• Cable de alimentación Seetronic Powerkon IP65
• Soporte Omega con material de montaje
• 2 orejas de rack y tornillos
• Tarjeta de Garantía
• Guía de Referencia Rápida
Visión general del producto
Salida de
productos ÉPIX Entrada/Salida Seetronic etherKon
Panel de
control OLED Entrada/Salida Alimentación
Orejas de rack

ES
18
ÉPIX Drive 2000 IP GRR Rev. 5
GUÍA DE REFERENCIA RÁPIDA
Corriente Alterna
Este producto tiene una fuente de alimentación con detección automática que puede funcionar con un rango de tensión
de entrada de 100–240 VCA, 50/60 Hz.
Alimentación en Cadena
Puede enlazar hasta 3 ÉPIX Drive 2000 IP a 120 V, 4 productos a 208 V o 5 productos a 230 V. Los cables de
alimentación en cadena se pueden adquirir por separado.
Enchufe CA
Conexiones de señal
El ÉPIX Drive 2000 IP puede vincularse a un controlador o al software de un controlador mediante una conexión
Ethernet. Si está usando el ÉPIX Drive 2000 IP con otros productos compatibles conArt-Net™, sACN o Kling-Netcon
este puede controlar cada uno individualmente en una sola red. Consulte el Manual de usuario para obtener información
sobre cómo conectar y configurar el producto para estas señales.
Personalidades de control
El ÉPIX Drive 2000 IP utilizaArt-Net™ y sACN para sus personalidades de control:
Conexión Art-Net™
Art-Net™ es un protocolo Ethernet que utiliza TCP/IP para transferir gran cantidad de datos DMX512 usando una
conexión etherCON RJ45 sobre una red de gran tamaño. Hay disponible un documento sobre el protocolo Art-Net™
desde www.chauvetprofessional.com. Chauvet Professional recomienda la utilización de modo Unicast para mejores
resultados.
Art-Net™ diseñado y copyright porArtistic Licence Holdings Ltd.
Conexión sACN
También conocido como ANSI E1.31, el streaming ACN es un protocolo Ethernet que usa las capas y formato de
Architecture for Control Networks (arquitectura para redes de control) para transportar datos DMX512 sobre IP o
cualquier otra red compatible con ACN. El mantenimiento de ACN corre a cargo de la Professional Lighting and Sound
Association (Asociación de Sonido e Iluminación Profesional, PLASA).
Conexión Kling-Net
Kling-Net es un protocolo de red que permite la autoconfiguración de los dispositivos de imagen usando una conexión
Ethernet etherCON RJ45. Consulte el manual del software ArKaos para instrucciones detalladas sobre la programación
de este producto.
Conexión Cable (EE.UU) Cable (Europa) Color del Tornillo
CA Cargado Negro Marrón Amarillo/Bronce
CA Neutro Blanco Azul Plata
CATierra Verde/Amarillo Verde/Amarillo Verde
Para evitar un desgaste innecesario y alargar su vida útil, desconecte complemente el producto de
la alimentación, mediante el interruptor o desenchufándolo, durante los periodos en los que no se
use.
Personalidad Canales Descripción
Pixel 300 por ÉPIX Strip IP Control de píxel completo
7-Channel 7 Atenuador, programas automáticos y estroboscopio
5-Section 15 por ÉPIX Strip IP Controla la salida LED en 5 grupos de 20 LED
10-Section 30 por ÉPIX Strip IP Controla la salida LED en 10 grupos de 10 LED
25-Section 75 por ÉPIX Strip IP Controla la salida LED en 25 grupos de 4 LED
50-Section 150 por ÉPIX Strip IP Controla la salida LED en 50 grupos de 2 LED
Este producto no está diseñado para responder a controladores que emiten en modo broadcast a
través de Art-Net™. Para mejores resultados, utilice modo unicast. Para obtener información
sobre qué protocolo de control utiliza su controlador, póngase en contacto con el fabricante de
su controlador.
Para un funcionamiento fluido, ArKaos Kling-Net precisa una tarjeta Ethernet a gigabit (1000
Mbps) y un router de red.

19
ES
GUÍA DE REFERENCIA RÁPIDA
ÉPIX Drive 2000 IP GRR Rev. 5
Conexión de productos ÉPIX
El ÉPIX Drive 2000 IP es la fuente de alimentación para la serie de productos ÉPIX IP y ÉPIX Tour. Cada producto se
debe alimentar en cadena en serie. Esta fuente de alimentación es capaz de alimentar hasta 2000 LED en las distintas
configuraciones.
El ÉPIX Drive 2000 IP admite varios productos ÉPIX conectados en cadena en las distintas
configuraciones, hasta 2000 LED en total (hasta 1000 LED por puerto).
Configuraciones de ejemplo para cada puerto:
• 10 productos ÉPIX Strip IP
• 18 productos ÉPIX Strip Tour
• 6 productos ÉPIX Bar Tour
• 5 productos ÉPIX Strip IP y 9 productos ÉPIX Strip Tour
• 5 productos ÉPIX Strip IP y 3 productos ÉPIX Bar Tour
• 5 productos ÉPIX Strip IP, 3 productos ÉPIX Strip Tour y 2 productos ÉPIX Bar Tour
Asegúrese de que la longitud total de los cables de conexión XLR apantallados no supera los 210
pies (64 m). El uso de cables apantallados aumentará las longitudes máximas de cable a 300 pies
(91 m) como se indica en el diagrama de arriba. Descargue el manual de usuario de
www.chauvetprofessional.com para una información más detallada.
NOTA: No combine el ÉPIX Strip IP con el ÉPIX Strip Tour o el ÉPIX Bar Tour en la misma salida
del ÉPIX Drive 2000 IP si está seleccionada cualquier personalidad que no sea Pixel.
Los cables en rollo XLR de 4 pines estándar son normalmente apantallados.
Utilice SOLAMENTE cables XLR de 4 pines IP65 con el ÉPIX Drive 2000 IP. Para ver nuestra línea
CHAUVET Professional de cables XLR de 4 pines, visite https://www.chauvetprofessional.com/
accessories.
La longitud de los cables entre el ÉPIX Drive 2000 IP y el
1er producto no debe superar los 65 pies (20 m) si son
apantallados o los 200 pies (60 m) si no son apantallados
La longitud de los cables entre
productos no debe superar los 60 pies
(18 m) si son apantallados o los 75
pies (23 m) si no son apantallados
La longitud total de los cables no puede superar los 210 pies (64 m)
si son apantallados o los 300 pies (91 m) si no son apantallados
1= Poder + (12 AWG o más grande)
2= Datos + (18–24 AWG)
3= Datos - (18–24 AWG)
4= Poder - (12 AWG o más grande)
