BEFORE YOU BEGIN
1. BEFORE YOU BEGIN
What Is Included
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetdj.com.
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2016 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, and DMX-RT are registered trademarks or trademarks of Chauvet & Sons
LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and
product names and logos referred to herein may be trademarks of their respective companies.
• DMX-RT
• Power Adapter • Warranty Card • Quick Reference Guide
CONVENTION MEANING
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
ON A value to be entered or selected
SYMBOL MEANING
Electrical warning. Not following these instructions may cause electrical damage to
the product, accessories, or the user.
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
!

Page 2 of 13
BEFORE YOU BEGIN
DMX-RT User Manual Rev. 3
Product at a Glance
Safety Notes
Use on Dimmer Auto Programs 
Outdoor Use Auto-ranging Power Supply 
Sound-Active Replaceable Fuse 
DMX User-Serviceable 
Master/Slave 
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power cord by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a safety
cable.
• Make sure there are no flammable materials close to the product when operating.
• Always make sure that the voltage of the outlet to which you are connecting the product
is within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose
the product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm)
from adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer.
• Never carry the product from the power cord. Always use the hanging/mounting bracket.
• The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the product at
higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Keep this User Manual for future use. If you sell the product to someone else, be sure that
they also receive this document.
!

Page 3 of 13
DMX-RT User Manual Rev. 3
INTRODUCTION
2. INTRODUCTION
Product Overview
DMX Data
In/Out
Micro SD
Card Slut
Power In Trigger
Input
Indicator
LEDs
3 mm Mounting
Points
Control
Panel LCD
Control Panel
Buttons

Page 4 of 13
INTRODUCTION
DMX-RT User Manual Rev. 3
Product Dimensions
2.17 in
55 mm
2.87 in
73 mm
3.23 in
82 mm
2.52 in
64 mm
1.81 in
46 mm
0.24 in
6 mm
0.16 in
4 mm

Page 5 of 13
DMX-RT User Manual Rev. 3
SETUP
3. SETUP
AC Power
The DMX-RT has an external auto-ranging power supply that works with an input voltage range of 100 to
240 VAC, 50/60 Hz. It runs on 12 VDC, 1A. To determine the product’s power requirements (circuit
breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back
panel, or refer to the product’s specifications chart. The listed current rating indicates the product’s
average current draw under normal conditions.
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The DMX-RT may be mounted in any position; however, make sure adequate ventilation is provided
around the product.
Rigging
• Before deciding on a location for the product, always make sure there is easy access to the product
for maintenance and programming purposes.
• Make sure that the structure onto which you are mounting the product can support the product’s
weight. See the Technical Specifications for weight information.
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power linking cables to
reach.
• The bracket adjustment knobs allow for directional adjustment when aiming the product to the
desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the
knobs.

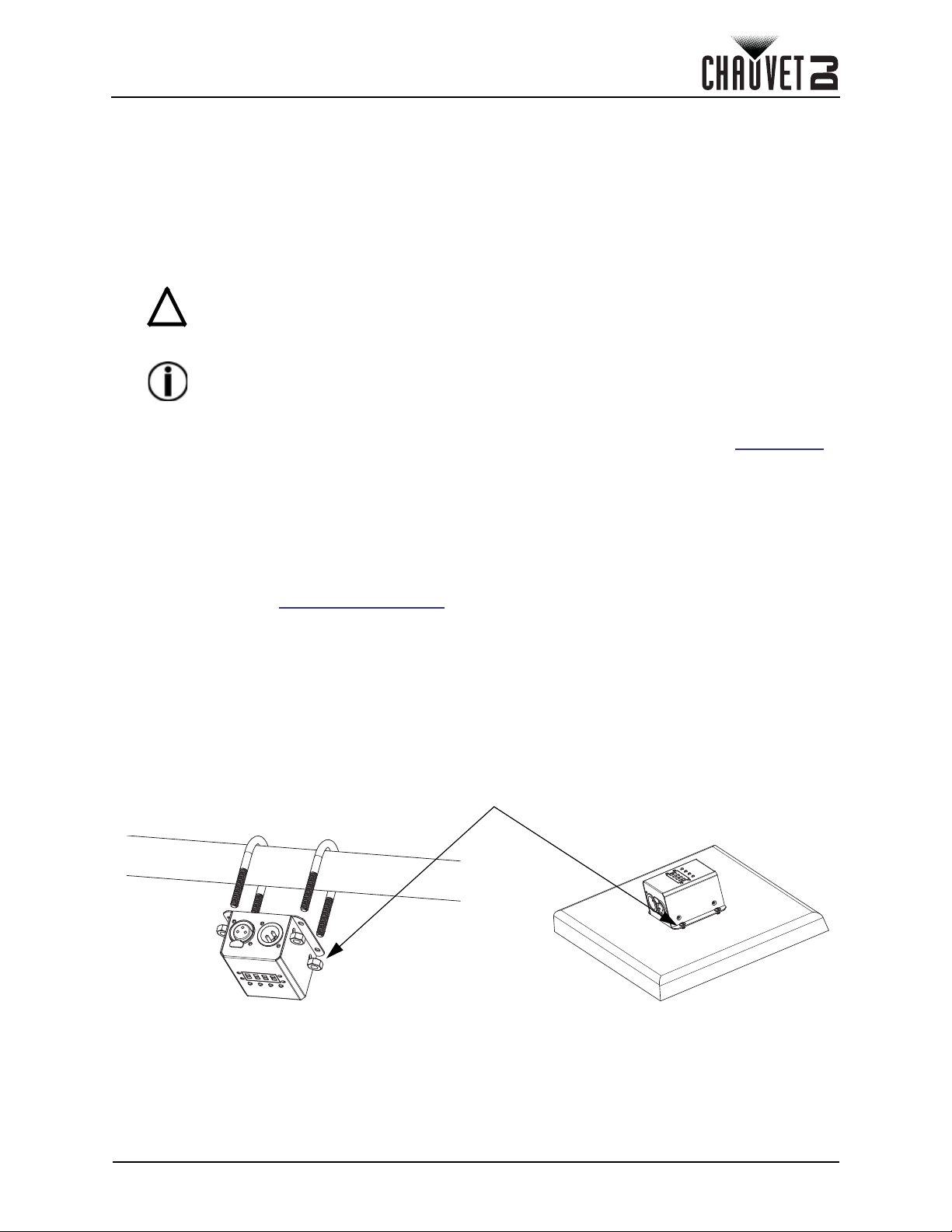

Mounting Diagram
• Always connect the product to a protected circuit (circuit breaker or fuse).
Make sure the product has an appropriate electrical ground to avoid the risk of
electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from power via breaker or by
unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if
the rheostat or dimmer channel serves only as a 0 to 100% switch.
!
Overhead Mounting Surface Mounting
Mounting Points

Page 6 of 13
SETUP
DMX-RT User Manual Rev. 3
Basic Setup
Below are basic set-up diagrams. Please refer to the other product’s user manual for detailed installation
instructions.

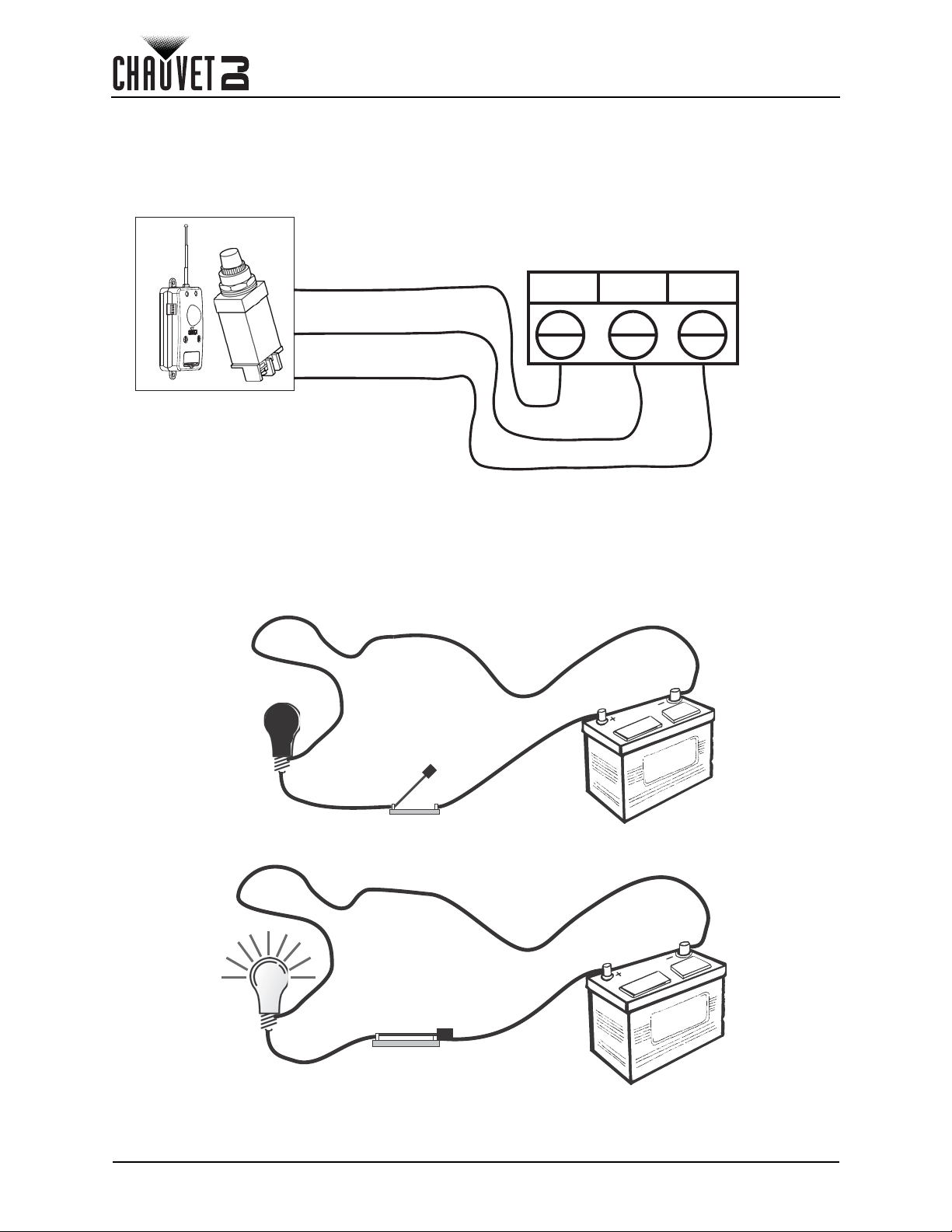

Trigger Set-up
The diagram above illustrates how to connect products to the trigger port of the DMX-RT.
•“IN”“-”ports areforthe signalthatallows theDMX-RT to sensewhetherthe circuitisclosed oropen.
•“+” port provides 12 VDC 100 mA of power to connect to other devices if needed.
The diagrams below show open and closed circuits.
Open Circuit
Closed Circuit
DMX-RT
-+IN
Signal
Signal
12 VDC 100 mA

Page 7 of 13
DMX-RT User Manual Rev. 3
SETUP
DMX Set-up
DMX signal in from
controller
DMX signal out to
fixtures

Page 8 of 13
OPERATION
DMX-RT User Manual Rev. 3
4. OPERATION
Control Panel Operation
To access the control panel functions, use the four buttons located underneath the display. Please refer to
the Product Overview to see the button locations on the control panel.
Menu Map
Configuration
Trigger Set-up
Set the DMX-RT to nC if the circuit is “on” (closed) during normal operation. The trigger will be cued when
the circuit is turned “off”.
1. Go to SEtU > tt.
2. Select nC.
Set the DMX-RT to no if the circuit is “off” (opened) during normal operation. The trigger will be cued when
the circuit is turned “on”.
1. Go to SEtU > tt.
2. Select no.
BUTTON FUNCTION
<MENU> Press to find an operation mode or to back out of the current menu option
<UP> Press to scroll up the list of options or to find a higher value
<DOWN> Press to scroll down the list of options or to find a lower value
<ENTER> Press to activate a menu option or a selected value
MAIN
LEVEL PROGRAMMING LEVELS DESCRIPTION
---- Main Level Start
SEtU
tt nC Normal= Closed. Product is set to trigger when
circuit opens
no Normal= Opened. Product is set to trigger when
circuit closes
rt Shot Plays the selected show file one time only.
LooP Plays the selected show file continuously until
trigger is released
FILE F000-999 Selects the show file to play
dt 00-60 Sets delay time in seconds. until the sequence can
be triggered again
rb nAnL Sets the trigger mode to press <Enter> to start the
recording.
non Sets the trigger mode to having a DMX value of 001
or higher to start recording.
rE nAnL Press <Enter> to stop the recording.
non Sets the trigger mode to having a DMX value of 000
to stop the recording.
rECo F000-999 StAr mm.ss Select to put product in record mode
rUn F000-999 StAr mm.ss Select a program to test or preview. Press <Enter>
to begin the sequence and press <Menu> to stop.
vEr bxx Shows the software (bootloader) and firmeware
(application) versions
Axx
