Chelino PILOT 360 User manual

Stores:ChelinoBaby – Ormonde - JHB
ChelinoBaby – Fourways – JHB
ChelinoBaby – Menlyn – Pretoria
ChelinoBaby – Gateway - Durban
ChelinoBaby – Online – www.chelinobaby.co.za
Importer:
Anchor International
Add: 12 Kimberlite Road , Theta Ext 5 Booysens Reserve ,
JHB 2091 South Africa.
Tel: [phone]
PILOT 360
0-36kg
0 0 I II III
+

1 2
INSTRUCTION
EN
CATALOGUE
1.Notice....................................................................
2.Structure Name.....................................................
3.Warning.................................................................
4.Safety Seat Use Method........................................
4.1 Install location...................................................
4.2 How to Use the Harness Buckle......................
4.3 Adjust the Headrest..........................................
4.4 Adjust Safety Belt Lengthen.............................
4.5 Adjust the Rotation of the Seat........................
4.6 Adjust the Angle of the Child Safety Car
Seat.......................................................................
4.7 Removing 5-Point Harness and Storage the
Accessory Part.................................................
4.8 Removing Triangle Pad....................................
4.9 Removing the Fabric Cover.............................
5.Installed in Car ....................................................
5.1Installed in Car with Belt...................................
5.1.1 Installed in Rearward Facing Position
with Belt................................................................
5.1.1.1 Gr
5.1.2 Installed in Forward Facing Position with
Belt........................................................................
5.1.2.1 Group I
5.1.2.2 Group II III (15-36 KG).................................
5.2 Installed in Car with ISOFI X ............................
5.2.1 Installed in Rearward Facing Position
with ISOFIX .............................................................
5.2.1.1 Gr
5.2.2 Installed in Forward Facing Position with
ISOFIX.....................................................................
5.2.2.1 Gr
5.2.2.2 Group II III (15-36 KG)...............................
6.Care and Maintenance ..........................................
7.Warrant y.................................................................
8.MainTechnical Parameter .....................................
3
5
6
8
8
10
12
13
14
15
17
17
18
18
18
18
19
19
20
21
21
21
22
22
23
26
27
27
5.2.2.2.1 Installed with ISOFIX connector
and Belt
............................................
24
5.2.2.2.2 Installed with ISOFIX connector、
Top Tether and Belt
.................................................................
25
oup0+(0-13KG)....................................
(9 -18KG)...........................................
oup 0 I (0-18KG).....................................
oup I (9-18KG)........................................
10
IMPORTANT: READ THESE
INSTRUCTIONS CAREFULLY BEFORE
USE AND KEEP FOR FUTURE
REFERENCE.
If these instructions are not followed, the
safety of a child may be severely endangered.

3 4
INSTRUCTION
EN
0 I II III 0 I
E for Group 0(0-10kg) and
D for Group I(9-18kg)
When using as Unive rsal category (Group
0+I II III ), please notice below information:
1.NOTICE
This is a “Universal” child restraint. It is approved to
Regulation No. 44, 04 series of amendments, for
general use in vehicles and it will fit most, but not all,
car seats.
A correct fit is likely if the vehicle manufacturer has
declared in the vehicle handbook that the vehicle is
capable of accepting a “Universal” child restraint for
this age group.
This child restraint has been classified as
“Universal” under more stringent conditions than
those which applied to earlier designs which do not
carry this notice.
If in doubt, consult either the child restraint
manufacturer or the retailer.
Only suitable if the approved vehicles are fitted with
lap/3 point/static/with retractor safety-belts,
approved to UN/ECE Regulation No. 16 or other
equivalent standards.
I
Notice regarding ISOFIX child restraint system
(Group I,Forward-facing):
1. This is an ISOFIX CHILD RESTRAINT SYSTEM. It is
approved to Regulation No. 44, 04 series of amendments
for general use in vehicles fitted with ISOFIX anchorages
systems.
2. It will fit vehicles with positions approved as ISOFIX
positions (as detailed in the vehicle handbook),
depending on the category of the child seat and of the
fixture.
3. The mass group and ISOFIX size class for
which this device is intended is: Group (9-18kg);
Class B1.
Mass group
0-up to 10 kg
0+ -up to 13 kg
I-9 to 18 kg
F ISO/L1
ISO/L2
ISO/R1
ISO/R1
ISO/R3
ISO/R2
ISO/R2
ISO/R3
ISO/F2X
ISO/F2
ISO/F3
G
E
E
A
B
C
D
B1
C
D
ISOFIX size category
When using as Semi-universal category (Group
), please notice below information:
This child restraint is classified for “Semi-universal”
use and is suitable for the seat positions of
the following cars:
CAR FORONT REAR
Outer Centre
(Model) Yes Yes No
Notice regarding ISOFIX child restraint system
(Group ,Rearward-facing):
1. This is an ISOFIX CHILD RESTRAINT
SYSTEM. It is approved to the Regulation No.44,04
series of amendments, for general use in cehicles
fitted with ISOFIX anchorages systems.
2. It will fit vehicle with positions approved as
ISOFIX positions (as detailed in the vehicle
handbook), depending on the category of the child
seat and of the fixture.
3. The mass group and the ISOFIX size class for
which this device is intended is:
Seat positions in other cars may also be suitable to
accept this child restraint. Please refer to the information
documents or the retailer's website for the suitable car
model list. If in doubt, consult either the child restraint
manufacturer or the retailer any time. Only suitable if the
approved vehicles are fitted with 3 point safety-belts and
ISOFIX attachments, approved to UN/ECE Regulation
No. 16 or other equivalent standards.

2.STRUCTURE NAME
56
INSTRUCTION
EN
360° Rotate Adjuster
Recline Handle
Base
Belt Guidance③
Headrest
Height Adjuster
Headrest
Belt Guidance
Seat Cover
Shoulder Pad
Shoulder Belt
Buckle Latch
Red Button
Buckle
Crotch Pad
Press Button
Crotch Belt
Sleeping Pad
①
Please carefully read and make
Because of potential medical
3.WARNING
IMPORTANT!
IMPORTANT!
use a child safety seat with damaged or
missing parts.
use damaged or frayed harness straps or
vehicle belt.
except ones that the manufacturer permits.
use a child safety seat that has been in a
crash. A crash can cause damage to the child safety
seat that you cannot see.
use a second-hand child seat or child seat
whose history you do not know.
NEVER
DO NOT
DO NOT
DO NOT
DO NOT
leave your child in this restraint for an
extended period of time.
use on vehicle seats that face the
sides or rear of the vehicle. Use the child
safety seat only on forward-facing vehicle
seats.
DO NOT
DO NOT
sure you understand all instructions in this
manual and in the vehicle owner’s manual
related to child safety seats. Install and use the
child safety seat as described in the instruction
manual. Failure to do this could result in
serious injury or death of your child. Keep the
instructions together with the child restraint for
future reference.
The rigid items and plastic parts of a child restraint
must be so located and installed that they are not
liable, during everyday use of the vehicle, to
become trapped by a movable seat or in a door of
the vehicle.
Keep the restraint rear-facing until the child's mass
is greater than 9kg.
issues inherent to low birth weight and
premature infants, always have a trained
professional doctor or hospital staff member
assess the suitability of the child restraint prior
to leaving the hospital or using the child
restraint.
use this child restraint with any other base
ISOFIX Locking Arms
ISOFIX
Button
Belt Guidance②
Gears Fixed Axle
ISOFIX
Attachment
Point ISOFIX Insert Guide
(If you don’t have ISOFIX
Insert Guide, please ignore this.)
Instruction Back
Cover(can insert
instruction into it)
Top Tether Adjuster
Top Tether
Gears Fixed Link

7 8
INSTRUCTION
EN
Any straps holding the restraint to the vehicle
should be tight, that any straps restraining the child
should be adjusted to the child's body, and that
straps should not be twisted.
Ensuring that any lap strap is worn low down, so
that the pelvis is firmly engaged, shall be stressed.
It is dangerous that making any alterations or
additions to the device without the approval of
the competent authority, and not following closely
the installation instructions provided by the child
restraint manufacturer.
The chair should be kept away from sunlight,
otherwise it may be too hot for the child's skin.
Children are not left in their child restraint system
unattended.
Any luggage or other objects liable to cause
injuries in the event of a collision shall be properly
secured.
The child restraint must not be used without the
cover. The seat cover should not be replaced with
any other than the one recommended by the
manufacturer, because the cover constitutes an
integral part of the restraint performance.
If position of the adult safety-belt buckle relative to
the main load bearing contact points on the child
safety seat is unsatisfactory. Please contact the
manufacturer if in doubt about this point.
Not to use any load bearing contact points
other than those described in the instructions and
marked in the child restraint.
Please read the car manufacturer's handbook
before installing this ISOFIX child safety seat.
Car Safety Belt—Diagonal Belt
Car Safety Belt—Lap Belt
ISOFIX Attachments
4.SAFETY SEAT USE METHOD
4.1 Install Location
4.1.1 When using as Universal categort (Group 0+ I II III),
this child restraint system is suitable for seatbelt
models equipped with a three-point retractor that
complies with ECE R16 and does not apply to models
only equipped with 2-point seat belts.

9
INSTRUCTION
EN
10
Correct/ Proper Wrong/ Improper
A. When Use in Group 0 0+I (Use 1-6 level).

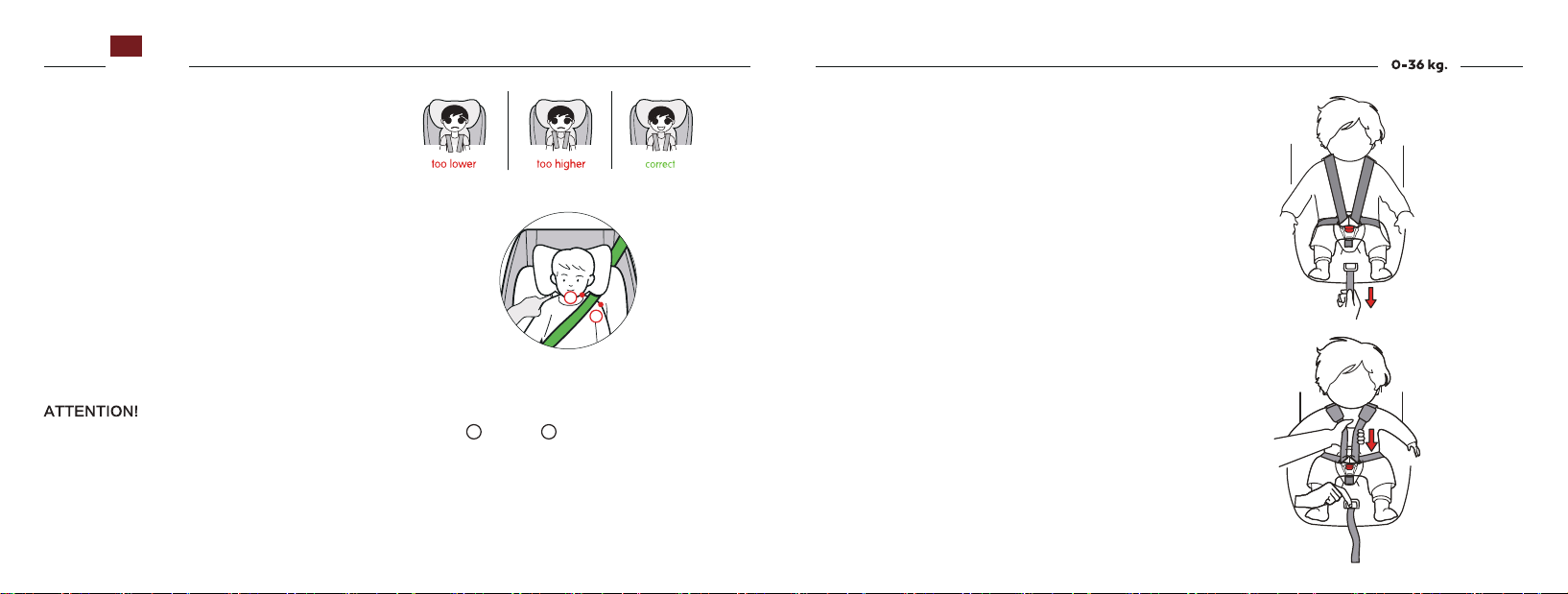

4.3 Adjust the Headrest
The shoulder straps are adjusted as follows:
Loosen the shoulder straps of the child seat as
much as possible.
Pull the headrest height adjuster, select the
correct height of the shoulder straps and
engage it in position that fits your child by
releasing the adjuster.
4.2 How to use the harness buckle
Hold the two buckle latches together.
Make sure the right side is up.
Engage them before putting them into the harness
buckle, which should make a CLICK noise.
Pull shoulder straps to remove all slack from the
lap section ensuring that the hamess is lying flat
and the hamess buckle is locked.
Open the hamess buckle by pressing the red
button.
4.1.2 When using as ISOFIX child restraint system
(Group ), this child restraint system is suitable for
I
I II III
4.1.3 When using as Semi-Universal category
(Group 0 ), this child restraint system is
suitable for seat belt models equipped with the
three-point retractor that has passed the ECE R16
requirement and is not suitable for models only
equipped with 2-point seat belts. And only after
installed ISOFIX, then can use on it.
vehicles equipped with the ECE R14 requirements.
And only after installed ISOFIX, then can use on it.
Ensure the airbag is deactivated when using the
seat on the front passeager seat
Only use the seat on the seat if the vehicle seat
is equirped with a 3-point seat belt or isofix
attachments

11 12
INSTRUCTION
EN
II III
B. When Use in Group (Use 7-9 level)
When child grow up above 15KG, the headrest
should use 7-9 level height.
Slide the belt loops off from Gear fixed axle, slide
the left shoulder belt first then to the right one, you
can remove the shoulder belt.(see4.7)
Then from the front of the child seat, pull out
shoulder straps through the slots, put them on
below of cloth cover.
After remove them, take out the Gears Fixed Axle
from the plastic stator and storage it, pull the headrest
height adjuster, select the correct height of the
shoulder straps and engage it in the position that fits
your child by releasing the adjuster. B:
A:
The shoulder straps must not run
behind the child’s back, at ear height or above
the ears.
A Tighten Safety Belt
Pull up shoulder belt and the lap belt will
tighten, then pull crotch belt to tighten safety
belt.
Tighten the safety belt as much as possible without
causing discomfort to the child. The lap belt is as
low as possible and should put near child's crotch
not belly.
P.S.: Loose safety belt is dangerous. Please
check safety belt adjuster whether work, then
tighten safety belt. After tightening the seat belt,
adjust the shoulder pads to the appropriate position
on the chest.
B Loosen Safety Belt
Press red button can loosen safety belt.
When pressing limited slide button, the other
4.4 Adjust Safety Belt Lengthen
CAUTION!
hand grasping shoulder belt which under
shoulder pad (not grasp shoulder pad belt) to
child right ahead to loosen safety belt.
p

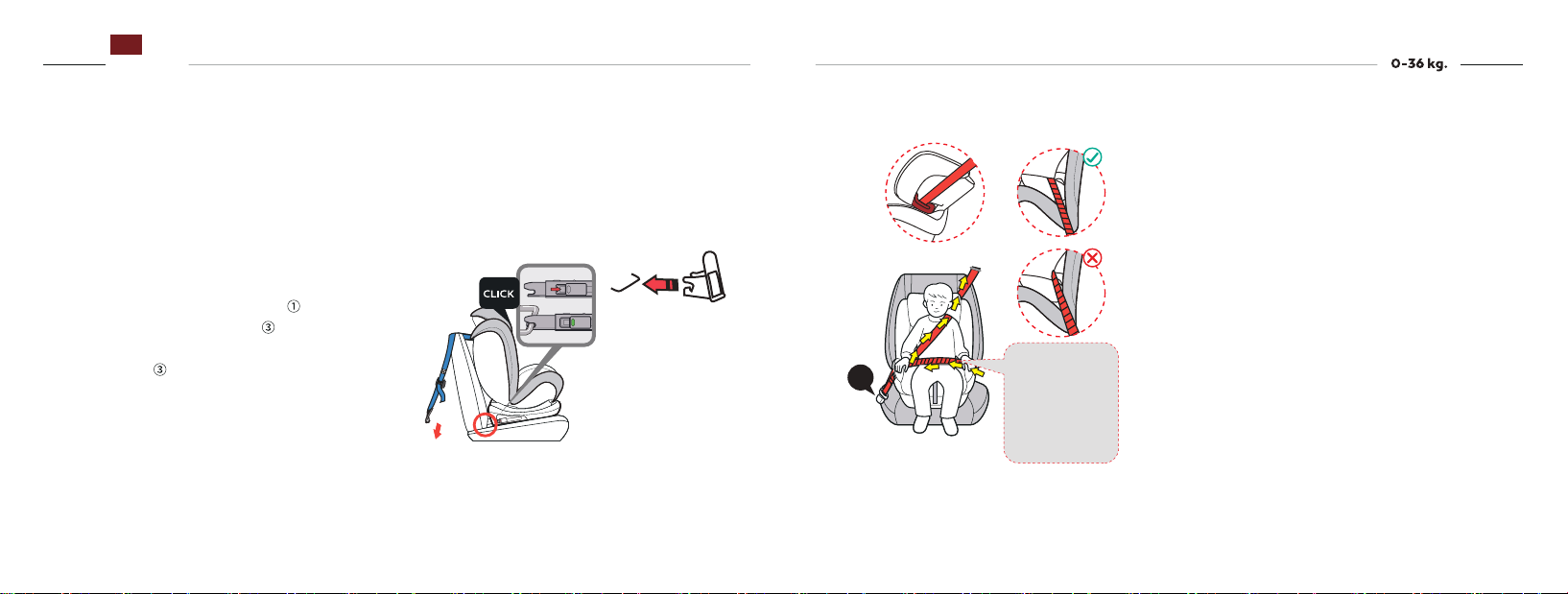

A correctly adjusted headrest ensures optimal protection
for your child in the safety seat:
The headrest must be adjusted so that the shoulder
straps are at the same level as your child’s shoulders.
Keep the diagonal belt at the position of shoulder
between the outside of the neck and shoulder (Middle
of point A and point B ).
Keep the lower edge of headrest as close as possible
to the child's shoulder and keep a finger distance
between the lower edge of headrest and child’s
shoulder.(see picture a)
a
A
B

14
INSTRUCTION
EN
13

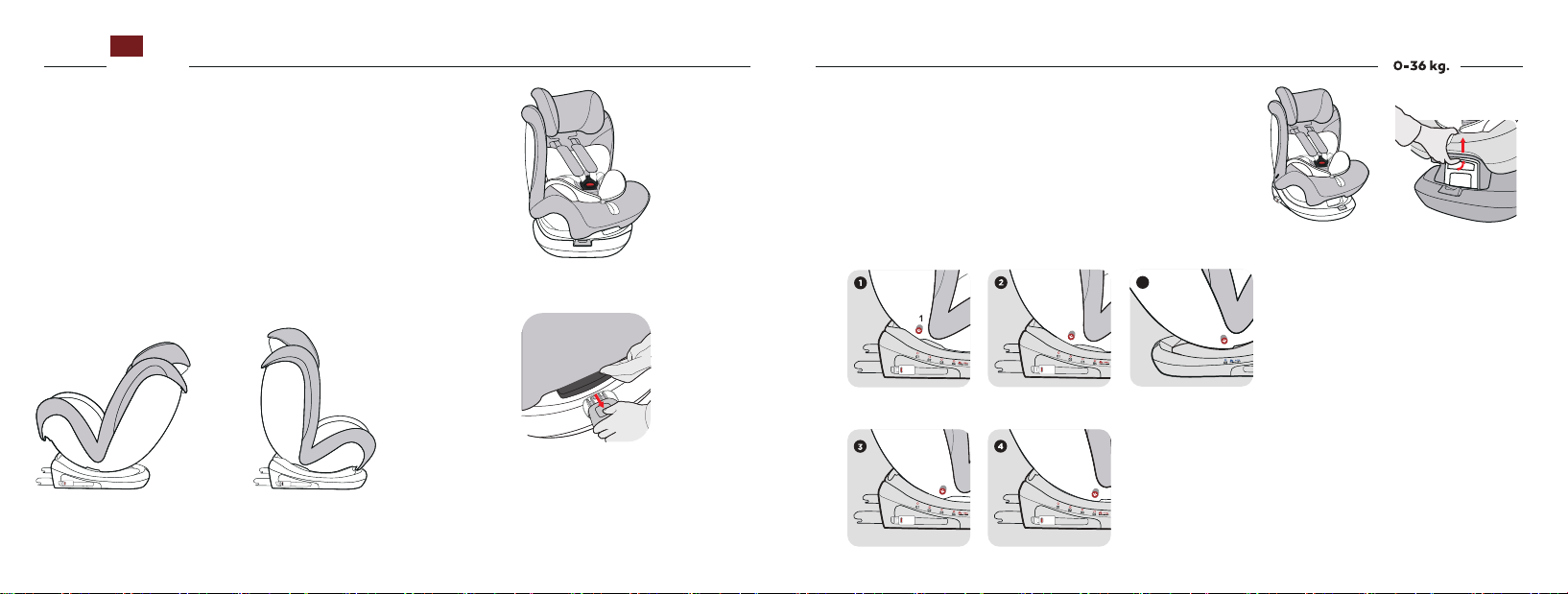

4.6 Adjust the Angle of the Child Safety Car Seat
a
5
5
5
First Level Second Level Fifth Level (Lying Level)
Third Level Fourth Level
2
34
Push the recline handle up and pull the seat outward
( see picture a ), then the seat can be adjusted.
It can be adjusted to 4 positions for forward-facing
use( see picture①②③④ ).
When the seat is in the position of fourth level, rotate
the seat to the rearward direction, and the seat can be
adjusted to fifth level.
4.5 Adjust the Rotation of the Seat
Pull the rotation ad juster out with your thumb,
then rotate the safety car seat to 360 degree angel.
( see picture a )
ACTION: Each time rebound the rotation adjuster
back. To make sure the seat is locked into position.
A. Rearward Direction: Group ( 0-18KG ),
must use rearward direction ( see picture①)
B. Forward Direction: GroupI II III( 9-36KG ),
must use forward direction ( see picture②)
a
picture1 picture2
0 0+ I

15 16
INSTRUCTION
EN
FG E
Removing 5-Point Harness and Storage
the Accessory Part
A
Harness
Connector
C D
Step 2: Removing Shoulder Pads and Belts
Loosen the 5-point harness of the child seat as
much as possible, Remove the belt from the
harness connector and storage harness connector
link to harness connector area on the behind of the
backrest. (Picture A and Picture B) Remember to
tighten the safety belt. (See 4.4) To ensure harness
connector linked well, can not be moved.
Take the Gears Fixed Axle from the plastic stator
and storage Gears Fixed Axle to Gears Fixed Axle
area on the behind of the backrest( Picture C ).
In GroupII III, when don’t use the Top Tether for
installation, storage the Top Tether Gears Fixed
Link to Top Tether Gears Fixed Link area on the
behind of the backrest( PictureD ). Close the instruction
back cover after putting the above accessory parts
to the corresponding areas.
Finally put redundant belt into cloth cover. ( PictureE )
Step 1: Firstly open the instruction back cover.
Step 3: Storage Buckle
Open the buckle, take out buckle latches from
shoulder belt. Pull down buckle cross cloth cover.
later pick up the cover in the PE board and storage
the buckle. ( PictureF and G )
B

4.8 Removing Triangle Pad
When your chlid’s weight exceed 8kg, remove
the sleeping pads and triangle pads.
Never use the child seat without it
correctly installed. Make sure that the
metal plate is correctly attached.
Check that the harness straps are not
twisted and that they have been correctly
inserted in the belt slots of the cover.
4.9 Removing the Fabric Cover
CAUTION!
CAUTION!
1. Remove the 5-point harness.
2. Take off the cover from the backrest and base.
3. Move the headrest of the child seat up to the
highrest position.
4. First take the cover off the base of the
headrest, then remove the cover of the
headrest.
To re-fit the cover, simply follow the above steps
in reverse.
17 18
5.INSTALLED IN CAR
5.1Installed in Car with Belt
5.1.1 Installed in Rear ward Facing Position with
Belt
5.1.1.1 Gr
Pull the vehicle seatbelt and pass the lap belt
section through the belt guidance③and under
the sleeping cushion.
Pass the diagonal seat belt section through the
belt guidance②
Fasten the seat belt and pull it tight, ensuring
that the seat belt is not twisted.
NOTE: For children of this size, the child seat
must only be installed in the rearward facing
position and at a maximum angle of inclination
(lying). To make sure that the car seat has
been installed correctly, please sha ke it befo re
use.
DO NOT twist the belt!
Ensure that the buckle tongues are properly
loc ked into the vehicle seat buckle - you will
hear an audible CLICK!
INSTRUCTION
EN
oup0+(0-13KG)

5.1.2 Installed in Forward Facing Position with Belt
5.1.2.1 Grou (9-18KG)
Place the child seat forward facing on the vehicle
seat (in the direction of travel).
Pull the diagonal belt section through belt
guidance②. Place the lap belt section in the red
belt guidance③.
Pull out safety belt from the back to the side, lap
belt section respectively from the belt guidance③
of the base.One side of the diagonal belt through
the backrest and the belt guidance③, another side
along the upper inside.
Using your knee to press down on the child seat,
tighten the vehicle seat belt as follows:
Pull on the lower part of the diagonal seat belt
section near the vehicle seat buckle to tighten the
lap belt section.
p I
5.1.2.2 Group (15-36KG)
19 20
INSTRUCTION
EN
II III
NOTE: When you use this safety car seat in
Group ll Ill, please remove the 5-point hamess,
sleeping pads and the triangle pads refer to
Chapter 4. 7. Place the child seat forward facing on
the vehicle seat(in the direction of travel).
Make sure that the diagonal seatbelt
section runs over your child's shoulder bone, and
not in front of his or her neck.
Lock the tip of the buckle into the vehicle seat buckle
with a CLICK noise. Follow the direction of arrow to
tighten belt, and put redundant belt into cloth cover.
Shake the child safety car seat to make sure it is
securely attached.
First pull out the belt from the belt ALR. Diagonal
belt through the same side of Guidance , lap belt
through the same side of Guidance , then pull the
diagonal belt and lap belt together through another
side of Guidance .
The diagonal seat belt section must
run diagonally backward. You can adjust the
course of the belt with your vehicle's adjustable
belt deflector on both sides.
Ensure the lap
belt is as close as
possible to lower.
Ensure the lap
belt is on the
pelvis, not on the
abdomen.
CLICK

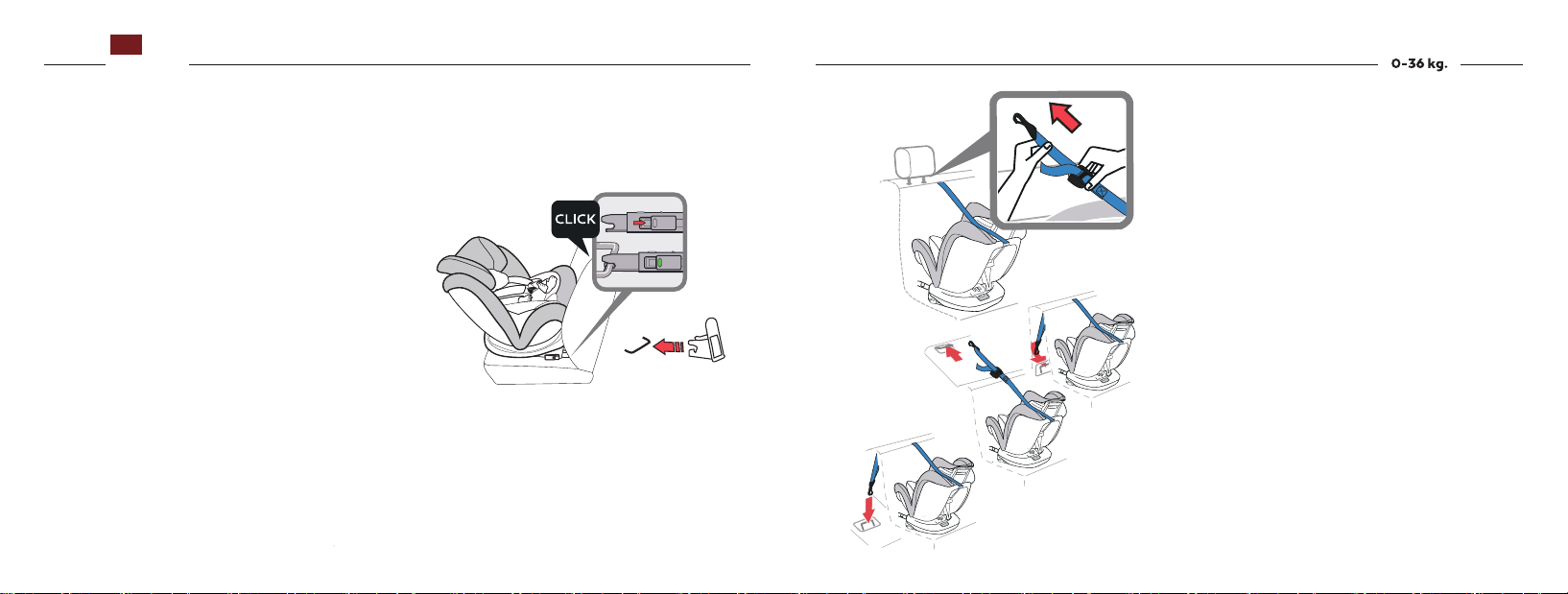

NOTE:The ISOFIX attachment points are located
between the surface and the backrest of the vehicle seat.
Press the ISOFIX button to pull out the two locking
arms from the base bottom. Pull the locking arm to and
fro until you hear an audible CLICK which indicates they
are fully engaged. And on both sides of the locking
arms button turn into green safety color.
Pull out the top tether,and press the release button, pull
the top tether long enough to hang the latch on the
back of the car seat.
Fix the latch on the fixed point,and the position of
the fixed point are shown in the picture (one of the
three positions). Make sure the hook is tightened up.
21
INSTRUCTION
EN
22
I
5.2.2 Installed in Forward Facing Position with ISOFIX
5.2.2.1 Group (9-18KG)
Put the ISOFIX insert guide into the two ISOFX
attachment points of your vehicle.
If you don't have ISOFIX insert guide, please
ignore this step.
NOTE: The ISOFIX attachment points are located
between the surface and the backrest of the
vehicle seat.
Press the ISOFIX button to pull out the two locking
arms from the base bottom. Pull the locking arm
to and fro until you hear an audible CLICK which
indicates they are fully engaged. And on both
sides of the locking arm’s button turn into green
satety color.
Pull out the top tether and press the release
button, pull the top tether long enough to hang
the latch on the back of the car seat.
Fix the latch on the fixed point, and the position
of the fixed point are shown in the picture(one of
the three positions). Make sure the hook is
tightened up (see page 23 picture a).
I
5.2 Installed in Car with ISOFIX
5.2.1 Installed in Rearward Facing Position with ISOFIX
5.2.1.1 Group0 (0-18KG)
Put the ISOFIX insert guide into the two ISOFIX
attachment points of your vehicle
If you don't have ISOFIX insert guide, please
Ignore this step.

a
24
INSTRUCTION
EN
23
CAUTION！
NOTE:
5.2.2.2.1 Installed with ISOFIX connector and Belt
Make sure that the diagonal seatbelt
section runs over your child's shoulder bone
and not in front of his or her neck.
Lock the tip of the buckle into the vehicle seat
buckle with a CLICK noise. Follow the direction
of arrow to tighten belt, and put redundant belt
into cloth cover. Shake the child safety car
seat to make sure it is securely attached.
The diagonal seat belt section must
run diagonally backward. You can adjust the
course of the belt with your vehicle's adjustable
belt deflector on both sides.
NOTE:
NOTE: When you use this safety car seat in group
II Ill, please remove the 5-point harness, sleeping
pads and the triangle pads refer to Chapter 4.7
Place the child seat forward facing on the vehicle
seat (in the direction of travel).
Put the ISOFIX insert guide into the two ISOFIX
attachment points of your vehicle.
If you don't have ISOFIX insert guide, please
Ignore this step.
The ISOFIX attachment points are located
between the surface and the backrest of the vehicle
seat.
Press the ISOFIX button to pull out the two locking
arms from the base bottom. Pull the locking arm to
and fro until you hear an audible CLICK which
indicates they are fully engaged. And on both sides
of the locking arms’ button turn into green safety
color.
5.2.2.2 Group （15-36KG)
II III
First pull out the belt from the belt ALR. Diagonal
belt through the same side of Guidance①, lap
belt through the same side of Guidance③, then
pull the diagonal belt and lap belt together
through another side of Guidance③.
Ensure the lap
belt is as close as
possible to lower.
Ensure the lap
belt is on the
pelvis, not on the
abdomen.
CLICK

NOTE:
5.2.2.2.2 Installed with ISOFIX connector
Top Tether and Belt
Pull out the top tetherand press the release
button, pull the top tether long enough to hang
the latch on the back of the car seat.
Fin the latch on the fixed point and the position
of the fixed point are shown in the picture(one of
the three positions). Make sure the hook is
tightened up.
Make sure that the diagonal seatbelt
section runs over your child's shoulder bone
and not in front of his or her neck.
Step3: Lock the tip of the buckle into the
vehicle seat buckle with a CLICK noise. Follow
the direction of arrow to tighten belt, and put
redundant belt into belt ALR. Shake the child
safety car seat to make sure it is securely attached.
The diagonal seat belt section must
run diagonally backward. You can adjust the
course of the belt with your vehicle’s adjustable
belt deflector on both sides.
CAUTION! 6. CARE AND MAINTENANCE
Periodically inspect your child seat for wo
damaged parts. If damaged parts are found, replace the
child seat Keep the child seat clean Do no lubricate any
parts of the child seat.
To prolong the life of your nursery product, keep it
clean and do not leave it in direct sunlight for extended
periods of time.
Removable fabric covers and trims may be cleaned
using warm water with a household soap or a mild
detergent. Allow it to dry fully, preferably away from
direct sunlight.
CLEANING THE BUCKLE
Food, drink, or other debris may collect inside the
harness buckle which can affect proper functioning
Wash in warm water until clean. Be sure you can hear
an audible click to make sure the buckle is working
properly.
25 26
INSTRUCTION
EN
First pull out the belt from the belt ALR. Diagonal
belt through the same side of Guidance , lap belt
through the same side of Guidance , then pull the
diagonal belt and lap belt together through another
side of Guidance .
Ensure the lap
belt is as close as
possible to lower.
Ensure the lap
belt is on the
pelvis, not on the
abdomen.
CLICK
rn out or

7.WARRANTY
The warranty period starts from the date of purchase
and is valid for a period of
The warranty is only applicab le to material and
production defects. The date of purchase can only
be proven with the original sales receipt. This warranty
is only applicable to the original owner and is not
MAXIMUM WASH
TEMPERATURE 30℃
DO NOT BLEACH
DO NOT DRYCLEAN
DO NOT DRYING
DO NOT IRON
DRY FLAT IN SHADE PLACE
Sponge clean using warm water and mild soap; do not
use any other cleaning agents.
Store in a safe, dry place and away from heat and direct
sunlight. Avoid placing heavy objects on top of the seat.
CLEANING THE HARNESS AND SHELL
STORAGE
27 28
INSTRUCTION
EN
transferable. The warranty is only app licab le to
produ cts that have not been adapted by the user. In
the case of any defects, the owner is required to
return the product to the retailer.
The manufacturer is not liabl
than those to products supp lied or m anufactured.
8.MAIN TECHNICAL PARAMETER
Length：500mm
Width: 440mm
Height: 600-800mm
440mm 500mm
600-800mm
12 months.
e for any damages other
