Chelino REVO User manual

NOTICE
1.This is a “Universal” child restraint; it is approved to Regulation No.44,04 series
amendments, for general use in vehicles and it will fit most,but not all,car seats.
2.A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a “Universal” child restraint for
this age group.
3.This child restraint has been classified as “Universal” under more stringent
conditions than those which applied to earlier designs which do not carry this
notice.
4.If in doubt, consult either the child restraint manufacturer or the retailer.
Do not use in passenger seats equipped with airbags(SRS).
paess
REVO
9 months to 11 years old approx
SUITABLE FROM
9 TO 36 KG Child
Only suitable if the approved vehicles are fitted with 3-pointsafety-belts,
approved to UN/ECE Regulation No.16 or other equivalent standards.
INSTRUCTIONS FOR USE CHILD CAR SEAT GROUP I/II/III
Stores: ChelinoBaby - Ormonde - JHB
ChelinoBaby - Fourways - JHB
ChelinoBaby - Menlyn - Pretoria
ChelinoBaby - Gateway- Durban
ChelinoBaby - Online - www.chelinobaby.co.za
Importer:
Anchor lnternational
Add: 12 Kimberlite Road , Theta Ext 5 Booysens
Reserve , JHB 2091 South Africa.
Tel: [phone]

12
SAFETY WARNINGS
NOTES
• This child seat can be used with the harness for children of 9 to 18kg in weight (group I).
• This child seat can be used without the harness for children of 15 to 36kg in weight
(group II,III).
• Both the above must be used in conjunction with the motor vehicles 3 point safety harness.
• This child seat can only be installed forward facing using a three-point lap and diagonal
seat belt.
• Do not use this child seat in the home. It has not been designed for home use and should
only be used in your car.
• This safest seating position for this child car seat is on the rear seat of a vehicle.
• Never use the child seat without fastening it into the car.
• It is dangerous to make any alteration or additions to the device without the approval of the
component authority, and a danger of not following closely the installation instructions
provided by the child restraint manufacturer.
• Do not leave your child unattended in the seat at any time.
• The seat should be kept away from sunlight if the seat is not provided with a textile,
otherwise it may be too hot for the child’s skin.
• In the event of an emergency it is important that the child can be released quickly. This
means that the buckle is not fully tamper proof and so your child must be taught never
to play with the buckle.
• Any luggage or other objects liable to cause injuries in the event of a collision should be
properly secured.
• Periodically inspect the harness for wear, paying particular attention to attachment
points. Sitting and adjusting devices.
• Alway make sure that any straps holding the seat restraint to the vehicle shall be tight, any
straps restraining the child should be adjusted to the child’s body, and check that the
straps shall not be twisted.
• Ensuring that any lap straps is worn low down,so that the pelvis is firmly engaged, shall
be stressed.
• The seat device should be changed when it has been subject to violent stresses in an
accident.
• The instruction can be retrained on the child restraint for its life.
• Do not use any load bearing contact points other than those described in the instructions
and marked in the child restraint.
• Store this child seat in a safe place when it is not being used. Avoid placing heavy objects
on top of it. Do not allow your child seat to come into contact with corrosive substances e.g.
Battery acid.
• The child restraint must not be used without the cover. The seat cover should not be
replaced with any other than the one recommended by the manufacturer, because the cover
constitutes an integral part of the restraint performance.
Please read this user guide carefully before install the child seat
DO NOT USE THIS CHILD SEAT IN PASSENGER SEATS EQUIPPED WITH AIRBAGS.
and for future reference.
Please read through these instructions carefully before using the child car seat for
the first time. The instructions can be retained on the child car seat for its life period
in the case of built-in restraints, and take good care of it for reference in the future.
1.1 Applicability:
The child car seat is suitable for group I/II/III( 9 TO 36KG )
Group I : 9-18kg
Group II : 15-25kg
Group III : 22-36kg
This child car seat can be used with its harness system for children of group I.It
must be secured with the belt fastener on the 3-point vehicle belt.
For children of group II and III (15kg to 36kg) the harness system must be
removed and the vehicle’s 3-point belt system be used to secure the child.

34
paess

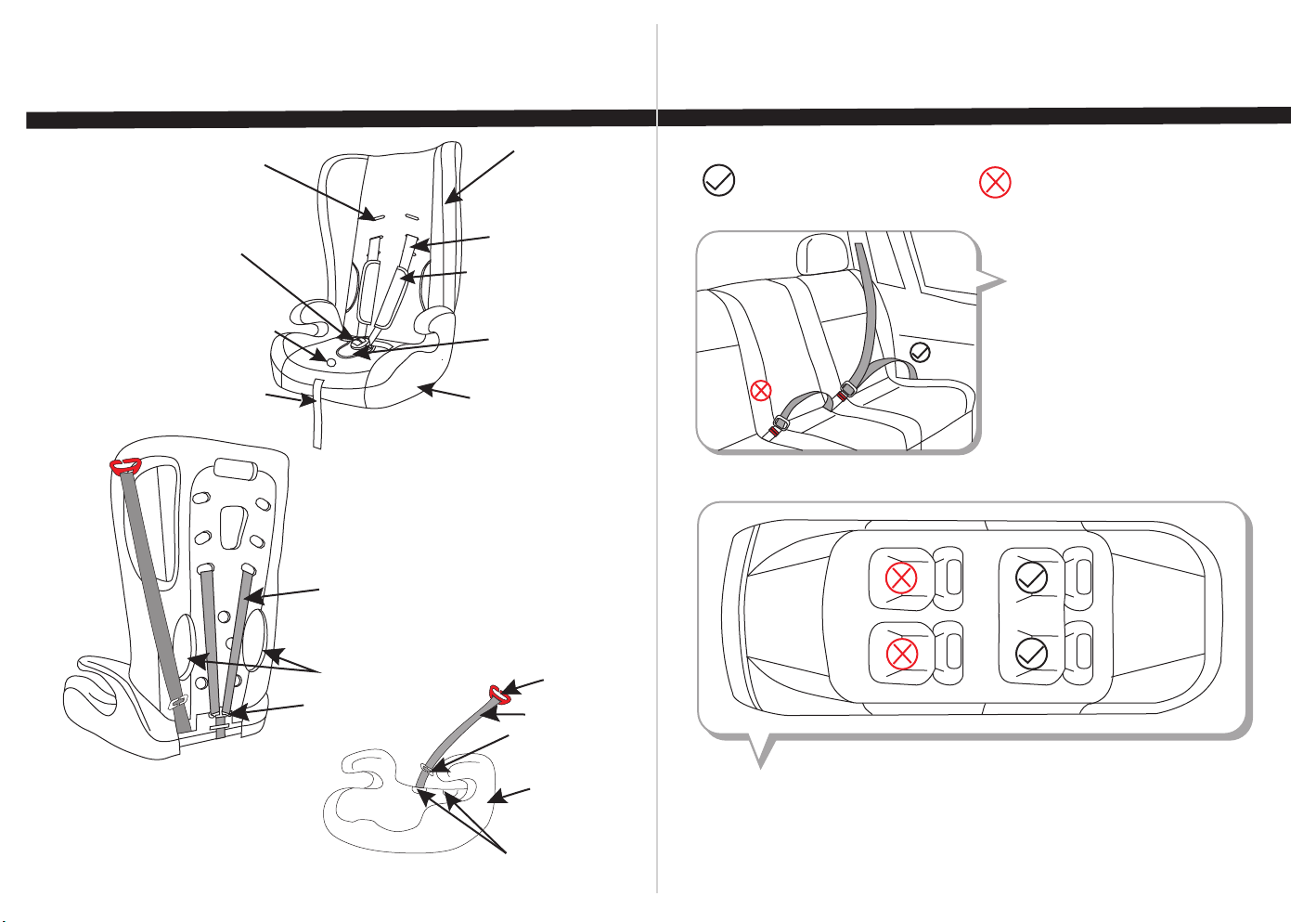

Buckle
Crotch pad
Harness adjuster lever
at cushionSe
Harness adjuster strap
Shoulder belt
S
lot
Harness straps
Shoulder pad
Backrest
Harness straps
Harness connector
Seats belt route slots
Features
Seat belt lock
(15-36kg)
S
Booster
Connector
Top hole
Belt
Lap belt
Lap belt and
diagonal belt
This child seat is suitable for
conventional use in all cars equipped
with 3-point seat belts that are fitted in
accordance with European standard
(ECE44 or equivalent standard)
Important:
This child seat must only be installed
using a lap and diagonal seat belt.
Correct fitting/suitable
Incorrect fitting/not suitable
Vehicle application
Forward facing on the rear seat .

56
USAGE FOR THE AGE GROUP I
NO-Too low NO-Too high
Yes -Correct
The straps should go into the slots at, or the nearest slots above the height of the
child’s shoulders. Remove straps by passing them through the slots from the front to
the back of the car seat to adjust the harness：re-route the straps through the
appropriate slots.
Use of the harness system is only permitted for children of age group I ,which means
from 9kg to 18kg.
Adjusting the shoulder height(group I )
Step1.Loosen the shoulder harness
(see point 4.3). Turn the child
seat to the back,Slide the chest
belt off the harness connector.
Step3.Now thread the small belts
of the chest pads and harness into
the corresponding belt slots. Slide
the harness straps in the harness
connector.
Step2.Slide both of the shoulder
harness off the harness connector.
Step4.Slide both of the chest pads
in the chest pad connector(Fig.4).
Ensure that both of the shoulder
belts and chest belt go through
slots at the same height, and not
twisted.
If the height of your shoulder belts in child car seat is not fit for your child, adjust
the height of the shoulder belts, please proceed as follows:
paess

8
7
Step1.Place the child safety seat on the vehicle’s seat
which is fitted with 3-point safety belts, ensuring it is
firmly pressed against the car seat’s backrest.
Step2.Pull out the vehicle belt, thread the belt tongue
(incl. Vehicle belt)through the adult belt route slot to the
rear and through the back rest, through the other adult
belt route slot(on the buckle side), and allow it to lock in
place. You will hear“click”.
Step3.Place the vehicle lap belt under the arm rest.
Note:Pull the vehicle diagonal belt on the vehicle
buckle side through the car seat belt route slot and the
vehicle diagonal belt and the vehicle lap belt under the
other side of the arm rest.Make sure adult belt has not
become twisted.
click
Step4.Press your knee on the child car seat and pull
the diagonal belt along the direction as the picture
shows. Make sure that belt has not loosened.
Step5. Tighten the diagonal shoulder belt in the
direction of the automatic roll-up as possible until
there is no slack and the seat is held firmly in place.
Main load point must be up car seat buckle. The
satisfactory position of the adult safety-belt buckle
relative to the child car seat is as the following picture.
If in doubt, please contact us.
To release your child seat following the above instructions in reverse order.
Ensure that each part of the belt is tightened as possible. Make sure all the belts
position is right and has not become twisted. Also check that the cover is not
impeding the movement or fit of the belt webbing in any way.
Securing the child car seat(group I ）

Step1.Put the two metal sections of the buckle
connectors together.
Step2.Slot the two buckle connectors into the slot in
the top of the buckle until they“click” into place.
Step3.Check the harness is correctly locked by
pulling the shoulder straps upwards.
To release the harness, press the red button on the buckle downwards.
Using the buckle
click
910
Step1. The shoulder straps are slackened by
pressing the lever (under the car seat cover)
on the front of the car seat.
Step2.Press down on the label marked“Press”
as you grip the two should straps with your
other hand. Pull the shoulder straps towards
you to loosen it.
Firstly, adjust the shoulder belts height (see
point4.1), proceed as follows:
Step1. Loosen the harness(see point4.3), open
the buckle(see point4.4.1), and place them
down sideways.
Step2. Seat your child in the child car seat.
Place both shoulder belts over your child’s
shoulders. Fasten the buckle (see point 4.4.1).
Step3.Pull the shoulder straps upwards to
remove the slack from the lap sections of the
harness then pull the adjuster strap until the
harness is fully tightened ( see left picture).
PRESSPRESS
Loosening the shoulder straps
PRESSPRESS
Securing the child with the
harness
The harness should be adjusted as tightly as possible without causing discomfort to
your child.A loose harness can be dangerous. Check the harness adjustment and
tighten each time the child is placed in the seat. Ensure that any lap strap is worn
low down, so that the pelvis is firmly engaged, the belt is not twisted.

Picture2 Picture1 Picture3
Picture5 Picture6
Removal of the harness
11 12
USAGE FOR THE AGE GROUP II /III
Step1. Loosening the harness(see point4.), turn the seat to the back
Step2.Slide both of the harness straps off the harness connector
Step3. Slide the belt of the chest pads off the chest pad connector
Step4.Pull the strap till the steel pole gets out of the slot Now you can remove the
belts as well as the tongue in an upwards direction.
Installation of the harness is carried out in reverse order to removal.
Keep harness with all parts in a safe place, to use in the future.
The harness system must be removed from the seat when used for these age group
II,III, which means from 15kg to 36kg. Only the 3-point vehicle belt system can be
used to buckle up the child car seat. belt lock system includes red belt lock, belt, connector Install the belt lock system
Pull the belt one side fixed connector through one top hole of the base(see picture1) ,
slide the belt into the hook of the connector (see picture 2,3,4,5).
Releasing the belt is carried out in reverse order to removal. Note: For group II,the
bottom belt of belt lock system is fixed into the top hole which is far away from the car
seat buckle. For group III,the bottom belt of belt lock system is fixed into the top hole
which is near to the car seat buckle.
Adjust the belt length as the picture,just make belt lie on child shoulder ,please see the
following picture .
adiust lock unlock
Install and adjust the belt lock system

13 14

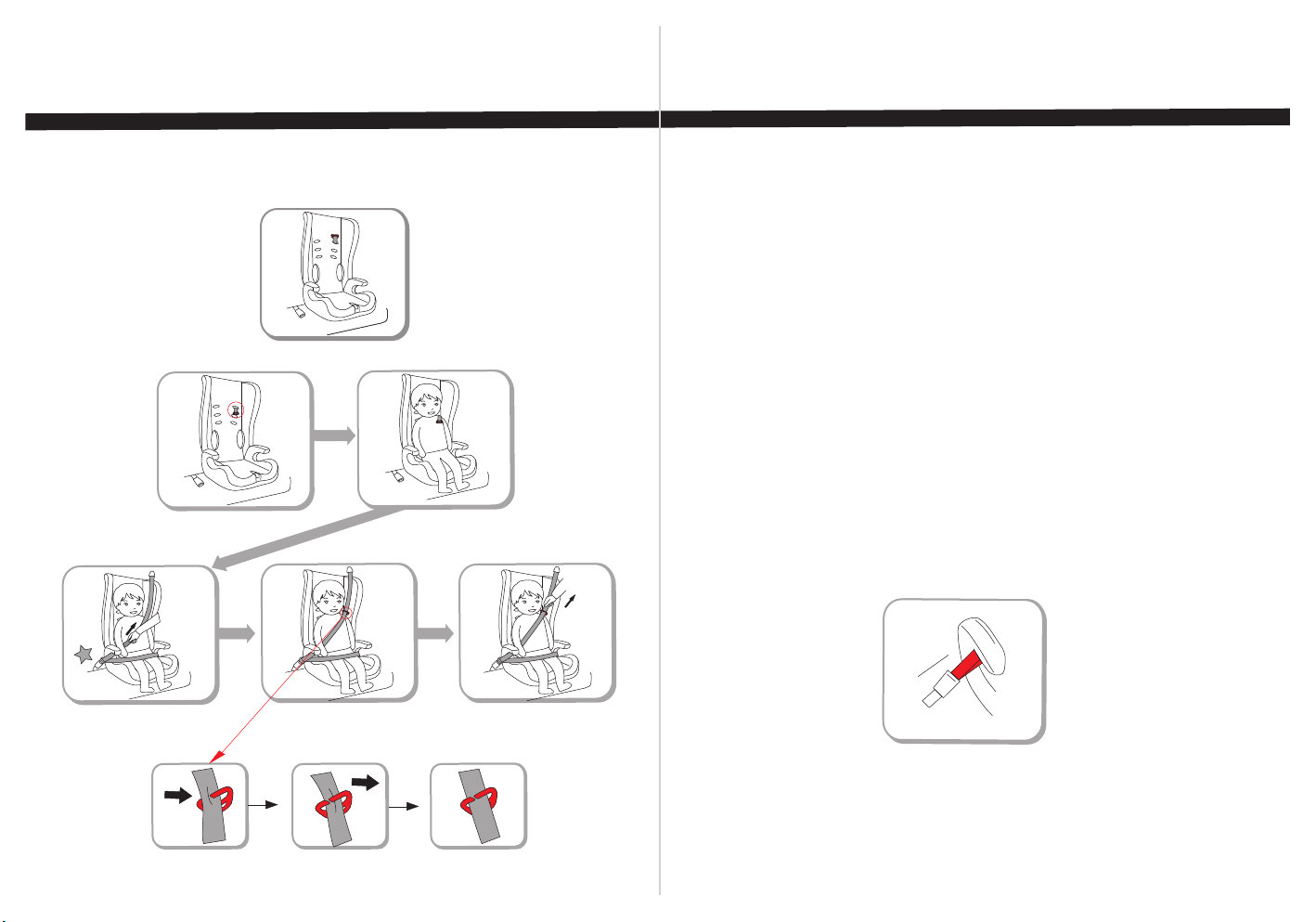

Securing the child car seat with vehicle’s belt with belt
lock for group II from 3 to 7years (15-25kg)
IMPORTANT: Before fitting the seat, remove the shoulder straps, crotch strap and then
fit the seat belt lock only in upper 2 row slots as shown.
click
STEP.1 STEP.2
STEP.3 STEP.4 STEP.5
Step1. Thread the belt lock (with belt) into the proper slot which is nearest to the top
of child shoulder on the side of the car belt automatic roll-up device. Pull the belt lock
from back side of child seat to its face side.
Step2. Place the child safety seat on the vehicle’s seat ensuring it is firmly pressed
against the car seat’s backrest. Seat your child in the child car seat.
Step3. Pull out the 3-point vehicle belt and place the lap belt on the opposite side of
the buckle under the arm rest.(Make sure that the diagonal belt and the lap belt on the
buckle side are under the armrest). And allow it to the buckle in place. You will
hear “click”.
Step4. Place the diagonal belt goes through the belt lock . Make sure that the belt is
not twisted. Note :choose the hole nearest to child shoulder to guide the belt lock.
Step5.Tighten the adult belts and the diagonal shoulder belt in the direction of the
automatic roll-up as possible. Pull the strap in the front of child safety seat to adjust
anger of the diagonal shoulder belt.All the belts should be adjusted as tightly as
possible without causing discomfort to your child.Main load point must be up car seat
buckle.The satisfactory position of the adult safety-belt buckle relative to the child car
seat is as the following picture( Fig. 6).You can contact us if in doubt about this point.
The car seat must be used vehicle’s 3-point belt system for children of the age groups II
(15kg-36kg). The harness system must be removed from the seat (see point 5.1).
Securing the child car seat with backrest and belt lock (group II）

click
STEP.1 STEP.2
STEP.3 STEP.4 STEP.5
IMPORTANT: Before fitting the seat, remove the shoulder straps, crotch strap and
backrest.
Step1. Place the child safety seat on the vehicle’s seat ensuring it is firmly pressed
against the car seat’s backrest. Seat your child in the child car seat.
Step 2. Place the child on the safety seat. Guide the belt lock (with belt) to child
shoulder which is near to car belt automatic roll-up device. Pull the belt lock from
back side of child to child’s face side.The strap lies on the middle of child’s shoulder.
Step3. Pull out the 3-point vehicle belt and place the lap belt on the opposite side of
the buckle under the arm rest.(Make sure that the diagonal belt and the lap belt on
the buckle side are under the armrest). And allow it to the buckle in place. You
will hear “click”.
Step4. Place the diagonal belt goes through the belt lock.Adjuse the length of the belt
and make sure the strap lies on the middle of shoulder.Don’t too close to neck and
shoulder side edge.Make sure that the belt is not twisted.
Step5.Tighten the adult belts and the diagonal shoulder belt in the direction of the
automatic roll-up as possible. Pull the strap in the front of child safety seat to adjust
anger of the diagonal shoulder belt.All the belts should be adjusted as tightly as
possible without causing discomfort to your child.
Main load point must be up car seat buckle.The satisfactory position of the adult
safety-belt buckle relative to the child car seat is as the following picture.You can
contact us if in doubt about this point.
15 16
Securing the child car seat with vechile’s belt with
belt lock for group III from 7 to 11 years (22-36kg)

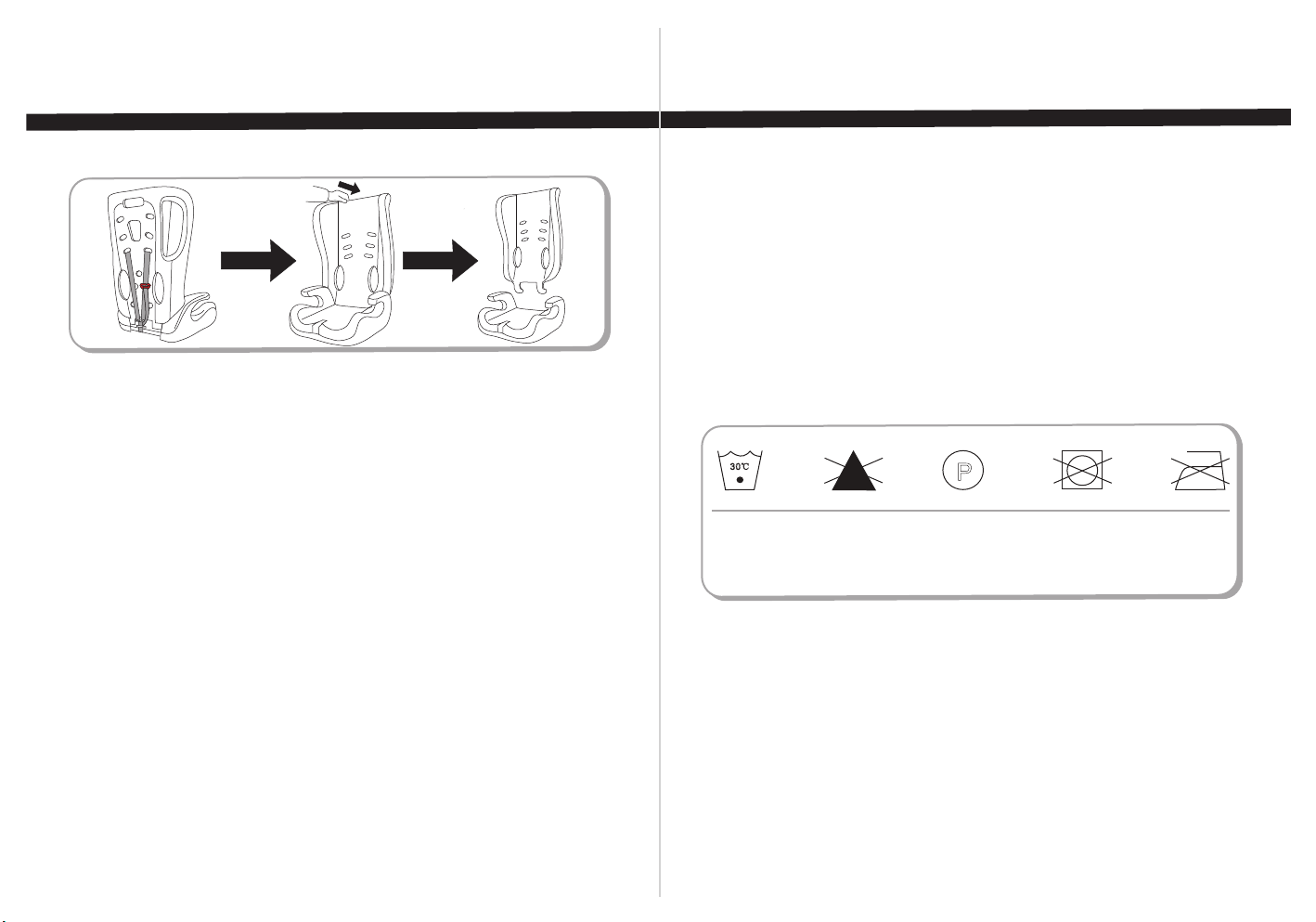

Removing/replacing the cover
Step1. Remove the belt system as described in point5.1
Step2.Remove the plastic pins from the back side of backrest( see above picture).
Then press the backrest so far back so that it rests flat on the floor. Now you can
remove the cover of backrest.
Step3.Remove the backrest. Now the seat cushion cover can be pulled forward and
removed.
To replace the cover proceed in the reverse order to removing the cover.
Cleaning the car seat and cover
The seat cover, harness and plastic parts can be washed with very mild detergent
and Warm water.
Do not use chemical cleansers, bleach or corrosives to wash any part of the car seat.
Do not wash by machine,Spin-dry are not recommended.
Washing instruction:
The cover is removable and washable at 30°С,line dry only.
30℃P
Machine
wash,cpld
Do not
bleach
Dryclean,any
solvent except
trichloroethylene
Do not
tumbel dry
Do not
iron
PROCEDURE AFTER AN ACCIDENT
The child car seat must be replaced when it has been subject to violent stresses in
an accident.
PRODUCT STERVICE
If you are in doubt about using or fitting of this product or you require any replacement
parts, please contact either the child restraint manufacturer or the retailer.
17 18
CARE INSTRUCTIONS
