Chemglass CG-1872-M-20 User manual

1
c
3800 North Mill Road • Vineland, NJ 08360 • USA
Tel: [phone] • Fax: [phone]
Web: www.cglifesciences.com REV: B 2/4/14
pH METER
C
1
c
3800 North Mill Road • Vineland, NJ 08360 • USA
Tel: [phone] • Fax: [phone]
Web: www.cglifesciences.com REV: B 2/4/14
pH METER
C

2
Contents:
Application ………………………………………………… Page 3
Key Features ……………………………………………… Page 3
Technical Data ……………………………………………. Page 3
Set - Up ……………………………………………………. Page 4
Controls ……………………………………………………. Page 5
Operation ………………………………………………….. Page 6
Resetting to Factory Defaults …………………………… Page 7
Observing Danger/Caution indicators ………………….. Page 7
Warranty …………………………………………………... Page 8
Return Authorization ……………………………………... Page 8
CGLS Correspondence ………………………………….. Page 8
2
Contents:
Application ………………………………………………… Page 3
Key Features ……………………………………………… Page 3
Technical Data ……………………………………………. Page 3
Set - Up ……………………………………………………. Page 4
Controls ……………………………………………………. Page 5
Operation ………………………………………………….. Page 6
Resetting to Factory Defaults …………………………… Page 7
Observing Danger/Caution indicators ………………….. Page 7
Warranty …………………………………………………... Page 8
Return Authorization ……………………………………... Page 8
CGLS Correspondence ………………………………….. Page 8

3
Application: The unit is suitable for measuring and displaying the following for example -
• pH value and/or redox potential.
• Free chlorine, chlorine dioxide, ozone, hydrogen peroxide and peracetic ac-
id, in combination with sensors as per data sheet 202630.
• Refer to “JUMO dTRANS pH 02” manual for additional applications.
Key Features:
• Display: mg/l, pH, mV, uS/cm, etc. Special settings are also possible
with the setup program
• Configurable display text (operator level)
• Alarm text with color change
• A choice of display visualizations: large numbers, bar graph or tendency
(trend) display
• Four limit controllers
• Integrated calibration routines: with 1, 2 and 3 points
• Calibration logbook
• Selectable languages: English, German, French, etc.
• Setup program provides: convenient programming, system documentation
• Universal side mounting clamp - can be mounted on either side of unit
Technical Data:
• Refer to section 16 “JUMO dTRANS pH 02” manual for all Technical data.
• Fuse - 1Amp, 250V (5x20mm)
3
Application: The unit is suitable for measuring and displaying the following for example -
• pH value and/or redox potential.
• Free chlorine, chlorine dioxide, ozone, hydrogen peroxide and peracetic ac-
id, in combination with sensors as per data sheet 202630.
• Refer to “JUMO dTRANS pH 02” manual for additional applications.
Key Features:
• Display: mg/l, pH, mV, uS/cm, etc. Special settings are also possible
with the setup program
• Configurable display text (operator level)
• Alarm text with color change
• A choice of display visualizations: large numbers, bar graph or tendency
(trend) display
• Four limit controllers
• Integrated calibration routines: with 1, 2 and 3 points
• Calibration logbook
• Selectable languages: English, German, French, etc.
• Setup program provides: convenient programming, system documentation
• Universal side mounting clamp - can be mounted on either side of unit
Technical Data:
• Refer to section 16 “JUMO dTRANS pH 02” manual for all Technical data.
• Fuse - 1Amp, 250V (5x20mm)

4
LCD Display
Main Power
Switch
BNC Connector
Thermocouple
Receptacle
Figure 1
Set up:
• Insert detachable power cord into rear of unit and plug into electrical outlet
(AC voltage 110 - 240).
• Connect pH probe to BNC input connector.
• Connect Thermocouple to Thermocouple Receptacle (Pt100, Pt1000) - Use
Adapter provided for Thermocouple if needed.
• Turn Main Power Switch to “ON” position - switch will illuminate.
• Refer to “JUMO dTRANS pH 02” manual for operating instructions.
4
LCD Display
Main Power
Switch
BNC Connector
Thermocouple
Receptacle
Figure 1
Set up:
• Insert detachable power cord into rear of unit and plug into electrical outlet
(AC voltage 110 - 240).
• Connect pH probe to BNC input connector.
• Connect Thermocouple to Thermocouple Receptacle (Pt100, Pt1000) - Use
Adapter provided for Thermocouple if needed.
• Turn Main Power Switch to “ON” position - switch will illuminate.
• Refer to “JUMO dTRANS pH 02” manual for operating instructions.

5

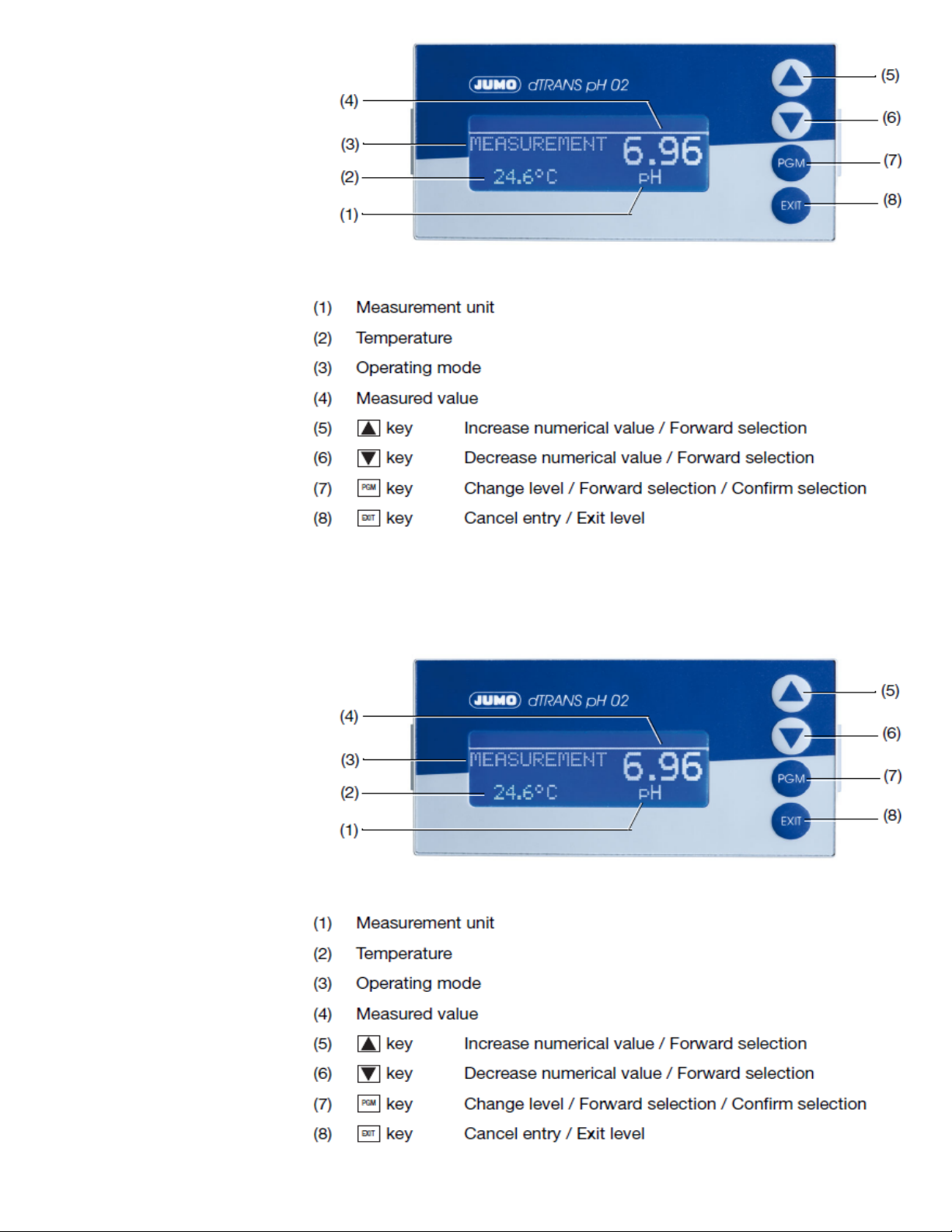

Figure 2
Controls:
5
Figure 2
Controls:

6
Please Refer to JUMO dTRANS pH02 Controller
manual for operation instructions
6
Please Refer to JUMO dTRANS pH02 Controller
manual for operation instructions

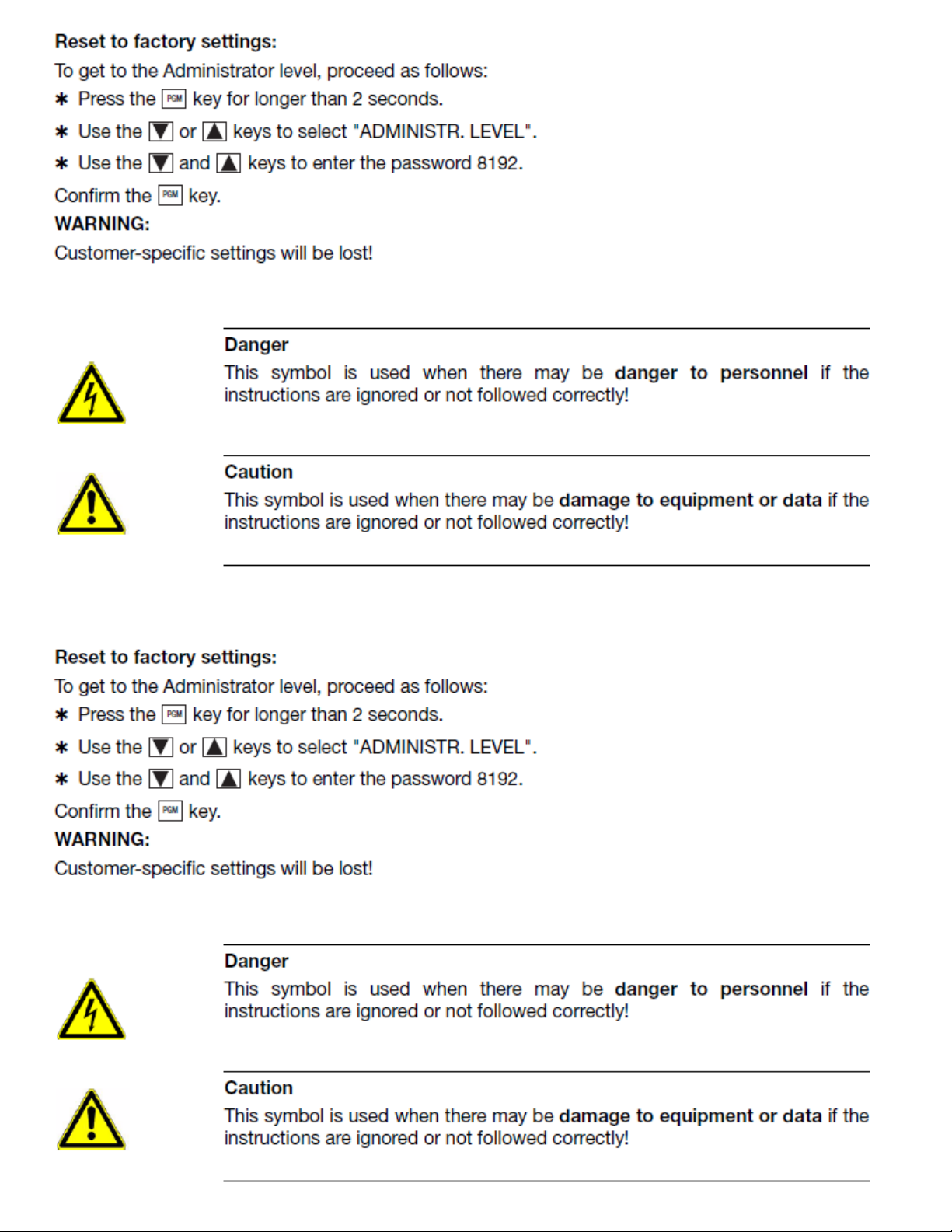

7
Observe indicators listed in “JUMO dTRANS pH02” manual
7
Observe indicators listed in “JUMO dTRANS pH02” manual

8
Chemglass, Chemglass Life Sciences, Warranty and Limitation of Liability
Warranty:
Chemglass, Inc. guarantees this unit against defects in material and workmanship for a period of one year from
the date of purchase. If the unit should malfunction, it must be returned for evaluation. If the unit is determined
to have a defect in materials or workmanship, then it will be repaired or replaced at no charge. Tampering with
the unit or damage resulting from excessive current, heat, moisture, vibration, corrosive materials, or misuse will
void this warranty. Programming changes or reconfigurations are not covered under warranty. CGLS shall not
be responsible to the original purchaser or any other party or parties for bodily or property loss, damages, or inju-
ries of any kind or nature through either direct or indirect use of the product.
Return Authorization:
CGLS must authorize any return of material. Please contact a customer service representative via the correspond-
ence listed below to obtain a Return Merchandise Authorization (RMA) number. The purchaser is responsible for
all packing and shipping to CGLS. If the equipment or material came in contact or was proximate to any biologi-
cal organism, toxic or corrosive material, or any agent reasonably deemed to be potentially harmful, it must be
cleaned and decontaminated prior to receipt by CGLS. The purchaser is obligated to disclose fully in writing, the
cleaning and decontamination method. We reserve the right not to accept any unauthorized or potentially harmful
shipment.
Correspondence:
Chemglass Life Sciences
3800 North Mill Rd.
Vineland, NJ 08360
USA
Phone: [phone]
Email: customer-[email protected]
Web: www.cglifesciences.com
8
Chemglass, Chemglass Life Sciences, Warranty and Limitation of Liability
Warranty:
Chemglass, Inc. guarantees this unit against defects in material and workmanship for a period of one year from
the date of purchase. If the unit should malfunction, it must be returned for evaluation. If the unit is determined
to have a defect in materials or workmanship, then it will be repaired or replaced at no charge. Tampering with
the unit or damage resulting from excessive current, heat, moisture, vibration, corrosive materials, or misuse will
void this warranty. Programming changes or reconfigurations are not covered under warranty. CGLS shall not
be responsible to the original purchaser or any other party or parties for bodily or property loss, damages, or inju-
ries of any kind or nature through either direct or indirect use of the product.
Return Authorization:
CGLS must authorize any return of material. Please contact a customer service representative via the correspond-
ence listed below to obtain a Return Merchandise Authorization (RMA) number. The purchaser is responsible for
all packing and shipping to CGLS. If the equipment or material came in contact or was proximate to any biologi-
cal organism, toxic or corrosive material, or any agent reasonably deemed to be potentially harmful, it must be
cleaned and decontaminated prior to receipt by CGLS. The purchaser is obligated to disclose fully in writing, the
cleaning and decontamination method. We reserve the right not to accept any unauthorized or potentially harmful
shipment.
Correspondence:
Chemglass Life Sciences
3800 North Mill Rd.
Vineland, NJ 08360
USA
Phone: [phone]
Email: customer-[email protected]
Web: www.cglifesciences.com
