TUNABLE SEMICONDUCTOR LASER
Operation Manual
TSL-510

TSL-510 OPERATION MANUAL
Trademarks
Notes to Users
1) Copyright 2005, Santec Corporation. All rights reserved. No part of this Operation
Manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, for any purpose, without the prior written permission of Santec.
2) Information in this Operation Manual is subject to change without notice.
3) Information of this Operation Manual is prepared with careful examination, however,
in the event of any mistake, please contact us.
Notes in Bringing This Product Out of Japan
1) When this product is brought out of Japan, some laws or regulations of a
destination country may prohibit this product from being used there. In such countries,
the use of this product may lead to being punished, but the Company shall not be
responsible for such a case at all, which please note.
2) When this product is exported (or brought out of Japan), if this product is applicable
to a strategic material specied in “Foreign Exchange and Foreign Trade Control Law”,
then required is an export permit of the Japanese Government under the law.
is a trademark of Santec Corporation.
TSL-510 is a trademark of Santec Corporation.

TUNABLE SEMICONDUCTOR LASER TSL-510
Introduction
Thank you very much for your having purchased our product, Tunable Semiconductor
Laser TSL Series. This Operation Manual contains information necessary for the
operation of TSL-510, and it is intended for those with sufcient knowledge enough to
of laser danger and its safe control. Before operating TSL-510, you should rst read
thoroughly through this Operation Manual and become familiar to its contents. After
reading this Operation Manual, keep it at your ngertip for easy reference at any time.
The packing materials and box of this product are needed for long-term storage or
transportation, therefore, keep them even after unpacking this product.
NOTE

TSL-510 OPERATION MANUAL
Before using this product, please carefully read this Operation Manual.
NOTE
How to Read the Manual
Before operating TSL-510, please read carefully this instruction manual.
This Operation Manual consists of 12 Chapters:
Chapters 1 to 4 illustrate the outline of this product, safety precautions, and installation
of the product.
Chapters 5 to 6 describe how to operate the product. Santec recommends that
Chapter 1 to 4 be read carefully before proceeding to this chapter.
Chapter 7 explains information on the communication functions such as external
control of TSL-510.
Chapter 8 describes the operating principles.
Chapter 9 explains the specications.
Chapter 10 describes the maintenance and storage methods of this product.
Chapter 11 explains the packing instruction and shipping.
Chapter 12 describes the troubleshooting in operation.

TUNABLE SEMICONDUCTOR LASER TSL-510
Explanation of Terms
The meanings of the following terms used in this Operation Manual are defined as
below:
(1) Meaning
NOTE
This indicates pressing DANGER, and if it
is not avoided, personnel death or serious
injury results, therefore, it is the most
emphasized special information.
This indicates potential danger, and if it is
not avoided, personnel death or serious
injury may result, therefore, it is special
information.
This indicates potential danger, and if it is
not avoided, mild or slight injury may result,
therefore, it is special information. It also
indicates potential danger leading to only
physical damage.
This indicates supplementary explanation
of the text, and thus other information than
DANGER, WARNING, and CAUTION.
CAUTION
WARNING!
DANGER!!
(2) Importance of Information
From the above meanings, the priority of the terms here are as shown below:
DANGER > WARNING > CAUTION > NOTE
DANGER
WARNING
CAUTION
NOTE

TSL-510 OPERATION MANUAL
1. Safety Notes 1-1
2. Product Composition 2-1
3. Panel Descriptions 3-1
3-1 Front Panel 3-1
3-2 Rear Panel 3-1
3-3 Bottom Panel 3-2
3-4 Side Panel 3-2
4. Installation 4-1
4-1 Operating Enviroments 4-1
4-2 Power Supply 4-1
4-3 Interlock 4-2
5. Basic Operation 5-1
5-1 Turning on the Unit 5-1
5-2 LD Output 5-3
5-3 Setting the Wavelength 5-5
5-4 Setting the Optical Power 5-7
5-5 Setting the Wavelength Sweep 5-8
5-6 Executing the Wavelength Sweep 5-13
5-7 Turning off the Unit 5-17
5-8 Status Display 5-19
6. Detailed Operation 6-1
6-1 Fine-tuning 6-1
6-2 Coherence Control 6-3
6-3 Switching the Optical Power Control Mode 6-4
6-4 Setting the Trigger Output 6-5
6- 4 - 1 Setting the Trigger Output 6-6
6- 4- 2 Setting the Trigger Input 6-7
Contents
Introduction
How to Read the Manual
Explanation of Terms

TUNABLE SEMICONDUCTOR LASER TSL-510
6- 4- 3 Wavelength Logging (type C/D only). 6-8
6-5 External Modulation 6-9
6-5-1 Low-Frequency Modulation 6-9
6-5-2 High-Frequency Modulation(Option) 6-10
6-6 Analog Signal Input 6-12
6-7 Analog Signal Output 6-13
6-8 Power Monitor Signal Output 6-16
6-9 Wavelength Memory Function 6-17
6-9-1 Wavelength Readout 6-17
6-9-2 Wavelength Registration 6-18
6-10
Changing the Display Unit of the Wavelength 6-19
6-11
Changing the Unit for Power Setting and Display 6-20
6-12 Internal Shutter 6-21
6-13 Changing the Password 6-22
6-14 Displaying the Product Information 6-23
6-15 Setting the Wavelength Offset 6-24
7. OperatIon By Communication 7-1
7-1 GPIB 7-1
7-1-1 Connection 7-1
7-1-2 GP-IB function 7-2
7-1-3 Setting the address, delimiter, and command set 7-3
7-2 RS-232C 7-4
7-2-1 Connection 7-4
7-2-2 Setting the transmission speed, and the delimiter 7-5
7-2-3 Command 7-5
7-3 USB 7-5
7-3-1 Connection 7-5
7-3-2 Communication conditions and system requirements 7-6
7-3-3 Installing a driver software 7-7
7-3-4 Command 7-11
7-4 Command Reference
7-11
7-4-1 Command set 1 (complies with IEEE-488.2) 7-12
7-4-2 TSL-510 Specic Command set List (Command set 2) 7-43
8. Operating Principles 8-1

TSL-510 OPERATION MANUAL
9. Specications 9-1
10. Maintenance 10-1
10-1 Daily Maintenance 10-1
10-2 Cleaning the Optical Connector 10-1
10-3 Replacing Fuses 10-2
10-4 Inspection/Calibration 10-2
10-5 Long-Term Storage 10-2
11. Re-Packing and Shipping 11-1
11-1 Re-Packing 11-1
11-2 Packing Instruction 11- 2
11-3 Shipping 11- 2
12. Troubleshooting 12-1

TUNABLE SEMICONDUCTOR LASER TSL-510
1-1
Safety Notes
1
Laser Type ：External Cavity Diode Laser
Laser Class ：1M IEC60825-1(2014)
Output Power ：< 50mW
Laser Diameter ：10um
Numerical aperture ：0.1
Wavelength ：1200-1700nm
This product radiates class 1M invisible laser. Do not look at the tip of optical output
connector using optical instruments like magniers or microscopes. The laser radiation
can seriously damage your eyesight. Please pay attention to handling of laser.
DANGER!!
Laser Safety Labels
This product is classied class 1M laser product according to IEC 60825-1 (2014)

1-2
TSL-510 OPERATION MANUAL

TUNABLE SEMICONDUCTOR LASER TSL-510
2-1
Product Composition
2
Inspection report
TSL-510 body (1)
Power cord (1)
Operation manual (this document)
(1)
This product is composed of the TSL-510 body and accessories.
Check to make sure that all the following items are included.
Check to make sure that the product body and the accessories have no
scratches or stains. If any item is found to have scratches or stains, please
contact us.
DVD-R (for apprication software)
(1)
Interlock terminator (1)
* Option

2-2
TSL-510 OPERATION MANUAL

TUNABLE SEMICONDUCTOR LASER TSL-510
3-1
Analog Output Analog Input LF Mod. RF Mod.
Panel Descriptions
3

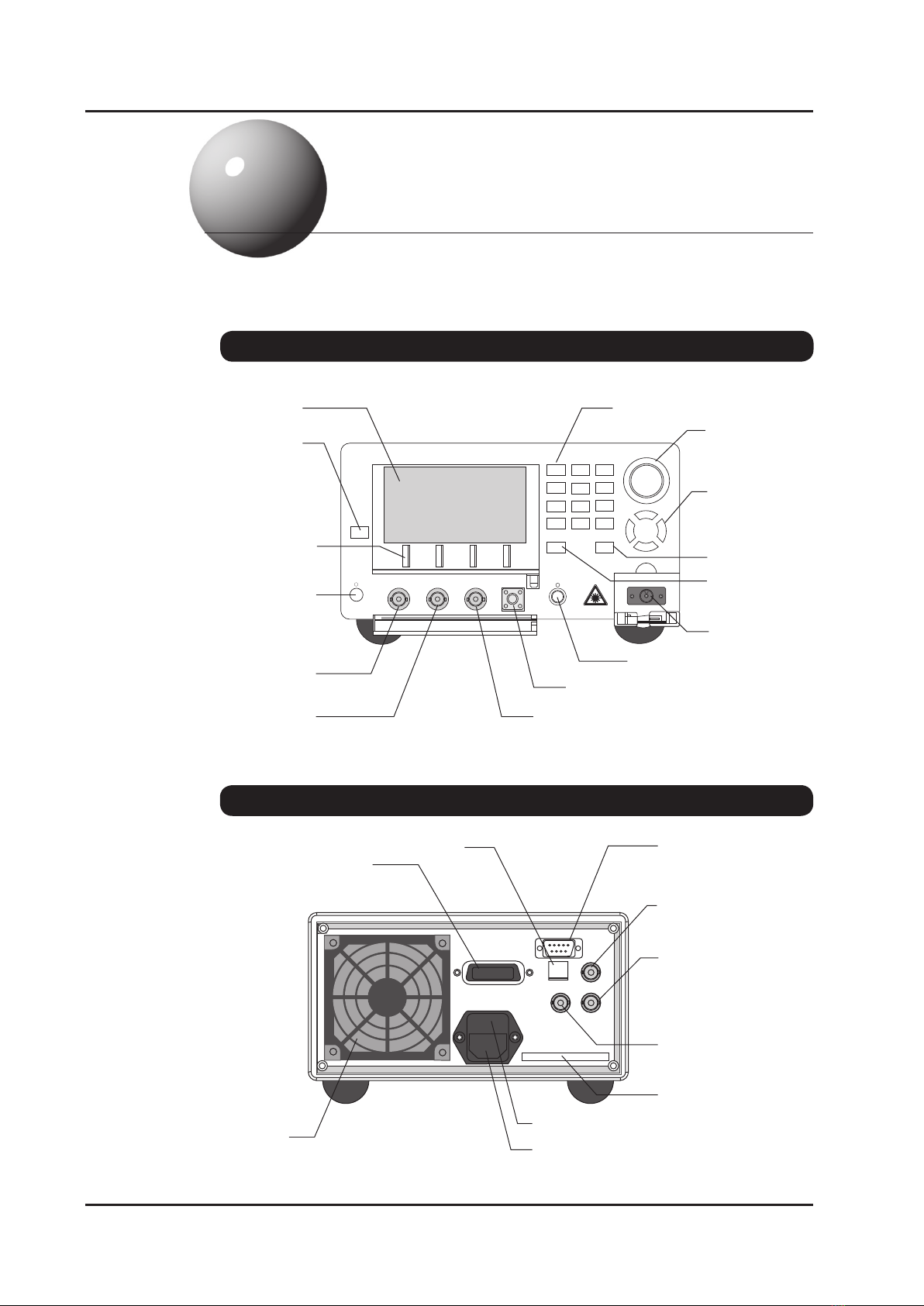

3-1 Front Panel
Display
HOME key
Soft keys (F1, F2, F3,
and F4 keys from the left)
Power On/Off key
Power LED
Analog output
Analog input
Numeric keypad
Dial
Cursor key
ENTER key
CANCEL key
Optical output connector
LD On/Off Key, LD On LED
RF Modulation Signal Input (Option)
LF Modulation Signal input
RS-232C
Power Monitor
USB
Trigger
Output
Trigger
Input
GPIB
~LINE
3-2 Rear Panel
USB connector
GPIB connector
RS-232C connector
Power Monitor connector
Trigger signal input connector
Trigger signal output connector
Exhaust fan
Nameplate
Fuse box
Power inlet
Interlock connector (option)

3-2
TSL-510 OPERATION MANUAL

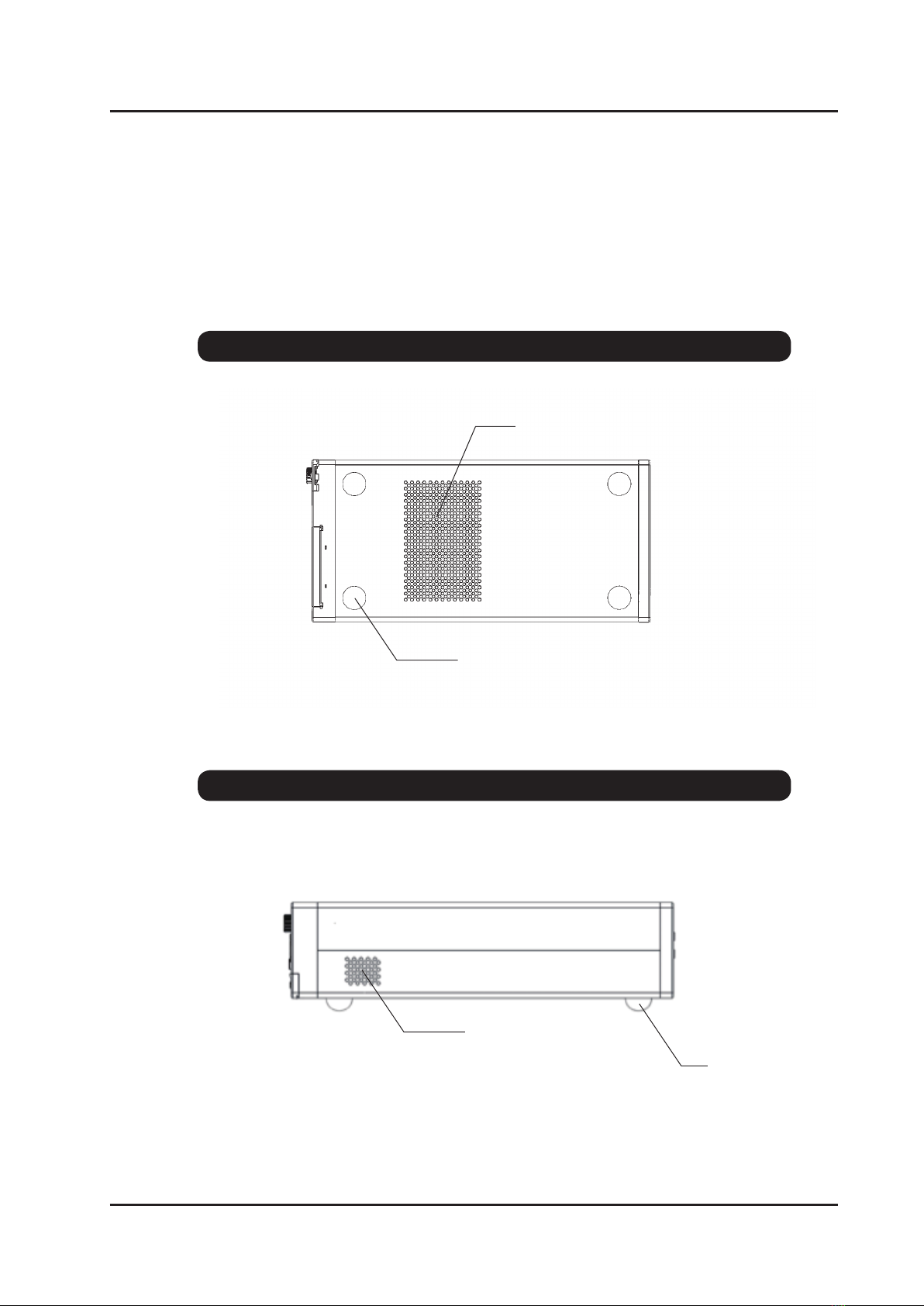

3-3 Bottom Panel
Intakes
Rubber legs
3-4 Side Panel
Intakes
Rubber legs

TUNABLE SEMICONDUCTOR LASER TSL-510
4-1
Installation
4
CAUTION
Pay attention to the following guidelines for safe, trouble-free operation.
This product is a high-precision device:
･ Do not place in direct sunlight.
･ Do not place under high temperature and high humidity.
･ Do not place in an environment with dust, dirt, salt, or corrosive gas.
･ Do not place in an area subject to large vibrations.
･ Do not place in an area subject to noise by electric eld, magnetic eld, etc.
･ Do not place in an area where the unit is subject to falling objects landing on it.
･ Do not place with possible exposure to water.
Be sure to install the TSL-510 in a level place (less than 5 degree). It is recommended to
install this product on a vibration-proof base. The unit may not operate correctly if the device
is set in an inclined position.
The mainframe of the TSL-510 weighs about 6.0 kg. Please ensure that the table or shelf
upon which it is installed has sufcient strength. Clearance of 5 cm at the rear and the side of
the unit should be allowed for proper ventilation. And the air intakes are located at the bottom
and the side of the device. Please do not remove the rubber legs, in order to secure airow.
This product uses a 3-line power cord and plug with a protective ground line. Power cord may
be attached and detached, Connect it to the power source socket at the rear panel. Use the
power cord supplied with the unit.
Power Voltage is between 100 to 240 Volts, and 50 to 60Hz AC Line.
Use two surge resistant type fuses. T1.6A/250V(100 〜240V) (Refer to "10-3. Replacing
Fuses"). The Power LED above the Power ON/OFF key turns orange, while power cable is
connected.
This product is grounded by the ground line in the supplied power cable. This product
must be properly grounded to avoid electrical shock and other dangers. Please make
sure that this product is properly grounded to avoid electrical shock. In addition, please
place this product in a location that allows the user to easily unplug the power cable, in
case of any device malfunction.
4-1 Operating Environments
4-2 Power Supply

4-2
TSL-510 OPERATION MANUAL
4-3 Interlock
This product is equipped with a terminal for connecting an external interlock circuit.
A terminator is connected to the interlock terminal at the time of factory shipment (or
included as an accessory). If an external interlock is used, remove the terminator and
connect a circuit to the interlock terminal. The LD LED lights up only when there is a
short circuit. The LD LED turns off when the circuit is open. If you want the LD LED to
light up again, short the circuit, and then perform an LD output operation (Refer to “5-2.
LD output”). Keep the removed terminator so it does not become lost.

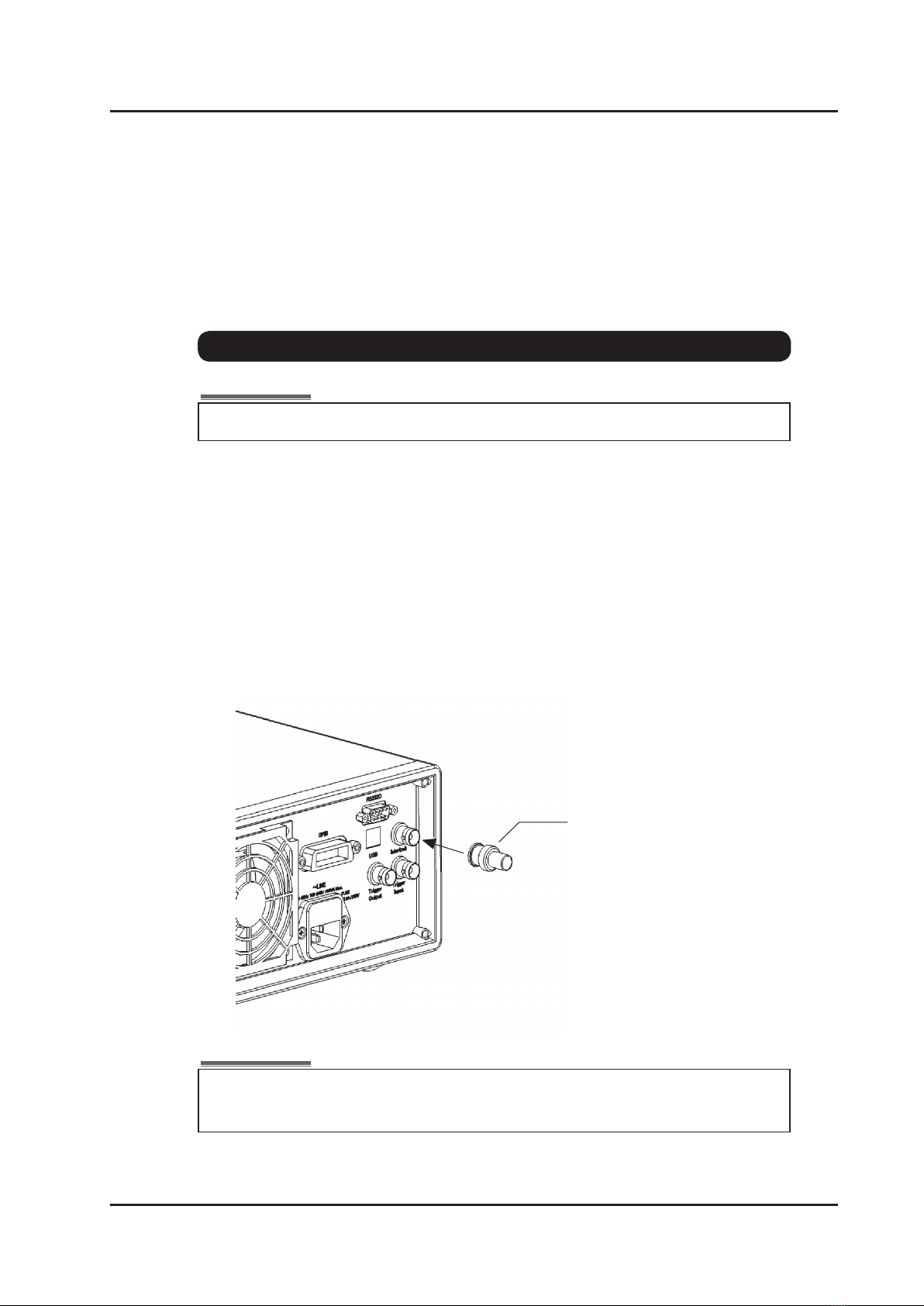

If you don’t use your own interlock circuit, please connect the terminator to the
terminal(BNC) indicated as “Interlock”. If you use your own interlock circuit, please
connect the interlock circuit to the terminal indicated “Interlock”
Terminal(Accessory)
NOTE
NOTE
Make sure to use this product only with the terminator connected when an external
interlock is not used. The LD does not light up unless the terminator is connected.
The interlock function is option.
When "IntLock" is indicated in the display of the front panel, the interlock circuit is
in open state. There is no laser output.

TUNABLE SEMICONDUCTOR LASER TSL- 510
5-1
Basic Operation
5
5 -1 Turning on the Unit
1. Press the power ON/OFF key at the lower left of the front panel.
2. The LED above the power ON/OFF key will turn green, and initialization will last for about
15 seconds.
3. After initialization has completed, the password input screen appears. Input the password
using the numeric keypad. The default password is ”0000”. Refer to “6-12. Changing the
password” on how to change the password.
4. The main screen appears, displaying the wavelength and the power.
Power ON/OFF Key
Analog Output Analog Input LF Mod.
RF Mod.
Power ON/OFF LED

5-2
TSL-510 OPERATION MANUAL
5. It may take several minutes for the internal temperature to stabilize after the
power is turned on. “Warm Up” is displayed on the main screen during this period.
Normal operation can still be conducted while “Warm Up” is displayed. (However,
it will take longer for the temperature to stabilize if LD output is on. There may be
some deviation from the specication values while “Warm Up” is displayed.)

TUNABLE SEMICONDUCTOR LASER TSL- 510
5-3
Make sure that the optical fiber is connected correctly to the optical output
connector before performing LD output.
5 -2 LD Output
1. Press the LD ON/OFF key. The LED turns green and the current is fed to the LD.
The light intensity is set to the intensity just before LD output is turned off.
It takes from 1 to 2 minutes to turn on LD output. During this period, the LD
ON indicator LED blinks, and “TempCtrl” is displayed on the main screen. Light
is output from the optical output connector after the LED status switches from
blinking to illuminated.
Analog Output Analog Input
LF Mod. RF Mod.
LD ON/OFF Key
After turning the power on or the LD output off, we recommend that you wait at
least 30 seconds before turning on LD output. Operation of the keys on the front
panel and operation by communication command are not possible while the LD
ON indicator LED is blinking.
NOTE
LD ON LED
Optical Output Connecor
CAUTION

5-4
TSL-510 OPERATION MANUAL
2. Press the LD ON/OFF key again to turn off the LD output. LD current is interrupted and
the LED turns off.
CAUTION
Make sure that the LD LED is off before turning the power OFF. Failure to do so may
damage the LD.
1. When “IntLock” is displayed on the main screen of the front panel, the interlock circuit
is open and the LD will not illuminate.
2. “IntLock” is not displayed on the main screen because there is not the interlock
function in standard model.
NOTE
