Cheviot 5138 User manual

Tel : [phone]
www.cheviotproducts.com
CARE AND MAINTENANCE
Minimum Maintenance is required to maintain product finish. With proper
maintenance your CHEVIOT Faucet will continually look like new. Special care
should be taken when cleaning your faucet and the following suggestions should help
extend your faucet life.
a) Cleaning should be done regularly using a soft cotton cloth and warm water, then
towel dry.
b) Do not use cleaners that contain abrasives or harsh chemicals; Care should be
taken in selecting cleaning supplies. Many cleaners contain detergents, ammonia, or
other corrosive solvents that could damage your faucet finish.
c) occasionally clean with a non-abrasive wax polish.

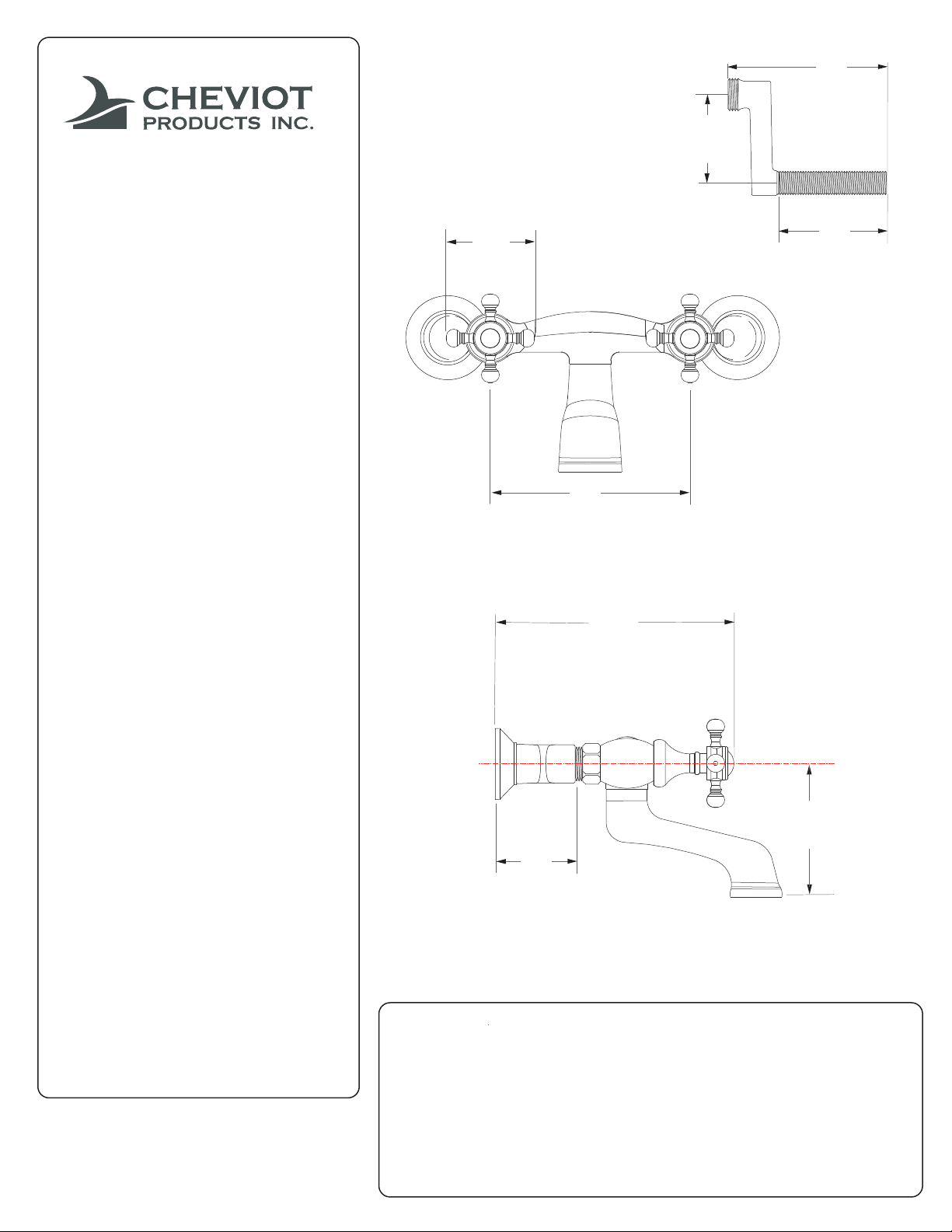

Model # 5138
INSTRUCTIONS
1. Attach the S-Union to the tub with flat
metal washer and 1/2” lock nut. Make
sure that escutcheon is tight against
S-Union arm (hand tighten only).
2. Attach faucet to S-Unions (3/4“ rubber
washers must be installed) and adjust
faucet so that it sits level. Now tighten
hex nuts on back of faucet to secure the
S-Unions. Then tighten the 1/2” lock
nuts on the back of the S-Unions to
secure faucet on vertical surface.
3. Next connect the water supply lines.
Must have hot going to hot side & cold
to the cold side. If using 1/2“ OD
decorative supply line connect the hex
nuts at the top of the supply lines to the
back of the S-Unions. If installing inside
the wall use copper fittings.
4. Once installed, remove aerator to
flush faucet and water
lines.
This will remove any debris that
may be trapped. Then attach aerator.
21
_
2
"
6"
61
_
2
"
15
_
8
"
45
_
8
"
21
_
2
"
37
_
8
"
21
_
4
"

Model # 3970 & 3970XL
INSTRUCTIONS
1. Drill two holes 1-1/8” as per your
determined measurements.
2. Slide escutcheons up on bottom of each riser
tube and install one 3/4”brass flange nut on
each riser. Measure from bottom of valve to
make sure that the nuts are threaded at same
distance.
3. Lower the riser tubes through floor (make
sure you have valve handles on the correct
sides). Install other 3/4”brass flange nut
underneath (leave loose and attach faucet).
Then tighten flange nuts, securing riser tubes
to floor.
4a. If you are using plastic water lines a 3/4”FIP
x barb adapter will attach directly to the 3/4”
running thread on riser tube.
4b. If you are using copper pipe –you will
have to use the 3/4”& 1/2”brass reducers
and 3/4”fiber washers (make sure you soak
the washer in water before using). Put
washer between riser tube and reducer and
tighten using Allen wrench. Attach to your
copper line.
5. Pressure test riser tubes before closing access
plate.
Tel : [phone]
www.cheviotproducts.com
CARE AND MAINTENANCE
Minimum Maintenance is required to maintain product
finish. With proper maintenance your CHEVIOT Faucet
will continually look like new. Special care should be
taken when cleaning your faucet and the following
suggestions should help extend your faucet life.
a) Cleaning should be done regularly using a soft
cotton cloth and warm water, then towel dry.
b) Do not use cleaners that contain abrasives or harsh
chemicals; Care should be taken in selecting cleaning
supplies. Many cleaners contain detergents, ammonia,
or other corrosive solvents that could damage your
faucet finish.
c) occasionally clean with a non-abrasive wax polish.
NOTE
Before drilling holes in
floor, determine the width
of the faucet supply line
nuts that you want to attach
the riser tubes to (these will
be for how far apart you
will be drilling holes). Now
determine where your tub
lip will be to make sure
faucet spout is at least 1”
inside of tub lip.
M12-111
6”Centers
on faucet
