Chicago Electric 91223 User manual

4-1/2” ANGLE GRINDER
91223
ASSEMBLY & OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright©2004 by Harbor Freight Tools®. All rights reserved. No portion
of this manual or any artwork contained herein may be reproduced in any shape or
form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353

SKU 91223 Page 2
THANKYOU for choosing a HARBOR FREIGHTTOOLS product. For future reference, please complete the
owner’s record below:
Model_____________ Serial No.__________ Purchase Date___________
SAVE THE RECEIPT, WARRANTY AND THESE INSTRUCTIONS. It is important that you read the entire manual
to become familiar with the unit BEFORE you begin assembly.
Technical Specifications
Tool Name:4-1/2” Angle Grinder
SKU: 91223
Motor: 120V/60Hz, Single Phase, 11,100 RPM
Cord Length: 8 FT.2 Prong UL Approved
Spindle: 5/8”X 11TPI with 7/8” Arbor
GrindingWheel: 4-1/2” X 1/4” X 7/8”
WORK AREA
1. Keepyourworkareacleanand well lit. Clutteredbenches anddark areasinviteaccidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust
or fumes.
3. Keep bystanders,children,and visitorsawaywhile operatingapower tool.Distractions
can cause you to lose control. Protect others in the work area from debris such as chips
and sparks. Provide barriers or shields as needed.
ELECTRICAL SAFETY
4. Grounded tools must be plugged into an outlet properly installed and grounded in
accordance with all codes and ordinances. Never remove the grounding prong or
modify the plug in any way. Do not use any adapter plugs. Check with a qualified
electrician if you are in doubt as to whether the outlet is properly grounded. If the
tools should electrically malfunction or break down, grounding provides a low resistance
path to carry electricity away from the user.
5. Double insulated tools are equipped with a polarized plug (one blade is wider than
the other). This plug will fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet,reverse the plug. If it still does not fit,contact a qualified electrician
to install a polarized outlet. Do not change the plug in any way. Double insulation
eliminates the need for the three wire grounded power cord and grounded power supply
system.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
5H92
E194601

SKU 91223 Page 3
6. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of electric shock if your body is grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools or pull
the Plug from an outlet. Keep the Power Cord away from heat, oil, sharp edges, or
moving parts. Replace damaged Power Cords immediately. Damaged Power Cords
increase the risk of electric shock.
9. When operating a power tool outside,use an outdoor extension cord marked“W-A”
or “W”. These extension cords are rated for outdoor use, and reduce the risk of electric
shock.
PERSONAL SAFETY
10. Stay alert. Watch what you are doing, and use common sense when operating a
power tool. Do not use a power tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while operating power tools may result
in serious personal injury.
11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair,clothing,and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
12. Avoidaccidentalstarting. Be sure the PowerSwitchis off beforepluggingin. Carrying
power tools with your finger on the Power Switch, or plugging in power tools with the
Power Switch on, invites accidents.
13. Remove adjusting keys or wrenches before turning the power tool on. A wrench or
a key that is left attached to a rotating part of the power tool may result in personal injury.
14. Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the power tool in unexpected situations.
15. Use safety equipment. Always wear eye protection. Dust mask, nonskid safety shoes,
hard hat, or hearing protection must be used for appropriate conditions.
TOOL USE AND CARE
16. Use clamps (not included) or other practical ways to secure and support the
workpiece to a stable platform. Holdingthework byhand or againstyourbodyisunstable
and may lead to loss of control.
17. Do not force the tool. Use the correct tool for your application. The correct tool willdo
the job better and safer at the rate for which it is designed.
18. Do not use the power tool if the Power Switch does not turn it on or off. Any tool that
cannot be controlled with the Power Switch is dangerous and must be replaced.
19. Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool accidentally.

SKU 91223 Page 4
20. Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands of untrained users.
21. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained
tools with a sharp cutting edge are less likely to bind and are easier to control. Do not use
a damaged tool. Tag damaged tools “Do not use” until repaired.
22. Check for misalignment or binding of moving parts, breakage of parts, and any
othercondition that mayaffectthe tool’s operation. If damaged,havethe toolserviced
before using. Many accidents are caused by poorly maintained tools.
23. Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may become hazardous when used on
another tool.
SERVICE
24. Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
25. When servicing a tool, use only identical replacement parts. Follow instructions in
the “Maintenance” section of this manual. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
1. Always use proper guard with grinding wheel. A guard protects the operator from
broken wheel fragments.
2. Accessories must be rated for at least the speed recommended on the tool warning
label.
3. Hold tool by insulated gripping surfaces when performing an operation where the
cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire
will make exposed metal parts of the tool “live” and shock the operator.
4. Maintain labels and nameplates on the Grinder. These carry important information.
If unreadable or missing, contact Harbor Freight Tools for a replacement.
5. Always wear safety impact eye goggles and heavy work gloves when using this
tool. Using personal safety devices reduce the risk for injury. Safety impact eye goggles
and heavy work gloves are available from Harbor Freight Tools.
6. Maintain a safe working environment. Keep the work area well lit. Make sure there is
adequatesurroundingworkspace. Always keepthe work area free of obstructions,grease,
oil, trash, and other debris. Do not use a power tool in areas near flammable chemicals,
dusts, and vapors. Do not use this product in a damp or wet location.
7. WARNING! All accessories for this tool must be rated for at least 12,000 RPM.
GrindingWheels and other accessories running over the rated 12,000 RPM speed can fly
apart and cause injury.
8. When using a hand-held power tool, always maintain a firm grip on the tool with
both hands to resist starting torque.

SKU 91223 Page 5
9. Use only 4-1/2” diameter Grinding Wheels (not included) having a 5/8” center
mounting hole. Never disable or modify theWheel Guard.
10. Avoid unintentional starting. Make sure you are prepared to begin work before turning
on this tool.
11. Do not force this tool. This tool will do the work better and safer at the speed and
capacity for which it was designed. Do not force the rotating GrindingWheel (not included)
into the object being ground. Apply moderate pressure, allowing the Grinding Wheel to
rotate freely without being forced.
12. WARNING! Never install a carbide tipped or steel circular saw blade for use on
this tool. Never install a wood carving blade,carving disc with saw chain cutters, or
a cutting carving disc on this tool.
13. For safest operation, it is recommended that only these accessories be used with
this tool: Abrasive Cut-Off Discs andWheels,FlapWheels,Wire Brushes,WireWheel
Brushes.
14. Never lay this tool down until the Rotating GrindingWheel has come to a complete
stop. The Rotating Pad can grab the surface and pull the tool out of your control.
15. Never leave this tool unattended when it is plugged into an electrical outlet. Turn off
the tool, and unplug it from its electrical outlet before leaving.
16. Always unplug this tool from its electrical outlet before performing inspection,
maintenance, or cleaning procedures.
17. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities, contain chemicals known (to the State of California) to cause
cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
lead from lead-based paints, crystalline silica from bricks and cement or other masonry
products, arsenic and chromium from chemically treated lumber. Your risk from these
exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals:work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out microscopic
particles.
(California Health & Safety Code 25249.5, et seq.)
18. WARNING! People with pacemakers should consult their physician(s) before using
this product. Operation of electrical equipment in close proximity to a heart pacemaker
could cause interference or failure of the pacemaker.
Warning: Thewarnings,cautionsandinstructions discussed inthisinstructionmanual
cannot cover all possible conditions and situations that may occur. It must
beunderstoodbytheoperatorthatCOMMONSENSEANDCAUTIONARE
FACTORSWHICH CANNOTBE BUILT INTOTHIS PRODUCT, BUTMUST
BE SUPPLIED BY THE OPERATOR.

SKU 91223 Page 6

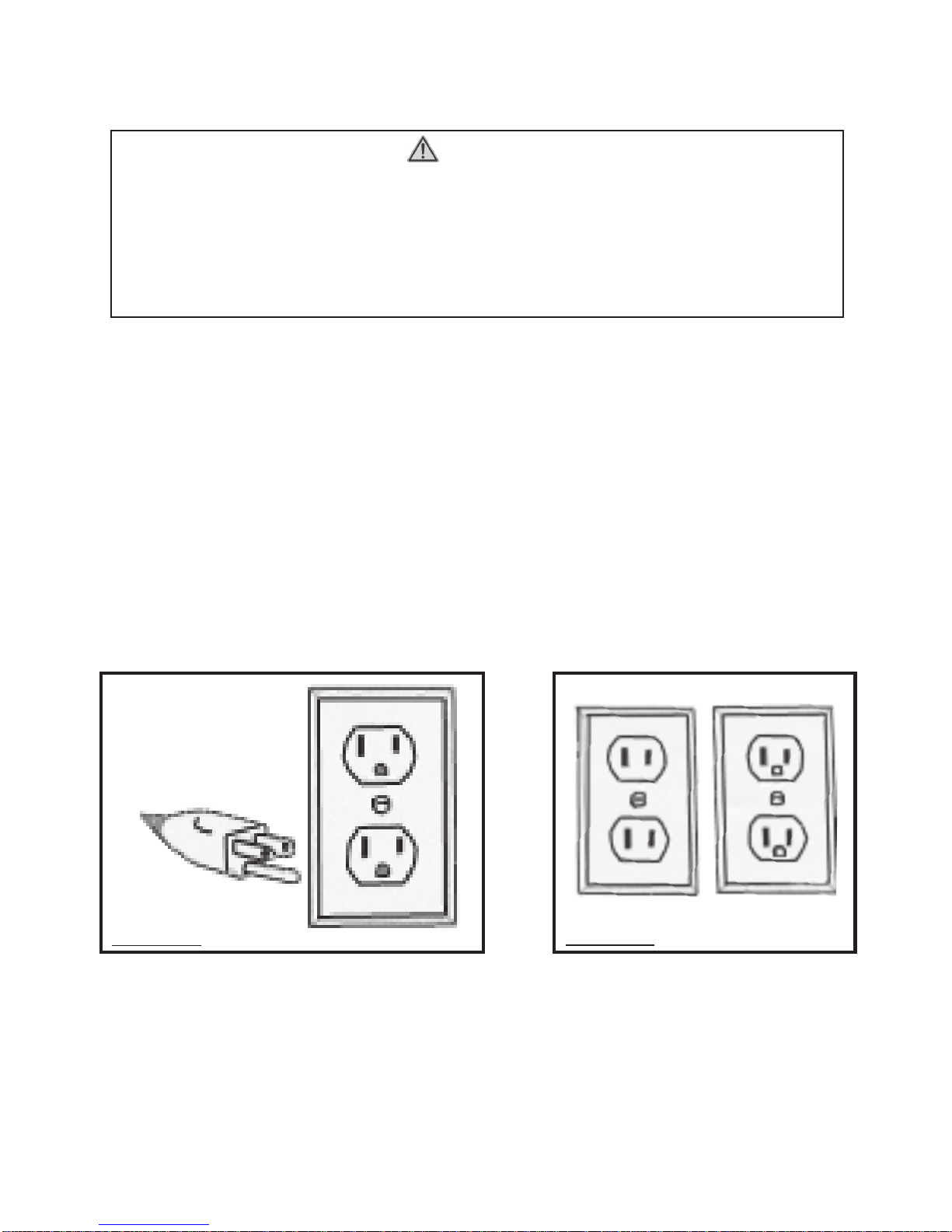

GROUNDEDTOOLS:TOOLS WITHTHREE PRONG PLUGS
1. Tools markedwith“GroundingRequired”haveathreewire cord and three pronggrounding
plug. Theplug mustbeconnected toaproperlygroundedoutlet. Ifthetool shouldelectrically
malfunction or break down, grounding provides a low resistance path to carry electricity
away from the user, reducing the risk of electric shock. (See Figure A, below left.)
2. The grounding prong in the plug is connected through the green wire inside the cord to the
grounding system in the tool. The green wire in the cord must be the only wire connected
to the tool’s grounding system and must never be attached to an electrically“live”terminal.
(See Figure A, below left.)
3. Your tool must be plugged into an appropriate outlet, properly installed and grounded in
accordance with all codes and ordinances. The plug and outlet should look like those in
the following illustration. (See Figure A, below left.)
FIGURE A
DOUBLE INSULATEDTOOLS:TOOLS WITHTWO PRONG PLUGS
4. Tools marked “Double Insulated” do not require grounding. They have a special double
insulation system which satisfies OSHA requirements and complies with the applicable
standards of Underwriters Laboratories, Inc., the Canadian Standard Association, and the
National Electrical Code. (See Figure B, above right.)
5. Double insulated tools may be used in either of the 120 volt outlets shown in the upper
right illustration. (See Figure B, above right.)
FIGURE B
GROUNDING
Improperly connecting the grounding wire can result in the risk of electric shock. Check with a
qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not
modify the power cord plug provided with the tool. Never remove the grounding prong from the
plug. Do not use the tool if the power cord or plug is damaged. If damaged, have it repaired by
a service facility before use. If the plug will not fit the outlet, have a proper outlet installed by a
qualified electrician.
WARNING!

SKU 91223 Page 7
EXTENSION CORDS
1. Grounded tools require a three wire extension cord.
2. As the distance from the supply outlet increases, you must use a heavier gauge
extension cord. Using extension cords with inadequately sized wire causes a serious
drop in voltage, resulting in loss of power and possible tool damage. (See Figure C.)
3. The smaller the gauge number of the wire, the greater the capacity of the cord. For
example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
(See Figure C.)
4. If using more than one extension cord to make up the total length, make sure each
cord contains at least the minimum wire size required. (See Figure C.)
5. If you are using one extension cord for more than one tool, add the nameplate
amperes and use the sum to determine the required minimum cord size.
(See Figure C.)
6. If you are using an extension cord outdoors, make sure it is marked with the suffix
“W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
7. Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified electrician
before using it.
8. Protect your extension cords from sharp objects, excessive heat, and damp or wet
areas.
FIGURE C
REQUIRED MINIMUM EXTENSION CORD GAUGE - 110 VOLT
EXTENSION CORD LENGTH
0-25 FT. 25-50 FT. 50-100 FT. 100-150 FT.
6
8
10
12
14
16
18
20
22
24
26
28
30
18
16
16
16
14
14
14
12
12
12
10
10
10
16
16
14
14
12
12
12
12
10
10
10
10
10
14
12
12
10
10
10
8
8
8
8
8
6
6
12
10
10
8
8
8
8
6
6
6
6
4
4
NAMEPLATE
AMPERES
(At Full Load)

SKU 91223 Page 8
Warning:
There are certain applications for which this tool was designed. Harbor Freight Tools strongly recommends that
this tool not be modified and/or used for any application other than which it was designed.
All accessories must be rated for at least the RPM speed recommended on the tool’s warning label.
Wheels and other accessories running over rated speed can fly apart and cause injury.
For safest operation, it is recommended that only these accessories be used with this product:
Abrasive Cut-Off Discs and Wheels Flap Wheels
Wire Brushes Wire Wheel Brushes
Always use an approved and proper guard when using the above mentioned accessories. Each accessory
must have the correct arbor size and must fit properly on the shoulder bushing. Make sure accessories
are tightened down securely.
CAUTION: NEVER INSTALLA CARBIDE TIPPED OR STEEL CIRCULAR SAW BLADE
FOR USE ON THIS ANGLE GRINDER. NEVER INSTALL A WOOD CARVING BLADE,
CARVING DISC WITH SAW CHAIN CUTTERS, OR A CUTTING CARVING DISC ON THIS
ANGLE GRINDER.
UNPACKING
When unpacking, check to make sure the following parts are included. All sizes listed below are ap-
proximate. If any parts are missing or broken, please call Harbor Freight Tools at the number on the
cover of this manual. Refer to parts diagram at end of manual.
Item # Description Qty.
N/A Grinder 1
29 Side Handle 1
28 Wrench 1
2 Grinding Wheel 1
N/A Spare Brushes 2
SYMBOLOGY
Double Insulated
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
Amperes
No Load Revolutions
per Minute (RPM)
A
V ~
noxxxx/min.

SKU 91223 Page 9
Handle
The Grinder comes with a SIDE HANDLE (#29)
which can be screwed into either side of the
Grinder. (refer to Figure 1.)
Figure 1 — Attaching Side Handle
Installing Wheels
Warning:
Always disconnect from power source
before adding or removing accessories.
Use a cloth or glove to protect hands
from abrasion.
Figure 2 — Installing Wheels
Step 1:Using the WRENCH (#28) (refer to Figure 2), loosen the WHEEL NUT (#1) by turning it counter
clockwise.
Step 2:Place the new GRINDING WHEEL (#2) on the SPINDLE (#5) against the INNER FLANGE (#3).
Step 3:By hand, Screw the WHEEL NUT clockwise back onto the SPINDLE, then tighten with the
WRENCH.
Side Handle
(#29)
Wrench
(#28)
Wheel Nut
(#1)
Grinding
Wheel
(#2)
Inner Flange
(#3)
Spindle
(#5)

SKU 91223 Page 10
Removing Wheels
Step 1:Depress the LOCK PIN (#12) and turn the GRINDING WHEEL counterclockwise until the LOCK
PIN engages. (See Figure 3).
Figure 3 — Removing Wheels
Step 2:Using the WRENCH, loosen the WHEEL NUT by turning it counterclockwise.
Step 3:Unscrew the WHEEL NUT and remove, then remove the GRINDING WHEEL from the
SPINDLE.
Wrench
(#28)
Wheel Nut
(#1)
Grinding
Wheel
(#2)
Lock Pin
(#12)

SKU 91223 Page 11
Starting the Grinder
WARNING:
Ensure the GRINDER is not locked ON before plugging it in. Check the SLIDE SWITCH (#19)
and make sure it is in the OFF position before plugging it into the power source.
Step 1: To turn the Grinder ON, push the Slide
Switch (#19) forward with your thumb to the
front position and the Grinder begins running.
Step 2: To turn the Grinder OFF, move the Slide
Switch (#19) backward with your thumb to the rear
position until the Grinder stops running.

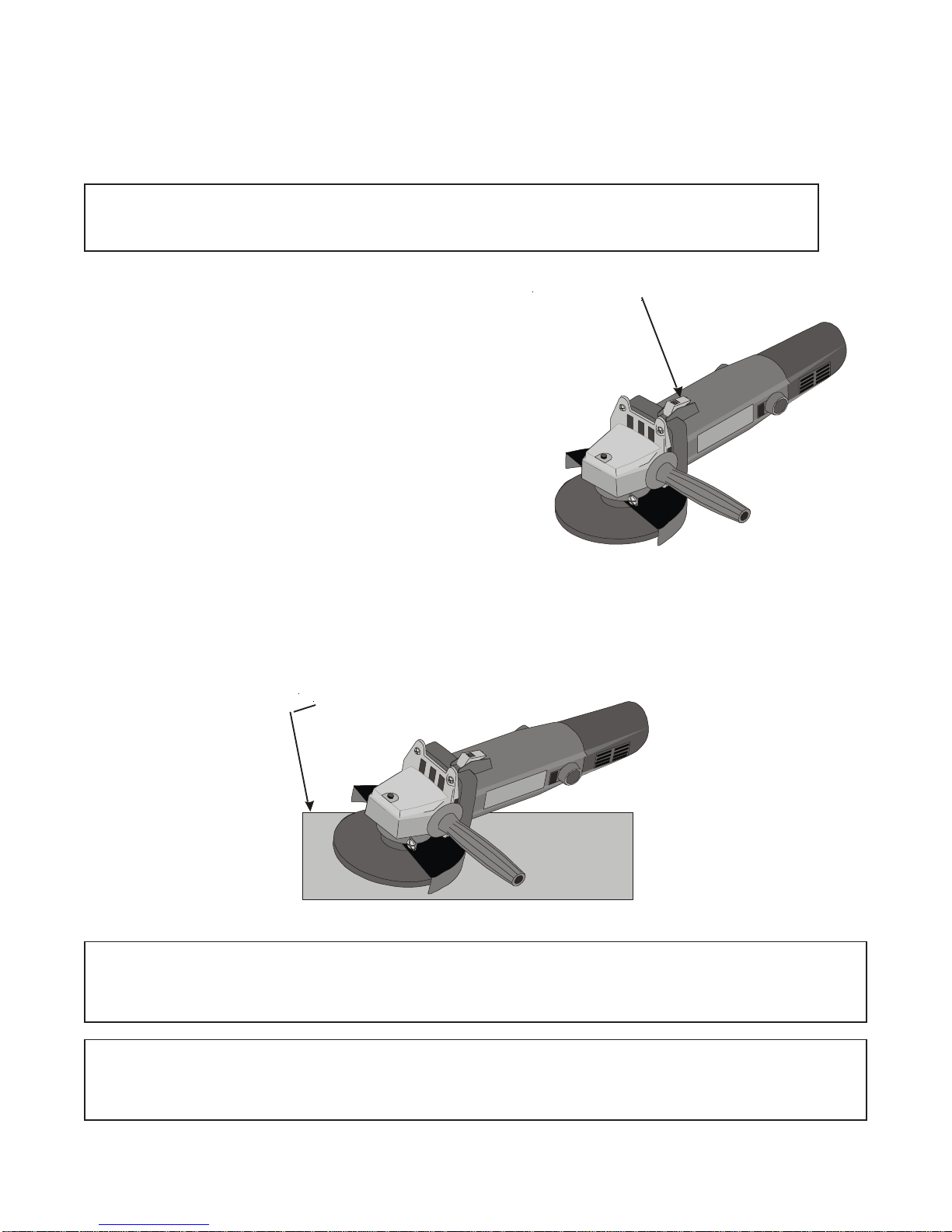

Using the Grinder
When using the GRINDING WHEEL, hold the grinder
at an angle of 10°to 15°relative to the work surface.
When only the outer edge of the GRINDING
WHEEL is used, a rough cut surface will result.
If the disc is pressed flat against the work, the grinding
action will be irregular or bumpy and the tool will be difficult to control.
Figure 5 — Angle of Grinder
Slide Switch]
(#19)
Figure 4-Turning ON the Grinder
Work Surface
NOTE:
The HANDLE MUST BE USED AT ALL TIMES to maintain complete control of the tool. Place
it on either side where it will afford the best leverage and work visibility.
NOTE:
Motor may heat up with prolonged medium to heavy use. To avoid motor burnout, do not
operate beyond a 15 to 20 minute duty cycle when using heavy force.

SKU 91223 Page 12
MAINTENANCE
WARNING:
DO NOT DISASSEMBLE.
This tool should be serviced by a qualified technician only. Incorrect reassembly can result in
electric shock, fire, or further damage to the tool.
Always keep the grinder clean
Dust and grit containing particles from metal grinding often accumulate on interior surfaces and
could create an electrical shock hazard if not frequently cleaned out. On a regular basis, blow
dust and grit out of the motor housing using compressed air. Never blow compressed air at
greater than 10 PSI. Always wear goggles and dust mask when using compressed air.
CAUTION:
Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. Use a
clean, dry rag only.
Carbon Brush
Replace the carbon brush when it wears down to about 3/16” (5 mm) or sparking will occur.
To change the CARBON BRUSH (#22) do the following:
Step 1: Using a flat tip screw driver, unscrew the BRUSH CAP (# 23) on the HOUSING (# 18).
Figure 6 — Replacing the Carbon Brushes
Step 2: Replace the CARBON BRUSH with identical replacement parts from Harbor Freight
Tools.
Step 3: Replace the BRUSH CAP on the HOUSING and screw-in to tighten.
Housing
(#18)
Brush Cap
(#23)
Carbon Brush
(#23)
(#22)

SKU 91223 Page 13
PARTS LIST
Item # Description Qty Item # Description Qty
1 Wheel Nut 1 16 Ball Bearing 1
2 Grinding Wheel 1 17 Stator 1
3 Inner Flange 1 18 Housing 1
4 Wheel Guard 1 19 Slide Switch 1
5 Spindle 1 20 Slide Bar 1
6 Packing Gland 1 21 Brush Holder 1
7 Ball Bearing 1 22 Carbon Brush 1
8 Gear 1 23 Brush Cap 1
9 Needle Roller Bearing 1 24 Cord 1
10 Gear Cover 1 25 Cover 1
11 Spring 1 26 Switch 1
12 Lock Pin 1 27 Switch Holder 1
13 Pinion 1 28 Wrench 1
14 Ball Bearing 1 29 Side Handle 1
15 Armature 1
PLEASE READTHE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL
AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO
MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIEDTO REPLACE ANY PARTS
OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT
ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED
TECHNICIANSANDNOT BYTHEBUYER.THEBUYERASSUMES ALL RISKANDLIABILITYARISINGOUT
OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR
ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTSTHERETO.

SKU 91223 Page 14
Assembly Diagram-Exploded View
