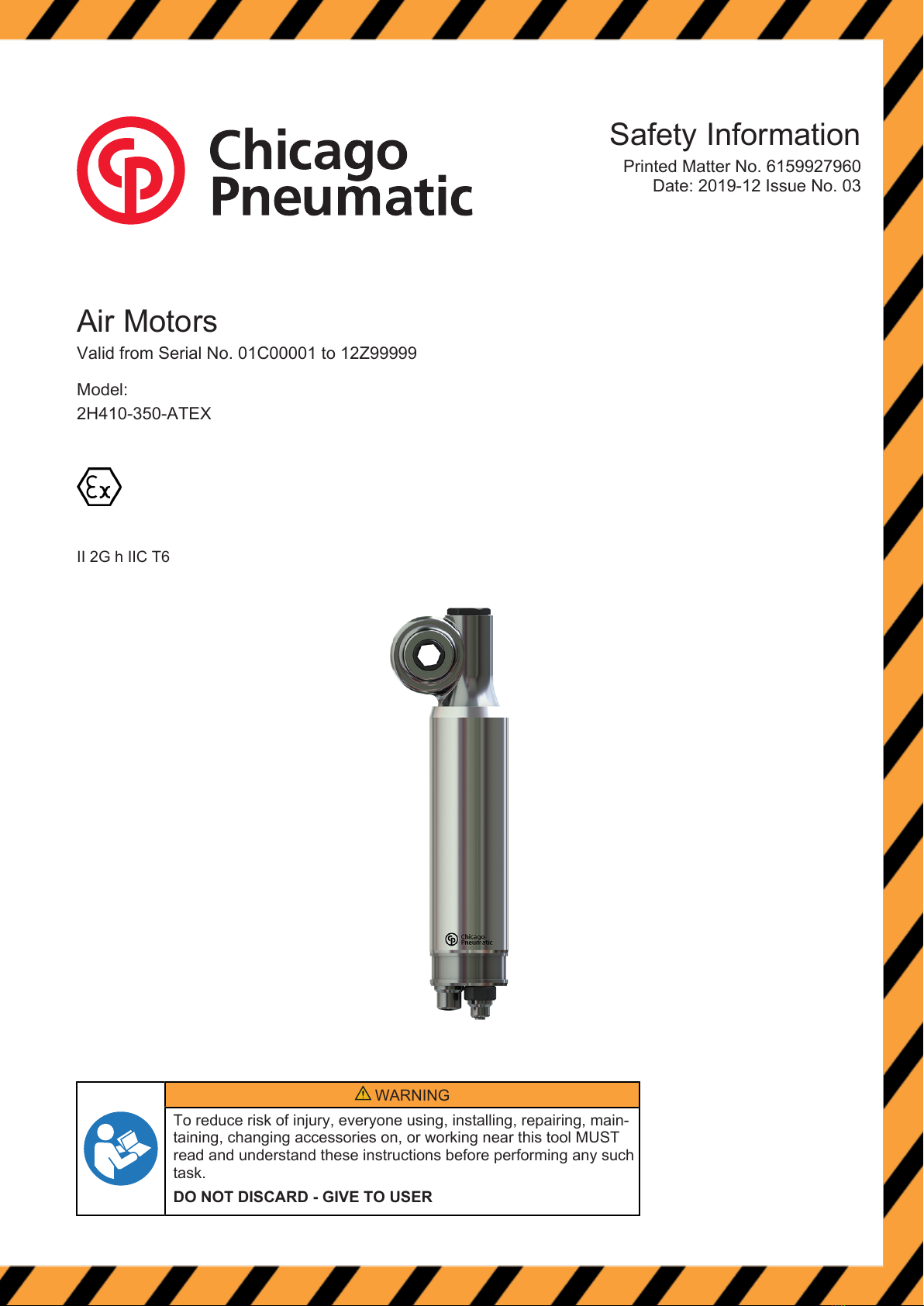

Chicago Pneumatic 2H410-350-ATEX Original instructions

Safety Information
Printed Matter No. 6159927960
Date: 2019-12 Issue No. 03
Air Motors
Valid from Serial No. 01C00001 to 12Z99999
Model:
2H410-350-ATEX
II 2G h IIC T6
WARNING
To reduce risk of injury, everyone using, installing, repairing, main-
taining, changing accessories on, or working near this tool MUST
read and understand these instructions before performing any such
task.
DO NOT DISCARD - GIVE TO USER

2© Chicago Pneumatic - 6159927960
Table of Contents
EN Safety Information...................................................................................................... 3
FR Informations concernant la sécurité ........................................................................... 6
DE Sicherheitshinweise.................................................................................................... 9
ES Información sobre seguridad.................................................................................... 13
PT Informação de Segurança......................................................................................... 16
IT Informazioni sulla sicurezza..................................................................................... 20
NL Veiligheidsinformatie............................................................................................... 23
DA Sikkerhedsoplysninger ............................................................................................. 26
NO Sikkerhetsinformasjon.............................................................................................. 30
FI Turvallisuustiedot..................................................................................................... 33
EL Πληροφορίες για την ασφάλεια ............................................................................... 36
SV Säkerhetsinformation ............................................................................................... 40
RU Информация по технике безопасности ................................................................ 43
PL Informacje dotyczące bezpieczeństwa ..................................................................... 47
SK Bezpečnostné informácie ......................................................................................... 51
CS Bezpečnostní informace ........................................................................................... 54
HU Biztonsággal kapcsolatos tudnivalók ....................................................................... 57
SL Varnostne informacije.............................................................................................. 61
RO Informaţii privind siguranţa ..................................................................................... 64
TR Güvenlik bilgileri ..................................................................................................... 67
BG Информация за безопасност.................................................................................. 71
HR Sigurnosne informacije ............................................................................................ 74
ET Ohutus informatsioon............................................................................................... 78
LT Saugos informacija................................................................................................... 81
LV Drošības informācija ................................................................................................ 84
ZH 安全信息.................................................................................................................. 87
JA 安全情報.................................................................................................................. 90
KO 안전 정보................................................................................................................. 93

Air motors Safety Information
© Chicago Pneumatic - 6159927960 3
Technical Data
Technical data
Air flow at max. output (l/s) 17
Air flow at max. output (cfm) 36
Free speed (rpm) 350
Max. output Power (kW) 0.66
Max. output Power (hp) 0.85
Max. working pressure (bar) 6
Max. working pressure (psi) 87
Speed at max. output (rpm) 350
Torque at max. output (Nm) 51
Torque at max. output (ft.lb) 37.6
Weight (kg) 1.7
Weight (lb) 3.7
Inlet hose size (mm) 12
Inlet hose size (in) 0.5
Declarations
EU DECLARATION OF CONFORMITY
We, CHICAGO PNEUMATIC Tool Co. LLC, 1815 Club-
house Road, Rock Hill, SC 29730 - USA, declare under our
sole responsibility that the product (with name, type and se-
rial number, see front page) is in conformity with the follow-
ing Directive(s):
2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),
1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU
Harmonized standards applied:
DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN
80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO
12100:2010
The relevant technical documentation was compiled in accor-
dance with Machinery Directive 2006/42/EC and ATEX Di-
rective 2014/34/EU. Authorities can request the technical file
for ATEX Directive 2014/34/EU from:
Pascal Roussy, R&D Manager, Ets Georges Renault, 38 rue
Bobby Sands, BP10273 44818 Saint Herblain, France
Saint-Herblain, 09/12/2019
Pascal ROUSSY
Signature of issuer
Regional Requirements
WARNING
This product can expose you to chemicals including
lead, which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov
Safety
DO NOT DISCARD - GIVE TO USER
WARNING Read all safety warnings, instructions, il-
lustrations and specifications provided with this
product.
Failure to follow all instructions listed below may result
in electric shock, fire, property damage and/or serious
injury.
Save all warnings and instructions for future refer-
ence.
WARNING All locally legislated safety rules regard-
ing installation, operation and maintenance shall be
respected at all times.
Statement of Use
• For professional use only.
• This product and its accessories must not be modified in
any way.
• Do not use this product if it has been damaged.
• If the product data or hazard warning signs on the prod-
uct cease to be legible or become detached, replace with-
out delay.
• The product must only be installed, operated and ser-
viced by qualified personnel in an industrial environ-
ment.
Intended Use
This motor is designed to be incorporated into a fixed or
moving machine. It is either for right hand rotation only, left
hand rotation only, or reversible rotation and should be
mounted by the flange or threaded nose only, as appropriate.
No other use permitted.
The risk of motors being the source of ignition of a poten-
tially explosive atmosphere is extremely small. The user is
responsible for assessing the risks associated with the whole
machine into which the motor is to be incorporated.
Product Specific Instructions
Warning
Make sure you are familiar with the operating instructions
before you use this motor.
This motor, its attachments and accessories must only be
used for the purpose for which they were designed.
For product liability and safety reasons any modification to
the motor or its accessories, which may have an influence on
the product liability, must be agreed upon by the technical
authority of the manufacturer.
To prevent personal injury and long term risks:
• If the motor is ATEX-certified, filter/silencers must be
installed at the motor outlet ports.
Silencers are recommended also for other applications to
reduce noise exposure.

Safety Information Air motors
4© Chicago Pneumatic - 6159927960
• Disconnect the motor from the air line before any adjust-
ment operation.
•Mind your hands, hair and clothing – always keep
well away from rotating parts.
Disposal
• The disposal of this equipment must follow the legisla-
tion of the respective country.
• All damaged, badly worn or improperly functioning de-
vices MUST BE TAKEN OUT OF OPERATION.
General safety instructions
To reduce risk of injury, everyone using, installing, repairing,
maintaining, changing accessories on, or working near this
tool must read and understand these instructions before per-
forming any such task.
Our goal is to produce tools that help you work safely and ef-
ficiently. The most important safety device for this or any
tool is YOU. Your care and good judgment are the best pro-
tection against injury. All possible hazards cannot be covered
here, but we have tried to highlight some of the important
ones.
• Only qualified and trained operators should install, ad-
just or use this power tool.
• This tool and its accessories must not be modified in any
way.
• Do not use this tool if it has been damaged.
• If the rated speed, operating pressure or hazard warning
signs on the tool cease to be legible or become detached,
replace without delay.
For additional safety information consult:
• Other documents and information packed with this
tool.
• Your employer, union and / or trade association.
• Further occupational health and safety information
can be obtained from the following web sites:
• http://www.osha.gov (USA)
• https://osha.europa.eu/ (Europe)
Air supply and connection hazards
• Air under pressure can cause severe injury.
• Always shut off air supply, drain hose of air pressure and
disconnect tool from air supply when not in use, before
changing accessories or when making repairs.
• Never direct air at yourself or anyone else.
• Whipping hoses can cause severe injury. Always check
for damaged or loose hoses and fittings.
• Do not exceed maximum air pressure of 6.3 bar / 90
psig, or as stated on tool nameplate.
Entanglement hazards
• Keep away from rotating drive. Choking, scalping and /
or lacerations can occur if loose clothing, gloves, jew-
ellery, neck ware and hair are not kept away from tool
and accessories.
Projectile hazards
• Always wear impact-resistant eye and face protection
when involved with or near the operation, repair or
maintenance of the tool or changing accessories on the
tool.
• Be sure all others in the area are wearing impact-resis-
tant eye and face protection. Even small projectiles can
injure eyes and cause blindness.
• Ensure the workpiece is securely fixed.
Operating hazards
• Clamp the tool securely.
• Ensure the tool is at a complete stop before removing
work.
• Always fit start, stop and emergency stop controls to the
machine into which the motor/torque motor is incorpo-
rated.
Noise hazards
• High sound levels can cause permanent hearing loss and
other problems such as tinnitus. Use hearing protection
as recommended by your employer or occupational
health and safety regulations.
• To prevent unnecessary increases in noise levels operate
and maintain the tool, and select, maintain and replace
the accessories and consumables, in accordance with this
instruction manual.
Workplace hazards
• Slip/Trip/Fall is a major cause of serious injury or death.
Be aware of excess hose left on the walking or work sur-
face.
• Avoid inhaling dust or fumes or handling debris from the
work process which can cause ill health (for example,
cancer, birth defects, asthma and/or dermatitis). Use dust
extraction and wear respiratory protective equipment
when working with materials which produce airborne
particles.
• Some dust created by power sanding, sawing, grinding,
drilling and other construction activities contains chemi-
cals known to the State of California to cause cancer and
birth defects or other reproductive harm. Some examples
of these chemicals are:
• Lead from lead based paints
• Crystalline silica bricks and cement and other ma-
sonry products
• Arsenic and chromium from chemically-treated rub-
ber
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals: work in a well ventilated area,
and work with approved safety equipment, such as dust
masks that are specially designed to filter out micro-
scopic particles.
• Proceed with care in unfamiliar surroundings. Be aware
of potential hazards created by your work activity. This
tool is not insulated from coming into contact with elec-
tric power sources.

Air motors Safety Information
© Chicago Pneumatic - 6159927960 5
DO NOT DISCARD – GIVE TO USER
ATEX Certification Information
ATEX Code Definition
The ATEX code is:
II 2G h IIC T6
°C ≤ Ta ≤ 40 °C
Description Value Definition
Equipment group II Surface Industry
Equipment category
Group II
2High level of pro-
tection
• zone 1 (gas)
• zone 2 (gas)
• zone 21 (dust)
• zone 22 (dust)
Atmosphere GAtmosphere con-
taining Gas, Va-
pors or Mist
DAtmosphere con-
taining Dust
Safety design hMechanical prod-
uct
Gas group IIC Hydrogene/ Acety-
lene
IIB Ethylene
Max surface tem-
perature in Gas at-
mosphere
T1 = 450°C
T2 = 300°C
T3 = 200°C
T4 = 135°C
T5 = 100°C
T6 = 85°C
Max surface tem-
perature in Dust at-
mosphere
Example tempera-
tures:
T85°C
T110°C
T120°C
T125°C
T240°C
Special restriction,
for example ambi-
ent temperature
range.
X
Temperatures
• The maximum surrounding temperature for which the
certification is valid is 40°C.
• 40°C is also the maximum allowed temperature of the
compressed air when it enters the product.
• If the product is installed in an equipment, the entire
equipment has to correspond to the guidelines 2014/34/
EU.
• Make sure that the compressed air fulfil our quality de-
mands (quality classes 2.4.3. and 3.4.4 respectively 3.5.4
acc. to ISO/DIS 8573-1:2010).
• Do not exceed maximum pressure of 6.3 bar, or as stated
on the product nameplate. Exceeding the operating pres-
sure can increase the surface temperature due to higher
rotating speed and the product can become an ignition
source.
Ex Classification
If the product is part of an assembly where the components
have different Ex classification, the component with the low-
est level of safety defines the Ex classification of the com-
plete assembly.
Explosion Prevention Guidelines
Cleanliness
• Make sure the product is kept clean from dust and dirt to
prevent increased bearing and surface temperature.
• If using a silencer: Make sure a silencer with a filtering
effect at the air outlet is installed to prevent any friction-
heated particles entering into the surrounding atmos-
phere.
Usage
• Make sure the product is earthed to the equipotential
bonding system of the workshop, for example through
accessories such as hoses and air-pressure connections.
• It is the responsibility of the user to make sure that the
product and all possible accessories, such as wrenches
and air connections, conform to the national safety regu-
lations for equipment used in potentially explosive areas.
Useful Information
Website
Information concerning our Products, Accessories, Spare
Parts and Published Matters can be found on the Chicago
Pneumatic website.
Please visit: www.cp.com.
Country of origin
Hungary
Safety Data Sheet
The Safety Data Sheets describe the chemical products sold
by Chicago Pneumatic.
