Chicago Pneumatic CP7901 User manual

CP7901
Reciprocating Saw
Model "A"
Operator’s Manual
TM
To reduce risk of injury, everyone using, installing, repairing, maintaining,
changing accessories on, or working near this tool must read and
understand these instructions before performing any such task.

8940158422 Rev. C
Printed in USA
Gardner Printing 06/04
FOR DETAILED INFORMATION ABOUT CHICAGO
PNEUMATIC AIR TOOLS AND EQUIPMENT CONTACT:
TM
Visit our website:
http://www.cp.com
HEADQUARTERS FRANCE SOUTH AMERICA
Contact Chicago Pneumatic/USA
Espace Lumière
LOCATION for names of CP Authorized
Bâtiment S
UNITED STATES Distributors in this area
57, Boulevard de la République
Chicago Pneumatic Tool Company 78403 Chatou Cédex. France
Automotive Division Telephone: [phone] SOUTHEAST ASIA
1800 Overview Drive Fax: [phone]
Rock Hill, SC 29730 • USA Chicago Pneumatic Tool Company
Regional Office
Telephone: [phone] P.O. Box 1516
GERMANY
1-800-367-2442 (USA only) Unit 2103 - Citimark
Fax: [phone] Desoutter GMBH 28 Yuen Shun Circuit
Paul-Friedlander-Str Shatin
65203 Wiesbaden • Germany
AUSTRALIA New Territories, Hong Kong
Telephone: [phone]
Atlas Copco Tools Australia Telephone: [phone]
Fax: [phone]
3 Bessemer Street Fax: [phone]
Blacktown • Australia INDIA
Telephone: [phone] SPAIN
Fax: [phone] Chicago Pneumatic Sales Desoutter S.A.
Chemtex House, First Floor C. Serrano, 120
Main Street
BELGIQUE 28006 Madrid • Spain
Hiranadani Gardens
Chicago Pneumatic Rep. Office Telephone: [phone]
Powai, Mumbai 400076, India
Avenue Sluysmans 10-4030 Fax: [phone]
Telephone: [phone]
Liege • Belgium (22)25708984
Tel/Fax: [phone] Fax: [phone] SWEDEN
Chicago Pneumatic
BRASIL Distributor Markets
ITALY
Chicago Pneumatic Brasil Sickla Industriväg 7
Desoutter Italiana S.R.L.
Av. Mascote 159 V. Sta. Catarina S-131 34 Nacka • Sweden
Viale Della Repubblica, 65
04363-000 Telephone: [phone]
20035 Lisson (Milano)
Sao Paulo/SP • Brasil Fax: [phone]
Telefone: [phone] MEXICO
Fax: [phone] UNITED KINGDOM
Chicago Pneumatic Tool Chicago Pneumatic Tool Company, Ltd.
Company Mexico
CANADA P.O. Box 241
San Francisco #223
Chicago Pneumatic Tool Co. Eaton Road
Valle Dorado, Tlalnepantla
Automotive Division Hemel Hempstead, Herts HP2 7DR
C.P. 54020 • Mexico
1800 Overview Drive England
Telephone: [phone]
Rock Hill, SC 29730 Domestic: 01442-847703/06
Fax: [phone]
Telephone: [phone] Export: 01442-232420/17
Fax: [phone] Fax: [phone]
SOUTH AFRICA
Chicago Pneumatic Tool Company, S.A.
CENTRAL AMERICA 20 Anvil Road
Contact Chicago Pneumatic/USA PO Box 105
for names of CP Authorized Isando 1600, Transvaal • South Africa
Distributors in this area Telephone: [phone]
Fax: [phone]

1
2
1
1
1
1
2
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
CA145052
CA145053
CA145054
CA145055
CA145056
CA145057
CA145058
CA145059
CA145060
CA145061
8940158401
CA145063
8940158402
CA145065
8940158403
CA145067
CA145068
8940158337
8940158404
8940158405
8940158406
8940158407
CA145074
CA145075
8940158408
8940158409
8940158410
CA145080
8940158411
CA145082
8940158775
8940158776
8940158777
8940158412
8940158413
8940158414
8940158415
8940158416
8940158417
8940158418
8940158419
8940158420
8940158421
8940158363

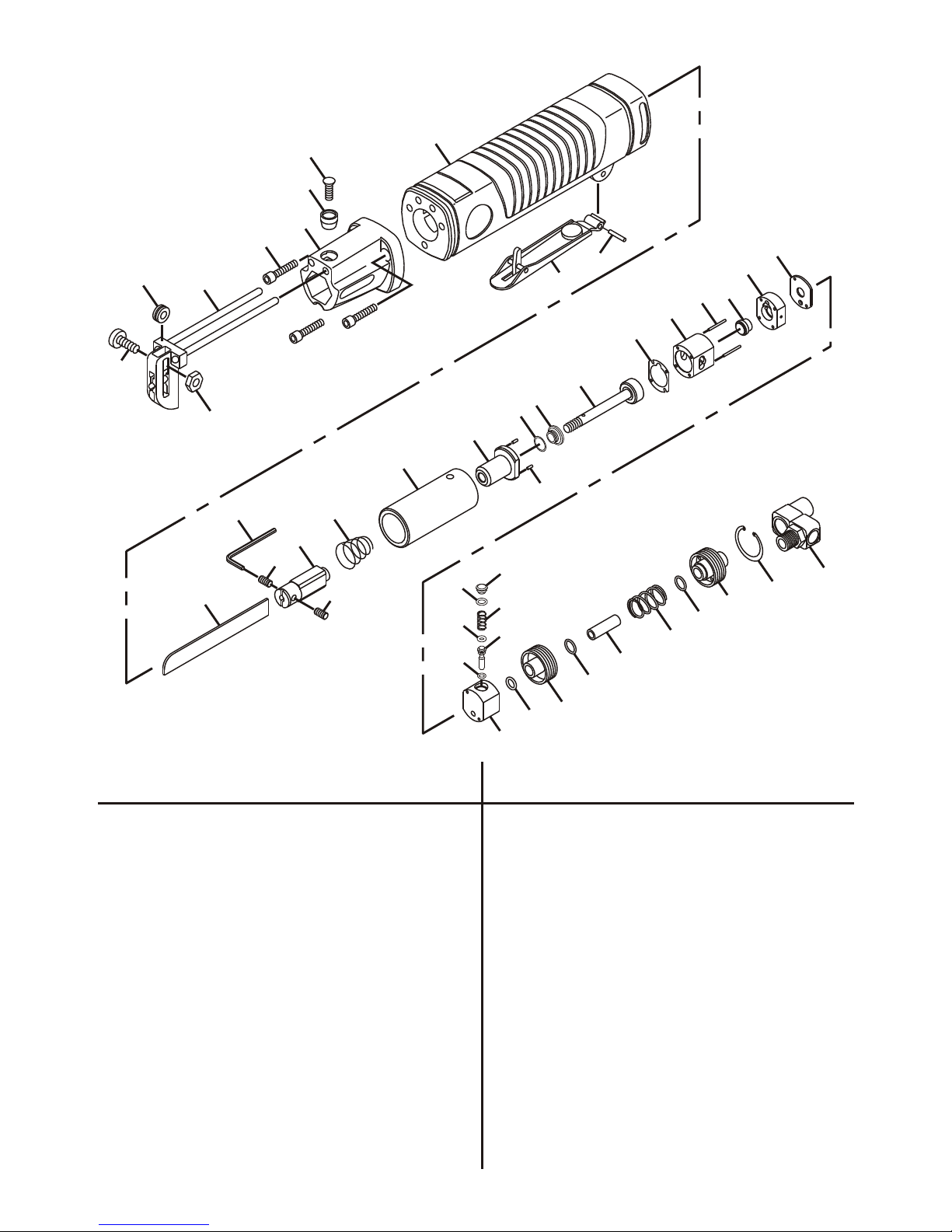

Cylinder Head Assembly
Pin-Dowel
Bumper
Piston (Incl: Index No.3)
Gasket
Cylinder
Pin-Dowel
Valve
Valve-Assembly (Incl: Index No.8)
Seat Valve
Body-Throttle Valve
O-Ring
Stem-Throttle Valve
O-Ring
Spring-Throttle Valve
O-Ring
Cap-Throttle Valve
Rubber Washer
Housing-Motor
Bushing-Air Inlet Assembly
(Incl: 8940158366 Muffler Cap,
8940158367 Muffler)
Spacer
Screw
Holder-Blade
Set-Screw
Screw
Guard-Blade
Guide Wheel
Wrench-Hex
Lever-Throttle
Spring Pin
Blade-Saw (18T)(5)
Blade-Saw (24T)(5)
Blade-Saw (32T)(5)
Universal Swivel Air Inlet Joint
Connecting Tube
Spring
Air Inlet
Retaining Ring
Nylon Nut
Shock Absorbent Spring
Main Liner
Front Head
Screw
Decal-Warning Safety
(Not Shown)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
34
35
36
37
38
39
40
41
42
43
44
1
2
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
CP7901
Reciprocating Saw
Index
No. Index No.
Part
No. Part No.
Description Description No.
Req'd.
No.
Req'd.
23
24
29
24
5
1
3
16
2
18
12
6
8
7
9
10
11
4
14 13
15
16 17
31
30
20
16
36
37 16 38 39 35
42
41
34
19
22
21
43
26
27
28
44
40

Copyright 2004, Chicago Pneumatic Tool Company
All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. This applies in particular to trademarks,
model denominations, part numbers and drawings. Use only authorized parts. Any damage or malfunction caused by the use of
unauthorized parts is not covered by Warranty or Product Liability.
CP7901
Reciprocating Saw
INSTRUCTION MANUAL

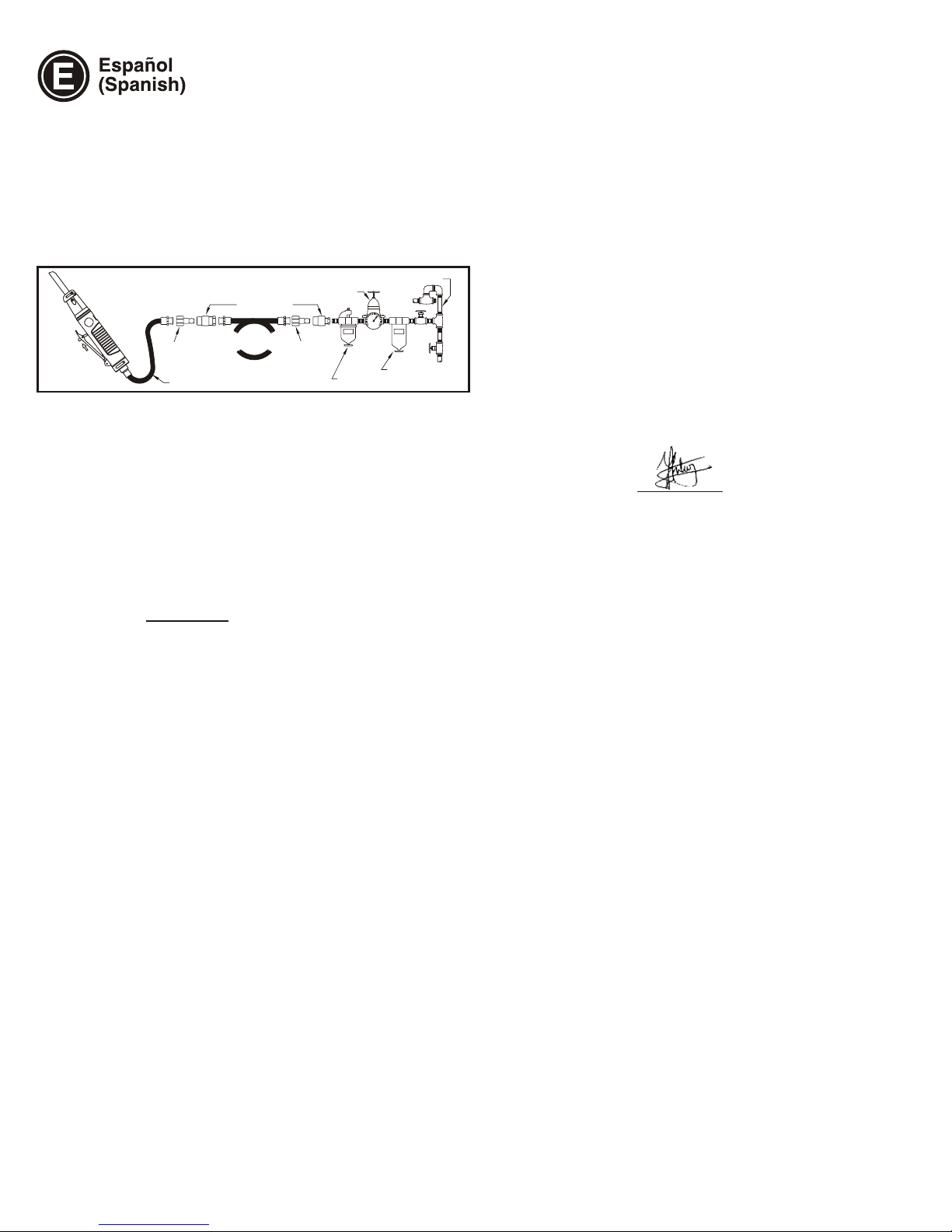

Air Supply Requirements
1. Supply tool with 90 psig (6.2 bar) of clean, dry air.
Higher pressure drastically reduces tool life.
2. Connect tool to air line using pipe, hose, and fitting
sizes shown in the diagram.
Lubrication
1. Use an air line lubricator with SAE #10 oil, adjusted
to two (2) drops per minute. If an air line lubricator
cannot be used, add air motor oil to the inlet once a
day.
Maintenance
1. Disassemble and inspect air motor every three
months if the tool is used every day. Replace
damaged or worn parts.
2. High wear parts are underlined in the parts list.
English
EN
EC DECLARATION OF CONFORMITY
We, Chicago Pneumatic Tool Company, 1800 Overview
Drive, Rock Hill, SC 29730 USA, declare under our sole
responsibility that the product to which this declaration
relates, is in conformity with the requirements of the Council
Directive of June 1998 on the approximation of the laws of
the Member States relating to machinery (98/37/EC).
Machine Name CP7901 Reciprocating Saw
Machine Type Power tool utilizes various saw blades for
cutting sheet metal and plastic - No other use is
permitted.
Serial No. Tools with No. 02091A or higher
Technical Data
Free speed 10000 SPM
Air pressure 90 psi (6.2 bar)
Harmonized Standards Applied EN292
National Standards Applied ISO 8662-12,
Name And Position Of Issuer Yves Antier, General
Manager, Chicago Pneumatic Tool Company
Signature Of Issuer
Place And Date Of Issue Rock Hill, SC 29730 USA,
April 1, 2002
Noise & Vibration Declaration*
Sound pressure level 88 dB(A),uncertainty 3 dB(A), in
accordance with ISO 15744-2002. For sound power, add
11 dB(A). 2
Vibration value <4.0 m/s , re. ISO 8662-12.
*These declared values were obtained by laboratory
type testing in compliance with the stated standards and
are not adequate for use in risk assessments. Values
measured in individual work places may be higher than
the declared values. The actual exposure values and risk
of harm experienced by an individual user are unique
and depend upon the way the user works, the workpiece
and the workstation design, as well as upon the
exposure time and the physical condition of the user.
We, Chicago Pneumatic, cannot be held liable for the
consequences of using the declared values, instead of
values reflecting the actual exposure, in an individual risk
assessment in a work place situation over which we have
no control.
ISO15744-
2002
1/2" (12mm)
3/8" (10mm)
3/8" (10mm)
3/8" (10mm)
CA048361 (1/2")
CA048362 (1/2")
CA048360 (1/2")
3/8" (10mm)
3/8" (10mm)
130
90
0
OLIYDIA L
OLIYDIA L

2
SAFETY INSTRUCTIONS
To reduce risk of injury, everyone using, installing, repairing,
maintaining, changing accessories on, or working near this tool must
read and understand these instructions before performing any such
task.
DO NOT DISCARD - GIVE TO USER
The goal of Chicago Pneumatic is to produce tools that help
you work safely and efficiently. The most important safety
device for this or any tool is YOU. Your care and good
judgment are the best protection against injury. All possible
hazards cannot be covered here, but we have tried to
highlight some of the important ones.
For Additional Safety Information Consult:
!Your employer, union and/or trade association.
!US Department of Labor (OSHA); www.osha.gov;
Council of the European Communities
europe.osha.eu.int
!“Safety Code for Portable Air Tools” (ANSI B186.1)
available from: www.ansi.org
!“Safety Requirements for Hand-Held Non-Electric Power
Tools” available from: European Committee for
Standardization, www.cenorm.be
Air Supply and Connection Hazards
!Air under pressure can cause severe injury.
!Always shut off air supply, drain hose of air pressure
and disconnect tool from air supply when not in use,
before changing accessories or when making repairs.
!Never direct air at yourself or anyone else.
!Whipping hoses can cause serious injury. Always check
for damaged or loose hoses and fittings.
!Do not use quick disconnect couplings at tool. See
instructions for correct set-up.
!Whenever universal twist couplings are used, lock pins
must be installed.
!Do not exceed maximum air pressure of 90 psi/6.2 bar
or as stated on tool nameplate.
Projectile Hazards
!Always wear impact-resistant eye and face protection
when involved with or near the operation, repair or
maintenance of the tool or changing accessories on the
tool.
!Be sure all others in the area are wearing impact-
resistant eye and face protection.
!Even small projectiles can injure eyes and cause
blindness. Operating Hazards
!Always shut off air supply, relieve hose of air pressure
and disconnect tool from air supply when changing
accessories.
!Cutting with these tools will create sharp edges. Wear
gloves to protect hands.
!Avoid direct contact with accessory and work surface
during and after work.
!Cutting edges and saw blades can become hot during
use. Do not touch.
!Never force the tool to cut faster or through heavier
gauge material than rated capacity.
!To prevent damage to the tool and accessory,
accessory must be held firmly against work surface
while cutting. Workplace Hazards
!Slip/Trip/Fall is a major cause of serious injury or death.
Be aware of excess hose left on the walking or work
surface.
!High sound levels can cause permanent hearing loss.
Use hearing protection as recommended by your
employer or OSHA regulation (see 29 CFR part 1910).
!Maintain a balanced body position and secure footing.
!Repetitive work motions, awkward positions and
exposure to vibration can be harmful to hands and
arms. If numbness, tingling, pain or whitening of the
skin occurs, stop using tool and consult a physician.
!Avoid inhaling dust or handling debris from the work
process which can be harmful to your health. Use dust
extraction and wear respiratory protective equipment
when working with materials which produce airborne
particles.
!Proceed with care in unfamiliar surroundings. Be aware
of potential hazards created by your work activity.
!Some dust created by power sanding, sawing, grinding,
drilling and other construction activities contains
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Some examples of these chemicals are:
- Lead from lead based paints
- Crystalline silica bricks and cement and other
masonry products
- And Arsenic and chromium from chemically-treated
rubber
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as
dust masks that are specially designed to filter out
microscopic particles.
Additional Safety Topics
!This tool and its accessories must not be modified.
!This tool is not intended for use in an explosive
atmosphere and is not insulated for contact with electric
power sources.
!Operators and maintenance personnel must be capable
of handling the power of the tool and performing the job
task.
!For professional use only
