Chileaf BBQ100 User manual

Thank you for selecting CHILEAF! This wireless meat
thermometer will be your good assistant to perfectly grilled
food. The app-connected function allows you to monitor
the doneness of four cuts of meat and notifies you on
your smart phone once food has reached the perfect
temperature to serve.

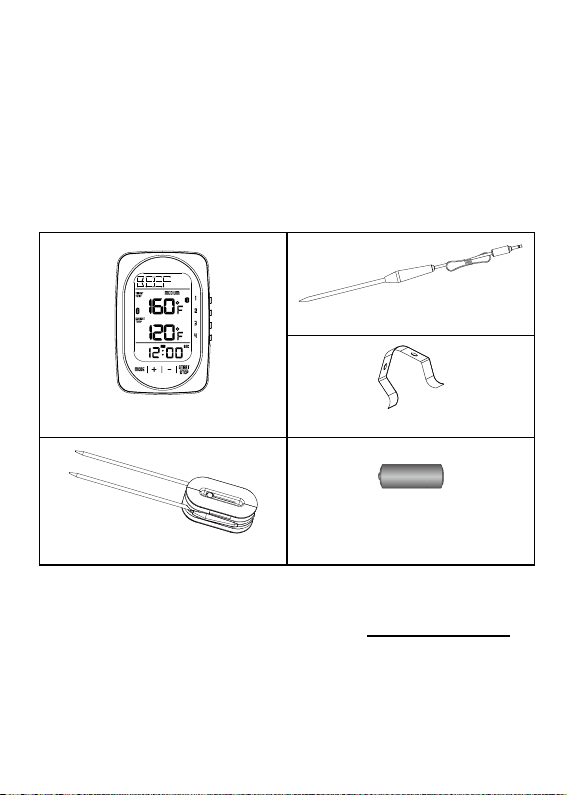

Packaging Contents
Body *1
Temperature probe *4
Metal probe bracket *4
probe holder *2
+-
AAA battery *3
* Extra Probes can be ordered via CHILEAF o󰀩cial web
site, for more information, please visit: www.chileaf.com
Front
1
2
3
4
5
6
7
8
9
10
12
11
1. Cooking Mode; Cooking 2. Doneness Level
Status; Food Type
3. Probe Jack Indicator 4. Probe Insertion Indicator
5. Probe Jack 6. Low Battery Indication
7. Target Temperature 8. Bluetooth Icon
9. °C/°F: Temperature Units 10. Current Temperature
11. Timer 12. Touch Key
Back
13
14
15
16
17
13. Jack Cover 14. Stand
15. Concealed Hook
16. °C/°F Switch Button
17. Battery Jar
How to Use
Getting start
• Slide up to remove the stand, then unscrew the cover of
battery jar.
• Follow the (+/-) icon to put three AAA batteries into the jar.
• Replace the cover and stand.
Probe Connection
• Lift the jack cover
• Take probes out from the probe holder
• Insert probes into the jack socket
• To ensure accurate readings, place the probe as close
to the food center as possible. The lead is about 3.3 ft (1
meter) and made by heat-resistant material.
• However, it is noticed that leads and LCD screen CAN
NOT be heated by re.
Settings
CHILEAF provides three modes for your BBQ &cooking
• Food Profile: System has preset the required
temperature of several kinds of food and doneness in
accordance with USDA
• Target Temperature: You can set the target temperature
by yourself, once the temperature is reached, the alarm
will sound
• Timer: Once the preset time is reached, the alarm
will sound
Probes 1 to 4 need to be set separately when first use.
Tap -/ +to switch between probe 1,2,3 and 4.
Buttons & Application
To wake up CHILEAF, hold any button on it for 1s
Then press any button to light up screen.
[mode]
-
Tap “mode” to switch the mode selection: Meat (Food
Prole) --> Temper --> Timer

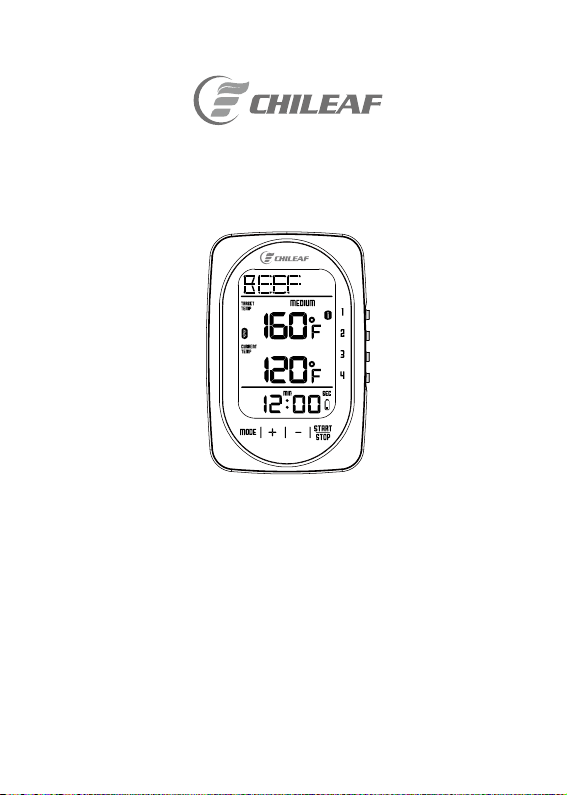

User Manual
BBQ Thermometer with BLE
Model: BBQ100

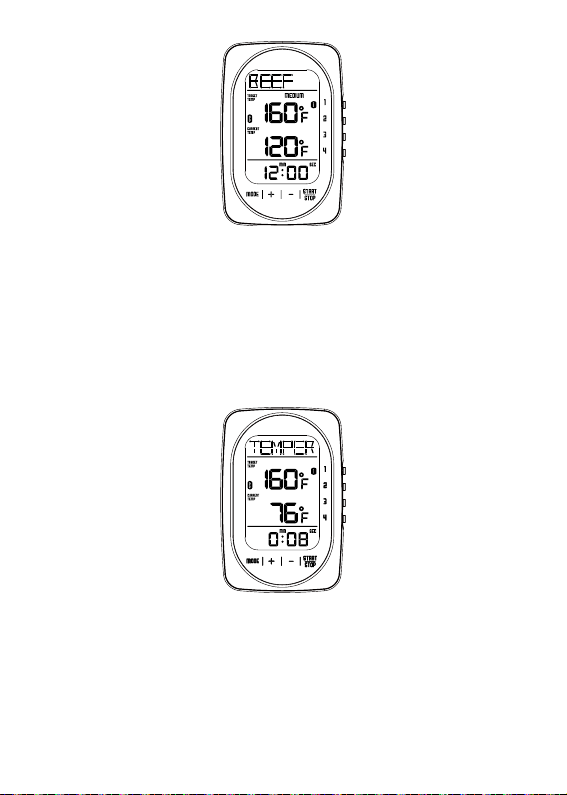

a. Meat Prole Mode
• Switch the mode into food prole, press and hold “mode”
for 2sec. until the word starts ashing.
• Then use “+” “-” to set type of food
Tap “mode” and use “+” “-” to choose the Doneness after
choosing the type, then tap “mode” again to conrm.
b. Temper Mode
• Use “mode” to switch mode into TEMPER, press & hold
“mode” for 2sec. to set target temperature and tap “mode”
again to conrm
• Press& hold “mode” for 5sec. to restore setup defaults
• The range of temperature is 100°F to 464°F

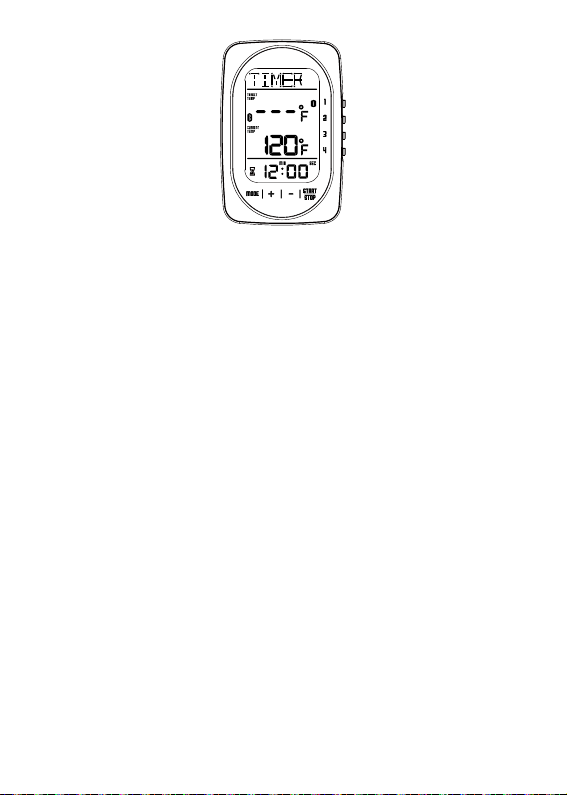

C. Timer
• Switch mode into TIMER, press & hold “mode” for 2sec.
to set countdown time mm --> ss, then tap “mode” again
to conrm
• Press& hold “mode” for 5sec. to restore setup defaults
• The range of minute is up to 99, and 59 to second
[+] [-]
• Use “+” “-” to decide which probe Will be showed
on screen
• Use “+” “-” after the mode starts flashing to change
the value
* All above are unavailable when the screen shows
“cook…”
[start/stop]
Tap to start/stop cooking
Tap to stop alert
Hold for 2 sec. to turn o󰀨 the unit (unavailable on cooking)
