ULTIMA 6
Manual
-
V.1.0

Chord Electronics
ULTIMA 6 | Manual
_
2 // 24
Contents 0.0
1.0 Safety instructions 03
1.1 Introduction 04
1.2 Protection against liquids & heat 05
1.3 Dismantling & Radio 06
frequency interference
1.4 Connecting your equipment 07
2.0 Warranty 08
2.1 Warranty period & registering 09
your purchase
2.2 Making a claim & warranty exclusions 10
0.0 Contents
3.0 Getting to know ULTIMA 6 11
3.1 Getting to know ULTIMA 6 12
3.2 The front panel 13
3.3 The top panel 14
3.4 The rear panel 15
4.0 Setting up ULTIMA 6 16
4.1 Placement 17
4.2 Connecting ULTIMA 6 to 18
ancillary equipment
4.3 Audio inputs 19
4.4 Audio outputs 20
4.5 Power-on sequence and 12V trigger 21
4.6 Earthing issues in Europe 22
4.7 Adjusting the brightness of the LED‘s 23

Chord Electronics
ULTIMA 6 | Manual
_
1.1 Introduction
1.2 Protection against liquids & heat
1.3 Dismantling & Radio Frequency interference
1.4 Connecting your equipment
1.0 Safety
instructions
Safety instructions 1.0
3 // 24

Chord Electronics
ULTIMA 6 | Manual
_
4 // 24
Introduction 1.1
ULTIMA 6 is an
incredibly reliable
and technologically
advanced stereo power amplifier.
It represents the entry into Chord
Electronics Full Size amplification
ownership with a dual-feed-
forward error-correction topology.
Before operation, we strongly
advise that you read this user
manual thoroughly, storing it
in a safe place along with your
original receipt of purchase,
in case you should require
assistance in the future.
1.1 Introduction
1.2 Protection against
liquids & heat
1.3 Dismantling & radio frequency
interference
1.4 Connecting your equipment

Chord Electronics
ULTIMA 6 | Manual
_
Protection against
liquids & heat
1.2
The ULTIMA 6 is not
protected against liquids
of any kind. Never place
containers of liquid on ULTIMA 6.
Never allow ULTIMA 6 to come
into contact with moisture or
liquids; doing so could result in
electrocution or damage to the
ULTIMA 6 internal circuitry.
Be aware that liquids, including
water that has dried, can leave
minerals that can aect the
PCB and other components,
which could eventually lead to
oxidisation and short-circuiting.
If the ULTIMA 6 comes into
contact with moisture or liquids,
immediately disconnect from
the mains power supply, and
connected equipment, and
contact Chord Electronics for
further advice.
The ULTIMA 6 has
internal thermal
protection that will cut
the power supply if reached.
Never operate the ULTIMA 6 near
sources of heat or naked flames
as this will decrease the lifespan
of the internal components. It is
advised that you do not operate
the ULTIMA 6 in an area of direct
sunlight or on top of significant
heat- producing devices.
Please be aware that it is
entirely normal for the ULTIMA
6 to become warm during
use, particularly within a
stacked configuration. If you
are concerned about the
temperatures, please switch
the device o and consider a
dierent placement.
1.1 Introduction
1.2 Protection against
liquids & heat
1.3 Dismantling & radio frequency
interference
1.4 Connecting your equipment
5 // 24

Chord Electronics
ULTIMA 6 | Manual
_
6 // 24
There are no user-
serviceable components
within the ULTIMA 6
or its power supply. Dangerous
voltages/currents exist within
the ULTIMA 6 and its power
supply, posing a severe risk of
electrocution and/or fire.
Never attempt to
open, dismantle or
apply internal third-
party devices to it or insert
anything other than the listed
interconnects or speaker cables
within this user manual.
If the ULTIMA 6 develops a
fault or the casework becomes
damaged, immediately
disconnect from the mains power
supply and connected equipment
and contact Chord Electronics
for further advice.
1.1 Introduction
1.2 Protection against
liquids & heat
1.3 Dismantling & radio frequency
interference
1.4 Connecting your equipment
Dismantling & radio
frequency interference
1.3
With a thick, solid aluminium
chassis, the ULTIMA 6’s casework
largely protects the sensitive
internal circuitry from radio
frequency interference. However,
for optimal performance, it is
recommended that the following
points are observed:
1.Consider placing the
ULTIMA 6 away from
wireless routers.
2.Separate the
ULTIMA 6 from
amplifiers using
toroidal transformers.
3.Operate mobile
phones at a distance
to avoid interference.
Although the ULTIMA
6is largely shielded,
it can generate radio
frequency interference that
may have an eect on radio
and television reception. If this
occurs, please reconsider your
placement.

Chord Electronics
ULTIMA 6 | Manual
_
Before connecting the ULTIMA
6 to any equipment, consult the
manufacturer’s user guide to
confirm compatibility.
When connecting the ULTIMA
6 to any equipment, make sure
that all devices are o, including
the ULTIMA 6. Once connected,
switch all equipment on starting
with the source and ending with
the amplifier. Initially, operate
the ULTIMA 6 with your preamp/
and any connected sources on
their lowest gain settings and
lowest volume settings, gently
increasing to a comfortable
listening level. Never operate
the ULTIMA 6 at excessive
sound levels; permanent hearing
damage and loss can occur.
ULTIMA 6 is supplied with its
own grounded 16A-rated mains
IEC cable and it is important
that the amplifier is earthed at
all times via this cable, or an
appropriate alternative. Failure to
do this could be hazardous in the
unlikely event of a fault.
The supplied region-specific
16A mains IEC cable can be
substituted for an alternative
power cable, however, please
make sure that it has an earth. If
any cable becomes damaged you
must immediately discontinue
use and replace it to avoid the
risk of electrocution.
ULTIMA 6 must be permanently
connected to a source of power.
The included mains lead simply
plugs into the ULTIMA 5 IEC
mains socket. If the mains lead
is prematurely disconnected.
ULTIMA 6 may still hold charge
for up to 15 minutes.
1.1 Introduction
1.2 Protection against
liquids & heat
1.3 Dismantling & radio frequency
interference
1.4 Connecting your equipment
Connecting your equipment 1.4
WARNING: Never
disconnect the
power cable during
operation. Only disconnect
when ULTIMA 6 is o. If the
power cable is disconnected
during operation there is a
risk of damage to connected
equipment.
7 // 24

Chord Electronics
ULTIMA 6 | Manual
_
2.1 Warranty period & registering your purchase
2.2 Making a claim & warranty exclusions
2.0 Warranty
Warranty 2.0
8 // 24

Chord Electronics
ULTIMA 6 | Manual
_
9 // 24
2.1 Warranty period & registering
your purchase
2.2 Making a claim & warranty
exclusions
Warranty period & registering
your purchase
2.1
At point of sale, Chord
Electronics Ltd. provides the
ULTIMA 6 with a comprehensive
five-year warranty* which
covers defects in materials and
workmanship through fair wear
and tear.
*The warranty is transferable
with proof of purchase,
however is not available on ex-
demonstration products.
Please use the form
below to record the
details of your purchase
in the event that these are
required at a later date, we
further advise that all purchases
are registered with Chord
Electronics at: chordelectronics.
co.uk/register-product/
RETAILER:
PURCHASE PRICE:
UNIT COLOUR:
DATE OF PURCHASE:
TRANSACTION ID:

Chord Electronics
ULTIMA 6 | Manual
_
In the unlikely event of a
claim, you must provide Chord
Electronics with the details of
the claim, including your original
proof of purchase and serial
number in order to validate the
nature of the repair.
Upon receipt, Chord Electronics
will make an assessment within
30 days and provide a reasonable
solution.
All warranty repairs must be
carried out by Chord Electronics
or an approved service centre to
guarantee the quality and safety
of the repair.
WARRANTY EXCLUSIONS: The
warranty does not cover connected
equipment, personal injury or
development natural patina of the
metalwork and will be null and void
if the following is applied: wilful
neglect; modification or tampering
of the product; improper use of the
product; acts of God; damage caused
by a connected device; mechanical
shock; fire or application of excessive
heat or repair/modification by a non-
authorised third-party vendor.
2.1 Warranty period & registering
your purchase
2.2 Making a claim & warranty
exclusions
Making a claim
& warranty exclusions
2.2
10 // 24

Chord Electronics
ULTIMA 6 | Manual
_
3.1 Getting to know ULTIMA 6
3.2 The front panel
3.3 The top panel
3.4 The rear panel
3.0 Getting to know
ULTIMA 6
Getting to know
ULTIMA 6
3.0
11 // 24

Chord Electronics
ULTIMA 6 | Manual
_
Before operation, we strongly
advise you read this user manual
thoroughly, storing it in a safe
place along with your original
receipt of purchase, should you
require assistance in the future.
3.1 Getting to know ULTIMA 6
3.2 The front panel
3.3 The top panel
3.4 The rear panel
Getting to know ULTIMA 6 3.1
12 // 24

Chord Electronics
ULTIMA 6 | Manual
_
With only two buttons, everyday
operation of ULTIMA 6 is simple
and you can tailor the brightness
of the feature lighting to suit the
ambience of your listening room.
Please view page 23 to learn how
to do this.
3.1 Getting to know ULTIMA 6
3.2 The front panel
3.3 The top panel
3.4 The rear panel

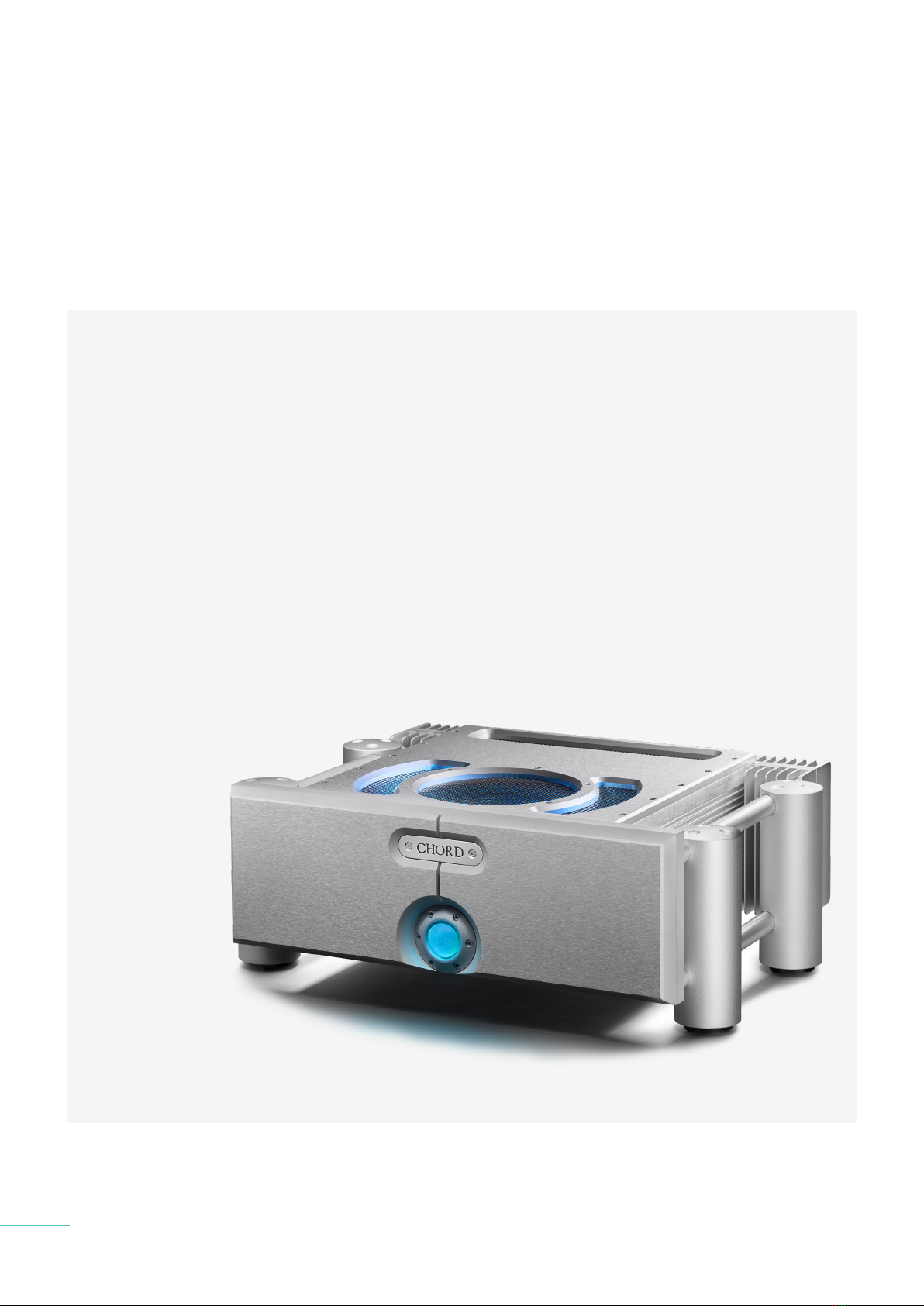

The front panel 3.2
13 // 24
Feature lighting dimmer switch
On/O
WARNING: You must
keep all vents clear.

Chord Electronics
ULTIMA 6 | Manual
_
The top panel has no user
configurable options. Instead,
three teal feature light rings
illuminate. If you find that these
rings are too bright for your
listening room you can control
the brightness via the front panel.
3.1 Getting to know ULTIMA 6
3.2 The front panel
3.3 The top panel
3.4 The rear panel
The top panel 3.3
14 // 24
WARNING: You must
keep all vents clear.
Stackable Integra legs
Light ring

Chord Electronics
ULTIMA 6 | Manual
_

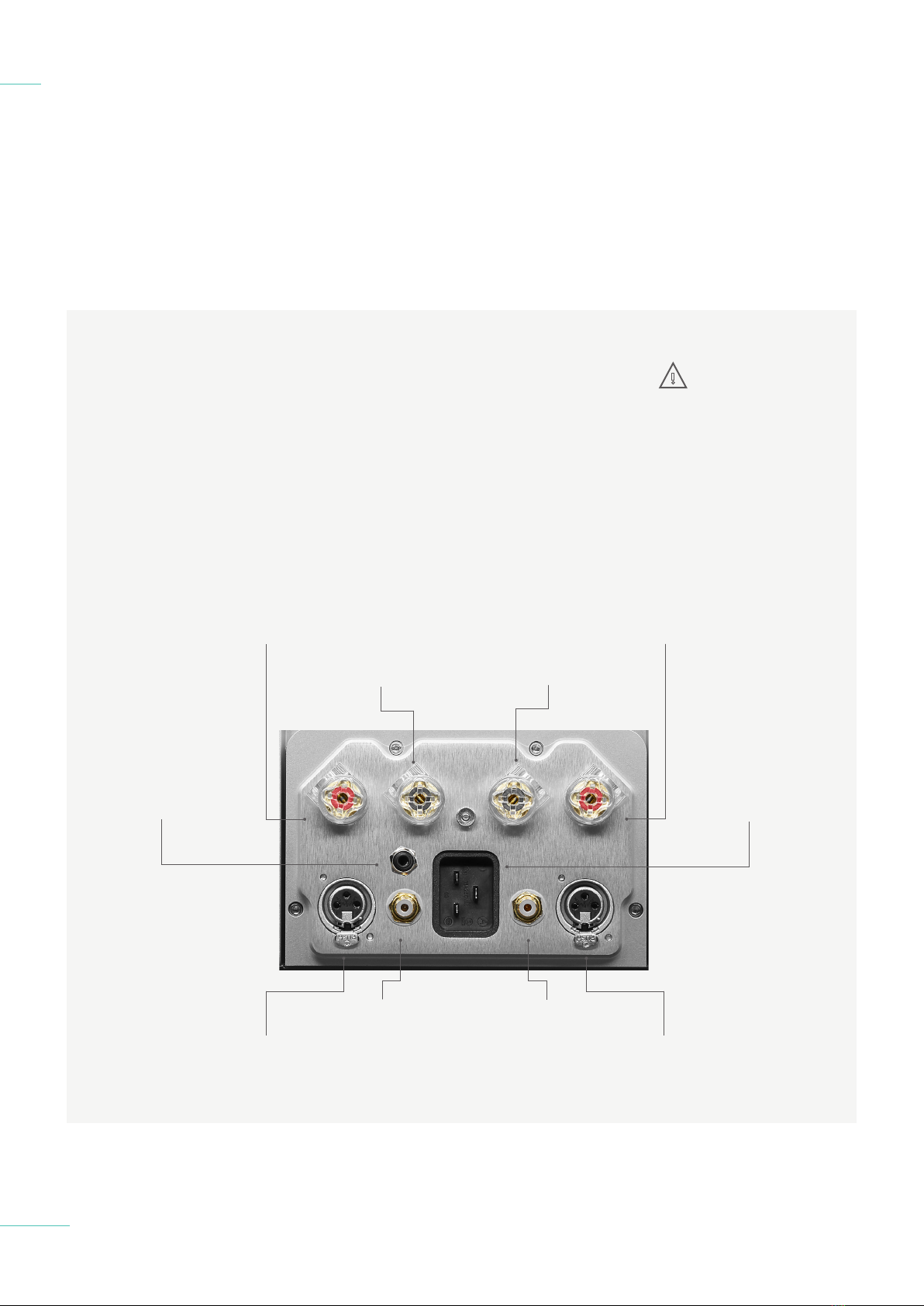

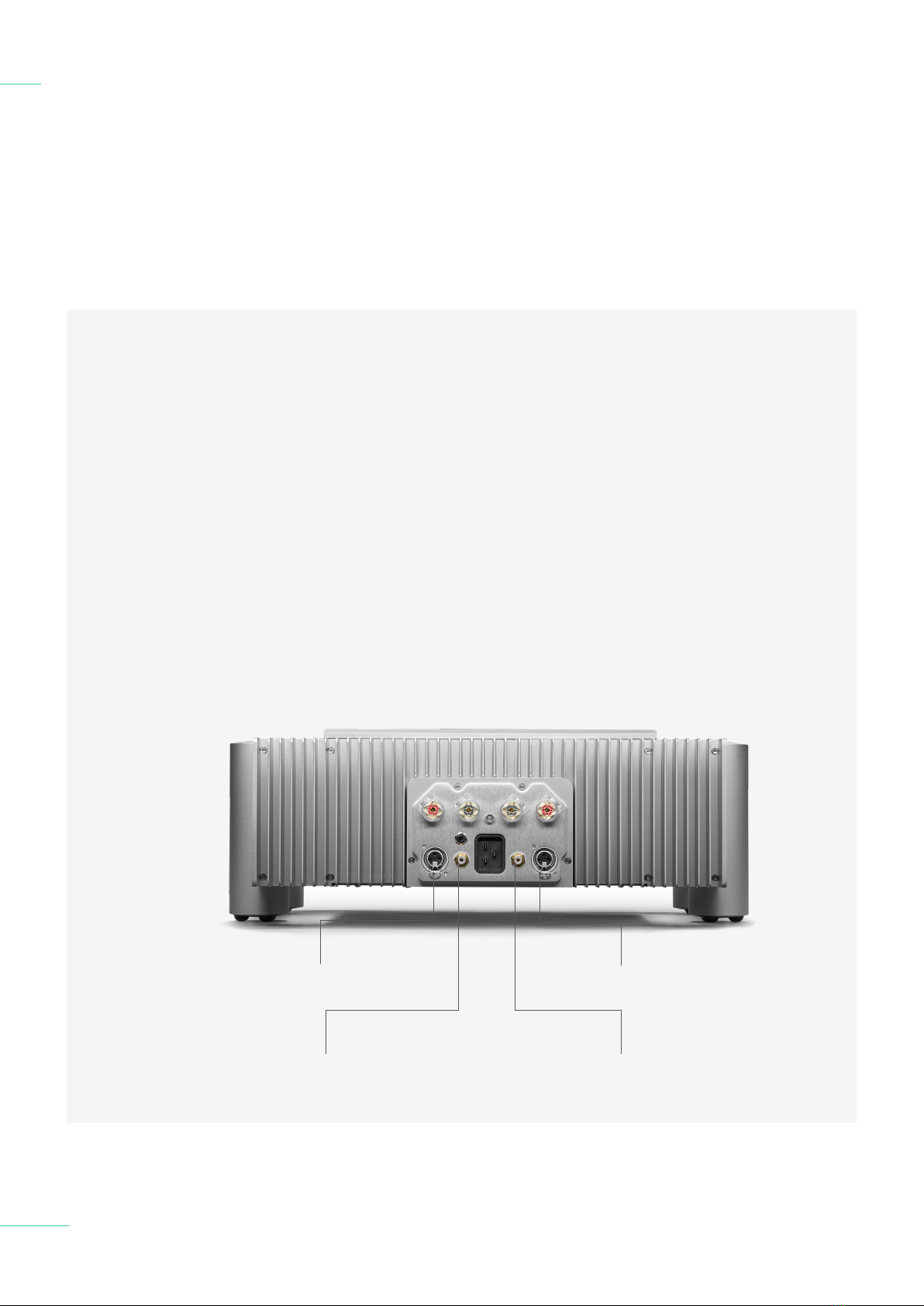

The rear panel oers a
comprehensive connectivity
suite, featuring both standard
connections and those which
are used with other Chord
Electronics’ devices.
When installing any cable, you
must make sure that they securly
click into place, especially
optical.
3.1 Getting to know ULTIMA 6
3.2 The front panel
3.3 The top panel
3.4 The rear panel
The rear panel 3.4
15 // 24
Right channel
positive speaker terminal
Right channel
negative speaker terminal
Left channel
negative speaker terminal
Left channel
positive speaker terminal
12V Trigger input Mains IEC input
Balanced XLR Right
input
Balanced XLR Left
input
Unbalanced RCA Right
input
Unbalanced RCA Left
input
WARNING: You must
keep all vents clear.

Chord Electronics
ULTIMA 6 | Manual
_
4.1 Placement
4.2 Connecting ULTIMA 6 to ancillary equipment
4.3 Audio inputs
4.4 Audio outputs
4.5 Power-on sequence and 12V trigger
4.6 Earthing issues in Europe
4.0 Setting up
ULTIMA 6
Setting up
ULTIMA 6
4.0
16 // 24

Chord Electronics
ULTIMA 6 | Manual
_
Whilst ULTIMA 6 will operate
normally within a typical Chord
Electronics configuration,
stacked via the Integra legs, it is
recommended that ULTIMA 6 is
allowed to ‘breathe’ with 10cm of
space around it to convection-
cool during operation.
4.1 Placement
4.2 Connecting ULTIMA 6 to
ancillary equipment
4.3 Audio inputs
4.4 Audio outputs
4.5 Power-on sequence and 12V
trigger
4.6 Earthing issues in Europe
4.7 Adjusting the brightness of the
LED‘s
Placement 4.1
17 // 24

Chord Electronics
ULTIMA 6 | Manual
_
When connecting the ULTIMA 6
to equipment within the signal
path, ensure all devices are
switched o. It is recommended
that once all equipment is
properly connected, that the
volume setting is operated to
its lowest setting, before slowly
being raised to a comfortable
listening level. Always observe
partnering manufacturers’
guidelines.
4.1 Placement
4.2 Connecting ULTIMA 6 to
ancillary equipment
4.3 Audio inputs
4.4 Audio outputs
4.5 Power-on sequence and 12V
trigger
4.6 Earthing issues in Europe
4.7 Adjusting the brightness of the
LED‘s
Connecting ULTIMA 6 to
ancillary equipment
4.2
18 // 24

Chord Electronics
ULTIMA 6 | Manual
_
ULTIMA 6 is equipped with
both balanced XLR inputs as
well as unbalanced RCA inputs.
ULTIMA 6 has no ability to switch
between the inputs therefore,
only one must be used.
4.1 Placement
4.2 Connecting ULTIMA 6 to
ancillary equipment
4.3 Audio inputs
4.4 Audio outputs
4.5 Power-on sequence and 12V
trigger
4.6 Earthing issues in Europe
4.7 Adjusting the brightness of the
LED‘s
Audio inputs 4.3
19 // 24
WARNING: ULTIMA 6 must
be connected to a dedicated
preamplifier, or a device
capable of attenuating its
output. Failure to attenuate
the volume before it enters
ULTIMA 6 could result in
irreversible hearing damage,
speaker damage and could
void the warranty.
Balanced XLR Right
input
Balanced XLR Left
input
Unbalanced RCA Right
input Unbalanced RCA Left
input

Chord Electronics
ULTIMA 6 | Manual
_
As ULTIMA 6 is a stereo amplifier,
it supports 2 speaker outputs.
In order to connect ULTIMA 6 to
loudspeakers, use high-quality
loudspeaker cable terminated
with 4mm banana plugs or 6mm
spades. Bare wire can be used,
but it is not recommended.
4.1 Placement
4.2 Connecting ULTIMA 6 to
ancillary equipment
4.3 Audio inputs
4.4 Audio outputs
4.5 Power-on sequence and 12V
trigger
4.6 Earthing issues in Europe
4.7 Adjusting the brightness of the
LED‘s
Audio outputs 4.4
20 // 24
Connect the black (negative)
terminal from ULTIMA 6 to
the negative terminal on your
loudspeaker and the red
(positive) terminal from ULTIMA
6 to the red positive terminal on
your loudspeaker. Please pay
careful attention to the diagram
below when plugging in your
speakers.
Right channel
positive speaker terminal
Right channel
negative speaker terminal
Left channel
positive speaker terminal
Left channel
negative speaker terminal
WARNING: Please
pay attention to
the polarity on
your speakers and the
layout of the Ultima 5
outputs. Ensure that
all wires are correctly
placed.
