Christie CC2 User manual

CC2 Electric Barbecue Cooktop
Installation and User Manual
dachristie.com
[phone]
Part numbers 1005; 1006
Installation Manual 6838_03
This user manual is an integral part of the appliance
and must therefore be kept in its entirety and in
an accessible place. Read this user manual
carefully before using the appliance.

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
2| Table of contents
1 GENERAL INFORMATION 3
1.1 Product diagram | Figure 1, 2 4
1.2 Safety instructions 5
1.3 How to read this manual 6
1.4 Manufacturer liability 6
1.5 Conditions of use 7
1.6 Declaration of conformity 7
1.7 Specifications | Table 1, 1.7.1 Circuit Diagram 8
1.8 Description 9
1.9 Disposal 9
1.10 Boxed contents | Figure 3 10
2 INSTALLATION 11
2.1 Design guidelines for installing a CC2 cooktop | Figure 4, 5, 6 12
2.2 Instructions for installing a CC2 cooktop | Figure 7, 8, 9 15
2.3 Installation requirements 18
3 OPERATION 19
Figure 10 20
4 CLEANING AND MAINTENANCE 21
4.1 Safety considerations 22
4.2 Environmental considerations 22
4.3 Cleaning the cooktop 22
4.4 Cleaning the waste container | Figure 11 23
4.5 General cleaning and maintenance 25
5 FREQUENTLY ASKED QUESTIONS 26
6 TROUBLE SHOOTING 29
6.1 Diagnostic codes | Table 2 30
7 OPTIONS AND ACCESSORIES 31
8 WARRANTY AND CUSTOMER CARE 33

Installation Manual 6838_03
3General information |
GENERAL
INFORMATION
1.

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
4
FIG 1
1.1 Product diagram
| General information
148 mm
to fat drain tube
Front view
M8 x 100 mm long mount bolts
2 places
160 mm projection
below benchtop
216 mm
56 mm projection
above benchtop
Start/Stop button
with LED indicator
490 mm minimum benchtop cutout width
459 mm bolt hold down point centres
47 mm
Top view
435 mm
cooking area
536 mm
600 mm
435 mm
cooking area
536 mm
600 mm
FIG 2

Installation Manual 6838_03
5
1.2 Safety instructions
General information |
Risk of personal injury
• Any variation from the original Product
Specification, including the use of
different components, may result in injury
and will void the Safety Certification and
Product Warranty
• This appliance must only be installed
and serviced by an authorised person
(e.g. a licensed electrician) who will
be directly responsible for installing
it according to the manufacturer’s
installation instructions, AS/NZS3000,
and all relevant building and electrical
regulations. For all other countries
the local applicable regulations and
procedures must be followed
• The product is to be connected to
fixed wiring. Isolation switch must
be incorporated in the fixed wiring in
accordance with the national wiring
rules. Isolation switch shall be directly
connected to the supply leads and shall
have a contact separation in all poles
providing full disconnection under
overvoltage category III conditions
• Ensure the appliance is correctly earthed
• Isolate the appliance from the mains
electricity supply before doing any work
• The appliance and its accessible parts
become very hot while in use. Never
touch the hotplate or components
while it is switched on
• The appliance must be fixed into an
enclosed structure to prevent access to
its underside
• Where the underside is not fully
enclosed, a Christie Open Bench
Installation Kit must be used
• This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision
• Children under eight years of age must
be kept at a safe distance if they are
not being constantly supervised
• Never leave the appliance unattended
during cooking operations
• Never try to put out an appliance fire
with water. Turn off the appliance and
smother the flames with a fire blanket
or similar material
• If the power supply cable is damaged,
contact Christie technical support or
your local contractor immediately for a
replacement
• The unit must be installed, operated,
and maintained in accordance with
the Manufacturer’s Instructions
• It is recommended that two people lift
this appliance

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
6
1.2 Safety instructions
1.3 How to read this manual
Risk of damage to the Appliance
• Only non-toxic, pH neutral cleaning products with a pH between 6 and 9 must
be used
• Corrosive (acidic or alkaline) cleaning products may leave a toxic residue on the
cooking surface, damage the electronic circuitry, components, or facia labels, and void
Product Warranty
• Pressure washers must not be directed into openings in the appliance
• Charcoal or similar combustible fuels must not be used with this appliance
• Only use products intended specifically for cleaning stainless steel. Products intended
for cleaning mild steel must not be used on this appliance
Chapter headings and sub heading are
listed in the Table of Contents along
with the relevant page numbers
Key words:
• “Must” and “must not” are
mandatory instructions
• “Should’ and “should not” are
advisory instructions
The following icons are used throughout
the manual
Electrical Hazard icon
warns of possible
electrical shock
Warnings or Caution
icon warns how to
prevent personal injury
Hot Surface icon warns
not to touch hot surfaces
1.4 Manufacturer liability
The manufacturer declines all liability for damage to persons or property caused by:
• Use of non-original spare parts
• Use of the appliance other than as intended
• Tampering with any part of the appliance
• Non-observance of instructions contained in this Installation and User Manual
| General information

Installation Manual 6838_03
7
This appliance has been tested and certified to Australian Standards (RCM) and European
standards (CE) declaration of conformity certificate available on request. The Product
Identification Label contains the following information:
• Type and model
• Electrical ratings
• RCM and CE compliance marks
• Manufacturers name and contact details
DO NOT REMOVE THIS PRODUCT IDENTIFICATION LABEL. IF IT IS ILLEGIBLE OR
DAMAGED, CONTACT CHRISTIE.
Safety features incorporated into this product include a time delay (6 seconds) start button
located on the cooktop, and an over temperature normally closed thermostat (twin pole), with
a manual reset button that will independently shut off power to the relay in case of overheating.
1.5 Conditions of use
1.6 Declaration of conformity
• The appliance must be connected to a
residual current device (RCD) which has
a rated residual operating current not
exceeding 30mA
• A 240V, 15A weather proof general
power outlet (GPO) must be supplied
and located within the structure housing
the appliance
• No part of the appliance, including the
15A plug, may be modified without
written authorisation from the manufacturer
• All repairs under Warranty must first be
approved by Christie. No responsibility
will be accepted for repairs made
without authorisation
• This Installation and User Manual
is an integral part of the appliance
and must be kept in its entirety and
in an accessible place for the whole
working life of the appliance. Read this
Installation and User Manual carefully
before using the appliance
• This appliance is suitable for indoor and
outdoor use
• The safety instructions in chapter 1.2
form part of the conditions of use for
this appliance
General information |

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
8
POWER SUPPLY
LRS-35-12
240VAC
POWER INLET
A
N
GND
BROWN
BLUE
YELLOW GREEN
OVER TEMP
THERMOSTAT
L N GND -V +V
BBQ
CONTROLLER
+V
-V
BROWN
WHITE
YELLOW
GREEN
ON / OFF SWITCH
PUSH BUTTON
12VDC 200mA
BROWN
BLACK
BLACK
BLACK
RED
BLACK
BROWN
GRAYBLACK
HEAT SENSOR
GREEN LED
12VDC 20mA
RED LED
12VDC 20mA
HEATING ELEMENT
CONTROLLER
ENCLOSURE
RELAY
Rated voltage 230-240V AC
Frequency 50Hz
Rate current 15A
Element 3.5KW
Nominal target temp 255 degrees
Nominal cook time 20 min
Nominal tare weight 20kg
Nominal packed weight 25kg
Requires RCD 30mA
Requires 20 A circuit breaker
Plan view Above
bench
Below
bench
Hotplate Cooking area
Dimensions
in mm
600 x 600 56 160 536 x 536 435 x 435
1.7 Specifications
| General information
1.7.1 CIRCUIT DIAGRAM
TABLE 1

Installation Manual 6838_03
9
1.8 Description
1.9 Disposal
General information |
• The Christie CC2 Electric Barbecue Cooktop is a self-contained hotplate-style
barbecue with fully automatic functions, designed for unmonitored use by the public
• The CC2 is supplied fully assembled and tested, requiring no further assembly or
rigging. It is designed to be dropped into place
• The CC2 is provided with 15A rated moulded plug on a 1-meter long supply cord. For
countries outside of Australia and New Zealand, CC2 is provided with a 1.8 m power
supply cord only. An appropriate 15A rated and approved plug must be attached by a
suitably qualified person
• This appliance must be disposed of separately from other waste (Directives 2002/95/
EC, 2002/ 96/EC, 2003/108/EC)
• The appliance does not contain substances in quantities sufficient to be considered
hazardous to health and the environment in accordance with current European directives
• To dispose of the appliance: Cut the power supply cable and remove it along with the
plug. Deliver the appliance to an appropriate recycling facility for electrical and electronic
equipment waste
• Christie appliances are packaged in non-polluting and recyclable materials. Deliver the
packing materials to the appropriate recycling facility

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
10
1.10 Boxed contents
| General information
CC2 Cooktop Anti-rotation brackets
Installation & User Manual
CC2 Cooktop Anti-rotation brackets
Installation & User Manual
CC2 Cooktop Anti-rotation brackets
Installation & User Manual

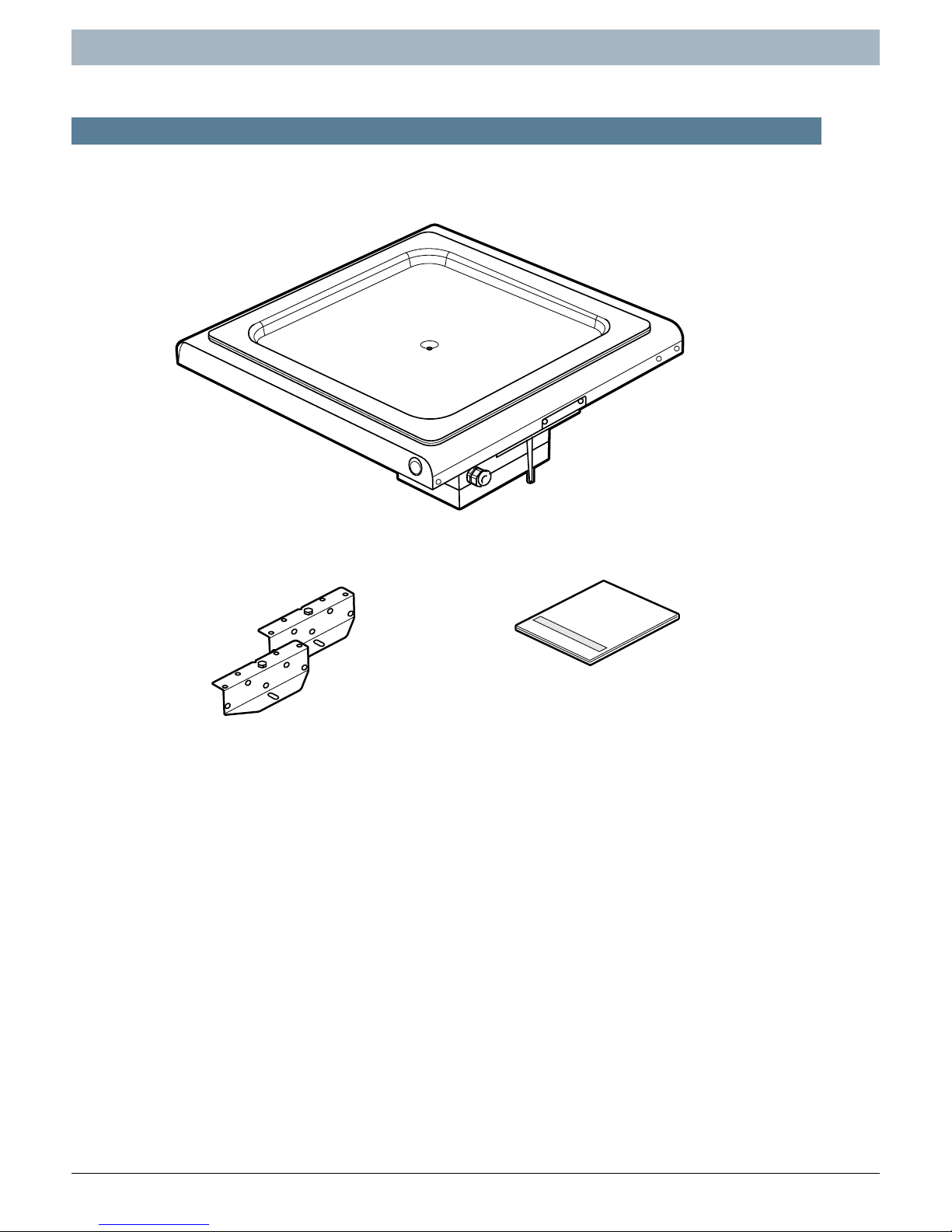

The following contents are supplied with a Christie CC2 electric barbecue cooktop:
• CC2 Electric Appliance
• Preassembled 240v, 15A power supply cord with three pin plug
• For countries outside of Australia and New Zealand, the CC2 is provided with a 1.8 m
power supply cord only
• 2 x Anti rotation brackets

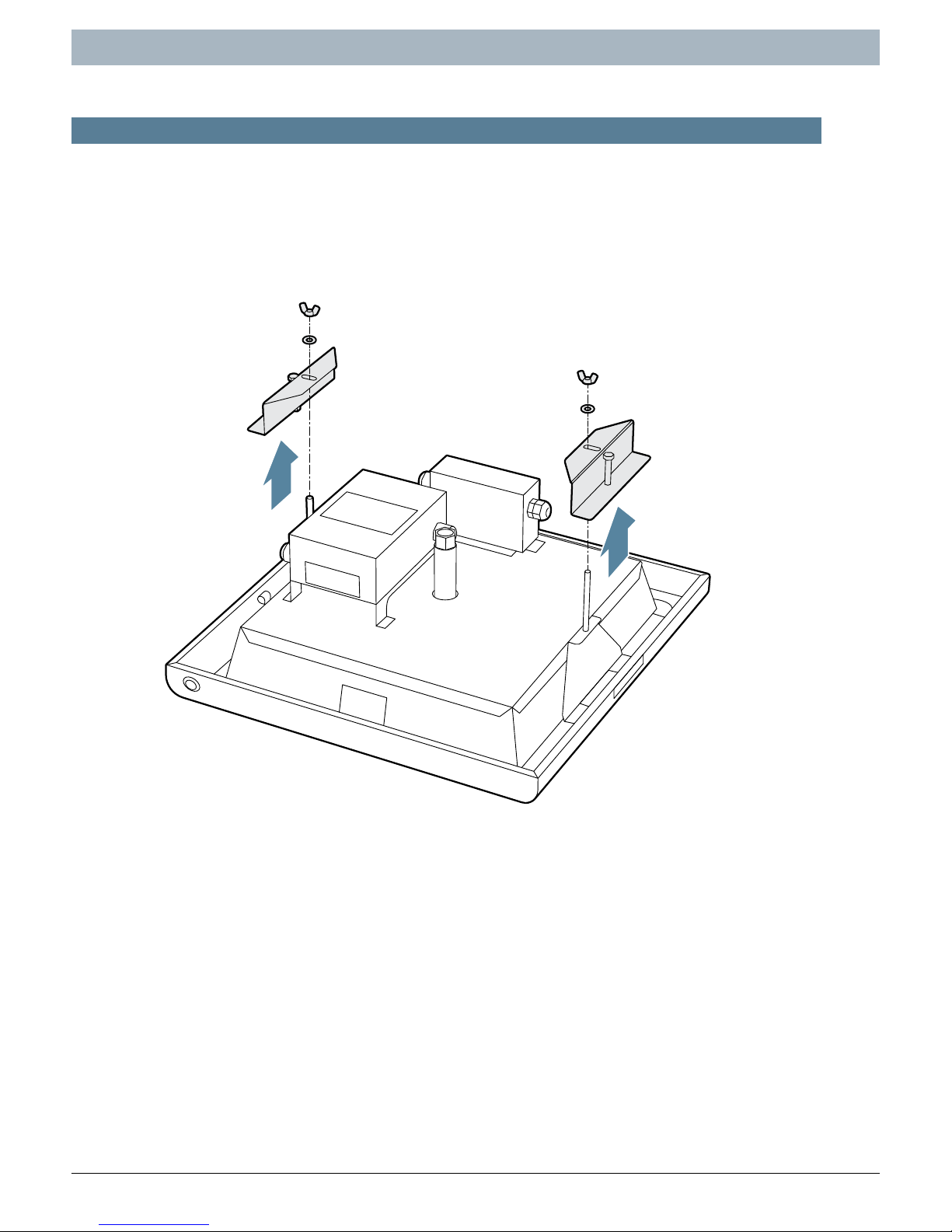

(attached to hold down bracket, remove prior to installation)
• 2 x 8 mm bolts with washers and nuts
• 2 x 8 mm wing nuts and washers
• This Installation and User Manual
FIG. 3

Installation Manual 6838_03
11Installation |
INSTALLATION
2.

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
12
Christie barbecue cooktops are designed to be installed into
structures that meet minimum design specifications to ensure their
safe operation. Despite all measures to make our product safe to
use, it is a cooking appliance capable of reaching temperatures in
excess of 200°C. It is our intention that the following information will
further minimise any chances of injury.
2.1 Design guidelines for installing a CC2 cooktop
| Installation
• Ideally, public barbecues and eating
facilities should be separated from
playgrounds and other active
recreation areas
• Barbecues should be installed in plain
view, where they can be monitored for
safe and appropriate use
• Ensure there are no climbing aids
that will allow children access to the
barbecue cooktop. This includes taps,
ledges or movable furniture, etc.
• Protruding benchtop and corners
may pose a risk of injury to children
and corners should therefore be
rounded off
• Electric barbecue structures should
consist of sturdy, non-combustible
materials such as brick, stone, or metal
• A cut-out of at least 495 mm x 495 mm
is required to allow the cooktop to be
fitted to the bench
• Ensure a minimum bench space of
130 mm on all four sides of the cut-
out hole and 1200 mm clear space
above the hotplate
• To assist with the task of constructing
appropriate structures, Christie
barbecue surrounds are designed to suit
most applications and environments. We
also provide doors and other options for
custom structures
• Assemble all pre-manufactured Christie
barbecue surrounds and options in
accordance with the installation guide
supplied with that product

Installation Manual 6838_03
13
Note: For installing the cooktop into a pre-fabricated Christie barbecue surround, please
refer to instructions for installing a CC2 cooktop on page 15.
Installation |
FIG. 5
2.1 Design guidelines for installing a CC2 cooktop
Both CC2 electric
and CC2 gas cooktops
extend 160 mm downwards
Minimum clearance
above hotplate: 1200 mm
850 mm high
access opening
600 mm wide
access opening
Minimum
900 mm bench
height
FIG. 4 Allow at least 130 mm of clear bench around cut-out on all sides
495 mm x 495 mm
cut-out
130 mm
130 mm

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
14 | Installation
484 mm
130 mm minimum clear
bench space on all sides
Waste container
484 mm
354 mm
2.1 Design guidelines for installing a CC2 cooktop
FIG. 6
The appliance must be fixed into an enclosed structure to prevent access to its underside.
Where the underside is not fully enclosed, a Christie Open Bench Installation Kit must be used.
Christie Open Bench Installation Kit

Installation Manual 6838_03
15Installation |
2.2 Instructions for installing a CC2 cooktop
STEP 1
Open box and remove cardboard packers. Locate the Packing List and check that all listed
parts are present. Contact Christie immediately if any discrepancies are noted.
FIG. 7

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
16
FIG. 8
STEP 2
Remove the wing nuts and washers on the 8mm hold down brackets. Remove the
anti-rotation brackets.
| Installation
2.2 Instructions for installing a CC2 cooktop
STEP 3
Insert the washer onto the 8mm bolt. Insert the bolt through the anti-rotation bracket and
into the hole on the benchtop. Secure the 8mm nut with two 13mm spanners – using one to
turn the nut and the other to prevent the bolt from turning, tighten until the brackets cannot
move. Repeat this process on the other side.
Note: When fixing the cooktop to a custom bench top, align the centre notch on the anti-
rotation bracket with the midpoint of the 495mm cut out in the bench top at the 247.5mm
mark. Mark this point and drill a 10mm diameter hole. Repeat on the other side. Secure as
above, alternatively any two holes can be used if preferred.

Installation Manual 6838_03
17
495 mm
495 mm
FIG. 9
Installation |
2.2 Instructions for installing a CC2 cooktop

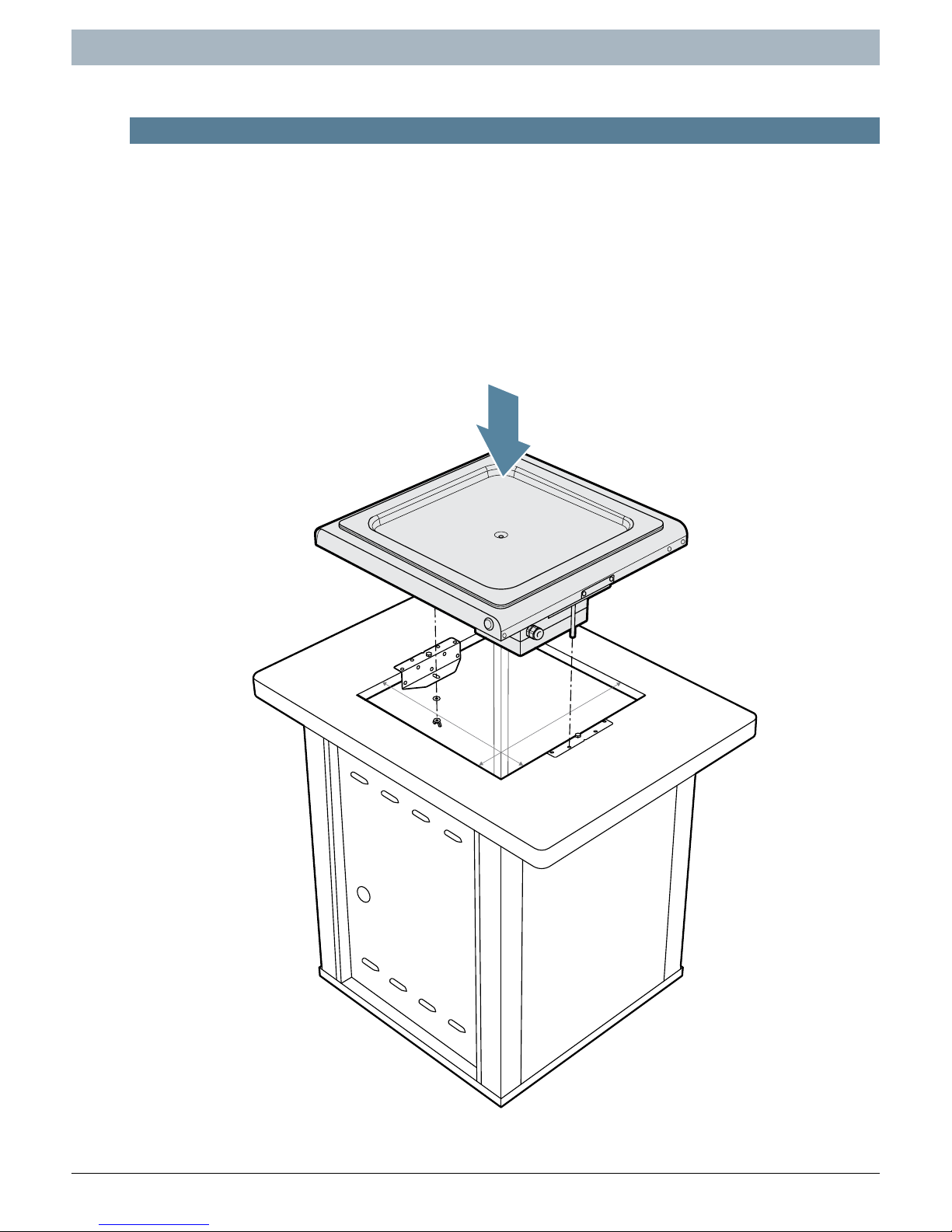

STEP 4
With two people, lift the appliance out of the carton and turn so that the cooking
surface faces upwards. Position over the cut out in the bench, ensuring that the front
is orientated correctly. Drop the power cord in the hole then lower the cooktop. Ensure
the 8mm threaded bolts align with the slotted holes in the anti-rotation brackets. Install
the washers and wing nuts but do not tighten completely.

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
18 | Installation
2.3 Installation requirements
• This appliance must only be installed and serviced by an authorised person (e.g. a
licensed electrician) who will be directly responsible for installing it according to the
manufacturer’s instructions, AS/NZS3000, and all relevant building and electrical
regulations. For all other countries the local applicable regulations and procedures
must be followed
• The appliance should be connected to a residual current device (RCD) that has a rated
residual operating current not exceeding 30 mA
• In Australia and New Zealand, the CC2 is provided with 15A rated, moulded plug with
oversize earth pin on a 1-meter long supply cord. For other countries CC2 is provided
with a 1.8 m power supply cord only. An appropriate 15A rated and approved plug
must be attached by a suitably qualified person
• The appliance must be connected to a 15A weatherproof power point with a functional
isolation switch incorporated into the fixed wiring, in accordance with the Wiring Rules.
It is permissible for this switch to be located inside the locked access door within the
structure, within easy reach of maintenance personnel. The power point (GPO) should
be within 1 metre of the appliance or 1.8 metre of the appliance, in countries outside
Australia and New Zealand
• Any variation from the original Product Specification, including the use of different
components, may result in injury and will void the Safety Certification and Product Warranty
STEP 5
Ensure the appliance aligns with the edges of the benchtop. Tighten the wing nuts sufficiently
so that the appliance does not move at all.
STEP 6
To Commission connect the power supply and turn the mains power on. A single beep
signifies power up.
Press the START/STOP button for 6 seconds to run a full cooking cycle (preheat and cook
for approximately 26 minutes). To ensure correct operation see Chapter 3 of this manual.
2.2 Instructions for installing a CC2 cooktop

Installation Manual 6838_03
19
OPERATION
3.
Operation |

CC2 Electric Barbecue Cooktop (Part numbers 1005; 1006)
20
The CC2 Cooktop is designed to function automatically without further operator input after
the initial start.
1. To commence operation, press and hold the START/STOP button for at least
6 seconds
2. The appliance will enter a pre-heat/sterilisation mode, indicated by an audible beep
and a red flashing START/STOP button. The button will flash faster as the appliance
heats up
3. Upon successful completion of the sterilisation cycle and achieving the target
temperature (3-7 minutes, depending on the ambient temperature) the appliance will
enter Cooking Mode and the 20-minute cooking cycle will commence
4. When the Cooking Mode commences an audible beep will be heard and the START/
STOP button will change from fast flashing red to a static green light. During Cooking
Mode, the element will automatically turn on and off to maintain the target hotplate
temperature. After approximately 20 minutes an audible beep will be heard and the
appliance will switch off automatically
5. The Cooktop can be switched off manually by pressing and holding the START/STOP
button for 3 seconds
FIG. 10
| Operation
