CIARRA CBCS6125 User manual

Model Number:
CBCS6125
www.ciarraappliances.com

EN
Dear customer:
Thank you so much for your purchase, please read this instruction
manual carefully before installation & use.
If you have any question, please contact us at:
E-mail: [e-mail]
ENGLISH INSTALLATION AND USER'S MANUAL Page
3-22
DEUTSCH BENUTZERHANDBUCH&INSTALLATION
SANLEITUNG
Seite
23-44
FRANÇAIS
MANUEL DE L’UTILISATEUR ET
D’INSTALLATION
Page
45-66
1

EN
2
CONTENTS
Safety--------------------------------------------3-4
Specifications--------------------------------------5
Before Using the Cooker Hood ---------------------6
Prepare for Installation ----------------------------7
Installation--------------------------------------8-16
Install the Hood-------------------------------------------8-15
Carbon Filter Installation------------------------------------16
Operation----------------------------------------- 17
Cleaning and Maintenance---------------------18-21
Grease Filter------------------------------------------------18
Carbon Filter -----------------------------------------------18
Stainless Steel Cleaning ------------------------------------18
Painted Finish Cleaning-------------------------------------18
LED Replacement---------------------------------------19-20
Troubleshooting-----------------------------------21
Environmental Protection -------------------------22

EN
Safety
!WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in
the warranty.
Before servicing or cleaning unit, unplug or disconnect the
cooker hood from the power supply.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting.
When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Ensure the requirements of the local authorities are adhered
to concerning the discharge of exhaust air.
This unit must be grounded.
When applicable local regulations comprise more restrictive
installation and/or certification requirements, the
aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
Clean cooker hood frequently. Grease should not be allowed
to accumulate on fans, filters or in exhaust ducts.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
3

EN
Safety
! WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
a) You own a Class ABC extinguisher and you know how to
operate it.
b) The fire is small and contained in the area where it
started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
!CAUTION
For indoor use only.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
To avoid motor bearing damage and noisy and/or unbalanced fan
blade, keep drywall spray, construction dust, etc. off cooker hood.
Your hood motor has a thermal overload which will automatically
shut off the motor if it becomes overheated. The motor will restart
when it cools down. If the motor continues to shut off and restart,
have the hood serviced.
Always follows the cooking equipment manufacturer’s requirements
regarding the ventilation needs.
To reduce the risk of fire and to properly exhaust air, be sure to duct
air outside — Do not exhaust air into spaces within walls or ceiling or
into attics, crawl space or garage.
When installing, servicing or cleaning the unit, it is recommended to
wear safety glasses and gloves.
Please read specification label on product for further information
and requirements.
4

EN
Specifications
5
Voltage 220V-240V~ 50Hz
Power of Motor 1 x 70W
Power of lamps 1 x 2W
Appliance Dimension 595*450*448~830mm
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior notice.
CBCS6125

EN
Before Using the Cooker Hood
COMPONENTS:
YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION
1.Protective Gloves
2.Spirit Level Ruler
3.Measuring Tape
4.Double Sided Tape or Tape
5.Cross-Head Screwdriver Set
6.Electric drill and 8mm drill
CAUTION: Before proceeding to the installation, check If items
are missing or damaged, contact the manufacturer.
Observe all governing codes and ordinances. Have a qualified
technician install the cooker hood. It is the installer’s
responsibility to comply with installation clearances specified
on the model/serial rating plate. The manufacturer declines all
responsibility for improper installation and does not accept
responsibility for appliance warranty in the event of damage
caused by incorrect installation.
Part 1 : Wall Plug X 9
Part 2 : 4*30mm Screws X 9
Part 3 : 4*8mm Screws X 2
Part 4 : Aluminum Exhaust Pipe X 1
Part 5 : Cable Ties X 2
Part 6 : Installtion Manual X 1
Part 7 : 1:1 Installation Diagram X 1
Part 11 : Cooker Hood Body X 1
Part 12 : Lower Chimney X 1
Part 13 : Upper Chimney X 1
Part 14 : Carbon Filter X 1
Part 9 : Upper Chimney Bracket X 1
Part 10 : Wall Bracket X 1
Part 8 : Lower Chimney Bracket X 1
(CBCF004)
6

EN
Prepare for Installation
Prepare for Installation:
a) Ventilation Mode
Recirculation Mode: Recirculating with carbon filter (required), the
smells and odors can be filtered and vented through the top
vented hole and the exhaust pipe is not required.
Extraction Mode: You can install the 1.5m long and 150mm
diameter aluminum exhaust pipe for extracting, which is included
in the installation kit.
b) When possible, use at least 60cm straight runs before any turns. Larger
duct work may be required for best performance with longer duct runs.
c) Before installation, don't connect the power.
7

EN
Installation
Install the Hood（Extraction）:
1) Remove all protective poly film from the hood and/or parts.
2) Recommend installation height: 65~75cm above the cooktop
for best extraction.
Required height over gas hob: 750mm;
Required height over electric hob: 650mm.
750mm
650mm
8

EN
Installation

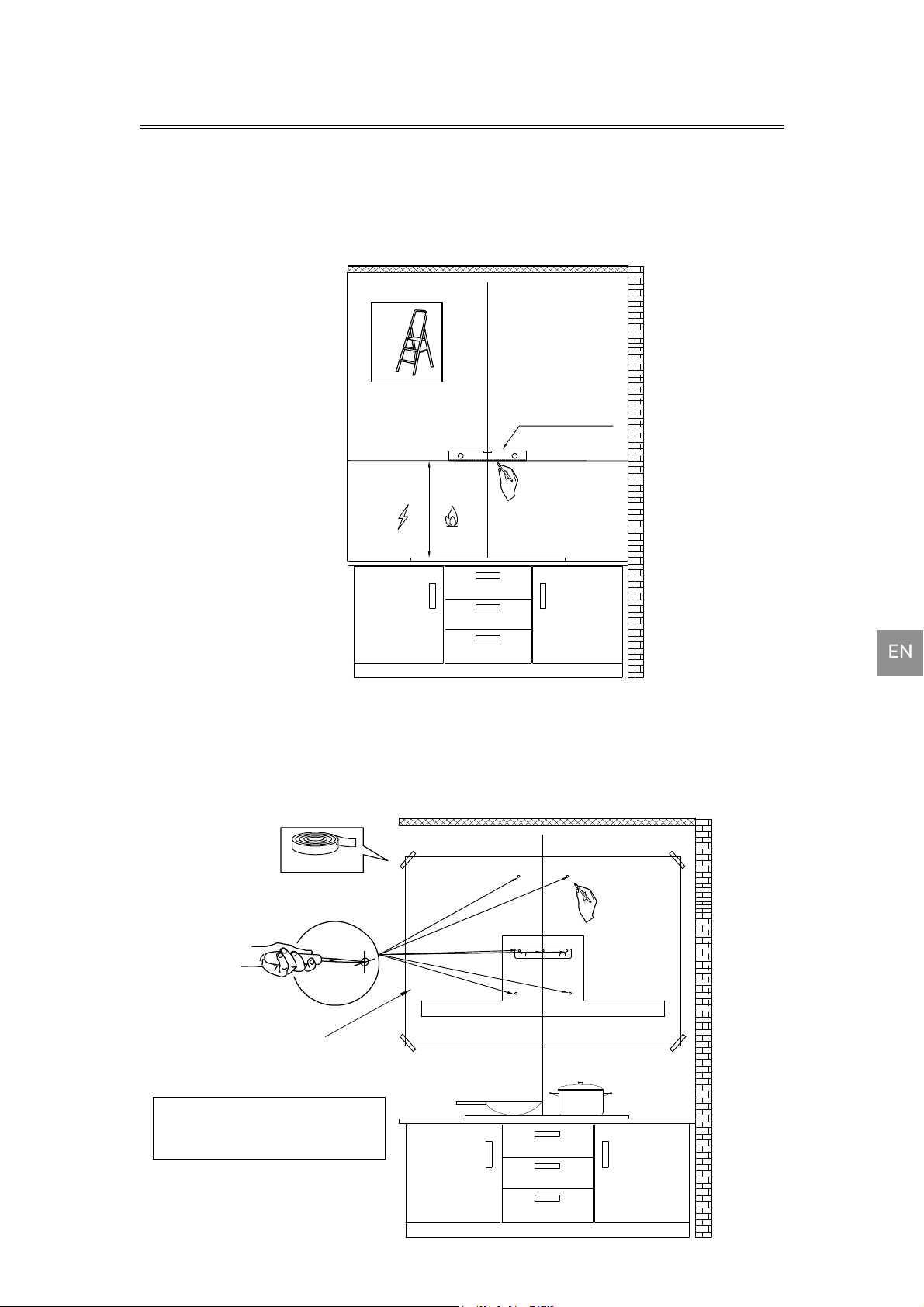

3) First use a pencil to mark the installation position on the wall, then
use a Measuring Tape to measure the height from the stove surface
to the hood (the center point of aluminum grease filter) and use a
Spirit Level Ruler to maintain the level, then use a pencil to draw a
horizontal line along the level.
4) Poke the 7 perforated positions on the 1:1 Installation Diagram, then
align the with button line of the hood on the Installation Diagram
with the horizontal line on the wall, then tape the Installation
Diagram to the wall, and use a pencil to mark the perforated
positions on the wall in the corresponding positions.
Spirit Level Ruler
650mm 750mm
1:1 Installation Diagram
Tape
COMPONENTS:
Part 7: 1 :1 Installation Diagram X 1
9

EN
Installation
5) Determine the maximum chimney installation height according to
the actual scenario and mark the chimney installation
locations along the center line of the Installation Diagram.
6) Remove the Installation Diagram, drill the holes that have been
marked on the wall with an Electric Drill (8mm drill), and hammer
the Wall Plug into the wall.
Chimney
installation
locations
537mm
310mm
Wall Plug
COMPONENTS:
Part 1: Wall Plug X 9
10

EN
Installation

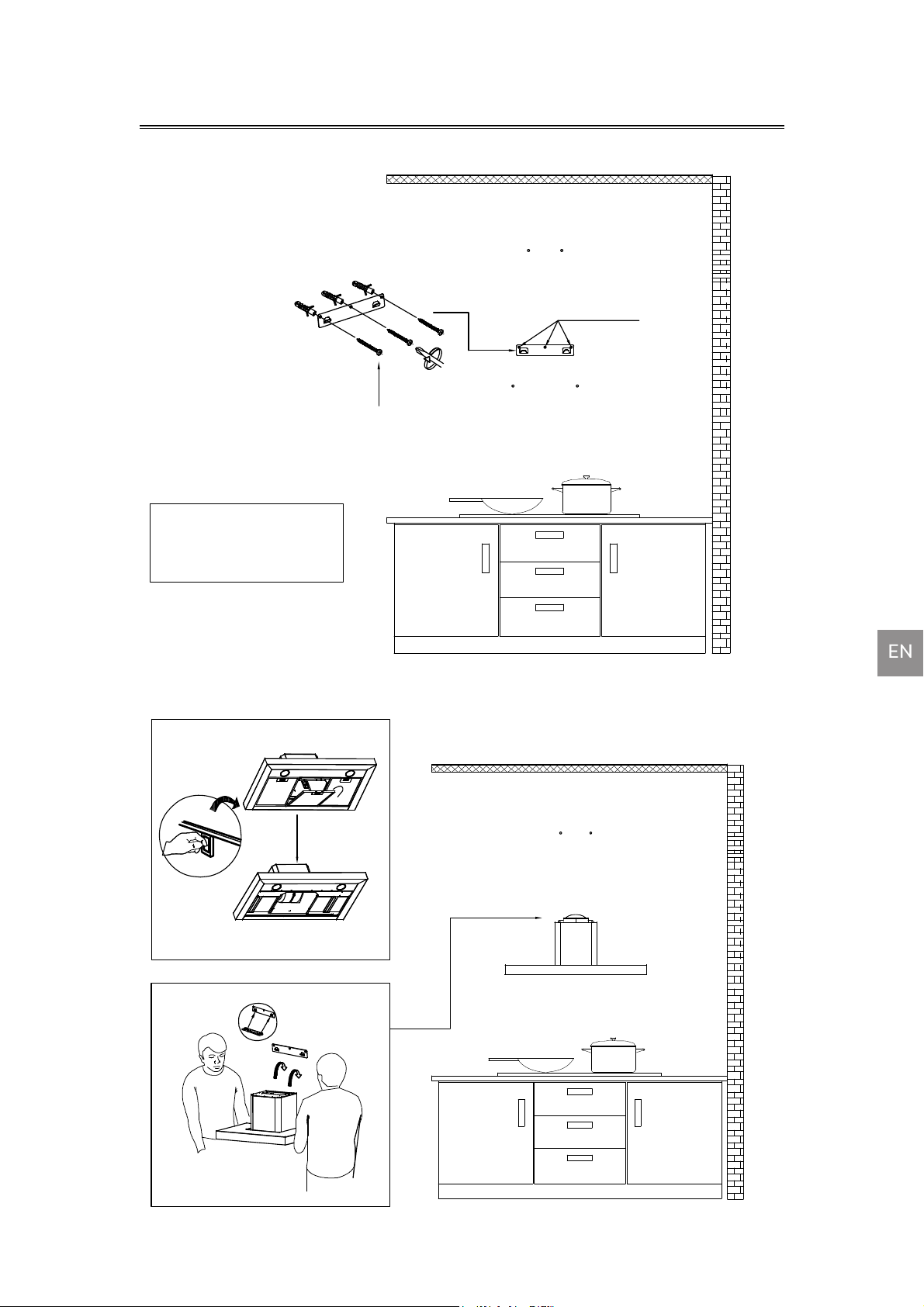

7) Use three 4*30mm Screws to fasten the Wall Bracket on the wall.
8) Remove the aluminum grease filter and hang the hood on the
corresponding hook of the Wall Bracket.
4*30mm Screws
4*30mm Screws 3pcs
COMPONENTS:
Part 2: 4 *30mm Screws X 3
Part 10: Wall Bracket X 1
11

EN
Installation

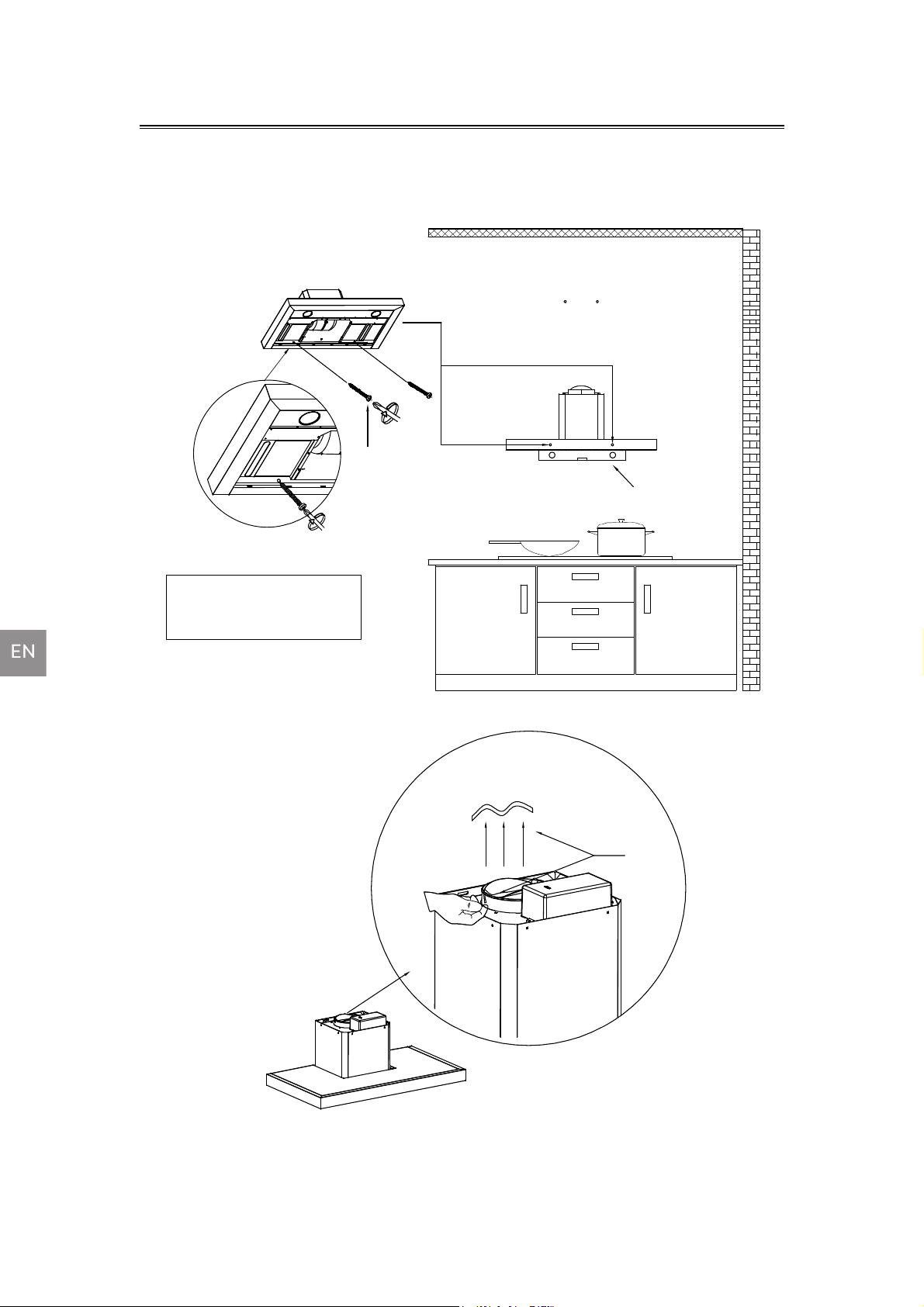

9) Use a Spirit Level Ruler to measure whether the hood is in a horizontal
level, and use two 4*30mm Screws to lock into the safety hole
position of the hood (not mandatory, according to user's wishes to
choose whether to lock).
10) Tear off the tape from the air outlet.
NOTE:
Make sure you remove the tape on the damper and check if the
damper opens and closes freely, otherwise it make noises, and
the cooker hood will be shaking.
4*30mm
Screws 2pcs
Spirit Level Ruler
Tape
COMPONENTS:
Part 2: 4*30mm Screws X 2
12

EN
Installation
11) Use two 4*30 mm Screws to lock the Upper and Lower Chimney
Brackets to the corresponding positioning holes on the wall.
12) Install the Aluminum Exhaust Pipe into the air outlet and lock it with
a Cable Tie; the other end of the Aluminum Exhaust Pipe will be
pulled upward to outdoor and lock it with a Cable Tie (Note: This
step can be ignored if use as recirculation mode with carbon filter).
Wall Plug
Wall Plug
4*30mm
Screws
4*30mm
Screws
Lower Chimney
Bracket
Upper Chimney
Bracket
Aluminum
Exhaust Pipe
Cable Tie
COMPONENTS:
Part 8: Lower Chimney Bracket X 1
Part 9: Upper Chimney Bracket X 1
Part 2: 4*30mm Screws X 4
COMPONENTS:
Part 4: Aluminum Exhaust Pipe X 1
Part 5: Cable Tie X 1
13

EN
Installation
13) Insert the Lower Chimney into the hood (Note: That the power cord
needs to go through the chimney and connect the power).
14) Lock the Lower Chimney on the Lower Chimney Bracket by two sides.
15) Put the Upper Chimney into the Lower Chimney, and then pulled
to the height of the Upper Chimney Bracket.
Lower Chimney
Upper Chimney
Upper Chimney
COMPONENTS:
Part 12: Lower Chimney X 1
COMPONENTS:
Part 13: Upper Chimney X 1
14

EN
Installation
16) Use two 4*8mm Screws to assemble the Upper Chimney on the Upper
Chimney Bracket.
17) Turn the LED lights on/off, and test whether the functions are
working properly.
4*8mm Screws 2pcs
Upper Chimney Bracket
COMPONENTS:
Part 3: 4*8mm Screws X 2
15

EN

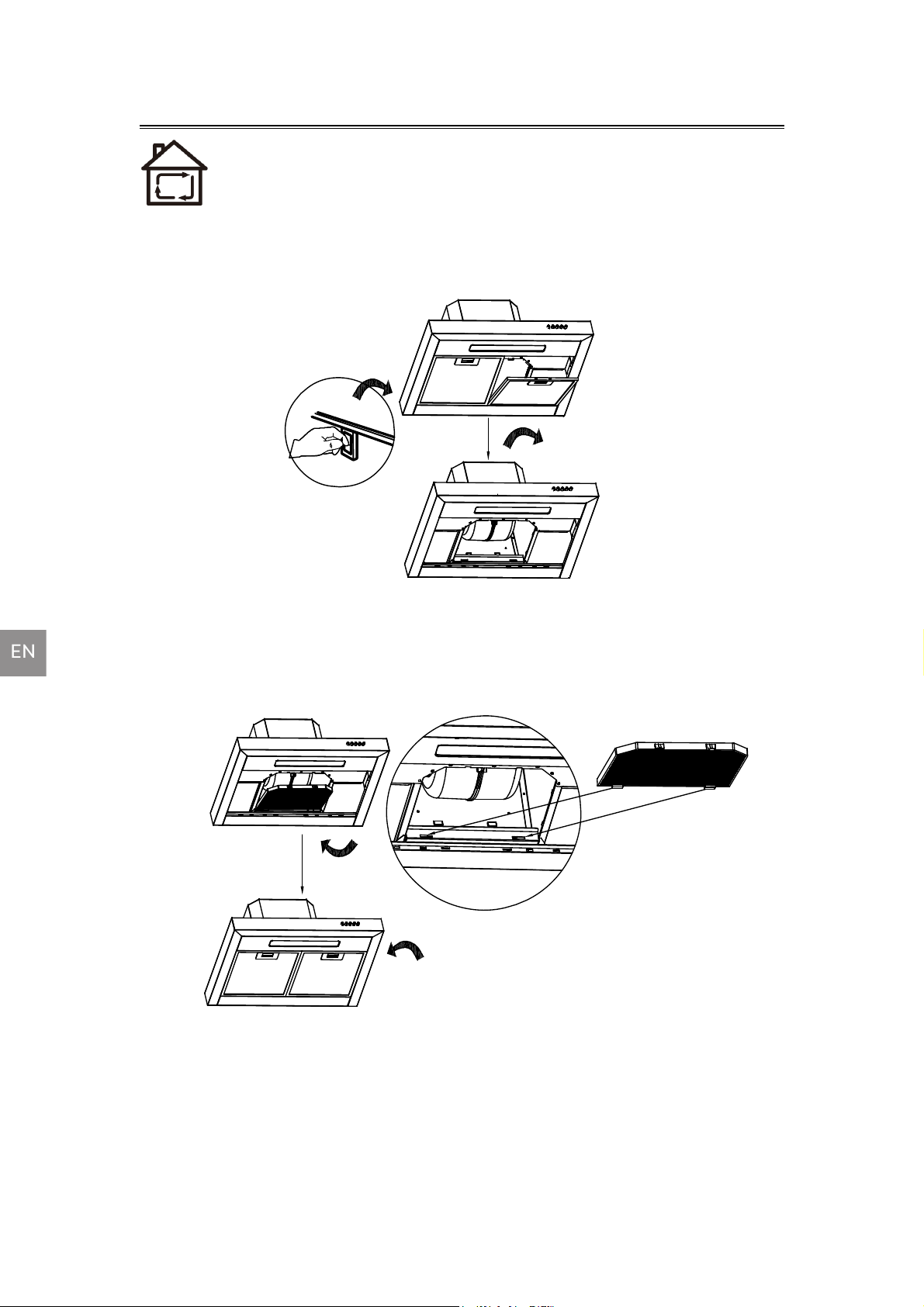

Installation
NOTE:
Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood
will be reduced.
The carbon filter should be changed every 3 months depending
on the conditions of use.
16
Carbon Filter Installation（Recirculation）:
1. Carbon filter can be used to trap odors.
In order to install the carbon filter, the grease filter should be
detached first. Press the lock and pull it down.
2. Insert the carbon filter into the specified position of the cooker hood
as shown below (Note the differences between the front and back
and the direction of the carbon filter), then push inside the cooker
hood. Push the two lock catches on the carbon filter into the
specified position.
3. If need to replace, press on the lock catches and pull the carbon filter,
then follow the steps above to install a new carbon filter.

EN
Operation
17
Always turn your hood on before you begin cooking to establish an
airflow in the kitchen.
Let the blower run for a few minutes to clear the air after you turn off
the hood. This will help to keep the entire kitchen clean and fresh.
Mechanical Push button
Operate the hood as follows:
Off button
It's used to turn off the fan.
Low Speed button
For air ventilation with barely no noise; or simmering with very little
smoke and steam.
Medium Speed button
For your everyday cooking purpose.
High Speed button
High-Speed for stir-fry or cooking with lots of smoke and grease
produced.
Light button
When lights are OFF, press this button once to turn ON the lights. Press
this button again to turn OFF the lights.

EN
Cleaning and Maintenance
Proper maintenance of the Cooker Hood will assure proper
performance of the unit. Before cleaning unit, unplug or disconnect
the cooker hood from the power supply.
GREASE FILTERS
The grease filters should be cleaned frequently. Can be cleaned in
dishwasher under high temperature without using any detergent.
CARBON FILTER
The carbon filter should be changed every 3 months depending on the
conditions of use. Replace more often if your cooking style generates
lots of greases, such as stir frying. These filters are not washable and
cannot be reused. Refer to installation instructions included with a
carbon filter.
STAINLESS STEEL CLEANING
Do:
Regularly clean it with a cloth or rag soaked with warm water and
mild soap or liquid dish detergent.
You may also use a specialized household stainless steel cleaner.
Don't:
Use any steel or stainless-steel wool or any other scrapers to remove
stubborn dirt.
Use any harsh or abrasive cleansers.
Let plaster dust or any other construction residues reach the hood.
During construction/ renovation, cover the cooker hood to make sure no
dust sticks to the stainless-steel surface.
Avoid when choosing a detergent:
Any cleaners that contain bleach will attack stainless steel.
Any products containing: chloride, fluoride, iodide, bromide will
deteriorate surfaces rapidly.
Any combustible products used for cleaning such as acetone,
alcohol, ether, benzol, etc., are highly explosive and should never
be used close to a range.
PAINTED FINISH CLEANING:
Clean with warm water and mild detergent only. If discoloration
occurs, use a finish polish such as automotive polish. (DO NOT use a
rough abrasive cleaner or porcelain cleaner.)
18
