Cineroid CFL400 Instruction Manual

RGBW full range with white light / LED Panel of enhanced exibility
Metal Ballast / CRI 95 or above / Ball mount bracket with 16mm spigot
Color temperature 2700ºK ~ 6500ºK / Extension up to 10 meter
100% dimming / DMX Built-in / Battery charging / Real time synchro
Custom eect / 6 Preset reserve / USB 5V output / USB Firmware update
www.cineroid.com
Safety Instructions / User's Manual
cfL400 cfL800
English

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
2
Thank you for purchasing the Cineroid.
The Cineroid CFL LED Light is high quality RGBW soft light with portable size. Light weight and
thin panel makes easy to use and getting around any type, environment. Please thoroughly read
the user manual for best operation and understanding of all of the functions of the Cineroid LED
light.
Test Before Operating
It is recommended to test the device before operating. Check if the LED Light can be turned on
once powered, and check if the information/menu is being properly displayed on the LCD.

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
3
Safety Precautions
◎Do not use any batteries, power cord, or accessories that are not specied in this
document.
when your hands are wet. When unplugging the power cord, grasp the plug body
or adapter instead of the cord.
◎Power cords that are scratched, heavily bent or twisted can potentially be hazardous and
a source of electric shock and/or re.
◎Do not insert foreign objects into the product’s electric or cable components.
◎Do not place the power cord near sources of heat as this may melt or cause damage to
the cord potentially causing re or electric shock.
◎Do not disassemble or modify the product. This may damage the product and cause
danger due to a malfunction.
◎Please keep the product out of reach of young children. Injuries may occur due to damage
to the product.
◎When using the product in an airplane or hospital setting, it is recommended to acquire
authorization rst as signals or electro-magnetic waves from the product may cause other
equipment to malfunction.
◎Do not store the product in a dusty or humid environment as damage may occur.
◎When the product is mounted on a camera, do not lift or move the camera by grabbing
the product. This may cause damage to the product or the camera mount.
◎Do not clean the product with paint thinner, benzene, or other volatile solvents. This may
cause damage to the product and become a re hazard.
◎This product is not waterproof. If the product is dropped in water, contact the service
center immediately.
Please observe the following safety precautions as they are meant for the safe and
proper use of the product to reduce the risk of accidents. Upon reading the user
manual, keep it in a safe and available place.

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
4
Table of Contents
Safety Precautions
Table of Contents
CFL400 Package Contents
CFL800 Package Contents
Name of each part
3
4
6
8
13
13
14
14
15
15
16
17
Before Using
Connect LED Panel to the Ballast
Input the Power by DC
Input the Power by Battery
Power On / O
USB Output
D-Tap Output
Charging the Battery
Set the Soft Box
10

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
5
Operating
Basic Operation
CCT Mode (White Color)
RGB Mode
Hue/Sat Mode
Preset
Eect Mode
User Eect Mode
18
19
20
21
22
23
23
System
Firmware Update
Color Unit
Master / Slave
DMX
Specications
Optional Accessoires
24
24
25
25
26
26

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
6
CFL400 Package Contents
Please ensure all parts are present after opening the box.
LED Panel, Ballast(V-Battery Mount), Soft Diffuser, Bracket
with spigot, AC Adapter, Carrying Bag, Manual
LED Panel, Ballast(G-Battery Mount), Soft Diffuser, Bracket
with spigot, AC Adapter, Carrying Bag, Manual
LED Panel, Ballast(without Battery Mount), Soft Diffuser,
Bracket with spigot, AC Adapter, Carrying Bag, Manual
LED Panel x3, Ballast(V-Battery Mount) x3, Soft Diuser x3,
Bracket with spigot x3, AC Adapter x3, Carrying Bag, Manual
LED Panel x3, Ballast(G-Battery Mount) x3, Soft Diuser x3,
Bracket with spigot x3, AC Adapter x3, Carrying Bag, Manual
LED Panel x3, Ballast(without Battery Mount) x3, Soft
Diuser x3, Bracket with spigot x3, AC Adapter x3, Carrying
Bag, Manual
CFL400 Single Set
CFL400 3 Set
CFL400V
CFL400G
CFL400N
CFL400-3V
CFL400-3G
CFL400-3N

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
7
LED Panel Ballast
X-Bracket AC Adapter Extension Cable
Soft Diuser Manual Carrying Bag

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
8
CFL800 Package Contents
Please ensure all parts are present after opening the box.
LED Panel, Ballast(V-Battery Mount), Soft Diffuser, Bracket
with spigot, AC Adapter, Carrying Bag, Manual
LED Panel, Ballast(G-Battery Mount), Soft Diffuser, Bracket
with spigot, AC Adapter, Carrying Bag, Manual
LED Panel, Ballast(without Battery Mount), Soft Diffuser,
Bracket with spigot, AC Adapter, Carrying Bag, Manual
LED Panel x3, Ballast(V-Battery Mount) x3, Soft Diuser x3,
Bracket with spigot x3, AC Adapter x3, Carrying Bag, Manual
LED Panel x3, Ballast(G-Battery Mount) x3, Soft Diuser x3,
Bracket with spigot x3, AC Adapter x3, Carrying Bag, Manual
LED Panel x3, Ballast(without Battery Mount) x3, Soft
Diuser x3, Bracket with spigot x3, AC Adapter x3, Carrying
Bag, Manual
CFL800 Single Set
CFL800 3 Set
CFL800V
CFL800G
CFL800N
CFL800-3V
CFL800-3G
CFL800-3N

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
9
LED Panel Ballast
H-Bracket AC Adapter Extension Cable
Soft Diuser Manual Carrying Bag

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
10
Name of each part
To combine the LED panel with the
bracket, rotate the 4 screws of the
bracket by pressing and screwing
them together.
Set LED Panel on the Bracket
LED Panel with Bracket
Velcro
BallHeadKnob
16mmfemaleSpigot
1/4”Lever
6pinConnenctor

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
11
Name of each part
Ballast
Preset Buttons
DMX In
Color Display
LED Panel Port
DMX Out
D-Tap Output
1/4”Mount
USB Output
DMX Master / Slave
Battery Latch
Setting Lock Lamp
SettingWheel Button
Setting Lock Button Enter/Exit Button
Mode Button
Brightness Lock Button
BrightnessWheel Button
Brightness Lock Lamp
Battery Mount
DC Input
Battery Charge Switch
Power Switch

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
12

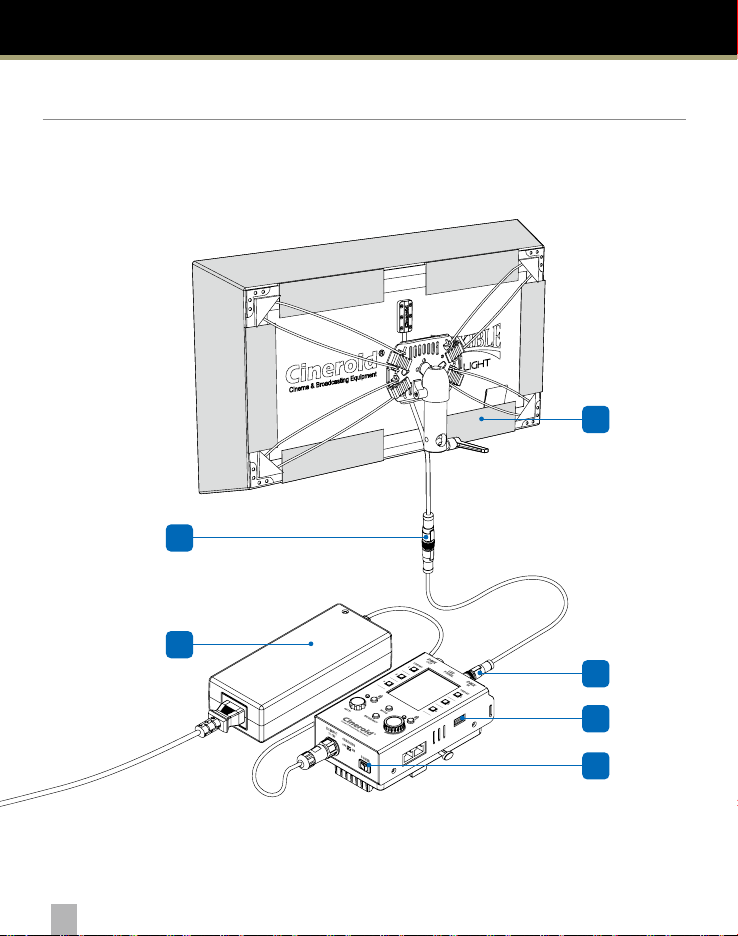

Before Using
1
2
1
5
8
4

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
13
Before Using
1
Connect the LED panel and ballast connectors.
And then screw the nut to tight. It can be used
extension cable between connectors.(optional)
Connect LED Panel to the Ballast
Connect the LED panel and ballast connectors.
And then screw the nut to tight.
Input the Power by DC
2

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
14
Before Using
Insert the correct type battery to the battery port.
Turn on the power button to check the LCD.
When removing the battery, press the detach latch and
remove the battery in reverse order of mounting.
Input the Power by Battery (CL-DV/CL-DG)
Press the button to turn on the controller.
The CINEROID logo appears briefly on the
controller screen.
Power On / O
Battery Latch
3
4

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
15
Battery Latch
Before Using

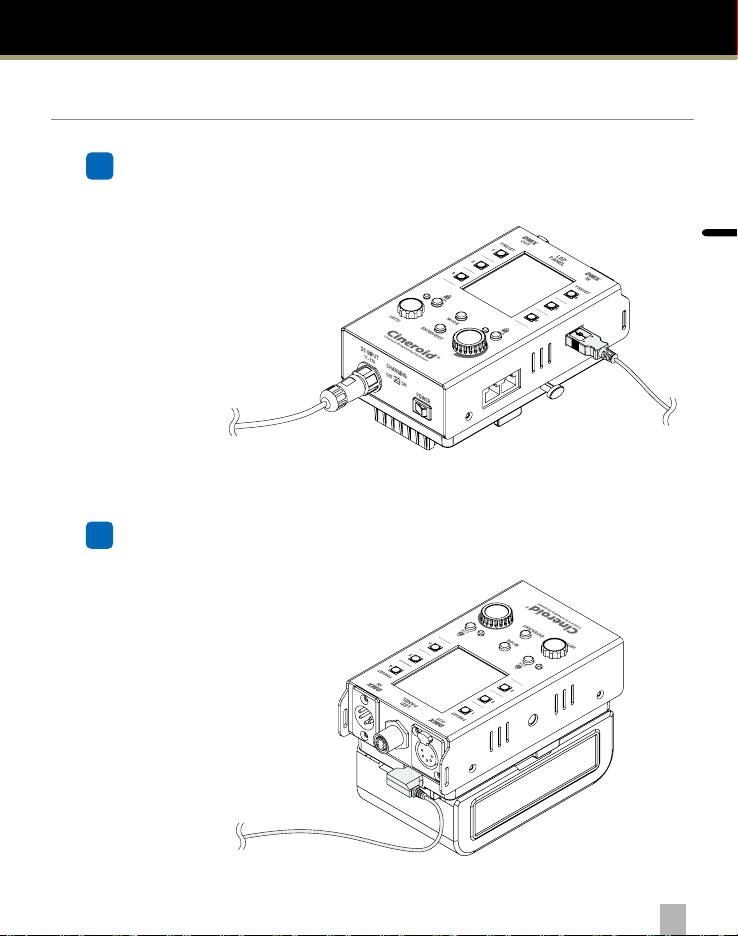

USB Output
Ballast can be used in a 5V, 1A USB output.
Connect the power to the controller and
use it with the switch turned on.
D-Tap Output (CL-DV/CL-DG)
CL-DV or CL-DG Ballast can be used
D-tap output. After attaching the
battery to the battery mount, turn on
the power and use the D-tap cable.
(D-tap cable not included)
5
6

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
16
Before Using

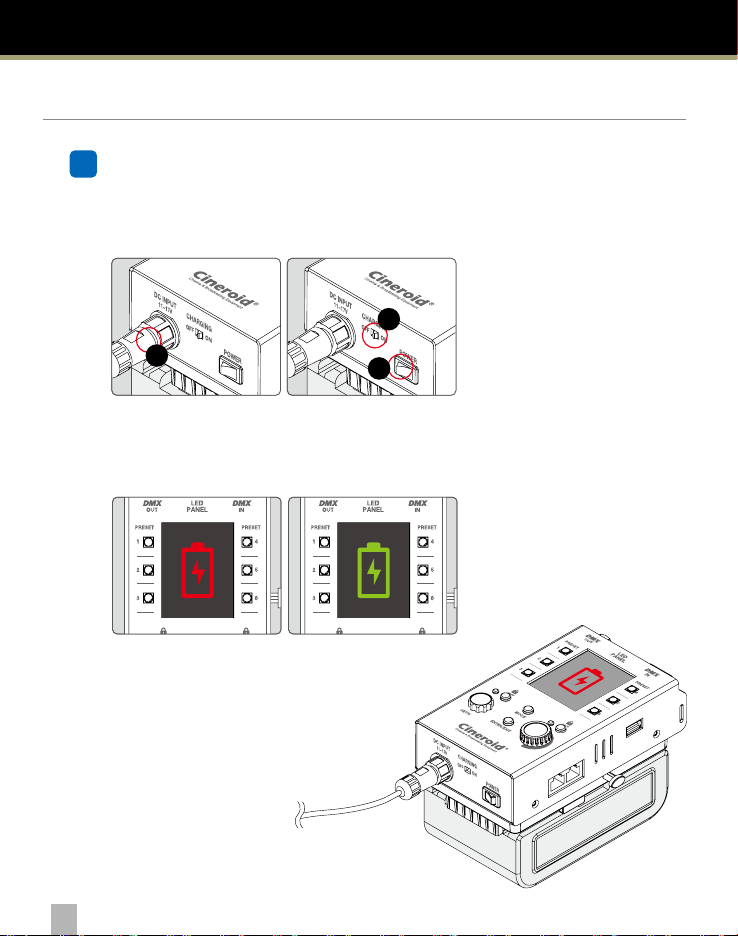

V or G Battery can be charged on the ballast throgh DC power.
Install the battery to the ballast, turn o the power switch while
DC power is connected, and turn on the Charging switch.
Charging the Battery
When the battery is charging, the charging icon is displayed
in red on the screen and it is displayed in green when
charging is complete.
2
3
1
Charging Charging Complete
7

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
17
Before Using

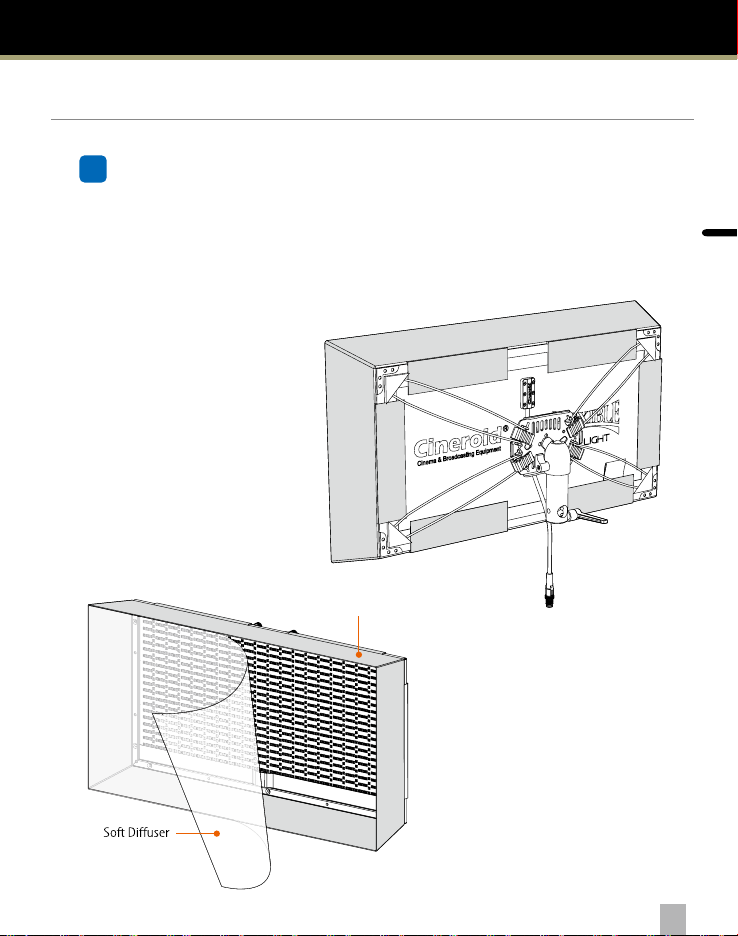

Install the Soft Box Body rst. Open Soft Box Body and
attach it to the Velcro on the back of the LED panel.
After installing the Soft Box Body, cover the Soft Diuser
to the Velcro outside Soft Box Body.
Set the Soft Box
Soft Box Body
8

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
18
DMX-1 Unit [%]
CCT MODE
RGB MODE
HUE/SAT MODE
EFFECT MODE
USER EFFECT
SYSTEM SET
DMX-1 Unit [%]
CCT MODE
RGB MODE
HUE/SAT MODE
EFFECT MODE
USER EFFECT
SYSTEM SET

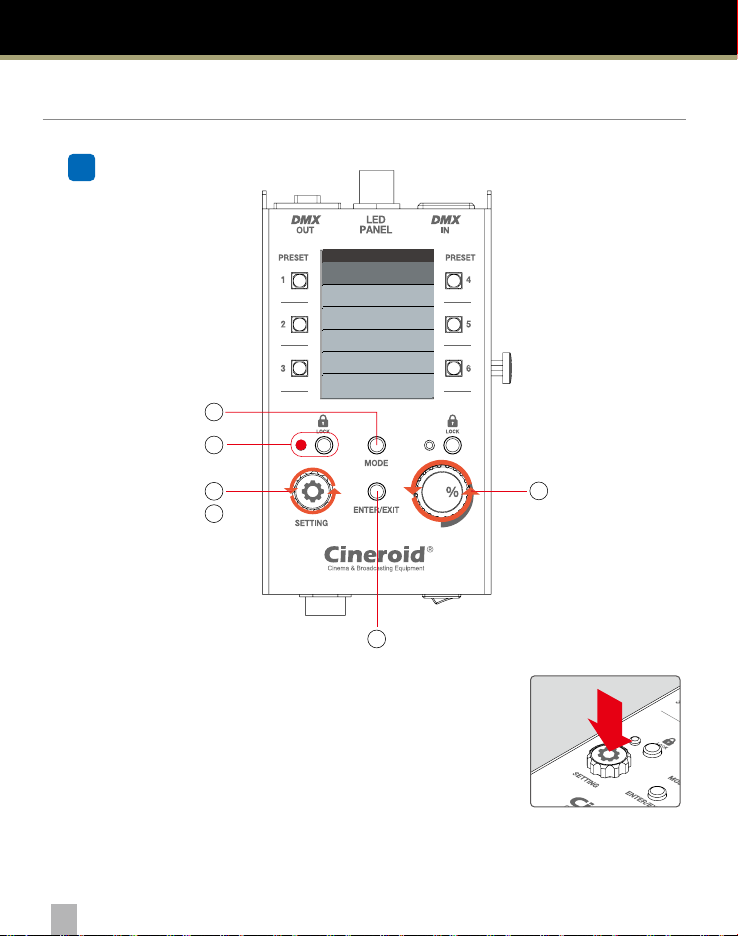

1. Access the LED mode menu by pressing the mode button on Ballast.
2. Turn the Setting Button to set the value and press the Setting Button
to complete the setting.
3. Press Exit Button to return to the previous screen.
4. Brightness Wheel is only used to adjust the brightness.
5. You can lock the setting button and brightness respectively. When
the button is pressed, the corresponding Lock Button Lamp lights
and the button can not be operated. Press it again to release the lock.
Pressing Setting button
Basic Operation
Operating
1
1
6
2
3
4
5

English
FULL COLOR FLEXIBLE LED LIGHT
Cineroid CFL
19

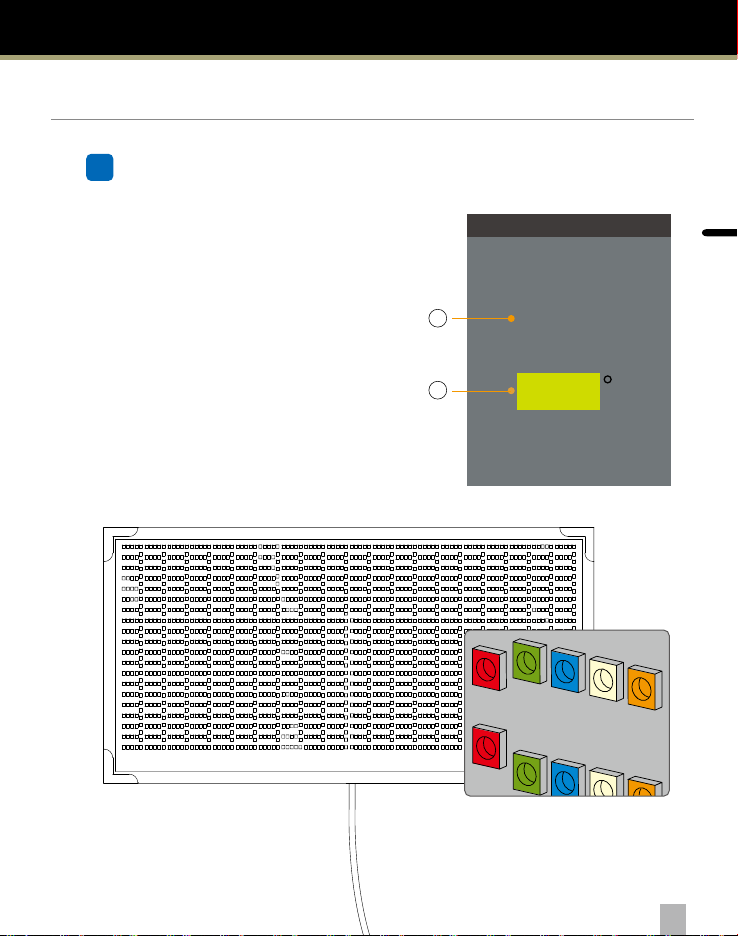

CCT Mode (White Color)
2
Operating
①
Brightness
Turning the brightness wheel button to the
right to increase brightness. Turn to the left
to decrease brightness. You can adjust the
Brightness by 0~100% dimming.
②
ColorTemperature
Turn the Setting Button to the right increases
Color temperature and left decreases Color
temperature. You can adjust color temperature
from 2700°K to 6500°K by Setting Wheel
Button in CCT mode.
PN-CFL800e
1
2
DMX-1
[CCT MODE]
Unit [%]
48 %
4500 K
R
R
G
B
White
(Daylight/Tungsten)

Cineroid CFL
FULL COLOR FLEXIBLE LED LIGHT
20
Operating

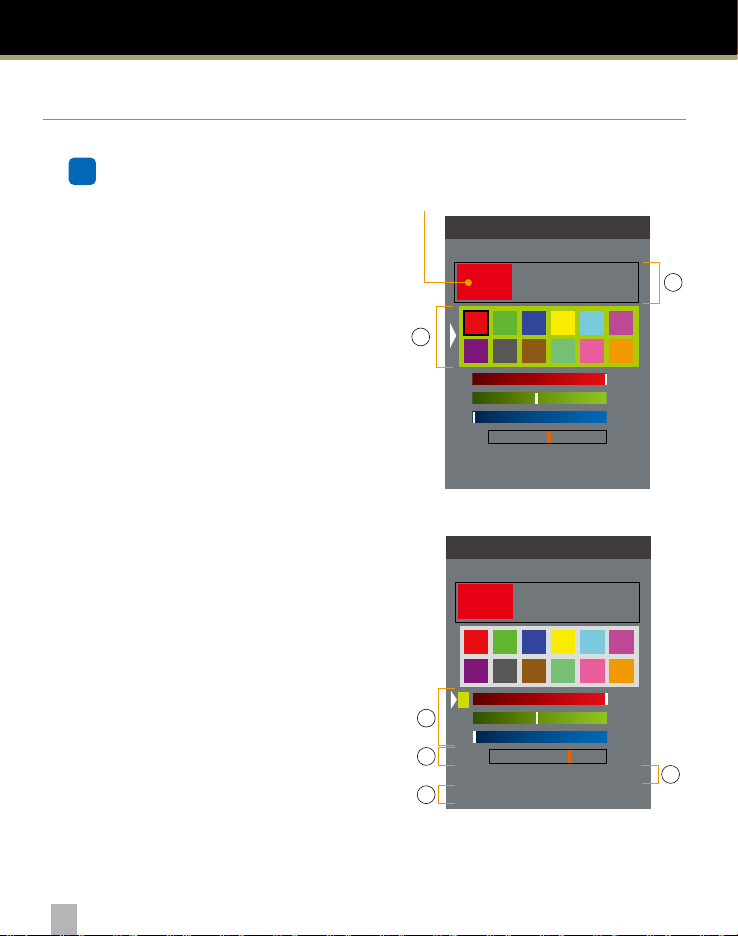

RGB Mode
①
Brightness
Turn the Brightness Wheel to adjust the
brightness. Brightness can be set from 0 to
100%. The current color is displayed next to the
brightness indicator.
②
Internal Preset Color
Select Internal Preset Color. The information of the
12 internal preset color values is displayed in the
lower RGB boxes respectively.
③
Color manual setting
You can specify RGB color values manually. Red,
Green, Blue Specify a value for each color.
④
White Color intensify
White color can be added to or subtracted from
the RGB color value. White Color Intensify Sets the
ratio values of RGB and White Color in the graph.
⑤
White Color temperature
Sets the Color Temperature of the White Color. It
can be set from 2700 to 6500K.
⑥
Color History
Please refer to
④
on next page.
3
0
Current Color
2
1
DMX-1
[RGB MODE]
>>Color History
R
G
B
RGB 50 % 50 %
Unit [RGB]
31 %
255
105
0
W
CCT 3300 K
3
4
DMX-1
[RGB MODE]
>>Color History
75 % 25 %
Unit [RGB]
31 %
255
105
0
W
CCT 3300 K
R
G
B
RGB
5
6
