LumiGrow Pro E Lights Series User manual

LumiGrow Pro Series E Lights
Quick Start Guide
Product Codes
Pro Series E, 325 LV (120-240)
8100-6601
Pro Series E, 325 HV (240-480)
8100-6602
Pro Series E, 650 LV (120-240)
8100-7601
Pro Series E, 650 HV (240-480)
8100-7602
Product Description: Pro Series E Fixture
PN #770-00005-B

Quick Start Guide
LumiGrow® Pro 325e, Pro 325eHV, Pro 650e& Pro 650eHV
Thank you for choosing LumiGrow as your preferred LED lighting solution!
Committed to providing the most responsive customer service, the LumiGrow customer support team is always only a
call or click away. To reach a technical expert, visit http://lumigrow.com /support or call [phone].
WARNING: All Power must be turned off before attempting any
wiring installation. All electrical work should be done according to
appropriate local and regional electrical codes
Getting Started
1. Remove the LumiGrow Pro Series E fixture from the box and unwrap it.
2. Lay the fixture on its foam cushions. If you have received C-Hanger brackets,
attach the C-hangers to the top of the fixture using a Phillips head screwdriver
to fasten screws to the center hole (C-hangers come standard). If you have
received V-hanger brackets, remove the screws and washers on each end of
the top of the fixture. Use the same fasteners to attach the V-hanger brackets
to the top of the fixture as shown to the bottom right.
3. If your system came with SmartPAR modules, install them now, before hanging
your fixture. Refer to the SmartPAR Module Install Guide for detailed
instructions on module installation.
4. Hang your LumiGrow Pro Series E fixture at the appropriate height to achieve
the desired light coverage provided by your LumiGrow representative and light
plan.
5. For LV units, connect the AC input power cord to an appropriate Nema 5-15P
plug, and make sure the input AC mains switch is turned on. For HV
installations, a certified electrician must perform all wiring installation per local
and regional electrical codes. LumiGrow Pro Series E fixtures should only be
installed on an AC branch circuit protected by a listed circuit breaker, that meet
all local and regional electrical codes.
6. After all lights are appropriately installed, turn on your circuit breaker. For
fixtures that are not equipped with a SmartPAR module, all fixtures will start in
an “all on” state, for maximum light output.
7. For fixtures that are equipped with SmartPAR modules, please refer to your
LumiGrow representative for custom installation instructions, and reference
www.lumigrow.com for guidance getting started with SmartPAR.

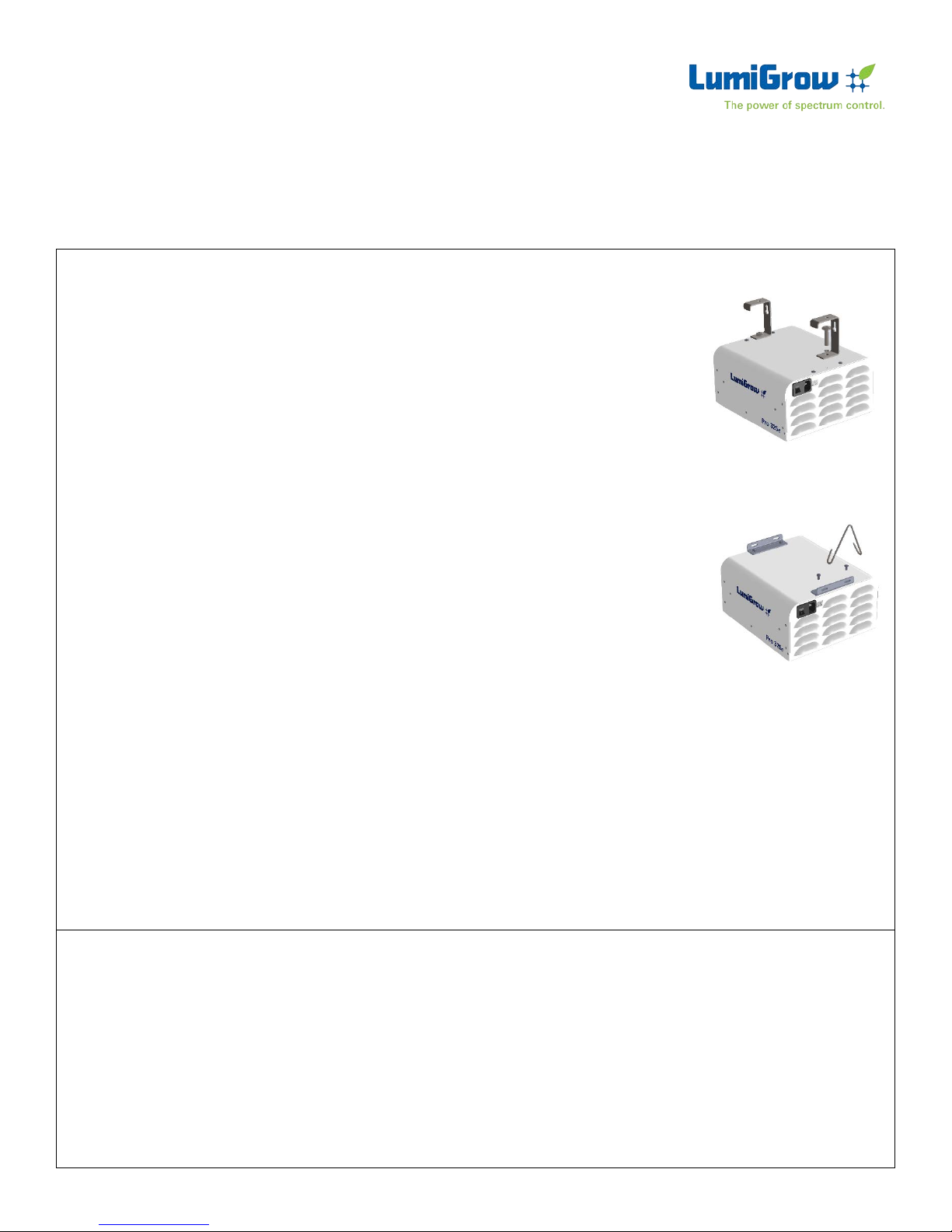

C-Hanger
V-Hanger
SAFETY PRECAUTION’S
Follow ALL LumiGrow recommendations, product markings, instructions, restrictions and warnings
•This product is intended for indoor use, suitable for damp locations
•Do not immerse the fixture in water or clean the fixture with a high-pressure water jet
•Do not use the unit with a damaged power cord, plug or electrical outlet
•Do not place lens of fixture directly on table or other flat objects where it could be scratched or damaged
•There are no user serviceable components and no bulbs to replace
•Lens and enclosure can be cleaned with a clean damp cloth, no harsh solvents
•All servicing of fixtures or accessories must be performed by qualified LumiGrow representative

Regulatory warnings
•This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules
•This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada
Disposal Instructions
Contact your municipality or the nearest collection site to dispose of Electrical and Electronic Equipment waste
Technical Specifications
Pro 325e
Pro 325e HV
Pro 650e
Pro 650e HV
Product Codes
8100-6601
8100-6602
8100-7601
8100-7602
Typical Operating
Voltage
100-247 VAC 277-480 VAC 100-240 VAC
277-480 VAC
Typical
Power
Ci
295 Watts 290 Watts 585 Watts 580 Watts
Typical Operating
Current 2.5A @ 120 VAC
1.2A @ 240 VAC
1.0A @ 277 VAC
0.6A @ 480 VAC
4.9A @ 120 VAC
2.4A @ 240 VAC
2.1A @ 277 VAC
1.2A @ 480 VAC
Operating Frequency
50-60 Hz
Power Factor
> 0.90
Current THD
< 20%
Operating
Temperature
32º F to 104º F (0º C to 40º C)
Estimated Photon
Flux
550 µmol/s 1100 µmol/s
PPF/W
1.9 µmol/W
1.9 µmol/W
1.9 µmol/W
1.9 µmol/W
Heat Output
1007 BTU/hr
(0.30 kW)
990 BTU/hr
(0.29 kW)
1996 BTU/hr
(0.59 kW)
1979 BTU/hr
(0.58 kW)
Dimmability For
Manual and Auto
Control via
S PAR
Blue, White and Red (0% to 100% per LED channel)
Software Control
SmartPAR Ready - Wireless
Dimensions
10” W x 12” L x 5-1/2” H
(254 mm x 305 mm x 140 mm)
10” W x 18” L x 5-1/2” H
(254 mm x 457 mm x 140 mm)
Weight
9 lbs (4 kg)
10 lbs (4.5 kg)
21 lbs (9.5 kg)
21.5 lbs (9.7 kg)
Certifications
CE & UL/cUL listed for damp and wet locations
All specifications are subject to change without notice
Note, all numbers are typical, can vary +/- 10% per line voltage
Note: Heat output is calculated using entire system power (electrical and optical)
Due to continuous improvements and innovations,
specifications may change without notice.
