Cino Fuzzyscan User manual

BARCODE SCANNER
FUZZYSCAN FAMILY
Quick Start Guide

1

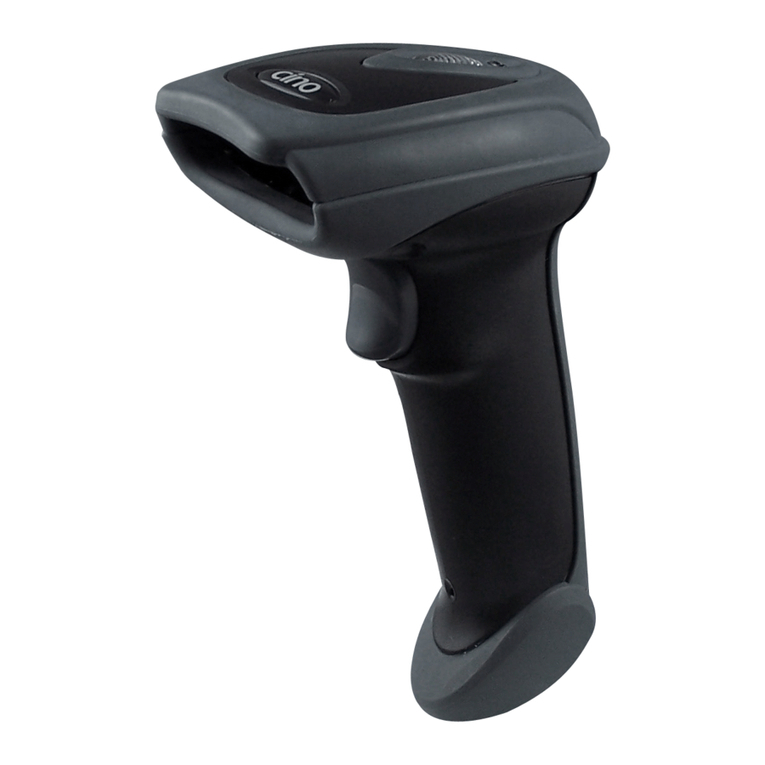

Getting Familiar with Your FuzzyScan
Thank you for choosing Cino FuzzyScan Bar Code Scanner. All FuzzyScan
scanners deliver world-class performance for a broad range of applications to
unleash your productivity.
In order to fulfill your various requirements, the options of Vibrator, PDF
Readability and Disinfectant-ready Housing are available upon request.
For more details, please visit our website or contact your supplier.
This document provides an easy reference for installation and operation
purpose. The complete documentation is available at www.cino.com.tw.

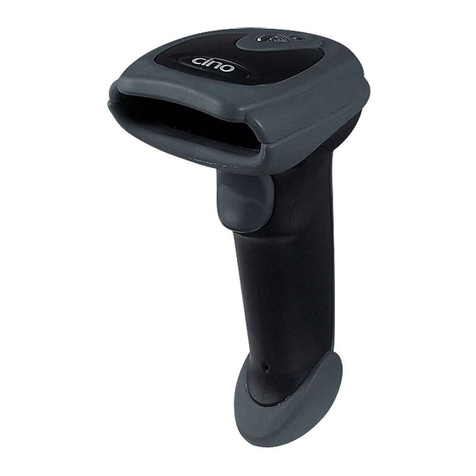

F700/L700 Series F600/L600 Series
F500 Series F400 Series
Power Indicator Scan Window
Status Indicator Beeper
Trigger Cable Release Hole

2
Connecting to Your Host
FuzzyScan scanners support USB, PS/2(DOS/V) Keyboard Wedge and
RS-232 Serial interfaces. Please choose your desired interface cable, then
plug it into the cable interface port of the scanner and connect it to the host. If
you would like to remove the cable, please straighten one end of a paper clip,
then insert it into the cable release hole to pull out the cable.
S232 Serial
PS/2(DOS/V) Keyboard Wedge
USB HID & USB COM
USB HID (Human Interface Device)
The scanner works as a generic USB keyboard.
USB COM Port Emulation
The scanner works as a legacy RS232 serial device. Please note that you
have to install the USB Virtual COM software driver before using.

3
Using Accessories
You can enhance productivity of your workforce by using various accessories
to fulfill a wide variety of application demand.
Universal Holder
The stylish Universal Holder is designed for storing your scanner when not in
use. It serves to protect the scanner from lens-scratched or falling. Moreover,
its artistic-design enhances the entire value of the scanner.
Hand-free SmartStand
SmartStand is specifically designed for hand-free applications to maximize
user’s comfort and productivity. You can adjust the scanner holder to desired
position for optimized scanning. But please note that the SmartStand is not
applicable for F400 series scanner.
Thanks to the auto-sense design, the scanner is capable of switching
between presentation scanning and hand-held scanning automatically while
working with SmartStand. But please note that this feature is not available for
F400 and F500 series scanners.
In presentation mode, the barcode may not be detected by the scanner in an
environment with very dim ambient lighting. You can select higher sensitivity
level through the setting of Presentation Sensitivity to increase scanner’s
sensitivity.
Level 3
Level 1 Level 6
Level 4
Level 2 Level 7
Level 5 ◆

4
Operation Modes
Both Fseries Linear Imager and Lseries Laser Imager are available in
FuzzyScan family. Both series support different operation mode which are
listed below for reference.
The F series supports nine operation modes, including trigger, presentation,
alternative, level, flash, force, toggle, diagnostic and low power modes. The L
series supports five operation modes, including trigger, presentation,
alternative, level and low power modes.
Trigger Mode
When trigger mode is selected, the scanner goes into standby state after
scanning the bar code. You must press the trigger switch to turn on the light
source of the scanner before scanning the bar code.
Presentation Mode
When presentation mode is selected, the scanner will turn on the light source
and start scanning operation automatically if it detects an image similar to a
bar code. In case the scanner can’t detect a bar code, it will turn off the light
source when the preset light source on time is up.
Alternative Mode
When alternative mode is selected, the scanner keeps the light source on till
the preset light source on time is up. After the scanner turns off the light
source, you must press the trigger switch to turn on the light source again.
After each good read, the timer counter of light source on time is reset. You
do not have to press the trigger frequently, it is very convenient for multiple
scanning.
Level Mode
When level mode is selected, the scanner continues to turn on the light
source till a bar code is decoded or preset light source on time is up. When a
bar code is decoded successfully, the scanner turns off the light source
immediately. After the scanner turns off the light source, you must press the
trigger switch to turn on the light source again. If there is no scanning
operation performed during the preset light source on time, the scanner will
turn off the light source after the preset light source on time is up.

5
Flash Mode
When flash mode is selected, the scanner flashes the light source without
having to press the trigger switch. If the scanner detects an image which is
similar to a bar code, it forces on the light source automatically and scans the
bar code.
Force Mode
When force mode is selected, the light source of the scanner is forced on for
continued operation without having to press the trigger switch. This mode is
convenient for high speed bar code reading.
Toggle Mode
When toggle mode is selected, you must press the trigger switch to turn on
the light source of the scanner to start scanning operation. The scanner
keeps the light source on until you press the trigger switch again. This mode
is very similar to alternative mode but without the preset light source on time
concern.
Diagnostic Mode
When diagnostic mode is selected, the light source of the scanner is forced
on without regard for other programmable parameters, such as reread delay,
redundancy, and so on.
Low Power Mode
When low power mode is selected, the scanner goes into idle state after
scanning the bar code. You must press the trigger switch to wake up the
scanner for operation.

6
Keyboard Interface Quick Set
- ecord Suffix -
None
RETURN ◆
TAB
SPACE
ENTER
- Keyboard Layout -
USA ◆
France
Germany
United Kingdom-UK
Canadian French
Spain (Spanish)
Spain (Latin America)
Nertherlands
Japan
Sweden/Finland

7
Serial Interface Quick Set
- ecord Suffix -
None TAB
LF
CR ◆ SPACE
CRLF
- Baud ate –
115.2K BPS 4800 BPS
19.2K BPS
57.6K BPS 2400 BPS
9600 BPS ◆
38.4 BPS 1200 BPS
- Data Frame -
8, None, 1 ◆ 7, None, 2
8, None, 2
8, Odd, 1 7, Odd, 2
7, Odd, 1
8, Even, 1 7, Even, 2
7, Even, 1
8, Space, 1 7, Space, 2
7, Space, 1
8, Mark, 1 7, Mark, 2
7, Mark, 1

8
System Commands
System Information
Master Default
PowerTool Host Link
User Default
Factory Default
Save User Default
Host Interface Quick Set
RS232 Serial
Keyboard Replacement
PS/2 (DOS/V) KBW Standard Mode
PS/2 (DOS/V) KBW Turbo Mode
USB HID Standard Mode ◆
USB HID Turbo Mode
USB Com Port Emulation

9
System Commands
PROGRAM
(Enter Programming Mode)
END
(Exit Programming Mode)
Option Codes
0 A
1
6
B
2
7
C
3
8
D
4
9
E
5 F
FIN (Finish)

10
Keyboard Interface Control
Command Parameter Selection Option Code
Keyboard Layout USA ◆
France
Germany
United Kingdom-UK
Canadian French
Spain
Sweden/Finland
Portugal
Norway
Latin America
Italy
Netherland
Denmark
Belgium
Switzerland-Germany
Iceland
Japan
Czech
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
Record Suffix None
RETURN ◆
TAB
SPACE
ENTER
U er define character
0
1
2
3
4
5
Preamble None ◆
1-15 character
FIN
[00-7F], [FIN]
Postamble None ◆
1-15 character
FIN
[00-7F], [FIN]
Intermessage Delay None ◆
1-99 (x5) m ec.
FIN
(2 digit )
Intercharacter Delay None ◆
1-99 (x5) m ec.
FIN
(2 digit )
Interfunction Delay None ◆
1-99 (x5) m ec.
FIN
(2 digit )
Caps Lock Control “Cap Lock On, Cap Off’’ ◆
“Cap Lock On, Shift Off’’
Auto Detect
0
1
2
Caps Lock Release Control “Cap Lock On, Cap Off” ◆
“Cap Lock On, Shift Off”
0
1
Function Key mulation Enable ASCII 00-31 a KB function code output ◆
Enable ASCII 00-31 a Ctrl-xx output
0
1
Key Pad mulation Di able key pad emulation ◆
Enable numeric output a key pad output
0
1
Upper/Lower Case Normal ca e ◆
Inver e ca e
Upper ca e
Lower ca e
0
1
2
3

11
Serial Interface Control
Command Parameter Selection Option Code
STX/ TX Control Di able STX/ETX tran mi ion ◆
Enable STX/ETX tran mi ion
0
1
Record Suffix None
CR ◆
LF
CRLF
TAB
SPACE
U er define character
0
1
2
3
4
5
6
Preamble None ◆
1-15 character
FIN
[00-7F], [FIN]
Postamble None ◆
1-15 character
FIN
[00-7F], [FIN]
Handshaking Protocol None ◆
RTS/CTS
ACK/ NAK
Xon/Xoff
0
1
2
3
Intermessage Delay None ◆
1-99 (x5) m ec.
FIN
(2 digit )
Intercharacter Delay None ◆
1-99 (x5) m ec.
FIN
(2 digit )
Interfunction Delay None ◆
1-99 (x5) m ec.
FIN
(2 digit )
Serial Response Time-out None
200 m ec.
500 m ec. ◆
800 m ec.
1 ec.
2 ec.
3 ec.
4 ec.
5 ec.
8 ec.
10 ec.
15 ec.
0
1
2
3
4
5
6
7
8
9
A
B
NAK Retry Count 3 time ◆ 
0~255 time
FIN
(3 digit )
Message String Breakdown
Keyboard interface output (PS/2, DOS/V, USB HID)
Preamble Data Length Prefix ID Scanned Data Suffix ID Postamble Record Suffix
1-15 char. 2-3 digit 1 or 2 char. Variable 1 or 2 char. 1-15 char. 1 char.
Serial interface output (RS-232, USB COM Port Emulation)
STX Preamble Data Length Prefix ID Scanned Data Suffix ID Postamble TX Record
Suffix
1 char. 1-15 char. 2-3 digit 1 or 2 char. Variable 1 or 2 char. 1-15 char. 1 char. 1 char.

12
Operation and Output Control
Command Parameter Selection Option Code
Inverse Reading Di able ◆
Enable
0
1
Redundancy None
Level 1 ◆
Level 2
Level 3
Level 4
Level 5
To prevent potential mi reading.
0
1
2
3
4
5
Dollar Sign Control Dollar ign output a “ $ “ ◆
Dollar ign output a “ ￥ “
Dollar ign output a “ € “
Dollar ign output a “ £ “
Dollar ign output a “¢ “
0
1
2
3
4
Presentation Control Pre entation mode ◆
Fla h mode
Force mode
L erie la er imaging canner doe n’t upport thi function.
0
1
2
Presentation Auto-sense Di able
Enable ◆
0
1
Presentation Sensitivity Level 1
Level 2
Level 3
Level 4
Level 5 ◆
Level 6
Level 7
0
1
2
3
4
5
6
Power On Indicator Di able (LED off)
LED teady on ◆
LED fla h
0
1
2
Good Read Indicator Di able
Enable ◆
0
1
Vibrator Control Di able
Enable ◆
Optional function, only available for vibrator model.
0
1
Buzzer Tone Adjust Buzzer tone – mute
Buzzer tone – low
Buzzer tone – medium ◆
Buzzer tone – high
Buzzer tone – extremely high
Power–on beep ◆
No Power–on beep
0
1
2
3
4
5
6

13
Operation and Output Control
Command Parameter Selection Option Code
Trigger Control Enable left trigger, di able right trigger
Enable right trigger, di able left trigger
Enable left and right trigger ◆
Only available for FuzzyScan F460/F468.
0
1
2
Scan Rate Control Dynamic ◆
Fixed
0
1
Good Read Delay None ◆
200 m ec.
500 m ec.
1 ec.
1.5 ec.
2 ec.
3 ec.
0
1
2
3
4
5
6
Reread Delay Di able
Immediate time out ◆
Short time out
Medium time out
Long time out
Force verification
0
1
2
3
4
5
Good Read Duration Short
Medium ◆
Long
Extremely long
Extremely hort
0
1
2
3
4
Hand Free Time-out Short ◆
Medium
Long
Extremely long
Di able
0
1
2
3
4
Light Source On Time Short ◆
Medium
Long
Extremely long
0
1
2
3
Time Delay to Low Power Mode 1 ec
3 ec
5 ec
7 ec
9 ec
Immediate ◆
0
1
2
3
4
5
Flash Duty Cycle 1/2 duty cycle ◆ ◆
2/3 duty cycle
3/4 duty cycle
4/5 duty cycle
L erie la er imaging canner doe n’t upport thi function.
0
1
2
3
Laser Aiming Control Di able
Enable ◆
Only available for L erie la er imaging canner PDF canning.
0
1

14
Keyboard Function Code Table
No. ANSI ASCII Key Function No. ANSI ASCII Key Function
00 NUL 00H RESERVED 16 DLE 10H F7
01 SOH 01H CTRL (Left) 17 DC1 11H F8
02 STX 02H ALT (Left) 18 DC2 12H F9
03 ETX 03H SHIFT 19 DC3 13H F10
04 EOT 04H CAPS LOCK 20 DC4 14H F11
05 ENQ 05H NUM LOCK 21 NAK 15H F12
06 ACK 06H ESC 22 SYN 16H INS (Insert) (Edit)
07 BEL 07H F1 23 ETB 17H DEL (Delete) (Edit)
08 BS 08H BACK SPACE 24 CAN 18H HOME (Edit)
09 HT 09H TAB 25 EM 19H END (Edit)
10 LF 0AH F2 26 SUB 1AH PAGE UP (Edit)
11 VT 0BH F3 27 ESC 1BH PAGE DOWN (Edit)
12 FF 0CH F4 28 FS 1CH UP (Edit)
13 CR 0DH ENTER (CR) 29 GS 1DH DOWN (Edit)
14 SO 0EH F5 30 RS 1EH LEFT (Edit)
15 SI 0FH F6 31 US 1FH RIGHT (Edit)
HEX/ASCII eference Table
H
L 0 1 2 3 4 5 6 7
0 NUL DLE SPACE 0 @ P ` p
1 SOH DC1 ! 1 A Q a q
2 STX DC2 " 2 B R b r
3 ETX DC3 # 3 C S c s
4 EOT DC4 $ 4 D T d t
5 ENQ NAK % 5 E U e u
6 ACK SYN & 6 F V f v
7 BEL ETB ' 7 G W g w
8 BS CAN ( 8 H X h x
9 HT EM ) 9 I Y i y
A LF SUB * : J Z j z
B VT ESC + ; K [ k {
C FF FS , < L \ l |
D CR GS - = M ] m }
E SO RS . > N ^ n ~
F SI US / ? O _ o DEL
Example: ASCII “A” →
→→
→ HEX “41” ; ASCII “a” →
→→
→ “61”
: High Byte of HEX Value : Low Byte of HEX Value

P/N: YMAUB00010030R0
FuzzyScan Barcode Scanner Quick Start Guide
International Edition, Rev. B2
www.cino.com.tw
Cino makes no warranty of any kind with regard to this publication, including, but not limited to, the
implied warranty of merchantability and fitness for any particular purpose. Cino shall not be liable for
errors contained herein or for incidental consequential damages in connection with the furnishing,
performance,or use of this publication.This publication contains proprietary information that is protected
by copyright. All rights are reserved. No part of this publication may be photocopied, reproduced or
translated into any language, in any forms, in an electronic retrieval system or otherwise, without prior
written permission of Cino. All product information and specifications shown in this document may be
changed without prior notice.
Disclaimer
Warranty
Cino warrants its products against defects in workmanship and materials from the date of shipment,
provided that the product is operated under normal and proper conditions.The warranty provisions and
durations are furnished by different warranty programs. The above warranty does not apply to any
product which has been (i) misused; (ii) damaged by accident or negligence; (iii) modified or altered by the
purchaser or other party; (iv) repaired or tampered by unauthorized representatives; (v) operated or stored
beyond the specified operational and environmental parameters; (vi) applied software, accessories or
parts are not supplied by Cino; (vii) damaged by circumstances out of Cino’s control, such as, but not
limited to, lightning or fluctuation in electrical power. Any defective product must follow the warranty
program and RMA procedures to return Cino for inspection.
Regulatory
Part 15 Subpart B
EN55022, EN55024
EN61000-3-2, EN61000-3-3, EN60950-1
EN61000-6-3, EN61000-6-2
CNS13438
AS/NZS CISPR 22:2009 Class B
KN22, KN24 (KN61000-2,-3, -4,-5, -6,-8,-11)
LED Eye Safety IEC62471 Exempt group
Laser Eye Safety IEC60825-1 Class 1
© COPYRIGHT CINO GROUP • PC WORTH INT’L CO., LTD. ALL RIGHT RESERVED.
