CipherLabs 1564A Scanner
Getting Started
The CipherLabs 1564A Bluetooth Scanner is preprogrammed at our office and should function with The Edge
directly out of the box. The scanner ships with its Bluetooth connection already paired to its base.
If you need to pair it directly to a computer, for example if you are using it with a mobile tablet, please
contact Support.
To set it up:
1. Plug the cord into the scanner’s base and connect it to your computer’s USB port.
2. In The Edge, click Administrative > Configuration.
3. In the Barcode Scanner Settings section, use the drop-down to set Barcode Scanner Type to STX_ETX.
4. Click OK to save changes.
5. The scanner is now set up and ready for use. Test it by scanning inventory barcodes, receipts,
envelopes, etc.
Troubleshooting

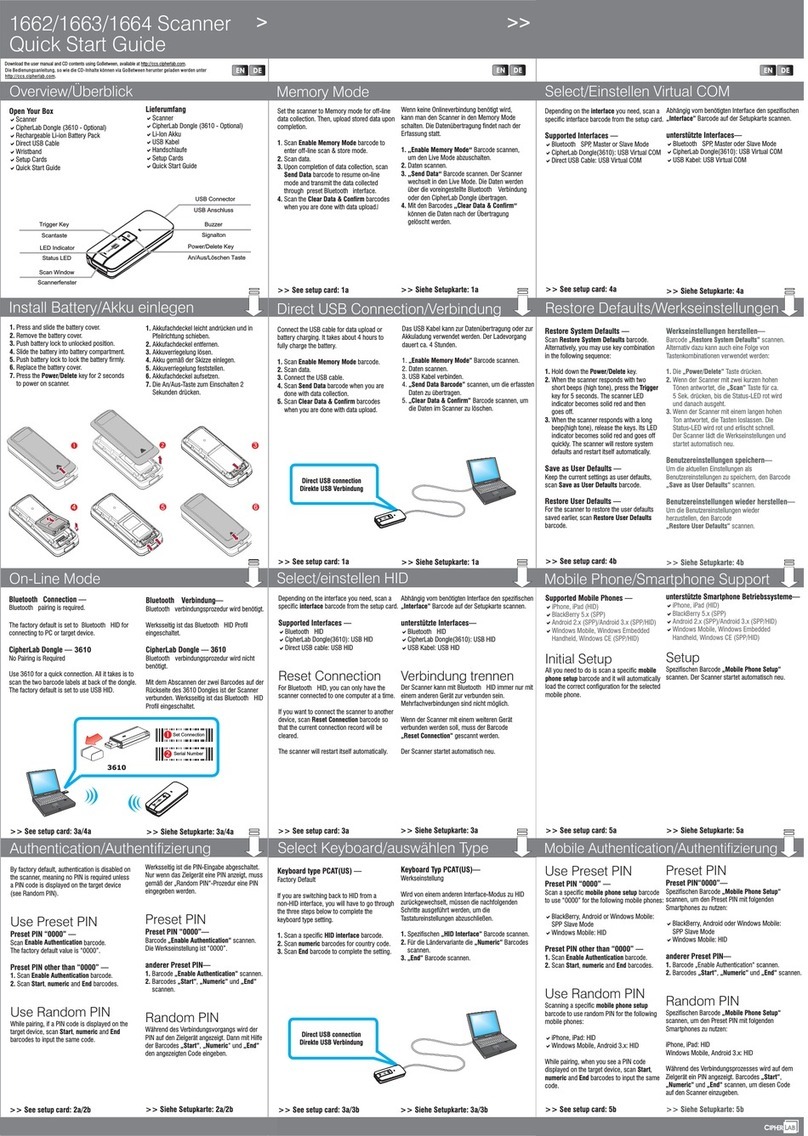

If the scanner does NOT work, follow these instructions to program it and pair it with its base.
Programming
Scan the following barcodes in the order presented to program the scanner. If you make a mistake, start again
from the first barcode.

CipherLabs 1564A Setup
9 February 2021 HDW-2021-003 2
©2021 Abbott Jewelry Systems, Inc.
Enter Setup
Restore Default Settings
(Optional) Beeper Volume: Min
Prefix Code
Add Control (L)
0x06
0x02
Validate
Suffix Code

CipherLabs 1564A Setup
9 February 2021 HDW-2021-003 3
©2021 Abbott Jewelry Systems, Inc.
Add Control (L)
0x06
0x03
Validate
Max Length
0x01
Ox06
Validate

CipherLabs 1564A Setup
9 February 2021 HDW-2021-003 4
©2021 Abbott Jewelry Systems, Inc.
Min Length
0x06
Validate
Update
Pairing Scanner with Base
On the bottom of the base, scan the top barcode (Set Connection), then scan the bottom barcode (BNF).
The scanner is now set up and ready for use. Test it by scanning inventory barcodes, receipts, envelopes, etc.
