Cisco Dual LTE-Single GPS Multi-band Antenna
Installation Guide
This document provides the description, supported features, and installation instructions of the Cisco
Dual LTE-Single GPS Multi-band (4G-LTE-ANTM-O-3) Antennas.
Caution Read the information in Safety Precautions before installing or replacing antennas.
This document contains the following sections:
• Overview of the 4G-LTE-ANTM-O-3 Antenna, page 1
• Supported Antennas, page 12
• Supported Antenna Accessories, page 12
• Antenna Options by Deployment Type, page 13
• Safety Precautions, page 13
• Installation Instructions, page 15
• Deployment Scenarios, page 17
• Antenna Ports, page 19
• Related Documentation, page 20
• Obtaining Documentation and Submitting a Service Request, page 20
Overview of the 4G-LTE-ANTM-O-3 Antenna
Deciding which antenna to use involves multiple factors, such as coverage area, maximum distance,
indoor location, outdoor location, and antenna height.
When an antenna is used indoors, the building construction, ceiling height, and internal obstructions
must be considered. In outdoor environments, obstructions such as trees, vehicles, buildings, and hills
must be considered. Distance is the primary factor when using outdoor-wireless communications.
However, coverage area also becomes important when you use wireless client devices to communicate
with a wireless device.

2
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna
4G-LTE-ANTM-O-3 antenna is an integrated 3-in-1- indoor and outdoor antenna. It comes with two
Long Term Evolution (LTE) antennas and one Global Positioning System (GPS) antenna in a single

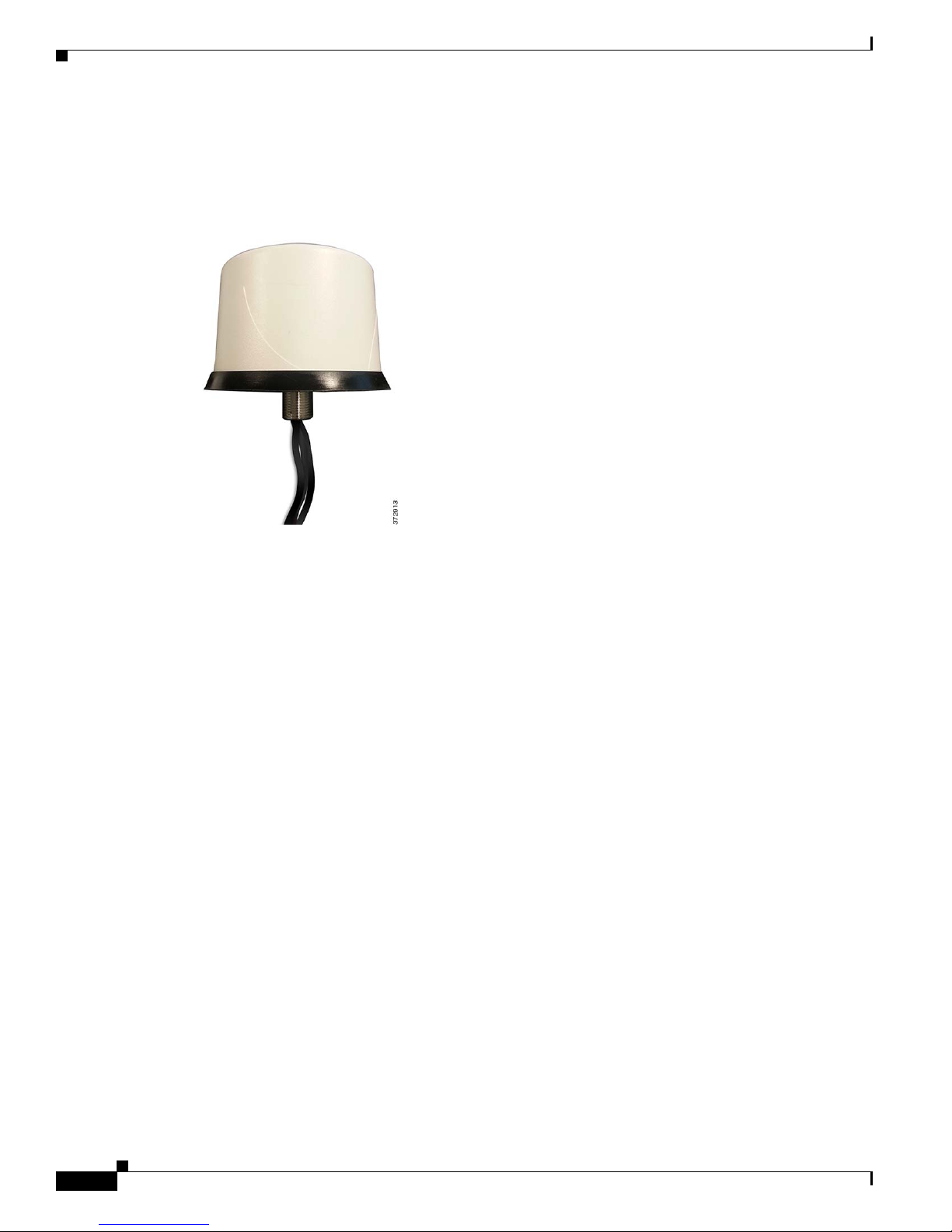

radome. Figure 1 shows the 4G-LTE-ANTM-O-3 antenna.
Figure 1 4G-LTE-ANTM-O-3 Antenna
Parts List
The shipment of your antenna includes the following items:
• One Antenna Unit
• Two SMA-Female to TNC-Male Adapters
• Installation Guide
Features of the 4G-LTE-ANTM-O-3 Antenna
The 4G-LTE-ANTM-O-3 antenna supports the following features:
• No tune, multiband coverage, dual 4G LTE, and GPS L1 frequencies.
• Metal 5/8-inch stud mount with serrated face nut provides single cable exit for easier installation or
antenna replacement.
• Attractive low-profile housing for added overhead clearance.
• IP67-compliant design provides maximum protection against water or dust under severe
environmental conditions.
• High-performance, low-loss cable, and high-quality connectors for maximum Radio Frequency
(RF) system efficiency.
• UV-resistant red, blue, black, or white radome.

3
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna
Technical Specifications
Table 1 lists the specifications for the RF antenna.
.
Table 1 Specifications of RF antenna
Operating Frequencies 698-960 MHz
1710-2700 MHz
Polarization Vertical, linear
Nominal Impedance 50 Ohms
Gain1
(Typical)
1. Total gain, free space test when mounted on a 1-foot diameter ground plane with unused ports loaded.
2.5 dBi
Maximum Power 3 Watts
VSWR2
2. Free space Voltage Standing Wave Ratio (VSWR) over all operating frequency ranges when mounted on a 1-foot
diameter ground plane with unused ports loaded.
< 2.5:1
Elevation Plane (3 dB Beamwidth) 30° (nominal)
Azimuth Plane (3 dB Beamwidth) Omni-directional
Connector type SMA-Male
Cable 4 ft RG174 VW-1 compliant
Height 90 mm
Base Diameter 137 mm
Color White, Black, Red or Blue
Flammability UL-94 V0
Environment Indoor and outdoor
Mounting 5/8 inch lug with serrated face nut, optional
adhesive backing (peel-off), 17 sq. inches area
(minimum) on a flat smooth surface, 5/8 inch
diameter hole through mounting surface
Operating and storage temperature -40 to +85 degree C
Ingress Protection3
3. When mounted per installation instructions.
IP67

4
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna
Table 2 lists the specifications for the GPS Antenna.

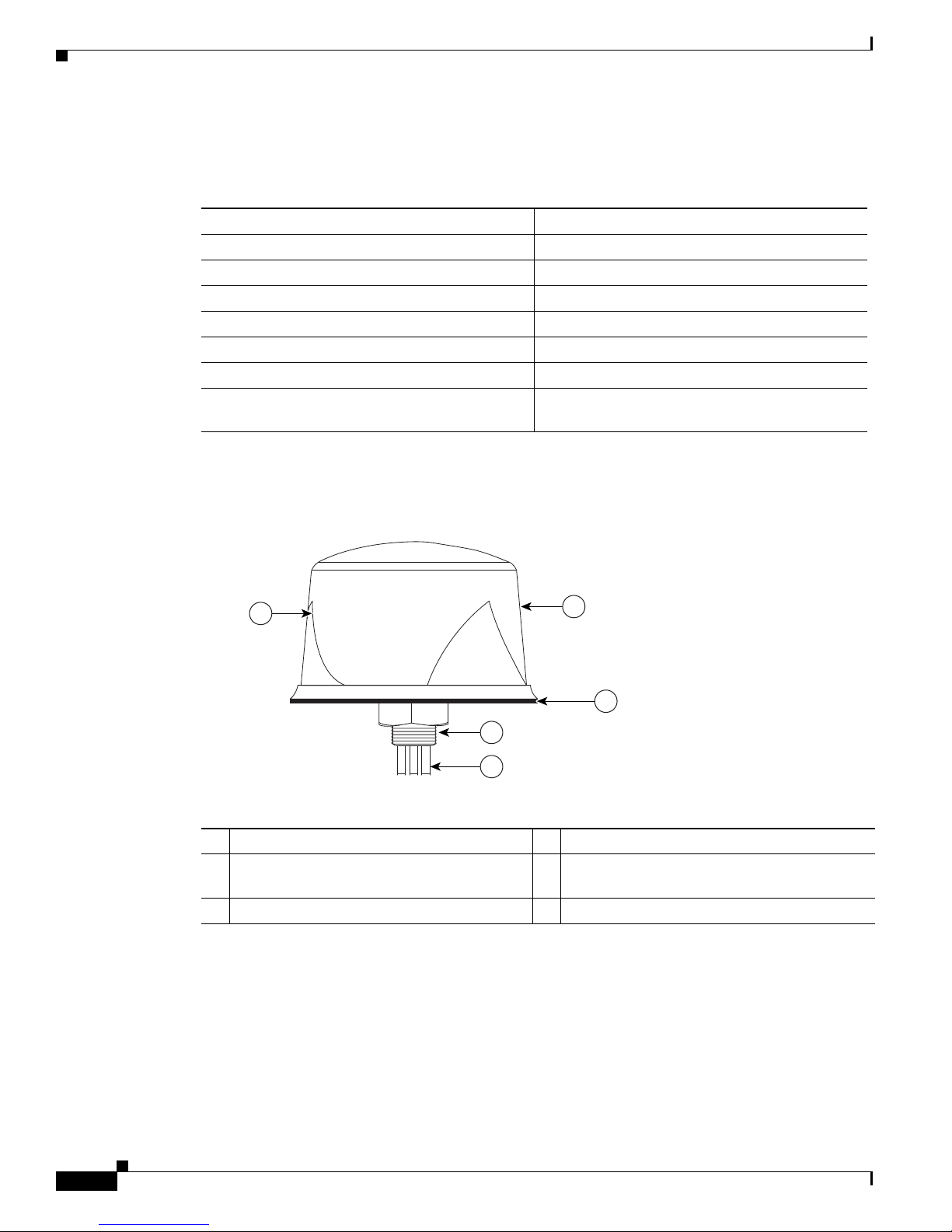

Figure 2 shows the parts of 4G-LTE-ANTM-O-3 Antenna.
Figure 2 Parts of 4G-LTE-ANTM-O-3 Antenna
Table 2 Specifications of the GPS Antenna
Frequency Band 1575.42 MHz (GPS L1)
Amplifier Gain 26 dBc ± 3 dB
Nominal Impedance 50 Ohms
Output VSWR 1.5:1 typical
DC Current 20 mA nominal; < 30 mA @ -40°C to +85° C
DC Voltage 3.3-5 V
Noise Figure 1.8 dB typical
Filtering > 40 dB rejection @ ± 50 MHz from center
frequency
12
3
4
5
372740
1GPS and 2 LTE antennas inside 4Mounting stud
2Radome available in 4 colors: White, Black,
Red or Blue (Indoor or Outdoor)
5Cables
3Gasket

5
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna

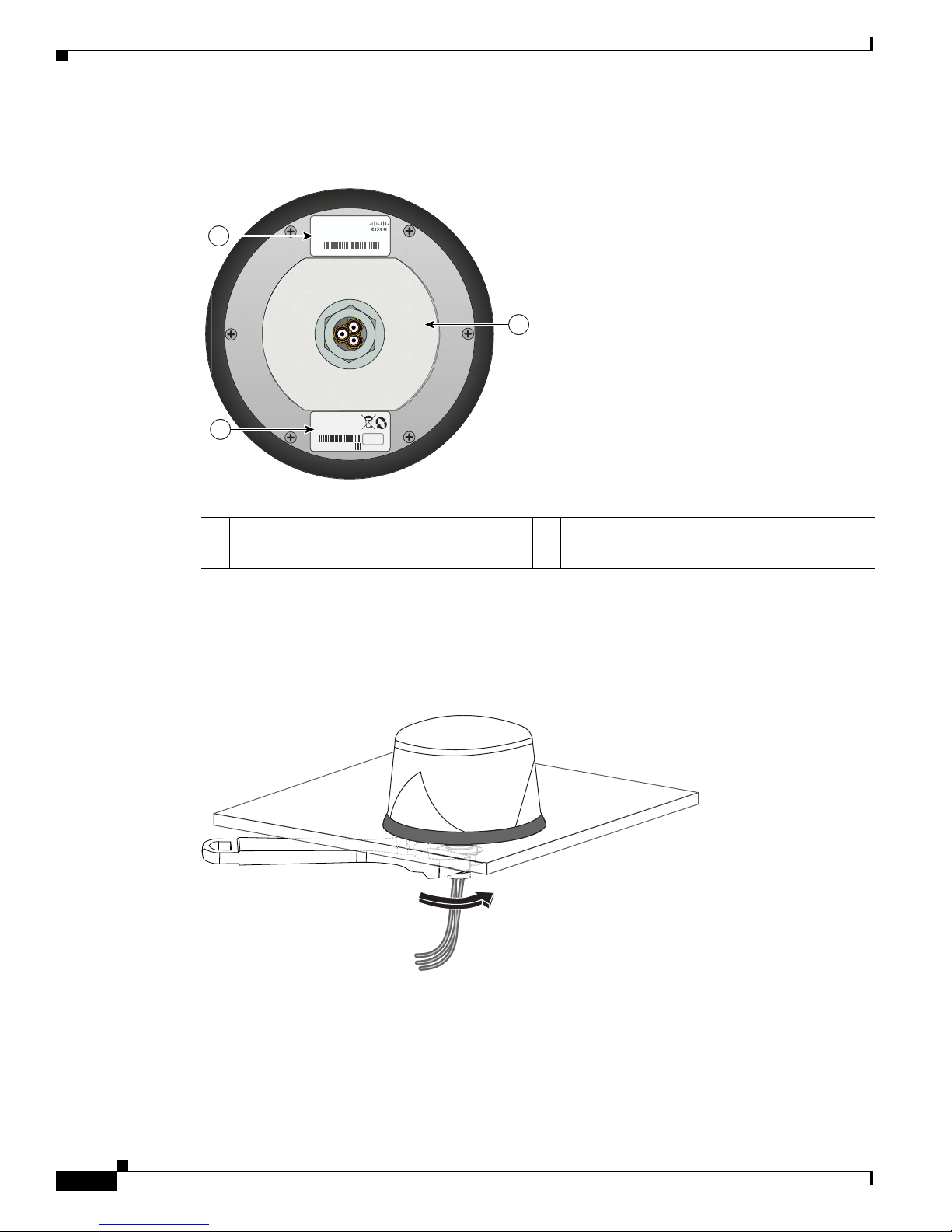

Figure 3 shows the antenna with cable labels.
Figure 3 The Antenna with Cable Labels
MPN
07-01329-01
LTE LTE
GPS
1
3
2
372914
1MPN LABEL 2LTE-ID LABEL 2EA
3GPS ID LABEL

6
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna

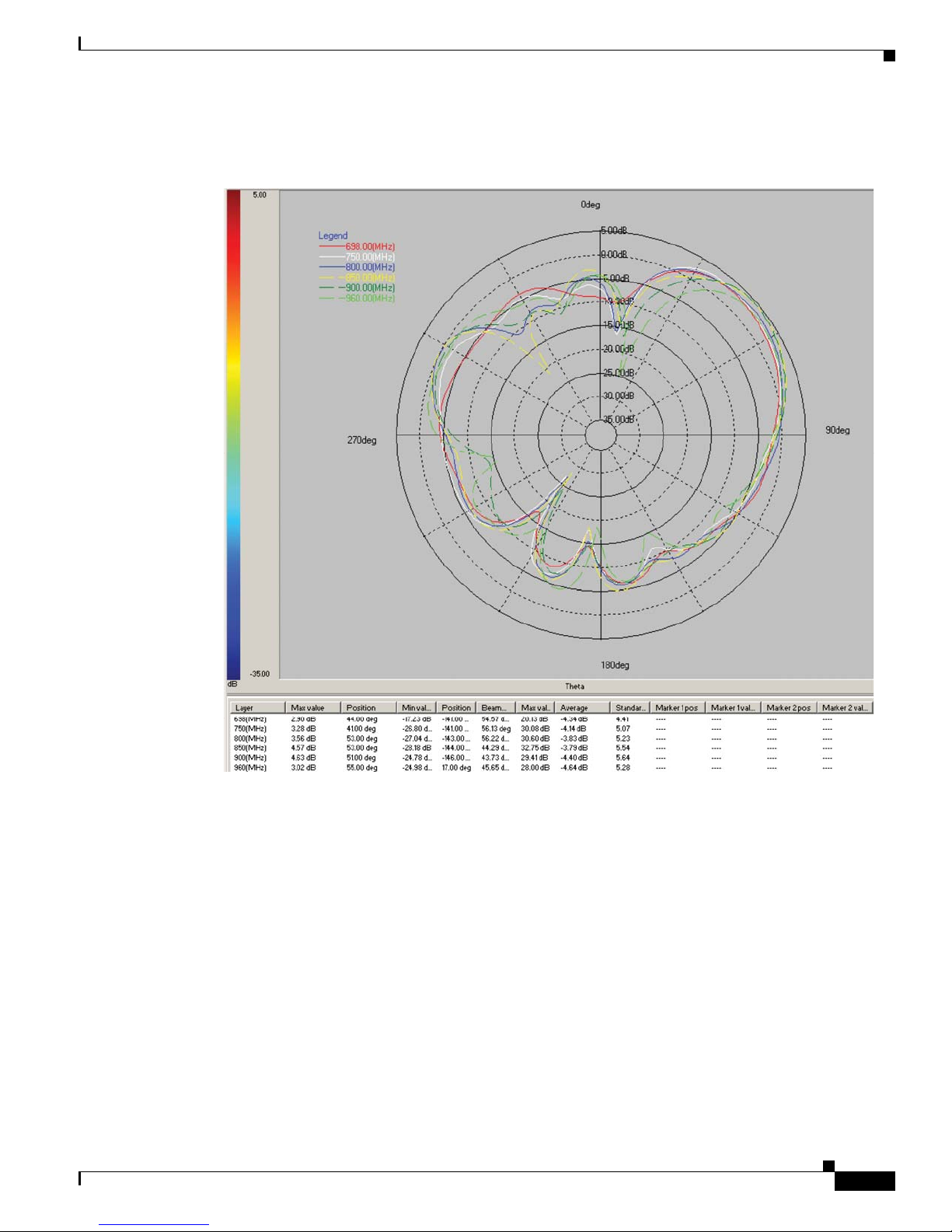

Figure 4 shows the Low Band 698-960 MHz EL (PHI=0).
Figure 4 Low band 698-960 MHz EL (PHI=0)
372742

7
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna
Figure 5 shows the Low Band 698-960MHz EL (PHI=90).
Figure 5 Low band 698-960MHz EL (PHI=90)
372743

8
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna
Figure 6 shows the Low Band 698-960MHz AZ (THETA=90).
Figure 6 Low Band 698-960MHz AZ (THETA=90)
372744

9
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna

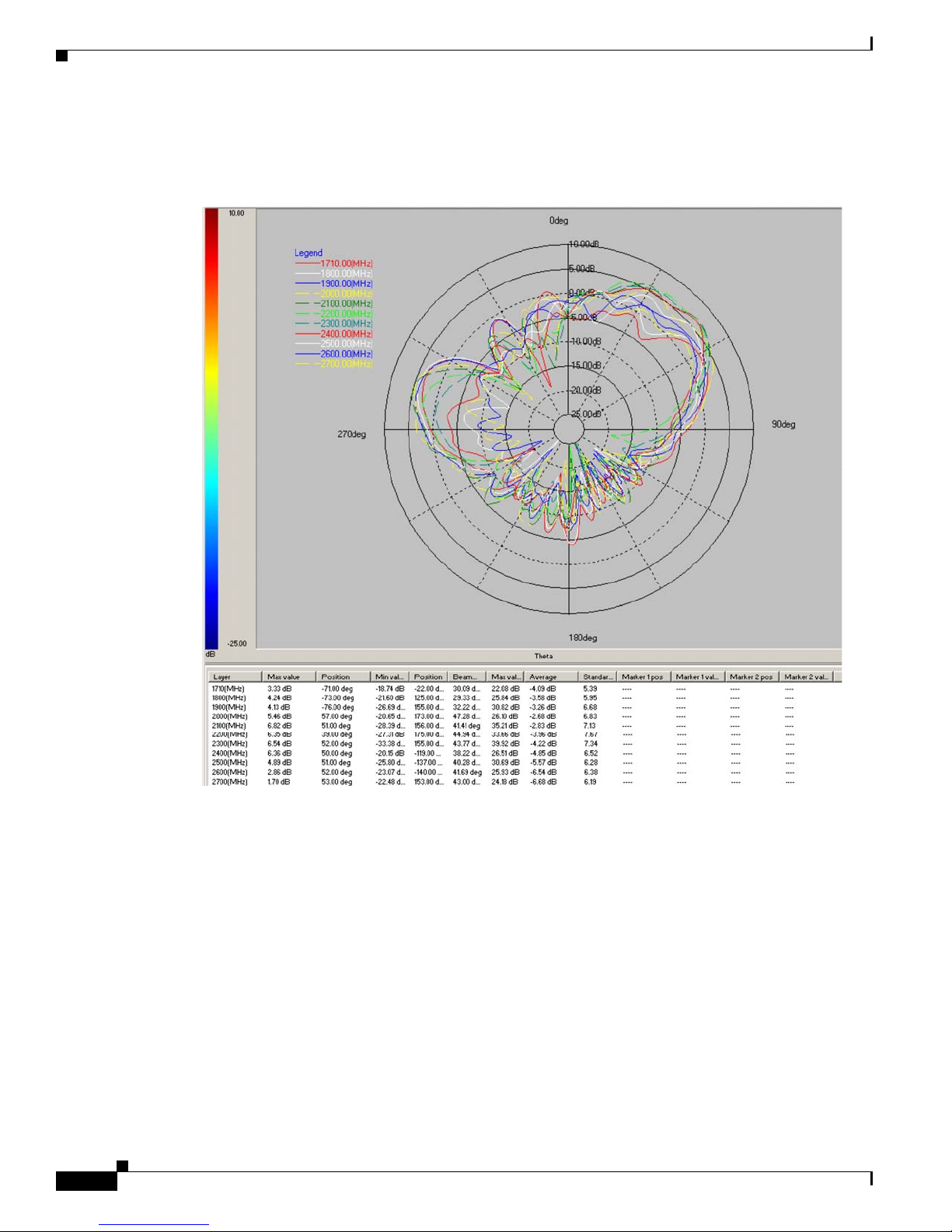

Figure 7 shows High Band 1710-2700MHz EL (PHI=0).
Figure 7 High Band 1710-2700MHz EL (PHI=0)
372745

10
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna
Figure 8 shows High Band 1710-2700MHz EL (PHI=90).
Figure 8 High Band 1710-2700MHz EL (PHI=90)
373009

11
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Overview of the 4G-LTE-ANTM-O-3 Antenna
Figure 9 shows High Band 1710-2700MHz AZ (THETA=90).
Figure 9 High Band 1710-2700MHz AZ (THETA=90)
373010

12
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Supported Antennas
Supported Antennas
Table 3 lists the supported antennas.
Supported Antenna Accessories
Table 4 lists the supported antenna accessories.
Table 3 Supported Antennas
Part Number Description
4G-LTE-ANTM-O-3-W Indoor or outdoor low-profile antenna with 4-foot
dongle, white radome.
4G-LTE-ANTM-O-3-B Indoor or outdoor low-profile antenna with 4-foot
dongle, black radome.
4G-LTE-ANTM-O-3-R Indoor or outdoor low-profile antenna with 4-foot
dongle, red radome.
4G-LTE-ANTM-O-3-C Indoor or outdoor low-profile antenna with 4-foot
dongle, blue radome.
Table 4 Supported Antenna Accessories
Part Number Cable Length Maximum Insertion Loss
4G-CAB-LMR240-25 25 ft (7.5 m) 2.1 dB @ 700 MHz
4.0 dB @ 2.6 GHz
4G-CAB-LMR240-50 50 ft (15 m) 4.1 dB @ 700 MHz
7.4 dB @ 2.6 GHz
4G-CAB-LMR240-75 75 ft (23 m) 6.1 dB @ 700 MHz
11.0 dB @ 2.6 GHz
4G-CAB-ULL-20 20 ft (6 m) 0.90 dB @ 700 MHz
1.8 dB @ 2.6 GHz
4G-CAB-ULL-50 50 ft (15 m) 2.2 dB @ 700 MHz
4.3 dB @ 2.6 GHz

13
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Antenna Options by Deployment Type
Antenna Options by Deployment Type
Table 5 lists the antenna options by deployment type.
Safety Precautions
This section contains the following warning statements. A warning means danger. You are in a situation
that could cause bodily injury. Before working on an equipment, be aware of the hazards involved with
electrical circuitry and standard safety practices to prevent accidents.
Statement 1052—Installing and Grounding the Antenna
Warning Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits,
or where it can come into contact with such circuits. When installing the antenna, take extreme care
not to come into contact with such circuits, as they may cause serious injury or death. For proper
installation and grounding of the antenna, refer to national and local codes (for example, U.S.:NFPA
70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1024—Ground Conductor
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection
authority or an electrician if you are uncertain that suitable grounding is available.
Table 5 Antenna Options by Deployment Type
Deployment Type Description
Antenna Accessories
Required
Indoor The antenna is installed indoors on a
grounded metal surface and
attached directly to a router.
None
Indoor, with extension The antenna is installed on a
grounded metal surface and
attached to a router with extension
cables.
• 4G-CAB-LMR240-25
• 4G-CAB-LMR240-50
• 4G-CAB-LMR240-75
• 4G-CAB-ULL-20
• 4G-CAB-ULL-50
Outdoor flush The antenna is installed outdoors to
a grounded metal surface and
attached directly to a router
mounted indoors.
None

14
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Safety Precautions
Statement 1025—Use Copper Conductors Only
Warning Use copper conductors only.
Statement 1046—Installing or Replacing the Unit
Warning When installing or replacing the unit, the ground connection must always be made first and
disconnected last.
Caution For your physical safety, and to help you install your antenna successfully, follow these safety
precautions.
• If you are installing an antenna for the first time, for your own safety as well as others, seek
professional assistance. Your Cisco sales representative can explain which mounting method to use
for the size and type of antenna you are about to install.
• Before you install an antenna, contact your Cisco account representative to explain which mounting
method to use for the size and type of antenna that you are about to install.
• Find someone to help you—installing an antenna is often a two-person job.
• Select your installation site with safety, as well as performance, in mind. Remember that electric
power lines and phone lines look alike. For your safety, assume that any overhead line can kill you.
• Contact your electric power company. Tell them your plans and ask them to come and look at your
proposed installation.
• Plan your installation carefully and completely before you begin. Each person involved in an
installation should be assigned to a specific task, and should know what to do and when to do it. One
person should be in charge of the operation to issue instructions and watch for signs of trouble.
• When installing your antenna, follow these guidelines:
– Do not use a metal ladder.
– Do not work on a wet or windy day.
– Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved
shirt or jacket.
• If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable,
and metal guy wires are all excellent conductors of electrical current, even the slightest touch of any
of these parts to a power line completes an electrical path through the antenna and the installer.
• If any part of the antenna system should come in contact with a power line, do not touch it or try to
remove it yourself. Call your local power company to have it removed safely.
• If an accident should occur with the power lines, call for qualified emergency help immediately.

15
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Installation Instructions
Installation Instructions
The following section contains steps for installing the 4G-LTE-ANTM-O-3 antenna:
Step 1 While choosing the location, keep the following in mind:
• Attempt to center the antenna on a flat plane.
• Attempt to position the antenna so that it has 8 inches of flat plane in any given direction.
• Attempt to space at least 16 inches from an adjacent antenna or metallic structure and choose a
location with gentle surface curves to ensure proper sealing.
• Ensure that there is a space that is 2 inches deep and 2 inches in diameter below the mounting surface
to allow sufficient clearance for the mounting stud, hardware, and cables.
• Ensure that the diameter of the hole is 5/8 inch.
Step 2 Drill a hole through the mounting surface where the center of the antenna is located, as shown in
Figure 10.
Note Ensure that the hole is deburred of sharp edges to prevent cable damage during installation.
Figure 10 Drill the Mounting Surface
Step 3 Clean the mounting surface around the hole. The surface must be free of any debris, which would
otherwise prevent the antenna's inner foam gasket from adhering to or the outer rubber gasket from
forming a seal.
Step 4 Remove the nut from the mounting stud and cables one by one.
Step 5 Insert the mounting stud through the hole and then thread the cables through the serrated face nut one
by one.
Note It is important that the orientation of the serrated face nut should be correct. Otherwise, the serrated part
of the lock nut will not bite into the mounting stud.
372748

16
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Installation Instructions
Figure 11 shows the bottom view of the antenna.
Figure 11 Bottom View of the Antenna
Step 6 Position the antenna onto the mounting surface and tighten the nut hand-tight, as shown in Figure 12.
Tighten it further using a wrench until the antenna is fully seated. Visually inspect the outer rubber
antenna gasket to ensure that it has been compressed and sealed tightly against the mounting surface and
radome.
Figure 12 Tighten the Nut after the Antenna is fully seated
4G-LTE-ANTM-O-3-B
INSTALLATION
TORQUE 4.5Nm
4G LTE 3 in 1 outdoor Black
antenna 700MHZ
www.cisco.com/go/4g
SN: 14300881
RoHs
Complaint
MPN: 07-01329-01
Made in: CN
10
1
2
3
372915
1Product ID and Serialization Label 2MPN and Torque Label
3Liner
372753

17
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Deployment Scenarios
Deployment Scenarios

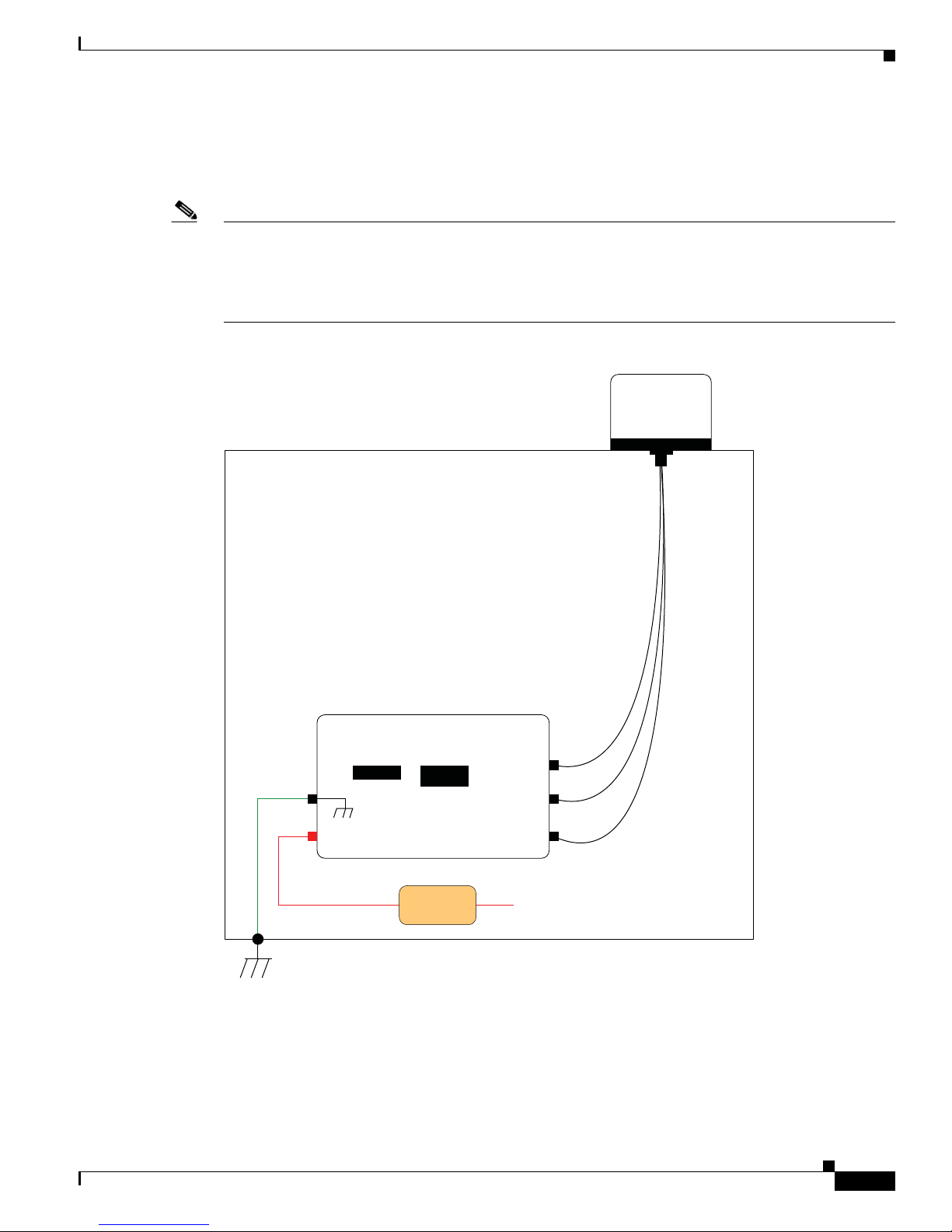

Figure 13 shows the deployment of the 4G-LTE-ANTM-O-3 antenna on an ATM with a single router.
Note All the three antenna cables are SubMiniature version A (SMA-male) connectors, but the MAIN and the
Diversity (DIV) of the router has the Threaded Neill–Concelman (TNC-female) connectors, and the GPS
has an SMA-female connector. In this case, an SMA-female to TNC-male adapter needs to be used to
connect the SMA-male connectors to the MAIN and DIV of the router because they cannot be connected
to the SMA-male connectors directly.
Figure 13 Deployment of an Antenna with One Router
Router
MAIN
SIM MODEM
DIV
GPS
+5V AC or DC input
option available
Power
Adapter
372746

18
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Deployment Scenarios

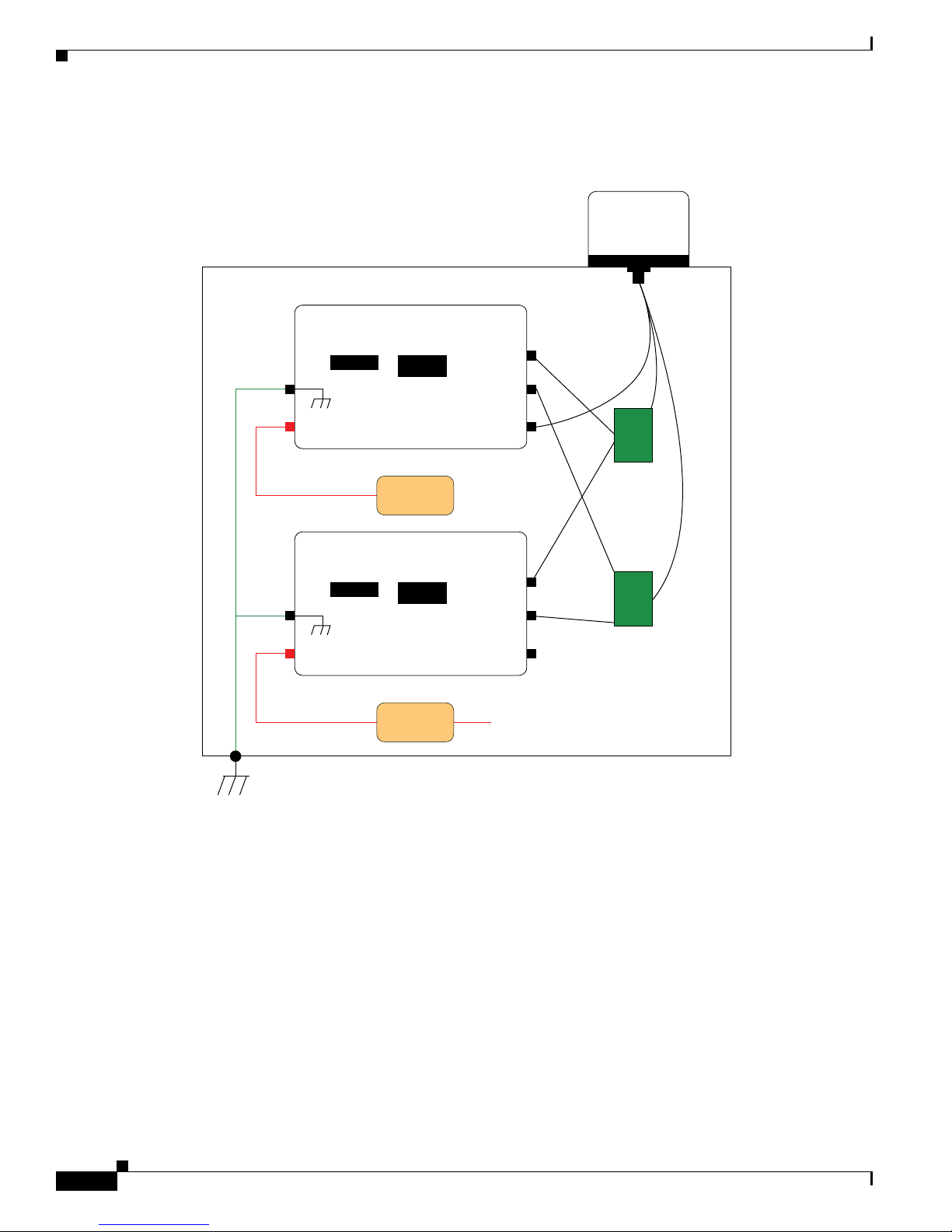

Figure 14 shows the deployment of 4G-LTE-ANTM-O-3 on an ATM with dual routers.
Figure 14 Deployment of an Antenna with Dual Routers
MAIN
SIM MODEM
DIV
GPS
+5V AC or DC
power adapters
are available
Power
Adapter
Router A
Router B
MAIN
SIM MODEM
DIV
GPS
+5V Power
Adapter
RF Splitter
RF Splitter
372747

19
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Antenna Ports
Antenna Ports
This section describes the antenna ports, their locations on the router, and the recommended
antenna-installation locations. You can connect an antenna to the ports of a Cisco Enhanced High-Speed
WAN Interface Card (EHWIC) or Cisco 819 series router.
Connecting the Antenna to the Cisco 819 Series Router or Cisco EHWIC
The antenna ports are shown in Figure 15, and the front panel details of the Cisco 819 series router are
shown in Figure 16.
Figure 15 Insert Base of Antenna into Router Antenna Port
1Mounting Screws 6LED—LTE
2LED—WWAN 7LED—GPS1
1. GPS = Global Positioning System.
3LED—RSSI2
2. RSSI = Received Signal Strength Indicator.
8Antenna Connectors—M1/DIV, M0/MAIN
4RSVD (reserved) port, USB 2.0 mini type B 9Antenna Connector—GPS
5LED—EVDO3
3. EVDO = Evolution-Data Optimized.
EHWIC-
4G-LTE
WWAN RSSI RSVD GPS
MO/
MAIN
M1/
DIV
LTE
EVDO
GPS
372961
2 3 4 65 7 8
1 19
8

20
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide
OL-32387-01
Related Documentation
Figure 16 Front Panel Details of Cisco 819 4G LTE ISR
Related Documentation
• For information about antennas and modules, see:
www.cisco.com/go/cg-modules
• For information about omnidirectional and directional antennas, see:
http://www.cisco.com/en/US/tech/tk722/tk809/technologies_tech_note09186a00807f34d3.shtml
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional
information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and
revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS)
feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds
are a free service and Cisco currently supports RSS version 2.0.
This document is to be used in conjunction with the documents listed in the “Related Documentation”
section.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of
Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners.
The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
@2014 Cisco Systems, Inc. All rights reserved.
285447
1 436 7 9 10 11 13
5128
2
14G Antenna connector—M0/MAIN 8GE WAN port
2LEDs 9Antenna Connector—GPS Console/Aux port
3Reset button 10 Power input
44G/3G port 11 Power switch
54G Antenna connector—M1/DIV 12 Active GPS antenna connector
6Serial port 13 Ground
7FE port
