INSTALLATION GUIDE
Cisco Aironet Directional Hyperlocation
Antenna (AIR-ANT25-LOC-02=)

2
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential
This document describes the AIR-ANT25-LOC-02= antenna and provides electrical specifications and mounting
instructions.
The antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands. The
antenna provides both location-based services and Wi-Fi coverage over wide, open areas. The antenna may be mounted
on a wall or mounted using an articulating mount. The location array in the antenna services a wide coverage area (±55º
left and right of the boresight).
The antenna ships with an articulating mount for use on flat surfaces and masts and is adjustable in both the horizontal
and vertical planes. The antenna radome can be painted using commonly available non-conductive spray paints, such
as Krylon or Rust-Oleum. The antenna is designed for use in indoor or outdoor environments. The antenna is designed
for use with the Cisco Aironet AP3702E and AP3702P access points along with the Cisco Hyperlocation module
(AIR-RM3010L-x-K9=).
The following information is provided in this document:
Technical Specifications, page 3,
What’s in the Box, page 8
Mounting the Antenna, page 12
Painting the Antenna, page 27

3
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Technical Specifications
Antenna Type Printed Dipole, Dual-Band, with Location Array
Operating Frequency Ranges 2.4-2.484 GHz 5.15-5.925 GHz
Peak Gain 4 dBi, for Wi-Fi Element 5 dBi, for Wi-Fi Element
N.A. for Location Sensor N.A. for Location Sensor
Nominal Azimuth Plane 3-dB Beamwidth 105 Degrees, for Wi-Fi Element 105 Degrees, for Wi-Fi Element
140 Degrees, for Location Sensor 150 Degrees, for Location Sensor
Nominal Elevation Plane 3-dB Beamwidth 60 Degrees, for Wi-Fi Element 60 Degrees, for Wi-Fi Element
85 Degrees, for Location Sensor 100 Degrees, for Location Sensor
Nominal Input Impedance 50 Ohms 50 Ohms
VSWR 1.5:1 1.5:1 (above 5.7 GHz to 5.9 GHz)
2:1 (from 5.15 GHz to 5.7 GHz)
Polarization Vertical Vertical
V-Pol Maximum Sidelobe Level -15 dBc -12 dBc
H-Pol Maximum Sidelobe Level -10 dBc -12 dBc
Front-to-Back Ratio > 30 dB > 30 dB
Connector Type Five cables which include the following:
One cable with a rectangular (DART) connector that attaches to the
Hyperlocation module.
Four coaxial cables with RP-TNC connectors that attach to the AP’s antenna
connectors.
Note Although two cables are labeled Aand two are labeled B, this has no
significance to the order in which these cables are attached to the Cisco
AP3702E.
Length 14.5 in. (36.8 cm)
Width 20 in. (50.7 cm)
Height 0.8 in. (2.11 cm)
Weight 81.1 oz. (2.3 kg)
Water/Foreign Body Ingress IP67
Operational Wind 100 MPH
Operating Temperature Range -40° C to 85° C

4
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential

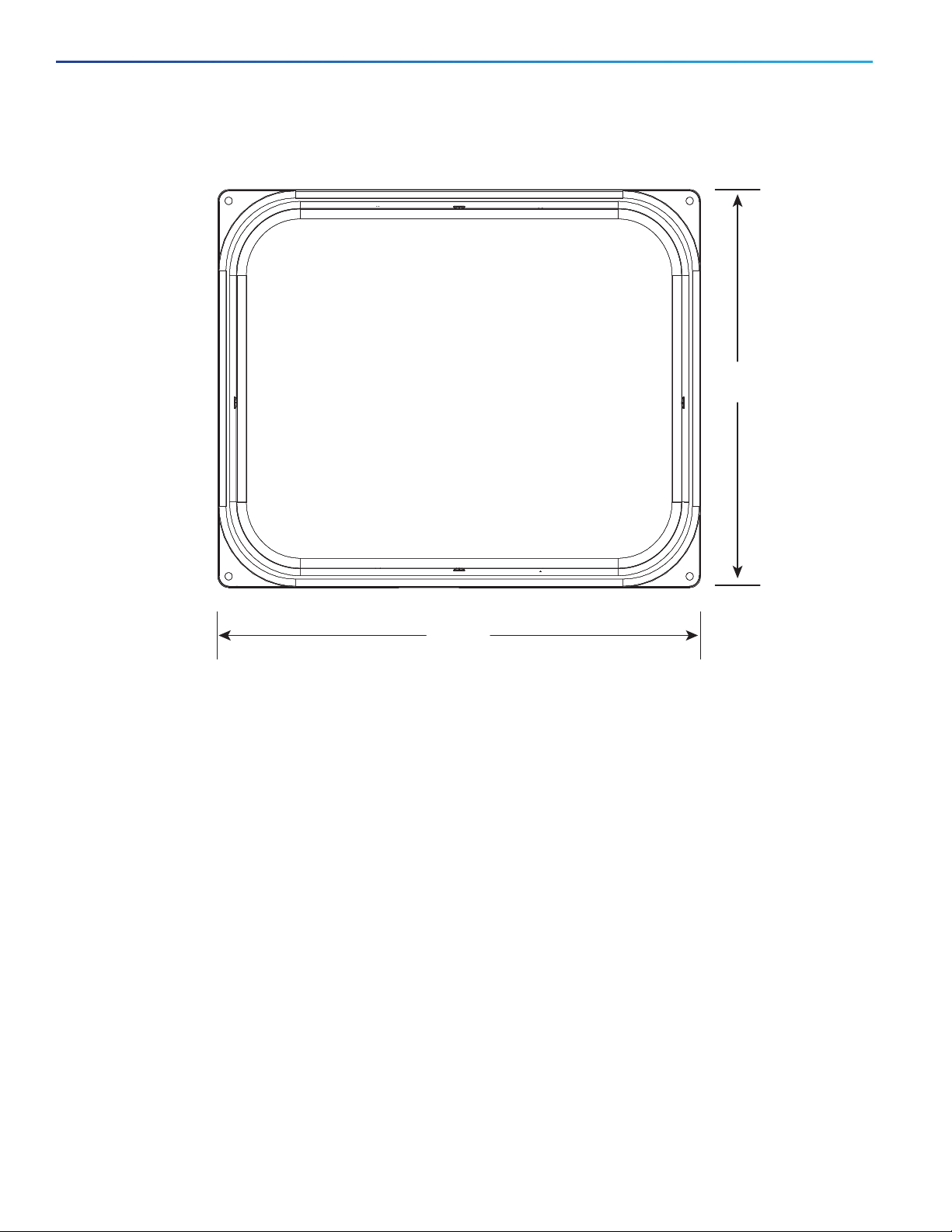

Figure 1 Antenna Dimensions (in inches)
354884
17.750
14.00

5
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
2.4 GHz WiFi Antenna Radiation Patterns

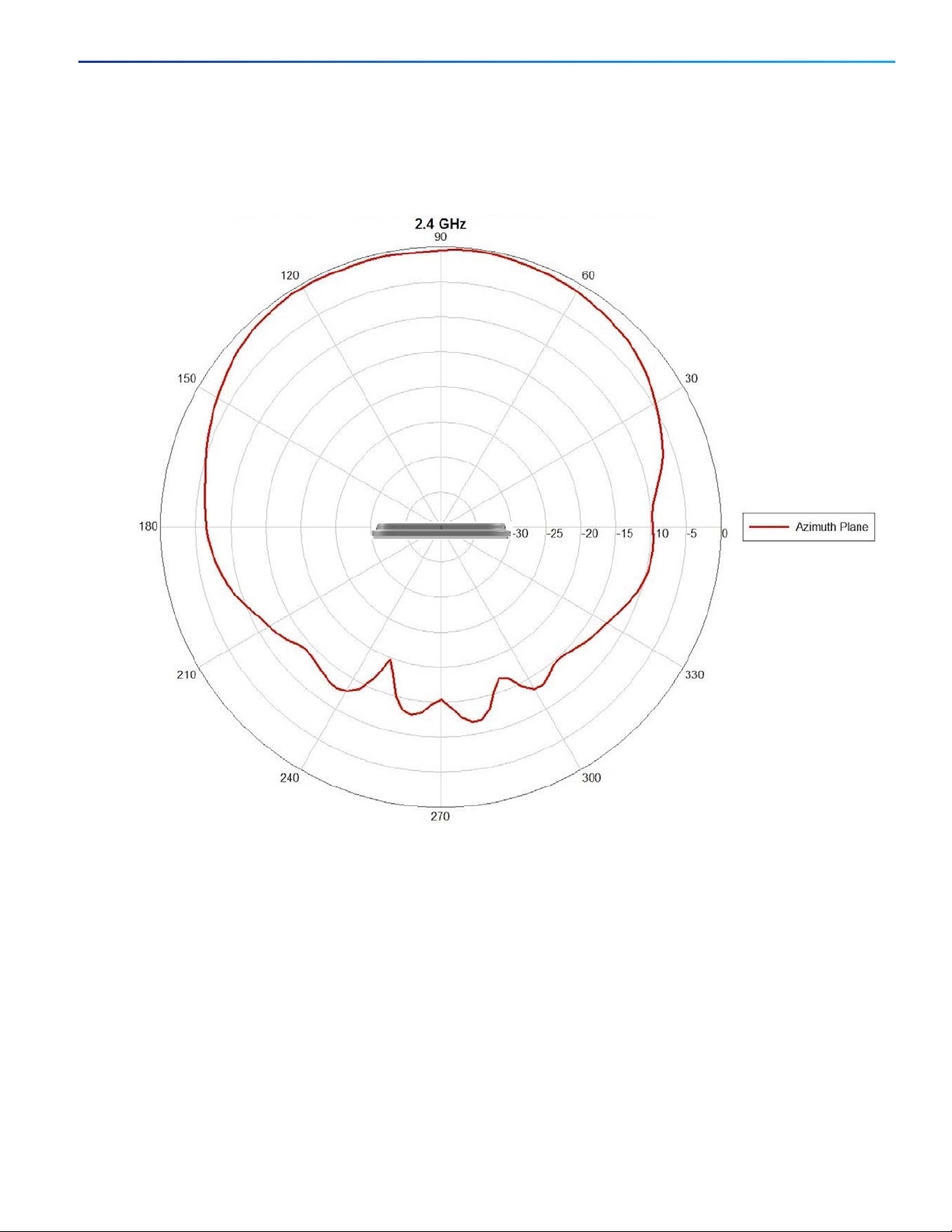

Figure 2 2.4 GHz Radiation Pattern—Azimuth Plane

6
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential
Figure 3 2.4 GHz Radiation Pattern—Elevation Plane

7
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
5 GHz WiFi Antenna Radiation Patterns
Figure 4 5 GHz Radiation Pattern—Azimuth Plane

8
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential
Figure 5 5 GHz Radiation Pattern—Elevation Plane
What’s in the Box
AIR-ANT25-LOC-02= directional hyperlocation antenna with directional WiFi, with five attached cables. See the
“Parts of the Antenna” section on page 9.
Mounting bracket assembly parts and hardware. See the “Mounting Bracket Hardware Kit” section on page 11.

9
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Parts of the Antenna
Figure 6 Face view of the antenna
1Holes for flush-mounting the antenna on a
wall
3Four coaxial cables with RP-TNC (plug) connectors that attach to
the AP’s antenna connectors.
Note Although two cables are labeled Aand two are labeled B,
this has no significance to the order in which these
cables are attached to the Cisco AP3702E.
2One cable with a rectangular (DART)
connector that attaches to the
Hyperlocation module
4Arrow denoting the direction for Hyperlocation. This arrow is
present on the top (as shown), base, and the sides of the
antenna.
For information on orienting the antenna for Hyperlocation to
work, see the Hyperlocation Deployment Guide at the following
URL:
http://www.cisco.com/c/en/us/td/docs/wireless/controller/tec
hnotes/8-1/Halo-DG/b_hyperlocation-deployment-guide.html
354893
1
1
2 3
4
1

10
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential
Figure 7 Back view of the antenna
354894
1
3
2
1Holes for attaching the mounting bracket. See xxx. 3Arrow indicating the vertical orientation in which the
antenna needs to be mounted.
2Pressure release vent.

11
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Mounting Bracket Hardware Kit
Figure 8 shows the parts of the antenna bracket kit that is factory-shipped with the antenna.
Figure 8 Antenna Mounting Bracket Kit Contents
1Worm-gear type hose clamp (50-135mm), 2 nos, used
only when mounting the antenna on a pole.
8Spacer1for attaching Female-Female mount flanges.
2Mount flange, 2 nos.
Both mount flanges are identical. Each can be attached to
the back of the antenna, a wall, or a pole.
9Mount arm, 1 nos.
3Hex bolts, 5/16-18 X 1-5/8”, 2 nos. 10 Flat washers, 5/16", 2 nos.
4M8 external serrated lock washers, 2 nos. 11 Split-lock washers, 5/16", 2 nos.
5Hex nuts, 5/16-18”, 2 nos. 12 Split-lock washers, 1/4 inch, 4 nos.
61/4 inch flat washers, 4 nos. 13 Hex nuts, 1/4-20, 4 nos.
7Phillips machine screws. Pan head type. 4 nos.
1. The spacer is used only in the short-link mount configuration.

12
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential
Mounting the Antenna
Follow these steps for installing the antenna:
Read the Safety Instructions, page 12 and Installation Guidelines, page 13 thoroughly.
Familiarize yourself with theParts of the Antenna, page 9 and Mounting Bracket Hardware Kit, page 11.
Proceed with Choosing the Mounting Location and Brackets, page 13 and then following the different deployment
scenarios provided therein.
—Flush-Mounting the Antenna on a Wall, page 18
—Mounting using Short-Link Mount Assembly, page 20
—Mounting using Mount Arm-Flanges Bracket Assembly, page 23
Safety Instructions
Warning IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this device.
Statement 1071
SAVE THESE INSTRUCTIONS
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Follow these safety instructions when installing your antenna.
Plan your installation procedure carefully and completely before you begin.
If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance.
Consult your dealer, who can explain which mounting method to use for the location where you intend to install the
antenna.
Select your installation site with safety, as well as performance, in mind. Remember that electric power cables and
telephone lines look alike. For your safety, assume that any line is an electric power line until determined otherwise.
Call your local power company or building maintenance organization if you are unsure about cables close to your
mounting location.
When installing your antenna, do not use a metal ladder. Do dress properly: shoes with rubber soles and heels,
rubber gloves, and a long sleeved shirt or jacket.
If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.

13
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Installation Guidelines
As antennas transmit and receive radio signals, they are susceptible to RF obstructions and common sources of
interference that can reduce throughput and range of the device to which they are connected. Follow these guidelines
to ensure the best possible performance:
Mount the antenna to utilize its propagation characteristics. This antenna is designed to radiate energy in a
somewhat narrow beam from the front of the antenna. It should be aimed into the intended coverage area.
Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away
from these obstructions.
The density of the materials used in a building’s construction determines the number of walls the signal must pass
through and still maintain adequate coverage. Consider the following before choosing the location to install your
antenna:
—Signals penetrate paper, vinyl and drywall the easiest. A signal can penetrate five or six walls constructed of
drywall or wood.
—Signals are more heavily attenuated passing through concrete and solid-wood walls.
—Signals often reflect off thick metal walls and may not penetrate at all.
Install the antenna away from microwave ovens and 2 GHz cordless phones. These products can cause signal
interference because they operate in the same frequency range as the access point to which your antenna is
connected.
Choosing the Mounting Location and Brackets
The antenna is designed for use with the Cisco Aironet AP3702E and AP3702P access points along with the Cisco
Hyperlocation module (AIR-RM3010L-x-K9=). The antenna can be mounted only vertically, on a wall, or on a pole. For
pole-mounting, the pole should have a minimum diameter of 2 inches and a maximum diameter of 5 inches (50mm -
135mm).
The antenna is designed for both indoor and outdoor deployments. You can deploy it in large halls, warehouses, and
atriums having high ceilings.
When mounting the antenna you need to assemble the bracket hardware, mount the antenna using the bracket, and
adjust the antenna orientation.
The antenna should be mounted clear of any obstructions to the side or front of the antenna enclosure. Note that this
antenna should be aimed into the intended coverage area, and so you should mount the antenna so as to achieve the
required mechanical tilt. Mount the antenna as close to the access point so that the access point is within the range of
the connecting cables.

14
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential
Depending on where you are mounting the antenna, there are multiple mounting and bracket assembly options available.
See Table 1.
Mounting Bracket Assemblies and Dimensions

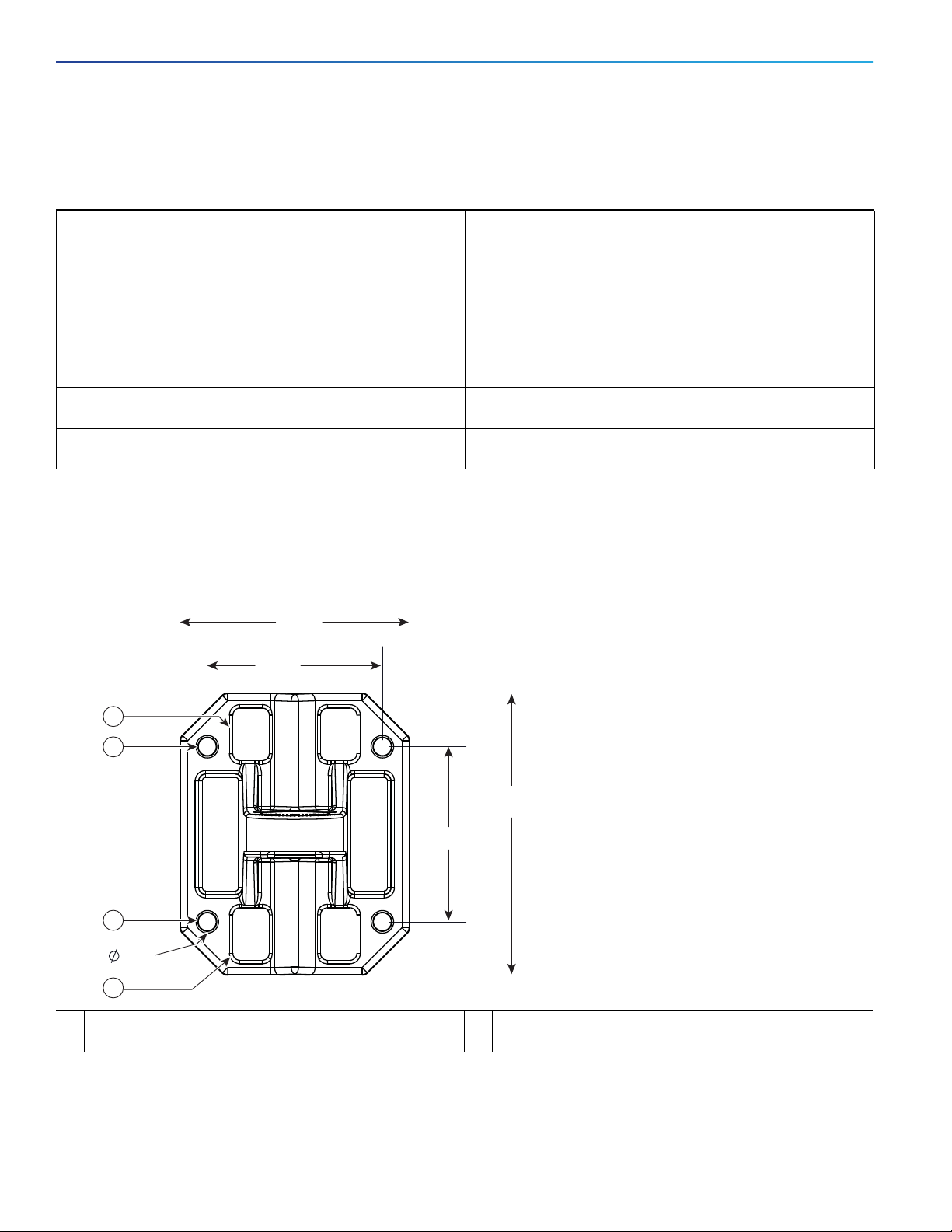

Figure 9 Mount Flange Parts and Dimensions (in millimeters)
Table 1 Choosing the Mounting Options and Bracket Assemblies
Mounting Scenario Instructions
Flush-mounting the antenna directly on a wall, with no
articulation. In this installation:
No mounting bracket is used.
No azimuth and elevation adjustment is possible.
The cables, at the back of the antenna, will need to be
routed through a hole in the wall.
Flush-Mounting the Antenna on a Wall, page 18
Wall-mounting and pole-mounting the antenna, using a
short-link mount.
Mounting using Short-Link Mount Assembly, page 20
Wall-mounting and pole-mounting the antenna, with
articulation, allowing for azimuth and elevation adjustment
Mounting using Mount Arm-Flanges Bracket Assembly,
page 23
354885
63.50
63.50
(102.3)
(83.2)
X 6.54
1
1
2
2
1Slotted holes for steel band clamps, for pole-mounting
only.
2Screw holes for fastening flange to the antenna or to a
wall.

15
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)

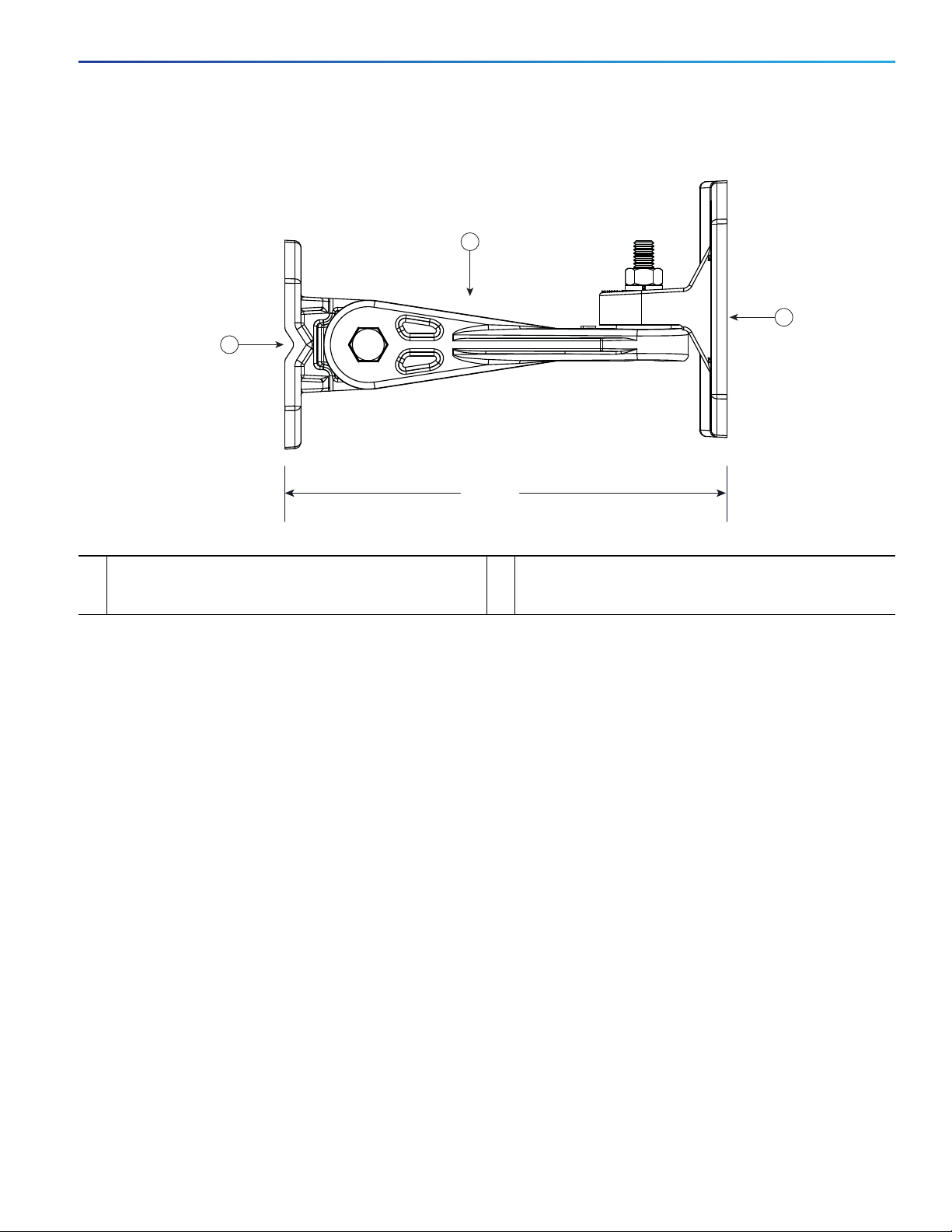

Figure 10 Length of Short Link Mount – in inches (and millimeters)
354886
(66.345)
2.612
2
1
and
2
Mount flanges. One flange attaches to the mounting surface—a wall or a pole. The other flange attaches to the antenna.
The mount arm is not used in this assembly.

16
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential

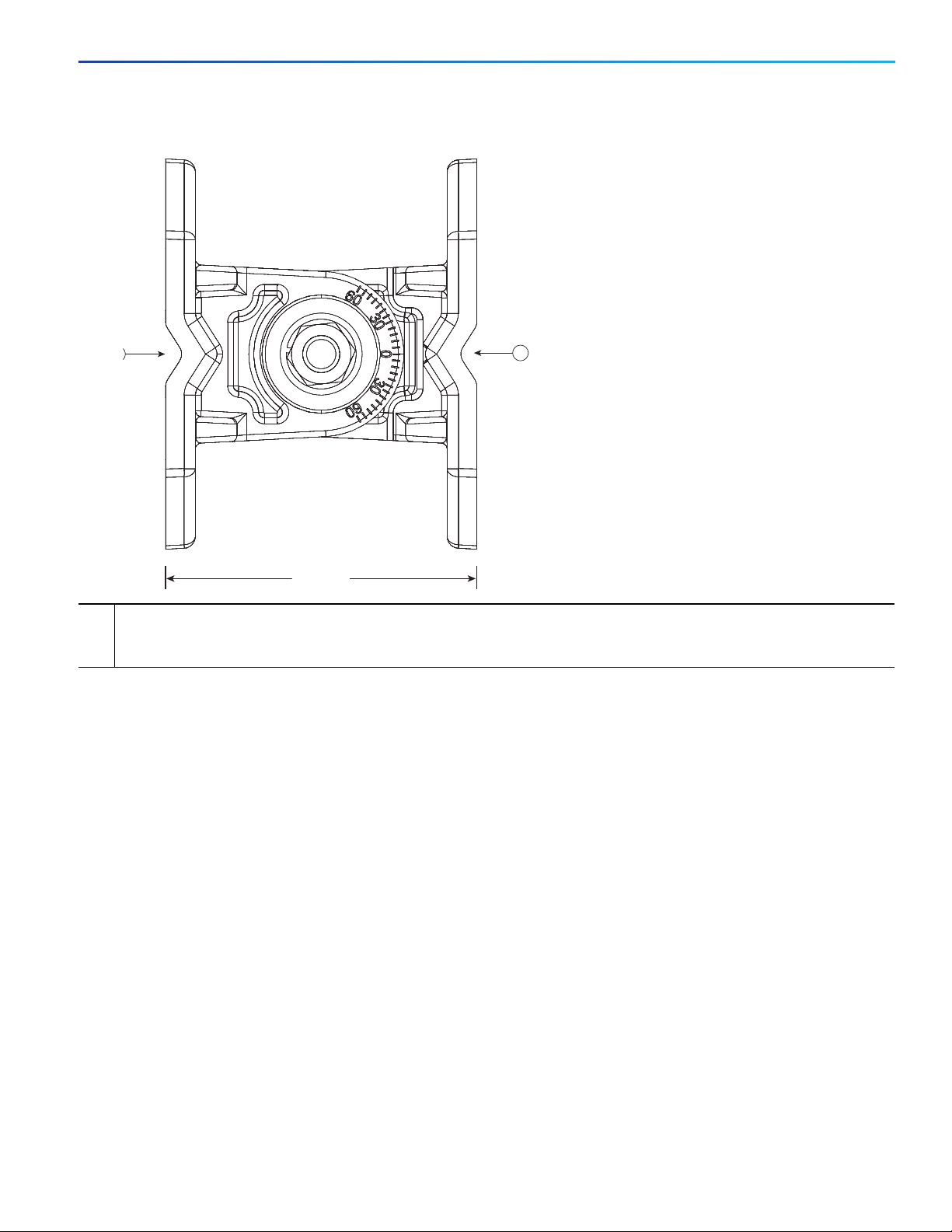

Figure 11 Assembling the Short Link Mount
1Mount flange which attaches to the antenna. 4Mount flange which attaches to the mounting surface.
2Phillips machine screws, flat washers, and split-lock
washers used to attach the flange to the antenna
6, 5,
and
3
5/16-18 X 1-5/8" screw, spacer, M8 serrated
washer, 5/16" flat washer, 5/16" split-lock washer,
5/16-18” hex nut—used to attach one flange to the
other.
Use a 1/2 in. (13-mm) wrench to fasten the screw,
washers, and nut to the assembly. Tighten to
18.7 +/- 5 lb-ft (25.4 Nm).
3,5,
and
6
5/16-18 X 1-5/8" screw, spacer, M8 serrated washer,
5/16" flat washer, 5/16" split-lock washer, 5/16-18” hex
nut—used to attach one flange to the other.
Use a 1/2 in. (13-mm) wrench to fasten the screw,
washers, and nut to the assembly. Tighten to
18.7 +/- 5 lb-ft (25.4 Nm).

17
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Figure 12 Length of Fully Assembled Mount Arm-Flanges Bracket – in inches (and millimeters)
354888
(176.1)
2
2
1
1Mount arm, connecting the two mount flanges, and
providing articulation—both azimuth and elevation
adjustment.
2Mount flanges. One flange attaches to the mounting
surface—a wall or a pole. The other flange attaches to the
antenna.

18
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential
Figure 13 Assembling the Full Mount Arm–Flanges Bracket
Flush-Mounting the Antenna on a Wall
You can mount the antenna directly on a wall, vertically, without using any mounting bracket assembly, allowing the
antenna to be flush against the wall (see Figure 14). The cables, at the back of the antenna, will need to be routed through
a hole in the wall.
354889
4
1
1
4-PLCS.
4-PLCS.
ATTACH TO ANTENNA WITH
SCREWS (4) 48-101428-01FROM
MOUNTING KIT 69-100382-01
THIS SIDE MOUNTS TO ANTENNA
2
3
1
6
4
5
7
8
9
7
8
9
1
5
5
4
1
6
6
1Mount flange 65/16-18 X 1-5/8" screw for pivot adjustment
21/4 inch flat washer 7M8 serrated washer
31/4 split-lock washer 85/16" flat washer
49
5/16" split-lock washer
5Mount arm 10 5/16-18” hex nut

19
Draft Label—Cisco Confidential
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
The following table lists the materials needed for this installation:
To flush-mount the antenna on a wall, follow these steps:
Step 1 Determine the mounting location for the antenna.
Note The fasteners and mounting surface should be capable of maintaining a minimum pullout force of 150 pounds
(68 kg) to support the weight of the antenna plus the potential wind loading on the antenna.
Step 2 Use the antenna as a template and mark the positions of the holes for flushing-mounting the antenna, on
the wall. Drill holes into this marked positions and insert wall anchors as required.
Step 3 Cut a hole in the wall, for passing the antenna cables through.
Step 4 Hold up the antenna against the wall and pass the antenna cables through the hole in the wall. Make sure
you orient the antenna correctly (note the arrow on the back of the antenna that indicates the top of the
antenna).
Step 5 Align the antenna’s wall-mount screw holes with the holes in the wall, and then fasten the antenna to the
wall using the fasteners which you have procured.
Step 6 Optionally, seal the hole for the cables using a cable sealing system, such as the Roxtec Multidiameter™
cable sealing system. Visit http://www.roxtec.com/ for information on how to install the cable sealing
system.
Step 7 Connect the antenna cables to the access point.
Materials Needed Factory-Shipped?
Four mounting screws and wall anchors
(Used for mounting the antenna on a wall. These
fasteners should be capable of maintaining a
minimum pullout force of 150 pounds (68 kg) to
support the weight of the antenna and bracket,
plus the potential wind loading on the antenna.)
No
Roxtec Multidiameter™ cable sealing system
(http://www.roxtec.com/)
No
Drill, drill bits, and a pencil. No

20
Cisco Aironet Directional Hyperlocation Antenna (AIR-ANT25-LOC-02=)
Draft Label—Cisco Confidential
Figure 14 Flush-mounting the Antenna on a Wall
Mounting using Short-Link Mount Assembly
You can mount the antenna on a wall or a pole, vertically, using the Short-Link mount bracket assembly. See Figure 15.
1Holes for mounting the antenna to the wall using
fasteners.
2Hole in the wall through which the cables are routed.
Optionally, you can seel this hole using a cable sealing
system, such as the Roxtec Multidiameter™ cable sealing
system. Visit http://www.roxtec.com/ for information on
how to install the cable sealing system.
